child restraint MAZDA MAZDA 2023 User Guide

WARNING
Use the correct size child-restraint
system:
For effective protection in vehicle
accidents and sudden stops, a child
must be properly restrained using a
seat belt or child-restraint system
depending on age and size. If not, the
child could be seriously injured or even
killed in an accident.
Follow the manufacturer's
instructions and always keep the
child-restraint system buckled down:
An unsecured child-restraint system is
dangerous. In a sudden stop or a
collision it could move causing serious
injury or death to the child or other
occupants. Make sure any
child-restraint system is properly
secured in place according to the
child-restraint system manufacturer's
instructions. When not in use, remove
it from the vehicle or fasten it with a
seat belt, or attach it to BOTH ISOFIX/
LATCH
*1 lower anchors for ISOFIX/
LATCH*1 child-restraint systems and
the corresponding tether anchor.
*1 ISOFIX (Mexico)/LATCH (Except Mexico)
Always secure a child in a proper
child-restraint system:
Holding a child in your arms while the
vehicle is moving is extremely
dangerous. No matter how strong the
person may be, he or she cannot hold
onto a child in a sudden stop or
collision and it could result in serious
injury or death to the child or other
occupants. Even in a moderate
accident, the child may be exposed to
air bag forces that could result in
serious injury or death to the child, or
the child may be slammed into an
adult, causing injury to both child and
adult.
Never use a rear-facing child-restraint
system in the front seat with an air
bag that could deploy:
Rear-facing child-restraint systems on
the front seat are particularly
dangerous even though you may feel
assured that a front passenger air bag
will not deploy based on the fact that
the front passenger air bag
deactivation indicator light illuminates.
The child-restraint system can be hit by
a deploying air bag and moved
violently backward resulting in serious
injury or death to the child.
Essential Safety Equipment
Child Restraint
2-32
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

(Mexico)
NEVER use a rearward facing child
restraint on a seat protected by an
ACTIVE AIRBAG in front of it, DEATH
or SERIOUS INJURY to the CHILD can
occur.
Ve h i c l e s w i t h a f r o nt passenger air bag
have the following warning label. The
warning label reminds you not to put a
rear-facing child-restraint system on
the front passenger seat at any time.

(Except Mexico)
Ve h i c l e s w i t h a f r o n t passenger air bag
have the following warning label. The
warning label reminds you not to put a
rear-facing child-restraint system on
the front passenger seat at any time.
Do not install a front-facing
child-restraint system on the front
passenger seat unless it is
unavoidable:
In a collision, the force of a deploying
air bag could cause serious injury or
death to the child. If installing a
front-facing child-restraint system on
the front passenger seat is
unavoidable, move the front passenger
seat as far back as possible.
Seating a child in a child-restraint
system on the front passenger seat is
dangerous under certain conditions
(With Front Passenger Occupant
Classification System):
Your vehicle is equipped with front
passenger seat weight sensors. Even
with the front passenger seat weight
sensors, if you must use the front
passenger seat to seat a child, using a
child-restraint system on the front
passenger seat un der the following
conditions increases the danger of the
front passenger air bag deploying and
could result in serious injury or death
to the child.
Essential Safety Equipment
Child Restraint
2-33
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

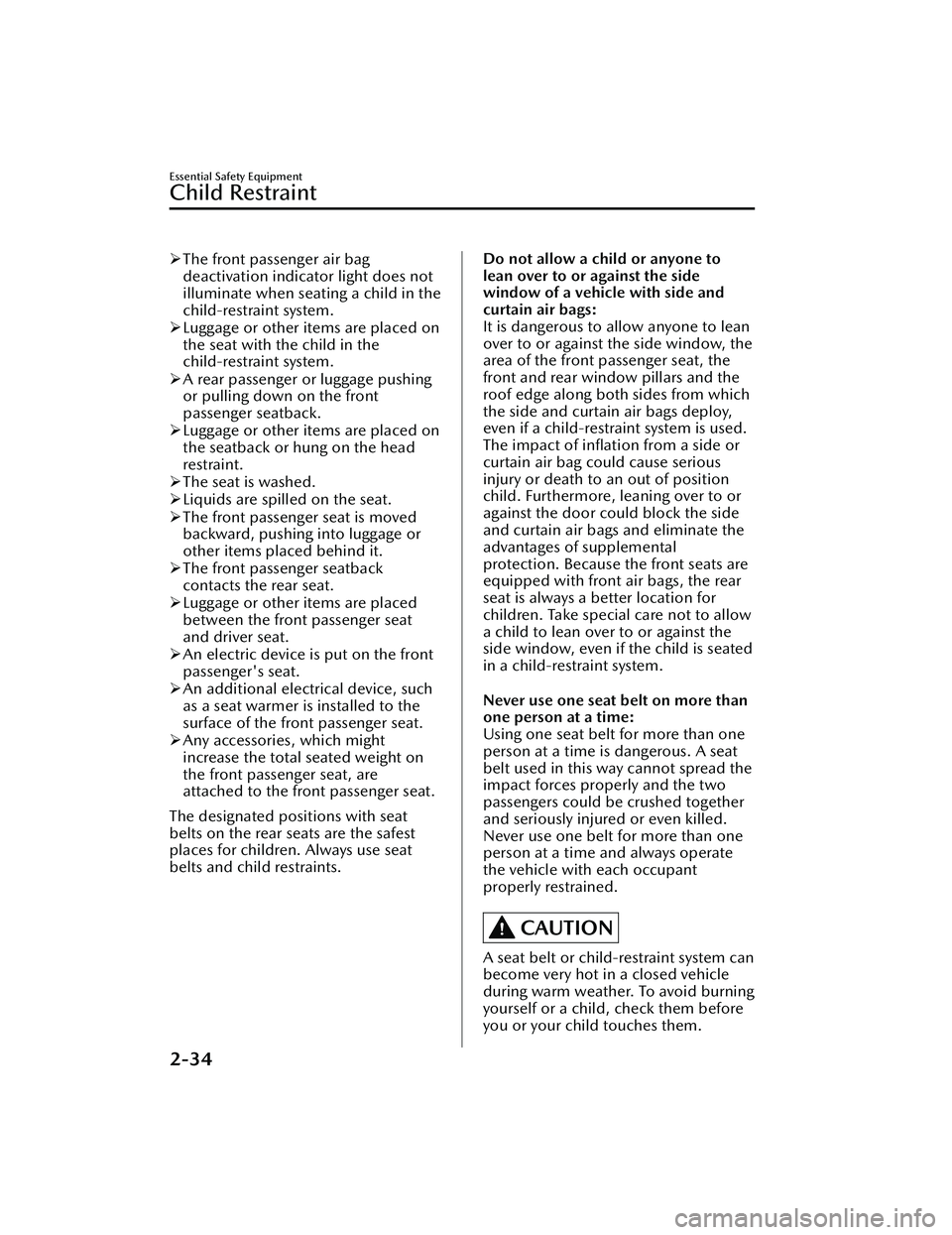

The front passenger air bag
deactivation indicator light does not
illuminate when seating a child in the
child-restraint system.
 Luggage or other items are placed on
the seat with the child in the
child-restraint system.
 A rear passenger or luggage pushing
or pulling down on the front
passenger seatback.
 Luggage or other items are placed on
the seatback or hung on the head
restraint.
 The seat is washed.
 Liquids are spilled on the seat.
 The front passenger seat is moved
backward, pushing into luggage or
other items placed behind it.
 The front passenger seatback
contacts the rear seat.
 Luggage or other items are placed
between the front passenger seat
and driver seat.
 An electric device is put on the front
passenger's seat.
 An additional electrical device, such
as a seat warmer is installed to the
surface of the front passenger seat.
 Any accessories, which might
increase the total seated weight on
the front passenger seat, are
attached to the front passenger seat.
The designated positions with seat
belts on the rear seats are the safest
places for children. Always use seat
belts and child restraints.Do not allow a child or anyone to
lean over to or against the side
window of a vehicle with side and
curtain air bags:
It is dangerous to allow anyone to lean
over to or against the side window, the
area of the front passenger seat, the
front and rear window pillars and the
roof edge along both sides from which
the side and curtain air bags deploy,
even if a child-restraint system is used.
The impact of inflation from a side or
curtain air bag could cause serious
injury or death to an out of position
child. Furthermore, leaning over to or
against the door could block the side
and curtain air bags and eliminate the
advantages of supplemental
protection. Because the front seats are
equipped with front air bags, the rear
seat is always a better location for
children. Take special care not to allow
a child to lean over to or against the
side window, even if the child is seated
in a child-restraint system.
Never use one seat belt on more than
one person at a time:
Using one seat belt for more than one
person at a time is dangerous. A seat
belt used in this way cannot spread the
impact forces properly and the two
passengers could be crushed together
and seriously injured or even killed.
Never use one belt for more than one
person at a time and always operate
the vehicle with each occupant
properly restrained.
CAUTION
A seat belt or child-restraint system can
become very hot in a closed vehicle
during warm weather. To avoid burning
yourself or a child, check them before
you or your child touches them.
Essential Safety Equipment
Child Restraint
2-34
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

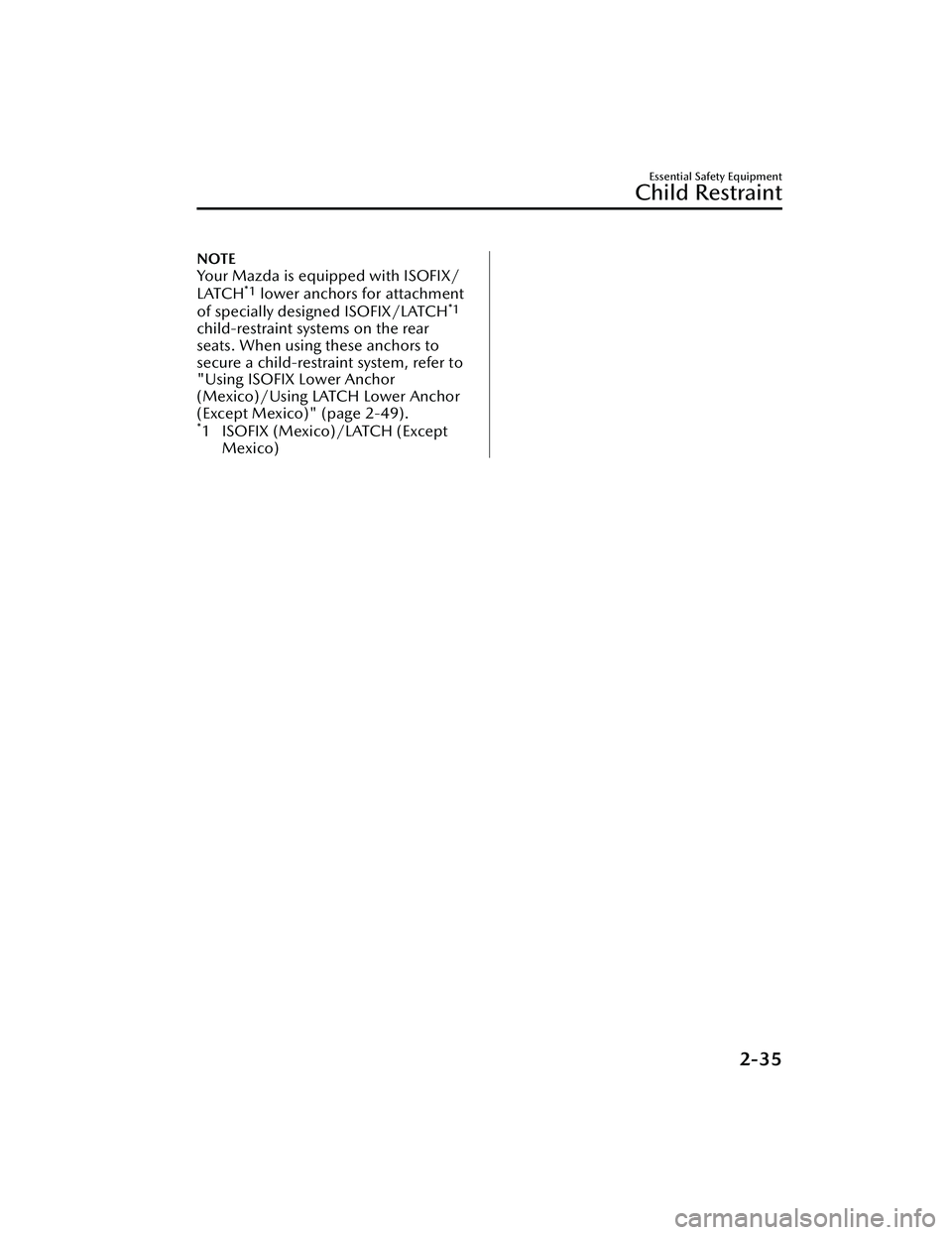

NOTE
Your Mazda is equipped with ISOFIX/
LATCH*1 lower anchors for attachment
of specially designed ISOFIX/LATCH*1
child-restraint systems on the rear
seats. When using these anchors to
secure a child-restraint system, refer to
"Using ISOFIX Lower Anchor
(Mexico)/Using LATCH Lower Anchor
(Except Mexico)" (page 2-49).
*1 ISOFIX (Mexico)/LATCH (Except Mexico)
Essential Safety Equipment
Child Restraint
2-35
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

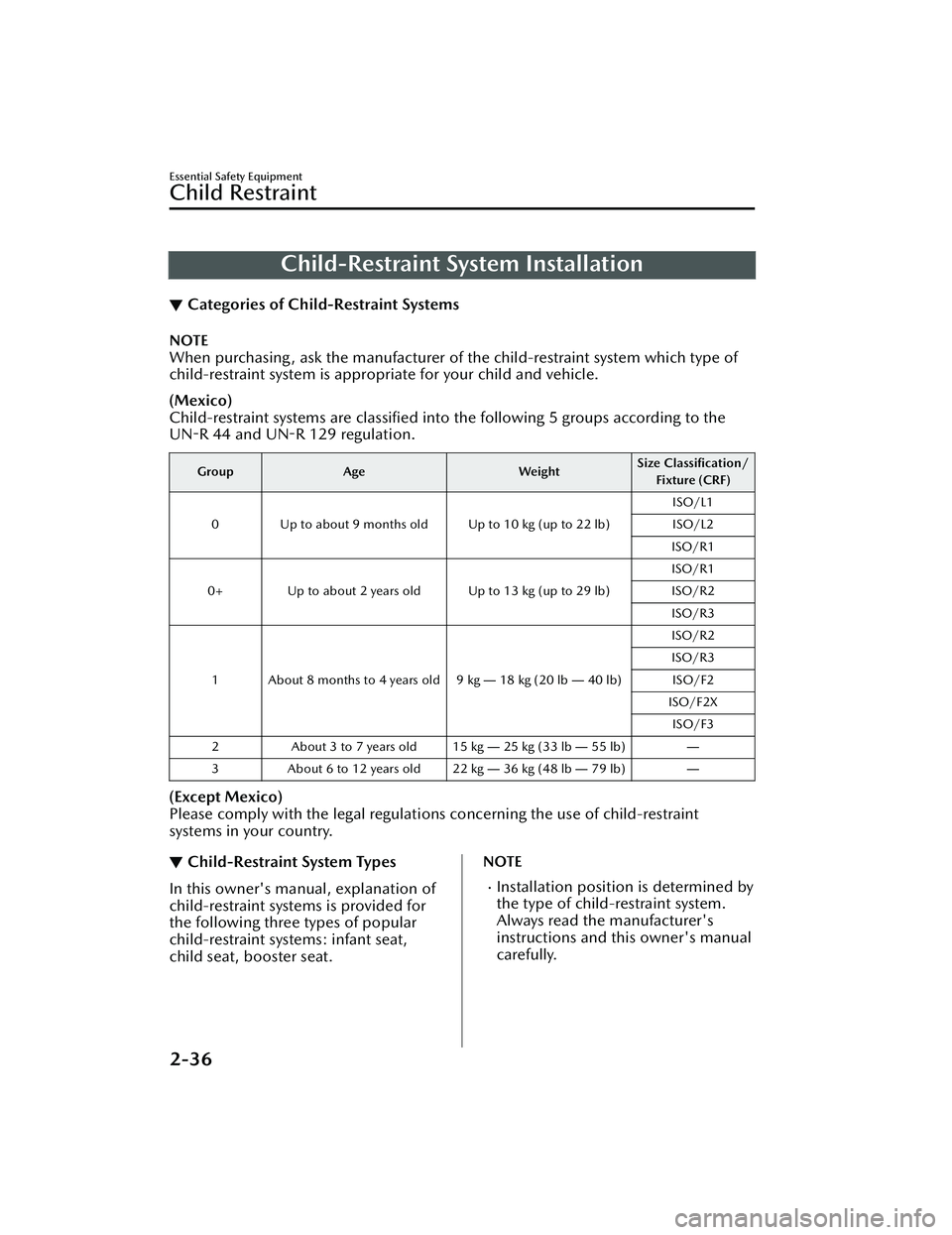

Child-Restraint System Installation
▼Categories of Child-Restraint Systems
NOTE
When purchasing, ask the manufacturer of the child-restraint system which type of
child-restraint system is appropriate for your child and vehicle.
(Mexico)
Child-restraint systems are classified into the following 5 groups according to the
UN-R 44 and UN-R 129 regulation.
Group
Age WeightSize Classification/
Fixture (CRF)
0 Up to about 9 months old Up to 10 kg (up to 22 lb) ISO/L1
ISO/L2
ISO/R1
0+ Up to about 2 years old Up to 13 kg (up to 29 lb) ISO/R1
ISO/R2
ISO/R3
1 About 8 months to 4 years old 9 kg ― 18 kg (20 lb ― 40 lb) ISO/R2
ISO/R3
ISO/F2
ISO/F2X ISO/F3
2 About 3 to 7 years old 15 kg ― 25 kg (33 lb ― 55 lb) ―
3 About 6 to 12 years old 22 kg ― 36 kg (48 lb ― 79 lb) ―
(Except Mexico)
Please comply with the legal regulation s concerning the use of child-restraint
systems in your country.
▼ Child-Restraint System Types
In this owner's manual, explanation of
child-restraint systems is provided for
the following three types of popular
child-restraint systems: infant seat,
child seat, booster seat.
NOTE
Installation position is determined by
the type of child-restraint system.
Always read the manufacturer's
instructions and this owner's manual
carefully.
Essential Safety Equipment
Child Restraint
2-36
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10

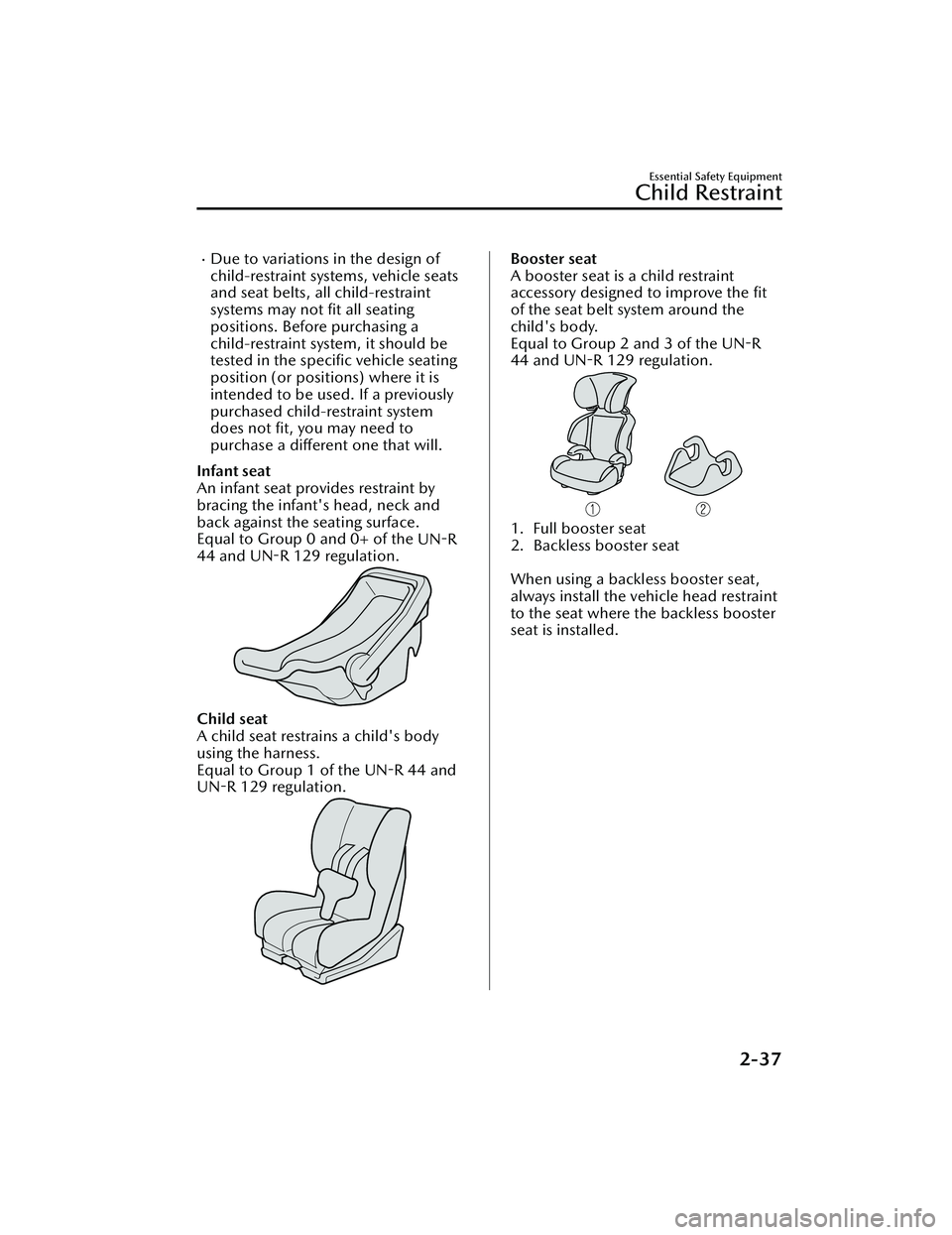

Due to variations in the design of
child-restraint systems, vehicle seats
and seat belts, all child-restraint
systems may not fit all seating
positions. Before purchasing a
child-restraint system, it should be
tested in the specific vehicle seating
position (or positions) where it is
intended to be used. If a previously
purchased child-restraint system
does not fit, you may need to
purchase a different one that will.
Infant seat
An infant seat provides restraint by
bracing the infant's head, neck and
back against the seating surface.
Equal to Group 0 and 0+ of the UN-R
44 and UN-R 129 regulation.
Child seat
A child seat restrains a child's body
using the harness.
Equal to Group 1 of the UN-R 44 and
UN-R 129 regulation.
Booster seat
A booster seat is a child restraint
accessory designed to improve the fit
of the seat belt system around the
child's body.
Equal to Group 2 and 3 of the UN-R
44 and UN-R 129 regulation.
1. Full booster seat
2. Backless booster seat

When using a backless booster seat,
always install the vehicle head restraint
to the seat where the backless booster
seat is installed.
Essential Safety Equipment
Child Restraint
2-37
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

Child-Restraint System Suitability for Various SeatPositions Table
▼Child-Restraint System Suitability for Various Seat Positions Table
(Mexico)
Provided information in the table shows yo
ur child-restraint system suitability for
various seating position. For installation suitability of other manufacturer
child-restraint system, carefully consult the manufacturer's instructions which
accompany the child-restraint system.
When installing a child-restraint system , the following points must be observed:
Always remove the head restraint before installing a child-restraint system.
However, when installing a backless booster seat, always install the vehicle head
restraint to the seat where the backless booster seat is installed. In addition,
always use a tether strap and attach it securely. Refer to Head Restraints on page
2-17.
When installing a child-restraint system to the front passenger seat, adjust the seat
slide position as far back as possible.
Refer to Adjusting the Front Passenger's Seat on page 2-13.
When it is difficult to install a child-restraint system to the front passenger seat, or
the seat belt cannot be secured to the child-restraint system, perform the
following operations to adjust the seat holding the child-restraint system so that
the seat belt can be secured completely to it.
Move the seat forward or back.Move the seatback forward or back.Move the seat upward or downward. (Veh icles with height adjustment function)When installing a child-restraint system to the rear seat, adjust the front seat
position so that the front seat does not contact the child-restraint system.
Refer to Adjusting the Driver's Seat on page 2-5.
Refer to Adjusting the Front Passenger's Seat on page 2-13.
When installing a child-restraint system equipped with a tether, remove the head
restraint.
Refer to Head Restraints on page 2-17.
An i-Size child-restraint system refers to a child-restraint system which has
acquired i-Size category certification for the UN-R 129 regulation.
Essential Safety Equipment
Child Restraint
2-38
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

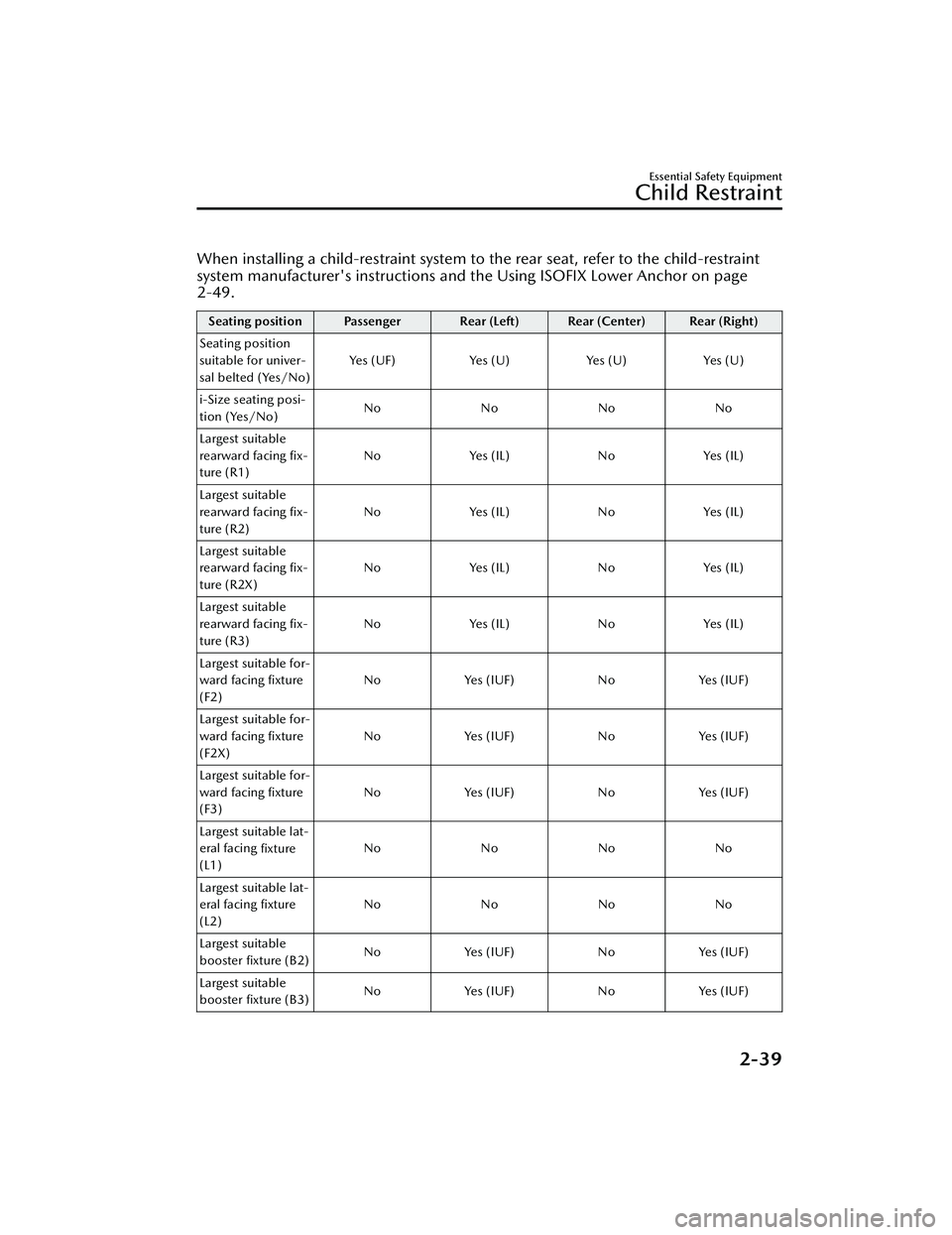

When installing a child-restraint system to the rear seat, refer to the child-restraint
system manufacturer's instructions and the Using ISOFIX Lower Anchor on page
2-49.
Seating position Passenger Rear (Left) Rear (Center) Rear (Right)
Seating position
suitable for univer-
sal belted (Yes/No) Yes (UF) Yes (U) Yes (U) Yes (U)
i-Size seating posi-
tion (Yes/No) No No No No
Largest suitable
rearward facing fix-
ture (R1) No Yes (IL) No Yes (IL)
Largest suitable
rearward facing fix-
ture (R2) No Yes (IL) No Yes (IL)
Largest suitable
rearward facing fix-
ture (R2X) No Yes (IL) No Yes (IL)
Largest suitable
rearward facing fix-
ture (R3) No Yes (IL) No Yes (IL)
Largest suitable for-
ward facing fixture
(F2) No Yes (IUF) No Yes (IUF)
Largest suitable for-
ward facing fixture
(F2X) No Yes (IUF) No Yes (IUF)
Largest suitable for-
ward facing fixture
(F3) No Yes (IUF) No Yes (IUF)
Largest suitable lat-
eral facing fixture
(L1) No No No No
Largest suitable lat-
eral facing fixture
(L2) No No No No
Largest suitable
booster fixture (B2) No Yes (IUF) No Yes (IUF)
Largest suitable
booster fixture (B3) No Yes (IUF) No Yes (IUF)
Essential Safety Equipment
Child Restraint
2-39
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10

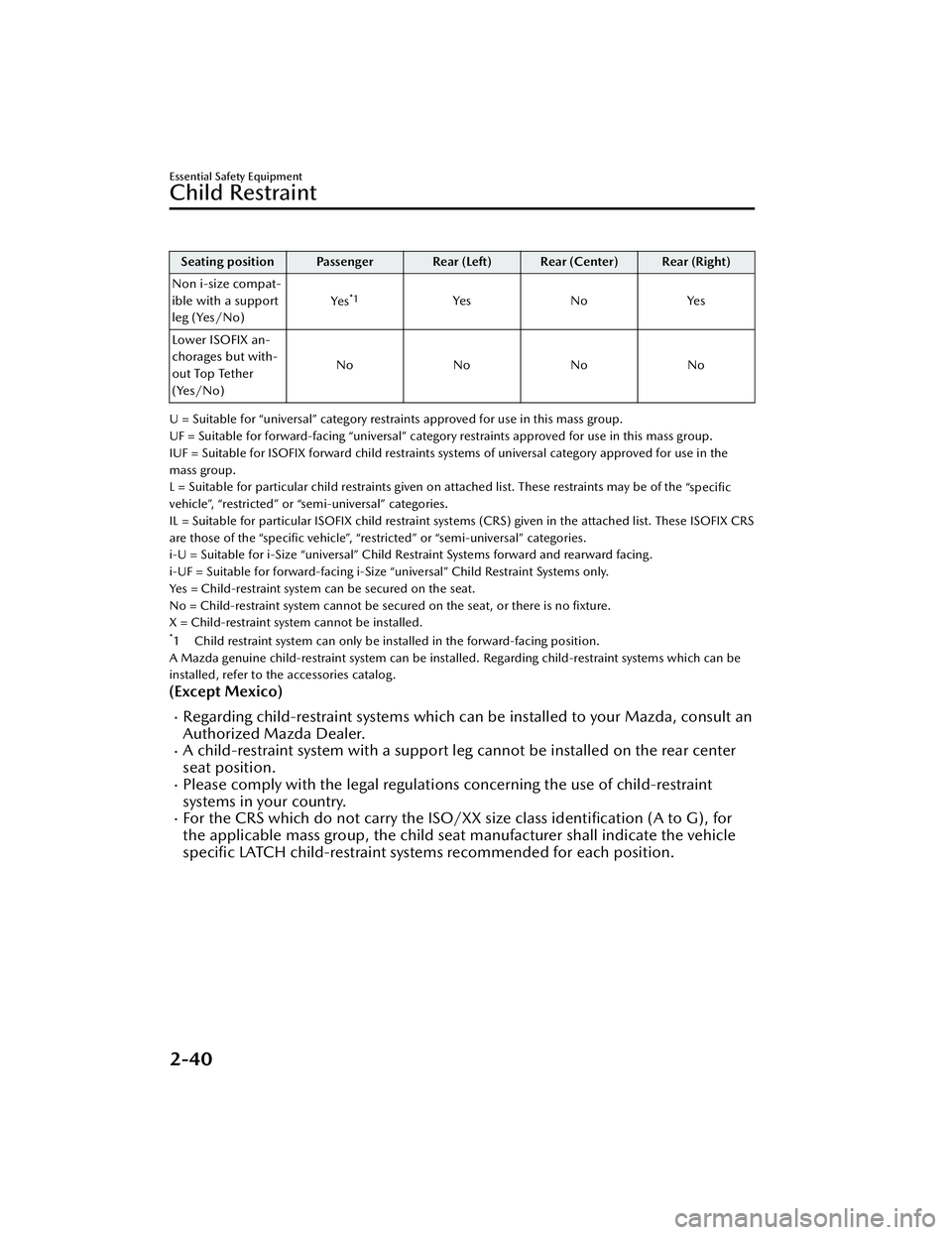

Seating position Passenger Rear (Left) Rear (Center) Rear (Right)
Non i-size compat-
ible with a support
leg (Yes/No) Ye s
*1Ye s
N oYe s
Lower ISOFIX an-
chorages but with-
out Top Tether
(Yes/No) No
No NoNo
U = Suitable for “universal” category restraints approved for use in this mass group.
UF = Suitable for forward-facing “universal” category restraints approved for use in this mass group.
IUF = Suitable for ISOFIX forward child restraints sy stems of universal category approved for use in the
mass group.
L = Suitable for particular child restraints given on attached list. These restraints may be of the
“s p e c i fi c
vehicle”, “restricted” or “semi-universal” categories.
IL = Suitable for particular ISOFIX child restraint syst ems (CRS) given in the attached list. These ISOFIX CRS
are those of the “specific vehicle”, “restricted” or “semi-universal” categories.
i-U = Suitable for i-Size “universal” Child Restraint Systems forward and rearward facing.
i-UF = Suitable for forward-facing i-Size “universal” Child Restraint Systems only.
Yes = Child-restraint system can be secured on the seat.
No = Child-restraint system cannot be secured on the seat, or there is no fixture.
X = Child-restraint system cannot be installed.
*1 Child restraint system can only be installed in the forward-facing position.
A Mazda genuine child-restraint system can be installed. Regarding child-restraint systems which can be
installed, refer to the accessories catalog.
(Except Mexico)
Regarding child-restraint systems which can be installed to your Mazda, consult an
Authorized Mazda Dealer.
A child-restraint system with a support le g cannot be installed on the rear center
seat position.
Please comply with the legal regulation s concerning the use of child-restraint
systems in your country.
For the CRS which do not carry the ISO/XX size class identification (A to G), for
the applicable mass group, the child seat manufacturer shall indicate the vehicle
specific LATCH child-restraint systems recommended for each position.
Essential Safety Equipment
Child Restraint
2-40
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

Installing Child-RestraintSystems
▼Installing Child-Restraint Systems
Accident statistics reveal that a child is
safer in the rear seat. The front
passenger's seat is clearly the worst
choice for any child under 12, and
with rear-facing child-restraint systems
it is clearly unsafe due to air bags.

NOTE
Even if your vehicle is equipped with
front passenger occupant classification
sensor (page 2-70), which
automatically deactivates the front
passenger air bag , a rear seat is the
safest place for a child of any age or
size.

Some child-restraint systems now
come with tethers and therefore must
be installed on the seats that take
tethers to be effective. In your Mazda,
tethered child-restraint systems can
only be accommodated in the three
positions on the rear seat.

Some child-restraint systems also
employ specially designed ISOFIX/
LATCH
*1 attachments;
refer to "Using
ISOFIX Lower Anchor (Mexico)/Using
LATCH Lower Anchor (Except
Mexico)" (page 2-49).
*1 ISOFIX (Mexico)/LATCH (Except Mexico)
WARNING
Tethered Child-Restraint Systems
Work Only on Tether-Equipped Rear
Seats:
Installation of a tether equipped
child-restraint system in the front
passenger's seat defeats the safety
design of the system and will result in
an increased chance of serious injury if
the child-restraint system goes forward
without benefit of being tethered.
Place tether equipped child-restraint
systems where there are tether
anchors.
▼Anchor Bracket
Anchor brackets for securing
child-restraint systems are equipped in
the vehicle. Locate each anchor
position using the illustration.
To install a child-restraint system,
remove the head restraint. Always
follow the instruction manual
accompanying the child-restraint
system.

Anchor bracket location
Use the indicated anchor bracket
locations when installing a
child-restraint syst
em equipped with a
tether.
(4–Door)
1. For right
2. For center (Except Mexico)
3. For left
Essential Safety Equipment
Child Restraint
2-41
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10
