Knowing Your Mazda
Doors and Locks
Form No. 8S18-EA-03I

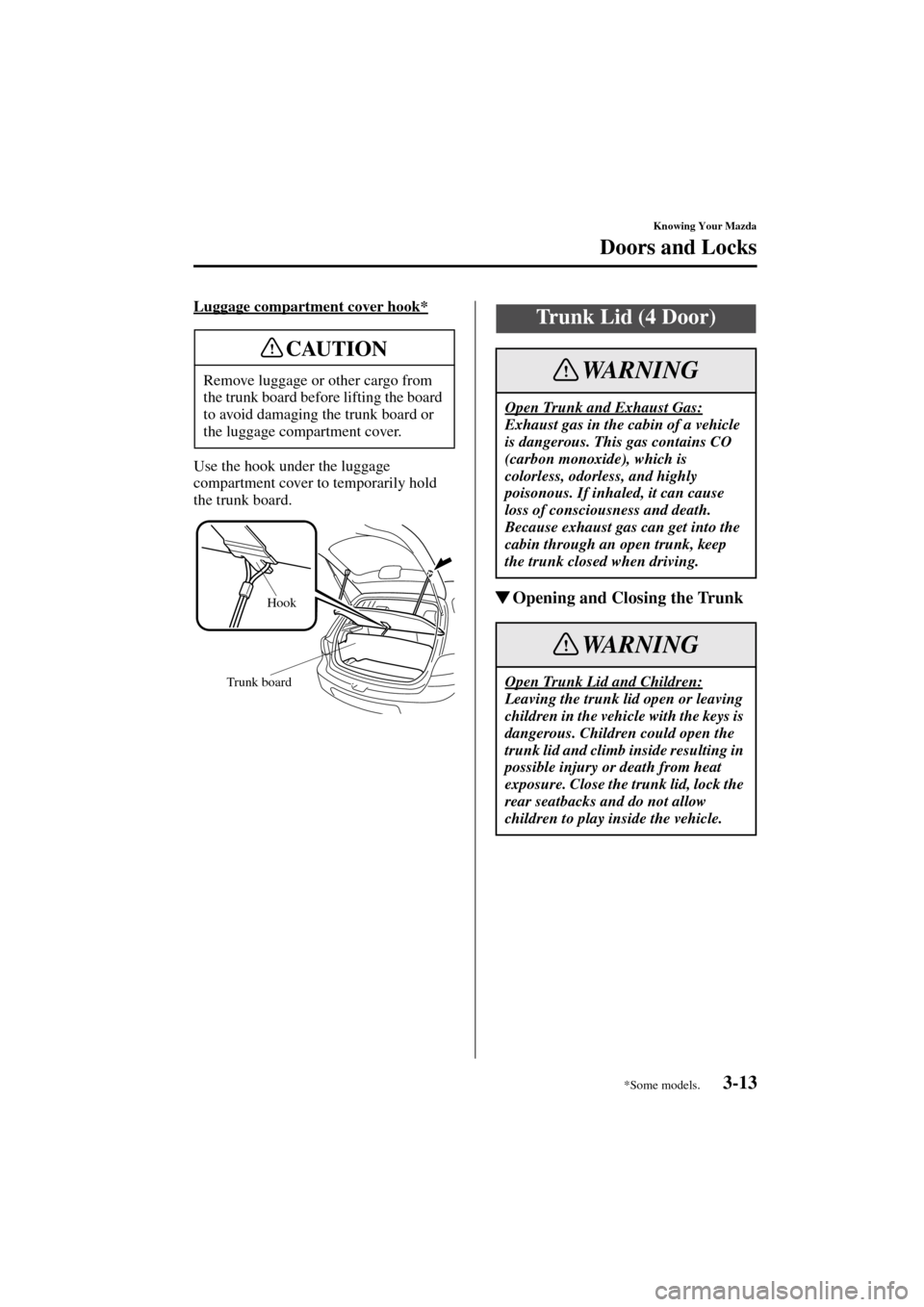

Luggage compartment cover hook*
Use the hook under the luggage
compartment cover to temporarily hold
the trunk board.

Opening and Closing the Trunk
Remove luggage or other cargo from
the trunk board before lifting the board
to avoid damaging the trunk board or
the luggage compartment cover.
CAUTION
Hook
Trunk board
Trunk Lid (4 Door)
Open Trunk and Exhaust Gas:
Exhaust gas in the cabin of a vehicle
is dangerous. This gas contains CO
(carbon monoxide), which is
colorless, odorless, and highly
poisonous. If inhaled, it can cause
loss of consciousness and death.
Because exhaust gas can get into the
cabin through an open trunk, keep
the trunk closed when driving.
Open Trunk Lid and Children:
Leaving the trunk lid open or leaving
children in the vehicle with the keys is
dangerous. Children could open the
trunk lid and climb inside resulting in
possible injury or death from heat
exposure. Close the trunk lid, lock the
rear seatbacks and do not allow
children to play inside the vehicle.
WARNING
WARNING
*Some models.
J48C_8S18-EA-03I_Edition1.book Page 13 Wednesday, August 6, 2003 8:51 AM

3-14
Knowing Your Mazda
Doors and Locks
Form No. 8S18-EA-03I
Opening the trunk lid with the key
Insert the key into the slot and turn it
clockwise.Opening the trunk lid with the remote
release lever
Pull up the release lever next to the
driver’s seat.
Closing the trunk lid
Use both hands to push the trunk lid down
until the lock snaps shut. Do not slam it.
Pull up on the trunk lid to make sure it is
secure.
Unattended Children and Pets:
Leaving children or animals
unattended in a parked vehicle is
dangerous. Babies left sleeping and
kids who lock themselves in cars or
trunks can die very quickly from heat
prostration. Don’t leave your children
or pets alone in a car at any time.
Don’t leave the car, the rear folding
seats or the trunk unlocked. Always
keep the car from being a tempting
place to play by locking rear seats,
doors and the trunk, and keeping the
keys where children won’t play with
them.
For vehicles equipped with a rear
spoiler, do not lift the trunk lid by the
spoiler. Lifting up the trunk lid by the
rear spoiler could cause damage to the
rear spoiler and the trunk lid.
WARNING
CAUTION
Open
Release lever
J48C_8S18-EA-03I_Edition1.book Page 14 Wednesday, August 6, 2003 8:51 AM

3-15
Knowing Your Mazda
Doors and Locks
Form No. 8S18-EA-03I

Trunk Security
In some situations you may want to
prevent the trunk from being opened with
the remote trunk lid release lever.
Give your key only to someone you trust.
To secure the trunk lid, lock the rear
seatbacks (page 2-7), push the trunk lock
lever up, and close the trunk.
To cancel the security feature, insert the
key into the lock, turn the key clockwise,
and pull the trunk lock lever down.

Trunk Light
The trunk light is on when the lid is open
and off when it’s closed.
Unlock
Lock
Trunk lock leverNOTE
To prevent the battery from being
discharged, do not leave the trunk open
for a long period when the engine is
not running.
J48C_8S18-EA-03I_Edition1.book Page 15 Wednesday, August 6, 2003 8:51 AM

3-16
Knowing Your Mazda
Doors and Locks
Form No. 8S18-EA-03I
Your vehicle is equipped with an inside
trunk release slide lever that provides a
means of escape for children and adults in
the event they become locked inside the
trunk.
No matter how careful adults might be
with keys and locking their cars, parents
should be aware that children may be
tempted to play around vehicles and use
the trunk as a hiding place.
Adults are advised to familiarize
themselves with the operation and
location of the inside trunk release slide
lever so that all children can be told about
it in an appropriate way, keeping in mind
that most vehicles don’t have such levers.

Opening the Trunk Lid from the
Inside
Slide the illuminated inside trunk release
slide lever in the direction of the arrow.
The lever is made of material that will
glow for hours in the darkness of the trunk
following a brief exposure to ambient
light.
The inside trunk release slide lever is
located on the inside of the trunk lid.
Inside Trunk Release Slide
Lever (4 Door)
Open Trunk Lid and Children:
Leaving the trunk lid open or leaving
children in the vehicle with the keys is
dangerous. Children could open the
trunk lid and climb inside resulting in
possible injury or death from heat
exposure. Close the trunk lid, lock the
rear seatbacks and do not allow
children to play inside the vehicle.
WARNING
Unattended Children and Pets:
Leaving children or animals
unattended in a parked vehicle is
dangerous. Babies left sleeping and
kids who lock themselves in cars or
trunks can die very quickly from heat
prostration. Don’t leave your children
or pets alone in a car at any time.
Don’t leave the car, the rear folding
seats or the trunk unlocked. Always
keep the car from being a tempting
place to play by locking rear seats,
doors and the trunk, and keeping the
keys where children won’t play with
them.
WARNING
J48C_8S18-EA-03I_Edition1.book Page 16 Wednesday, August 6, 2003 8:51 AM

3-17
Knowing Your Mazda
Doors and Locks
Form No. 8S18-EA-03I
The ignition switch must be in the ON
position for the power windows to
operate.

Operating the Driver’s Side
Power Window
Opening/closing
To open the window to the desired
position, lightly hold down the switch.
To close the window to the desired
position, lightly pull up the switch.
Auto-opening
To fully open the window automatically,
push the switch completely down.
To stop the window partway, lightly pull
up the switch and then release it.
Power Windows*
Closing Power Windows:
Closing power windows are
dangerous. A person’s hands, head,
or even neck could be caught by the
window and result in serious injury or
even death.
This warning applies especially to
children. Make sure the opening is
clear before closing a window.
Children and Power Windows:
Leaving the power window switches
unlocked while children are in the
vehicle is dangerous. Power window
switches that are not locked with the
power window lock switch would
allow children to operate power
windows unintentionally which could
result in serious injury if a child’s
hands, head or neck becomes caught
by the window. Always lock all
passenger power windows with the
power window lock switch on the
driver’s side while children are in the
vehicle, and never allow children to
play with power window switches.
To prevent burning out the fuse and
damaging the power window system,
don’t open or close more than three
windows at once.
WARNING
CAUTION
Close
Left front window
Open
*Some models.
J48C_8S18-EA-03I_Edition1.book Page 17 Wednesday, August 6, 2003 8:51 AM

3-18
Knowing Your Mazda
Doors and Locks
Form No. 8S18-EA-03I

Operating the Passenger Power
Windows
The power windows may be operated
when the power window lock switch on
the driver’s door is in the unlocked
position.
The passenger windows may be opened or
closed by the power window master
control switches on the driver’s door.
To open the window to the desired
position, hold down the switch.
To close the window to the desired
position, pull up the switch.

Power Window Lock Switch
With the lock switch in the unlocked
position, all power windows on each door
can be operated.
With the lock switch in the locked
position, only the driver’s side power
window can be operated.
Right front window Left rear window
Right rear window
Power window lock switch
(Unlocked position)
Close
Open
Unintentional Window Operation:
Unintentional window operation is
dangerous. A person’s hands, head,
or neck could be caught by the
window and result in serious injury.
Unless a passenger needs to operate a
window, keep the power window lock
switch in the locked position.
Locked position
Unlocked position
WARNING
J48C_8S18-EA-03I_Edition1.book Page 18 Wednesday, August 6, 2003 8:51 AM

3-19
Knowing Your Mazda
Doors and Locks
Form No. 8S18-EA-03I

Fuel-Filler Lid
To open, pull up the remote fuel-filler lid
release.
Fuel-Filler Lid and Cap
Fuel Spray:
Fuel spray is dangerous. Fuel can
burn skin and eyes and cause illness
when ingested. Fuel spray is released
when there is pressure in the fuel
tank and the fuel cap is removed too
quickly. When removing the fuel cap,
loosen the cap slightly and wait for
any hissing to stop. Then remove it.
Fuel Vapor:
Fuel vapor is dangerous. It could be
ignited by sparks or flames causing
serious burns and injuries. Before
refueling, stop the engine, and always
keep sparks and flames away from the
filler neck. Additionally, use of the
incorrect fuel filler cap or not using a
fuel filler cap may result in fuel leak,
which could result in serious burns or
death in an accident.
Always use only a genuine Mazda fuel
cap or an approved equivalent,
available at Authorized Mazda
Dealers. The wrong cap can result in a
serious malfunction of the fuel and
emission control systems. It may also
cause the check engine light in the
instrument cluster to illuminate.
WARNING
CAUTION
Remote fuel-filler
lid release5 Door
Remote fuel-filler
lid release
4 Door
J48C_8S18-EA-03I_Edition1.book Page 19 Wednesday, August 6, 2003 8:51 AM

3-20
Knowing Your Mazda
Doors and Locks
Form No. 8S18-EA-03I

Fuel-Filler Cap
To remove the filler cap, turn it
counterclockwise.
To close the filler cap, turn it clockwise
until it clicks.

Opening the Hood
1. With the vehicle parked, pull the
release handle to unlock the hood.
Make sure the fuel-filler cap is
tightened securely. The check engine
light may illuminate on when the cap
isn’t tightened securely. If the light
remains on (even after you have
tightened the cap securely, driven, and
restarted the engine several times), it
may indicate a different problem.
Contact an Authorized Mazda Dealer
as soon as possible.
OpenClose
CAUTION
Hood
Closed and Securely Locked Hood:
A hood that is not closed and securely
locked is dangerous as it could fly
open while the vehicle is moving and
block the driver’s vision which could
result in a serious accident. Always
check that the hood is closed and
securely locked.
WARNING
J48C_8S18-EA-03I_Edition1.book Page 20 Wednesday, August 6, 2003 8:51 AM

3-21
Knowing Your Mazda
Doors and Locks
Form No. 8S18-EA-03I
2. Slide the hood latch and lift the hood.
3. Grasp the support rod in the area
indicated by the arrow.4. Use the support rod to hold the hood
open.

Closing the Hood
1. Check under the hood area to make
certain all filler caps are in place and
all loose items (e.g. tools, oil
containers, etc.) have been removed.
2. Insert the support rod in its clip while
holding up the hood. Verify that the
support rod is secured in the clip before
closing the hood.
3. Close the hood so that it locks securely.
5 Door
4 Door
ClipSupport rod
Clip
Support rod
J48C_8S18-EA-03I_Edition1.book Page 21 Wednesday, August 6, 2003 8:51 AM

3-22
Knowing Your Mazda
Doors and Locks
Form No. 8S18-EA-03I
The moonroof can be opened or closed
electrically only when the ignition switch
is in the ON position.

Tilt Operation
The rear of the moonroof can be tilted
open to provide more ventilation.
To fully tilt automatically, push the rear of
the tilt switch.
To stop tilting partway, push any part of
the tilt or slide switch.
To close to the desired position, push the
front of the tilt or slide switch.
Moonroof*
Extending the Head or Arms
Through the Moonroof:
Extending the head, arms, or other
parts of the body through the
moonroof is dangerous. The head or
arms could hit something while the
vehicle is moving. This could cause
death or serious injury. Don’t let
passengers stand up or extend
anything through the open moonroof
while the vehicle is moving.
Closing the Moonroof:
A closing moonroof is dangerous.
The hands, head, or even neck of a
person —especially a child— could
be caught in it as it closes, causing
serious injury or even death. Make
sure the opening is clear before
closing the moonroof.
Tilt switch Slide switch
WARNING
NOTE
After washing your Mazda or after a
rain, wipe the water off the moonroof
before operating it to avoid water
penetration which could cause rust and
water damage to your headliner.
CloseTilt up
Close
*Some models.
J48C_8S18-EA-03I_Edition1.book Page 22 Wednesday, August 6, 2003 8:51 AM
