Page 90 of 600
3–14
Before Driving
Doors and Locks
To unlock
Driver's door request switch
To unlock the driver's door, press the
request switch. A beep sound will be heard
twice and the hazard warning lights will
À ash twice.
To unlock all doors and the liftgate, press
the request switch again within 3 seconds
and two more beep sounds will be heard.
Front passenger door request switch
To unlock all doors and the liftgate, press
the request switch. A beep sound will be
heard twice and the hazard warning lights
will À ash twice.
N O T E
y The system can be set to unlock all
doors by performing a single operation.
Refer to Personalization Features on
page 9-12 .
y Use the following procedure to change
the setting.
1. Switch the ignition off and close all
of the doors and the liftgate/trunk
lid.
2. Open the driver's door.
3. Within 30 seconds of opening the
driver's door, press and hold the
UNLOCK button on the key for 5
seconds or longer. The sound of
the doors locking/unlocking can be
heard.
After this, the system switches the
setting of pressing the driver's
request switch once or twice to
unlock all doors and the liftgate
each time the UNLOCK button is
pressed (the sound of the doors
locking/unlocking can be heard). 4. The setting change is completed by
doing any one of the following:
y Switching the ignition to ACC or
ON.
y Closing the driver's door.
y Opening the liftgate/trunk lid.
y Not operating the key for 10
seconds.
y Pressing any button except the
UNLOCK button on the key.
y Pressing a request switch.
y Con ¿ rm that all doors and the liftgate
are securely locked.
For the liftgate/trunk lid, move it
without pressing the electric liftgate/
trunk lid opener to verify that the
liftgate/trunk lid has not been left ajar.
y All doors and the liftgate cannot be
locked when any door or the liftgate is
open.
y It may require a few seconds for the
doors to unlock after the request switch
is pressed.
y A beep sound is heard for con ¿ rmation
when the doors and the liftgate are
locked/unlocked using the request
switch. If you prefer, the beep sound can
be turned off.
The volume of the beep sound can also
be changed. Refer to Personalization
Features on page 9-12 .
Use the following procedure to change
the setting.
1. Switch the ignition off and close all
of the doors and the liftgate/trunk
lid.
2. Open the driver's door.
. B [ E B @ ' " & " ( @ & E J U J P O J O E C . B [ E B @ ' " & " ( @ & E J U J P O J O E C
Page 96 of 600
3–20
Before Driving
Doors and Locks

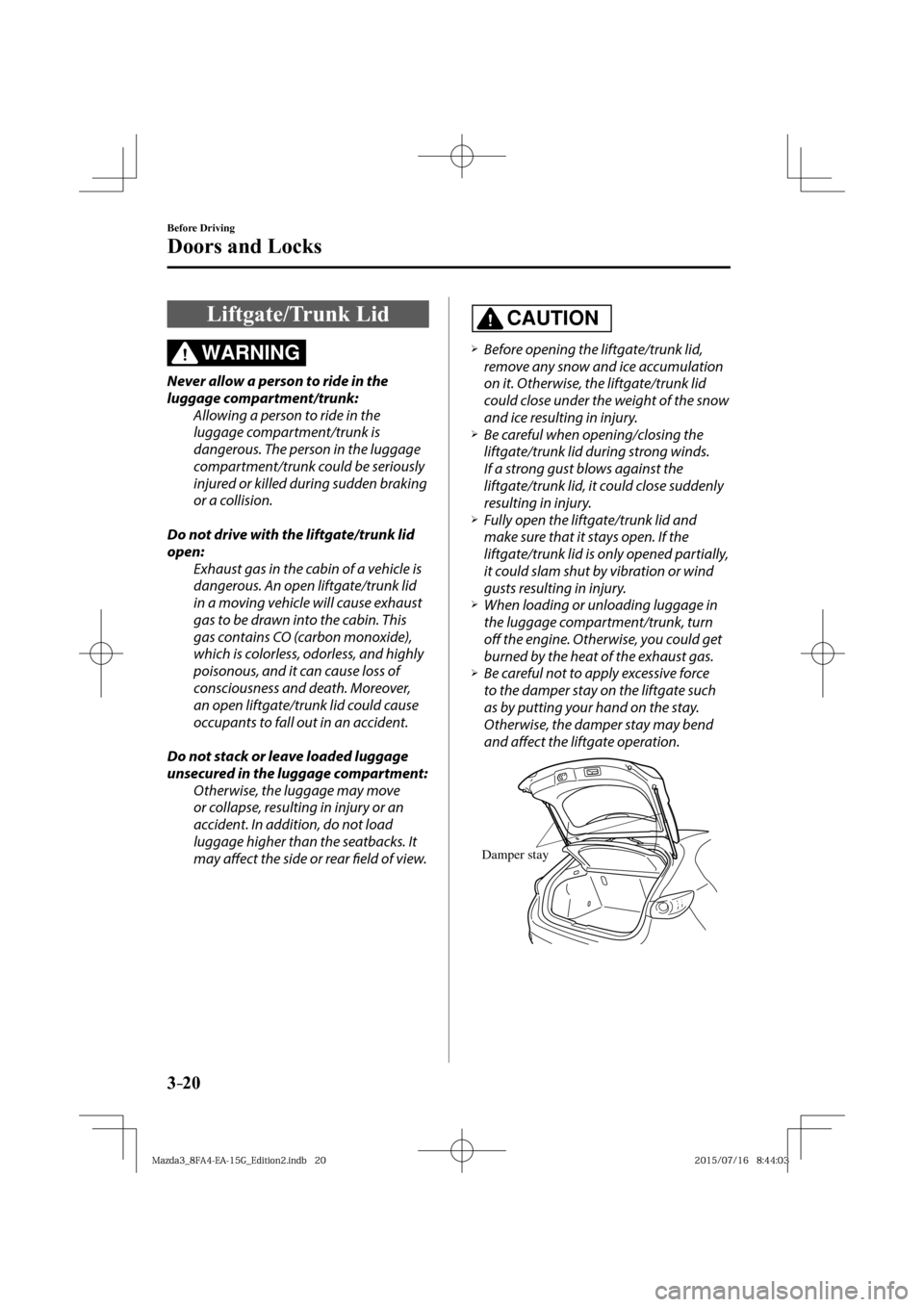

Liftgate/Trunk Lid
WARNING
Never allow a person to ride in the
luggage compartment/trunk:
Allowing a person to ride in the
luggage compartment/trunk is
dangerous. The person in the luggage
compartment/trunk could be seriously
injured or killed during sudden braking
or a collision.
Do not drive with the liftgate/trunk lid
open:
Exhaust gas in the cabin of a vehicle is
dangerous. An open liftgate/trunk lid
in a moving vehicle will cause exhaust
gas to be drawn into the cabin. This
gas contains CO (carbon monoxide),
which is colorless, odorless, and highly
poisonous, and it can cause loss of
consciousness and death. Moreover,
an open liftgate/trunk lid could cause
occupants to fall out in an accident.
Do not stack or leave loaded luggage
unsecured in the luggage compartment:
Otherwise, the luggage may move
or collapse, resulting in injury or an
accident. In addition, do not load
luggage higher than the seatbacks. It
may aff ect the side or rear fi eld of view.
CAUTION
¾ Before opening the liftgate/trunk lid,
remove any snow and ice accumulation
on it. Otherwise, the liftgate/trunk lid
could close under the weight of the snow
and ice resulting in injury.
¾ Be careful when opening/closing the
liftgate/trunk lid during strong winds.
If a strong gust blows against the
liftgate/trunk lid, it could close suddenly
resulting in injury.
¾ Fully open the liftgate/trunk lid and
make sure that it stays open. If the
liftgate/trunk lid is only opened partially,
it could slam shut by vibration or wind
gusts resulting in injury.
¾ When loading or unloading luggage in
the luggage compartment/trunk, turn
off the engine. Otherwise, you could get
burned by the heat of the exhaust gas.
¾ Be careful not to apply excessive force
to the damper stay on the liftgate such
as by putting your hand on the stay.
Otherwise, the damper stay may bend
and aff ect the liftgate operation.
Damper stay
. B [ E B @ ' " & " ( @ & E J U J P O J O E C . B [ E B @ ' " & " ( @ & E J U J P O J O E C
Page 98 of 600
3–22
Before Driving
Doors and Locks
Using the electric trunk lid opener
(With the advanced keyless function)
A trunk lid can also be opened while the
key is being carried.
Press the electric trunk lid opener on the
trunk lid, then raise the trunk lid when the
latch releases.
Electric trunk lid
opener
N O T E
y When opening the trunk lid with the
doors locked, it may require a few
seconds for the trunk lid latch to release
after the electric trunk lid opener is
pressed.
y The trunk lid can be closed when the
doors are locked with the key left in the
vehicle. However, to prevent locking the
key in the vehicle, the trunk lid can be
opened by pressing the electric trunk lid
opener. If the trunk lid cannot be opened
despite doing this procedure, press the
electric trunk lid opener to fully open
the trunk lid after pushing the trunk lid
completely closed.
y If the vehicle battery is dead or there
is a malfunction in the electrical
system and the trunk lid cannot be
unlocked, the trunk lid can be opened by
performing the emergency procedure.
Refer to When Liftgate/Trunk Lid
Cannot be Opened on page 7-40 .
Closing the liftgate/trunk lid
Lower the liftgate/trunk lid slowly using
the liftgate/trunk lid grip recess, then push
the liftgate/trunk lid closed using both
hands.
Do not slam it. Pull up on the liftgate/trunk
lid to make sure it is secure.
(5–door)
Liftgate grip
recess
(4–door)
Trunk lid grip recess
. B [ E B @ ' " & " ( @ & E J U J P O J O E C . B [ E B @ ' " & " ( @ & E J U J P O J O E C
Page 99 of 600
3–23
Before Driving
Doors and Locks
Luggage Compartment
Luggage compartment cover (5-door)
WARNING
Do not place anything on top of the
cover:
Placing luggage or other cargo on top
of the luggage compartment cover is
dangerous. During sudden braking or
a collision, the cargo could become
a projectile that could hit and injure
someone. The vehicle has a light
weight luggage compartment cover to
keep the contents of your luggage area
out of sight; it will not retain heavy
objects that are not tied down in an
accident such as a rollover. Tie down
all heavy objects, whether luggage or
cargo, using the tie down hooks.
Make sure luggage and cargo are
secured before driving:
Not securing cargo while driving is
dangerous as it could move or be
crushed during sudden braking or a
collision and cause injury.
CAUTION
Make sure the luggage compartment
cover is fi rmly secured. If it is not
fi rmly secured, it could unexpectedly
disengage resulting in injury.
The luggage compartment can be accessed
by opening the liftgate when the straps are
attached to the sides of the liftgate.
Strap
Removing the cover
This cover can be removed for more room.
1. Remove the straps from the hooks.
2. Lift the end of the luggage
compartment cover a little, pull it
outward, and remove it from the pins.
Pin
Pin
3. Lift the front end of the luggage
compartment cover and remove it.
. B [ E B @ ' " & " ( @ & E J U J P O J O E C . B [ E B @ ' " & " ( @ & E J U J P O J O E C
Page 105 of 600
3–29
Before Driving
Fuel and Emission

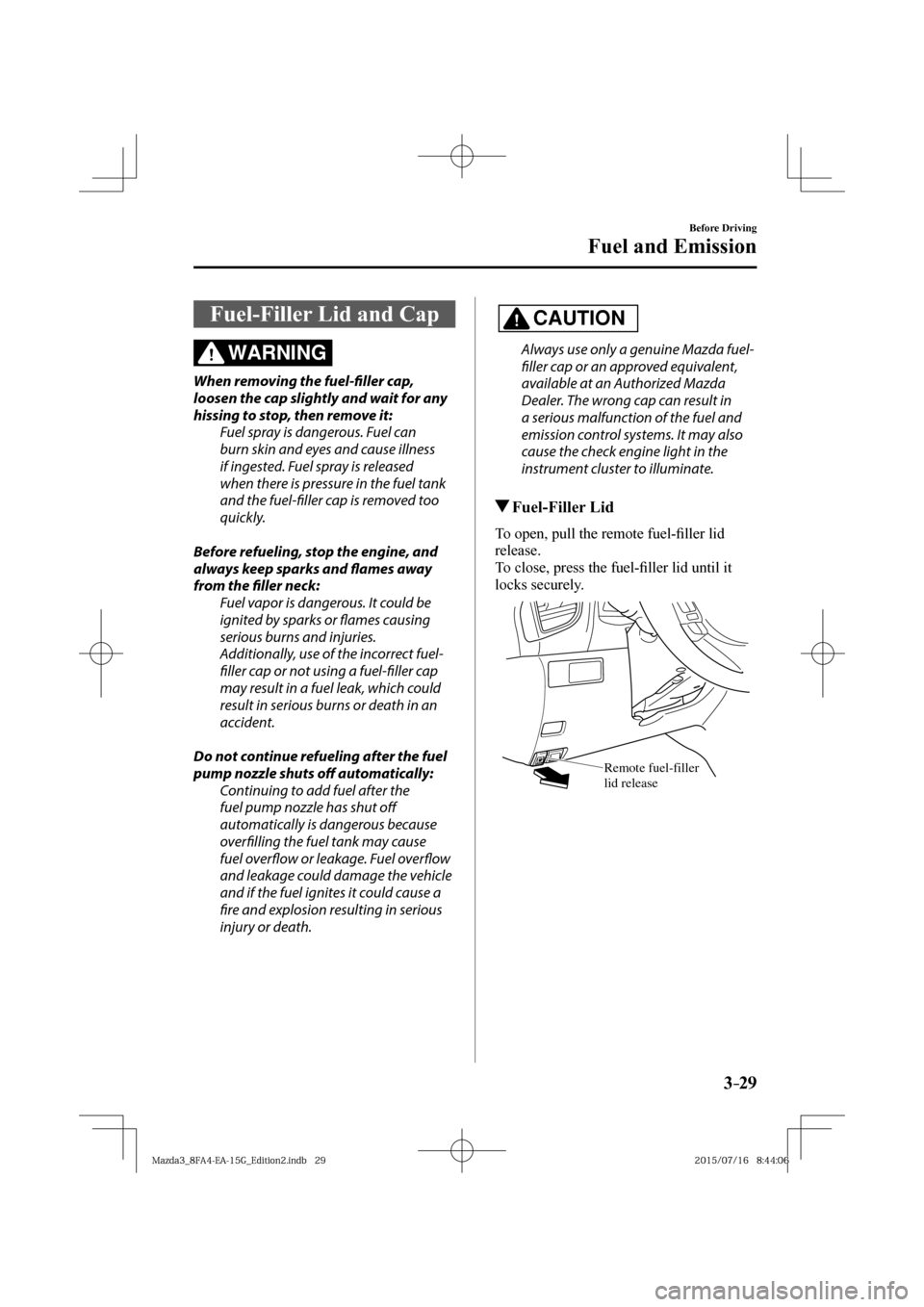

Fuel-Filler Lid and Cap
WARNING
When removing the fuel-fi ller cap,
loosen the cap slightly and wait for any
hissing to stop, then remove it:
Fuel spray is dangerous. Fuel can
burn skin and eyes and cause illness
if ingested. Fuel spray is released
when there is pressure in the fuel tank
and the fuel-fi ller cap is removed too
quickly.
Before refueling, stop the engine, and
always keep sparks and fl ames away
from the fi ller neck:
Fuel vapor is dangerous. It could be
ignited by sparks or fl ames causing
serious burns and injuries.
Additionally, use of the incorrect fuel-
fi ller cap or not using a fuel-fi ller cap
may result in a fuel leak, which could
result in serious burns or death in an
accident.
Do not continue refueling after the fuel
pump nozzle shuts off automatically:
Continuing to add fuel after the
fuel pump nozzle has shut off
automatically is dangerous because
overfi lling the fuel tank may cause
fuel overfl ow or leakage. Fuel overfl ow
and leakage could damage the vehicle
and if the fuel ignites it could cause a
fi re and explosion resulting in serious
injury or death.
CAUTION
Always use only a genuine Mazda fuel-
fi ller cap or an approved equivalent,
available at an Authorized Mazda
Dealer. The wrong cap can result in
a serious malfunction of the fuel and
emission control systems. It may also
cause the check engine light in the
instrument cluster to illuminate.
Fuel-Filler Lid
To open, pull the remote fuel- ¿ ller lid
release.
To close, press the fuel- ¿ ller lid until it
locks securely.
Remote fuel-filler
lid release
. B [ E B @ ' " & " ( @ & E J U J P O J O E C . B [ E B @ ' " & " ( @ & E J U J P O J O E C
Page 116 of 600
3–40
Before Driving
Security System
M o d i ¿ cation and Add-On
Equipment
Mazda cannot guarantee the immobilizer
and the theft-deterrent systems' operation
if the system has been modi ¿ ed or if any
add-on equipment has been installed.
CAUTION
To avoid damage to the vehicle, do
not modify the system or install any
add-on equipment to the immobilizer
and the theft-deterrent systems or the
vehicle.
Immobilizer System
The immobilizer system allows the
engine to start only with a key the system
recognizes.
If someone attempts to start the engine
with an unrecognized key, the engine
will not start, thereby helping to prevent
vehicle theft.
If you have a problem with the
immobilizer system or the key, consult an
Authorized Mazda Dealer.
CAUTION
¾ Radio equipment like this is governed by
laws in the United States.
Changes or modifi cations not expressly
approved by the party responsible
for compliance could void the user's
authority to operate the equipment.
¾ To avoid damage to the key, do not:
¾ Drop the key.
¾ Get the key wet.
¾ Expose the key to any kind of
magnetic fi eld.
¾ Expose the key to high temperatures
on places such as the dashboard or
hood, under direct sunlight.
¾ If the engine does not start with the
correct key, and the security indicator
light keeps illuminating or fl ashing, the
system may have a malfunction. Consult
an Authorized Mazda Dealer.
. B [ E B @ ' " & " ( @ & E J U J P O J O E C . B [ E B @ ' " & " ( @ & E J U J P O J O E C
Page 117 of 600
3–41
Before Driving
Security System
N O T E
y The keys carry a unique electronic code.
For this reason, and to assure your
safety, obtaining a replacement key
requires some waiting time. They are
only available through an Authorized
Mazda Dealer.
y Always keep a spare key in case one
is lost. If a key is lost, consult an
Authorized Mazda Dealer as soon as
possible.
y If you lose a key, an Authorized Mazda
Dealer will reset the electronic codes of
your remaining keys and immobilizer
system. Bring all the remaining keys to
an Authorized Mazda Dealer to reset.
Starting the vehicle with a key that has
not been reset is not possible.
Operation
N O T E
y The engine may not start and security
indicator light may illuminate or À ash
if the key is placed in an area where it
is dif ¿ cult for the system to detect the
signal, such as on the dashboard or in
the glove compartment. Move the key
to a location within the signal range,
switch the ignition off, and then restart
the engine.
y Signals from a TV or radio station, or
from a transceiver or mobile telephone
could interfere with your immobilizer
system. If you are using the proper key
and the engine fails to start, check the
security indicator light.
Arming
The system is armed when the ignition is
switched from ON to off.
The security indicator light in the
instrument cluster À ashes every 2 seconds
until the system is disarmed.
Disarming
The system is disarmed when the
ignition is switched ON with the correct
programmed key. The security indicator
light illuminates for about 3 seconds and
then turns off. If the engine does not start
with the correct key, and the security
indicator light remains illuminated or
À ashing, try the following:
Make sure the key is within the
operational range for signal transmission.
Switch the ignition off, and then restart the
engine. If the engine does not start after
3 or more tries, contact an Authorized
Mazda Dealer.
N O T E
y If the security indicator light À ashes
continuously while you are driving,
do not shut off the engine. Go to an
Authorized Mazda Dealer and have it
checked. If the engine is shut off while
the indicator light is À ashing, you will
not be able to restart it.
y Because the electronic codes are
reset when the immobilizer system
is repaired, the keys are needed.
Make sure to bring all the keys to an
Authorized Mazda Dealer so that they
can be programmed.
. B [ E B @ ' " & " ( @ & E J U J P O J O E C . B [ E B @ ' " & " ( @ & E J U J P O J O E C
Page 118 of 600
3–42
Before Driving
Security System
*Some models.
Theft-Deterrent System *
If the theft deterrent system detects an
inappropriate entry into the vehicle,
which could result in the vehicle or its
contents being stolen, the alarm alerts the
surrounding area of an abnormality by
sounding the horn and À ashing the hazard
warning lights.
The system will not function unless it's
properly armed. So when you leave the
vehicle, follow the arming procedure
correctly.
Operation
System triggering conditions
The horn sounds intermittently and the
hazard warning lights À ash for about 30
seconds when the system is triggered by
any one of the following:
y Unlocking a door with the key, door
lock switch, or an inside door-lock knob.
y Forcing open a door, the hood or the
liftgate/trunk lid.
y Opening the hood by operating the hood
release handle.
y Switching the ignition ON without using
the push button start.
If the system is triggered again, the lights
and horn will activate until the driver's
door is unlocked with the transmitter.
(With advanced key)
The lights and horn can also be
deactivated by pressing the request switch
on a door.
N O T E
If the battery goes dead while the theft-
deterrent system is armed, the horn will
activate and the hazard warning lights
will À ash when the battery is charged or
replaced.
How to Arm the System
1. Close the windows and the moonroof *
securely.
2. Switch the ignition OFF.
3. Make sure the hood, the doors, and the
liftgate/trunk lid are closed.
4. Press the lock button on the transmitter
or lock the driver's door from the
outside with the auxiliary key.
The hazard warning lights will À ash
once.
The following method will also arm the
theft-deterrent system:
Press the door-lock switch “
” while
any door is open and then close all of
the doors.
(With the advanced keyless function)
Press a request switch.
The security indicator light in the
instrument panel À ashes twice per
second for 20 seconds.
5. After 20 seconds, the system is fully
armed.
. B [ E B @ ' " & " ( @ & E J U J P O J O E C . B [ E B @ ' " & " ( @ & E J U J P O J O E C
Page 119 of 600
3–43
Before Driving
Security System
N O T E
y The theft deterrent system can also be
armed by activating the auto relock
function with all the doors, the liftgate/
trunk lid and the hood closed.
Refer to Transmitter on page 3-4 .
y The system will disarm if one of the
following operations takes place within
20 seconds after pressing the lock
button:
y Unlocking any door.
y Opening any door or the liftgate/
trunk lid.
y Opening the hood.
y Switching the ignition ON.
y (With the advanced keyless
function)
Pressing the electric liftgate/trunk lid
opener while the key is being carried.
To rearm the system, do the arming
procedure again.
y When the doors are locked by pressing
the lock button on the transmitter
or using the auxiliary key while the
theft-deterrent system is armed, the
hazard warning lights will À ash once to
indicate that the system is armed.
To Turn Off an Armed System
An armed system can be turned off using
any one of the following methods:
y Pressing the unlock button on the
transmitter.
y Switching the ignition ON.
y (With the advanced keyless function)
y
Pressing a request switch on the doors.
The hazard warning lights will À ash twice.
N O T E
When the doors are unlocked by pressing
the unlock button on the transmitter while
the theft-deterrent system is turned off, the
hazard warning lights will À ash twice to
indicate that the system is turned off.
To Stop the Alarm
A triggered alarm can be turned off using
any one of the following methods:
y Pressing the unlock button on the
transmitter.
y Starting the engine with the push button
start.
y (With the advanced keyless function)
y
Pressing a request switch on the doors.
y
Pressing the electric liftgate/trunk lid
opener while the key is being carried.
The hazard warning lights will À ash twice.
Theft-Deterrent Labels
A label indicating that your vehicle is
equipped with a Theft-Deterrent System is
in the glove compartment.
Mazda recommends that you af ¿ x it to the
lower rear corner of a front door window.
. B [ E B @ ' " & " ( @ & E J U J P O J O E C . B [ E B @ ' " & " ( @ & E J U J P O J O E C
Page 121 of 600
3–45
Before Driving
Driving Tips
Hazardous Driving
WARNING
Be extremely careful if it is necessary to
downshift on slippery surfaces:
Downshifting into lower gear
while driving on slippery surfaces is
dangerous. The sudden change in tire
speed could cause the tires to skid. This
could lead to loss of vehicle control
and an accident.
When driving on ice or in water, snow,
mud, sand, or similar hazards:
y Be cautious and allow extra distance for
braking.
y Avoid sudden braking and sudden
maneuvering.
y Do not pump the brakes. Continue to
press down on the brake pedal.
Refer to Antilock Brake System (ABS)
on page 4-62 .
y If you get stuck, select a lower gear and
accelerate slowly. Do not spin the front
wheels.
y For more traction in starting on slippery
surfaces such as ice or packed snow,
use sand, rock salt, chains, carpeting, or
other nonslip material under the front
wheels.
N O T E
Use snow chains only on the front wheels.
Floor Mat
WARNING
Make sure the fl oor mats are hooked on
the retention pins to prevent them from
bunching up under the foot pedals:
Using a fl oor mat that is not secured is
dangerous as it will interfere with the
accelerator and brake pedal operation,
which could result in an accident.
Do not install two fl oor mats, one on top
of the other, on the driver's side:
Installing two fl oor mats, one on top
of the other, on the driver's side is
dangerous as the retention pins can
only keep one fl oor mat from sliding
forward.
If using a heavy duty fl oor mat for
winter use always remove the original
fl oor mat.
Loose fl oor mat(s) will interfere with
the foot pedal and could result in an
accident.
When setting a À oor mat, position the À oor
mat so that its grommets are inserted over
the pointed end of the retention posts.
. B [ E B @ ' " & " ( @ & E J U J P O J O E C . B [ E B @ ' " & " ( @ & E J U J P O J O E C
