CAUTION
Always use only a genuine Mazda
fuel-filler cap or an approved equivalent,
available at an Authorized Mazda
Dealer. The wrong cap can result in a
serious malfunction of the fuel and
emission control systems.
(U.S.A. and Canada)
It may also cause the check engine light
in the instrument cluster to illuminate.
 When using an automatic car wash or a
high water pressure car wash, lock the
driver's door. Otherwise, the fuel-filler lid
may open unexpectedly and could be
damaged.
▼ Refueling
Before refueling, close all the doors,
windows, and liftgate/trunk lid, and switch
the ignition OFF.
1. Using the following, unlock the
driver’s door.
Transmitter (page 3-15)
Touch sensor (page 3-13)
Door-lock switch (page 3-15)
Auto lock/unlock function (page
3-17)
NOTE
When unlocking the driver's door,
the fuel lid is also unlocked at the
same time.
When locking the driver's door, the
fuel lid is locked after 90 seconds.
The time until the fuel lid is locked
after locking the driver's door can be
changed.
Refer to the Settings section in the
Mazda Connect Owner's Manual.
However, when the driver's door is
locked using the following functions,
the fuel lid is also locked at the same
time.
Auto lock/unlock function (page
3-17)
Auto re-lock function (page 3-5,
3-13)
2. Press the locat ion shown in the
illustration and open the fuel lid.

3. To remove the fuel-filler cap, turn it counterclockwise.
4. Attach the removed cap to the inner
side of the fu el-filler lid.

4–door
1. Fuel-filler lid
2. Fuel-filler cap

Before Driving
Fuel and Emission
3-28
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

Mirrors
▼Mirrors
Before driving, adjust the inside and
outside mirrors.
▼Outside Mirrors
WA R N I N G
Be sure to look over your shoulder before
changing lanes:
Changing lanes without taking into
account the actual distance of the vehicle
in the convex mirror is dangerous. You
could have a serious accident. What you
see in the convex mirror is closer than it
appears.
Mirror type
Flat type (driver's side)
Flat surface mirror.
Convex type (front passenger side)
The mirror has single curvature on its
surface.
Power mirror adjustment
The ignition must be switched to ACC or
ON position.

To adjust:
1. Press the select switch for the outside
mirror to be adjusted to turn on the
indicator light.
2. Press the adjustment switch to adjustthe angle of the outside mirror.
1. Indicator light
2. Select switch
3. Adjustment switch

After adjusting the angle of the outside
mirror, press the select switch for the
outside mirror to be adjusted to turn off
the indicator light.
NOTE
(With driving position memory function)
The on-road outside mi rror position can
be programmed in conjunction with the
driving position memory function.
Refer to Driving Position Memory on page
2-10.
Before Driving
Mirrors
3-30
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

Power mirrors with reverse tilt down
function*
The outside mirrors tilt downward to
facilitate the view of the lower area on
each side of the vehicle.
1. Switch the ignition ON.
2. Press the select switch for the outsidemirror to be tilted do wnward to turn on
the indicator light of the select switch.
3. Shift the shift lever/selector lever to the R position to tilt the outer mirror
on the side where the select button was
pressed downward.
NOTE
When any of the following condition is
met, the outer mirrors return to their
normal positions.
The ignition is switched to a position
other than ON.
The shift lever/selector lever is shifted to
a position other than R.
The select switch is pressed again.
Folding outside mirror
WA R N I N G
Always return the outside mirrors to the
driving position before you start driving:
Driving with the outside mirrors folded in is
dangerous. Your rear view will be
restricted, and you could have an accident.
Manually fold the outside mirror rearward
until it is flush w ith the vehicle.
Engine-off outside mirror operation
The outside mirrors can be operated for
about 40 seconds after the ignition is
switched from ON to off.
Driver's side auto-dimming outside
mirror*
The movement of the auto-dimming
outside mirror is interlocked with the
auto-dimming rearview mirror in the
interior to automatically reduce glare from
rear on-coming vehicles.
Refer to Rearview M irror on page 3-32.
NOTE
The front passenger-side outside mirror
does not have the auto-dimming feature.
Before Driving
Mirrors
*Some models.3-31
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

▼Rearview Mirror
WA R N I N G
Do not stack cargo or objects higher than
the seatbacks:
Cargo stacked higher than the seatbacks is
dangerous. It can block your view in the
rearview mirror, which might cause you to
hit another car when changing lanes.
Rearview mirror adjustment
Before driving, adjust
the rearview mirror
to center on the scene through the rear
window.

NOTE
For the manual day/night mirror, perform
the adjustment with the day/night lever in
the day position.
Reducing glare from headlights
Manual day/night mirror
Push the day/night lever forward for day
driving. Pull it back to reduce glare of
headlights from vehicles at the rear.

1. Day/Night lever
2. Night
3. Day

Auto-dimming mirror
The auto-dim ming mirror automatically
reduces the glare of headlights from
vehicles at the rear when the ignition is
switched ON.

(With Homelink wireless control
system)
Press the ON/OFF button (
) to cancel the
auto-dimming function. The indicator light
will turn off.
Before Driving
Mirrors
3-32
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

To reactivate the auto-dimming function,
press the ON/OFF button (
). The
indicator light will illuminate.
1. ON/OFF button
2. Indicator light

NOTE
Do not use glass cleaner or suspend
objects on or around the light sensor.
Otherwise, light sensor sensitivity will
be affected and may not operate
normally.
1. Light sensor

(With Homelink wireless control
system)
For information regarding the 3 buttons
(
,,) on the auto-dimming mirror.
Refer to HomeLink Wireless Control
System on page 4-58.
The auto-dimming function is canceled
when the ignition is switched ON and
the shift lever/selector lever is in the R
position.
Before Driving
Mirrors
3-33
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

▼Opening/Closing Windows
The window opens while the switch is
pressed and it close
s while the switch is
pulled up with the ignition switched ON.
Do not open or close 3 or more windows
at the same time.
The front passenger's window and rear
windows can be opened/closed when the
power window lock switch on the driver's
door is in the unlocked position. Keep this
switch in the locked position while
children are in the vehicle.

Master control switches
1. Close
2. Open
3. Front passenger's window
4. Right rear window
5. Power window lock switch
6. Left rear window
7. Driver's window
8. Locked position
9. Unlocked position

Front passenger's w indow switch/Rear
window switches
1. Close
2. Open

NOTE
A power window may no longer open/
close if you continue to press the switch
for a long time. If the power window
does not open/close, wait for a while
and then operate the switch again.
The passenger windows may be opened
or closed using the master control
switches on the driver's door.
The power window can be operated for
about 40 seconds after the ignition is
switched from ON to ACC or off with all
doors closed. If any door is opened, the
power window will stop operating.
Before Driving
Windows
3-35
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

▼Auto-opening/Closing
To fully open the window automatically,
press the switch completely down, then
release. The window will fully open
automatically.
To fully close the window automatically,
pull the switch completely up, then
release. The window will fully close
automatically.

To stop the window p
artway, pull or press
the switch in the opposite direction and
then release it.
NOTE
Power window system initialization
procedure
If you operate the switch any number of
times with the power window not fully
closed, the window may no longer fully
open/close automatically.
The power window auto function will only
resume on a power window that has been
reset.
1. Switch the ignition ON.
2. Make sure that the power window lock switch located on the driver's door is
not depressed.
3. Press the switch and fully open the
window.
4. Pull up the switch to fully close the window and continue holding the
switch for about 2 seconds after the
window fully closed.
5. Make sure that the power windows operate correctly using the door
switches.
▼Jam-safe Window
When the window is closing and a foreign
object is detected between the window and
the window frame, the window stops
closing and automatically opens partway.
NOTE
The jam-safe function may operate
under the following conditions:
A strong impact is detected while the
window is closing.
The window is closing in very low
temperatures.
(A window cannot be closed)
If the jam-safe function has operated
and the window cannot be closed, check
around the window frame for a foreign
object.
If there is no foreign object around the
window frame, forcibly close a window
using the following procedure.
1. After switching the ignition OFF,
wait for 45 seconds or longer.
2. Switch the ignition ON.
3. Operate the switch in the direction to close the window until the jam-safe
function operates 5 times.
4. Continue pulling up the switch to fully close the window.
Before Driving
Windows
3-36
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

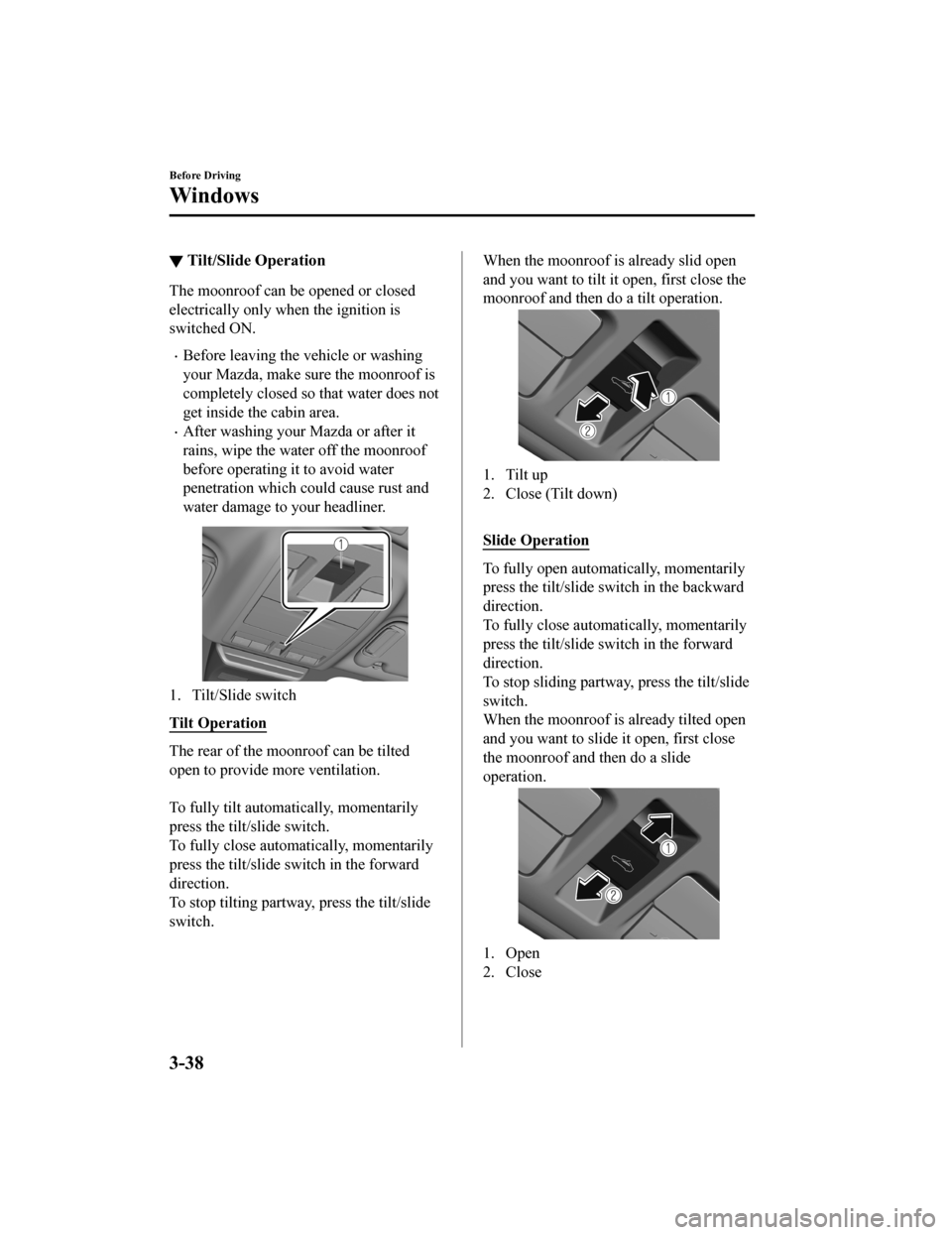

▼Tilt/Slide Operation
The moonroof can be opened or closed
electrically only when the ignition is
switched ON.
Before leaving the vehicle or washing
your Mazda, make sure the moonroof is
completely closed so
that water does not
get inside the cabin area.
After washing your Mazda or after it
rains, wipe the wa ter off the moonroof
before operating it to avoid water
penetration which could cause rust and
water damage to your headliner.
1. Tilt/Slide switch
Tilt Operation
The rear of the moonroof can be tilted
open to provide more ventilation.

To fully tilt automa tically, momentarily
press the tilt/slide switch.
To fully close automatically, momentarily
press the tilt/slide s witch in the forward
direction.
To stop tilting partway, press the tilt/slide
switch.
When the moonroof is already slid open
and you want to tilt it open, first close the
moonroof and then do a tilt operation.
1. Tilt up
2. Close (Tilt down)

Slide Operation
To fully open automatically, momentarily
press the tilt/slide switch in the backward
direction.
To fully close automatically, momentarily
press the tilt/slide switch in the forward
direction.
To stop sliding partway, press the tilt/slide
switch.
When the moonroof is already tilted open
and you want to slide it open, first close
the moonroof and then do a slide
operation.
1. Open
2. Close
Before Driving
Windows
3-38
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03

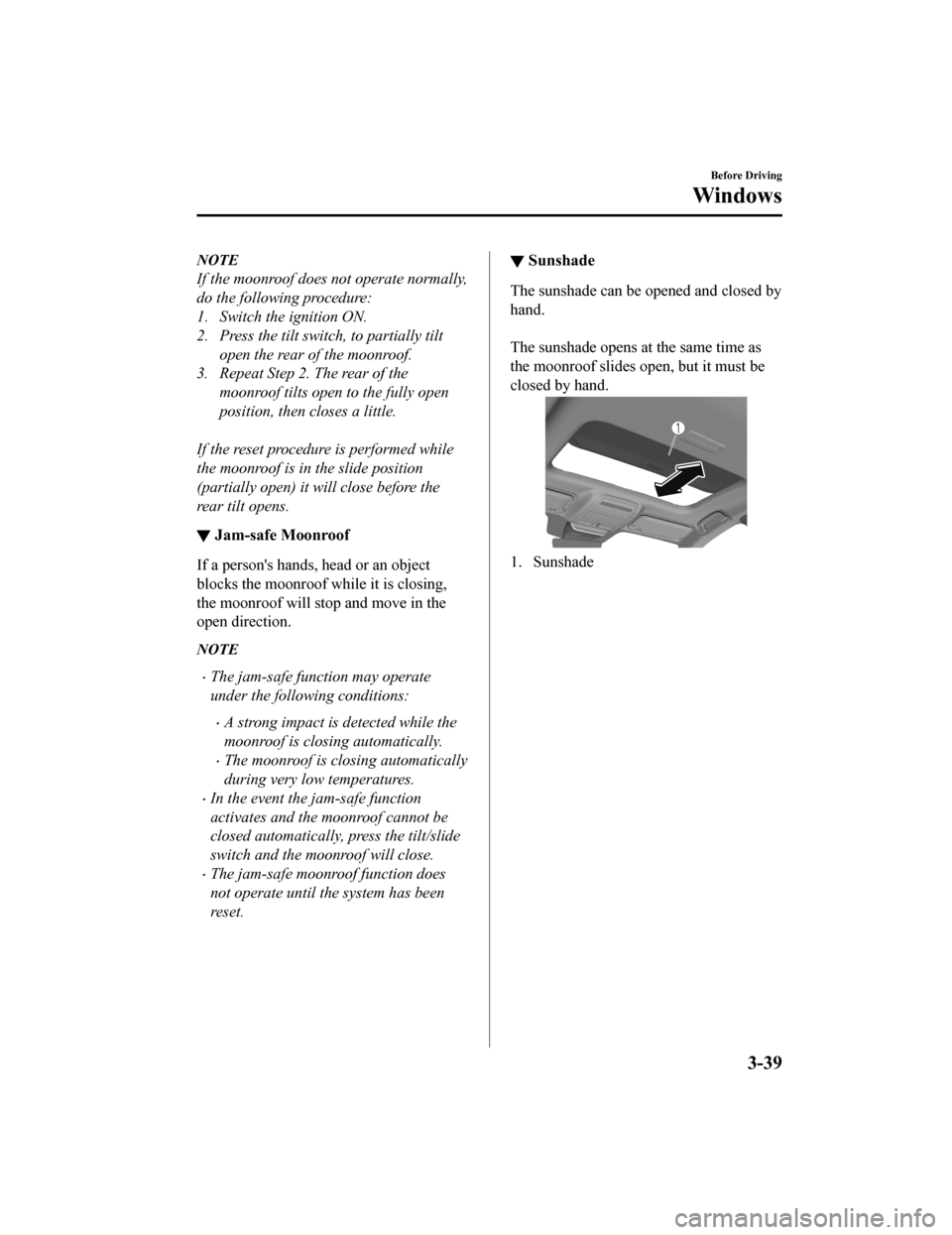

NOTE
If the moonroof does not operate normally,
do the following procedure:
1. Switch the ignition ON.
2. Press the tilt switch, to partially tilt
open the rear of the moonroof.
3. Repeat Step 2. The rear of the
moonroof tilts open to the fully open
position, then closes a little.

If the reset procedure is performed while
the moonroof is in the slide position
(partially open) it will close before the
rear tilt opens.
▼ Jam-safe Moonroof
If a person's hands, head or an object
blocks the moonroof while it is closing,
the moonroof will stop and move in the
open direction.
NOTE
The jam-safe function may operate
under the following conditions:
A strong impact is detected while the
moonroof is closing automatically.
The moonroof is closing automatically
during very low temperatures.
In the event the jam-safe function
activates and the moonroof cannot be
closed automatically, press the tilt/slide
switch and the moonroof will close.
The jam-safe moonroof function does
not operate until the system has been
reset.
▼Sunshade
The sunshade can be opened and closed by
hand.

The sunshade opens at the same time as
the moonroof slides open, but it must be
closed by hand.
1. Sunshade
Before Driving
Windows
3-39
Mazda3_8HZ1-EA-19G_Edition1_old
2019-5-17 13:49:03

NOTE
The keys carry a unique electronic code.
For this reason, and to assure your
safety, obtaining a replacement key
requires some waiting time. They are
only available through an Authorized
Mazda Dealer.
Always keep a spare key in case one is
lost. If a key is lost, consult an
Authorized Mazda Dealer as soon as
possible.
If you lose a key, an Authorized Mazda
Dealer will reset the electronic codes of
your remaining keys and immobilizer
system. Bring all the remaining keys to
an Authorized Mazda Dealer to reset.
Starting the vehicle with a key that has
not been reset is not possible.
▼ Operation
NOTE
The engine may not start and security
indicator light may illuminate or flash if
the key is placed in an area where it is
difficult for the system to detect the
signal, such as on the dashboard or in
the glove compartment. Move the key to
a location within the signal range,
switch the ignition off, and then restart
the engine.
Signals from a TV or radio station, or
from a transceiver or mobile telephone
could interfere with your immobilizer
system. If you are using the proper key
and the engine fails to start, check the
security indicator light.
Arming
The system is armed when the ignition is
switched from ON to off.
The security indica
tor light in the
instrument cluster flashes every 2 seconds
until the system is disarmed.

Disarming
The system is disarmed when the ignition
is switched ON with the correct
programmed key. The security indicator
light illuminates for about 3 seconds and
then turns off.
If the engine does not start with the correct
key, and the security indicator light
remains illuminated o r flashing, try the
following:
Make sure the key is within the
operational range for signal transmission.
Switch the ignition off, and then restart the
engine. If the engine does not start after 3
or more tries, contact an Authorized
Mazda Dealer.
Before Driving
Security System
3-41
Mazda3_8HZ1-EA-19G_Edition1_old 2019-5-17 13:49:03
