Seat Warmer*
▼Seat Warmer
The front seats can be warmed up
while the engine is running.
While the seat warmer is operating,
the indicator light in the seat warmer
switch turns on according to the set
temperature.
Manual mode
When the seat warmer switch is
pressed, the seat warmer operates in
manual mode.
The set temperature changes as shown
in the figure each time the seat warmer
switch is pressed.
1. OFF
2. High
3. Mid
4. Low
NOTE
If the engine is turned
off while the
seat warmer is operating in manual
mode, the seat warmer does not turn
on automatically the next time the
engine is turned on. To turn the seat
warmer on, press the switch again.
Auto mode
The driver and front passenger's seat
warmer can be operated in auto mode
using the following procedure.
1. If “Link Seat & Climate Control Temperatures” has been disabled,
enable it using the following
procedure.
a) Select “Settings” from the MazdaConnect home screen.
b) Select “Vehicle Settings”.
c) Enable “Link Seat & Climate Control Temperatures”.
2. Press the AUTO switch.
While in auto mode, the seat
temperature is automatically controlled
in 4 levels (High, Mid, Low, and OFF)
according to the conditions in the
cabin.
NOTE
If the front passenger’s seat belt is
unfastened, the front passenger’s
seat warmer turns off.
If the seat warmer switch is pressed
during auto mode, the seat warmer
on the side where the switch was
pressed switches to manual mode.
To return to auto mode, press the
AUTO switch.
If the engine is turned off while the
seat warmer is operating in auto
mode, the seat warmer operates in
auto mode again the next time the
engine is turned on.

Essential Safety Equipment
Seat Warmer/Heated Steering Wheel
2-20*Some models.
Mazda3_8KH1-EA-21K_Edition1_new 2021-7-27 16:02:22

Auto mode
The heated steering wheel can be
operated in auto mode using the
following procedure.
1. If “Link Seat & Climate ControlTemperatures” has been disabled,
enable it using the following
procedure.
a) Select “Settings” from the MazdaConnect home screen.
b) Select “Vehicle Settings”.
c) Enable “Link Seat & Climate Control Temperatures”.
2. Press the AUTO switch.
While in auto mode, the heated
steering wheel automatically operates/
turns off according to the conditions in
the cabin.
NOTE
If the heated steering wheel switch is
pressed during auto mode, the
heated steering wheel switches to
manual mode. To return to auto
mode, press the AUTO switch.
If the ignition is switched OFF while
the heated steering wheel is
operating in auto mode, the heated
steering wheel operates in auto
mode again the next time the
ignition is switched ON.

CAUTION
The following types of persons should
be careful not to touch the steering
wheel. Otherwise, it could cause a
low-temperature burn.
 Infants, small children, elderly
people, and physically challenged
people
 People with delicate skin
 People who are excessively fatigued
 People who are intoxicated
 People who have taken
sleep-inducing medicine such as
sleeping pills or cold medicine
Essential Safety Equipment
Seat Warmer/Heated Steering Wheel
2-22
Mazda3_8KH1-EA-21K_Edition1_new 2021-7-27 16:02:22

with the selector lever in the D or
M position (not in second gear
fixed mode).
3. If the selector lever is in the N or P position, the engine does not
restart when the brake pedal is
released. The engine restarts when
the brake pedal is depressed again
or the selector lever is shifted to the
D, M (not in second gear fixed
mode) or the R position. (For the
purposes of safety, always keep the
brake pedal depressed when
shifting the selector lever while
engine idling is stopped.)
(When the vehicle is stopped by the
MRCC with Stop & Go function/TJA
stop hold control)
1. When the vehicle is stopped by the MRCC with Stop & Go function/
TJA, engine idling stops and
continues to be stopped without
depressing the brake pedal.
2. When the accelerator pedal is depressed or the RES switch is
operated, while the vehicle is
stopped by the MRCC with Stop &
Go function/TJA, the engine will
automatically restart if the selector
lever is in the D/M position (not in
second gear fixed mode).
(When the vehicle is stopped by the
AUTOHOLD function)
1. When the brake pedal is depressed while the vehicle is being driven
and the vehicle comes to a stop,
the i-stop function will operate and
continue to operate even if the
brake is released (except when
driving in the R or M position
second gear fixed mode).
2. The engine restarts automatically when the accelerator pedal is
depressed with the selector lever in
the D/M position (not in second
gear fixed mode).3. If the selector lever is in the N or Pposition, the engine does not
restart when the brake pedal is
released. The engine restarts when
the brake pedal is depressed again
or the selector lever is shifted to the
D, M (not in second gear fixed
mode) or the R position. (For the
purposes of safety, always keep the
brake pedal depressed when
shifting the selector lever while
engine idling is stopped.)
(When using MRCC with Stop & Go
function/TJA)
1. Engine idling stops when the vehicle has decelerated to about 20
km/h (12 mph) or slower while in
headway control using the MRCC
with Stop & Go function/TJA.
2. If it is necessary to accelerate while in headway control using the MRCC
with Stop & Go function/TJA, the
engine restarts automatically.
Operation conditions
Under the following conditions, engine
idling stops and the i-stop indicator
light (green) turns on.
The engine is warmed up.The engine has been started and the
vehicle is driven for a certain period.
The engine is started with the hood
closed.
All doors, liftgate/trunk lid, and
hood are closed.
The driver's seat belt is unfastened
and the driver's door is opened.
The hood is opened.The air conditioner is not operating
with the airflow mode in the
position.The temperature setting dial of the
air conditioner is in a position other
than maximum heating or maximum
cooling (A/C ON) position.
(Automatic climate control system)
When Driving
Start/Stop Engine
4-12
Mazda3_8KH1-EA-21K_Edition1_new
2021-7-27 16:02:22

The air conditioner is operated with
the airflow mode in the
position.The temperature setting dial of the
air conditioner is in the maximum
heating or maximum cooling (A/C
ON) position.
(Automatic climate control system)
The cabin temperature is largely
different from the set temperature of
the air conditioner.
The brakes are released slightly on a
slope and the vehicle begins to
move.
Two minutes have elapsed since the
idling was stopped.
The battery power is depleted.The hood is opened.The driver's seat belt is unfastened
and the driver's door is opened.
Engine idling is stopped while the
vehicle is stopped
The accelerator pedal is depressed
with the selector lever in the D or
M (not in second gear fixed mode)
position.
The selector lever is shifted to the R
position.
The selector lever is shifted from N
or P position to D or M (not in
second gear fixed mode) position.
The steering wheel is operated
with the selector lever in the D or
M (not in second gear fixed mode)
position.
The selector lever is in the M
position and the second gear fixed
mode is selected.
The steering wheel is operated.Engine idling is stopped while
driving
The selector lever is in a position
other than the D position.
The accelerator pedal is depressed.Sport mode is selected.
The steering wheel is operated.The shift lever is shifted to the R
position.
Selector lever is operated while
engine idling is stopped
If the selector lever is shifted from D or
M (not in second gear fixed mode)
position to N or P position while
engine idling is stopped, the engine
does not restart even when the brake
pedal is released. The engine will
restart if the brake pedal is depressed
again or the selector lever is shifted to
the D, M (not in second gear fixed
mode), or R position. (For the
purposes of safety, always keep the
brake pedal depressed when shifting
the selector lever.)
If the selector lever is shifted from the
D or M (not in second gear fixed
mode) to the N or P position, and the
driver's seat belt is unfastened or the
driver's door is opened, the engine
restarts.
Battery terminals have been
disconnected
Engine idling may not stop right after
the battery terminals have been
disconnected. In addition, if the
battery is replaced, the i-stop functions
must be verified. Consult an
Authorized Mazda Dealer.
▼ i-stop OFF Switch
When pressing the switch, the i-stop
function stops and the i-stop OFF
switch indicator light turns on. If the
switch is pressed again, the i-stop
function becomes operational and the
When Driving
Start/Stop Engine
4-14
Mazda3_8KH1-EA-21K_Edition1_new
2021-7-27 16:02:22

5Interior Features
Use of various features for ride comfort, including air-
conditioning system and audio system.
Climate Control System............. 5-2 Operating Tips....................... 5-2
Vent Operation......................5-3
Manual Type..........................5-5
Fully Automatic Type............ 5-10
Mazda Connect...................... 5-15 What is Mazda Connect ?.....5-15
Mazda Connect Basic
Operations.......................... 5-19
Connected Service (If
applicable).......................... 5-37
Interior Equipment.................. 5-39Sunvisors............................. 5-39
Interior Lights...................... 5-40
Accessory Socket................. 5-42
Cup Holder......................... 5-43
Bottle Holder.......................5-45
Assist Grips......................... 5-45
Rear Coat Hooks................. 5-46
Storage Compartments........ 5-46
5-1
Mazda3_8KH1-EA-21K_Edition1_new 2021-7-27 16:02:22

Operating Tips
▼Operating Tips
Operate the climate control system
with the engine running.
To prevent the battery from being
discharged, do not leave the fan
control switch on for a long period of
time with the ignition switched ON
when the engine is not running.
Clear all obstructions such as leaves,
snow and ice from the hood and the
air inlet in the cowl grille to improve
the system efficiency.
Use the climate control system to
defog the windows and dehumidify
the air.
The recirculate mode should be used
when driving through tunnels or
while in a
traffic jam, or when you
would like to shut off outside air for
quick cooling of the interior.
Use the outside air position for
ventilation or windshield defrosting.
If the vehicle has been parked in
direct sunlight during hot weather,
open the windows to let warm air
escape, then run the climate control
system.
Run the air conditioner about 10
minutes at least once a month to
keep internal parts lubricated.
Have the air conditioner checked
before the weather gets hot. Lack of
refrigerant may make the air
conditioner less efficient.
The refrigerant specifications are
indicated on a label attached to the
inside of the engine compartment. If
the wrong type of refrigerant is used,
it could result in a serious
malfunction of the air conditioner.
Consult a professional, government certified repairer for the inspection
or repair because a special device is
required for the air conditioner
maintenance.
For details, consult an Authorized
Mazda Dealer.
1. Label
Interior Features
Climate Control System
5-2
Mazda3_8KH1-EA-21K_Edition1_new 2021-7-27 16:02:22

Ve n t O p e ra t i o n

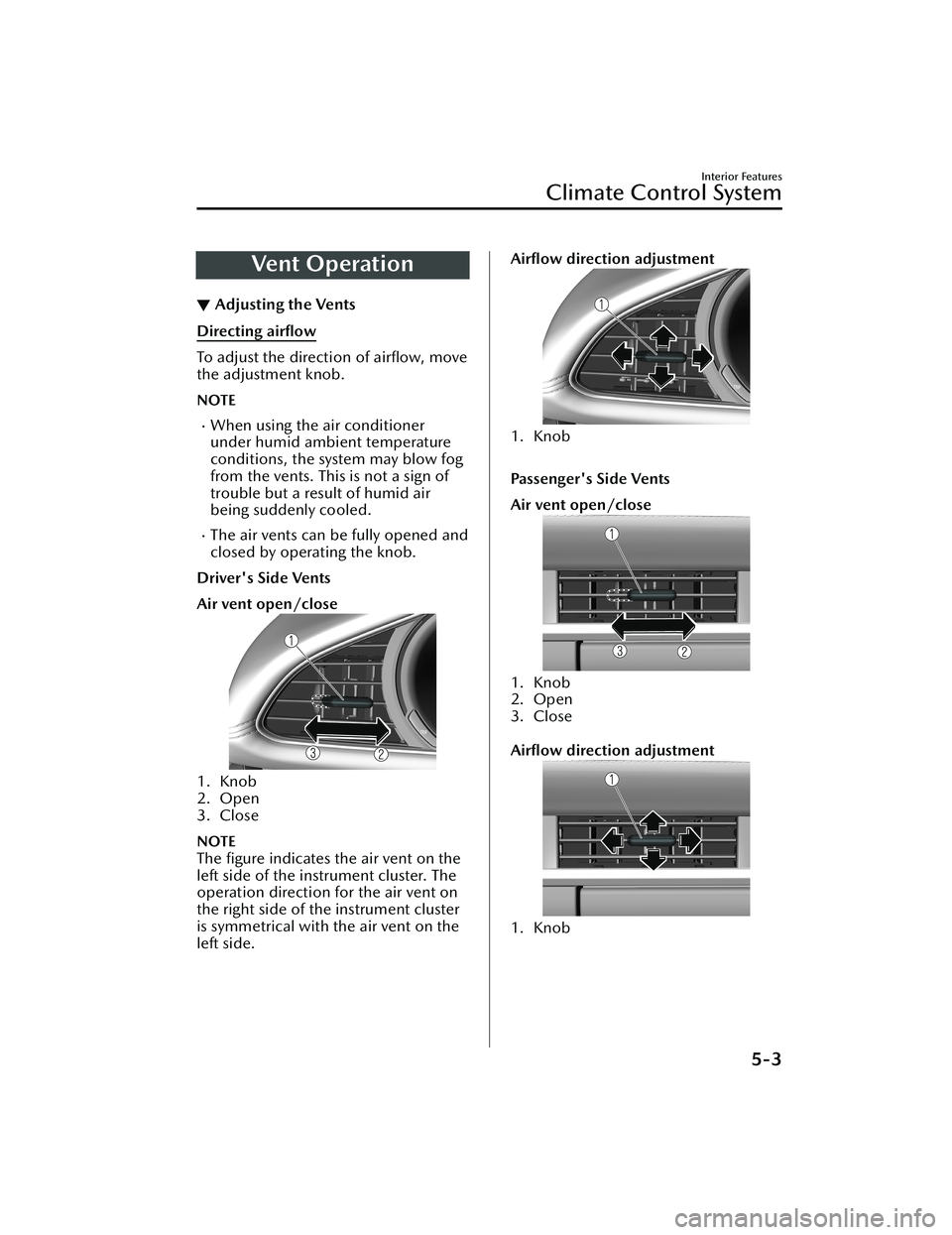

▼Adjusting the Vents
Directing airflow
To adjust the direction of
airflow, move
the adjustment knob.
NOTE
When using the air conditioner
under humid ambient temperature
conditions, the system may blow fog
from the vents. This is not a sign of
trouble but a result of humid air
being suddenly cooled.
The air vents can be fully opened and
closed by operating the knob.
Driver's Side Vents
Air vent open/close
1. Knob
2. Open
3. Close
NOTE
The figure indicates the air vent on the
left side of the instrument cluster. The
operation direction for the air vent on
the right side of the instrument cluster
is symmetrical with the air vent on the
left side.

Airflow direction adjustment
1. Knob

Passenger's Side Vents
Air vent open/close
1. Knob
2. Open
3. Close

Airflow direction adjustment
1. Knob

Interior Features
Climate Control System
5-3
Mazda3_8KH1-EA-21K_Edition1_new 2021-7-27 16:02:22

▼Selecting the Airflow Mode
Dashboard Vents
Dashboard and Floor Vents
Floor Vents
Defroster and Floor Vents
Defroster Vents
NOTE
The location airflow exits the air vents
and the airflow amount may change
depending on the open or close status
of the air vents.
Interior Features
Climate Control System
5-4
Mazda3_8KH1-EA-21K_Edition1_new
2021-7-27 16:02:22

Manual Type
▼Manual Type
1. A/C switch
2. Mode selector switch
3. Air intake selector switch
4. Fan control dial
5. Rear window defogger switch
6. Windshield defroster switch
7. Temperature control dial

▼Control Switches
Temperature control dial
This dial controls temperature. Turn it
clockwise for hot and
counterclockwise for cold.
MAX A/C
Fully turn the temperature control dial
counterclockwise for MAX A/C
(maximum cooling).
NOTE
When the mode is set to or with
the fan control dial in a position other
than 0 and the temperature control
dial in the MAX A/C position, the air
intake selector switches to the
recirculated air position and the A/C
turns on automatically.
If A/C is not desired, press the A/C
switch to turn it off.
Fan control dial
This dial allows variable fan speeds.
The fan has seven speeds.
Mode selector switches
The desired airflow mode can be
selected (page 5-4).
A/C switch
Press the A/C switch to turn the air
conditioner on. The indicator light on
the switch will illuminate when the fan
control dial is in any position except
OFF.

Press the switch once again to turn the
air conditioner off.
NOTE
The air conditioner may not function
when the outside temperature
approaches 0 °C (32 °F).
Interior Features
Climate Control System
5-5
Mazda3_8KH1-EA-21K_Edition1_new 2021-7-27 16:02:22
