Bottle Holder
Bottle holders are on the inside of the
doors.
Bottle holder
CAUTION
Do not use the bottle holders for
containers without caps. The
contents may spill when the door is
opened or closed.
Storage Compartments
WARNING
Keep storage boxes closed when
driving:Driving with the storage boxes open
is dangerous. To reduce the
possibility of injury in an accident or
a sudden stop, keep the storage
boxes closed when driving.
CAUTION
Do not leave lighters or eyeglasses in
the storage boxes while parked under
the sun. A lighter could explode or
the plastic material in eyeglasses
could deform and crack from high
temperature.
qGlove Box
To open the glove box, pull the latch
toward you.
Insert the key and turn it clockwise to
lock, counterclockwise to unlock.
Unlock
Lock
6-52
Interior Comfort
Interior Equipment
Mazda5_8X91-EA-07E_Edition1 Page212
Tuesday, June 26 2007 8:47 PM
Form No.8X91-EA-07E

Black plate (213,1)
qCenter Console
To open, pull the left release latch.
Small items can be placed in the tray of
the center console lid.
To open it, pull the right release latch.
qUnderseat Storage
If your vehicle has a right second-row
storage box (page 6-54), when using the
storage box, small items can be stored
under the both bottoms of the second-row
seats.
To use the under seat storage
Pull the strap and lift the seat bottom up
and forward.
Interior Comfort
Interior Equipment
6-53
Mazda5_8X91-EA-07E_Edition1 Page213
Tuesday, June 26 2007 8:47 PM
Form No.8X91-EA-07E

Black plate (214,1)
CAUTION
Do not store items above the marked
line indicated in the illustration
below. If the items are stored above
the marked line, the seat bottom will
not lock and could cause serious
injury.
Marked line
To return the seat bottom
Carefully lower the seat bottom backward
until it locks in place. Attempt to lift the
seat bottom to make sure it is firmly
locked down.
qStorage Boxí
The storage box is stowed under the
bottom of the right second-row seat.
Small items can be stored in this box.
To use the storage box
1. Pull the strap and lift the seat bottom
up and forward.
NOTE
If it is hard to lift the seat bottom, raise the
reclining lever and lean back slightly.
2. Pull out the storage box.
6-54
Interior Comfort
íSome models.
Interior Equipment
Mazda5_8X91-EA-07E_Edition1 Page214
Tuesday, June 26 2007 8:47 PM
Form No.8X91-EA-07E

Black plate (215,1)
3. More items can be stowed if the coveris removed.
NOTE
The cover can be kept in the seatback pocket of
the front passenger seat.
4. Carefully lower the seat bottom
backward until it locks in place.
Attempt to lift the seat bottom to make
sure it is firmly locked down.
To stow the storage box
1. Clean out the inside of the storage box,and then attach the cover to it.
2. Pull the strap and lift the seat bottom up and forward.
3. Make sure the underseat storage area is empty before storing it.
4. Carefully lower the seat bottom backward until it locks in place.
Attempt to lift the seat bottom to make
sure it is firmly locked down.
When folding the seatback of the right
second-row seat, make sure the storage
box is stowed. If the storage box is not
stowed, it could be damaged.
q Cargo Securing Loops
WARNING
Make sure luggage and cargo is
secured before driving:
Not securing cargo while driving is
dangerous as it could move or be
crushed during sudden braking or a
collision and cause injury.
Use the loops in the luggage compartment
to secure cargo with a rope or net. The
tensile strength of the loops is 196 N (20
kgf, 44 lbf). Do not apply excessive force
to the loops as it will damage them.
Third-row seat
q Cargo Sub-Compartment
Lift the cover.
Trunk board
Cargo sub-
compartment
Interior Comfort
Interior Equipment
6-55
Mazda5_8X91-EA-07E_Edition1 Page215
Tuesday, June 26 2007 8:47 PM
Form No.8X91-EA-07E

Black plate (216,1)

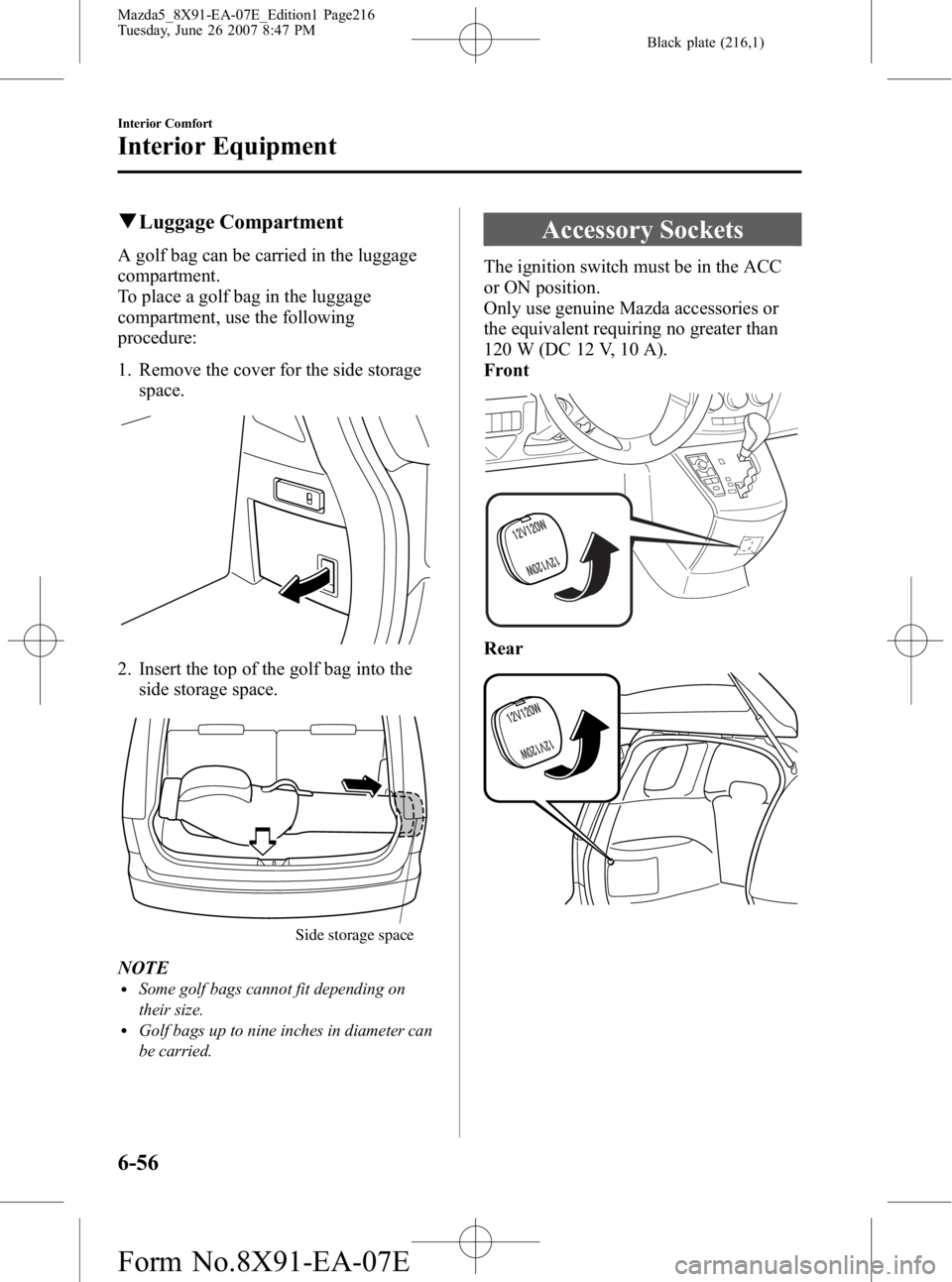

qLuggage Compartment
A golf bag can be carried in the luggage
compartment.
To place a golf bag in the luggage
compartment, use the following
procedure:
1. Remove the cover for the side storage
space.
2. Insert the top of the golf bag into theside storage space.
Side storage space
NOTElSome golf bags cannot fit depending on
their size.
lGolf bags up to nine inches in diameter can
be carried.
Accessory Sockets
The ignition switch must be in the ACC
or ON position.
Only use genuine Mazda accessories or
the equivalent requiring no greater than
120 W (DC 12 V, 10 A).
Front
Rear
6-56
Interior Comfort
Interior Equipment
Mazda5_8X91-EA-07E_Edition1 Page216
Tuesday, June 26 2007 8:47 PM
Form No.8X91-EA-07E

Black plate (217,1)
CAUTION
To prevent accessory socket damage
or electrical failure, pay attention to
the following:
ØDo not use accessories that require
more than 120 W (DC 12 V, 10 A).
Ø Do not use accessories that are not
genuine Mazda accessories or the
equivalent.
Ø Close the cover when the accessory
socket is not in use to prevent
foreign objects and liquids from
getting into the accessory socket.
Ø Correctly insert the plug into the
accessory socket.
NOTE
To prevent discharging of the battery, do not
use the socket for long periods with the engine
off or idling.
Interior Comfort
Interior Equipment
6-57
Mazda5_8X91-EA-07E_Edition1 Page217
Tuesday, June 26 2007 8:47 PM
Form No.8X91-EA-07E

Black plate (218,1)
6-58
Mazda5_8X91-EA-07E_Edition1 Page218
Tuesday, June 26 2007 8:47 PM
Form No.8X91-EA-07E

Black plate (219,1)
7In Case of an Emergency
Helpful information on what to do in an emergency.
Parking in an Emergency ............................................................. 7-2Parking in an Emergency .......................................................... 7-2
Flat Tire ......................................................................................... 7-3 Spare Tire and Tool Storage ...................................................... 7-3
Changing a Flat Tire ................................................................. 7-7
Overheating ................................................................................. 7-13 Overheating ............................................................................. 7-13
Emergency Starting .................................................................... 7-15 Starting a Flooded Engine ....................................................... 7-15
Jump-Starting .......................................................................... 7-16
Push-Starting ........................................................................... 7-19
Emergency Towing ..................................................................... 7-20 Towing Description ................................................................. 7-20
Tiedown Hooks ....................................................................... 7-21
Recreational Towing ............................................................... 7-23
7-1
Mazda5_8X91-EA-07E_Edition1 Page219
Tuesday, June 26 2007 8:47 PM
Form No.8X91-EA-07E

Black plate (220,1)
Parking in an Emergency
The hazard warning lights should always
be used when you stop on or near a
roadway in an emergency.
The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.
Depress the hazard warning flasher and all
the turn signals will flash.
NOTE
lThe turn signals don't work when the
hazard warning lights are on.
lCheck local regulations about the use of
hazard warning lights while the vehicle is
being towed. They may forbid it.
7-2
In Case of an Emergency
Parking in an Emergency
Mazda5_8X91-EA-07E_Edition1 Page220
Tuesday, June 26 2007 8:47 PM
Form No.8X91-EA-07E

Black plate (221,1)
Spare Tire and Tool Storage
Spare tire and tools are stored in the locations illustrated in the diagram.
Flat tire belt storage bag
Jack lever
Tiedown eyelet
Jack Spare tire
Lug wrench
In Case of an Emergency
Flat Tire
7-3
