qJack
To remove the jack
1. Remove the cover.
2. Turn the wing bolt and jack screw
counterclockwise.
Wing bolt
Jack screw
To secure the jack
1. Insert the wing bolt into the jack with the jack screw pointing down and turn
the wing bolt clockwise to temporarily
tighten it.
2. Turn the jack screw in the direction shown in the figure.
Wing bolt
Jack screw
3. Turn the wing bolt completely to secure the jack.
NOTE
If the jack is not completely secured, it could
rattle while driving. Make sure the jack screw
is sufficiently tightened.
Maintenance
lAlways keep the jack clean.lMake sure the moving parts are kept
free from dirt or rust.
lMake sure the screw thread is
adequately lubricated.
7-4
In Case of an Emergency
Flat Tire
Mazda5_8CN3-EA-12I_Edition2 Page308
Wednesday, November 7 2012 11:49 AM
Form No.8CN3-EA-12I

Black plate (310,1)
2. Open and fold back the trunk boardover the third-row seatback.
Trunk board
3. Remove the cargo sub-compartment.
Cargo sub-
compartment
4. Turn the tire hold-down bolt
counterclockwise with the lug wrench.
To secure the spare tire
Perform the removal procedure in reverse.
7-6
In Case of an Emergency
Flat Tire
Mazda5_8CN3-EA-12I_Edition2 Page310
Wednesday, November 7 2012 11:49 AM
Form No.8CN3-EA-12I

Black plate (312,1)
qRemoving a Flat Tire
1. Loosen the lug nuts by turning them
counterclockwise one turn each, but do
not remove any lug nuts until the tire
has been raised off the ground.
2. Place the jack on the ground.
3. Turn the jack screw in the directionshown in the figure and adjust the jack
head so that it is close to the jack-up
position.
Jack head
4. Place the jack under the jack-upposition closest to the tire being
changed with the jack head squarely
under the jack-up point.
Jacking position
5. Continue raising the jack headgradually by rotating the screw with
your hand until the jack head is
inserted into the jack-up position.
Tire blocks
Jacking position
7-8
In Case of an Emergency
Flat Tire
Mazda5_8CN3-EA-12I_Edition2 Page312
Wednesday, November 7 2012 11:49 AM
Form No.8CN3-EA-12I

Black plate (313,1)
WARNING
Use only the front and rear jacking
positions recommended in this manual:Attempting to jack the vehicle in
positions other than those
recommended in this manual is
dangerous. The vehicle could slip off
the jack and seriously injure or even
kill someone. Use only the front and
rear jacking positions recommended
in this manual.
Do not jack up the vehicle in a position
other than the designated jack-up
position or place any objects on or
under the jack: Jacking up the vehicle in a position
other than the designated jack-up
position or placing objects on or
under the jack is dangerous as it
could deform the vehicle body or the
vehicle could fall off the jack
resulting in an accident.
Use only the jack provided with your
Mazda: Using a jack that is not designed for
your Mazda is dangerous. The vehicle
could slip off the jack and seriously
injure someone.
Never place objects under the jack: Jacking the vehicle with an object
under the jack is dangerous. The jack
could slip and someone could be
seriously injured by the jack or the
falling vehicle. 6. Insert the jack lever and attach the lug
wrench to tire jack.
7. Turn the lug wrench clockwise and
raise the vehicle high enough so that
the spare tire can be installed. Before
removing the lug nuts, make sure your
Mazda is firmly in position and that it
cannot slip or move.
In Case of an Emergency
Flat Tire
7-9
Mazda5_8CN3-EA-12I_Edition2 Page313
Wednesday, November 7 2012 11:49 AM
Form No.8CN3-EA-12I

Black plate (314,1)
WARNING
Do not jack up the vehicle higher than
is necessary:Jacking up the vehicle higher than is
necessary is dangerous as it could
destabilize the vehicle resulting in an
accident.
Do not start the engine or shake the
vehicle while it is jacked up: Starting the engine or shaking the
vehicle while it is jacked up is
dangerous as it could cause the
vehicle to fall off the jack resulting in
an accident.
Never go under the vehicle while it is
jacked up: Going under the vehicle while it is
jacked up is dangerous as it could
result in death or serious injury if the
vehicle were to fall off the jack.
8. Remove the lug nuts by turning them counterclockwise; then remove the
wheel.
qLocking Lug Nutsí
If your vehicle has optional antitheft
wheel lug nuts, one on each wheel will
lock the tires and you must use a special
key to unlock them. This key is attached
to the lug wrench and is stored with the
spare tire. Register them with the lock
manufacturer by filling out the card
provided in the glove compartment and
mailing it in the accompanying envelope.
If you lose this key, consult an Authorized
Mazda Dealer or use the lock
manufacturer's order form, which is with
the registration card.
Special key
Antitheft lug nut
To remove an antitheft lug nut
1. Obtain the key for the antitheft lug nut.
2. Place the key on top of the nut, and be
sure to hold the key square to it. If you
hold the key at an angle, you may
damage both key and nut. Do not use a
power impact wrench.
3. Place the lug wrench on top of the key and apply pressure. Turn the wrench
counterclockwise.
7-10
In Case of an Emergency
íSome models.
Flat Tire
Mazda5_8CN3-EA-12I_Edition2 Page314
Wednesday, November 7 2012 11:49 AM
Form No.8CN3-EA-12I

Black plate (315,1)
To install the nut
1. Place the key on top of the nut, and besure to hold the key square to it. If you
hold the key at an angle, you may
damage both key and nut. Do not use a
power impact wrench.
2. Place the lug wrench on top of the key, apply pressure, and turn it clockwise.
qMounting the Spare Tire
1. Remove dirt and grime from the
mounting surfaces of the wheel and
hub, including the hub bolts, with a
cloth.
WARNING
Make sure the mounting surfaces of
the wheel, hub and lug nuts are clean
before changing or replacing tires: When changing or replacing a tire,
not removing dirt and grime from the
mounting surfaces of the wheel, hub
and hub bolts is dangerous. The lug
nuts could loosen while driving and
cause the tire to come off, resulting in
an accident.
2. Mount the spare tire. 3. Install the lug nuts with the beveled
edge inward; tighten them by hand.
WARNING
Do not apply oil or grease to lug nuts
and bolts and do not tighten the lug
nuts beyond the recommended
tightening torque: Applying oil or grease to lug nuts and
bolts is dangerous. The lug nuts
could loosen while driving and cause
the tire to come off, resulting in an
accident. In addition, lug nuts and
bolts could be damaged if tightened
more than necessary.
4. Turn the lug wrench counterclockwise and lower the vehicle. Use the lug
wrench to tighten the nuts in the order
shown.
In Case of an Emergency
Flat Tire
7-11
Mazda5_8CN3-EA-12I_Edition2 Page315
Wednesday, November 7 2012 11:49 AM
Form No.8CN3-EA-12I

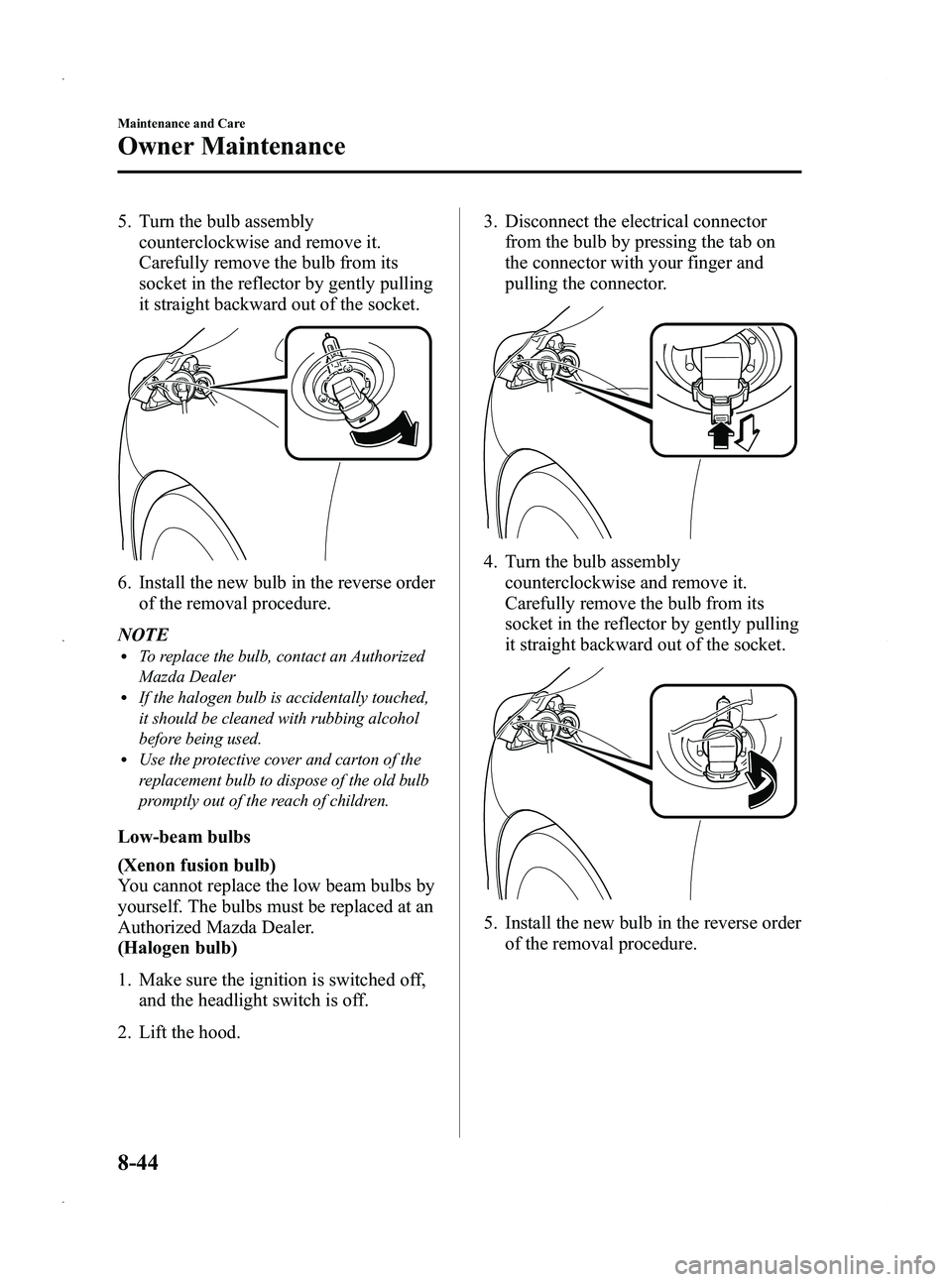

Black plate (374,1)
5. Turn the bulb assemblycounterclockwise and remove it.
Carefully remove the bulb from its
socket in the reflector by gently pulling
it straight backward out of the socket.
6. Install the new bulb in the reverse order
of the removal procedure.
NOTE
lTo replace the bulb, contact an Authorized
Mazda Dealer
lIf the halogen bulb is accidentally touched,
it should be cleaned with rubbing alcohol
before being used.
lUse the protective cover and carton of the
replacement bulb to dispose of the old bulb
promptly out of the reach of children.
Low-beam bulbs
(Xenon fusion bulb)
You cannot replace the low beam bulbs by
yourself. The bulbs must be replaced at an
Authorized Mazda Dealer.
(Halogen bulb)
1. Make sure the ignition is switched off, and the headlight switch is off.
2. Lift the hood. 3. Disconnect the electrical connector
from the bulb by pressing the tab on
the connector with your finger and
pulling the connector.
4. Turn the bulb assemblycounterclockwise and remove it.
Carefully remove the bulb from its
socket in the reflector by gently pulling
it straight backward out of the socket.
5. Install the new bulb in the reverse order
of the removal procedure.
8-44
Maintenance and Care
Owner Maintenance
Mazda5_8CN3-EA-12I_Edition2 Page374
Wednesday, November 7 2012 11:49 AM
Form No.8CN3-EA-12I

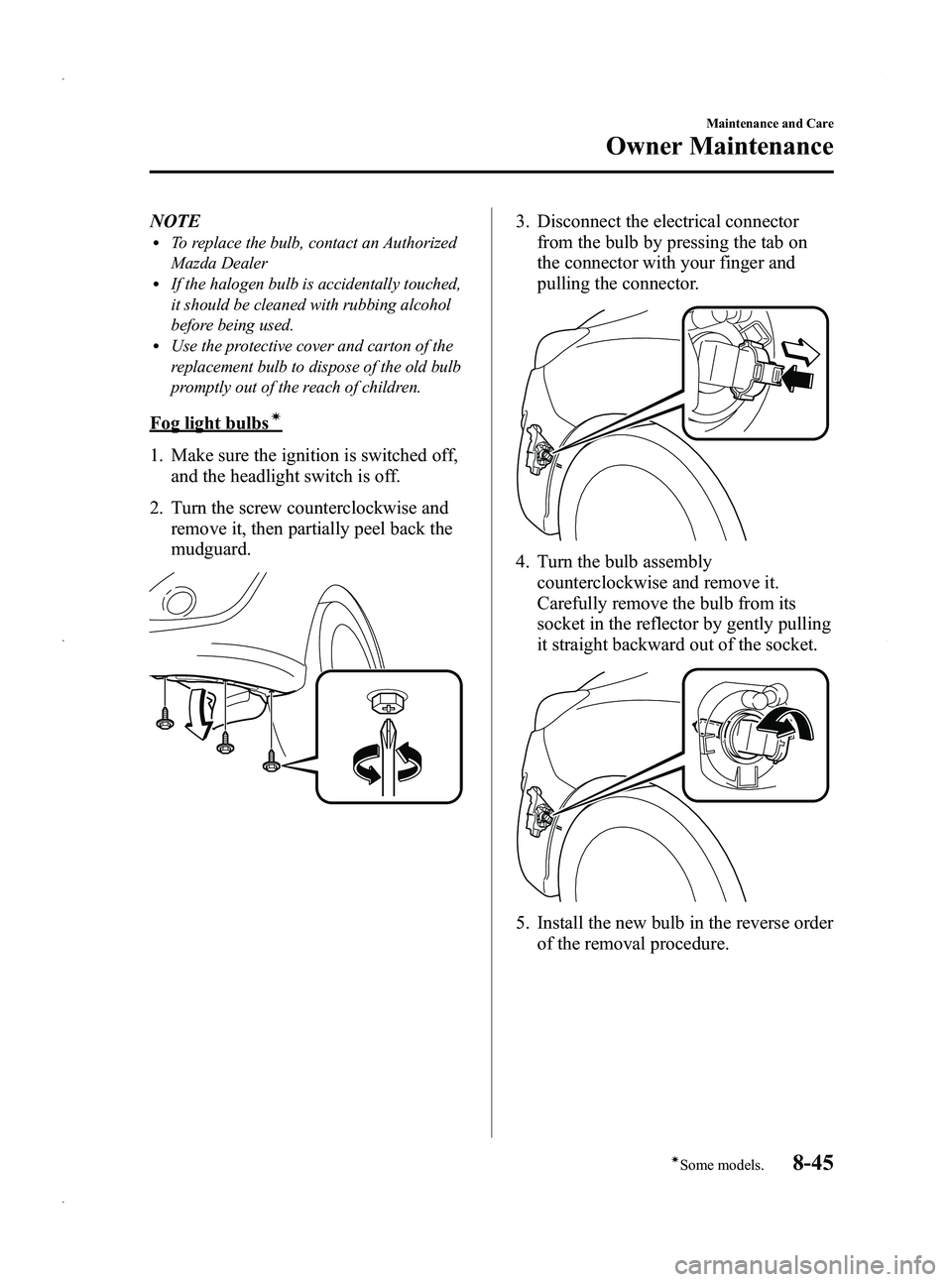

Black plate (375,1)
NOTElTo replace the bulb, contact an Authorized
Mazda Dealer
lIf the halogen bulb is accidentally touched,
it should be cleaned with rubbing alcohol
before being used.
lUse the protective cover and carton of the
replacement bulb to dispose of the old bulb
promptly out of the reach of children.
Fog light bulbsí
1. Make sure the ignition is switched off,and the headlight switch is off.
2. Turn the screw counterclockwise and remove it, then partially peel back the
mudguard.
3. Disconnect the electrical connectorfrom the bulb by pressing the tab on
the connector with your finger and
pulling the connector.
4. Turn the bulb assemblycounterclockwise and remove it.
Carefully remove the bulb from its
socket in the reflector by gently pulling
it straight backward out of the socket.
5. Install the new bulb in the reverse order
of the removal procedure.
Maintenance and Care
Owner Maintenance
8-45íSome models.
Mazda5_8CN3-EA-12I_Edition2 Page375
Wednesday, November 7 2012 11:49 AM
Form No.8CN3-EA-12I

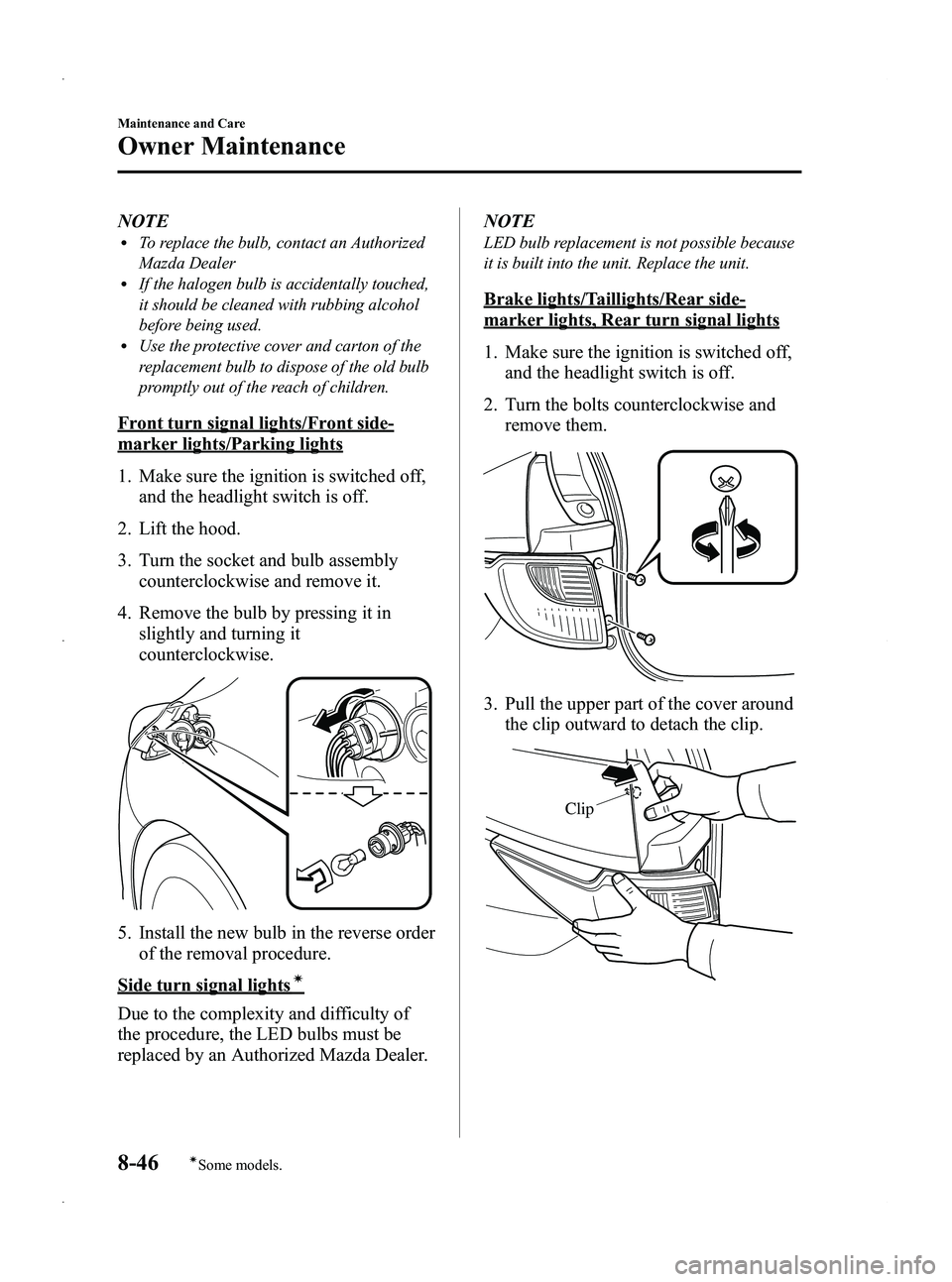

Black plate (376,1)
NOTElTo replace the bulb, contact an Authorized
Mazda Dealer
lIf the halogen bulb is accidentally touched,
it should be cleaned with rubbing alcohol
before being used.
lUse the protective cover and carton of the
replacement bulb to dispose of the old bulb
promptly out of the reach of children.
Front turn signal lights/Front side-
marker lights/Parking lights
1. Make sure the ignition is switched off,and the headlight switch is off.
2. Lift the hood.
3. Turn the socket and bulb assembly counterclockwise and remove it.
4. Remove the bulb by pressing it in slightly and turning it
counterclockwise.
5. Install the new bulb in the reverse orderof the removal procedure.
Side turn signal lightsí
Due to the complexity and difficulty of
the procedure, the LED bulbs must be
replaced by an Authorized Mazda Dealer. NOTE
LED bulb replacement is not possible because
it is built into the unit. Replace the unit.
Brake lights/Taillights/Rear side-
marker lights, Rear turn signal lights
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Turn the bolts counterclockwise and remove them.
3. Pull the upper part of the cover around
the clip outward to detach the clip.
Clip
8-46
Maintenance and Care
íSome models.
Owner Maintenance
Mazda5_8CN3-EA-12I_Edition2 Page376
Wednesday, November 7 2012 11:49 AM
Form No.8CN3-EA-12I

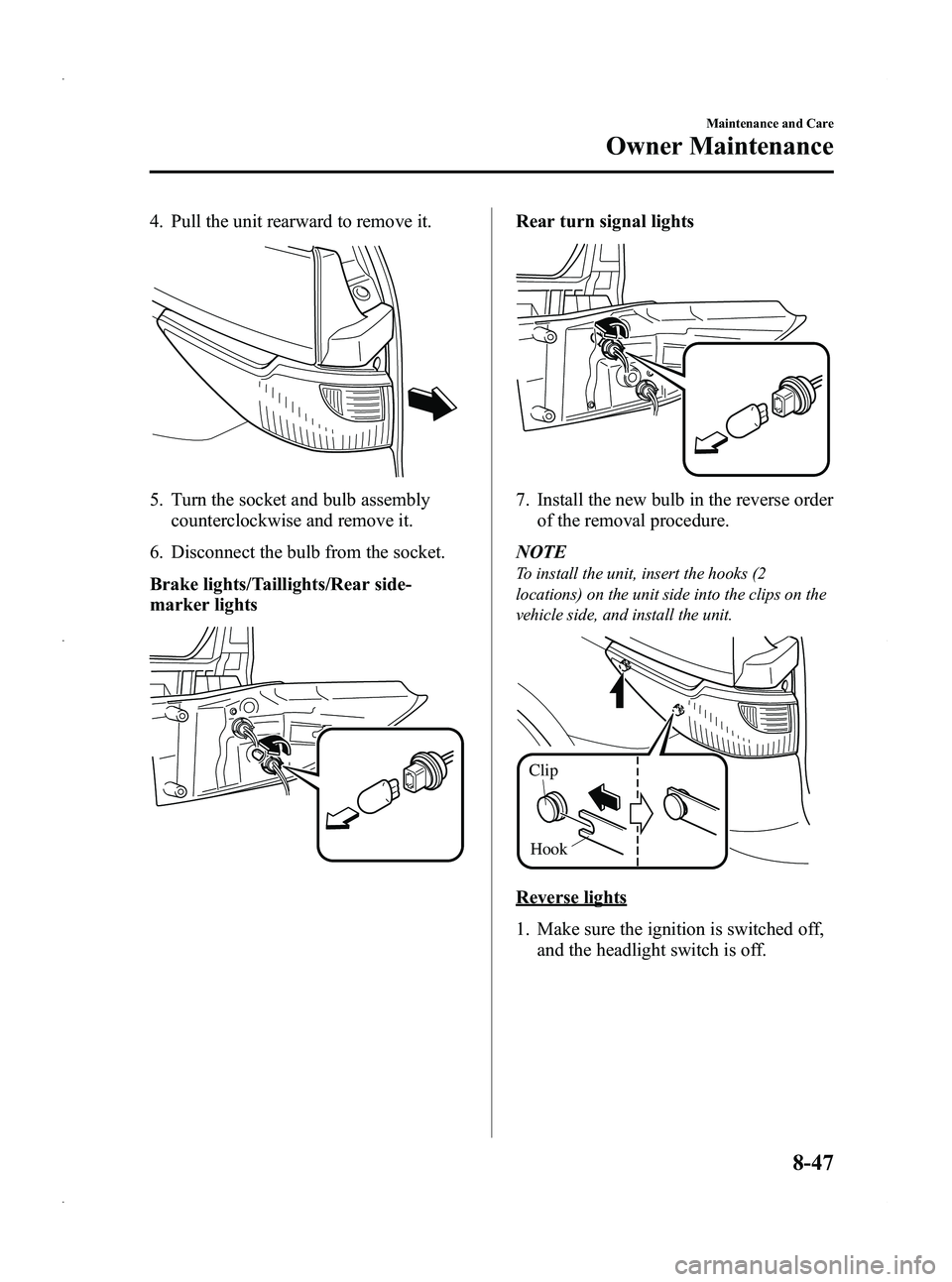

Black plate (377,1)
4. Pull the unit rearward to remove it.
5. Turn the socket and bulb assemblycounterclockwise and remove it.
6. Disconnect the bulb from the socket.
Brake lights/Taillights/Rear side-
marker lights
Rear turn signal lights
7. Install the new bulb in the reverse order of the removal procedure.
NOTE
To install the unit, insert the hooks (2
locations) on the unit side into the clips on the
vehicle side, and install the unit.
Clip
Hook
Reverse lights
1. Make sure the ignition is switched off, and the headlight switch is off.
Maintenance and Care
Owner Maintenance
8-47
Mazda5_8CN3-EA-12I_Edition2 Page377
Wednesday, November 7 2012 11:49 AM
Form No.8CN3-EA-12I
