bulb MAZDA MODEL 6 2004 Owners Manual (in English)

11-2
Form No. 8R29-EA-02I
Index
A
Accessory Socket ............................. 6-54
Add-On Non-Genuine Parts and
Accessories
...................................... 9-11
Air Bag Systems
.............................. 2-31
Air Filter
.......................................... 8-20
Ambient Temperature Display
........ 6-48
Antenna
............................................ 6-16
Anti-Lock Brake System (ABS)
........ 5-7
Warning light
.............................. 5-8
Appearance Care
.............................. 8-40
Ashtray
............................................. 6-50
Audio
Audio control switch
................ 6-40
Audio System
................................... 6-16
Audio set
................................... 6-23
Operating tips for audio
system
....................................... 6-16
Safety certification
.................... 6-42
Automatic Transaxle
Driving tips
............................... 5-16
Fluid
.......................................... 8-18
Indicators
.................................. 5-12
Manual shift mode
.................... 5-12
Recommendations for
shifting
...................................... 5-15
Shifting
..................................... 5-13
Shifting specification
................ 5-14
Shift-lock system
...................... 5-12
Transaxle ranges
....................... 5-11
B
Battery
Emergency starting
................... 7-14
Maintenance
............................. 8-24
Specifications
........................... 10-3
B
Beeps
Ignition key reminder
................ 5-36
Lights-on reminder
................... 5-36
Before Starting the Engine
................. 4-5
After getting in
............................ 4-5
Before getting in
......................... 4-5
Body Lubrication
............................. 8-20
Bottle Holder
.................................... 6-51
Brake/Clutch
Fluid
.......................................... 8-15
Brakes
Anti-lock brake system (ABS)
.... 5-7
Foot brake
...................................5-4
Pad wear indicator
...................... 5-8
Parking brake
.............................. 5-5
Warning light
.............................. 5-6
Break-In
............................................. 4-6
Bulb Replacement
............................ 8-29
C
Capacities ......................................... 10-4
Carbon Monoxide
.............................. 4-4
Catalytic Converter
............................ 4-3
Cell Phones
...................................... 9-12
Center Box
....................................... 6-52
Center Console
................................. 6-53
Child Restraint
Child restraint precautions
........ 2-21
Installing child-restraint
systems
...................................... 2-24
LATCH child-restraint
systems
...................................... 2-29
Child Safety Locks for Rear Door
..... 3-9
Cigarette Lighter
.............................. 6-49
Climate Control System
..................... 6-2
Gas specifications
..................... 10-4
Clock
................................................ 6-47
shuseizumi_J56J_8R29_EA_02I.book Page 2 Saturday, September 7, 2002 12:58 PM

11-4
Index
Form No. 8R29-EA-02I
H
Hazard Warning Flasher .................. 5-42
Hazardous Driving
............................. 4-7
Headlights
Control
...................................... 5-37
Flashing
.................................... 5-37
High-low beam
......................... 5-37
On reminder
.............................. 5-37
HomeLink Wireless Control
System
.............................................. 5-43
Hood Release
................................... 3-17
Horn
................................................. 5-42
I
Ignition
Keys
............................................ 3-2
Switch
......................................... 5-2
Illuminated Entry System
................ 6-43
Immobilizer System
......................... 3-20
Indicator Lights
................................ 5-27
Cruise Main
.............................. 5-36
Cruise set
.................................. 5-36
Headlight high-beam
................ 5-34
Security
..................................... 5-33
Shift position
............................ 5-34
TCS
........................................... 5-35
TCS OFF
.................................. 5-35
Information Display
......................... 6-46
Ambient temperature display
... 6-48
Audio display
............................ 6-48
Climate control display
............. 6-48
Clock
......................................... 6-47
Display dimmer cancel
function
..................................... 6-48
Information display functions
... 6-46
Instrument Cluster
........................... 5-23
Instrument Cluster Dimmer Cancel
Button
.............................................. 5-26
I
Interior Care ..................................... 8-45
Interior Lights
.................................. 6-43
J
Jump-Starting ................................... 7-14
K
Keyless Entry System ........................ 3-3
Keys
...................................................3-2
L
Label Information ............................ 10-2
Lane-Change Signals
....................... 5-38
Light Bulbs
Replacement
.............................. 8-29
Specifications
............................ 10-5
Lighter
.............................................. 6-49
Lighting Control
............................... 5-37
Lubricant Quality
............................. 10-3
M
Maintenance
Introduction
................................. 8-2
Owner maintenance
precautions
.................................. 8-8
Owner maintenance schedule
..... 8-7
Scheduled
.................................... 8-3
Manual Transaxle Operation
.............. 5-9
Recommendations for shifting
.... 5-9
Map Lights
....................................... 6-45
Meters and Gauges
........................... 5-23
shuseizumi_J56J_8R29_EA_02I.book Page 4 Saturday, September 7, 2002 12:58 PM

5-38
Driving Your Mazda
Switches and Controls
Form No. 8R29-EA-02I

Daytime Running Lights
(Canada)
In Canada, vehicles must be driven with
the headlights on during daytime
operation.
For that reason, the daytime running lights
automatically turn on when the ignition
switch is turned to the ON position.

Turn Signal
Move the signal lever down (for a left
turn) or up (for a right turn) to the stop
position. The signal will self-cancel after
the turn is completed.
If the indicator light continues to flash
after a turn, manually return the lever to
its original position.
Green indicators on the dashboard show
which signal is working.
Lane-change signals
Move the lever slightly toward the
direction of the change —until the
indicator flashes— and hold it there. It
will return to the off position when
released.
NOTE
The running lights go off when the
parking brake is applied.
Turn and Lane-Change
Signals
NOTE
If an indicator light stays on without
flashing or if it flashes abnormally, the
turn signal bulb may be burned out.
Right turn
Left turn Right lane
change
Left lane
changeOFF
shuseizumi_J56J_8R29_EA_02I.book Page 38 Saturday, September 7, 2002 12:58 PM

8-1
Form No. 8R29-EA-02I
8Maintenance and Care
How to keep your Mazda in top condition.
Introduction
................................................................................... 8-2
Introduction ............................................................................... 8-2
Scheduled Maintenance
................................................................ 8-3
Scheduled Maintenance ............................................................. 8-3
Owner Maintenance
...................................................................... 8-7
Owner Maintenance Schedule ................................................... 8-7
Owner Maintenance Precautions ............................................... 8-8
Engine Compartment Overview ................................................ 8-9
Engine Oil ................................................................................ 8-10
Engine Coolant ........................................................................ 8-13
Brake/Clutch Fluid .................................................................. 8-15
Power Steering Fluid ............................................................... 8-17
Automatic transaxle Fluid (ATF) ............................................ 8-18
Washer Fluid ............................................................................ 8-19
Body Lubrication ..................................................................... 8-20
Air Filter .................................................................................. 8-20
Wiper Blades ........................................................................... 8-22
Battery ..................................................................................... 8-24
Tires ......................................................................................... 8-25
Light Bulbs .............................................................................. 8-29
Fuses ........................................................................................ 8-35
Appearance Care
......................................................................... 8-40
How to Minimize Environmental Paint Damage ..................... 8-40
Exterior Care ........................................................................... 8-42
Interior Care ............................................................................ 8-45
shuseizumi_J56J_8R29_EA_02I.book Page 1 Saturday, September 7, 2002 12:58 PM

8-29
Maintenance and Care
Owner Maintenance
Form No. 8R29-EA-02I
Light Bulbs
Overhead light/Map lights
Fog lights
High-mount brake light
Trunk lightBrake lights/Taillights
Rear turn signal lights
Reverse lights Parking lights
Front turn signal lights Headlights(Low beam)
Headlights (High beam)
Courtesy lights
License plate lights
Side-marker lights
Taillights
shuseizumi_J56J_8R29_EA_02I.book Page 29 Saturday, September 7, 2002 12:58 PM

8-30
Maintenance and Care
Owner Maintenance
Form No. 8R29-EA-02I
Yo u r M a z d a’s headlights have replaceable
halogen bulbs.
Replacing a Headlight Bulb
Due to the complexity and difficulty of
the procedure, the bulbs should be
replaced by an Authorized Mazda Dealer.
Handling Halogen Bulbs:When a halogen bulb breaks, it is
dangerous. These bulbs contain
pressurized gas. If one is broken, it
will explode and serious injuries
could be caused by the flying glass.
If the glass portion is touched with
bare hands, body oil could cause the
bulb to overheat and explode when lit.
Never touch the glass portion of the
bulb with your bare hands and always
wear eye protection when handling or
working around halogen bulbs.
Children and Halogen Bulbs:
Playing with a halogen bulb is
dangerous. Serious injuries could be
caused by dropping a halogen bulb or
breaking it some other way.
Always keep halogen bulbs out of the
reach of children.
WARNING
Do not touch the glass surface
shuseizumi_J56J_8R29_EA_02I.book Page 30 Saturday, September 7, 2002 12:58 PM

8-31
Maintenance and Care
Owner Maintenance
Form No. 8R29-EA-02I

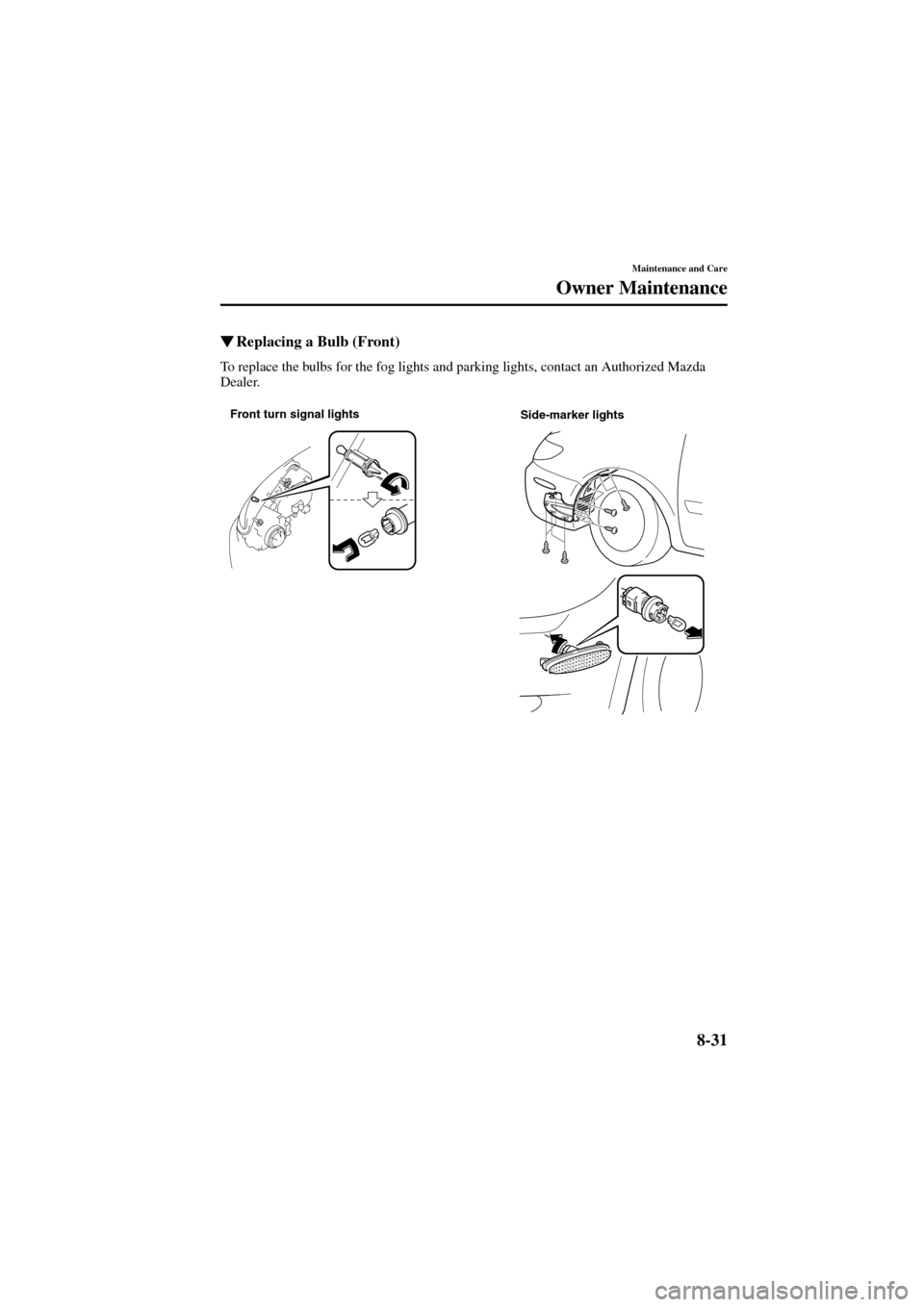

Replacing a Bulb (Front)
To replace the bulbs for the fog lights and parking lights, contact an Authorized Mazda
Dealer.
Front turn signal lights
Side-marker lights
shuseizumi_J56J_8R29_EA_02I.book Page 31 Saturday, September 7, 2002 12:58 PM

8-32
Maintenance and Care
Owner Maintenance
Form No. 8R29-EA-02I

Replacing a Bulb (Interior)
Without overhead console
With overhead console
Trunk light Overhead light/Map lights
Courtesy lights
Vanity mirror lights
shuseizumi_J56J_8R29_EA_02I.book Page 32 Saturday, September 7, 2002 12:58 PM

8-33
Maintenance and Care
Owner Maintenance
Form No. 8R29-EA-02I

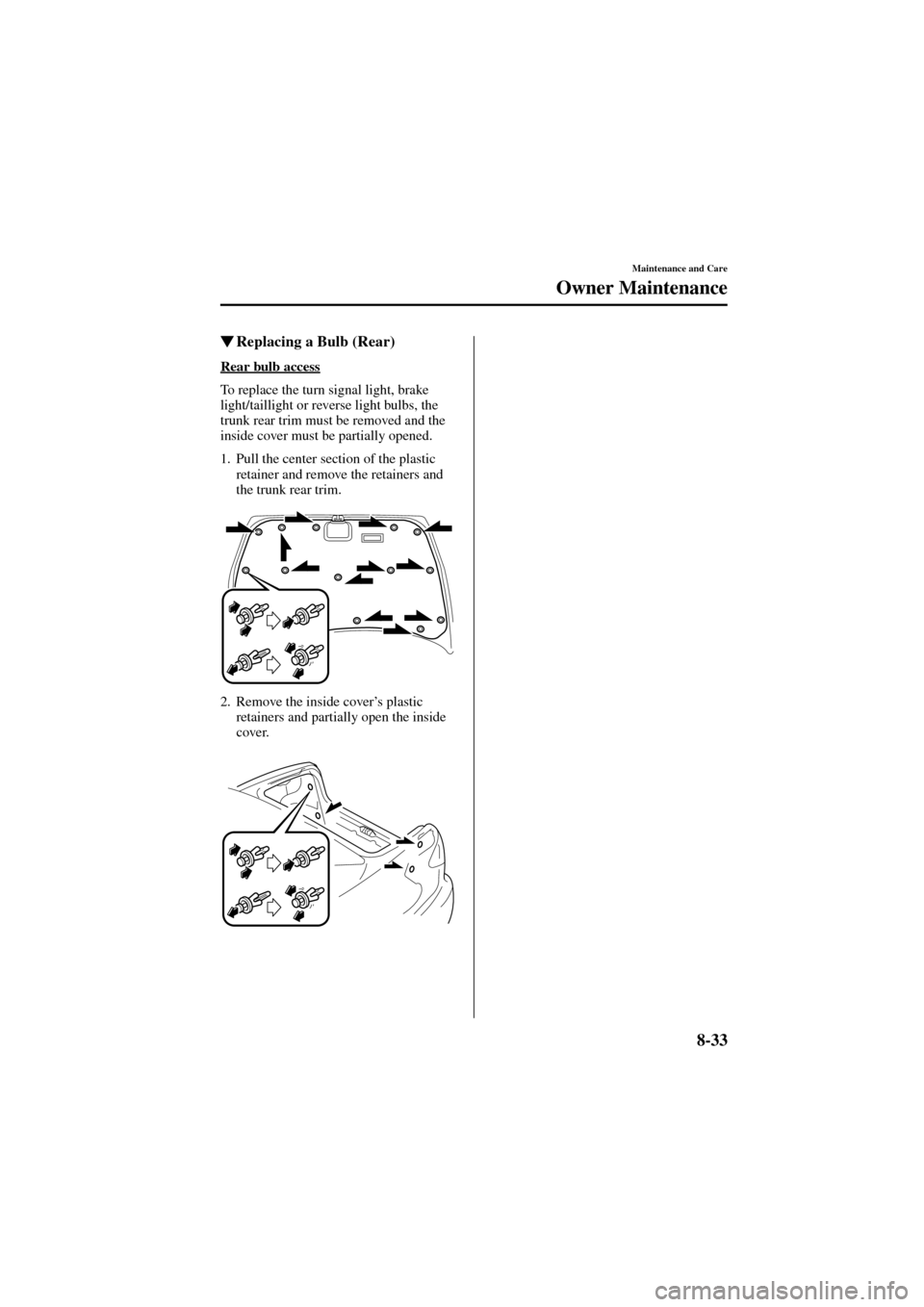

Replacing a Bulb (Rear)
Rear bulb access
To replace the turn signal light, brake
light/taillight or reverse light bulbs, the
trunk rear trim must be removed and the
inside cover must be partially opened.
1. Pull the center section of the plastic
retainer and remove the retainers and
the trunk rear trim.
2. Remove the inside cover’s plastic
retainers and partially open the inside
cover.
shuseizumi_J56J_8R29_EA_02I.book Page 33 Saturday, September 7, 2002 12:58 PM

10-5
Specifications
Form No. 8R29-EA-02I

Light Bulbs
*1Use a 28/7W type bulb.*2Use a 21/5W type bulb.

Tires
Check the tire pressure label for tire size and inflation pressure. Refer to Tire Inflation
Pressure on page 8-25.
Standard tire
Temporary spare tire

Fuses
Refer to the fuse rating on page 8-35.
Light bulb Wattage
HeadlightsHigh beam 55
Low beam 55
Front turn signal lights
28
*1
Parking lights5
Fog lights55
Side-marker lights5
High-mount brake lightsType A 18.4
Type B 4
Rear turn signal lights 21
Brake lights/Taillights 21/5
Taillights
5
*2
Reverse lights18.4
License plate lights5
Trunk light 3
Overhead light/Map lights 5
Courtesy lights5
Vanity mirror lights 1.2
Tire sizeInflation pressure
Front Rear
P205/60R16 91H
220 kPa (2.2 kgf/cm
2, 32 psi or lb/po2) 220 kPa (2.2 kgf/cm2, 32 psi or lb/po2)
P215/50 R17 93V
Tire size Inflation pressure
T115/70R15 420 kPa (60 psi)
shuseizumi_J56J_8R29_EA_02I.book Page 5 Saturday, September 7, 2002 12:58 PM
