Black plate (285,1)
3. Disconnect the bulb from the socket.
Brake lights/Taillights, Rear turn signallights
(Sedan)
1. Pull the center section of the plastic
retainer and remove the retainers and
partially open the trunk side trim.
Removal
Installation
2. Turn the socket and bulb assembly
counterclockwise and remove it.
3. Disconnect the bulb from the socket.Brake lights/Taillights
Rear turn signal lights
4. Install the new bulb in the reverse order
of removal.
NOTE
To replace the bulb, contact an
Authorized Mazda Dealer.
Maintenance and Care
Owner Maintenance
8-35
Mazda6_8T56-EC-04G_Edition2 Page285
Monday, November 15 2004 4:36 PM
Form No.8T56-EC-04G

Black plate (286,1)
(5-Door)
1. Turn the knob and remove the cover.
Left side
Right side
2. Pull the strap and remove the cover.
3. Turn the socket and bulb assembly
counterclockwise and remove it.
4. Disconnect the bulb from the socket.Brake lights/Taillights
Rear turn signal lights
5. Install the new bulb in the reverse order
of removal.
NOTE
To replace the bulb, contact an
Authorized Mazda Dealer.
8-36
Maintenance and Care
Owner Maintenance
Mazda6_8T56-EC-04G_Edition2 Page286
Monday, November 15 2004 4:36 PM
Form No.8T56-EC-04G

Black plate (287,1)
(Sport Wagon)
1. Turn the knob and remove the cover.
Left side
Right side
2. Pull the strap and remove the cover.
3. Turn the socket and bulb assembly
counterclockwise and remove it.
4. Disconnect the bulb from the socket.
Rear turn signal lights
Brake lights/Taillights
5. Install the new bulb in the reverse order
of removal.
NOTE
To replace the bulb, contact an
Authorized Mazda Dealer.
Reverse lights, Taillights
(Sedan)
1. Pull the center section of the plastic
retainer and remove the retainers, then
remove the trunk rear trim.
Installation Removal
2. Turn the socket and bulb assembly
counterclockwise and remove it.
3. Disconnect the bulb from the socket.
Reverse lights
Taillights
Maintenance and Care
Owner Maintenance
8-37
Mazda6_8T56-EC-04G_Edition2 Page287
Monday, November 15 2004 4:36 PM
Form No.8T56-EC-04G

Black plate (288,1)
4. Install the new bulb in the reverse order
of removal.
(5-Door/Sport Wagon)
1. Remove the cover.
2. Turn the socket and bulb assembly
counterclockwise and remove it.
3. Disconnect the bulb from the socket.
Reverse lights
Taillights
4. Install the new bulb in the reverse order
of removal.
High-mount brake light
(Sedan)
1. Remove the high-mount brake light
component.
2. Detach the electrical connector from
the socket.
3. Turn the socket and bulb assembly
counterclockwise and remove it.4. Disconnect the bulb from the socket.
5. Install the new bulb in the reverse order
of removal.
(5-Door)
1. Remove the cover.
2. Turn the socket and bulb assembly
counterclockwise and remove it.
3. Disconnect the bulb from the socket.
4. Install the new bulb in the reverse order
of removal.
8-38
Maintenance and Care
Owner Maintenance
Mazda6_8T56-EC-04G_Edition2 Page288
Monday, November 15 2004 4:36 PM
Form No.8T56-EC-04G

Black plate (289,1)
(Sport Wagon)
1. Remove the liftgate upper trim and
high-mount brake light component.
2. Turn the socket and bulb assembly
counterclockwise and remove it.
3. Disconnect the bulb from the socket.
4. Install the new bulb in the reverse order
of removal.
License plate lights
1. Wrap a flathead screwdriver with a soft
cloth to prevent damage to the lens and
remove the lens by carefully prying on
the edge of the lens.2. Disconnect the bulb by pulling it out.
3. Install the new bulb in the reverse order
of removal.
qReplacing Interior Light Bulbs
Overhead light/Map lights (Withoverhead console)
1. Remove the screws.
2. Wrap a flathead screwdriver with a soft
cloth to prevent damage to the trim and
gently insert it in the overhead light as
shown in the figure, and then remove
the overhead light unit.
3. Turn the socket and bulb assembly
counterclockwise and remove it.
Maintenance and Care
Owner Maintenance
8-39
Mazda6_8T56-EC-04G_Edition2 Page289
Monday, November 15 2004 4:36 PM
Form No.8T56-EC-04G

Black plate (290,1)
4. Disconnect the bulb from the socket.
5. Install the new bulb in the reverse order
of removal.
Overhead light/Map lights (Withoutoverhead console)
1. Wrap a flathead screwdriver with a soft
cloth to prevent damage to the trim and
gently insert it in the overhead light as
shown in the figure, and then remove
the overhead light unit.
2. Turn the socket and bulb assembly
counterclockwise and remove it.3. Disconnect the bulb from the socket.
4. Install the new bulb in the reverse order
of removal.
Courtesy lights, Vanity mirror lights,and Luggage compartment light
1. Wrap a small flathead screwdriver with
a soft cloth to prevent damage to the
lens and remove the lens by carefully
prying on the edge of the lens.
2. Disconnect the bulb by pulling it out.
Edge Courtesy lights
8-40
Maintenance and Care
Owner Maintenance
Mazda6_8T56-EC-04G_Edition2 Page290
Monday, November 15 2004 4:36 PM
Form No.8T56-EC-04G

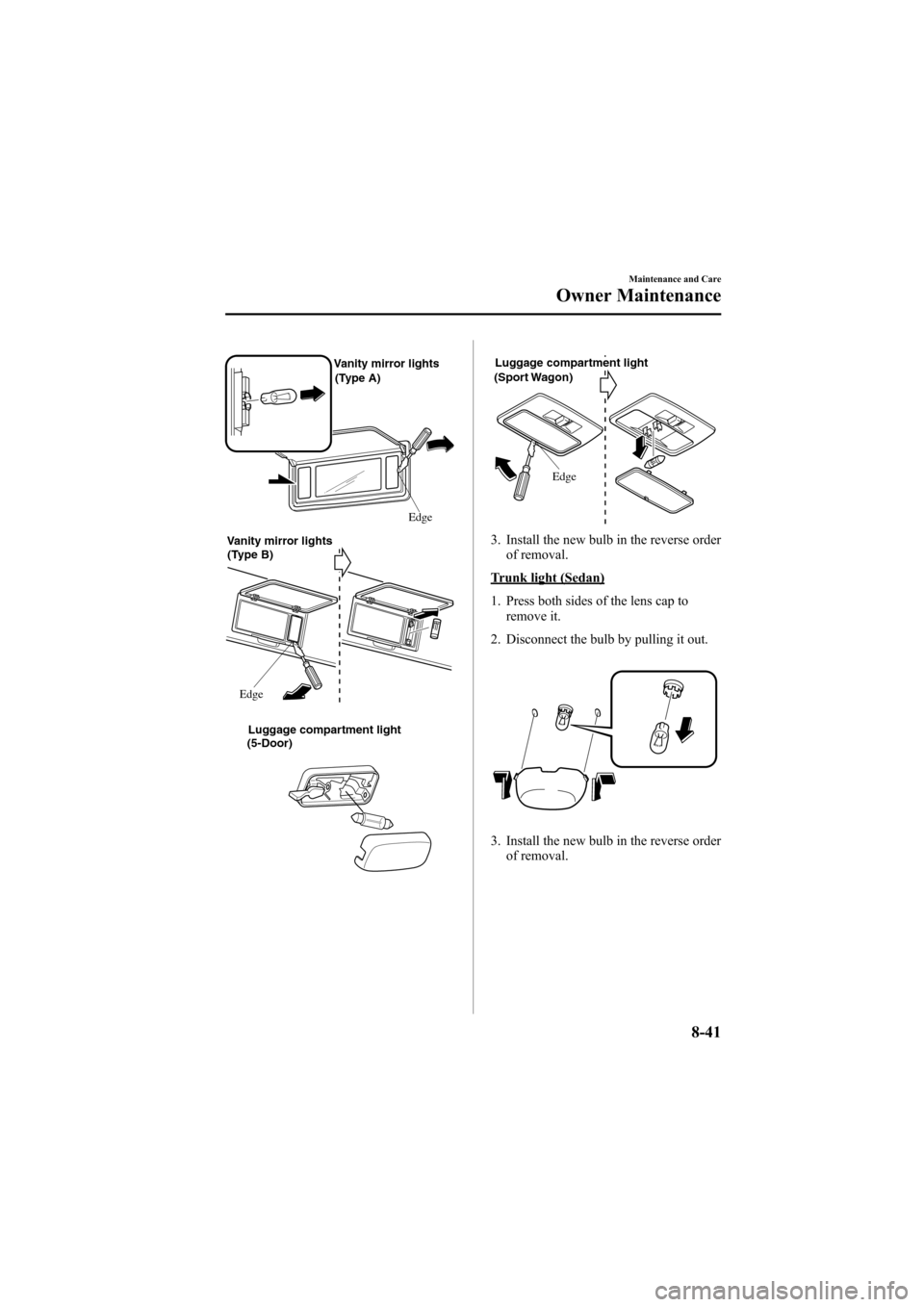

Black plate (291,1)
Vanity mirror lights
Edge (Type A)
Edge
Vanity mirror lights
(Type B)
(5-Door)Luggage compartment light
Luggage compartment light
(Sport Wagon)
Edge
3. Install the new bulb in the reverse order
of removal.
Trunk light (Sedan)
1. Press both sides of the lens cap to
remove it.
2. Disconnect the bulb by pulling it out.
3. Install the new bulb in the reverse order
of removal.
Maintenance and Care
Owner Maintenance
8-41
Mazda6_8T56-EC-04G_Edition2 Page291
Monday, November 15 2004 4:36 PM
Form No.8T56-EC-04G

Black plate (292,1)
Fuses
Your vehicle's electrical system is
protected by fuses.
If any lights, accessories, or controls don't
work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.
If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.
qFuse Replacement
Replacing the fuses on the driver's sidekick-panel
If the electrical system doesn't work, first
inspect fuses on the driver's side kick-
panel.
1. Turn off the ignition switch and other
switches.
2. Open the fuse panel cover by sliding
the cover straight back toward you.
CAUTION
Pulling the cover off sideways may
break the retaining tabs off.3. Pull the fuse straight out with the fuse
puller provided on the fuse block
located in the engine compartment.
4. Inspect it and replace if it's blown.
NormalBlown
5. Push in a new fuse of the same
amperage rating, and make sure it fits
tightly. If it doesn't, have an Authorized
Mazda Dealer install it.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the AUDIO or CIGAR circuit.
CAUTION
Always replace a fuse with one of the
same rating. Otherwise you may
damage the electric system.
8-42
Maintenance and Care
Owner Maintenance
Mazda6_8T56-EC-04G_Edition2 Page292
Monday, November 15 2004 4:36 PM
Form No.8T56-EC-04G

Black plate (293,1)
Replacing the fuses under the hood
If the headlights or other electrical
components don't work and the fuses in
the cabin are OK, inspect the fuse block
under the hood. If a fuse is blown, it must
be replaced. Follow these steps:
1. Turn off the ignition switch and all
other switches.
2. Remove the fuse block cover.
3. If a fuse is blown, replace it with a new
oneof the same amperage rating.
Normal
Blown
NOTE
To replace the MAIN fuse, contact an
Authorized Mazda Dealer (page 8-44).
Maintenance and Care
Owner Maintenance
8-43
Mazda6_8T56-EC-04G_Edition2 Page293
Monday, November 15 2004 4:36 PM
Form No.8T56-EC-04G

Black plate (294,1)
qFuse Panel Description
Fuse block (Engine compartment)
DESCRIPTION FUSE RATING PROTECTED COMPONENT
1 SPARE 20A―
2 SPARE 15A―
3 SPARE 10A―
4―― ―
5―― ―
6 INJ 15A Injector
7 ENG BAR10A
*1Air flow sensor, EGR control valve
15A*2
8ENG BAR2*115A O2sensor
ENG BB*25A Cooling fan
9 HEAD LR 10A Headlight-low beam (Right)
10 HEAD LL 10A Headlight-low beam (Left)
11 HEAD HL 10A Headlight-high beam (Left)
12 HEAD HR 10A Headlight-high beam (Right)
13 ETC 7.5A Accelerator position sensor
14 HAZARD 10A Turn signal lights
15 STOP 15A Brake/Horn
16 TCM 10A TCM
8-44
Maintenance and Care
Owner Maintenance
Mazda6_8T56-EC-04G_Edition2 Page294
Monday, November 15 2004 4:36 PM
Form No.8T56-EC-04G
