warning MAZDA MODEL 6 2007 Owners Manual (in English)

Black plate (347,1)
11. Tread wear, traction and temperature grades
12. Max. permissible inflation pressure
13. SAFETY WARNING
P215/65R15 95H is an example of a tire size and load index rating. Here is an explanation
of the various components of that tire size and load index rating. Note that the tire size and
load index rating may be different from the example.
P
Indicates a tire that may be installed on cars, SUVs, minivans and light trucks as designated
by the Tire and Rim Association (T&RA).
NOTE
If your tire size does not begin with a letter this may mean it is designated by either
ETRTO (European Tire and Rim Technical Organization) or JATMA (Japan Tire
Manufacturing Association).
215
“215”is the nominal width of the tire in millimeters. This three-digit number gives the
width in millimeters of the tire from sidewall edge to sidewall edge. In general, the larger
the number, the wider the tire.
65
“65”is the aspect ratio. This two-digit number indicates the tire's ratio of height to width.
R
“R”is the tire construction symbol. R indicates“Radial ply construction”.
15
“15”is the wheel rim diameter in inches.
95
“95”is the Load Index. This two-or three-digit number indicates how much weight each
tire can support.
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
9-23
Mazda6_8W89-EA-06K_Edition1 Page347
Tuesday, November 14 2006 1:25 PM
Form No.8W89-EA-06K

Black plate (349,1)
Tread Wear, Traction and Temperature Grades
Tread wear:The tread wear grade is a comparative rating based on the wear rate of the tire
when tested under controlled conditions on a specified government test course. For
example, a tire graded 150 would wear one and one-half (1 1/2) times as well on the
government course as a tire graded 100.
Traction:The traction grades, from highest to lowest are AA, A, B, and C. The grades
represent the tire's ability to stop on wet pavement as measured under controlled conditions
on specified government test surfaces of asphalt and concrete. A tire marked C may have
poor traction performance.
Temperature:The temperature grades are A (the highest), B and C, representing the tire's
resistance to the generation of heat and its ability to dissipate heat when tested under
controlled conditions on a specified indoor laboratory test wheel.
Snow Tires
In some heavy snow areas, local governments may require true snow tires, those with very
deeply cut tread. These tires should only be used in pairs or placed on all four wheels.
Make sure you purchase snow tires that are the same size and construction type as the other
tires on your vehicle.
SAFETY WARNING
The following safety warning appears on the tire's sidewall.
SERIOUS INJURY MAY RESULT FROM:
lEXPLOSION OF TIRE/RIM ASSEMBLY DUE TO IMPROPER MOUNTING-
MATCH TIRE DIAMETER TO RIM DIAMETER; NEVER EXCEED 40 psi (275 kPa)
TO SEAT BEADS-ONLY SPECIALLY TRAINED PERSONS SHOULD MOUNT
TIRES.
lTIRE FAILURE DUE TO UNDER-INFLATION/OVERLOADING/DAMAGE-
FOLLOW OWNER'S MANUAL AND PLACARD IN VEHICLE-FREQUENTLY
CHECK INFLATION PRESSURE AND INSPECT FOR DAMAGE.
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
9-25
Mazda6_8W89-EA-06K_Edition1 Page349
Tuesday, November 14 2006 1:25 PM
Form No.8W89-EA-06K

Black plate (353,1)
WARNING
Tire Under-Inflation:
Driving your vehicle with under-inflated tires is dangerous.
Under-inflation is the most common cause of failures in any kind of tire and may
result in severe cracking, tread separation or“blowout”, with unexpected loss of
vehicle control and increased risk of injury. Under-inflation increases sidewall flexing
and rolling resistance, resulting in heat buildup and internal damage to the tire. It
results in unnecessary tire stress, irregular wear, loss of control and accidents. A tire
can lose up to half of its air pressure and not appear to be flat!
It is impossible to determine whether or not tires are properly inflated just by looking
at them.
Always check the tire inflation pressures on a regular basis according to the
recommended tire inflation pressure on the tire label and in conjunction with the
information in this owner's manual.
qChecking Tire Pressure
1. When you check the air pressure, make sure the tires are cold―meaning they are not
hot from driving even a mile.
2. Remove the cap from the valve on one tire.
3. Firmly press a tire gauge onto the valve.
4. Add air to achieve recommended air pressure.
5. If you overfill the tire, release air by pushing on the metal stem in the center of the
valve. Then recheck the pressure with your tire gauge.
6. Replace the valve cap.
7. Repeat with each tire, including the spare.
NOTE
Some spare tires require higher inflation pressure.
8. Visually inspect the tires to make sure there are no nails or other objects embedded that
could poke a hole in the tire and cause an air leak.
9. Check the sidewalls to make sure there are no gouges, cuts, bulges, cracks or other
irregularities.
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
9-29
Mazda6_8W89-EA-06K_Edition1 Page353
Tuesday, November 14 2006 1:25 PM
Form No.8W89-EA-06K

Black plate (356,1)
CAUTION
Rotate unidirectional tires and radial tires that have an asymmetrical tread pattern or
studs only from front to rear, not from side to side. Tire performance will be weakened if
rotated from side to side.
(With limited-slip differential)
Don't use the following:
lTires not of the designated size
lTires of different sizes or types at the same time
lTires not sufficiently inflated
If these instructions aren't followed, the rotation of the left and right wheels will be
different and will thus apply a constant load on the limited-slip differential.
This will cause a malfunction.
qReplacing a Tire
WARNING
Worn Tires:
Driving with worn tires is dangerous. Reduced braking, steering, and traction could
result in an accident. Always use tires that are in good condition.
If a tire wears evenly, a wear indicator will appear as a solid band across the tread. Replace
the tire when this happens.
New treadTread wear indicator
Worn tread
You should replace it before the band is across the entire tread.
9-32
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
Mazda6_8W89-EA-06K_Edition1 Page356
Tuesday, November 14 2006 1:25 PM
Form No.8W89-EA-06K

Black plate (358,1)
Vehicle Loading
NOTE
This vehicle is not designed to tow a trailer.
This section will guide you in the proper loading of your vehicle and/or trailer, to keep
your loaded vehicle weight within its design rating capability, with or without a trailer.
Properly loading your vehicle will provide maximum return of vehicle design performance.
Before loading your vehicle, familiarize yourself with the following terms for determining
your vehicle's weight ratings, with or without a trailer, from the vehicle's Safety
Certification Label and Tire and Load Information Label:
WARNING
Overloaded Vehicle:
Overloading a vehicle is dangerous. The results of overloading can have serious
consequences in terms of passenger safety. Too much weight on a vehicle's suspension
system can cause spring or shock absorber failure, brake failure, handling or steering
problems, irregular tire wear, tire failure or other damage.
Overloading makes a vehicle harder to drive and control. It also increases the distance
required for stopping. In cases of serious overloading, brakes can fail completely,
particularly on steep grades. The load a tire will carry safely is a combination of the
size of the tire, its load range, and corresponding inflation pressure.
Never overload the vehicle and always observe the vehicle's weight ratings from the
vehicle's Safety Certification and Tire and Load Information labels.
9-34
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
Mazda6_8W89-EA-06K_Edition1 Page358
Tuesday, November 14 2006 1:25 PM
Form No.8W89-EA-06K

Black plate (362,1)
SAMPLE
WARNING
Exceeding Axle Weight Rating Limits:
Exceeding the Safety Certification Label axle weight rating limits is dangerous and
could result in death or serious injury as a result of substandard vehicle handling,
performance, engine, transmission and/or structural damage, serious damage to the
vehicle, or loss of control.
Always keep the vehicle within the axle weight rating limits.
9-38
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
Mazda6_8W89-EA-06K_Edition1 Page362
Tuesday, November 14 2006 1:25 PM
Form No.8W89-EA-06K

Black plate (364,1)

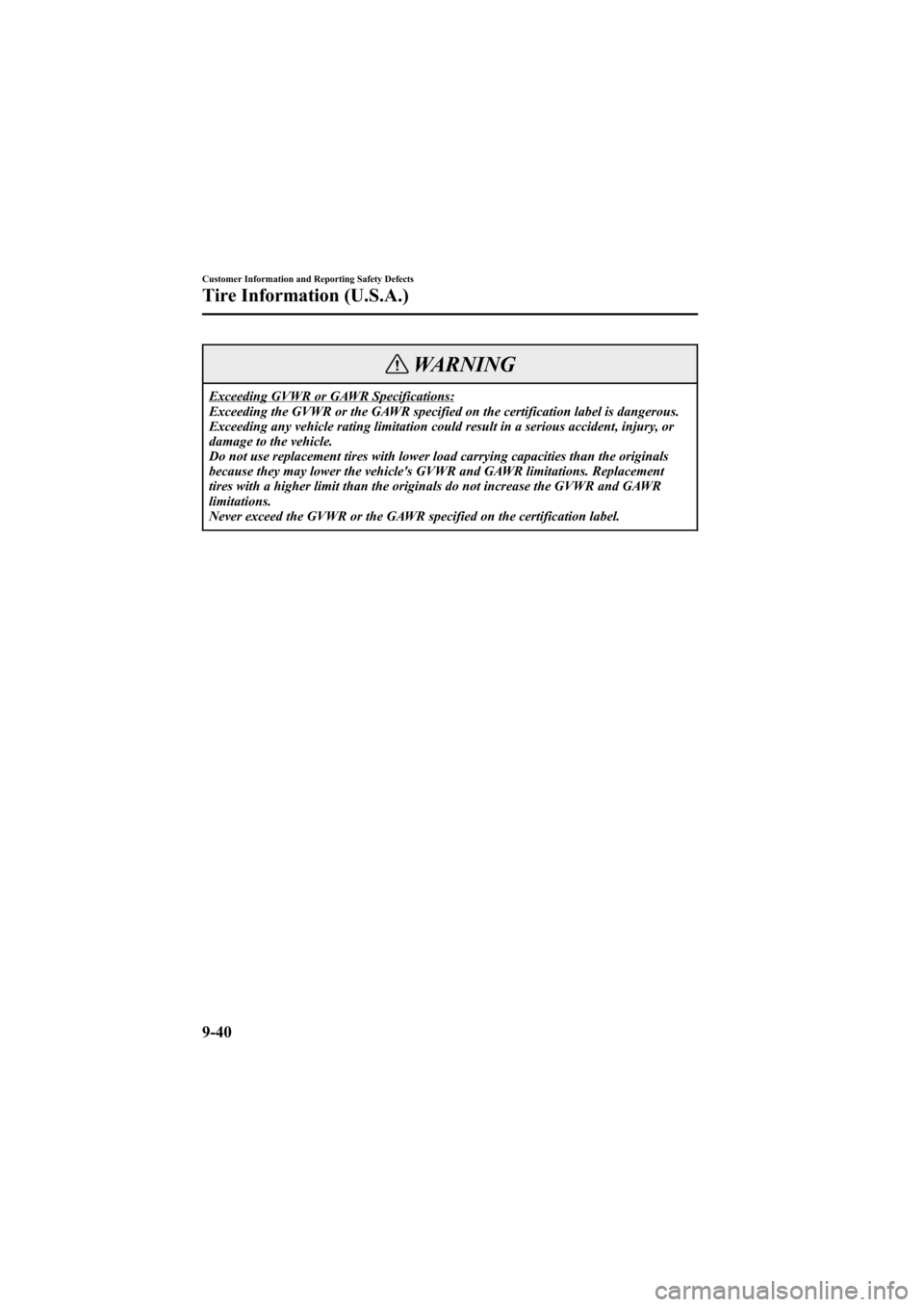

WARNING
Exceeding GVWR or GAWR Specifications:
Exceeding the GVWR or the GAWR specified on the certification label is dangerous.
Exceeding any vehicle rating limitation could result in a serious accident, injury, or
damage to the vehicle.
Do not use replacement tires with lower load carrying capacities than the originals
because they may lower the vehicle's GVWR and GAWR limitations. Replacement
tires with a higher limit than the originals do not increase the GVWR and GAWR
limitations.
Never exceed the GVWR or the GAWR specified on the certification label.
9-40
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
Mazda6_8W89-EA-06K_Edition1 Page364
Tuesday, November 14 2006 1:25 PM
Form No.8W89-EA-06K

Black plate (378,1)
A
Add-On Non-Genuine Parts and
Accessories ....................................... 9-16
Air Bag Systems ............................... 2-46
Ambient Temperature Display .......... 6-53
Antenna ............................................. 6-16
Anti-Lock Brake System (ABS) ......... 5-6
Warning light ............................... 5-7
Appearance Care ............................... 8-54
Audio System ................................... 6-16
Audio control switch .................. 6-45
Audio set .................................... 6-27
Operating tips for audio
system ........................................ 6-16
Safety certification ..................... 6-48
Automatic Transaxle
Driving tips ................................ 5-17
Fluid ........................................... 8-24
Manual shift mode ..................... 5-13
Shift-lock system ....................... 5-12
Transaxle ranges ......................... 5-11
B
Battery
Emergency starting .................... 7-17
Maintenance ............................... 8-33
Specifications ............................. 10-4
Beep sounds
Ignition key reminder ................. 5-39
Lights-on reminder ..................... 5-39
Seat belt warning beep ............... 5-39
Before Starting the Engine .................. 4-6
After getting in ............................. 4-6
Before getting in .......................... 4-6
Body Lubrication .............................. 8-28
Bottle Holder ..................................... 6-55
Brake/Clutch
Fluid ........................................... 8-22
B
Brakes
Anti-lock brake system (ABS) ..... 5-6
Foot brake .................................... 5-4
Pad wear indicator ........................ 5-8
Parking brake ............................... 5-5
Warning light ............................... 5-6
Break-In Period ................................... 4-7
Bulb Replacement ............................. 8-39
C
Capacities .......................................... 10-5
Carbon Monoxide ............................... 4-5
Cargo Securing Loops ...................... 6-58
Cargo Sub-Compartment .................. 6-59
Catalytic Converter ............................. 4-3
Cell Phones ....................................... 9-17
Center Box ........................................ 6-56
Center Console .................................. 6-57
Child Restraint
Installing child-restraint
systems ....................................... 2-33
LATCH child-restraint
systems ....................................... 2-41
Child Safety Locks for Rear Doors ... 3-11
Climate Control System ...................... 6-2
Gas specifications ...................... 10-6
Clock ................................................. 6-53
Cruise Control ................................... 5-18
Cup Holder ........................................ 6-54
Customer Assistance ........................... 9-2
D
Dashboard Illumination .................... 5-27
Daytime Running Lights ................... 5-41
Defroster
Rear window .............................. 5-45
11-2
Index
Mazda6_8W89-EA-06K_Edition1 Page378
Tuesday, November 14 2006 1:25 PM
Form No.8W89-EA-06K

Black plate (379,1)
D
Dimensions ....................................... 10-6
Door Locks ......................................... 3-9
Driving In Flooded Area ................... 4-10
Driving Tips ........................................ 4-7
Automatic transaxle ................... 5-17
Break-in period ............................ 4-7
Driving in flooded area .............. 4-10
Hazardous driving ........................ 4-8
Money-saving suggestions ........... 4-7
Rocking the vehicle ...................... 4-9
Winter driving .............................. 4-9
E
Emergency Starting ........................... 7-17
Flooded engine ........................... 7-17
Jump-starting .............................. 7-18
Push-starting .............................. 7-20
Emergency Towing ........................... 7-21
Emission Control System .................... 4-3
Engine
Coolant ....................................... 8-20
Exhaust gas .................................. 4-5
Hood release .............................. 3-32
Oil .............................................. 8-18
Overheating ................................ 7-15
Starting ......................................... 5-3
Engine Compartment Overview ........ 8-17
Engine Coolant
Overheating ................................ 7-15
Engine Coolant Temperature
Gauge ................................................ 5-26
Exhaust Gas ........................................ 4-5
Exterior Care ..................................... 8-56
F
Flasher
Hazard warning .......................... 5-46
Headlights .................................. 5-40
Flat Tire ............................................... 7-3
Changing ...................................... 7-8
Spare tire and tool storage ............ 7-3
Fluids
Owner maintenance ................... 8-15
Fog Lights ......................................... 5-42
Foot Brake .......................................... 5-4
Front Seats
(Electrically Operated Seats) ............... 2-5
Front Seats
(Manually Operated Seats) ................. 2-2
Fuel
Filler lid and cap ........................ 3-30
Gauge ......................................... 5-27
Requirements ............................... 4-2
Tank capacity ............................. 10-5
Fuses ................................................. 8-49
Panel description ........................ 8-51
Replacement ............................... 8-49
G
Glove Box ......................................... 6-57
H
Hatch ................................................. 3-12
Luggage compartment cover ...... 3-13
Luggage strap ............................. 3-13
Hazard Warning Flasher .................... 5-46
Hazardous Driving .............................. 4-8
Index
11-3
Mazda6_8W89-EA-06K_Edition1 Page379
Tuesday, November 14 2006 1:25 PM
Form No.8W89-EA-06K

Black plate (380,1)
H
Headlights
Control ....................................... 5-40
Flashing ...................................... 5-41
High-low beam .......................... 5-41
Leveling ..................................... 5-41
On reminder ............................... 5-40
HomeLink Wireless Control
System .............................................. 5-47
Hood Release .................................... 3-32
Horn .................................................. 5-46
I
Ignition
Keys ............................................. 3-2
Switch .......................................... 5-2
Illuminated Entry System ................. 6-49
Immobilizer System .......................... 3-35
Indicator Lights ................................. 5-29
Cruise Main ................................ 5-38
Cruise set .................................... 5-38
Headlight high-beam .................. 5-37
Security ...................................... 5-36
Shift position .............................. 5-37
TCS ............................................ 5-37
TCS OFF .................................... 5-38
Turn-signal/hazard warning ....... 5-39
Information Display .......................... 6-52
Ambient temperature display ..... 6-53
Audio display ............................. 6-54
Climate control display .............. 6-54
Clock .......................................... 6-53
Information display functions .... 6-52
Inside Trunk Release Lever ............... 3-22
Instrument Cluster ............................. 5-24
Interior Care ...................................... 8-59
Interior Lights ................................... 6-49
J
Jump-Starting .................................... 7-18
K
Keyless Entry System ......................... 3-3
Keys .................................................... 3-2
L
Label Information ............................. 10-2
Lane-Change Signals ........................ 5-42
Liftgate .............................................. 3-14
Luggage compartment cover ...... 3-15
Luggage compartment net .......... 3-17
Light Bulbs
Replacement ............................... 8-39
Specifications ............................. 10-7
Lighting Control ............................... 5-40
Luggage Compartment Light ............ 6-51
M
Maintenance
Introduction .................................. 8-2
Owner maintenance
precautions ................................. 8-16
Owner maintenance schedule ..... 8-15
Scheduled ..................................... 8-3
Manual Transaxle Operation ............... 5-9
Recommendations for shifting.... 5-10
Map Lights ........................................ 6-50
Mirrors
Outside mirrors .......................... 3-40
Rearview mirror ......................... 3-41
Money-Saving Suggestions ................ 4-7
Moonroof .......................................... 3-33
11-4
Index
Mazda6_8W89-EA-06K_Edition1 Page380
Tuesday, November 14 2006 1:25 PM
Form No.8W89-EA-06K
