USB MAZDA MODEL 6 2016 (in English) Owner's Manual

Black plate (352,1)

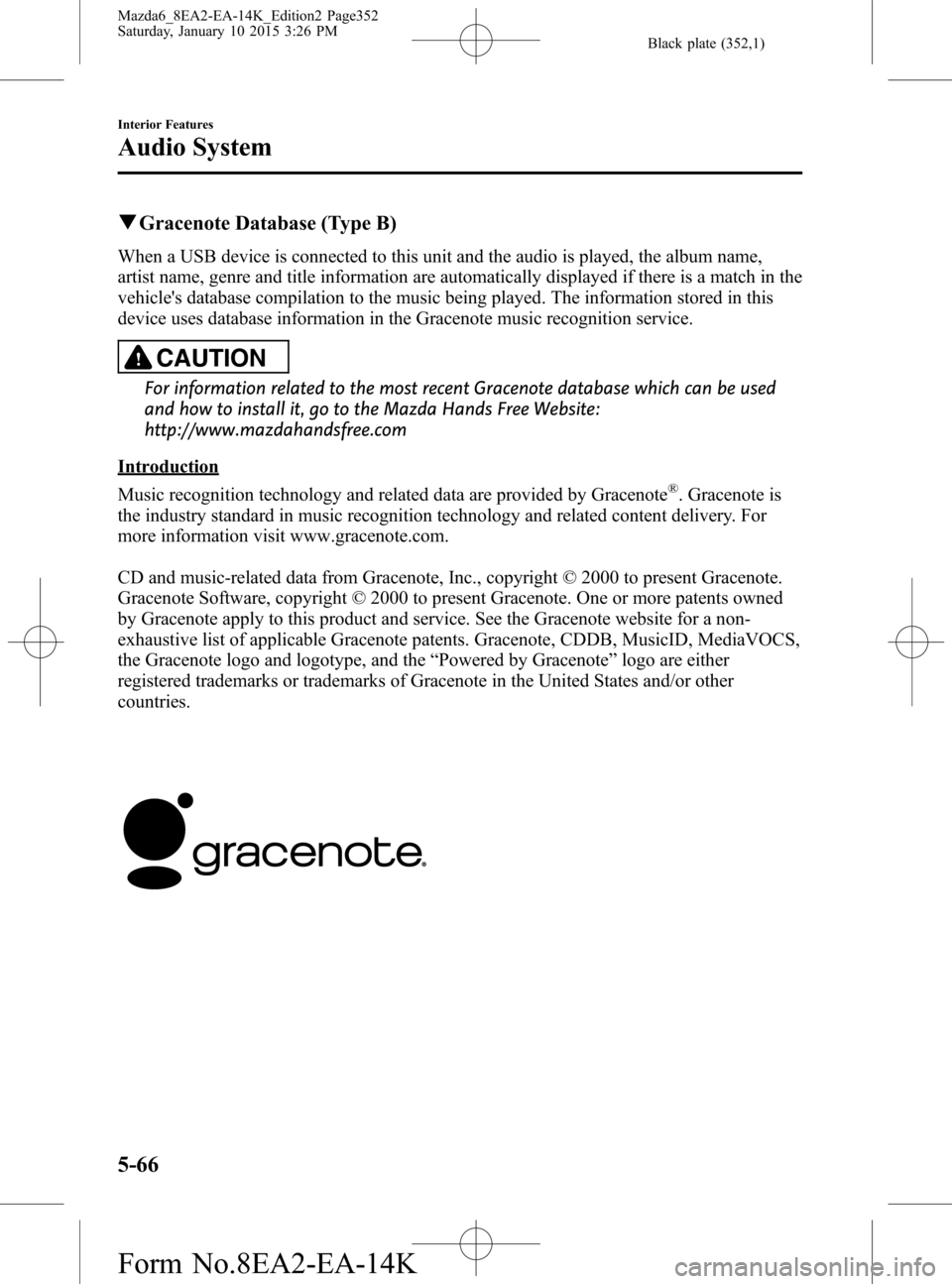

qGracenote Database (Type B)
When a USB device is connected to this unit and the audio is played, the album name,
artist name, genre and title information are automatically displayed if there is a match in the
vehicle's database compilation to the music being played. The information stored in this
device uses database information in the Gracenote music recognition service.
CAUTION
For information related to the most recent Gracenote database which can be used
and how to install it, go to the Mazda Hands Free Website:
http://www.mazdahandsfree.com
Introduction
Music recognition technology and related data are provided by Gracenote
®. Gracenote is
the industry standard in music recognition technology and related content delivery. For
more information visit www.gracenote.com.
CD and music-related data from Gracenote, Inc., copyright © 2000 to present Gracenote.
Gracenote Software, copyright © 2000 to present Gracenote. One or more patents owned
by Gracenote apply to this product and service. See the Gracenote website for a non-
exhaustive list of applicable Gracenote patents. Gracenote, CDDB, MusicID, MediaVOCS,
the Gracenote logo and logotype, and the“Powered by Gracenote”logo are either
registered trademarks or trademarks of Gracenote in the United States and/or other
countries.
5-66
Interior Features
Audio System
Mazda6_8EA2-EA-14K_Edition2 Page352
Saturday, January 10 2015 3:26 PM
Form No.8EA2-EA-14K

Black plate (354,1)

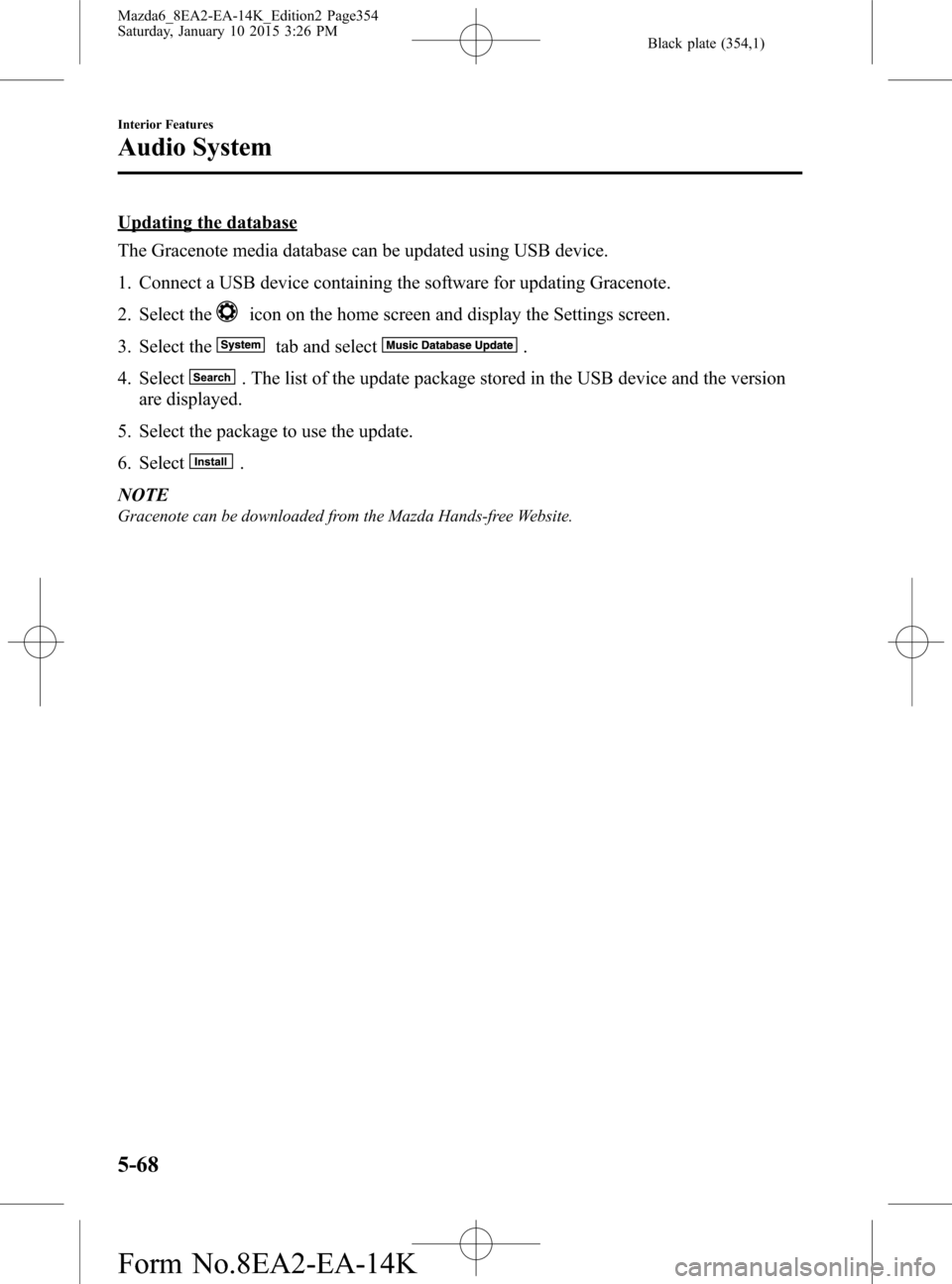

Updating the database
The Gracenote media database can be updated using USB device.
1. Connect a USB device containing the software for updating Gracenote.
2. Select the
icon on the home screen and display the Settings screen.
3. Select the
tab and select.
4. Select
. The list of the update package stored in the USB device and the version
are displayed.
5. Select the package to use the update.
6. Select
.
NOTE
Gracenote can be downloaded from the Mazda Hands-free Website.
5-68
Interior Features
Audio System
Mazda6_8EA2-EA-14K_Edition2 Page354
Saturday, January 10 2015 3:26 PM
Form No.8EA2-EA-14K

Black plate (374,1)
5. Select.
6. Select
.
Changing PIN code
PIN code (4 digits) can be changed.
1. Select the
icon on the home screen
and display the Settings screen.
2. Select the
tab.
3. Select
.
4. Select
.
5. Select
.
6. Input the new PIN code to be set.
7. Select
.
qAvailable Language (Type B)
The Bluetooth®Hands-Free System
applies to the following languages:
lEnglishlSpanishlFrench
Refer to Settings on page 5-49.
qVoice Recognition (Type B)
In this section, the basic operation of the
voice recognition is explained.
Activating Voice Recognition
Press the talk button.
Ending Voice Recognition
Use one of the following methods:
lPress the hang-up button.lSay,“Cancel”.lOperate the commander switch or the
center display (only when vehicle is
stopped).
Skipping Voice Guidance (for faster
operation)
Press and release the talk button.
Troubleshooting for Voice Recognition
If you do not understand an operation
method while in the voice recognition
mode, say“Tutorial”or“Help”.
Commands useable anytime during
voice recognition
“Go Back”and“Cancel”are commands
which can be used at anytime during
voice recognition.
Returning to previous operation
To return to the previous operation, say,
“Go Back”while in voice recognition
mode.
Cancel
To put the Bluetooth
®Hands-Free system
in standby mode, say,“Cancel”while in
voice recognition mode.
To prevent a deterioration in the voice
recognition rate and voice quality, the
following points should be observed:
lThe voice recognition cannot be
performed while voice guidance or
the beep sound is operating. Wait
until the voice guidance or the beep
sound is finished before saying your
commands.
lPhone related commands are available
only when your phone is connected via
Bluetooth
®. Make sure your phone is
connected via Bluetooth®before you
operate phone related voice commands.
lMusic play commands, such as Play
Artist and Play Album can be used
only in USB audio mode.
lDo not speak too slowly or loudly (no
loud voice).
5-88
Interior Features
Bluetooth®
Mazda6_8EA2-EA-14K_Edition2 Page374
Saturday, January 10 2015 3:26 PM
Form No.8EA2-EA-14K

Black plate (376,1)
qAudio Operation Using Voice Recognition (Type B)
Main audio operation
The below commands are examples of the available commands.
When the talk button is pressed and the following command is spoken out, the audio can
be operated. The commands in the () can be omitted. The specified name and number are
put into the {}.
Voice command FunctionCorresponding audio
source
(Go to/Play) AM (Radio) Switches the audio source to AM radio. All
(Go to/Play) FM (Radio) Switches the audio source to FM radio. All
(Go to/Play) Bluetooth (Audio) Switches the audio source to Bluetooth
®audio. All
(Go to/Play) Pandora Switches the audio source to Pandora®. All
(Go to/Play) Aha (Radio) Switches the audio source to Aha™. All
(Go to/Play) Stitcher Switches the audio source to Stitcher™Radio. All
(Go to/Play) USB 1 Switches the audio source to USB 1. All
(Go to/Play) USB 2 Switches the audio source to USB 2. All
Play Playlist {Playlist name} Plays the selected playlist. USB
Play Artist {Artist name} Plays the selected artist. USB
Play Album {Album name} Plays the selected album. USB
Play Genre {Genre name} Plays the selected genre. USB
Play Folder {Folder name} Plays the selected folder. USB
NOTElSome commands cannot be used depending on devices and use conditions.lIf the Bluetooth®device, USB, or AUX is not connected, the related commands cannot be used.
5-90
Interior Features
Bluetooth®
Mazda6_8EA2-EA-14K_Edition2 Page376
Saturday, January 10 2015 3:26 PM
Form No.8EA2-EA-14K

Black plate (394,1)
Bluetooth® Audio (Type A)
Applicable Bluetooth®specification
(Recommended)
Ver. 2.0
Response profile
lA2DP (Advanced Audio Distribution
Profile) Ver. 1.0/1.2
lAVRCP (Audio/Video Remote Control
Profile) Ver. 1.0/1.3
A2DP is a profile which transmits only
audio to the Bluetooth
®unit. If your
Bluetooth®audio device corresponds only
to A2DP, but not AVRCP, you cannot
operate it using the control panel of the
vehicle's audio system. In this case, only
the operations on the mobile device are
available the same as when a portable
audio device for a non-compliant
Bluetooth
®device is connected to the
AUX terminal.
Function A2DPAVRCP
Ver. 1.0 Ver. 1.3
Playback―XX
Pause―XX
File (Track) up/down―XX
Reverse――X
Fast-forward――X
Text display――X
X: Available
―: Not available
NOTElThe battery consumption of Bluetooth®
audio devices increases while Bluetooth®is
connected.
lIf a general mobile phone device is USB
connected during music playback over the
Bluetooth
®connection, the Bluetooth®
connection is disconnected. For this reason,
you cannot have music playback over a
Bluetooth
®connection and music playback
using a USB connection at the same time.
lThe system may not operate normally
depending on the Bluetooth®audio device.
qHow to Use the Bluetooth®
Audio System
Switching to Bluetooth®audio mode
To listen to music or voice audio recorded
to a Bluetooth
®audio device, switch to
the Bluetooth®audio mode to operate the
audio device using the audio system
control panel. Any Bluetooth
®audio
device must be paired to the vehicle's
Bluetooth
®unit before it can be used.
Refer to Bluetooth® Preparation (Type A)
on page 5-71.
1. Turn on the Bluetooth
®audio device's
power.
2. Switch the ignition to ACC or ON.
Make sure that the“
”symbol is
displayed in the audio display. The
symbol is not displayed if an un-paired
Bluetooth
®audio device is being used
or the vehicle's Bluetooth®unit has a
malfunction.
NOTE
Some Bluetooth®audio devices need a certain
amount of time before the“
”symbol is
displayed.
5-108
Interior Features
Bluetooth®
Mazda6_8EA2-EA-14K_Edition2 Page394
Saturday, January 10 2015 3:26 PM
Form No.8EA2-EA-14K

Black plate (397,1)
NOTElThe battery consumption of Bluetooth®
audio devices increases while Bluetooth®is
connected.
lIf a general mobile phone device is USB
connected during music playback over the
Bluetooth
®connection, the Bluetooth®
connection is disconnected. For this reason,
you cannot have music playback over a
Bluetooth
®connection and music playback
using a USB connection at the same time.
lThe system may not operate normally
depending on the Bluetooth®audio device.
Interior Features
Bluetooth®
5-111
Mazda6_8EA2-EA-14K_Edition2 Page397
Saturday, January 10 2015 3:26 PM
Form No.8EA2-EA-14K

Black plate (606,1)
A
Accessory Socket ............................ 5-130
Active driving display ....................... 4-20
Adaptive Front Lighting System
(AFS) ................................................ 4-94
Add-On Non-Genuine Parts and
Accessories ....................................... 8-19
Advanced Key
Operational range ....................... 3-10
Advanced Keyless Entry System ........ 3-9
Air Bag Systems ............................... 2-41
Antilock Brake System (ABS) .......... 4-80
Audio Control Switch
Adjusting the Volume ................ 5-51
Seek Switch ................................ 5-51
Audio System
Antenna ...................................... 5-13
Audio Control Switch ................ 5-51
Audio Set (Type A) .................... 5-21
Audio Set (Type B) .................... 5-32
AUX/USB/iPod mode ................ 5-52
Operating Tips for Audio
System ........................................ 5-13
Satellite Radio ............................ 5-42
Automatic Transaxle
Driving tips ................................ 4-56
Shift-lock override ..................... 4-51
Shift-lock system ....................... 4-51
Transaxle ranges ........................ 4-50
B
Battery ............................................... 6-36
Maintenance ............................... 6-37
Replacement ............................... 6-37
Specifications ............................... 9-4
Battery runs out ................................. 7-14
Jump-Starting ............................. 7-14
B
Beep sounds
Power steering warning buzzer ... 7-37
Beep Sounds
Air bag/front seat belt pretensioner
system warning .......................... 7-34
Blind spot monitoring
(BSM) system warning .............. 7-36
Electric parking brake warning ... 7-37
i-ELOOP ..................................... 7-36
Ignition not switched off
(STOP) warning ......................... 7-35
Key left-in-trunk compartment
warning ...................................... 7-36
Key left-in-vehicle warning ....... 7-36
Key removed from vehicle
warning ...................................... 7-35
Lane departure warning ............. 7-36
Lights-on reminder ..................... 7-33
Request switch inoperable
warning ...................................... 7-35
Seat belt warning ........................ 7-34
Tire inflation pressure warning ... 7-36
Blind Spot Monitoring
(BSM) System ................................ 4-104
Bluetooth® ....................................... 5-69
Bluetooth® Audio (Type A) .... 5-108
Bluetooth® Audio (Type B) ..... 5-110
Bluetooth® Hands-Free
(Type A) ..................................... 5-91
Bluetooth® Hands-Free
(Type B) ..................................... 5-98
Troubleshooting ....................... 5-124
Body Lubrication .............................. 6-32
Bottle Holder ................................... 5-132
10-2
Index
Mazda6_8EA2-EA-14K_Edition2 Page606
Saturday, January 10 2015 3:28 PM
Form No.8EA2-EA-14K
