warning MAZDA MODEL 6 2020 Owner's Manual (in English)

We want to help you get the most driving
pleasure from your vehicle. Your owner's
manual, when read from cover to cover,
can do that in many ways.

Illustrations complement the words of the
manual to best explain how to enjoy your
Mazda. By reading your manual, you can
find out about the features, important
safety information, and driving under
various road conditions.

The symbol below in this manual means
“Do not do this” or “Do not let this
happen”.


Index: A good place to start is the Index,
an alphabetical listing of all information in
your manual.

You'll find several WARNINGs,
CAUTIONs, and NOTEs in the manual.
WA R N I N G
A WARNING indicates a situation in which
serious injury or death could result if the
warning is ignored.
CAUTION
A CAUTION indicates a situation in which
bodily injury or damage to your vehicle, or
both, could result if the caution is ignored.
NOTE
A NOTE provides information and
sometimes suggests how to make better
use of your vehicle.
The following symbol , located on some
parts of the vehicle, indicates that this
manual contains information related to the
part.
Please refer to the manual for a detailed
explanation.
How to Use This Manual
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

Interior Equipment (View A)
ƒLighting control.....................................................................................................page 4-78
„ Turn and lane-change sig nal..................................................................................page 4-83
… Audio control switches......................................... ...................................................page 5-9
† INFO switch.................................................... ................................... page 4-15, 4-33, 4-55
‡ Cruise control switche s........................................ ................................... page 4-154, 4-221
ˆ Wiper and washer lever......................................... ................................................ page 4-84
‰ DSC OFF switch................................................................................................. page 4-112
Š Lane-keep Assist System (LAS) & Lane Departure Warning System ( LDWS) OFF
switch.................................................................................................................. page 4 -171
‹ Parking sensor switch......................................................................................... page 4-246
Œ 360° View Monitor switch..................................................................................page 4-189
 Outside mirror switch.......................................... ..................................................page 3-29
Ž Door-lock switch................................................................................................... page 3-16
 Power window switches........................................................................................ page 3-34
 Power window lock switch................................................................................... page 3-34
‘ Door-lock knob..................................................................................................... page 3-16
Pictorial Index
Interior Overview
1-2The equipment and installatio n position varies by vehicle
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

Interior Equipment (View B)
ƒDashboard illumination knob............................................................. page 4-20, 4-37, 4-54
„ Active driving display........................................................................................... page 4-63
… Instrument cluster.................................................................................................. page 4-13
† Push button start...................................................................................................... page 4-4
‡ Hazard warning flasher switch.............................................................................. page 4-89
ˆ Audio.......................................................... ........................................................... page 5-13
‰ Seat warmer switches........................................... ................................................. page 2-19
Š Glove compartment.............................................. ................................................. page 5-93
‹ Climate control system............................................................................................page 5-2
ΠRear window defogger switch.................................... ........................................... page 4-87
 Seat ventilation switches....................................................................................... page 2-20
Ž Heated steering wheel switch................................... ............................................. page 2-21
 Horn........................................................... ............................................................page 4-89
 Lock release lever................................................................................................... page 2-5
‘ Hood release handle............................................ .................................................. page 6-21
’ Remote fuel-filler lid release................................. ................................................ page 3-27
“ Trunk release button.............................................................................................. page 3-18
Pictorial Index
Interior Overview
The equipment and installation position varies by vehicle1-3
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

2Essential Safety Equipment
Important information about safety equipment, including seats, seat
belt system, child-restraint systems and SRS air bags.
Seats.................................................... 2-2 Seat Precautions............................2-2
Front Seat......................................2-5
Rear Seat.....................................2-15
Head Restraints...........................2-17
Seat Warmer/Seat Ventilation/Heated
Steering Wheel................................. 2-19 Seat Warmer
*.............................. 2-19
Seat Ventilation
*......................... 2-20
Heated Steering Wheel
*............. 2-21
Seat Belt Systems...... ....................... 2-23
Seat Belt Precautions.................. 2-23
Seat Belt......................................2-26
Seat Belt Warning Systems.........2-27
Front Seat Belt Pretensioner and
Load Limiting Systems...............2-27
Seat Belt Extender...................... 2-29
Child Restraint................................ 2-31 Child-Restraint Precautions........ 2-31
Child-Restraint System
Installation.................................. 2-36
Child-Restraint System Suitability
for Various Seat Positions
Table........................................... 2-38
Installing Child-Restraint
Systems....................................... 2-41
SRS Air Bags....................................2-53
Supplemental Restraint System
(SRS) Precautions.......................2-53
Supplemental Restraint System
Components................................ 2-59
How the SRS Air Bags Work..... 2-61
SRS Air Bag Deployment
Criteria........................................ 2-65
Limitations to SRS Air Bag........2-66
Front Passenger Occupant
Classification System
*................2-68
Constant Monitoring...................2-72
*Some models.2-1
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

Seat Belt Warning Systems
If it detects that the occupant seat belt is
unfastened, the warning light or beep
alerts the occupant.
Refer to Taking Action on page 7-35.
Refer to Seat Belt Warning Beep on page
7-45.

Seat belt indicator light (rear seat)
(green)
The light turns on when the ignition is
switched ON and a rear seat belt is
fastened, and then it turns off after about
60 seconds.
Front Seat Belt
Pretensioner and Load Limiting Systems
For optimum protectio n, the driver and
front passenger seat belts are equipped
with pretensioner and load limiting
systems. For both these systems to work
properly you must wear the seat belt
properly.

Pretensioners:
When a collision is detected, the
pretensioners deploy simultaneously with
the air bags.
For vehicles with the front passenger
occupant classification system, the
pretensioners deploy simultaneously with
the air bags when a roll-over is also
detected.
For deployment details, refer to the SRS
Air Bag Deployment Criteria (page
2-65).
The front seat belt retractors remove slack
quickly as the air bags are expanding. Any
time the air bags and seat belt
pretensioners have fired they must be
replaced.
A system malfunction or operation
conditions are indicated by a warning.
Refer to Taking Action on page 7-35.
Refer to Air Bag/Front Seat Belt
Pretensioner System Warning Beep on
page 7-45.
Essential Safety Equipment
Seat Belt Systems
2-27
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

Do not use an improper extender:
Using a seat belt extender that is for
another person or a different vehicle or seat
is dangerous. The seat belt will not provide
adequate protection and the user could be
seriously injured in an accident. Only use
the extender provided for you and for the
particular vehicle and seat. NEVER use the
extender in a different vehicle or seat. If you
sell your Mazda, do not leave your seat belt
extender in the vehicle. It could be used
accidentally by the new owner of the
vehicle. After removing the seat belt
extender, discard it. Never use the seat belt
extender in any other vehicle you may own
in the future.
Do not use an extender that is too long:
Using an extender that is too long is
dangerous. The seat belt will not fit
properly. In an accide nt, the seat belt will
not provide adequate protection and you
could be seriously injured. Do not use the
extender or choose one shorter in length if
the distance between the extender's buckle
and the center of the user's body is less
than 15 cm (6 in).Do not leave a seat belt extender
connected to the buckle:
Leaving a seat belt extender connected to
the buckle without using the seat belt is
dangerous. When the seat belt extender is
connected to the driver's seat belt buckle
(or front passenger's seat belt buckle), the
SRS driver's (or front passenger's) air bag
system will determine that the driver (or
front passenger) is wearing the seat belt
even if the driver (or front passenger) is not
wearing it. This condition could cause the
driver's (or front passenger's) air bag to not
activate correctly and result in death or
serious injury in the event of collision.
Always wear the seat belt with the seat belt
extender.
Do not use the seat belt extender when
installing a child-restraint system on the
front or rear passenger seat:
Using a seat belt extender to fasten a
child-restraint system on any seat is
dangerous. Always follow the
child-restraint system manufacturer's
installation instructions and never use a
seat belt extender.
NOTE
When not in use, remove the seat belt
extender and store it in the vehicle. If the
seat belt extender is left connected, the
seat belt extender might get damaged as it
will not retract with the rest of the seat belt
and can easily fall out of the door when
not in use and be damaged. In addition,
the seat belt warning light will not
illuminate and function properly.
Essential Safety Equipment
Seat Belt Systems
2-30
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

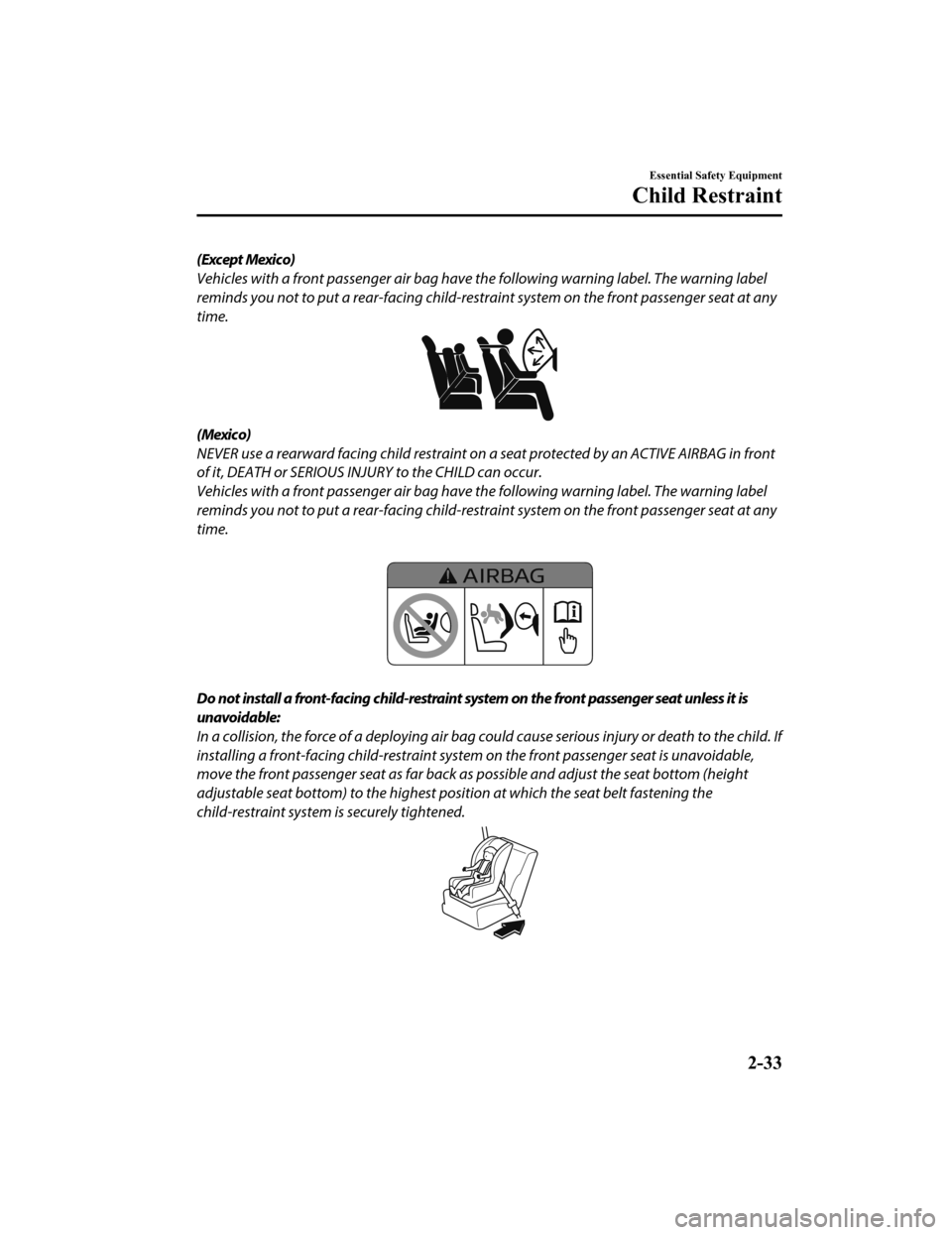

(Except Mexico)
Vehicles with a front passenger air bag have the following warning label. The warning label
reminds you not to put a rear-facing child-restraint system on the front passenger seat at any
time.
(Mexico)
NEVER use a rearward facing child restraint on a seat protected by an ACTIVE AIRBAG in front
of it, DEATH or SERIOUS INJURY to the CHILD can occur.
Vehicles with a front passenger air bag have th e following warning label. The warning label
reminds you not to put a rear-facing child-restraint system on the front passenger seat at any
time.

Do not install a front-facing child-restraint system on the front passenger seat unless it is
unavoidable:
In a collision, the force of a deploying air bag co uld cause serious injury or death to the child. If
installing a front-facing child-restraint syst em on the front passenger seat is unavoidable,
move the front passenger seat as far back as possible and adjust the seat bottom (height
adjustable seat bottom) to the highest position at which the seat belt fastening the
child-restraint system is securely tightened.
Essential Safety Equipment
Child Restraint
2-33
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

Driver/Front passenger inflators and air bags
Roll-over sensor*, crash sensors, and diagnostic module (SAS unit)
Seat belt pretensioners (page 2-27)
Front air bag sensors
Side crash sensors
Air bag/front seat belt pretensioner system warning light (page 7-28)
Side and curtain inflators and air bags
Front passenger air bag deactivation indicator light* (page 2-68)
Front passenger occupant classification sensor* (page 2-68)
Front passenger occupant classification module*
Essential Safety Equipment
SRS Air Bags
2-60*Some models.
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

▼Warning Light/Beep
A system malfunction or operation conditions are indicated by a
warning.
Refer to Contact Authorized Mazda Dealer and Have Vehicle Inspected on page 7-28.
Refer to Warning Sound is Activated on page 7-45.
Essential Safety Equipment
SRS Air Bags
2-64
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

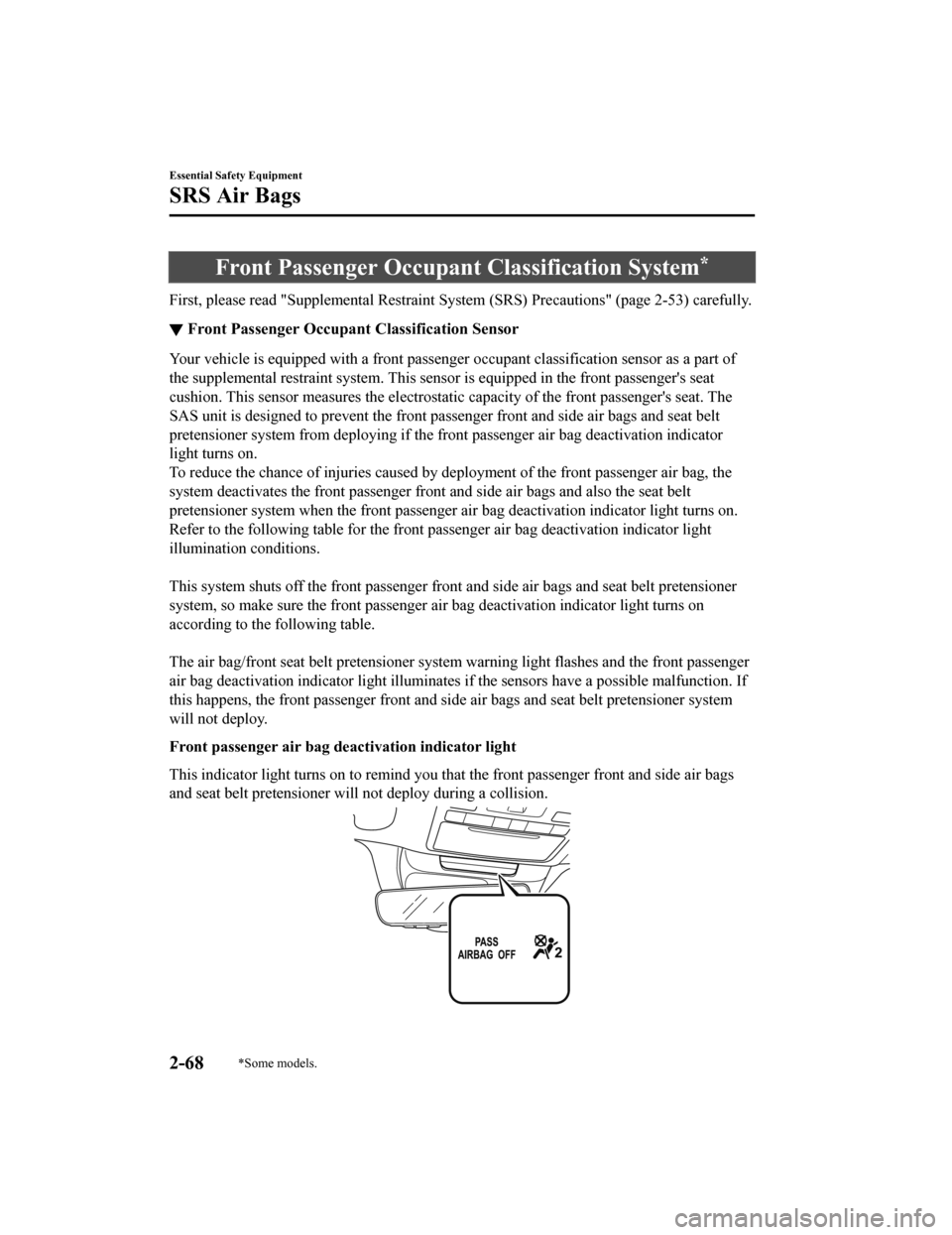

Front Passenger Occupant Classification System*
First, please read "Supplemental Restraint System (SRS) Precaut ions" (page 2-53) carefully.
▼Front Passenger Occupant Classification Sensor
Your vehicle is equipped with a front passenger occupant classi
fication sensor as a part of
the supplemental restraint system. This sensor is equipped in the front passenger's seat
cushion. This sensor measures the electrostatic capacity of the front passenger's seat. The
SAS unit is designed to prevent the front passenger front and side air bags and seat belt
pretensioner system from deploying if the front passenger air b ag deactivation indicator
light turns on.
To reduce the chance of injuries caused by deployment of the fr ont passenger air bag, the
system deactivates the front passenger front and side air bags and also the seat belt
pretensioner system when the front passenger air bag deactivati on indicator light turns on.
Refer to the following table fo r the front passenger air bag de activation indicator light
illumination conditions.

This system shuts off the front passenger front and side air bags and seat belt pretensioner
system, so make sure the front passenger air bag deactivation i ndicator light turns on
according to the following table.

The air bag/front seat belt pretensioner system warning light f lashes and the front passenger
air bag deactivation indicator li ght illuminates if the sensors have a possible malfunction. If
this happens, the front passenger front and side air bags and s eat belt pretensioner system
will not deploy.
Front passenger air bag de activation indicator light
This indicator light turns on to remind you that the front pass enger front and side air bags
and seat belt pretensioner wil l not deploy during a collision.
Essential Safety Equipment
SRS Air Bags
2-68*Some models.
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17
