display MAZDA MODEL 626 2001 Owner's Manual

Form No. 8P95-EA-00G
*Some models.Driving Your Mazda
5-109

Operating the Compact Disc
(CD) Player*/In-Dash CD
Changer*
To operate the CD player/in-dash CD
changer, turn the ignition switch to the
ACC or ON position.
 Inserting the CD (CD player)
Insert the CD into the slot, label-side
up. The auto-loading mechanism will
set the CD and begin play. There will
be a short lapse before play begins
while the player reads the digital
signals on the CD.
The disc in indicator will illuminate
and the track number will be
displayed.
Inserting the CD
(In-dash CD changer)
The CD must be label-side up when
inserting. The auto-loading
mechanism will set the CD and begin
play. There will be a short lapse before
play begins while the player reads the
digital signals on the CD.
The disc number and the track number
will be displayed.
NOTEA CD cannot be inserted while the
display reads “WAIT.” A beeping
sound can be heard during this
waiting time. Simultaneously
pressing the power/volume knob
and the load button for about 2
seconds will turn this beeping
sound ON or OFF.

Form No. 8P95-EA-00G

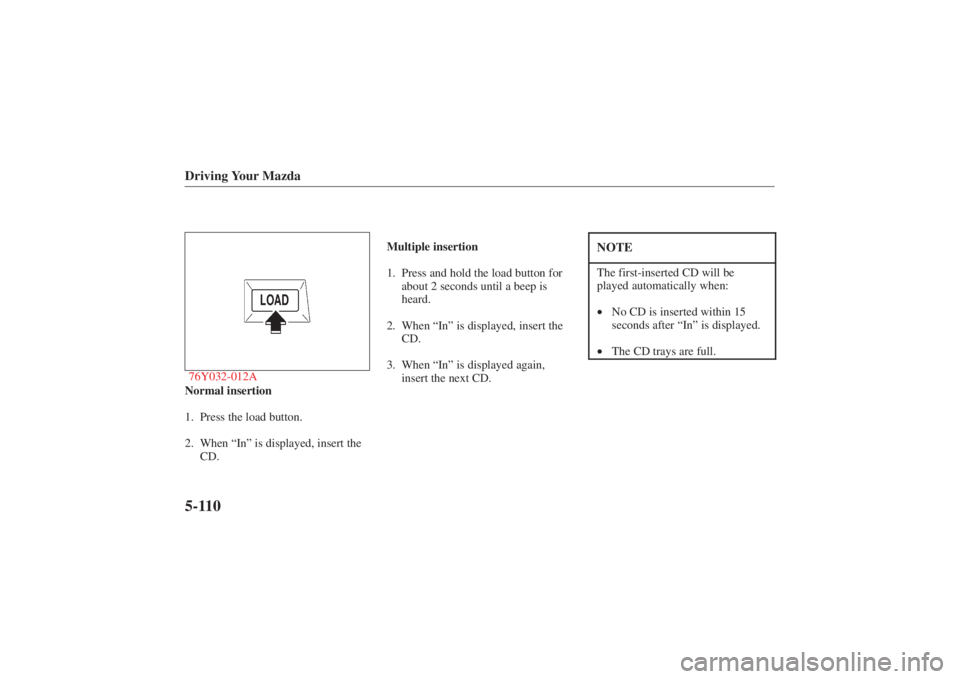

Driving Your Mazda5-11076Y032-012ANormal insertion
1. Press the load button.
2. When “In” is displayed, insert the
CD. Multiple insertion
1. Press and hold the load button for
about 2 seconds until a beep is
heard.
2. When “In” is displayed, insert the
CD.
3. When “In” is displayed again,
insert the next CD.
NOTEThe first-inserted CD will be
played automatically when:
• No CD is inserted within 15
seconds after “In” is displayed.
• The CD trays are full.

Form No. 8P95-EA-00G
Driving Your Mazda
5-111

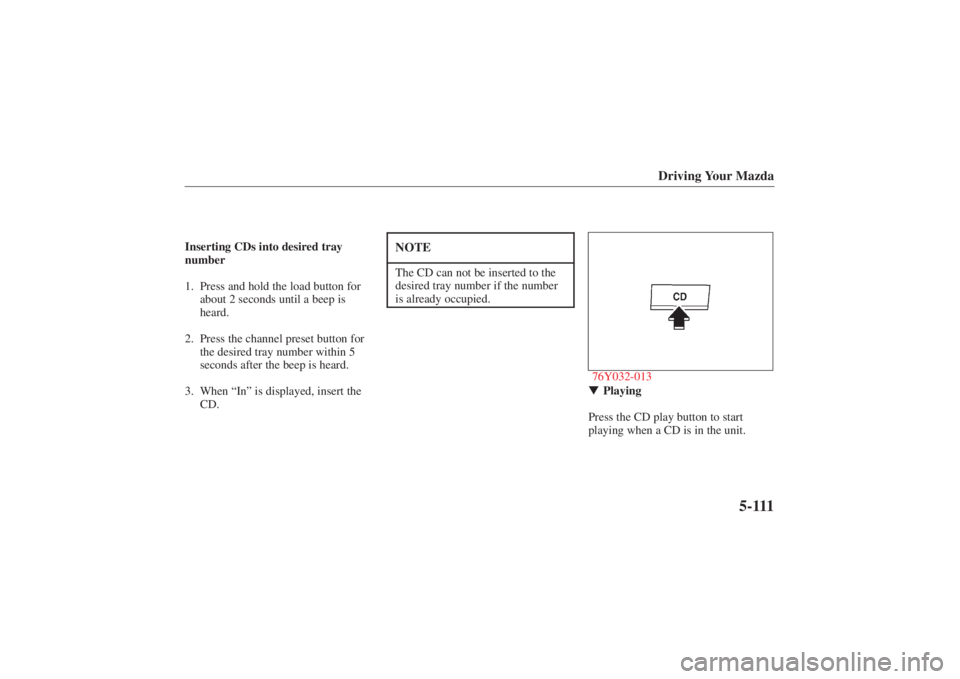

Inserting CDs into desired tray
number
1. Press and hold the load button forabout 2 seconds until a beep is
heard.
2. Press the channel preset button for the desired tray number within 5
seconds after the beep is heard.
3. When “In” is displayed, insert the
CD.
NOTEThe CD can not be inserted to the
desired tray number if the number
is already occupied.
76Y032-013 Playing
Press the CD play button to start
playing when a CD is in the unit.

Form No. 8P95-EA-00G
Driving Your Mazda5-11276Y032-014Repeat play
This feature makes it possible to listen
to a selection repeatedly.
Press the repeat button during play.
The current selection will be repeated
(“RPT” will be displayed). Press the repeat button once again to
cancel repeat play.
76Y032-015
Random play
This feature allows the CD player to
randomly select the order of the songs.
Press the random button during play.
The next selection will be randomly
selected (“RDM” will be displayed).

Form No. 8P95-EA-00G
Driving Your Mazda
5-115
76Y032-005
 Stopping
Press the power/volume knob to stop
CD play.
76Y032-019 Ejecting the CD (CD player)
Press the CD eject button to eject the
CD.
Ejecting the CD
(In-dash CD changer)
Normal ejection
1. Press the CD eject button. The disc number and “OUT” will
be displayed.
2. Pull out the CD.

Form No. 8P95-EA-00G

Operating Tips for CD Player/
In-Dash CD Changer
 Condensation phenomenon
Immediately after turning on the
heater when the vehicle is cold, the
CD or optical components (prism and
lens) in the CD player/changer may
become clouded with condensation.
At this time, the CD will eject
immediately when placed in the unit.
A clouded CD can be corrected
simply by wiping it with a soft cloth.
Clouded optical components will clear
naturally in about an hour. Wait for
normal operation to return before
attempting to use the unit.
Driving Your Mazda5-118
Error Indications
If you see an error indication on the
display, find the cause in the chart. If
you cannot clear the error indication,
take the vehicle to an Authorized
Mazda Dealer.Indication
Cause
Solution
CHECKCD
CD is inserted
upside down
Insert the CD properly. If the code does not disappear, consult an
Authorized Mazda Dealer
CD
CD is defective
Check the CD for scratches and/or soiling
