6–14
Maintenance and Care
Scheduled Maintenance
Schedule 1
Maintenance Interval Number of months or kilometers, whichever comes fi rst
Months 6 12 18 24 30 36 42 48 54 60 66 72
×1000 km 10 20 30 40 50 60 70 80 90
100 110 120
ENGINE
Drive belts I I I
Engine oil & fi lter R R R R R R R R R R R R
COOLING SYSTEM
Cooling system I I I
Engine coolant
*1 Replace at fi rst 200,000 km or 10 years; after that, every
100,000 km or 5 years
FUEL SYSTEM
Air fi lter R R R R R R
Fuel lines and hoses I
*2 I *2 I
Hoses and tubes for emission I
*2 I *2 I
Fuel fi lter Replace every 60,000 km
IGNITION SYSTEM
Spark plugs Replace every 120,000 km
CHASSIS and BODY
Brake lines, hoses and connections I I I I I I
Brake and clutch fl uid level I I I I I I I I I
Brake fl uid R R R
Disc brakes I I I I I I I I I I I I
Tire (Rotation)
*3 Rotate every 10,000 km
Tire infl ation pressure and tire wear *3 I I I I I I I I I I I I
Steering operation and linkages I I I I I I I I I I I I
Front and rear suspension, ball joints and wheel
bearing axial play I I I I I I
Rear differential oil
*4*5
Transfer oil *5
Driveshaft dust boots I I I I I I
Bolts and nuts on chassis and body T T T T T T
Exhaust system and heat shields I I I I I I
All locks and hinges L L L L L L L L L L L L
Washer fl uid level I I I I I I I I I I I I
AIR CONDITIONER SYSTEM
Cabin air fi lter R R R
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










6–16
Maintenance and Care
Scheduled Maintenance
Schedule 2
Maintenance Interval Number of months or kilometers, whichever comes fi rst
Months 3 6 9 12 15 18 21 24 27 30 33 36
×1000 km 5 10 15 20 25 30 35 40 45 50 55 60
ENGINE
Drive belts I
Engine oil & fi lter R R R R R R R R R R R R
COOLING SYSTEM
Cooling system I
Engine coolant
*1 Replace at fi rst 200,000 km or 10 years; after that, every
100,000 km or 5 years
Engine coolant level I I I I I I I I I I I I
FUEL SYSTEM
Air fi lter C R C R C R
Fuel lines and hoses I
*2
Hoses and tubes for emission I *2
Fuel fi lter Replace every 60,000 km
IGNITION SYSTEM
Spark plugs Replace every 120,000 km
ELECTRICAL SYSTEM
Function of all lights I I I I I I I I I I I I
CHASSIS and BODY
Brake lines, hoses and connections I I I
Brake and clutch fl uid level I I I I I
Brake fl uid R
Disc brakes I I I I I I
Tire (Rotation)
*3 Rotate every 10,000 km
Tire infl ation pressure and tire wear
*3 I I I I I I
Steering operation and linkages I I I I I I
Front and rear suspension, ball joints and wheel
bearing axial play I I I
Rear differential oil
*4*5
Transfer oil *5
Driveshaft dust boots I I I
Bolts and nuts on chassis and body T T T
Exhaust system and heat shields I I I
All locks and hinges L L L L L L
Washer fl uid level I I I I I I
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










6–18
Maintenance and Care
Scheduled Maintenance
(Cont.)
Maintenance Interval Number of months or kilometers, whichever comes fi rst
Months 39 42 45 48 51 54 57 60 63 66 69 72
×1000 km 65 70 75 80 85 90 95
100 105 110 115 120
ENGINE
Drive belts I I
Engine oil & fi lter R R R R R R R R R R R R
COOLING SYSTEM
Cooling system I I
Engine coolant
*1 Replace at fi rst 200,000 km or 10 years; after that, every
100,000 km or 5 years
Engine coolant level I I I I I I I I I I I I
FUEL SYSTEM
Air fi lter C R C R C R
Fuel lines and hoses I
*2 I
Hoses and tubes for emission I
*2 I
Fuel fi lter Replace every 60,000 km
IGNITION SYSTEM
Spark plugs Replace every 120,000 km
ELECTRICAL SYSTEM
Function of all lights I I I I I I I I I I I I
CHASSIS and BODY
Brake lines, hoses and connections I I I
Brake and clutch fl uid level I I I I
Brake fl uid R R
Disc brakes I I I I I I
Tire (Rotation)
*3 Rotate every 10,000 km
Tire infl ation pressure and tire wear
*3 I I I I I I
Steering operation and linkages I I I I I I
Front and rear suspension, ball joints and wheel
bearing axial play I I I
Rear differential oil
*4*5
Transfer oil *5
Driveshaft dust boots I I I
Bolts and nuts on chassis and body T T T
Exhaust system and heat shields I I I
All locks and hinges L L L L L L
Washer fl uid level I I I I I I
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










6–44
Maintenance and Care
Owner Maintenance

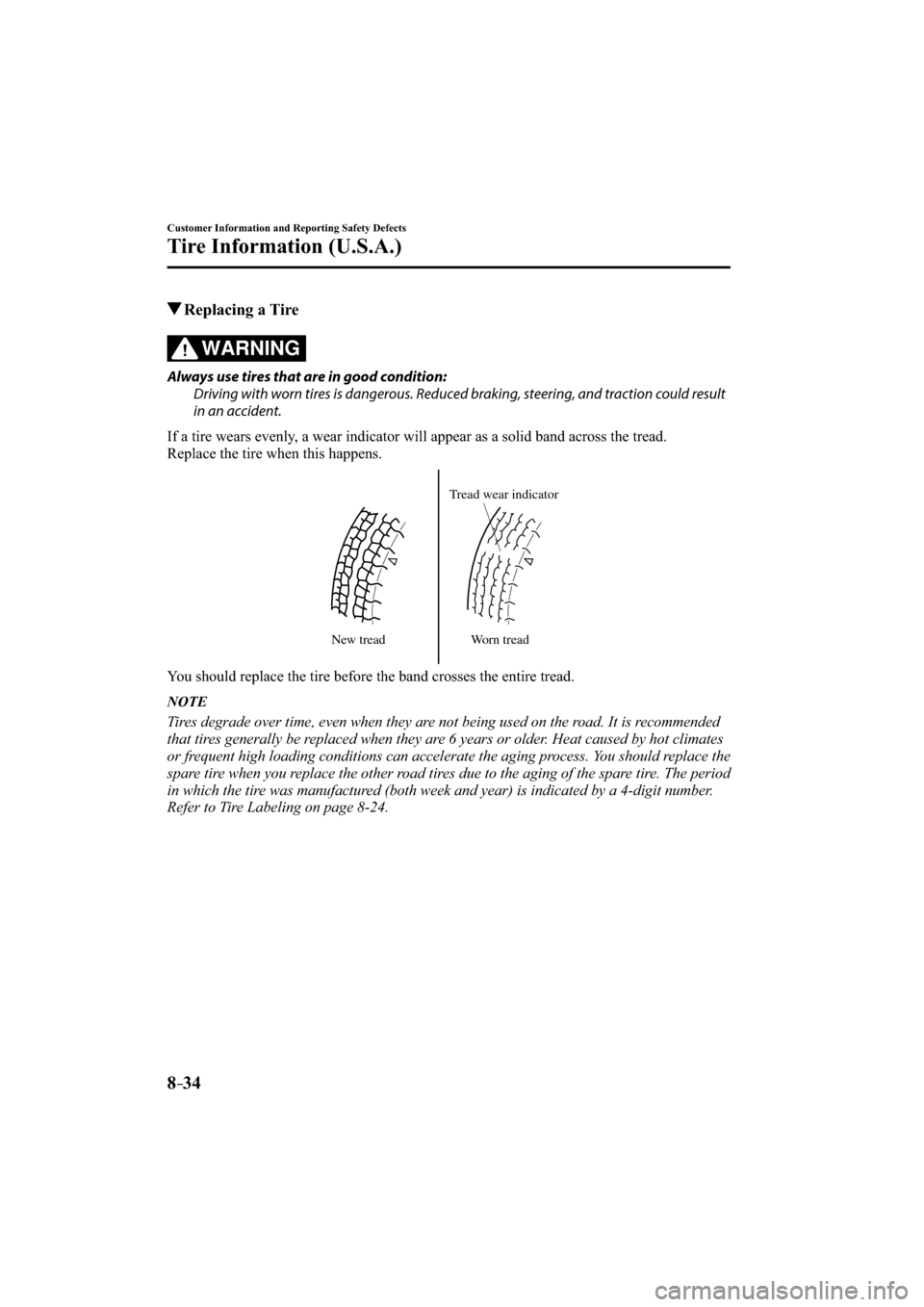

Replacing a Tire
WARNING
Always use tires that are in good
condition:
Driving with worn tires is dangerous.
Reduced braking, steering, and
traction could result in an accident.

Replace all four tires at the same time:
Replacing just one tire is dangerous. It
could cause poor handling and poor
braking resulting in loss of vehicle
control. Mazda strongly recommends
that you replace all four tires at the
same time.
If a tire wears evenly, a wear indicator will
appear as a solid band across the tread.
Replace the tire when this happens.
New treadTread wear indicator
Worn tread
You should replace the tire before the band
crosses the entire tread.
(With tire pressure monitoring system)
After adjusting the tire pressure,
initialization of the tire pressure
monitoring system is necessary to make
the system operate normally.
Refer to Tire Pressure Monitoring System
Initialization on page 4-129 .
NOTE
Tires degrade over time, even when
they are not being used on the road. It
is recommended that tires generally be
replaced when they are 6 years or older.
Heat caused by hot climates or frequent
high loading conditions can accelerate
the aging process. You should replace the
spare tire when you replace the other road
tires due to the aging of the spare tire. The
period in which the tire was manufactured
(both week and year) is indicated by a
4-digit number.
Refer to Tire Labeling on page 8-24 .
Temporary Spare Tire
Inspect the temporary spare tire at least
monthly to make sure it is properly
infl ated and stored.
NOTE
The temporary spare tire condition
gradually deteriorates even if it has not
been used.
The temporary spare tire is easier to
handle because of its construction which
is lighter and smaller than a conventional
tire. This tire should be used only for an
emergency and only for a short distance.
Use the temporary spare tire only until the
conventional tire is repaired, which should
be as soon as possible.
Refer to Tires on page 9-8 .
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










7–8
If Trouble Arises
Flat Tire
5. For vehicles equipped with a sub-
woofer, loosen the hold-down bolt and
remove the woofer and spare tire.
For vehicles not equipped with a sub-
woofer, turn the spare tire hold-down
bolt counterclockwise and remove the
spare tire.
Spare tire hold-down bolt
To secure the spare tire
Store the spare tire in the reverse order
of removal. After storing, verify that the
spare tire is stored securely.
Changing a Flat Tire
NOTE
If the following occurs while driving, it
could indicate a fl at tire.



y Steering becomes diffi cult.



y The vehicle begins to vibrate
excessively.



y The vehicle pulls in one direction.
If you have a fl at tire, drive slowly to a
level spot that is well off the road and out
of the way of traffi c to change the tire.
Stopping in traffi c or on the shoulder of a
busy road is dangerous.
WARNING
Be sure to follow the directions for
changing a tire:
Changing a tire is dangerous if not
done properly. The vehicle can slip off
the jack and seriously injure someone.
No person should place any portion
of their body under a vehicle that is
supported by a jack.

Never allow anyone inside a vehicle
supported by a jack:
Allowing someone to remain in
a vehicle supported by a jack is
dangerous. The occupant could cause
the vehicle to fall resulting in serious
injury.
NOTE
Make sure the jack is well lubricated
before using it.
1. Park on a level surface off the right-of-
way and fi rmly set the parking brake.
2. Shift into Park (P) and turn off the
engine.
3. Turn on the hazard warning fl asher.
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










7–29
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Signal Warning
(Red)
High Engine Coolant
Temperature Warning
Light
The light fl ashes when the engine coolant temperature is extremely high, and
illuminates when the engine coolant temperature increases further.
Handling Procedure
Flashing light
Drive slowly to reduce engine load until you can fi nd a safe place to stop the vehicle
and wait for the engine to cool down.
Illuminated light
This indicates the possibility of overheating. Park the vehicle in a safe place
immediately and stop the engine.
Refer to Overheating 7-22 .
CAUTION
Do not drive the vehicle with the high engine coolant temperature warning light
illuminated. Otherwise, it could result in damage to the engine.
Power Steering
Malfunction Indicator
Light The light illuminates/fl ashes if the electric power steering has a malfunction.
If the light illuminates/fl ashes, stop the vehicle in a safe place and do not operate the
steering wheel. There is no problem if the light turns off after a while. Contact an
Authorized Mazda Dealer if the light illuminates/fl ashes continuously.
NOTE
y If the indicator light illuminates/fl ashes, the power steering will not operate normally.
If this happens, the steering wheel can still be operated, however, the operation may
feel heavy compared to normal, or the steering wheel could vibrate when turning.
y Repeatedly jerking the steering wheel left and right while the vehicle is stopped or
moving extremely slowly will cause the power steering system to go into protective
mode which will make the steering feel heavy, but this does not indicate a problem. If
this occurs, park the vehicle safely and wait several minutes for the system to return
to normal.
Contact Authorized Mazda Dealer and Have Vehicle Inspected
If any of the following warning lights turns on/fl ashes, the system may have a malfunction.
Contact an Authorized Mazda Dealer to have your vehicle inspected.
Signal Warning
Master Warning
Light(Vehicles with type B audio)
The light turns on when the system has a malfunction.
Operate the center display and verify the content.
Refer to If a Warning Light Turns On or Flashes on page 7-27 .
(Vehicles without type B audio)
The light illuminates continuously if any one of the following occurs. Consult an
Authorized Mazda Dealer.
y There is a malfunction in the battery management system. y There is a malfunction in the brake switch.
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










*Some models.7–42
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Blind Spot Monitoring (BSM)
System Warning Beep *
Driving forward
The warning beep operates when the turn
signal lever is operated to the side where
the Blind Spot Monitoring (BSM) warning
light is illuminated.
NOTE
A personalized function is available to
change the Blind Spot Monitoring (BSM)
warning beep sound volume.
Refer to Personalization Features on page
9-10 .
Reversing
If a moving object such as a vehicle or
two-wheeled vehicle approaches on the
left or right from behind your vehicle, the
Blind Spot Monitoring (BSM) warning
sound is activated.
Lane Departure Warning System
(LDWS) Warning Sound *
While the system is operating, if the
system determines that the vehicle may
depart from the lane, it sounds a warning
sound.
NOTE



y The volume of the LDWS warning sound
can be changed.
  Refer to Personalization Features on
page 9-10 .



y The type of the LDWS warning sound
can be changed.
  Refer to Personalization Features on
page 9-10 .
Mazda Radar Cruise Control
(MRCC) System Warnings *
The Mazda Radar Cruise Control (MRCC)
system warnings notify the driver of
system malfunctions and cautions on use
when required.
Check based on the beep sound.
Cautions What to check
The beep sounds 1 time
while the Mazda Radar
Cruise Control (MRCC)
is operating The vehicle speed is
slower than 25 km/h (16
mph) and the Mazda
Radar Cruise Control
(MRCC) system has
been canceled.
The beep sounds
continuously while
driving The distance between
your vehicle and the
vehicle ahead is too
close. Verify the safety
of the surrounding area
and reduce vehicle
speed.
When the Mazda Radar
Cruise Control (MRCC)
is operating, the beep
sounds and the Mazda
Radar Cruise Control
(MRCC) warning
light (amber) in the
instrument cluster turns
on. A malfunction in
the system may be
indicated. Have your
vehicle inspected at
an Authorized Mazda
Dealer.
Collision warning *
If there is the possibility of a collision
with a vehicle ahead, the beep sounds
continuously and a warning is indicated in
the display.
Power Steering Warning Buzzer
If the power steering system has
a malfunction, the power steering
malfunction light turns on or fl ashes and
the buzzer operates at the same time.
Refer to Warning/Indicator Lights on page
4-24 .
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










8–34
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
Replacing a Tire
WARNING
Always use tires that are in good condition:
Driving with worn tires is dangerous. Reduced braking, steering, and traction could result
in an accident.
If a tire wears evenly, a wear indicator will appear as a solid band across the tread.
Replace the tire when this happens.
New treadTread wear indicator
Worn tread
You should replace the tire before the band crosses the entire tread.
NOTE
Tires degrade over time, even when they are not being used on the road. It is recommended
that tires generally be replaced when they are 6 years or older. Heat caused by hot climates
or frequent high loading conditions can accelerate the aging process. You should replace the
spare tire when you replace the other road tires due to the aging of the spare tire. The period
in which the tire was manufactured (both week and year) is indicated by a 4-digit number.
Refer to Tire Labeling on page 8-24 .
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










8–36
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
Vehicle Loading
WARNING
Do not tow a trailer with this vehicle:
Towing a trailer with this vehicle is dangerous because it has not been designed to tow a
trailer and doing so will aff ect the drive system which could result in vehicle damage.
This section will guide you in the proper loading of your vehicle, to keep your loaded
vehicle weight within its design rating capability. Properly loading your vehicle will provide
maximum return of vehicle design performance. Before loading your vehicle, familiarize
yourself with the following terms for determining your vehicle's weight ratings, from the
vehicle's Safety Certifi cation Label and Tire and Load Information Label:
WARNING
Overloaded Vehicle:
Overloading a vehicle is dangerous. The results of overloading can have serious
consequences in terms of passenger safety. Too much weight on a vehicle's suspension
system can cause spring or shock absorber failure, brake failure, handling or steering
problems, irregular tire wear, tire failure or other damage.
Overloading makes a vehicle harder to drive and control. It also increases the distance
required for stopping. In cases of serious overloading, brakes can fail completely,
particularly on steep grades. The load a tire will carry safely is a combination of the size of
the tire, its load range, and corresponding infl ation pressure.
Never overload the vehicle and always observe the vehicle's weight ratings from the
vehicle's Safety Certifi cation and Tire and Load Information labels.
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










10–6
Index
Mirrors Outside mirrors.............................. 3-28
Rearview mirror ............................ 3-29
Moonroof ............................................ 3-33
O
Odometer and Trip Meter ........... 4-15, 4-14
Outside Mirrors ................................... 3-28
Outside Temperature Display .............. 4-19
Over Rev. buzzer ................................. 7-43
Overhead Console ............................. 5-136
Overhead Lights ................................ 5-131
Overheating ......................................... 7-22
Overloading ......................................... 3-44
Owner Maintenance Closing the Hood........................... 6-25
Engine Compartment Overview .... 6-26
Key battery replacement ............... 6-39
Opening the Hood ......................... 6-24
Owner Maintenance Precautions... 6-22
P
Parking Brake ...................................... 4-55
Personalization Features ..................... 9-10
Power Steering .................................... 4-67
Power Windows .................................. 3-30
Power steering warning buzzer ........... 7-42
R
Radar Sensor (Front) ......................... 4-115
Radar Sensors (Rear) ........................ 4-120
Rear Coat Hooks ............................... 5-138
Rear Cross Traffi c Alert (RCTA) ........ 4-90
Rear Door Child Safety Locks ............ 3-18
Rear Seat ............................................... 2-6 Rear View Monitor............................ 4-130
Displayable range on the screen ... 4-132
Picture quality adjustment ........... 4-137
Rear view monitor operation ....... 4-134
Rear view parking camera
location ........................................ 4-131
Switching to the rear view monitor
display ......................................... 4-131
Variance between actual road conditions
and displayed Image
.................... 4-136
Viewing the display ..................... 4-133
Rear Window Defogger ...................... 4-52
Rear Window Washer .......................... 4-51
Rear Window Wiper ............................ 4-51
Rearview Mirror .................................. 3-29
Recommended Oil .............................. 6-27
Recording of Vehicle Data .................. 8-21
Recreational Towing ........................... 3-46
Registering Your Vehicle in A Foreign
Country ............................................... 8-17
Replacement Fuse ............................................... 6-53
Key battery .................................... 6-39
Light Bulbs .................................... 6-46
Tires ............................................... 6-44
Wheel ............................................ 6-45
Wiper ............................................. 6-34
Request switch inoperable warning beep
(With the advanced keyless function)
... 7-41
Rocking the Vehicle ............................ 3-41
S
SRS Air Bags Front passenger occupant classifi cation
system ............................................ 2-52
How the SRS air bags work .......... 2-44
Limitations to SRS air bag ............ 2-50
Monitoring..................................... 2-57
SRS air bag deployment criteria ... 2-48
Supplemental restraint system
components ................................... 2-42
Safety Defects, Reporting ................... 8-13
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC
