tyre pressures and adjust them to the
correct inflation pressure.
Refer to Tyre Pressure Monitoring
System (TPMS) Warning Indication/
Warning Light (Turns on) on page
7-60.
▼Tyres and Wheels
CAUTION
When inspecting/adjusting the tyre
pressures, do not apply excessive force
to the air valve of the tyre pressure
sensor. Otherwise, the tyre pressure
sensor could be damaged.
When changing tyres and wheels
When changing the tyres or wheels
(such as installing winter tyres), it will
be necessary to register the ID signal
code of the tyre pressure sensor to the
TPMS.
Have an expert repairer (we
recommend an Authorised Mazda
Repairer) do the registration or register
the ID signal codes of the tyre pressure
sensors using the following procedure.
NOTE
The tyre pressure sensors on each
wheel have a unique ID signal code.
For the TPMS to operate correctly, the
ID signal codes of the tyre pressure
sensors need to be registered to the
system.
1. Wait more than 19 minutes after
changing a tyre or wheel.
2. After more than 19 minutes have
passed, drive the vehicle at a speed
of about 25 km/h (16 mph) or
faster for 3 minutes or longer. While
driving, the ID signal codes of the
tyre pressure sensors are
automatically registered.
NOTE
If you drive the vehicle within 19
minutes of changing a tyre or wheel,
the TPMS warning light will flash
because the ID signal codes for the
tyre pressure sensors were not
registered. In this case, stop the vehicle
and register the ID signal codes of the
tyre pressure sensors following the
procedure.
When replacing tyres and wheels
CAUTION
¾When replacing the tyres and
wheels, consult an expert repairer
(we recommend an Authorised
Mazda Repairer) Otherwise, the tyre
pressure sensors could be damaged
when replacing them.
¾Do not install non-genuine wheels. If
wheels other than genuine ones are
installed, it may not be possible to
install the tyre pressure sensors.
When replacing a tyre or wheel, always
install the tyre pressure sensor. The
following combinations of tyres,
wheels, or tyres and wheels are
possible.
xThe tyre pressure sensor from the old
wheel is removed and it is installed
to the new wheel.
xOnly a tyre is replaced without
replacing the tyre pressure sensor
and wheel.
xA new tyre pressure sensor is
installed to a new wheel.
When Driving
Tyre Pressure Monitoring System (TPMS)
4-234

xIf “No camera signal.” is indicated in
the display, there could be a
problem with the camera. Have your
vehicle inspected at an expert
repairer (we recommend an
Authorised Mazda Repairer).
x(Predicted vehicle path assist lines
display type)
If force is applied to the steering
wheel, the guide lines may not
display. Loosen your grip on the
steering wheel to allow the guide
lines to display.
▼Rear View Parking Camera
Location
1. Rear view parking camera
▼Switching to the Rear View
Monitor Display
Shift the shift lever (manual
transmission) or the selector lever
(automatic transmission) to reverse (R)
position with the ignition switched ON
to switch the display to the rear view
monitor display.
NOTE
When the shift lever (manual
transmission) or the selector lever
(automatic transmission) is shifted
from reverse (R) position to another
shift lever (manual transmission) or the
selector lever (automatic transmission)
position, the screen returns to the
previous display.
When Driving
Rear View Monitor
4-239

CAUTION
¾Do not disassemble the Emergency call system. Otherwise, it could become
damaged and may not function in an emergency.
¾The Emergency call system has a special built-in battery so that it can operate even
if the power supply from the vehicle is cut such as in an accident.
Heed the following cautions. If the Emergency call system is not used correctly it
may not operate.
¾The built-in battery is not a rechargeable type battery. Do not attempt to
recharge the battery.
¾The built-in battery life is 3 years. Have the built-in battery replaced at an expert
repairer (we recommend an Authorised Mazda Repairer) periodically.
¾If the built-in battery power is low due to natural discharge and the system
determines that there is a problem, the Emergency call system cannot be used. If
the system determines that there is a problem, the indicator light (red) in the
Emergency call switch turns on to notify the driver. Have the vehicle inspected at
an expert repairer (we recommend an Authorised Mazda Repairer). Refer to
Indicator light/Beep sound on page 7-10.
NOTE
xThe Emergency call system can be used when the ignition is switched ON.xThere are two ways the Emergency call system makes calls; automatically or
manually.
xThe Emergency call system may not make a connection under the following
conditions or depending on the use environment. If the Emergency call system
does not connect, make a call from another telephone such as the nearest
available public telephone.
xThe vehicle is outside of a mobile phone network areaxThe vehicle is in a weak radio wave transmission environment (such as inside
tunnels, underground parking areas, shadow of buildings, and mountain areas)
xThe vehicle does not receive an impact of a certain level or more even if an
accident has occurred.
xAn extremely serious collision occurs resulting in damage to the Emergency call
system.
xThe position information cannot be obtained when signals cannot be received
from the GNSS satellites, however, voice calls are possible.
xWhen a voice call is made by the Emergency call system, the audio system is
muted so that it does not interfere with the call.
xIt may take some time for the call centre to respond after the Emergency call
system
first starts operating.
xIf you are unable to respond to an operator's questions after the voice call begins,
the operator may proceed with emergency procedures at their own discretion.
xEven if it is
difficult for you to hear the operator's voice, your voice may be heard
by the call centre. Continue explaining your circumstances.
If Trouble Arises
Emergency Call System
7-6

CAUTION
¾Do not disassemble the Mazda ERA-GLONASS. Otherwise, it could become
damaged and may not function in an emergency.
¾The Mazda ERA-GLONASS has a special built-in battery so that it can operate even
if the power supply from the vehicle is cut such as in an accident.
Heed the following cautions. If the Mazda ERA-GLONASS is not used correctly it
may not operate.
¾The built-in battery is not a rechargeable type battery. Do not attempt to
recharge the battery.
¾The built-in battery life is 3 years. Have the built-in battery replaced at an
Authorised Mazda Repairer periodically.
¾If the built-in battery power is low due to natural discharge and the system
determines that there is a problem, the Mazda ERA-GLONASS cannot be used.
If the system determines that there is a problem, the indicator light (red) in the
Emergency call switch turns on to notify the driver. Have the vehicle inspected at
an Authorised Mazda Repairer. Refer to Indicator light/Beep sound on page
7-19.
NOTE
xThe Mazda ERA-GLONASS can be used when the ignition is switched ON.xThere are two ways the Mazda ERA-GLONASS makes calls; automatically or
manually.
xThe Mazda ERA-GLONASS may not make a connection under the following
conditions or depending on the use environment. If the Mazda ERA-GLONASS
does not connect, make a call from another telephone such as the nearest
available public telephone.
xThe vehicle is outside of a mobile phone network areaxThe vehicle is in a weak radio wave transmission environment (such as inside
tunnels, underground parking areas, shadow of buildings, and mountain areas)
xThe vehicle does not receive an impact of a certain level or more even if an
accident has occurred.
xAn extremely serious collision occurs resulting in damage to the Mazda
ERA-GLONASS.
xThe position information cannot be obtained when signals cannot be received
from the GNSS satellites, however, voice calls are possible.
xWhen a voice call is made by the Mazda ERA-GLONASS, the audio system is
muted so that it does not interfere with the call.
xIt may take some time for the call centre to respond after the Mazda
ERA-GLONASS
first starts operating.
xIf you are unable to respond to an operator's questions after the voice call begins,
the operator may proceed with emergency procedures at their own discretion.
xEven if it is
difficult for you to hear the operator's voice, your voice may be heard
by the call centre. Continue explaining your circumstances.
If Trouble Arises
Mazda
ERA-GLONASS
7-15

After that, perform the following procedure.
Move the signal lever up to right
turn
Move the signal lever up to right
turnMove the signal lever
down to left turn
Move the signal lever down
to left turn Return the signal lever to offReturn the signal lever to
Return the signal lever to off
Return the signal lever to off Return the signal lever to off Move the signal lever up to right
turnWithin 5 seconds
Within 1 second Within 1 second Within 1 second Within 1 second
Within 1 second
Within 1 second
Within 1 second
Within 1 second Within 5 seconds
Within 5 seconds
Within 1 second Turn on the hazard warning
lights.
Turn off the hazard warning
lights.
Both red and green
Emergency call switch
indicator lights turn on.
Press the Emergency call
switch for one second or
longer and release it.
After the procedure is completed, the test mode is performed in the following order
automatically.
1. Procedure is completed
2. Switch to test mode
If Trouble Arises
Mazda
ERA-GLONASS
7-21

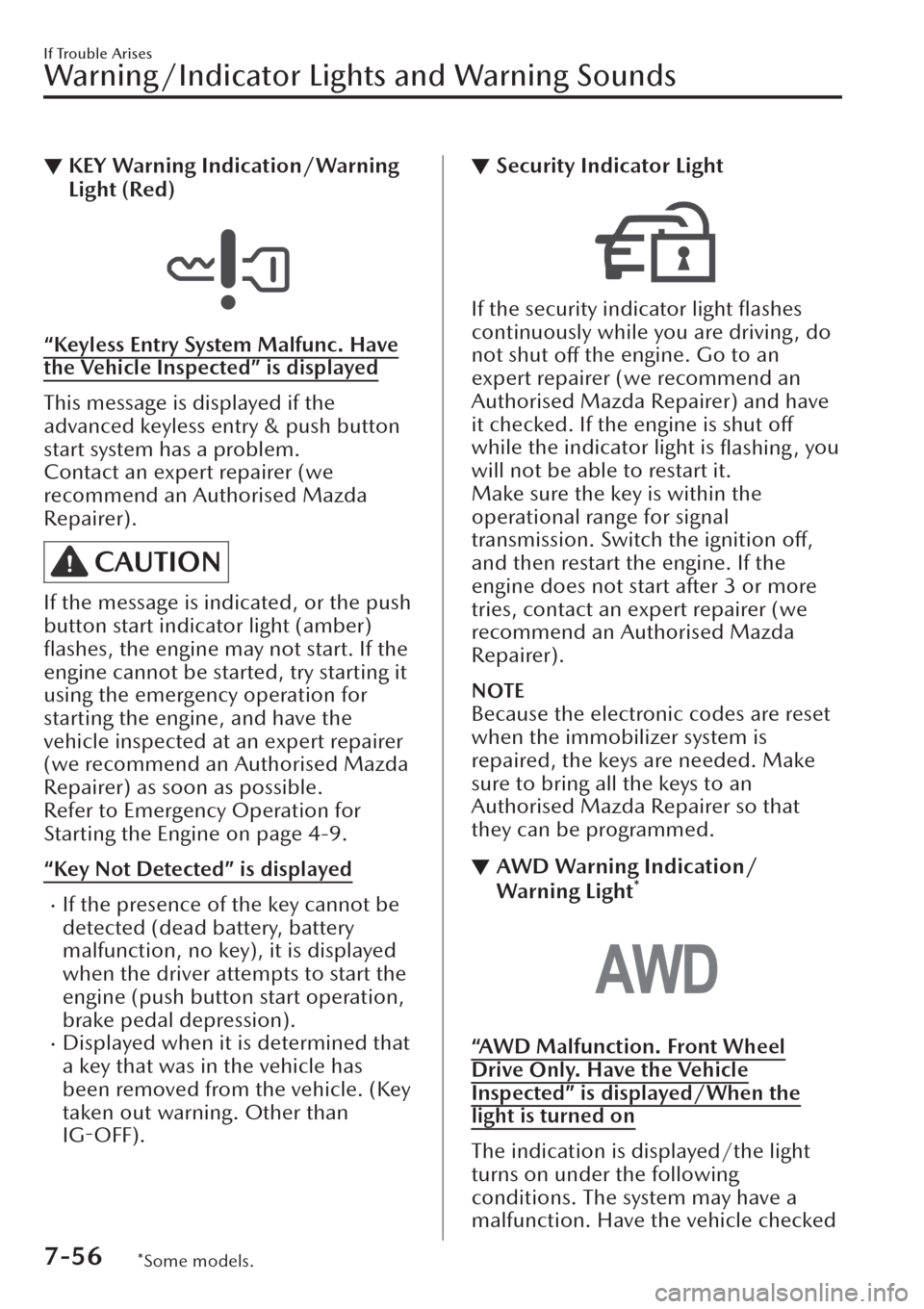

▼KEY Warning Indication/Warning
Light (Red)
“Keyless Entry System Malfunc. Have
the Vehicle Inspected” is displayed
This message is displayed if the
advanced keyless entry & push button
start system has a problem.
Contact an expert repairer (we
recommend an Authorised Mazda
Repairer).
CAUTION
If the message is indicated, or the push
button start indicator light (amber)
flashes, the engine may not start. If the
engine cannot be started, try starting it
using the emergency operation for
starting the engine, and have the
vehicle inspected at an expert repairer
(we recommend an Authorised Mazda
Repairer) as soon as possible.
Refer to Emergency Operation for
Starting the Engine on page 4-9.
“Key Not Detected” is displayed
xIf the presence of the key cannot be
detected (dead battery, battery
malfunction, no key), it is displayed
when the driver attempts to start the
engine (push button start operation,
brake pedal depression).
xDisplayed when it is determined that
a key that was in the vehicle has
been removed from the vehicle. (Key
taken out warning. Other than
IG-OFF).
▼Security Indicator Light
If the security indicator light flashes
continuously while you are driving, do
not shut
off the engine. Go to an
expert repairer (we recommend an
Authorised Mazda Repairer) and have
it checked. If the engine is shut off
while the indicator light is
flashing , you
will not be able to restart it.
Make sure the key is within the
operational range for signal
transmission. Switch the ignition off,
and then restart the engine. If the
engine does not start after 3 or more
tries, contact an expert repairer (we
recommend an Authorised Mazda
Repairer).
NOTE
Because the electronic codes are reset
when the immobilizer system is
repaired, the keys are needed. Make
sure to bring all the keys to an
Authorised Mazda Repairer so that
they can be programmed.
▼AWD Warning Indication/
Warning Light*
“AWD Malfunction. Front Wheel
Drive Only. Have the Vehicle
Inspected” is displayed/When the
light is turned on
The indication is displayed/the light
turns on under the following
conditions. The system may have a
malfunction. Have the vehicle checked
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-56*Some models.

Do not ignore the TPMS warning light
when it is turned on or flashing:
Continuing to drive the vehicle while
ignoring the illumination/flashing of
the TPMS warning light is dangerous
because a tyre may burst which could
lead to an accident. Take appropriate
measures as soon as possible.
▼High Beam Control System (HBC)
Warning Indication/Warning Light
(Amber)
*
The light remains turned on if there is a
problem with the system. Have your
vehicle inspected at an expert repairer
(we recommend an Authorised Mazda
Repairer).
▼Adaptive LED Headlights (ALH)
Warning Indication/Warning Light
(Amber)
*
The light remains turned on if there is a
problem with the system. Have your
vehicle inspected at an expert repairer
(we recommend an Authorised Mazda
Repairer).
▼i-ACTIVSENSE Warning
Indication/Warning Light*
The indication displays if the system
has a malfunction.
Check the reason for the indication
displaying on the centre display or
multi-information display.
Refer to If a Warning Light Turns On or
Flashes on page 7-49.
▼Exterior Light Warning Indication/
Warning Light
This light illuminates if there is a
malfunction in the exterior lights
(except number plate lights). Have
your vehicle inspected by an expert
repairer (we recommend an
Authorised Mazda Repairer).
CAUTION
Do not drive the vehicle while an
exterior light has a malfunction. Poor
visibility, and not being able to signal
braking and turns may cause an
accident. In addition, if the vehicle is
driven with the lights not turned on, it
may conflict with laws and regulations
due to poor maintenance.
▼Low Fuel Warning Indication/
Warning Light
The light turns on when the remaining
fuel is about 9.0 L (2.3 US gal, 1.9 Imp
gal). If you continue to drive after the
light turns on without refuelling and
the fuel gauge reaches nearly empty,
the light flashes.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-58*Some models.

Index
T
Theft-Deterrent System.............. 3-49
Three-flash Turn Signal...............4-60
Tool Storage.............................. 7-24
Touch Sensor Inoperable Warning
Beep (With the advanced keyless
function)...................................7-68
To w i n g
Hook................................... 7-47
Towing Caravans and Trailers
(Europe/Russia/Turkey/Israel/
South Africa)........................ 3-60
Towing Description................... 7-46
Traction Control System (TCS).... 4-81
TCS OFF Indicator Light......... 4-82
TCS OFF switch.................... 4-82
TCS/DSC indicator light........4-81
Traffic Sign Recognition System
(TSR)...................................... 4-111
Transmitter.................................. 3-5
Tr o u b l e
Battery runs out.................... 7-39
Emergency starting................7-42
Flat tyre................................7-24
Overheating......................... 7-44
Parking in an emergency........7-23
When liftgate cannot be
opened................................ 7-73
Turn and Lane-Change Signals.... 4-60
Tyres......................................... 6-41
Flat tyre................................7-24
Replacing a tyre....................6-42
Replacing a wheel................ 6-43
Snow tyres........................... 3-57
Specifications....................... 9-10
Tyre chains........................... 3-57
Tyre inflation pressure........... 6-41
Tyre rotation......................... 6-42
Tyre Pressure Monitoring
System.................................... 4-232
U
Ultrasonic Sensor.................... 4-225
V
Vanity Mirrors........................... 5-32
Vehicle Information Labels
Chassis number...................... 9-2
Conformity plate.................... 9-3
Engine number....................... 9-3
Model plate........................... 9-2
Tyre pressure label.................. 9-3
Vehicle emission control
information label.................... 9-2
Ve h i c l e
identification
number..................................9-2
Vehicle Problem Warning Beep... 7-69
Vehicle Speed Alarm................. 7-70
W
Warning Sound is Activated
AUTOHOLD warning beep.... 7-70
Blind Spot Monitoring (BSM)
warning beep....................... 7-71
Brake override warning
beep.................................... 7-69
Brake system warning beep....7-69
Collision warning..................7-72
Door-ajar warning beep........ 7-72
Electric Parking Brake (EPB)
warning beep....................... 7-70
Electronic steering lock warning
beep.................................... 7-69
Excessive speed warning........7-72
Front Cross Traffic Alert (FCTA)
Warning Beep...................... 7-71
Ignition Not
Off Reminder
Warning Beep...................... 7-69
Ignition not switched off (STOP)
warning beep....................... 7-67
10-10
