Recirculated air position ()
Outside air is shut
off. Use this position
when going through tunnels, driving in
congested traffic (high engine exhaust
areas) or when quick cooling is
desired.
Outside air position (
)
Outside air is allowed to enter the
cabin. Use this mode for ventilation or
windscreen defrosting.
WARNING
Do not recirculate the air in the cabin
during cold or rainy weather:
Recirculating the air in the cabin during
cold and rainy weather is dangerous as
it will cause the windows to fog up.
Your vision will be hampered, which
could lead to a serious accident.
SYNC (Synchronized Temperature)
switch
Use the SYNC switch to change the
mode between the individual
operation (driver and passenger) and
interconnection (simultaneous)
modes.
Interconnection mode (indicator light
turns on)
The set temperature for the driver and
front passenger is controlled
simultaneously.
Individual operation mode (indicator
light turns off)
The set temperature can be controlled
individually for the driver and front
passenger.
Windscreen defroster switch
Press the switch to defrost the
windscreen and front door windows.
Refer to Windscreen Defrosting and
Defogging on page 5-11.
Rear window defogger switch
Press the rear window defogger switch
to defrost the rear window.
Refer to Rear Window Defogger on
page 4-66.
▼Operation of Automatic Air
Conditioner
1. Press the AUTO switch. Selection of
the
airflow mode, air intake
selector and amount of
airflow will
be automatically controlled.
2. Use the temperature control dial to
select a desired temperature.
If you want to set the temperature
on the front passenger's side
separately from the driver's side,
turn the front passenger
temperature control dial to switch
the mode automatically to the
individual operation mode and set
the temperature for the front
passenger's side.
To turn off the system, press the power
switch.
NOTE
xSet the control dial to the
recommended temperature of 22 °C
(72 °F), and then adjust it as desired.
xSetting the temperature to maximum
hot or cold will not provide the
desired temperature at a faster rate.
xWhen selecting heat, the system will
restrict
airflow until the engine has
warmed to prevent cold air from
blowing out of the vents.
▼Windscreen Defrosting and
Defogging
Press the windscreen defroster switch.
In this position, the outside air position
is automatically selected, and the air
Interior Features
Air-Conditioning System
5-11

conditioner automatically turns on.
The air conditioner will directly
dehumidify the air to the front
windscreen and side windows on page
5-4.
Airflow amount will be increased.
WARNING
Set the temperature control to the hot
or warm position when defogging
(
position):
Using the
position with the
temperature control set to the cold
position is dangerous as it will cause
the outside of the windscreen to fog
up. Your vision will be hampered,
which could lead to a serious accident.
NOTE
xFogging on the windows clears up
more easily while the air conditioner
is on, but they will fog up more easily
if the air conditioner is turned off.
xBe careful that the windows do not
fog up when doing any of the
following:
xSwitching to recirculate modexTurning off the air conditionerxUse the temperature control dial to
increase the air flow temperature
and defog the windscreen more
quickly.
▼Sunlight/Temperature Sensor
The air-conditioning system measures
inside and outside temperatures,
humidity and sunlight using the
sunlight/temperature sensor. It sets
temperatures inside the cabin
accordingly.
CAUTION
Do not obstruct both sensors,
otherwise the air-conditioning system
will not operate properly.
Sunlight sensor
1. Sunlight sensor
Interior temperature sensor
1. Interior temperature sensor
Interior Features
Air-Conditioning System
5-12

What is Mazda Connect ?
▼What is Mazda Connect ?
This manual only indicates a part of the information for Mazda Connect. For details,
check the Web owner's manual at the Mazda site for each country and region.

1. Radio
2. Bluetooth® Audio/Hands-Free Call/SMS (Short Message Service)
3. USB Audio/USB Video
4. USB port
*1/SD card slot*2
5. CD/DVD player*
6. CD/DVD
7. SD card (Navigation system)*
*
1 The location of the USB slot differs depending on the vehicle model.*2 The SD card slot is for the navigation system only. For vehicles with the
navigation system, the SD card (Mazda genuine) with stored map data is
inserted into the SD card slot and used.
Interior Features
Mazda Connect
*Some models.5-13

No. Menu Explanation
(1) InformationFuel Efficiency Monitor:
Monitor fuel
efficiency in real time and view fuel
efficiency history.
Vehicle Status Monitor:
View important vehicle maintenance messages, information, and inter-
vals.
Owner's Manual
*:
Learn about Mazda features, safety information, maintenance, and
more.
(2) EntertainmentFM
AM
DAB
*
Bluetooth
USB1 Audio/USB2 Audio
USB1 Video/USB2 Video
Disc
*/CD*/DVD*
(3)
NotificationsDisplays text messages received by the mobile device paired to Mazda
Connect and notifications from the vehicle.
(4) CommunicationBy connecting your mobile device, such as a Smartphone, to Mazda
Connect via Bluetooth
®, you can use the hands-free call and short mes-
sage functions.
(5) NavigationThe navigation system (vehicles with navigation system) can be used
when the SD card for the navigation system is inserted.

If the SD card for the navigation system is not inserted, the compass in-
dicating the direction in which the vehicle is moving is displayed. The
compass may not indicate the correct bearing when the vehicle is stop-
ped or travelling at a slow speed.
For the navigation system operation, refer to the navigation system
manual.
Interior Features
Mazda Connect
5-14*Some models.

No. Menu Explanation
(6) SettingsYou can change the settings for the Mazda Connect screen, sound set-
tings, and the vehicle functions.

In-Vehicle Displays:
Configures settings and content for all in-vehicle displays.
Sound Settings:
Configures the in-vehicle listening experience.
Safety Settings:
Configures safety and driver assistance features.
Vehicle Settings:
Configures vehicle convenience features.
Connectivity Settings:
Configures Bluetooth and other device connectivity settings.
System Settings:
Configures language, time, and other general settings.
(7) Apple CarPlayYou can use Apple CarPlay by connecting an iPhone compatible with
Apple CarPlay to the USB slot.
(8) Android AutoYou can use Android Auto™ by connecting an Android™ Smartphone
compatible with Android Auto™ to the USB port.
WARNING
Always adjust Mazda Connect while the vehicle is stopped:
Do not adjust Mazda Connect with the Commander switch while driving the
vehicle. Adjusting Mazda Connect with the Commander switch while driving the
vehicle is dangerous as it could distract your attention from the vehicle operation
which could lead to a serious accident.
Even if the audio remote control switches are equipped on the steering wheel, learn
to use the switches without looking down at them so that you can keep your
maximum attention on the road while driving the vehicle.
Do not allow the connection plug cord to get tangled with the shift lever (manual
transmission)/selector lever (automatic transmission):
Allowing the plug cord to become tangled with the shift lever (manual
transmission)/selector lever (automatic transmission) is dangerous as it could
interfere with driving, resulting in an accident.
Interior Features
Mazda Connect
5-15

Do not adjust a mobile device or a similar product while driving the vehicle:
Adjusting a mobile device or a similar product while driving the vehicle is dangerous
as it could distract your attention from the vehicle operation which could lead to a
serious accident. Always adjust a mobile device or a similar product while the
vehicle is stopped.
CAUTION
For the purposes of safe driving, adjust the audio volume to a level that allows you
to hear sounds outside of the vehicle including car horns and particularly emergency
vehicle sirens.
NOTE
xDo not use Mazda Connect for a long time with the engine stopped. Otherwise,
the battery power could be depleted.
xIf a mobile phone or CB radio is used in or near the vehicle, it could cause noise to
occur from the audio system. However, this does not indicate a problem.
Interior Features
Mazda Connect
5-16

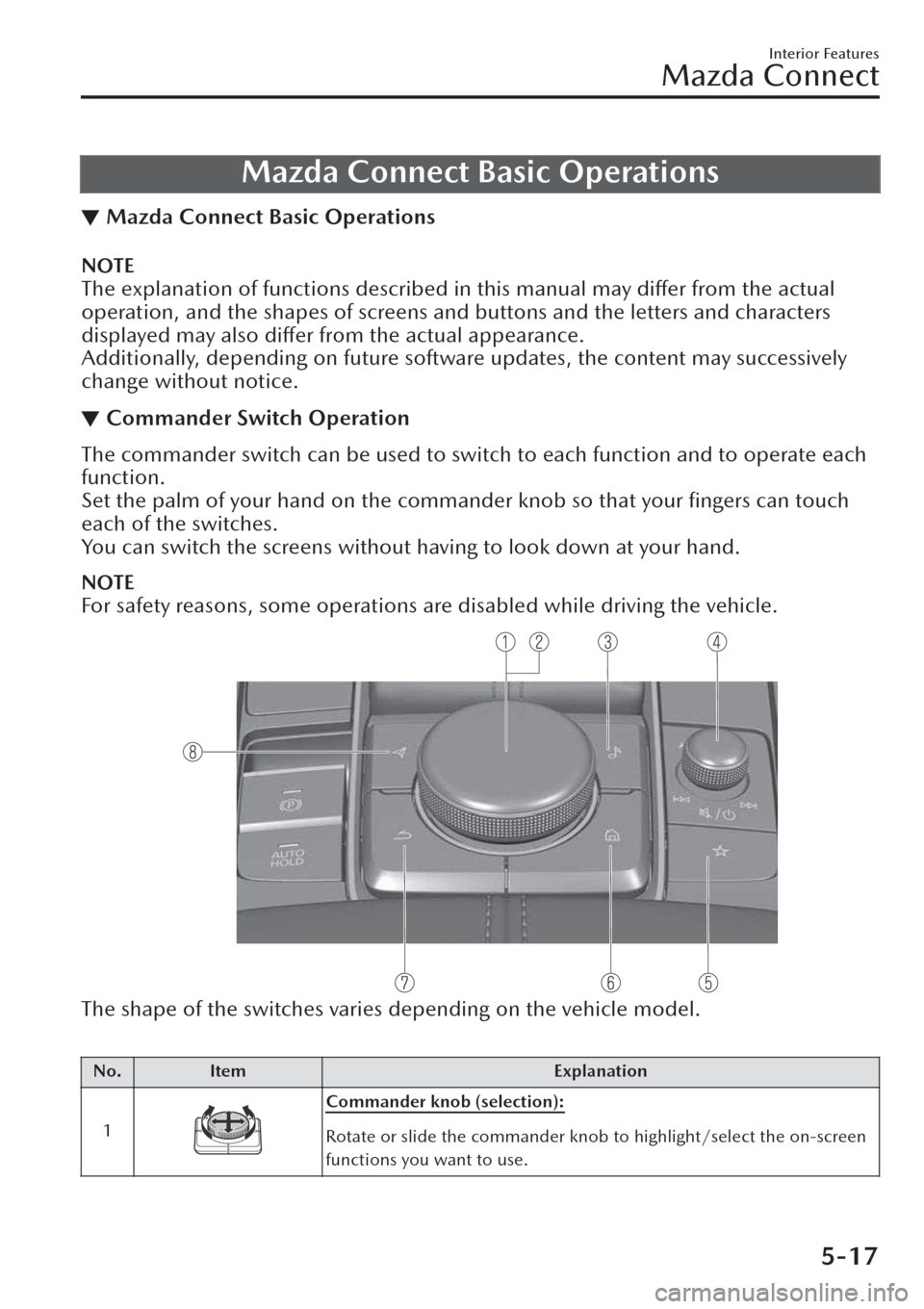

Mazda Connect Basic Operations
▼Mazda Connect Basic Operations
NOTE
The explanation of functions described in this manual may differ from the actual
operation, and the shapes of screens and buttons and the letters and characters
displayed may also differ from the actual appearance.
Additionally, depending on future software updates, the content may successively
change without notice.
▼Commander Switch Operation
The commander switch can be used to switch to each function and to operate each
function.
Set the palm of your hand on the commander knob so that your fingers can touch
each of the switches.
You can switch the screens without having to look down at your hand.
NOTE
For safety reasons, some operations are disabled while driving the vehicle.
The shape of the switches varies depending on the vehicle model.

No. Item Explanation
1
Commander knob (selection):
Rotate or slide the commander knob to highlight/select the on-screen
functions you want to use.
Interior Features
Mazda Connect
5-17

No. Item Explanation
2
Commander knob (select):
Depress the commander knob to select the desired on-screen function
you want to use
3
Entertainment button:
The audio source screen last used is displayed.

(During Apple CarPlay or Android Auto™ music playback)
Displays the Apple CarPlay or Android Auto™ playback screen.
Interior Features
Mazda Connect
5-18

No. Item Explanation
4
Vo l u m e k n o b :

Volume adjustment
Adjust the volume by turning the volume knob.
If you adjust the volume during a voice guidance, the volume of the voice guidance changes.
If you adjust the volume while making a hands-free call, the conversation volume changes.
Press the volume knob to mute the audio. Press the knob again to cancel.

Po we r
off
Press and hold the volume knob to turn the Mazda Connect power off.
NOTE
If you press the volume knob to mute an audio source which can be
paused, such as Apple CarPlay, USB audio, or Bluetooth® audio, while
it is playing, the song playback pauses. Press the volume knob again to
cancel the mute and the pause at the same time.

Selecting a radio station
(FM/AM radio)
Radio stations saved to your Favourites can be selected by sliding the volume knob left (SEEK
DOWN)/right (SEEK UP) while listening to FM/AM. The station will change each time you
slide the volume knob.
If you want to manually tune to the next available station before or after the currently selected
station, slide and hold the volume knob left (SEEK DOWN) or right (SEEK UP) until you hear
a beep and the tuner will select the next available station.
(DAB radio)*
You can call up radio stations registered to your Favourites by sliding the volume knob left/right
while listening to DAB radio. The radio stations change each time you slide the volume knob.
In addition, the service switches to the next service when you continue sliding the knob to the
right until you hear a beep, and it switches to the previous service when you continue sliding
the knob to the left. If there is no next or previous service in the selected Ensemble, Ensemble
switches.

Playback Control
Music and video files can be cued when listening to stored content via USB, Bluetooth®, and
audio or video.
Slide the volume knob right to skip to the next track or slide it to the left to go back to the
previous track. You can also slide and hold the volume knob to fast forward or rewind the
track.
Interior Features
Mazda Connect
*Some models.5-19

No. Item Explanation
5
Favourites button:
Displays the favourites screen.
Press and hold to register AM/FM stations, contacts, navigation desti-
nations, or any highlighted menu items to create easily accessible
shortcuts.
6
Home button:
Displays the home screen.

(While Apple CarPlay or Android Auto™ is displayed)
Displays the Apple CarPlay or Android Auto™ home screen.

(While Apple CarPlay or Android Auto™ is connected)
Press and hold while the Mazda Connect screen is displayed to switch
the screen from Mazda Connect to Apple CarPlay or Mazda Connect
to Android Auto™. In addition, press and hold while the Apple CarPlay
or Android Auto™ screen is displayed to switch to the Mazda Connect
screen.
7
Back button:
Returns to previous screen.
8
Map button:
Displays the navigation screen (vehicles with navigation system).
In order for the navigation system to function, the SD card for the navi-
gation system is required.
If the SD card for the navigation system is not inserted, the compass in-
dicating the direction in which the vehicle is moving is displayed.
For the navigation system operation, refer to the navigation system
manual.

(During Apple CarPlay or Android Auto™ route guidance)
Displays the Apple CarPlay or Android Auto™ map screen.
Interior Features
Mazda Connect
5-20
