Interior Equipment (View A)
Door-lock knob .................................................................................................. page 3-17
TCS OFF switch ................................................................................................ page 4-84
Tire pressure monitoring system set switch ....................................................... page 4-94
Turn and lane-change signal .............................................................................. page 4-60
Lighting control ................................................................................................. page 4-55
Instrument cluster .............................................................................................. page 4-10
Dashboard illumination knob ............................................................................ page 4-13
Wiper and washer lever ..................................................................................... page 4-61
Push button start .................................................................................................. page 4-2
AFS OFF switch ................................................................................................ page 4-59
BSM OFF switch ............................................................................................... page 4-99
Outside mirror switch ........................................................................................ page 3-27
Door-lock switch ............................................................................................... page 3-14
Power window lock switch ................................................................................ page 3-32
Power window switches .................................................................................... page 3-30
1-2
Pictorial Index
The equipment and installation position varies by vehicle
Interior Overview
CX-5_8CT5-EA-12K_Edition1 Page8
Friday, October 19 2012 3:10 PM
Form No.8CT5-EA-12K

Black plate (9,1)
Interior Equipment (View B)
Audio control switches ...................................................................................... page 5-56
SRS air bags ...................................................................................................... page 2-39
Cruise control switches ...................................................................................... page 4-89
Navigation system (if equipped) .......................................... Refer to the separate manual
Audio system ..................................................................................................... page 5-13
Hazard warning flasher switch .......................................................................... page 4-67
Climate control system ........................................................................................ page 5-2
Glove compartment ......................................................................................... page 5-118
Rear window defroster switch ........................................................................... page 4-66
Accessory socket ............................................................................................. page 5-114
MT shift lever .................................................................................................... page 4-44
AT shift lever ...................................................................................................... page 4-46
Parking brake ..................................................................................................... page 4-72
Seat warmer switches .......................................................................................... page 2-6
Lock release lever .............................................................................................. page 3-26
Hood release handle .......................................................................................... page 6-18
Pictorial Index
Interior Overview
1-3The equipment and installation position varies by vehicle CX-5_8CT5-EA-12K_Edition1 Page9
Friday, October 19 2012 3:10 PM
Form No.8CT5-EA-12K

Black plate (11,1)
Hood .................................................................................................................. page 6-18
Windshield wiper blades .................................................................................... page 6-27
Moonroof ........................................................................................................... page 3-33
Doors and keys .................................................................................................. page 3-11
Fuel-filler lid ...................................................................................................... page 3-24
Wheels and Tires ............................................................................................... page 6-35
Exterior lights .................................................................................................... page 6-40
Rear window wiper blade .................................................................................. page 6-29
Liftgate .............................................................................................................. page 3-18
Antenna ............................................................................................................. page 5-13
Child safety locks .............................................................................................. page 3-18
Outside mirror .................................................................................................... page 3-27
Pictorial Index
Exterior Overview
1-5The equipment and installation position varies by vehicle CX-5_8CT5-EA-12K_Edition1 Page11
Friday, October 19 2012 3:10 PM
Form No.8CT5-EA-12K

Black plate (14,1)
Seat Precaution
WARNING
Make sure the adjustable components of a seat are locked in place:
Adjustable seats and seatbacks that are not securely locked are dangerous. In a
sudden stop or collision, the seat or seatback could move, causing injury. Make sure
the adjustable components of the seat are locked in place by attempting to slide the
seat forward and backward and rocking the seatback.
Do not drive with the seatback unlocked:
All of the seatbacks play an important role in your protection in a vehicle. Leaving
the seatback unlocked is dangerous as it can allow passengers to be ejected or
thrown around and baggage to strike occupants in a sudden stop or collision,
resulting in severe injury. After adjusting the seatback at any time, even when there
are no other passengers, rock the seatback to make sure it is locked in place.
Adjust the driver's seat only when the vehicle is stopped:
Adjusting the driver's seat while the vehicle is moving is dangerous. The driver could
lose control of the vehicle and have an accident.
Do not modify or replace the front seats:
Modifying or replacing the front seats such as replacing the upholstery or loosening
any bolts is dangerous. The front seats contain air bag components essential to the
supplemental restraint system. Such modifications could damage the supplemental
restraint system and result in serious injury. Consult an Authorized Mazda Dealer if
there is any need to remove or reinstall the front seats.
Do not drive with damaged front seats:
Driving with damaged front seats is dangerous. A collision, even one not strong
enough to inflate the air bags, could damage the front seats which contain essential
air bag components. If there was a subsequent collision, an air bag may not deploy
which could lead to injuries. Always have an Authorized Mazda Dealer inspect the
front seats, front seat belt pretensioners and air bags after a collision.
Do not drive with either front seats reclined:
Sitting in a reclined position while the vehicle is moving is dangerous because you do
not get the full protection from seat belts. During sudden braking or a collision, you
can slide under the lap belt and suffer serious internal injuries. For maximum
protection, sit well back and upright.
Do not place an object such as a cushion between the seatback and your back:
Putting an object such as a cushion between the seatback and your back is
dangerous because you will be unable to maintain a safe driving posture and the
seat belt cannot function at its full capacity in a collision, which could result in a
serious accident, injury or death.
2-2
Essential Safety Equipment
Seats
CX-5_8CT5-EA-12K_Edition1 Page14
Friday, October 19 2012 3:10 PM
Form No.8CT5-EA-12K

Black plate (16,1)
Front Seat
qSeat Operation
Power operation
Seat Slide
(Manual Seat)
To move a seat forward or backward, raise the lever and slide the seat to the desired
position and release the lever.
Make sure the lever returns to its original position and the seat is locked in place by
attempting to push it forward and backward.
(Power Seat)
To slide the seat, move the slide lifter switch on the outside of the seat to the front or back
and hold it. Release the switch at the desired position.
Height Adjustment (Driver's Seat)
(Manual Seat)
To adjust the seat height, move the lever up or down.
(Power Seat)
To adjust the seat height, move the switch up or down.
Front Height Adjustment of Seat Bottom (Driver's Power Seat)í
To adjust the front height of the seat bottom, raise or lower the front of the slide lifter
switch.
2-4
Essential Safety Equipment
íSome models.
Seats
CX-5_8CT5-EA-12K_Edition1 Page16
Friday, October 19 2012 3:10 PM
Form No.8CT5-EA-12K

Black plate (17,1)
Seat Recline
(Manual Seat)
To change the seatback angle, lean forward slightly while raising the lever. Then lean back
to the desired position and release the lever.
Make sure the lever returns to its original position and the seatback is locked in place by
attempting to push it forward and backward.
(Power Seat)
To change the seatback angle, press the front or rear side of the reclining switch. Release
the switch at the desired position.
Lumbar Support Adjustment (Driver's Seat)í
(Manual Operation)
To increase the seat firmness, push the lever backward. Pull the lever forward to decrease
firmness.
(Power Operation)
To increase the seat firmness, press and hold the front part of the switch to the desired
position, then release it.
Press the rear part of the switch to decrease firmness.
Essential Safety Equipment
Seats
2-5íSome models. CX-5_8CT5-EA-12K_Edition1 Page17
Friday, October 19 2012 3:10 PM
Form No.8CT5-EA-12K

Black plate (22,1)
Using push knob
Push the rear seatback knob down.
Folding only center seatí
Using remote handle
1. If the center head restraint is in the
position for use, store it.
2. After checking that the center seat is
clear, open the liftgate and pull the
inside remote handle levers on the left
side of the liftgate compartment.
Using strap
1. If the center head restraint is in the
position for use, store it.2. Pull the strap on the back of the
seatback to fold the seatback forward.
To return the seatbacks to the upright
position
1. Lift the seatbacks upright.
2. Pull on the top of the seatbacks from
inside the vehicle to make sure they are
locked.
2-10
Essential Safety Equipment
íSome models.
Seats
CX-5_8CT5-EA-12K_Edition1 Page22
Friday, October 19 2012 3:10 PM
Form No.8CT5-EA-12K

Black plate (23,1)

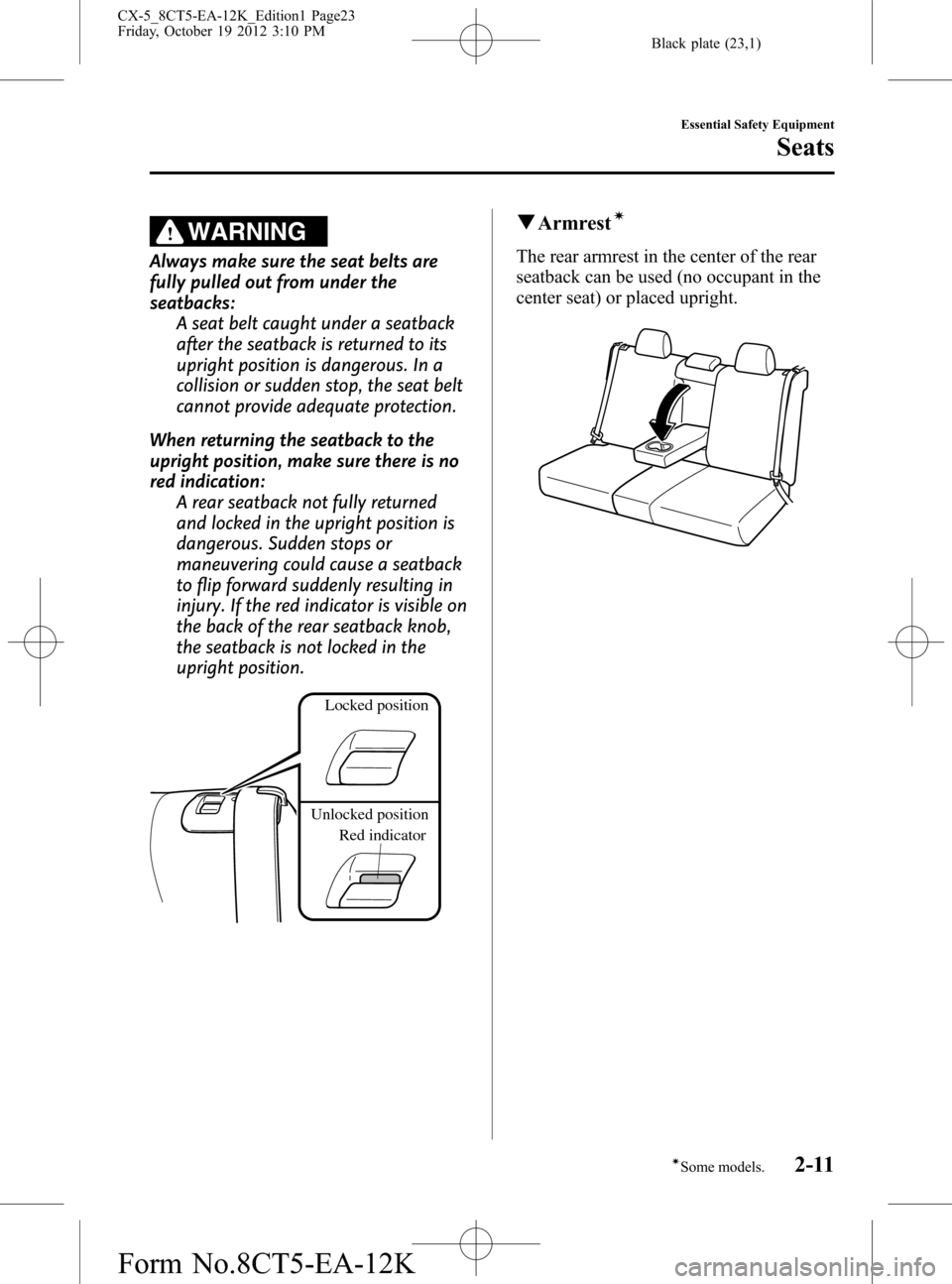

WARNING
Always make sure the seat belts are
fully pulled out from under the
seatbacks:
A seat belt caught under a seatback
after the seatback is returned to its
upright position is dangerous. In a
collision or sudden stop, the seat belt
cannot provide adequate protection.
When returning the seatback to the
upright position, make sure there is no
red indication:
A rear seatback not fully returned
and locked in the upright position is
dangerous. Sudden stops or
maneuvering could cause a seatback
to flip forward suddenly resulting in
injury. If the red indicator is visible on
the back of the rear seatback knob,
the seatback is not locked in the
upright position.
Locked position
Unlocked position
Red indicator
qArmrestí
The rear armrest in the center of the rear
seatback can be used (no occupant in the
center seat) or placed upright.
Essential Safety Equipment
Seats
2-11íSome models. CX-5_8CT5-EA-12K_Edition1 Page23
Friday, October 19 2012 3:10 PM
Form No.8CT5-EA-12K

Black plate (26,1)
Seat Belt Precautions
Seat belts help to decrease the possibility of severe injury during accidents and sudden
stops. Mazda recommends that the driver and all passengers always wear seat belts.
All of the seat belt retractors are designed to keep the lap/shoulder belts out of the way
when not in use.
The driver's seat belt has no provisions for child-restraint systems and has only an
emergency locking mode. The driver may wear it comfortably, and it will lock during a
collision.
However, in some models (with automatic locking mode) the front passenger's seat and all
rear lap/shoulder belt retractors operate in two modes: emergency locking mode, and for
child-restraint systems, automatic locking mode. While we recommend you put all children
in the rear seats, if you must use the front passenger seat for a child, slide the front
passenger seat as far back as possible and make sure any child-restraint system is secured
properly.
WARNING
Always wear your seat belt and make sure all occupants are properly restrained:
Not wearing a seat belt is extremely dangerous. During a collision, occupants not
wearing seat belts could hit someone or things inside the vehicle or even be thrown
out of the vehicle. They could be seriously injured or even killed. In the same
collision, occupants wearing seat belts would be much safer.
Do not wear twisted seat belts:
Twisted seat belts are dangerous. In a collision, the full width of the belt is not
available to absorb the impact. This puts more force on the bones beneath the belt,
which could cause serious injury or death. So, if your seat belt is twisted, you must
straighten the seat belt to remove any twists and to allow the full width of the belt to
be used.
Never use one seat belt on more than one person at a time:
Using one seat belt for more than one person at a time is dangerous. A seat belt
used in this way cannot spread the impact forces properly and the two passengers
could be crushed together and seriously injured or even killed. Never use one belt for
more than one person at a time and always operate the vehicle with each occupant
properly restrained.
Do not operate a vehicle with a damaged seat belt:
Using a damaged seat belt is dangerous. An accident could damage the belt
webbing of the seat belt in use. A damaged seat belt cannot provide adequate
protection in a collision. Have an Authorized Mazda Dealer inspect all seat belt
systems in use during an accident before they are used again.
2-14
Essential Safety Equipment
Seat Belt Systems
CX-5_8CT5-EA-12K_Edition1 Page26
Friday, October 19 2012 3:10 PM
Form No.8CT5-EA-12K

Black plate (28,1)
qPregnant Women and Persons with Serious Medical Conditions
Pregnant women should always wear seat belts. Ask your doctor for specific
recommendations.
The lap belt should be worn SNUGLY AND AS LOW AS POSSIBLE OVER THE HIPS.
The shoulder belt should be worn across your shoulder properly, but never across the
stomach area.
Persons with serious medical conditions also should wear seat belts. Check with your
doctor for any special instructions regarding specific medical conditions.
qEmergency Locking Mode
When the seat belt is fastened, it will always be in the emergency locking mode.
In the emergency locking mode, the belt remains comfortable on the occupant and the
retractor will lock in position during a collision.
If the belt is locked and cannot be pulled out, retract the belt once, and then try pulling it
out slowly. If this fails, pull the belt strongly one time and loosen, then pull it out again
slowly.
(Seat Belt with Automatic Locking Mode)
When the seat belt is fastened, it will always be in the emergency locking mode until it is
switched to automatic locking mode by pulling it all the way out to its full length. If the
belt feels tight and hinders comfortable movement while the vehicle is stopped or in
motion, it may be in the automatic locking mode because the belt has been pulled too far
out. To return the belt to the more comfortable emergency locking mode, wait until the
vehicle has stopped in a safe, level area, retract the belt fully to convert it back to
emergency locking mode and then extend it around you again.
qAutomatic Locking Mode
Always use the automatic locking mode to keep the child-restraint system from shifting to
an unsafe position in the event of an accident. To enable seat belt automatic locking mode,
pull it all the way out and connect it as instructed on the child-restraint system. It will
retract down to the child-restraint system and stay locked on it. See the section on child
restraint (page 2-23).
2-16
Essential Safety Equipment
Seat Belt Systems
CX-5_8CT5-EA-12K_Edition1 Page28
Friday, October 19 2012 3:10 PM
Form No.8CT5-EA-12K
