If the system detects that the remaining
battery power of the key is low when the
ignition is switched from ON to ACC or
OFF, the following is indicated.
Replace with a new battery before the
key becomes unusable.
Refer to Key Battery Replacement on
page 6-41.
(Vehicle equipped with Type A/B
instrument cluster)
A message is indicated in the display of
the instrument cluster.
(Vehicle equipped with Type C
instrument cluster)
The KEY indicator light (green) flashes
for approximately 30 seconds.
Refer to Taking Action on page 7-33.
If the engine is turned off while the
selector lever is in a position other than
P, the ignition switches to ACC.
▼Emergency Engine Stop
Continuously pressing the push button
start or quickly pressing it any number of
times while the engine is running or the
vehicle is being driven will turn the engine
off immediately. The ignition switches to
ACC.
When Driving
Start/Stop Engine
4-11
CX-5_8JM9-EA-20G_Edition6_old
2021-12-9 11:43:53

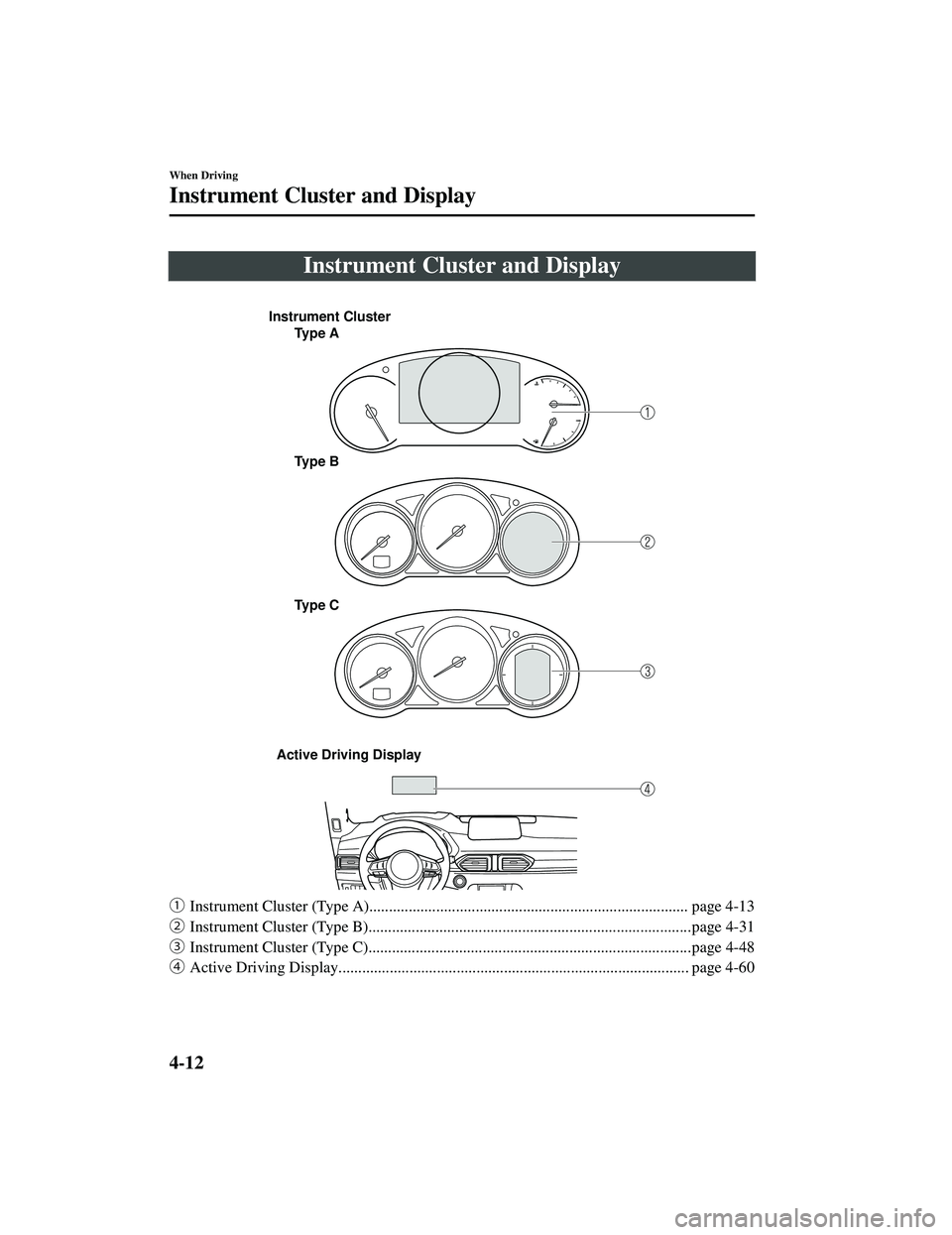

Instrument Cluster and Display

Instrument ClusterType A
Type B
Type C
Active Driving Display
ƒ Instrument Cluster (Type A)................................................................................. page 4-13
„ Instrument Cluster (Type B)..................................................................................page 4-31
… Instrument Cluster (Type C)..................................................................................page 4-48
† Active Driving Display......................................................................................... page 4-60
When Driving
Instrument Cluster and Display
4-12
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

Instrument Cluster (Type A)

ƒSpeedometer.......................................................................................................... page 4-13
„ Tachometer............................................................................................................ page 4-13
… Multi-information Display (Type A)..................................................................... page 4-14
† Engine Coolant Temperature Gauge..................... ................................................ page 4-17
‡ Fuel Gauge............................................................................................................ page 4-18
ˆ Dashboard Illumination.........................................................................................page 4-18
‰ Speed Unit Selector..................................... .......................................................... page 4-19
▼Speedometer
The speedometer indicates the speed of the
vehicle.
▼Tachometer
The tachometer shows engine speed in
thousands of revolutions per minute (rpm).
CAUTION
Do not run the engine with the tachometer
needle in the RED ZONE.
This may cause severe engine damage.

STRIPED ZONERED ZONE
*
1The range varies depending on the type
of gauge. *
1*1
NOTE
When the tachometer needle enters the
STRIPED ZONE, this indicates to the
driver that the gears should be shifted
before entering the RED ZONE.
When Driving
Instrument Cluster and Display
4-13
CX-5_8JM9-EA-20G_Edition6_old
2021-12-9 11:43:53

▼Multi-information Display (Type A)
INFO switchMulti-information Display (Type A)
Dashboard illumination knob
The multi-information
display indicates the following information.
Speedometer
Odometer
Trip meter
Outside temperature
Distance-to-empty
Average fuel economy
Current fuel economy
Maintenance Monitor (Except SKYACTIV-D 2.2)
Remaining Diesel Exhaust Fluid (DEF) and Maximum Driving Distance Display
(SKYACTIV-D 2.2)
Blind Spot Monitoring (BSM) Display
Traffic Sign Recognition System (TSR) Display
Distance Recognition Suppor t System (DRSS) Display
Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function)
System Display
Lane-keep Assist System (LAS) & Lane De parture Warning System (LDWS) Display
Cruise Control Display
Compass Display
Door-Ajar/Liftgate-Ajar Warning Indication
Message Display
When Driving
Instrument Cluster and Display
4-14
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

The screen content changes each time the INFO switch is pressed.
Press the INFO switchPress the INFO switch
Press the INFO switch
*2
*1
*3
*4
*2: Displayed only when a warning occurs.
*1: Displayed when opening/closing door/trunk lid.
*3: Except SKYACTIV-D 2.2
*4: SKYACTIV-D 2.2
Press the INFO switch
Press the INFO switch
Basic display
Warning message
display
Trip Meter A display
Trip Meter B display Press the INFO switch
Press the INFO switch
i-ACTIVSENSE display Maintenance Monitor

display
Compass display
Remaining Diesel Exhaust
Fluid (DEF) display
When Driving
Instrument Cluster and Display
4-15
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

The screen content changes each time the dashboard illumination knob is pressed and held.
Gauge indication
Display off
Numerical indication
Press and hold
dashboard illumination
knob
Press and hold dashboard
illumination knob
Press and hold dashboard
illumination knob
▼
Odometer, Trip Meter and Trip
Meter Selector
The odometer is constantly displayed on
the screen when the
ignition is switched
ON, and the TRIP A or TRIP B screen can
When Driving
Instrument Cluster and Display
4-16
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

be displayed by operating the INFO
switch.

INFO switch
Press the INFO switch
Trip Meter A
display
Trip Meter B
display
Odometer
The odometer records the total distance
the vehicle has been driven.
Trip meter
The driving distance for a specified
interval is indicated. Two types (TRIP A,
TRIP B) of interval distance and the
average fuel economy for each can be
measured.

For instance, trip meter A can record the
distance from the point of origin, and trip
meter B can record the distance from
where the fuel tank is filled.

When trip meter A is
selected, TRIP A
will be displayed. When trip meter B is
selected, TRIP B will be displayed.

The trip meter and average fuel economy
can be reset by pressing the INFO switch
for 1.5 seconds or more while in each
mode.
NOTE
Only the trip meters record tenths of
kilometers (miles).
The trip record will be erased when:
The power supply is interrupted
(blown fuse or the battery is
disconnected).
The vehicle is driven over 9999.9 km
(mile).
▼ Engine Coolant Temperature Gauge
Displays the engine coolant temperature.
The blue range of the gauge indicates that
the engine coolant temperature is low, and
the red range of the gauge indicates that
the engine coolant temperature is high and
overheating.

When Driving
Instrument Cluster and Display
4-17
CX-5_8JM9-EA-20G_Edition6_old
2021-12-9 11:43:53

The brightness of the instrument cluster
and dashboard illuminations can be
adjusted by rotating the knob.
The brightness decreases by rotating the
knob to the left. A beep sound will be
heard when the knob has been rotated to
the maximum dim position.
The brightness increases by rotating the
knob to the right.
DimBright
Function for canceling illumination
dimmer
The illumination dimmer can be canceled
by rotating the dashboard illumination
knob to the right until a beep sound is
heard while the instrument cluster is
dimmed with the ign ition switched ON. If
the instrument cluster's visibility is
reduced due to glare from surrounding
brightness, cancel the illumination
dimmer.
NOTE
When the illumina tion dimmer is
canceled, the instrument cluster cannot
be dimmed even if the lights are turned
on.
When the illumina tion dimmer is
canceled, the screen in the center
display switches to constant display of
the daytime screen.
▼ Speed Unit Selector
In some countries, you may have to
change the speed units between km/h and
mph.
When pressing the dashboard illumination
knob, the speed units in the instrument
cluster will change.

Dashboard illumination knob
▼Outside Temperature Display
When the ignition is
switched ON, the
outside temperature is displayed.

NOTE
Under the following conditions, the
outside temperature display may differ
from the actual outside temperature
depending on the surroundings and
vehicle conditions:
Significantly cold or hot temperatures.
Sudden changes in outside
temperature.
The vehicle is parked.
The vehicle is driven at low speeds.
Changing the Temperature Unit of the
Outside Temperature Display
The outside temperature unit can be
switched between Celsius and Fahrenheit.
When Driving
Instrument Cluster and Display
4-19
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

Settings can be changed by operating the
center display screen.
Refer to the Settings section in the Mazda
Connect Owner's Manual.
NOTE
When the temperature unit indicated in the
outside temperature display is changed,
the temperature unit indicated in the
engine coolant gauge display changes in
conjunction with it.
▼Distance-to-empty
This displays the approximate distance
you can travel on the remaining fuel based
on the fuel economy.
The distance-to-empty will be calculated
and displayed every second.

NOTE
Even though the distance-to-empty
display may indicate a sufficient amount
of remaining driving distance before
refueling is required
, refuel as soon as
possible if the fuel level is very low or
the low fuel warning light illuminates.
The display will not change unless you
add more than approximately 9 L (2.3
US gal, 1.9 Imp gal) of fuel.
The distance-to-empty is the
approximate remaining distance the
vehicle can be driven until all the
graduation marks in the fuel gauge
indicating the remaining fuel supply
disappear.
If there is no past fuel economy
information such as after first
purchasing your vehicle or the
information is deleted when the battery
cables are disconnected, the actual
distance-to empty/range may differ from
the amount indicated.
▼ Average Fuel Economy
The average fuel economy is calculated
every minute from the total traveled
distance on the trip meter and the total fuel
consumption, and the average fuel
economy for either TRIP A or TRIP B is
displayed.

The average fuel economy and trip meters
can be reset by pressing the INFO switch
for 1.5 seconds or
more while in each
mode. After the data is cleared, the fuel
consumption is recalculated and the - - -
km/L (- - - mpg) for the 1 minute prior to
it being displayed is indicated.
When Driving
Instrument Cluster and Display
4-20
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

▼Current Fuel Economy
This displays the cu
rrent fuel economy by
calculating the amount of fuel
consumption and the distance traveled.

NOTE
Indicates the 0 position when the vehicle
speed is about 5 km/h (3 mph) or slower.
The red arrow on the scale indicates the
average fuel economy.
▼ Maintenance Monitor (Except
SKYACTIV-D 2.2)
The following maintenance period
notifications can be displayed by turning
the Maintenance Monitor on.
Scheduled Maintenance
Tire Rotation
Oil Change
When the remaining days to the
maintenance period is 15 days or less, or
the remaining distance is 1,000 km (600
miles) or shorter, a message is indicated
when the ignition is switched ON.
For the setting method and indications for
the maintenance monitor, refer to the
Maintenance Monitor.
Refer to the Applications (Mazda Connect
(Type A))/Information (Mazda Connect
(Type B)) section in the Mazda Connect
Owner's Manual.
▼ Remaining Diesel Exhaust Fluid
(DEF) and Maximum Driving
Distance Display (SKYACTIV-D
2.2)
The remaining amount of DEF and the
remaining-distance-to-empty indications
are displayed when the ignition is
switched ON.

If the remaining amount of DEF is low or
there is a problem with the Selective
Catalytic Reduction (SCR) system and
there is less maximum remaining driving
distance, the remaining-distance-to-empty
indication is continuously displayed.

If the remaining amount of DEF is low or
there is a problem with the SCR system,
the SCR warning light turns on/flashes and
a warning message is displayed.
Refer to Selective Catalytic Reduction
(SCR) System Indications on page 4-261.
When Driving
Instrument Cluster and Display
4-21
CX-5_8JM9-EA-20G_Edition6_old
2021-12-9 11:43:53
