lock MAZDA MODEL CX-7 2008 Owners Manual (in English)

Black plate (8,1)
Interior Equipment (View A)
Power window lock switch ................................................................................ page 3-35
Power window switches .................................................................................... page 3-31
Door-lock knob .................................................................................................. page 3-25
Power door lock switch ..................................................................................... page 3-26
Outside mirror switch ........................................................................................ page 3-54
Headlight leveling switch .................................................................................. page 5-55
TCS-OFF switch ................................................................................................ page 5-22
Lighting control/Turn signals ............................................................................ page 5-53
Dashboard illumination knob ............................................................................ page 5-36
Instrument cluster .............................................................................................. page 5-33
Wiper and washer lever ..................................................................................... page 5-57
Ignition switch ..................................................................................................... page 5-2
Tilt wheel release lever ...................................................................................... page 3-54
Parking brake ....................................................................................................... page 5-5
Hood release handle .......................................................................................... page 3-39
1-2
Your Vehicle at a Glance
The equipment and installation position varies by vehicle
Interior Overview
CX-7_8X59-EA-07E_Edition3 Page8
Wednesday, July 25 2007 3:16 PM
Form No.8X59-EA-07E

Black plate (12,1)
Rear
Rear wiper blade ................................................................................................ page 8-30
Liftgate .............................................................................................................. page 3-28
Light bulbs ......................................................................................................... page 8-39
Antenna ............................................................................................................. page 6-15
Child safety locks .............................................................................................. page 3-27
Outside mirror .................................................................................................... page 3-54
Tires ................................................................................................................... page 8-34
1-6
Your Vehicle at a Glance
The equipment and installation position varies by vehicle
Exterior Overview
CX-7_8X59-EA-07E_Edition3 Page12
Wednesday, July 25 2007 3:16 PM
Form No.8X59-EA-07E

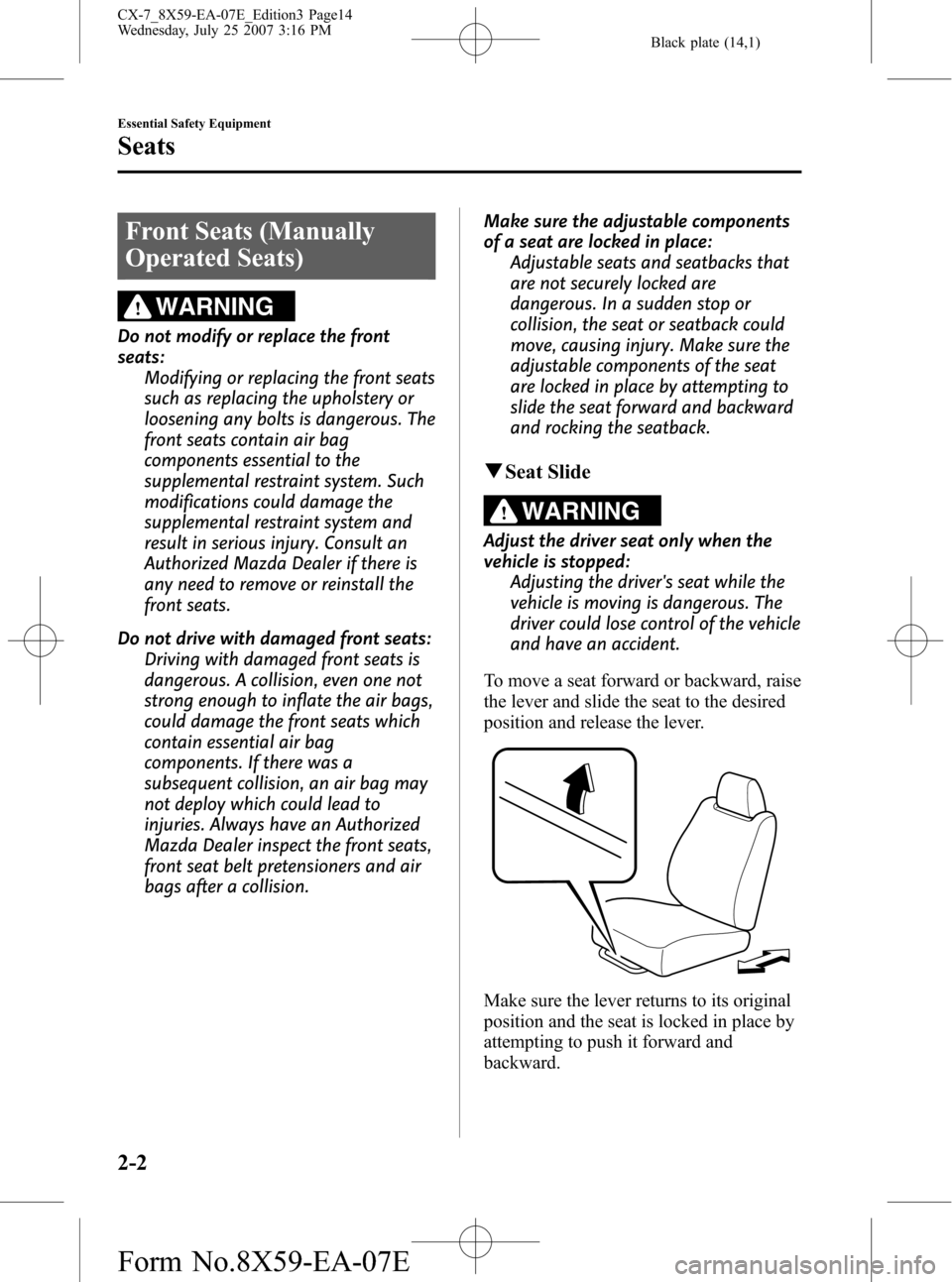

Black plate (14,1)
Front Seats (Manually
Operated Seats)
WARNING
Do not modify or replace the front
seats:Modifying or replacing the front seats
such as replacing the upholstery or
loosening any bolts is dangerous. The
front seats contain air bag
components essential to the
supplemental restraint system. Such
modifications could damage the
supplemental restraint system and
result in serious injury. Consult an
Authorized Mazda Dealer if there is
any need to remove or reinstall the
front seats.
Do not drive with damaged front seats: Driving with damaged front seats is
dangerous. A collision, even one not
strong enough to inflate the air bags,
could damage the front seats which
contain essential air bag
components. If there was a
subsequent collision, an air bag may
not deploy which could lead to
injuries. Always have an Authorized
Mazda Dealer inspect the front seats,
front seat belt pretensioners and air
bags after a collision. Make sure the adjustable components
of a seat are locked in place:
Adjustable seats and seatbacks that
are not securely locked are
dangerous. In a sudden stop or
collision, the seat or seatback could
move, causing injury. Make sure the
adjustable components of the seat
are locked in place by attempting to
slide the seat forward and backward
and rocking the seatback.
qSeat Slide
WARNING
Adjust the driver seat only when the
vehicle is stopped:
Adjusting the driver's seat while the
vehicle is moving is dangerous. The
driver could lose control of the vehicle
and have an accident.
To move a seat forward or backward, raise
the lever and slide the seat to the desired
position and release the lever.
Make sure the lever returns to its original
position and the seat is locked in place by
attempting to push it forward and
backward.
2-2
Essential Safety Equipment
Seats
CX-7_8X59-EA-07E_Edition3 Page14
Wednesday, July 25 2007 3:16 PM
Form No.8X59-EA-07E

Black plate (15,1)
qSeat Recline
WARNING
Do not drive with the seats reclined:
Sitting in a reclined position while the
vehicle is moving is dangerous
because you don't get the full
protection from seat belts. During
sudden braking or a collision, you
can slide under the lap belt and
suffer serious internal injuries. For
maximum protection, sit well back
and upright.
Always sit in a passenger seat properly
with the seatback upright and feet on
the floor: If your vehicle is equipped with front
passenger seat weight sensors,
sitting in the front passenger seat
improperly out of position or with the
seatback reclined too far while the
vehicle is moving is dangerous as it
can take off weight from the seat
bottom and affect the weight
determination of the front passenger
sensing system. As a result the front
passenger will not have the
supplementary protection of the air
bag and seat belt pretensioner, which
could cause result in serious injury.
Always sit upright against your
seatback, with your feet on the floor. Do not drive with the seatback
unlocked:
The seatback plays an important role
in your protection in a vehicle.
Leaving the seatback unlocked is
dangerous as it can allow passengers
to be ejected or thrown around and
baggage to strike occupants in a
sudden stop or collision, resulting in
severe injury. After adjusting the
seatback at any time, even when
there are no other passengers, rock
the seatback to make sure it is locked
in place.
To change the seatback angle, lean
forward slightly while raising the lever.
Then lean back to the desired position and
release the lever.
Make sure the lever returns to its original
position and the seatback is locked in
place by attempting to push it forward and
backward.
Essential Safety Equipment
Seats
2-3
CX-7_8X59-EA-07E_Edition3 Page15
Wednesday, July 25 2007 3:16 PM
Form No.8X59-EA-07E

Black plate (21,1)
Rear Seat
WARNING
Do not stack cargo higher than the
seatbacks:Stacking luggage or other cargo
higher than the seatbacks, and
placing articles on the rear seat is
dangerous. During sudden braking
or a collision, objects can fly around
and become projectiles that may hit
and injure passengers.
Make sure luggage and cargo is
secured before driving: Not securing cargo while driving is
dangerous as it could move or be
crushed during sudden braking or a
collision and cause injury.
Make sure the adjustable components
of a seat are locked in place: Adjustable seats that are not securely
locked are dangerous. In a sudden
stop or collision, the seat or seatback
could move, causing injury.
Do not drive with the seatback
unlocked: The seatback plays an important role
in your protection in a vehicle.
Leaving the seatback unlocked is
dangerous as it can allow passengers
to be ejected or thrown around and
baggage to strike occupants in a
sudden stop or collision, resulting in
severe injury. After returning the
seatback at any time, even when
there are no other passengers, rock
the seatback to make sure it is locked
in place. Never allow a passenger to sit or stand
on the folded seatback while the
vehicle is moving:
Driving with a passenger on the
folded seatback is dangerous.
Allowing a child to sit up on the
folded seatback while the vehicle is
moving is particularly dangerous. In
a sudden stop or even a minor
collision, a child not in a proper seat
or child-restraint system and seat
belt could be thrown forward, back
or even out of the vehicle resulting in
serious injuries or death. The child in
the baggage area could be thrown
into other occupants and cause
serious injury.
NOTE
When returning a rear seat to its original
position, also replace the seat belt to its
normal position. Verify that the seat belt pulls
out and retracts.
Essential Safety Equipment
Seats
2-9
CX-7_8X59-EA-07E_Edition3 Page21
Wednesday, July 25 2007 3:17 PM
Form No.8X59-EA-07E

Black plate (23,1)
When using the rear seatback knobs:
CAUTION
When operating the rear seatback
knob, make sure you support the
seatback with your hand. If the
seatback is not supported with your
hand, it will flip forward suddenly
and could cause injury to the finger
that pushes the rear seatback knob
down.
1. Unfasten the lap portion of the center- rear seat belt (page 2-22).
CAUTION
Always unfasten the lap portion of
the belt before folding the rear-left
seatback. Leaving the lap portion of
the belt fastened could cause
damage to the seat belt, buckle and
seatback.
2. Support the seatback with your hand.
3. Push the rear seatback knob down.
To return the seatbacks to the upright
position
1. Lift the seatbacks upright. 2. Pull on the top of the seatbacks from
inside the vehicle to make sure they are
locked.
3. Fasten the center-rear lap/shoulder belt and check that all seat belts are routed
properly for passenger use (page 2-22).
WARNING
Always make sure the seat belts are
fully pulled out from under the
seatbacks: A seat belt caught under a seatback
after the seatback is returned to its
upright position is dangerous. In a
collision or sudden stop, the seat belt
cannot provide adequate protection.
When returning the seatback to the
upright position, make sure there is no
red indication: A rear seatback not fully returned
and locked in the upright position is
dangerous. Sudden stops or
maneuvering could cause a seatback
to flip forward suddenly resulting in
injury. If the red indicator is visible on
the back of the rear seatback knob,
the seatback is not locked in the
upright position.
Locked position
Unlocked position Red indicator
Essential Safety Equipment
Seats
2-11
CX-7_8X59-EA-07E_Edition3 Page23
Wednesday, July 25 2007 3:17 PM
Form No.8X59-EA-07E

Black plate (24,1)
qHead Restraint
WARNING
Always drive with the head restraints
installed when seats are being used
and make sure they are properly
adjusted:
Driving with the head restraints
adjusted too low or removed is
dangerous. With no support behind
your head, your neck could be
seriously injured in a collision.
Height adjustment
To use a head restraint, pull it up to the
locked position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.
Adjust the head restraint so that the top is
even with the top of the passenger's ears,
never the passenger's neck to prevent
injury.
qArmrest
The rear armrest in the center of the rear
seatback can be used (no occupant in the
center seat) or placed upright.
2-12
Essential Safety Equipment
Seats
CX-7_8X59-EA-07E_Edition3 Page24
Wednesday, July 25 2007 3:17 PM
Form No.8X59-EA-07E

Black plate (25,1)
Seat Belt Precautions
Seat belts help to decrease the possibility of severe injury during accidents and sudden
stops. Mazda recommends that the driver and all passengers always wear seat belts.
All of the seat belt retractors are designed to keep the lap/shoulder belts out of the way
when not in use.
The driver's seat belt has no provisions for child-restraint systems and has only an
emergency locking mode. The driver may wear it comfortably, and it will lock during a
collision.
However, the front passenger's seat and all rear lap/shoulder belt retractors operate in two
modes: emergency locking mode, and for child-restraint systems, automatic locking mode.
While we recommend you put all children in the rear seats, if you must use the front
passenger seat for a child, slide the front passenger seat as far back as possible and make
sure any child-restraint system is secured properly.
Essential Safety Equipment
Seat Belt Systems
2-13
CX-7_8X59-EA-07E_Edition3 Page25
Wednesday, July 25 2007 3:17 PM
Form No.8X59-EA-07E

Black plate (27,1)
CAUTION
Belt retraction may become difficult if the belts and rings are soiled, so try to keep
them clean. For more details about cleaning the seat belts, refer to“Cleaning the
Lap/Shoulder Belt Webbing ”(page 8-56).
q Pregnant Women and Persons with Serious Medical Conditions
Pregnant women should always wear seat belts. Ask your doctor for specific
recommendations.
The lap belt should be worn SNUGLY AND AS LOW AS POSSIBLE OVER THE HIPS.
The shoulder belt should be worn across your shoulder properly, but never across the
stomach area.
Persons with serious medical conditions also should wear seat belts. Check with your
doctor for any special instructions regarding specific medical conditions.
qEmergency Locking Mode
In the emergency locking mode, the belt remains comfortable on the occupant and the
retractor will lock in position during a collision. When the seat belt is fastened, it will
always be in the emergency locking mode until it is switched to automatic locking mode by
pulling it all the way out to its full length. If the belt feels tight and hinders comfortable
movement while the vehicle is stopped or in motion, it may be in the automatic locking
mode because the belt has been pulled too far out. To return to the belt to the more
comfortable emergency locking mode, wait until the vehicle has stopped in a safe, level
area, retract the belt fully to convert it back to emergency locking mode and then extend it
around you again.
Essential Safety Equipment
Seat Belt Systems
2-15
CX-7_8X59-EA-07E_Edition3 Page27
Wednesday, July 25 2007 3:17 PM
Form No.8X59-EA-07E

Black plate (28,1)
qAutomatic Locking Mode
Always use the automatic locking mode to keep the child-restraint system from shifting to
an unsafe position in the event of an accident. To enable seat belt automatic locking mode,
pull it all the way out and connect it as instructed on the child-restraint system. It will
retract down to the child-restraint system and stay locked on it. See the section on child
restraint (page 2-28).
2-16
Essential Safety Equipment
Seat Belt Systems
CX-7_8X59-EA-07E_Edition3 Page28
Wednesday, July 25 2007 3:17 PM
Form No.8X59-EA-07E
