2–59
Essential Safety Equipment
SRS Air Bags
Side Air Bags
The side air bags are mounted in the outboard sides of the front seatbacks.
When the air bag crash sensors detect a side impact of greater than moderate force, the
system inÀ ates the side air bag only on the side in which the vehicle was hit. The side
air bag inÀ ates quickly to reduce injury to the driver or front passenger's chest caused by
directly hitting interior parts such as a door or window.
For more details about air bag deployment, refer to "SRS Air Bag Deployment Criteria"
(page 2-62 ).
(With Front Passenger Occupant Classi¿ cation System)
In addition, the front passenger side bag is designed to only deploy when the front passenger
occupant classi¿ cation sensor detects a passenger sitting on the front passenger's seat. For
details, refer to the front passenger occupant classi¿ cation system (page 2-65 ).



$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










2–60
Essential Safety Equipment
SRS Air Bags
Curtain Air Bags
The curtain air bags are mounted in the front and rear window pillars, and the roof edge
along both sides.
When the air bag crash sensors detect a side impact of greater than moderate force, the
curtain air bag inÀ ates quickly and helps to reduce injury mainly to the rear outboard
passenger's head caused by directly hitting interior parts such as a door or window.
For more details about air bag deployment, refer to "SRS Air Bag Deployment Criteria"
(page 2-62 ).
In a side impact:
Greater than moderate impact to one side of the vehicle will cause the curtain air bag on that
side only to inÀ ate.


Only one side curtain air bag will deploy on the
side of the vehicle that receives the force of an
impact.

(With Front Passenger Occupant Classi¿ cation System)
In a roll-over:
In response to a vehicle roll-over, both curtain air bags inÀ ate.


Both curtain air bags will deploy after
the roll-over accident is detected.

$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










2–61
Essential Safety Equipment
SRS Air Bags
Warning Light/Beep
A system malfunction or operation conditions are indicated by a warning.
Refer to Warning/Indicator Lights on page 4-32 .
Refer to Warning Sound is Activated on page 7-45 .
$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










2–62
Essential Safety Equipment
SRS Air Bags
SRS Air Bag Deployment Criteria
This chart indicates the applicable SRS equipment that will deploy depending on the type of
collision.
(The illustrations are the representative cases of collisions.)

SRS
equipment Types of collision
A severe frontal/near frontal
collision A severe side
collision
*2 A roll-over/near
roll-over *3 A rear collision












Front
seat belt
pretensioner X
*1 (both sides) X *1 (impact side
only) X *1 (both sides)
No air bag and
front seat belt
pretensioner will be
activated in a rear
collision. Driver air
bag X
Front
passenger
air bag X
*1
Side air bag X
*1 (impact side
only)
Curtain air
bag X (impact side
only) X (both sides)
X: The SRS air bag equipment is designed to deploy in a collision.
*1 (With Front Passenger Occupant Classi¿ cation System)
The front passenger front and side air bags and the seat belt pretensioner are designed to deploy when the front
passenger occupant classi¿ cation sensor detects a passenger sitting on the front passenger's seat.
*2 In a side collision, the seat belt pretensioners and the side/curtain air bags deploy (only on the side in which the
collision occurs).
*3 (With Front Passenger Occupant Classi¿ cation System)
In a roll-over accident, the seat belt pretensioners and the curtain air bags deploy.

N O T E
In a frontal offset collision, the equipped air bags and pretensioners may all deploy
depending on the direction, angle, and rate of impact.

$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










2–63
Essential Safety Equipment
SRS Air Bags

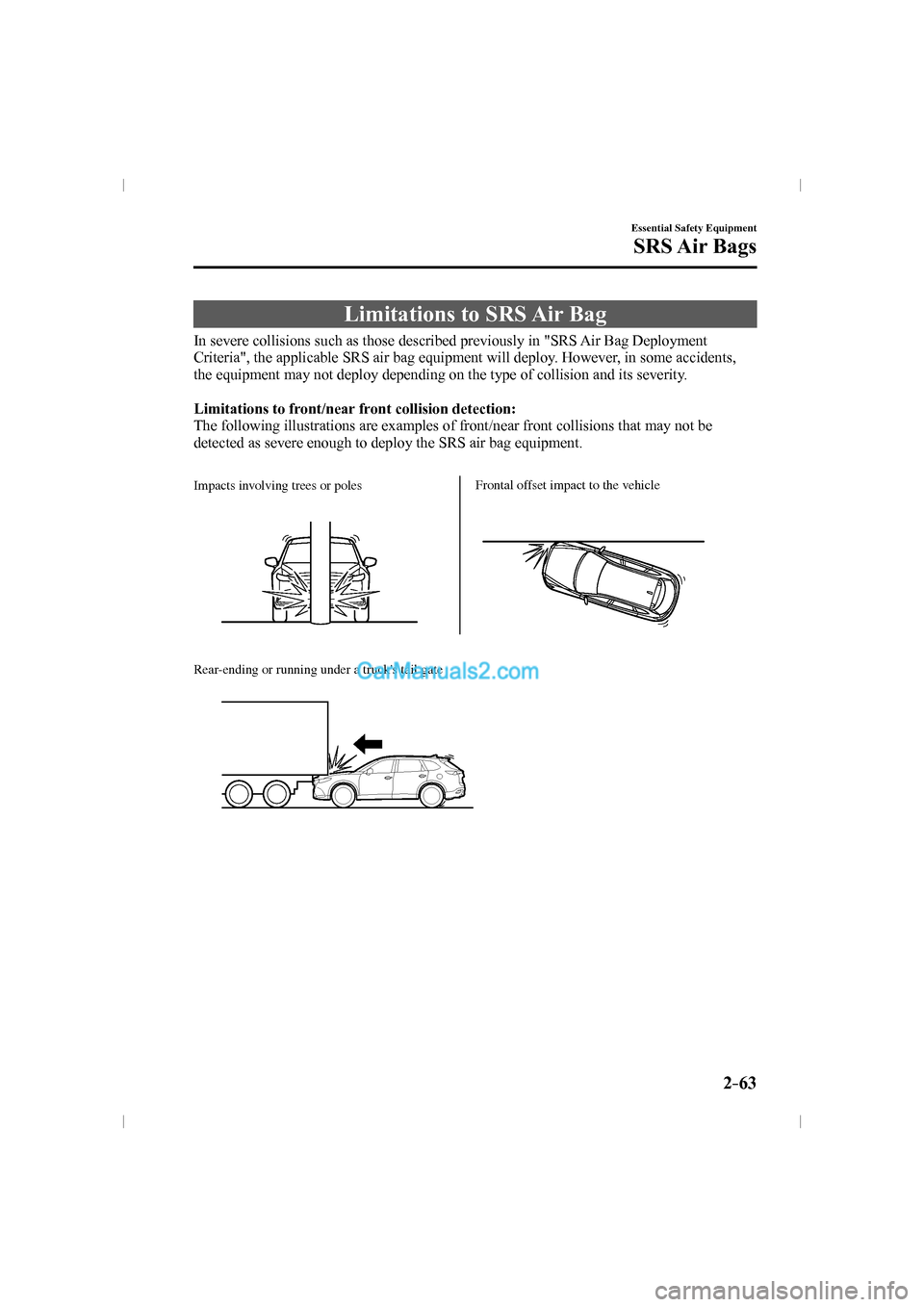

Limitations to SRS Air Bag
In severe collisions such as those described previously in "SRS Air Bag Deployment
Criteria", the applicable SRS air bag equipment will deploy. However, in some accidents,
the equipment may not deploy depending on the type of collision and its severity.

Limitations to front/near front collision detection:
The following illustrations are examples of front/near front collisions that may not be
detected as severe enough to deploy the SRS air bag equipment.


Impacts involving trees or polesFrontal offset impact to the vehicle



Rear-ending or running under a truck's tail gate

$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










2–64
Essential Safety Equipment
SRS Air Bags
Limitations to side collision detection:
The following illustrations are examples of side collisions that may not be detected as severe
enough to deploy the SRS air bag equipment.


Side impacts involving trees or polesSide impacts with two-wheeled vehicles



Roll-over (Without Driver and Front Passenger Occupant Classification System)

(With Front Passenger Occupant Classi¿ cation System)
Limitations to roll-over detection:
The following illustration is an example of an accident that may not be detected as a roll-
over accident. Therefore, the front seat belt pretensioners and curtain air bags may not
deploy.


Pitch end over end

$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










2–65
Essential Safety Equipment
SRS Air Bags
*Some models.
Front Passenger Occupant Classi¿ cation System *
First, please read "Supplemental Restraint System (SRS) Precautions" (page 2-48 )
carefully.
Front Passenger Occupant Classi¿ cation Sensor
Your vehicle is equipped with a front passenger occupant classi¿ cation sensor as a part
of the supplemental restraint system. This sensor is equipped in the front passenger's seat
cushion. This sensor measures the electrostatic capacity of the front passenger's seat. The
SAS unit is designed to prevent the front passenger front and side air bags and seat belt
pretensioner system from deploying if the front passenger air bag deactivation indicator
light turns on.
To reduce the chance of injuries caused by deployment of the front passenger air bag,
the system deactivates the front passenger front and side air bags and also the seat belt
pretensioner system when the front passenger air bag deactivation indicator light turns
on. Refer to the following table for the front passenger air bag deactivation indicator light
illumination conditions.

This system shuts off the front passenger front and side air bags and seat belt pretensioner
system, so make sure the front passenger air bag deactivation indicator light turns on
according to the following table.

The air bag/front seat belt pretensioner system warning light À ashes and the front passenger
air bag deactivation indicator light illuminates if the sensors have a possible malfunction.
If this happens, the front passenger front and side air bags and seat belt pretensioner system
will not deploy.
$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










2–66
Essential Safety Equipment
SRS Air Bags
Front passenger air bag deactivation indicator light
This indicator light turns on to remind you that the front passenger front and side air bags
and seat belt pretensioner will not deploy during a collision.


If the front passenger occupant classi¿ cation sensor is normal, the indicator light turns
on when the ignition is switched ON. The light turns off after a few seconds. Then, the
indicator light turns on or is off under the following conditions:

Front passenger air bag deactivation indicator light on/off condition chart
Condition detected by the
front passenger occupant
classi¿ cation system Front passenger air
bag deactivation
indicator light Front passenger front
and side air bags Front passenger seat
belt pretensioner
system
Empty (Not occupied) On Deactivated Deactivated
A child less than 1 year old is
seated in a child-restraint system On Deactivated Deactivated
Child
*1 On or off Deactivated or ready Deactivated or ready
Adult *2 Off Ready Ready
*1 The occupant classi¿ cation sensor may not detect a child seated on the seat, in a child-restraint system, or a
junior seat depending on the child's physical size and seated posture.
*2 If a smaller adult sits on the front passenger seat, the sensors might detect the person as being a child depending
on the person's physique.


The curtain air bag is ready for inÀ ating regardless of what the front passenger air bag
deactivation indicator light on/off condition chart indicates.
If the front passenger air bag deactivation indicator light does not turn on when the ignition
is switched ON and does not turn on as indicated in the front passenger air bag deactivation
indicator light on/off condition chart, do not allow an occupant to sit in the front passenger
seat and consult an Authorized Mazda Dealer as soon as possible. The system may not work
properly in an accident.
$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










2–67
Essential Safety Equipment
SRS Air Bags
WARNING
Do not allow an occupant in the front passenger's seat to sit with a posture which
makes it diffi cult for the front passenger occupant classifi cation sensor to detect the
occupant correctly:
Sitting in the front passenger's seat with a posture which makes it diffi cult for the front
passenger occupant classifi cation sensor to detect the occupant correctly is dangerous.
If the front passenger occupant classifi cation sensor cannot detect the occupant sitting
on the front passenger's seat correctly, the front passenger front and side air bags and
pretensioner system may not operate (deploy) or they may operate (deploy) accidentally.
The front passenger will not have the supplementary protection of the air bags or the
accidental operation (deployment) of the air bags could result in serious injury or death.
Under the following conditions, the front passenger occupant classifi cation sensor
cannot detect a passenger sitting on the front passenger's seat correctly and the
deployment/non-deployment of the air bags cannot be controlled as indicated in the
front passenger air bag deactivation indicator light on/off condition chart. For example:




¾ A front passenger is seated as shown in the following fi gure:



¾ A rear passenger pushes up on the front passenger seat with their feet.



¾ Luggage or other items placed under the front passenger seat or between the front
passenger seat and driver seat that push up the front passenger seat bottom.
$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










2–68
Essential Safety Equipment
SRS Air Bags



¾ An object, such as a seat cushion, is put on the front passenger's seat or between the
passenger's back and the seatback.



¾ A seat cover is put on the front passenger's seat.



¾ Luggage or other items are placed on the seat with the child in the child-restraint
system.



¾ A rear passenger or luggage push or pull down on the front passenger seatback.



¾ Luggage or other items are placed on the seatback or hung on the head restraint.



¾ The seat is washed.



¾ Liquids are spilled on the seat.



¾ The front passenger seat is moved backward, pushing into luggage or other items
placed behind it.



¾ The front passenger seatback contacts the rear seat.



¾ Luggage or other items are placed between the front passenger seat and driver seat.



¾ An electric device is put on the front passenger's seat.



¾ An additional electrical device, such as a seat warmer is installed to the surface of the
front passenger seat.

The front passenger front and side air bags and seat belt pretensioner systems will
deactivate if the front passenger air bag deactivation indicator light turns on.
