Page 89 of 612
3–7
Before Driving
Keys
Panic button
If you witness from a distance someone
attempting to break into or damage your
vehicle, press and hold the panic button
to activate the vehicle's alarm. Call
emergency services if necessary.
NOTE
The panic button will work whether any
door or the liftgate is open or closed.
(Turning on the alarm)
Pressing the panic button for 1 second or
more will trigger the alarm for about 2
minutes and 30 seconds, and the following
will occur:
The horn sounds intermittently.
The hazard warning lights fl ash.
(Turning off the alarm)
The alarm stops by pressing any button on
the key.
Operational Range
The system operates only when the driver
is in the vehicle or within operational
range while the key is being carried.
Starting the Engine
NOTE
Starting the engine may be possible
even if the key is outside of the vehicle
and extremely close to a door and
window, however, always start the
engine from the driver's seat.
If the vehicle is started and the key
is not in the vehicle, the vehicle will
not restart after it is shut off and the
ignition is switched to off.
The luggage compartment is out of the
assured operational range, however,
if the key (transmitter) is operable the
engine will start.
With the advanced keyless function
Interior antenna
Operational range
Without the advanced keyless function
Interior antenna
Operational range
CX-9_8FS7-EA-16K_Edition2.indb 7CX-9_8FS7-EA-16K_Edition2.indb 72016/12/15 18:33:062016/12/15 18:33:06
Page 91 of 612
3–9
Before Driving
Advanced Keyless Entry System
*Some models.
Advanced Keyless Entry
System
*
WARNING
Radio waves from the key may aff ect
medical devices such as pacemakers:
Before using the key near people who
use medical devices, ask the medical
device manufacturer or your physician
if radio waves from the key will aff ect
the device.
The advanced keyless function allows you
to lock/unlock the door and the liftgate, or
open the liftgate while carrying the key.
System malfunctions or warnings are
indicated by the following warning beeps.
Request switch Inoperable Warning
Beep
Refer to Request Switch Inoperable
Warning Beep (With the advanced
keyless function) on page 7-47 .
Key Left-in-luggage Compartment
Warning Beep
Refer to Key Left-in-luggage
Compartment Warning Beep (With the
advanced keyless function) on page
7-47 .
Key Left-in-vehicle Warning Beep
Refer to Key Left-in-vehicle Warning
Beep (With the advanced keyless
function) on page 7-47 .
NOTE
The advanced keyless entry system
functions can be deactivated to prevent
any possible adverse effect on a user
wearing a pacemaker or other medical
device. If the system is deactivated, you
will be unable to start the engine by
carrying the key. Consult an Authorized
Mazda Dealer for details. If the advanced
keyless entry system has been deactivated,
you can start the engine by following the
procedure indicated when the key battery
goes dead.
Refer to Engine Start Function When Key
Battery is Dead on page 4-8 .
CX-9_8FS7-EA-16K_Edition2.indb 9CX-9_8FS7-EA-16K_Edition2.indb 92016/12/15 18:33:072016/12/15 18:33:07
Page 93 of 612
3–11
Before Driving
Doors and Locks
Door Locks
WARNING
Always take all children and pets with
you or leave a responsible person with
them:
Leaving a child or a pet unattended in
a parked vehicle is dangerous. In hot
weather, temperatures inside a vehicle
can become high enough to cause
brain damage or even death.
Do not leave the key in your vehicle with
children and keep them in a place where
your children will not fi nd or play with
them:
Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed.
Keep all doors locked when driving:
Unlocked doors in a moving vehicle
are dangerous. Passengers can fall out
if a door is accidentally opened and
can more easily be thrown out in an
accident.
Always close all the windows and
moonroof, lock the doors and the
liftgate and take the key with you when
leaving your vehicle unattended:
Leaving your vehicle unlocked is
dangerous as children could lock
themselves in a hot vehicle, which
could result in death. Also, a vehicle left
unlocked becomes an easy target for
thieves and intruders.
After closing the doors and the liftgate,
always verify that they are securely
closed:
Doors and the liftgate not securely
closed are dangerous, if the vehicle
is driven with a door and the liftgate
not securely closed, the door and the
liftgate could open unexpectedly
resulting in an accident.
Always confi rm the safety around the
vehicle before opening a door and the
liftgate:
Suddenly opening a door and the
liftgate is dangerous. A passing vehicle
or a pedestrian could be hit and cause
an accident.
CAUTION
Always confi rm the conditions around
the vehicle before opening/closing
the doors and the liftgate and use
caution during strong winds or when
parked on an incline. Not being aware
of the conditions around the vehicle
is dangerous because fi ngers could
get caught in the door and the liftgate
or a passing pedestrian could be hit,
resulting in an unexpected accident or
injury.
CX-9_8FS7-EA-16K_Edition2.indb 11CX-9_8FS7-EA-16K_Edition2.indb 112016/12/15 18:33:082016/12/15 18:33:08
Page 96 of 612
3–14
Before Driving
Doors and Locks
To lock
To lock the doors and the liftgate, press
the request switch and the hazard warning
lights will fl ash once.
A beep sound will be heard once.
To unlock
Driver's door request switch
To unlock the driver's door, press the
request switch. A beep sound will be heard
twice and the hazard warning lights will
fl ash twice.
To unlock all doors and the liftgate, press
the request switch again within 3 seconds
and two more beep sounds will be heard.
Front passenger door request switch
To unlock all doors and the liftgate, press
the request switch. A beep sound will be
heard twice and the hazard warning lights
will fl ash twice. NOTE
The system can be set to unlock all
doors by performing a single operation.
Refer to Personalization Features on
page 9-11 .
Use the following procedure to change
the setting.
1. Switch the ignition off and close all
of the doors and the liftgate.
2. Open the driver's door.
3. Within 30 seconds of opening the
driver's door, press and hold the
UNLOCK button on the key for 5
seconds or longer (the sound of
the doors locking/unlocking can be
heard).
After this, the system switches the
setting of pressing the driver's
request switch once or twice to
unlock all doors and the liftgate
each time the UNLOCK button is
pressed (the sound of the doors
locking/unlocking can be heard).
4. The setting change is completed by
doing any one of the following:
Switching the ignition to ACC or
ON.
Closing the driver's door.
Opening the liftgate.
Not operating the key for 10
seconds.
Pressing any button except the
UNLOCK button on the key.
Pressing a request switch.
Confi rm that all doors and the liftgate
are securely locked.
For the liftgate, move it without
pressing the electric liftgate opener to
verify that the liftgate has not been left
ajar.
All doors and the liftgate cannot be
locked when any door or the liftgate is
open.
CX-9_8FS7-EA-16K_Edition2.indb 14CX-9_8FS7-EA-16K_Edition2.indb 142016/12/15 18:33:092016/12/15 18:33:09
Page 97 of 612
3–15
Before Driving
Doors and Locks
It may require a few seconds for the
doors to unlock after the request switch
is pressed.
A beep sound is heard for confi rmation
when the doors and the liftgate are
locked/unlocked using the request
switch. If you prefer, the beep sound can
be turned off.
The volume of the beep sound can also
be changed. Refer to Personalization
Features on page 9-11 .
Use the following procedure to change
the setting.
1. Switch the ignition off and close all
of the doors and the liftgate.
2. Open the driver's door.
3. Within 30 seconds of opening the
driver's door, press and hold the
LOCK button on the key for 5
seconds or longer.
All of the doors and the liftgate lock
and the beep sound activates at the
currently set volume. The setting
changes each time the LOCK button
on the key is pressed and the beep
sound activates at the set volume. (If
the beep sound has been set to not
activate, it will not activate.)
4. The setting change is completed by
doing any one of the following:
Switching the ignition to ACC or
ON.
Closing the driver's door.
Opening the liftgate.
Not operating the key for 10
seconds.
Pressing any button except the
LOCK button on the key.
Pressing a request switch.
(With theft-deterrent system)
The hazard warning lights fl ash when
the theft-deterrent system is armed or
turned off.
Refer to Theft-Deterrent System on page
3-47 .
The setting can be changed so that
the doors and the liftgate are locked
automatically without pressing the
request switch.
Refer to Personalization Features on
page 9-11 .
(Auto-lock function)
A beep sound is heard when all doors
and the liftgate are closed while the
advanced key is being carried. All doors
and the liftgate are locked automatically
after about three seconds when the
advanced key is out of the operational
range. Also, the hazard warning lights
fl ash once. (Even if the driver is in the
operational range, all doors and the
liftgate are locked automatically after
about 30 seconds.) If you are out of
the operational range before the doors
and the liftgate are completely closed
or another key is left in the vehicle, the
auto-lock function will not work. Always
make sure that all doors and the liftgate
are closed and locked before leaving the
vehicle. The auto-lock function does not
close the power windows.
CX-9_8FS7-EA-16K_Edition2.indb 15CX-9_8FS7-EA-16K_Edition2.indb 152016/12/15 18:33:092016/12/15 18:33:09
Page 98 of 612
3–16
Before Driving
Doors and Locks
Auto re-lock function
After unlocking with the request
switch, all doors and the liftgate
will automatically lock if any of the
following operations are not performed
within about 60 seconds. If your
vehicle has a theft-deterrent system,
the hazard warning lights will fl ash for
confi rmation.
The time required for the doors to lock
automatically can be changed.
Refer to Personalization Features on
page 9-11 .
Opening a door or the liftgate.
Switching the ignition to any position
other than off.
Locking, Unlocking with
Transmitter
All doors and the liftgate can be locked/
unlocked by operating the keyless entry
system transmitter, refer to Keyless Entry
System (page 3-3 ).
Locking, Unlocking with Door-
Lock Switch
All doors and the liftgate lock
automatically when the lock side is
pressed. They unlock when the unlock side
is pressed.
Driver's door
Unlock
Lock
Front passenger's door
UnlockLock
To lock all the doors and the liftgate from
an open front door, press the lock side of
the door lock switch and then close the
door.
NOTE
When locking the doors this way, be
careful not to leave the key inside the
vehicle.
CX-9_8FS7-EA-16K_Edition2.indb 16CX-9_8FS7-EA-16K_Edition2.indb 162016/12/15 18:33:092016/12/15 18:33:09
Page 99 of 612
3–17
Before Driving
Doors and Locks
Auto Lock/Unlock Function
WARNING
Do not pull the inner handle on a front
door:
Pulling the inner handle on a front
door while the vehicle is moving
is dangerous. Passengers can fall
out of the vehicle if the door opens
accidentally , which could result in
death or serious injury.
When the vehicle speed exceeds 20
km/h (12 mph), all doors and the liftgate
lock automatically.
When the ignition is switched off,
all doors and the liftgate unlock
automatically.
These functions can also be disabled so
that they do not operate.
Auto lock/unlock function setting
change using door-lock switch
The doors and the liftgate can be set to
lock or unlock automatically by selecting
any one of the functions from the
following table and using the driver's door-
lock switch on the interior door panel.
NOTE
Function number 3 in the following
table is the factory setting for your
vehicle.
There are only a total of six auto lock/
unlock settings available. Be sure to
press the unlock side of the driver's
door-lock switch the correct number of
times according to the selected function
number. If the switch is mistakenly
pressed seven times, the procedure will
be cancelled. If this occurs, start the
procedure from the beginning.
Function
number Function *1
1 The auto door-lock function is
disabled.
2 All the doors and the liftgate lock
automatically when the vehicle speed
is about 20 km/h (12 mph) or more.
3 (Factory
Setting) All the doors and the liftgate lock
automatically when the vehicle speed
is about 20 km/h (12 mph) or more.
All the doors and the liftgate unlock
when the ignition is switched from
ON to Off.
4 When the ignition is switched ON
and the selector lever is shifted from
park (P) to any other gear position,
all the doors and the liftgate lock
automatically.
5 When the ignition is switched ON
and the selector lever is shifted from
park (P) to any other gear position,
all the doors and the liftgate lock
automatically.
When the selector lever is shifted to
park (P) while the ignition is switched
ON, all the doors and the liftgate
unlock automatically.
6 All the doors and the liftgate lock
automatically when the vehicle speed
is about 20 km/h (12 mph) or more.
When the selector lever is shifted to
park (P) while the ignition is switched
ON, all the doors and the liftgate
unlock automatically.
*1 Other settings for the auto door lock function are
available at an Authorized Mazda Dealer. For
details consult an Authorized Mazda Dealer. Refer
to Personalization Features on page 9-11 .
Settings can be changed using the
following procedure.
1. Safely park the vehicle. All doors must
remain closed.
2. Switch the ignition ON.
3. Press and hold the lock side of the
driver's door-lock switch within 20
seconds of switching the ignition ON,
and make sure a beep sound is heard
about eight seconds afterwards.
CX-9_8FS7-EA-16K_Edition2.indb 17CX-9_8FS7-EA-16K_Edition2.indb 172016/12/15 18:33:102016/12/15 18:33:10
Page 101 of 612
3–19
Before Driving
Doors and Locks

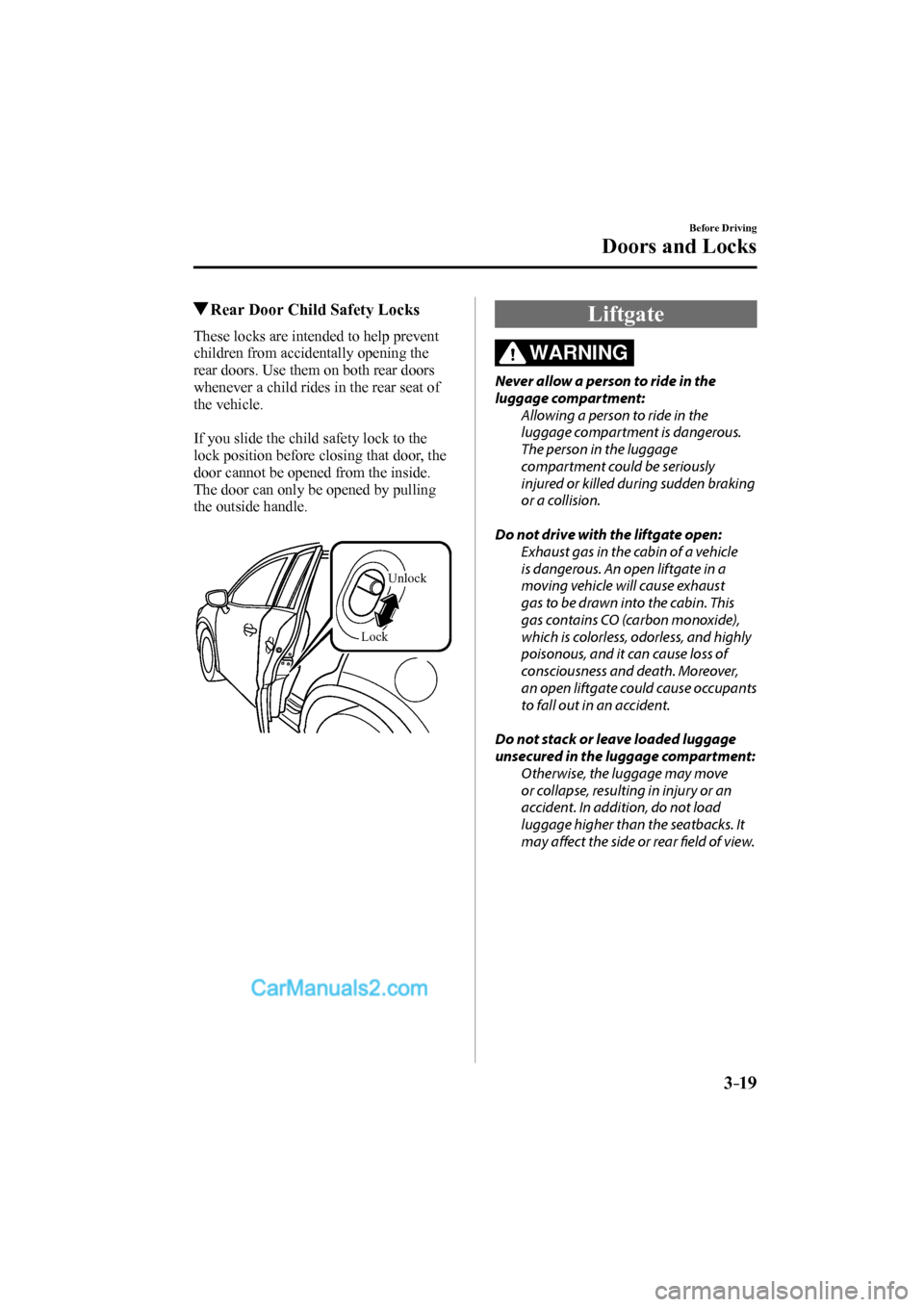

Rear Door Child Safety Locks
These locks are intended to help prevent
children from accidentally opening the
rear doors. Use them on both rear doors
whenever a child rides in the rear seat of
the vehicle.
If you slide the child safety lock to the
lock position before closing that door, the
door cannot be opened from the inside.
The door can only be opened by pulling
the outside handle.
LockUnlock
Liftgate
WARNING
Never allow a person to ride in the
luggage compartment:
Allowing a person to ride in the
luggage compartment is dangerous.
The person in the luggage
compartment could be seriously
injured or killed during sudden braking
or a collision.
Do not drive with the liftgate open:
Exhaust gas in the cabin of a vehicle
is dangerous. An open liftgate in a
moving vehicle will cause exhaust
gas to be drawn into the cabin. This
gas contains CO (carbon monoxide),
which is colorless, odorless, and highly
poisonous, and it can cause loss of
consciousness and death. Moreover,
an open liftgate could cause occupants
to fall out in an accident.
Do not stack or leave loaded luggage
unsecured in the luggage compartment:
Otherwise, the luggage may move
or collapse, resulting in injury or an
accident. In addition, do not load
luggage higher than the seatbacks. It
may aff ect the side or rear fi eld of view.
CX-9_8FS7-EA-16K_Edition2.indb 19CX-9_8FS7-EA-16K_Edition2.indb 192016/12/15 18:33:112016/12/15 18:33:11
Page 103 of 612
3–21
Before Driving
Doors and Locks
NOTE
(With the advanced keyless function)
A locked liftgate can also be opened
while the key is being carried.
When opening the liftgate with the
doors and the liftgate locked, it may
require a few seconds for the liftgate
latch to release after the electric liftgate
opener is pressed.
The liftgate can be closed when the
doors are locked with the key left in the
vehicle. However, to prevent locking the
key in the vehicle, the liftgate can be
opened by pressing the electric liftgate
opener. If the liftgate cannot be opened
despite doing this procedure, fi rst push
the liftgate completely closed, then press
the electric liftgate opener to fully open
the liftgate .
When the liftgate latch is released by
pressing the electric liftgate opener,
the liftgate raises slightly. If the liftgate
is not operated for a certain period of
time, the liftgate cannot be raised.
To open
Press the electric liftgate opener again.
To close
To close the liftgate from its slightly
raised position, open it fi rst by pressing
the electric liftgate opener, then close it
after waiting at least 1 second.
If the liftgate is not fully closed, the
driver is notifi ed by a warning indicated
in the instrument cluster.
If the vehicle battery is dead or there is
a malfunction in the electrical system
and the liftgate cannot be unlocked, the
liftgate can be opened by performing
the emergency procedure.
Refer to When Liftgate Cannot be
Opened on page 7-50 .
Closing the liftgate
Lower the liftgate slowly using the liftgate
handle, then push the liftgate closed using
both hands.
Do not slam it. Pull up on the liftgate to
make sure it is secure.
Liftgate handle
CX-9_8FS7-EA-16K_Edition2.indb 21CX-9_8FS7-EA-16K_Edition2.indb 212016/12/15 18:33:122016/12/15 18:33:12
Page 104 of 612
3–22
Before Driving
Doors and Locks
*Some models.
Power Liftgate *
The power liftgate opens/closes
electrically by operating the switches in
the vehicle or the buttons on the keyless
entry system transmitter.
WARNING
Be sure to watch the power liftgate as it
opens or closes, and make sure that it
closes completely:
Opening or closing the power
liftgate while not watching it move
is dangerous. Because of unseen
obstacles and the jam-safe feature, a
liftgate may not close completely and,
if left unnoticed, could result in serious
injury or death if an occupant were to
fall out of the vehicle.
Always be sure that the area around
the liftgate is clear before activating it.
Always confi rm the safety of the area
around the power liftgate before
operating it electrically.
Not checking the area around the
liftgate for people before operating
it using the power liftgate switch
or the button on the keyless entry
system is dangerous. A person could
become caught between the liftgate
and an obstruction while it is opening
electrically or between the liftgate and
vehicle while it is closing electrically,
resulting in an accident and serious
injury.
Never allow children to operate the
power liftgate system:
Allowing children to operate the power
liftgate switch and the keyless entry
system is dangerous. Children are not
aware of the dangers of people getting
fi ngers and hands caught in a moving
liftgate. If someone's neck, head or
hands get caught in a closing door, it
could result in death or serious injury.
CAUTION
When closing the power liftgate,
make sure there are no foreign objects
around the striker. If foreign objects are
obstructing the striker, the liftgate may
not close properly.
Striker
Do not install accessories to the power
liftgate other than specifi ed accessories.
Otherwise, it cannot be opened/closed
automatically and could result in a
malfunction.
Be careful when switching the power
liftgate from electrical to manual
operation. The power liftgate may open/
close unexpectedly depending on its
position which could result in injury.
CX-9_8FS7-EA-16K_Edition2.indb 22CX-9_8FS7-EA-16K_Edition2.indb 222016/12/15 18:33:122016/12/15 18:33:12
