Black plate (485,1)
qCapacities
(Approximate Quantities)
Item Capacity
Engine oil2.0-liter engineWith oil filter
replacement4.3 L (4.5 US qt, 3.8 Imp qt)
Without oil filter
replacement3.9 L (4.1 US qt, 3.4 Imp qt)
2.3-liter turbocharged
engineWith oil filter
replacement5.7 L (6.0 US qt, 5.0 Imp qt)
Without oil filter
replacement5.3 L (5.6 US qt, 4.7 Imp qt)
2.5-liter engineWith oil filter
replacement5.0 L (5.3 US qt, 4.4 Imp qt)
Without oil filter
replacement4.6 L (4.9 US qt, 4.0 Imp qt)
Coolant 7.5 L (7.9 US qt, 6.6 Imp qt)
Manual transaxle oil2.0-liter engine 2.77 L (2.93 US qt, 2.44 Imp qt)
2.3-liter turbocharged engine 2.5 L (2.6 US qt, 2.2 Imp qt)
2.5-liter engine 2.85 L (3.01 US qt, 2.51 Imp qt)
Automatic transaxle fluid 8.14 L (8.60 US qt, 7.16 Imp qt)
Fuel tank2.0-liter engine 55.0 L (14.5 US gal, 12.1 Imp gal)
Except 2.0-liter engine 60.0 L (15.9 US gal, 13.2 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
qDimensions
4 Door
Item Vehicle specification
Overall lengthSTANDARD TYPE 4,590 mm (180.7 in)
SPORTY TYPE 4,595 mm (180.9 in)
Overall width 1,755 mm (69.1 in)
Overall height 1,470 mm (57.9 in)
Front tread16 inch 1,535 mm (60.4 in)
17 inch 1,530 mm (60.2 in)
Rear tread16 inch 1,520 mm (59.8 in)
17 inch 1,515 mm (59.6 in)
Wheelbase 2,640 mm (103.9 in)
Specifications
10-5
Mazda3_8AR3-EA-09E_Edition2 Page485
Monday, June 1 2009 1:19 PM
Form No.8AR3-EA-09E

Black plate (489,1)

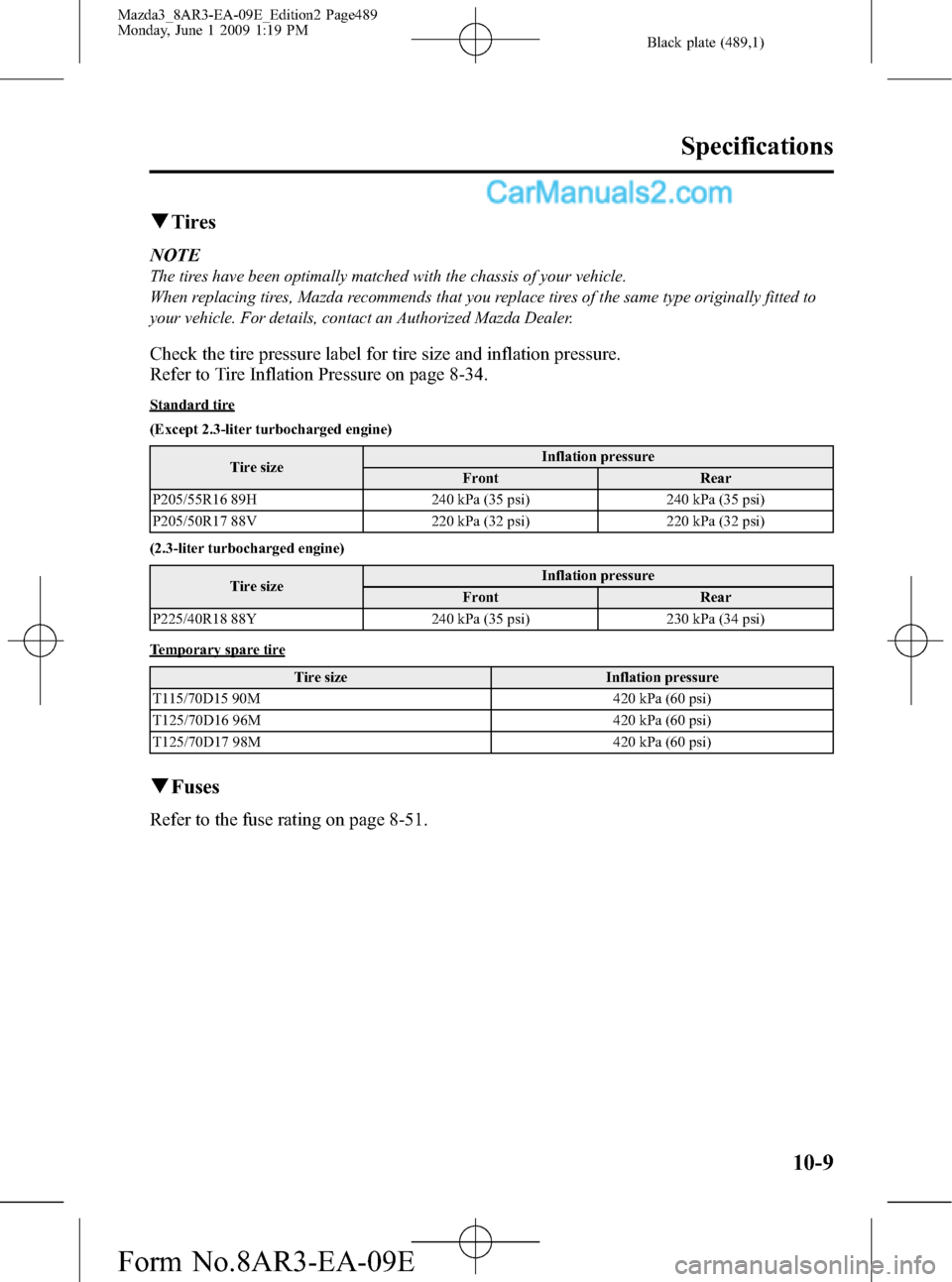

qTires
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type originally fitted to
your vehicle. For details, contact an Authorized Mazda Dealer.
Check the tire pressure label for tire size and inflation pressure.
Refer to Tire Inflation Pressure on page 8-34.
Standard tire
(Except 2.3-liter turbocharged engine)
Tire sizeInflation pressure
Front Rear
P205/55R16 89H 240 kPa (35 psi) 240 kPa (35 psi)
P205/50R17 88V 220 kPa (32 psi) 220 kPa (32 psi)
(2.3-liter turbocharged engine)
Tire sizeInflation pressure
Front Rear
P225/40R18 88Y 240 kPa (35 psi) 230 kPa (34 psi)
Temporary spare tire
Tire size Inflation pressure
T115/70D15 90M 420 kPa (60 psi)
T125/70D16 96M 420 kPa (60 psi)
T125/70D17 98M 420 kPa (60 psi)
qFuses
Refer to the fuse rating on page 8-51.
Specifications
10-9
Mazda3_8AR3-EA-09E_Edition2 Page489
Monday, June 1 2009 1:19 PM
Form No.8AR3-EA-09E

Black plate (499,1)
T
Tires
Flat Tire ........................................ 7-3
Inflation pressure ........................ 8-34
Replacement ............................... 8-36
Rotation ...................................... 8-35
Snow tires .................................. 4-10
Spare tire and tool storage ............ 7-3
Specifications ............................. 10-9
Tire chains .................................. 4-10
Uniform tire quality grading system
(UTQGS) ................................... 9-21
Tool ..................................................... 7-3
Towing
Description ................................. 7-22
Emergency towing ..................... 7-22
Recreational towing ................... 7-26
Trailer towing ............................. 4-15
Traction Control System (TCS) ........ 5-25
TCS/DSC indicator light ............ 5-26
Trailer Towing .................................. 4-15
Trip Meter ......................................... 5-36
Trunk Lid .......................................... 3-42
Inside trunk release lever ............ 3-44
Trunk Light ....................................... 3-43
Turn and Lane-Change Signals ......... 5-61
V
Vanity Mirrors ................................... 6-93
Vehicle Information Labels ............... 10-2
W
Warning Lights ................................. 5-40
ABS ............................................ 5-43
Air bag system ........................... 5-45
Automatic transaxle ................... 5-48
Brake system .............................. 5-42
Charging system ......................... 5-44
Check engine .............................. 5-44
Check fuel cap ........................... 5-46
Door-ajar .................................... 5-47
Electronic Steering Lock ............ 5-51
Engine oil pressure ..................... 5-44
Front seat belt pretensioner
system ........................................ 5-45
High Engine Coolant
Temperature ............................... 5-45
KEY Warning Light
(Red)/KEY Indicator Light
(Green) ....................................... 5-50
Low fuel ..................................... 5-46
Low washer fluid level ............... 5-47
Seat belt ...................................... 5-46
Tire pressure monitoring
system ........................................ 5-48
Warranty ............................................ 9-15
Washer Fluid ..................................... 8-26
Weights ............................................. 10-6
Wheel Replacement .......................... 8-37
Windows
Power windows .......................... 3-45
Windshield Washer ........................... 5-66
Windshield Wipers ............................ 5-63
Blades replacement .................... 8-27
Winter Driving .................................... 4-9
Index
11-7
