Speedometer
The speedometer indicates the speed of
the vehicle.

Odometer and Trip Meter
The display mode can be changed from
odometer to trip meter A to trip meter B
and then back to odometer by pressing the
selector while they are displayed. The
selected mode will be displayed.
Odometer
When this mode is selected, ODO will be
displayed.
The odometer records the total distance
the vehicle has been driven.
Tr i p m e t e r
The trip meter can record the total
distance of two trips. One is recorded in
trip meter A, and the other is recorded in
trip meter B.
For instance, trip meter A can record the
distance from the point of origin, and trip
meter B can record the distance from
where the fuel tank is filled.
When trip meter A is selected, pressing
the selector again within one second will
change to trip meter B mode.
When trip meter A is selected, TRIP A
will be displayed. When trip meter B is
selected, TRIP B will be displayed.
Selector
Odometer
Trip meter A Press the selector
Press the selector
Press the selector Trip meter B
NOTE
The odometer and trip meter can be
displayed as follows even when the
ignition switch is in the LOCK
position.
•Displays for 10 minutes after the
ignition switch is turned to the
LOCK position from the ACC or
ON position.
•Displays for 10 minutes after any
door is opened.
J16L_8R21-EA-02G.book Page 20 Saturday, June 8, 2002 11:16 AM

6-22
Interior Comfort
Au di o S ys t em
Form No. 8R21-EA-02G

Power/Volume/Sound Controls
Power ON/OFF
Turn the ignition switch to the ACC or
ON position.
Press the power/volume knob to turn the
audio system on.
Press the power/volume knob again to
turn the audio system off.Volume adjustmentTo adjust the volume, turn the power/
volume knob.
Turn the power/volume knob to the right
to increase volume, to the left to decrease
it.
Display
Audio control knob Power/Volume knob
NOTE
To prevent the battery from being
discharged, do not leave the audio
system on for a long period when the
engine is not running.
J16L_8R21-EA-02G.book Page 22 Saturday, June 8, 2002 11:16 AM

6-23
Interior Comfort
Au di o S ys t em
Form No. 8R21-EA-02G

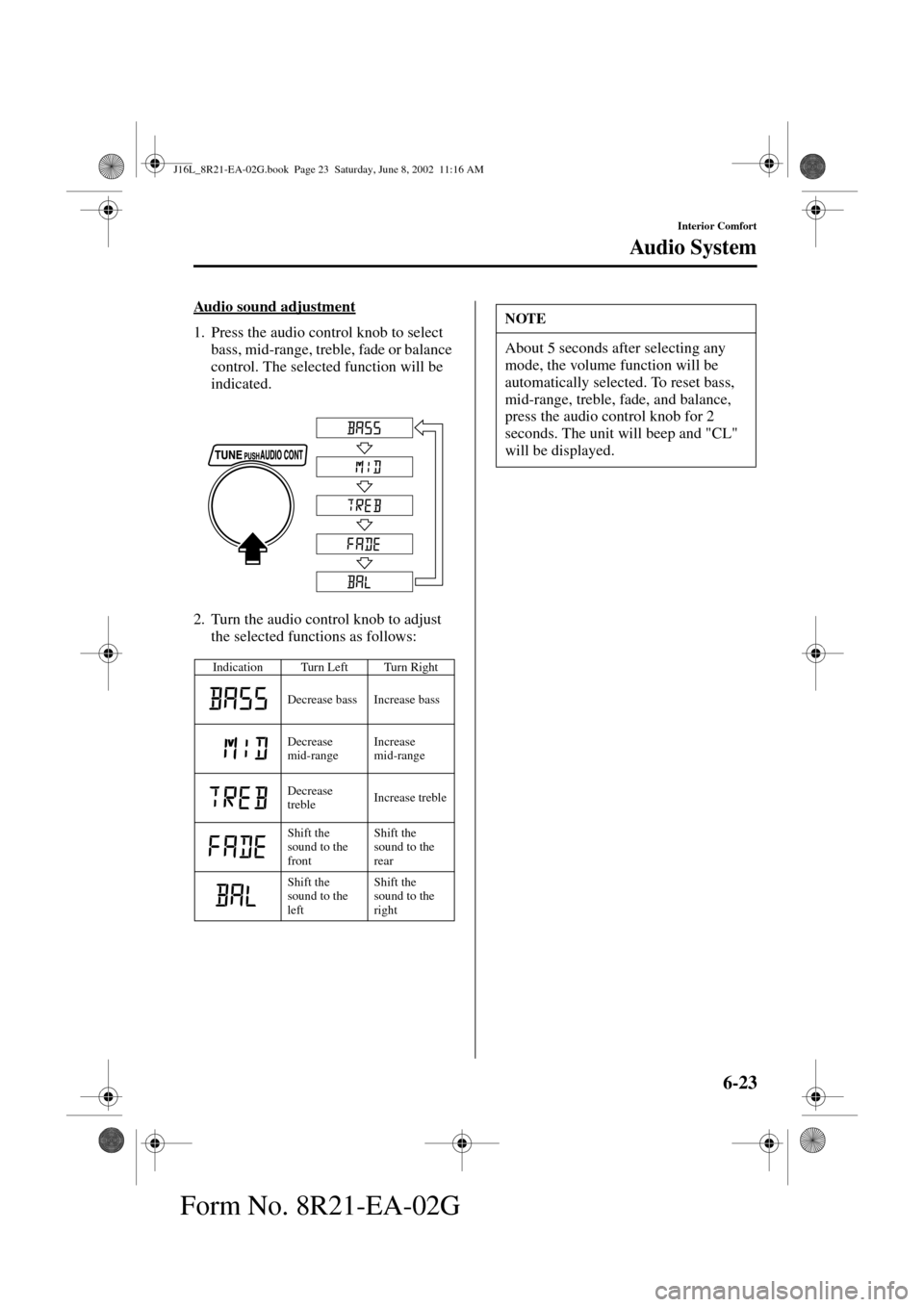

Audio sound adjustment
1. Press the audio control knob to select
bass, mid-range, treble, fade or balance
control. The selected function will be
indicated.
2. Turn the audio control knob to adjust
the selected functions as follows:
Indication Turn Left Turn Right
Decrease bass Increase bass
Decrease
mid-rangeIncrease
mid-range
Decrease
trebleIncrease treble
Shift the
sound to the
frontShift the
sound to the
rear
Shift the
sound to the
leftShift the
sound to the
right
NOTE
About 5 seconds after selecting any
mode, the volume function will be
automatically selected. To reset bass,
mid-range, treble, fade, and balance,
press the audio control knob for 2
seconds. The unit will beep and "CL"
will be displayed.
J16L_8R21-EA-02G.book Page 23 Saturday, June 8, 2002 11:16 AM

6-24
Interior Comfort
Au di o S ys t em
Form No. 8R21-EA-02G

Clock
Setting the time
The clock can be set at any time when the
ignition switch is in the ACC or ON
position.
1. To adjust the time, press the clock
button ( ) for about 2 seconds
until a beep is heard.
The clock’s current time will flash.
2. To advance the hours, press the hour
set button ( ). To advance the
minutes, press the minute set button
( ) while the time is flashing.
3. Press the clock button ( ) again
to start the clock.Exact hour adjustment 1. To set the exact hour, press the clock
button ( ) for about 2 seconds
until a beep is heard.
The clock’s current time will flash.
2. Press the clock button ( ) again
and the time will be adjusted as
follows:
(Example)
12:01—12:29
→12:00
12:30—12:59
→1:00
Display
Clock button
Hour set
button
Minute set
button
NOTE
If the power supply to the unit is
interrupted (if the fuse blows or the
vehicle’s battery is disconnected), the
clock will need to be reset.
J16L_8R21-EA-02G.book Page 24 Saturday, June 8, 2002 11:16 AM

6-25
Interior Comfort
Au di o S ys t em
Form No. 8R21-EA-02G
Changing the display mode
The display on the unit can be changed by
pressing the clock button ( ). This
alternates the display between time and
audio. When the clock mode has been
selected, the time will be displayed.
NOTE
If audio operation is selected while the
time mode is on, the selected audio
mode will be displayed for 10 seconds,
then the display will revert to the time
mode.
J16L_8R21-EA-02G.book Page 25 Saturday, June 8, 2002 11:16 AM

6-26
Interior Comfort
Au di o S ys t em
Form No. 8R21-EA-02G

Operating the Radio
Radio ON
Press a band selector button ( or
) to turn the radio on.
Band selection
Choose AM by pressing the AM button
( ) and FM by pressing the FM1/2
button ( ).
The selected mode will be indicated. If
FM stereo is being received, "ST" will be
displayed.Tu n i n g
The radio has the following tuning
methods: Manual, Seek, Scan, Preset
channel, and Auto memory tuning. The
easiest way to tune stations is to set them
on preset channels.
Manual tuning
Turning the manual tuning knob will
change the frequency higher or lower.
Band selector buttonsDisplay
Channel preset buttons Manual tuning knobScan button
Auto memory
button
Seek tuning:
Higher
frequency
Lower
frequency
NOTE
If the FM broadcast signal becomes
weak, reception automatically changes
from STEREO to MONO for reduced
noise, and the "ST" indicator will go
out.
NOTE
If the power supply is interrupted (fuse
blows or the battery is disconnected),
the preset channels will be canceled.
J16L_8R21-EA-02G.book Page 26 Saturday, June 8, 2002 11:16 AM

6-27
Interior Comfort
Au di o S ys t em
Form No. 8R21-EA-02G
Seek tuning
Pressing the seek tuning button
( , ) will cause the tuner to seek a
higher or lower frequency automatically.
Scan tuning
Press the scan button ( ) to
automatically sample strong stations.
Scanning stops at each station for about 5
seconds. To hold a station, merely press
the scan button ( ) again during this
interval.
Preset channel tuning
The 6 preset channels can be used to store
6 AM and 12 FM stations.
1. To set a channel first select AM, FM1,
or FM2. Tune to the station you want.
2. Depress a channel preset button for
about 2 seconds until a beep is heard.
The preset channel number and station
frequency will be displayed. The
station is now held in the memory.
3. Repeat this operation for the other
stations and bands you want to store.
To tune one in the memory, select AM,
FM1, or FM2 and then press its
channel preset button. The station
frequency and the channel number will
be displayed.Auto memory tuning
This is especially useful when driving in
an area where the local stations are not
known. Additional AM/FM stations can
be stored without disturbing the
previously set channels.
Press and hold the auto memory button
( ) for about 2 seconds until a beep
is heard; the system will automatically
scan and temporarily store up to 6 stations
with the strongest frequencies in each
selected band in that area.
After scanning is completed, the station
with the strongest frequency will be tuned
and its frequency displayed.
Press and release the auto memory button
( ) to recall stations from the auto-
stored stations. One stored station will be
selected each time; its frequency and
channel number will be displayed.
NOTE
If you continue to press and hold the
button, the frequency will continue
changing without stopping.
NOTE
If the power supply is interrupted (fuse
blows or the battery is disconnected),
the preset channels will be canceled.
NOTE
If no stations can be tuned after
scanning operations, "A" will be
displayed.
J16L_8R21-EA-02G.book Page 27 Saturday, June 8, 2002 11:16 AM

6-28
Interior Comfort
Au di o S ys t em
Form No. 8R21-EA-02G

Operating the Cassette Tape Player
Cassette tape insert
Insert the cassette tape into the slot, open
edge to the right and cassette tape will
begin play and "TAPE" will be displayed.
At the end of the cassette tape, the unit
automatically reverses cassette tape play.
When is lit, the cassette tape’s top side
is playing. When is lit, the bottom side
is on.PlayingPress the cassette tape play button
( ) to start playing when a
cassette tape is in the unit. If there isn’t a
cassette tape in the unit when the cassette
tape play button ( ) is pressed,
"NO TAPE" will flash on and off in
sequence.
Dolby noise reduction
When using a tape with Dolby NR*, push
the Dolby NR button ( ). The
symbol will be displayed. To play a tape
without Dolby NR, push the button once
again.
DisplayCassette tape play button
Cassette tape eject buttonFast-forward button
Program button
Dolby NR buttonRewind
button
Repeat button
APC button:
(next program)
(one being
played)
NOTE
When a metal tape is inserted, the
player will automatically compensate
for it and "MTL" will be displayed.
J16L_8R21-EA-02G.book Page 28 Saturday, June 8, 2002 11:16 AM

6-29
Interior Comfort
Au di o S ys t em
Form No. 8R21-EA-02G
* Noise reduction system manufactured
under license from Dolby Laboratories
Licensing Corporation.
Dolby and the double-D symbol are
trademarks of Dolby Laboratories
Licensing Corporation.
Ejecting the cassette tape
Press the cassette tape eject button ( ) to
eject the cassette tape.
Fast-forward/Rewind
Press the fast-forward button ( ) to
fast-forward.
Press the rewind button ( ) to rewind.
To stop this operation and play the
cassette tape, press the button again.
Reversing
Press the program button ( ) to
change cassette tape-playing direction.
Automatic program control (APC)
APC is used to find the beginning of either
the next program or the one being played.
Press the APC button ( ) to the
beginning of the next selection.
Press the APC button ( ) to the
beginning of the one being played. To
stop this operation and play the cassette
tape, press the button again.
If APC detects 15 seconds of blank space
it will automatically advance the tape to
the next selection.
Repeat play
This operation makes it possible to listen
to a selection repeatedly.
Press the repeat button ( ) during play.
The current selection playing will be
repeated ("RPT" will be displayed).
Press the repeat button ( ) once again
to cancel repeat play.
NOTE
The cassette tape can be ejected when
the ignition switch is in the OFF
position.
NOTE
When the cassette tape ends during
fast forward or rewind, it automatically
stops and starts playing.
NOTE
When the cassette tape ends, the unit
automatically reverses play.
NOTE
APC may not operate properly if
•A tape was recorded at a low level.
•A tape has long, silent intervals.
•A tape is a live recording.
•A tape has very short intervals of
less than 3 seconds.
NOTE
RPT may not operate properly if
•A tape was recorded at a low level.
•A tape has long, silent intervals.
•A tape is a live recording.
•A tape has very short intervals of
less than 3 seconds.
J16L_8R21-EA-02G.book Page 29 Saturday, June 8, 2002 11:16 AM

6-30
Interior Comfort
Au di o S ys t em
Form No. 8R21-EA-02G

Operating the Mini Disc (MD) Player
Inserting the MD
Insert the MD, label-side up with the
arrow pointed to the slot. The auto-
loading mechanism will set the MD and
begin play. There will be a short lapse
before play begins while the player reads
the digital signals on the MD.
Playing
Press the MD play button ( ) to
start playing when a MD is in the unit.
Ejecting the MD
Press the MD eject button ( ) to eject the
MD.Fast-forward/Reverse
Press and hold the fast-forward button
( ) to advance through a track at high
speed.
Press and hold the reverse button ( )
to reverse through a track at high speed.
Tr a c k s e a r c h
Press the track up button ( ) once to
skip forward to the beginning of the next
track.
Press the track down button ( ) once to
skip back to the beginning of the current
track.
DisplayMD play button
Random button Repeat buttonFast-forward button
Reverse
button Scan
button
Track up
button
Track down
button
MD slot
Display
button
MD eject
button
MD display
J16L_8R21-EA-02G.book Page 30 Saturday, June 8, 2002 11:16 AM
