Motor Compartment Overview
▼Motor Compartment Overview
1. Brake
fluid reservoir
2. Lead-acid battery
3. Fuse block
4. Cooling system cap
5. Coolant reservoir
6. Windshield washer fluid reservoir
Maintenance and Care
Owner Maintenance
6-10
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

Coolant
▼Inspecting Coolant Level
WARNING
Do not use a match or live
flame in
the motor compartment. DO NOT
ADD COOLANT WHEN THE EV
SYSTEM IS HOT :
A hot EV system is dangerous. If the EV
system has been running , parts of the
motor compartment can become very
hot. You could be burned. Carefully
inspect the EV system coolant in the
coolant reservoir, but do not open it.
Pull over to a safe location, then
switch the power switch o ff and make
sure the fan is not running before
attempting to work near the cooling
fan:
Working near the cooling fan when it is
running is dangerous. The fan could
continue running inde finitely even if
the EV system has stopped and the
motor compartment temperature is
high. You could be hit by the fan and
seriously injured.
Do not remove either
cooling system cap when the EV
system and radiator are hot:
When the EV system and radiator are
hot, scalding coolant and steam may
shoot out under pressure and cause
serious injury.
NOTE
Changing the coolant should be done
by an Authorized Mazda Dealer.
Inspect the antifreeze protection and
coolant level in the coolant reservoir at
least once a year ―at the beginning of
the winter season ―and before
traveling where temperatures may drop
below freezing.

Inspect the condition and connections
of the cooling system.
Replace any that are swollen or
deteriorated.

The coolant should be between the
FULL and LOW marks on the coolant
reservoir when the EV system is cool.

If it is at or near LOW, add enough
coolant to the coolant reservoir to
provide freezing and corrosion
protection and to bring the level to
FULL.
Securely tighten the coolant reservoir
tank cap after adding coolant.
CAUTION
 Radiator coolant will damage paint.
Rinse it
off quickly if spilled.
Maintenance and Care
Owner Maintenance
6-11
MX
-30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

If the “FL22” mark is shown on or
near the cooling system cap, use of
FL -22 is recommended when
replacing coolant. Using coolant
other than FL -22 may cause serious
damage to the cooling system.

If the coolant reservoir is empty or new
coolant is required frequently, consult
an Authorized Mazda Dealer.
Brake Fluid
▼ Inspecting Brake Fluid Level
WARNING
If the brake
fluid level is low, have the
brakes inspected:
A low brake fluid level is dangerous.
A low level could indicate brake lining
wear or a brake system leak which
could cause the brakes to fail and lead
to an accident.
Inspect the fluid level in the reservoir
regularly. It should be kept between
the MAX and MIN lines.
The level normally drops with
accumulated distance, a condition
associated with wear of brake linings. If
it is excessively low, have the brake
system inspected by an Authorized
Mazda Dealer.
Maintenance and Care
Owner Maintenance
6-12
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

Washer Fluid
▼Inspecting Washer Fluid Level
WARNING
Use only windshield washer
fluid or
plain water in the reservoir:
Using radiator antifreeze as washer
fl uid is dangerous. If sprayed on the
windshield, it will dirty the windshield,
a ff ect your visibility, and could result in
an accident.
Using Washer Fluid Without
Anti-freeze Protection in Cold
Weather:
Operating your vehicle in temperatures
below 4 °C (40 °F) using washer fluid
without anti-freeze protection is
dangerous as it could cause impaired
windshield vision and result in an
accident. In cold weather, always use
washer fluid with anti-freeze
protection.
NOTE
State or local regulations may restrict
the use of volatile organic compounds
(VOCs), which are commonly used as
anti-freeze agents in washer fluid. A
washer fluid with limited VOC content
should be used only if it provides
adequate freeze resistance for all
regions and climates in which the
vehicle will be operated.
Inspect fluid level in the washer fluid
reservoir; add fluid if necessary.
The top of the float should be between
F and E.

Use plain water if washer fluid is
unavailable.
But use only washer fluid in cold
weather to prevent it from freezing.
NOTE
Front and rear washer fluid is supplied
from the same reservoir.
Maintenance and Care
Owner Maintenance
6-13
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

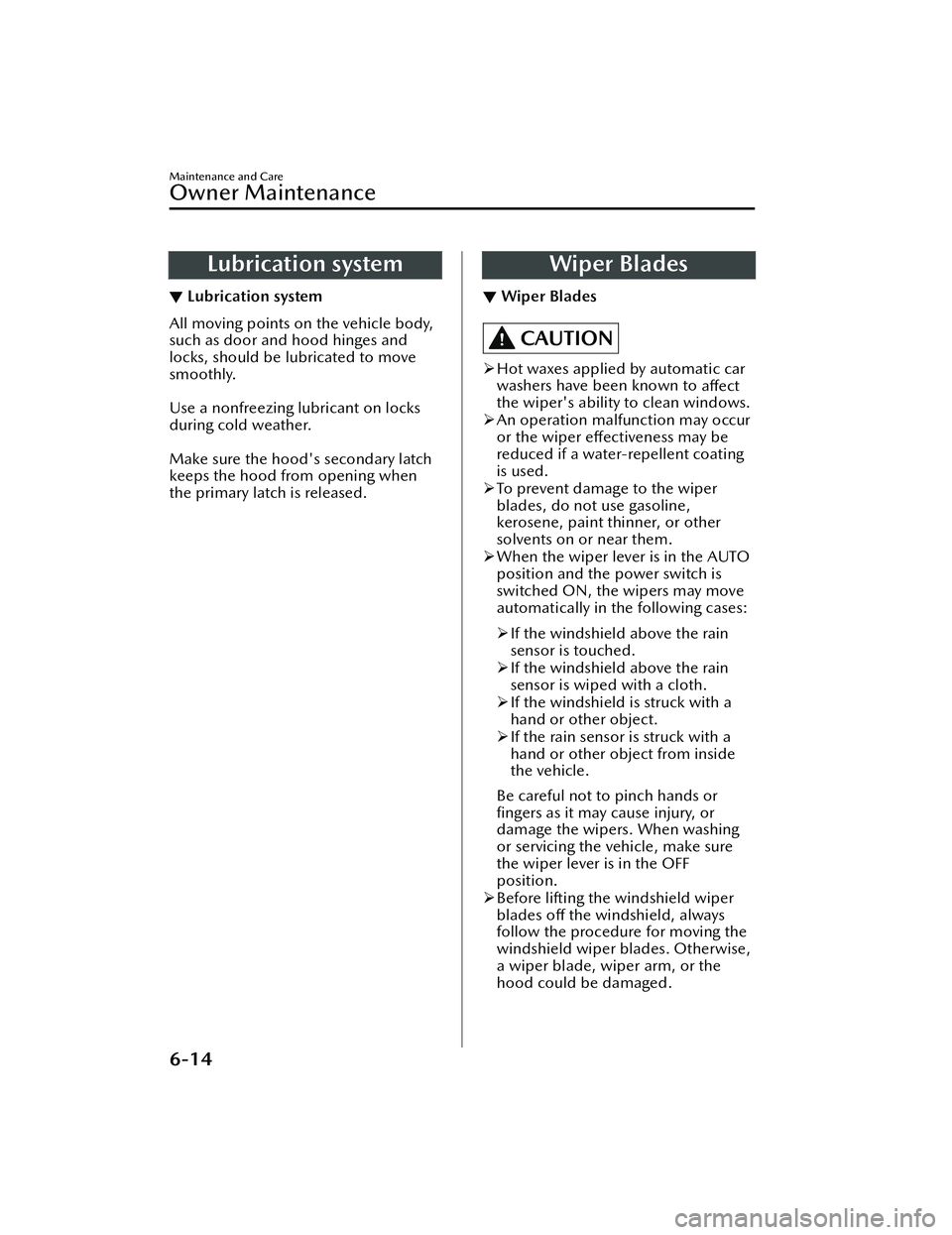

Lubrication system
▼Lubrication system
All moving points on the vehicle body,
such as door and hood hinges and
locks, should be lubricated to move
smoothly.

Use a nonfreezing lubricant on locks
during cold weather.

Make sure the hood's secondary latch
keeps the hood from opening when
the primary latch is released.
Wiper Blades
▼ Wiper Blades
CAUTION

Hot waxes applied by automatic car
washers have been known to
aff ect
the wiper's ability to clean windows.
 An operation malfunction may occur
or the wiper
eff ectiveness may be
reduced if a water-repellent coating
is used.
 To prevent damage to the wiper
blades, do not use gasoline,
kerosene, paint thinner, or other
solvents on or near them.
 When the wiper lever is in the AUTO
position and the power switch is
switched ON, the wipers may move
automatically in the following cases:
 If the windshield above the rain
sensor is touched.
 If the windshield above the rain
sensor is wiped with a cloth.
 If the windshield is struck with a
hand or other object.
 If the rain sensor is struck with a
hand or other object from inside
the vehicle.
Be careful not to pinch hands or fi ngers as it may cause injury, or
damage the wipers. When washing
or servicing the vehicle, make sure
the wiper lever is in the OFF
position.
 Before lifting the windshield wiper
blades off the windshield, always
follow the procedure for moving the
windshield wiper blades. Otherwise,
a wiper blade, wiper arm, or the
hood could be damaged.
Maintenance and Care
Owner Maintenance
6-14
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

Refer to the Replacing Windshield
Wiper Blades (page 6-15) section
for the procedure on how to move
the windshield wiper blades to the
service position.
Contamination of either the
windshield or the blades with foreign
matter can reduce wiper e ffectiveness.
Common sources are insects, tree sap,
and hot wax treatments used by some
commercial car washes.
If the blades are not wiping properly,
clean the window and blades with a
good cleaner or mild detergent; then
rinse thoroughly with clean water.
Repeat if necessary.
▼ Replacing Windshield Wiper
Blades
When the wipers no longer clean well,
the blades are probably worn or
cracked.
Replace them.
CAUTION

To prevent damaging a windshield
wiper blade, wiper arm, or the hood,
perform the following procedure.
 Before lifting the windshield wiper
blades off the windshield, always
move them to the service position.
 When putting the windshield
wiper blades back on the
windshield, make sure that they
are in the service position before
switching the power switch ON
and operating the windshield
wipers.
 Replace with Mazda genuine wiper
blades. If they are replaced with
wiper blades other than a Mazda
genuine product, they may not wipe
with the same e fficiency as the
genuine product.
 To prevent damage to the wiper
arms and other components, do not
try to sweep the wiper arm by hand.
 Do not bend the blade rubber
unnecessarily when replacing it.
Otherwise, the metal sti ffener in the
blade may deform and the
windshield wiper operation may be
adversely a ffected.
 Do not hold a wiper blade by its end
when raising the wiper arm.
Otherwise, the part may deform and
the wiping performance may lower.
 Forcefully lowering the wiper arms
could damage the wiper arm and
blade, and may scratch or crack the
windshield.
NOTE
You can replace the wiper blades
yourself, however you cannot replace
the wiper arms.
If you want to replace the wiper arms,
consult an Authorized Mazda Dealer.
Replace the wiper blades using the
following procedure.
1. Move the wipers to the service
positions using the following
procedure.
a) Switch the power switch ON.
b) Switch the power switch OFF.
c) Press up the wiper switch to theMIST position 2 times within 30
seconds after switching the
power switch OFF.
When the procedure is
completed, the wipers operate
and they stop at the service
positions.
2. Raise the wiper arms.
3. Slide the blade component in the direction of the arrow while
pressing the wiper arm tab to
Maintenance and Care
Owner Maintenance
6-15
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

remove the blade component from
the wiper arm.

4. Pull the blade rubber in thedirection of the arrow and slide it
to a position where the blade
holder groove can be checked.

5. Pull the end of the blade rubberfrom the blade holder groove in the
direction of the arrow and remove
the blade rubber from the blade
holder.

6. Insert the end of the new bladerubber into the groove of the blade
holder until it contacts the end of
the blade holder.

Maintenance and Care
Owner Maintenance
6-16
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

7. After pulling the blade rubber in thedirection of the arrow and sliding
the blade rubber to a position to
check the blade holder groove,
slide the blade rubber end in the
opposite direction.

8. Make sure that the blade rubber is
correctly installed to the blade
holder.
9. Slide the blade component and install it to the wiper arm.

10.Slowly lower the wiper arms ontothe windshield.
CAUTION
To prevent damage to the
windshield let the wiper arm down
easily, do not let it slap down on
the windshield.
11.Move the wipers to their initial positions using the following
procedure.
a) Make sure that the wipers are seton the windshield.
b) Switch the power switch ON.
c) Press up the wiper switch to the MIST position 1 time.
When the procedure is
completed, the wipers operate
and they stop at the initial
positions.
▼Replacing Rear Window Wiper
Blade
When the wiper no longer cleans well,
the blade is probably worn or cracked.
Replace it.
CAUTION
To prevent damage to the wiper arm
and other components, do not move
the wiper by hand.
1. Remove the cover.
Maintenance and Care
Owner Maintenance
6-17
MX
-30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

2. Remove the stopper and raise thewiper arm.
3. Firmly rotate the wiper blade to theright until it unlocks, then remove
the blade.
CAUTION
To prevent damage to the rear
window, do not let the wiper arm
fall on it.
4. Pull down the blade rubber andslide it out of the blade holder.
5. Remove the metal sti ffeners from
the blade rubber and install them in
the new blade.
CAUTION
Do not bend or discard the
sti ffeners. You need to use them
again.
6. Carefully insert the new blade rubber.
Then install the blade assembly in
the reverse order of removal.
Maintenance and Care
Owner Maintenance
6-18
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

Lead-acid Battery
▼Lead-acid Battery
WARNING
Read the following precautions
carefully before using the lead-acid
battery or inspecting to ensure safe
and correct handling:
Always wear eye protection
when working near the lead-acid
battery:
Working without eye protection is
dangerous. Lead-acid battery fluid
contains SULFURIC ACID which could
cause blindness if splashed into your
eyes. Also, hydrogen gas produced
during normal lead-acid battery
operation, could ignite and cause the
lead-acid battery to explode.
Wear eye protection and
protective gloves to prevent contact
with lead-acid battery fluid:
Spilled lead-acid battery fluid is
dangerous.
Lead-acid battery fluid contains
SULFURIC ACID which could cause
serious injuries if it gets in eyes, or on
the skin or clothing. If this happens,
immediately flush your eyes with water
for 15 minutes or wash your skin
thoroughly and get medical attention.
Always keep lead-acid batteries
out of the reach of children:
Allowing children to play near
lead-acid batteries is dangerous.
Lead-acid battery fluid could cause
serious injuries if it gets in the eyes or
on the skin.
Keep flames and sparks away
from open lead-acid battery cells and
do not allow metal tools to contact
the positive (+) or negative (-)
terminal of the lead-acid battery
when working near a lead-acid
battery. Do not allow the positive (+)
terminal to contact the vehicle body:
Flames and sparks near open lead-acid
battery cells are dangerous. Hydrogen
gas, produced during normal lead-acid
battery operation, could ignite and
cause the lead-acid battery to explode.
An exploding lead-acid battery can
cause serious burns and injuries. Keep
all flames including cigarettes and
sparks away from open lead-acid
battery cells.
Maintenance and Care
Owner Maintenance
6-19
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07
