Black plate (85,1)
Before Getting In
lBe sure the windows, outside mirrors,
and outside lights are clean.
lInspect inflation pressures and
condition of tires.
lLook under the vehicle for any sign of
a leak.
lIf you plan to back up, make sure
nothing is in your way.
NOTE
Engine oil, engine coolant, brake/clutch
fluid, washer fluid, and other fluid
levels should be inspected. See
Maintenance, Section 8.
After Getting In
lAre all doors closed and locked?
lIs the seat adjusted properly?
lAre the inside and outside mirrors
adjusted?
lIs everyone's seat belt fastened?
lCheck all gauges.
lCheck all warning lights when the
ignition switch is turned to the ON
position.
lRelease the parking brake and make
sure the parking brake warning light
goes off.
Always be thoroughly familiar with your
Mazda.
Before Driving Your Mazda
Before Starting the Engine
4-7
MX-5 Miata_8T72-EA-04G_Edition2 Page85
Tuesday, August 31 2004 11:24 AM
Form No.8T72-EA-04G

Black plate (88,1)
Winter Driving
lCarry emergency gear, including tire
chains, window scraper, flares, a small
shovel, jumper cables, and a small bag
of sand or salt.
Ask an Authorized Mazda Dealer to
perform the following precautions:
lHave the proper ratio of antifreeze in
the radiator.
lInspect the battery and its cables. Cold
reduces battery capacity.
lUse only cold-weather engine oil (page
8-15).
lInspect the ignition system for damage
and loose connections.
lUse washer fluid made with
antifreeze ―but don't use engine
coolant antifreeze for washer fluid
(page 8-25).
lDon't use the parking brake in freezing
weather as the parking brake may
freeze. Instead, shift to P with an
automatic transmission and to 1 or R
with a manual transmission. Block the
rear wheels.
q Snow Tires
WARNING
Mixing Tire Types:
Using tires different in size or type is
dangerous. Your vehicle's handling
could be greatly affected and result in
an accident. Use only the same size
and type tires (snow, radial, or non-
radial) on all four wheels.
CAUTION
Check local regulations before using
studded tires.
Use snow tires on all four wheels
Don't go faster than 120 km/h (75 mph)
while driving with snow tires. Inflate
snow tires 30 kPa (0.3 kgf/cm
2, 4.3 psi)
more than recommended on the tire
pressure label (driver's door), but never
more than the maximum cold-tire pressure
shown on the tires.
Your vehicle is originally equipped with
summer tires designed for optimum
traction on wet and dry roads. If your
vehicle is to be used on snow and ice
covered roads, you may find it necessary
to replace the original equipment tires
with snow tires, during the winter months.
4-10
Before Driving Your Mazda
Driving Tips
MX-5 Miata_8T72-EA-04G_Edition2 Page88
Tuesday, August 31 2004 11:24 AM
Form No.8T72-EA-04G

Black plate (110,1)
Meters and Gauges
Speedometer ...................................................................................................... page 5-19
Odometer, Trip Meter and Selector .................................................................... page 5-19
Tachometer ........................................................................................................ page 5-20
Engine Coolant Temperature Gauge .................................................................. page 5-20
Fuel Gauge ........................................................................................................ page 5-20
Engine Oil Pressure Gauge ................................................................................ page 5-21
5-18
Driving Your Mazda
Instrument Cluster and Indicators
MX-5 Miata_8T72-EA-04G_Edition2 Page110
Tuesday, August 31 2004 11:24 AM
Form No.8T72-EA-04G

Black plate (112,1)
qTachometer
The tachometer shows engine speed in
thousands of revolutions per minute
(rpm).
Red zone
CAUTION
Don't run the engine with the
tachometer needle in the RED ZONE.
This may cause severe engine damage.
qEngine Coolant Temperature
Gauge
The engine coolant temperature gauge
shows the temperature of the engine
coolant.
If the needle exceeds normal range toward
H, it indicates overheating.
CAUTION
Driving with an overheated engine can
cause serious engine damage (page
7-11).
qFuel Gauge
The fuel gauge shows approximately how
much fuel is in the tank. We recommend
keeping the tank over 1/4 full. When the
low fuel warning light illuminates or
when the needle is near E, refuel as soon
as possible.
5-20
Driving Your Mazda
Instrument Cluster and Indicators
MX-5 Miata_8T72-EA-04G_Edition2 Page112
Tuesday, August 31 2004 11:24 AM
Form No.8T72-EA-04G

Black plate (209,1)

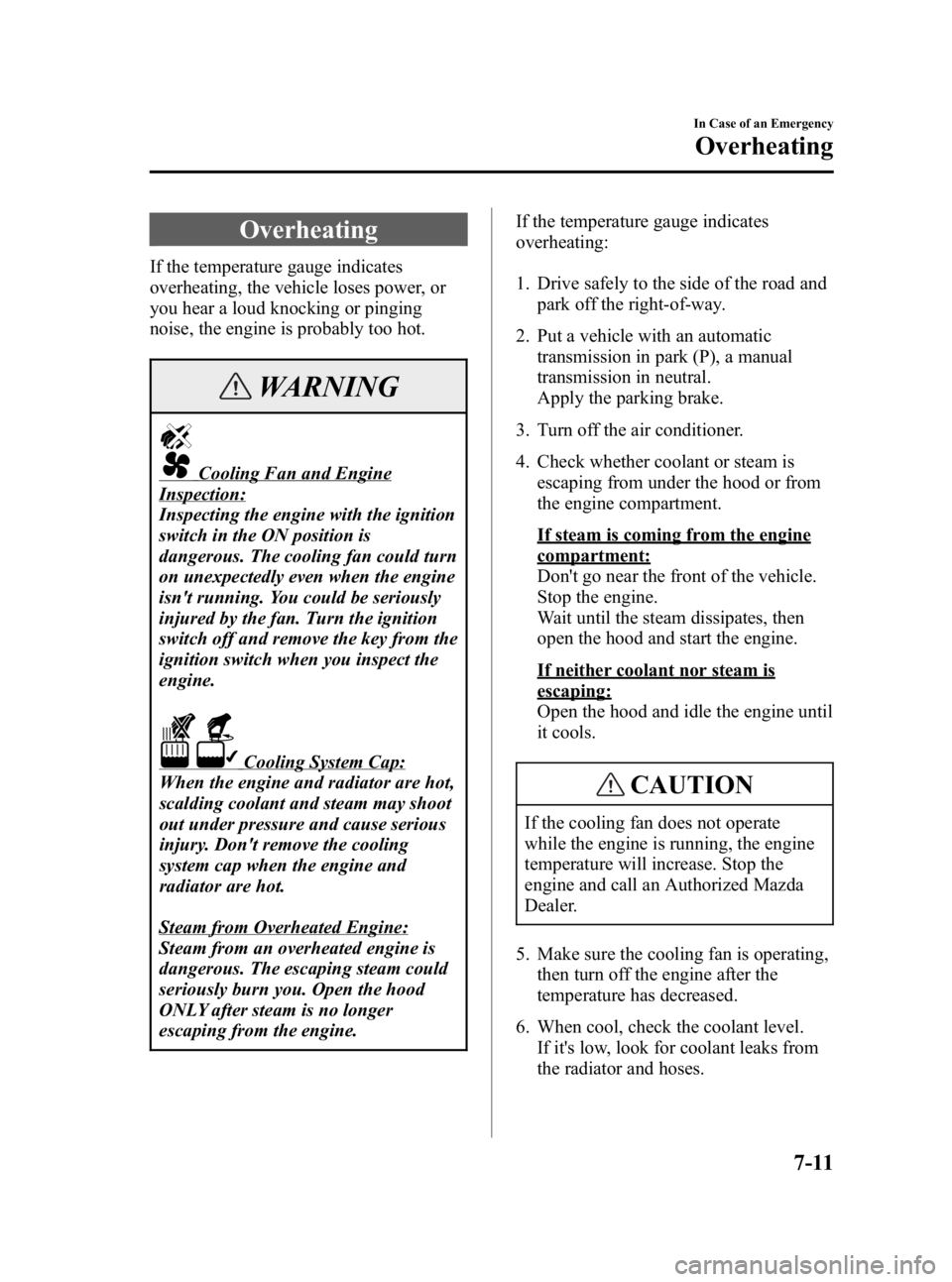

Overheating
If the temperature gauge indicates
overheating, the vehicle loses power, or
you hear a loud knocking or pinging
noise, the engine is probably too hot.
WARNING
Cooling Fan and Engine
Inspection:
Inspecting the engine with the ignition
switch in the ON position is
dangerous. The cooling fan could turn
on unexpectedly even when the engine
isn't running. You could be seriously
injured by the fan. Turn the ignition
switch off and remove the key from the
ignition switch when you inspect the
engine.
Cooling System Cap:
When the engine and radiator are hot,
scalding coolant and steam may shoot
out under pressure and cause serious
injury. Don't remove the cooling
system cap when the engine and
radiator are hot.
Steam from Overheated Engine:
Steam from an overheated engine is
dangerous. The escaping steam could
seriously burn you. Open the hood
ONLY after steam is no longer
escaping from the engine. If the temperature gauge indicates
overheating:
1. Drive safely to the side of the road and
park off the right-of-way.
2. Put a vehicle with an automatic transmission in park (P), a manual
transmission in neutral.
Apply the parking brake.
3. Turn off the air conditioner.
4. Check whether coolant or steam is escaping from under the hood or from
the engine compartment.
If steam is coming from the engine
compartment:
Don't go near the front of the vehicle.
Stop the engine.
Wait until the steam dissipates, then
open the hood and start the engine.
If neither coolant nor steam is
escaping:
Open the hood and idle the engine until
it cools.
CAUTION
If the cooling fan does not operate
while the engine is running, the engine
temperature will increase. Stop the
engine and call an Authorized Mazda
Dealer.
5. Make sure the cooling fan is operating, then turn off the engine after the
temperature has decreased.
6. When cool, check the coolant level. If it's low, look for coolant leaks from
the radiator and hoses.
In Case of an Emergency
Overheating
7-11
MX-5 Miata_8T72-EA-04G_Edition2 Page209
Tuesday, August 31 2004 11:25 AM
Form No.8T72-EA-04G

Black plate (210,1)
If you find a leak or other damage, or if
coolant is still leaking:
Stop the engine and call an Authorized
Mazda Dealer.
Cooling system cap
Engine coolant
reservoir
If you find no problems, the engine is
cool, and no leaks are obvious:
Carefully add coolant as required (page
8-18).
CAUTION
If the engine continues to overheat or
frequently overheats, have the cooling
system inspected. The engine could be
seriously damaged unless repairs are
made. Consult an Authorized Mazda
Dealer.
7-12
In Case of an Emergency
Overheating
MX-5 Miata_8T72-EA-04G_Edition2 Page210
Tuesday, August 31 2004 11:25 AM
Form No.8T72-EA-04G

Black plate (217,1)
8Maintenance and Care
How to keep your Mazda in top condition.
Introduction .................................................................................. 8-2Introduction ............................................................................... 8-2
Scheduled Maintenance ................................................................ 8-3 Scheduled Maintenance (North America) ................................. 8-3
Scheduled Maintenance (Except North America) ..................... 8-8
Owner Maintenance ................................................................... 8-12 Owner Maintenance Schedule ................................................ 8-12
Owner Maintenance Precautions ............................................. 8-13
Engine Compartment Overview .............................................. 8-14
Engine Oil ............................................................................... 8-15
Engine Coolant ....................................................................... 8-18
Brake Fluid ............................................................................. 8-20
Clutch Fluid ............................................................................ 8-21
Power Steering Fluid ............................................................... 8-22
Automatic Transmission Fluid (ATF) ..................................... 8-23
Washer Fluid ........................................................................... 8-25
Body Lubrication .................................................................... 8-26
Air Filter .................................................................................. 8-26
Wiper Blades ........................................................................... 8-27
Battery ..................................................................................... 8-29
Tires ........................................................................................ 8-30
Light Bulbs ............................................................................. 8-34
Fuses ....................................................................................... 8-38
Appearance Care ........................................................................ 8-42 How to Minimize Environmental Paint Damage .................... 8-42
Exterior Care ........................................................................... 8-44
Interior Care ............................................................................ 8-48
8-1
MX-5 Miata_8T72-EA-04G_Edition2 Page217
Tuesday, August 31 2004 11:25 AM
Form No.8T72-EA-04G

Black plate (220,1)
qSchedule 1
Maintenance Interval Number of months or kilometers (miles), whichever comes first
Months 6 12 18 24 30 36 42 48
×1000 km 12 24 36 48 60 72 84 96
×1000 miles 7.5 15 22.5 30 37.5 45 52.5 60
ENGINE
Engine valve clearance I
Engine timing belt Replace every 96,000 km (60,000 miles)
Drive belt (tension) I I
Engine oil MX-5/Miata R R R R R R R R
MAZDASPEED MX-5 Replace every 8,000 km (5,000 miles) or 5 months
Engine oil filter MX-5/Miata R R R R R R R R
MAZDASPEED MX-5 Replace every 8,000 km (5,000 miles) or 5 months
COOLING SYSTEM
Cooling system I I
Engine coolant Replace at first 96,000 km (60,000 miles) or 48 months;
after that, every 24 months
FUEL SYSTEM
Idle speed I I
Air filter C C R C
Fuel lines and hoses
*II
Hoses and tubes for emission*I
IGNITION SYSTEM
Spark plugs MX-5/Miata R R
MAZDASPEED MX-5 Replace every 160,000 km (100,000 miles)
8-4
Maintenance and Care
Scheduled Maintenance
MX-5 Miata_8T72-EA-04G_Edition2 Page220
Tuesday, August 31 2004 11:25 AM
Form No.8T72-EA-04G

Black plate (222,1)
qSchedule 2
Maintenance Interval Number of months or kilometers (miles), whichever comes first
Months 4 8 12 16 20 24 28 32 36 40 44 48
×1000 km 8 16 24 32 40 48 56 64 72 80 88 96
×1000 miles 5 10 15 20 25 30 35 40 45 50 55 60
ENGINE
Engine valve clearance I
Engine timing belt Replace every 96,000 km (60,000 miles)
Drive belts (tension) I I
Engine oil
(Except Puerto Rico) MX-5/Miata R R R R R R R
RRRRR
MAZDAS-
PEED MX-5 Replace every 5,000 km (3,000 miles) or 3 months
Engine oil (Puerto Rico) Replace every 5,000 km (3,000 miles) or 3 months
Engine oil filter MX-5/Miata R R R R R R R
RRRRR
MAZDAS-
PEED MX-5 Replace every 5,000 km (3,000 miles) or 3 months
COOLING SYSTEM
Cooling system I I
Engine coolant Replace at first 96,000 km (60,000 miles) or
48 months ; after that, every 24 months
Engine coolant level I I I I I I IIIIII
FUEL SYSTEM
Idle speed II
Air filter CC R C
Fuel lines and hoses
*II
Hoses and tubes for emission*I
IGNITION SYSTEM
Spark plugs MX-5/Miata R R
MAZDAS-
PEED MX-5
Replace every 160,000 km (100,000 miles)
ELECTRICAL SYSTEM
Function of all lights I I I I I I I IIIII
8-6
Maintenance and Care
Scheduled Maintenance
MX-5 Miata_8T72-EA-04G_Edition2 Page222
Tuesday, August 31 2004 11:25 AM
Form No.8T72-EA-04G

Black plate (225,1)
qSchedule
Maintenance
Interval Number of months or kilometers (miles), whichever comes first
Months 6 12 18 24 30 36 42 48 54 60 66 72 78 84 90 96
×1000 km 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160
×1000 miles
6.25 12.5 18.752531.25 37.5 43.755056.25 62.5 68.757581.25 87.5 93.75100
ENGINE
Engine valve clearance Inspect every 100,000 km (62,500 miles) or 60 months
Drive belts
*1IIIIIIIIIIIIIIII
Engine timing belt*2Replace every 100,000 km (62,500 miles)
Engine oil*3RRRRRRRRRRRRRRRR
Engine oil filter*3RRRRRRRRRRRRRRRR
COOLING SYSTEM
Cooling system I I I I I I I I
Engine coolant except Australia
and New Zealand
Replace every 24 months
Australia and New
Zealand Replace at first 80,000 km (50,000 miles) or 48 months ; after that, every 24
months
FUEL SYSTEM
Idle speed I I I I I I I I
Air filter
*4
except Australia
and New Zealand CCRCCRCC
Australia and New
Zealand CRCRC
Fuel filter except Australia
and New Zealand
RRRR
Australia and New
Zealand RRR
Fuel lines and hoses I I I I I I I I
IGNITION SYSTEM
Spark plugs Replace every 40,000 km (25,000 miles)
EMISSION CONTROL SYSTEM
Evaporative system I I I I I I I I
ELECTRICAL SYSTEM
All electrical system
*5IIIIIIII
Maintenance and Care
Scheduled Maintenance
8-9
MX-5 Miata_8T72-EA-04G_Edition2 Page225
Tuesday, August 31 2004 11:25 AM
Form No.8T72-EA-04G
