display MAZDA MODEL RX 8 2004 Owners Manual (in English)

1-2
Your Vehicle at a Glance
Form No. 8R65-EA-03C
Dashboard Overview
Climate control system
Glove box
Shift lever Parking brakeAudio system
Passenger-side air bag Hazard warning flasher switch Wiper and washer lever
Ashtray/Lighter Information display
Fog lights switch*
Power window lock switch Lighting control/Turn signals Instrument cluster
Power window switches Driver-side air bag
Ignition switch Hood release handle
Audio control switchCup holder
Steering column release lever
(page 5-51)
(page 2-27)
(page 5-29)
(page 5-48)
(page 5-50)
(page 3-15)
(page 3-14)
(page 3-18)
(page 6-34)
(page 3-25)(page 6-40)
(page 5-5)
(page 5-8)/(page 5-10)
(page 6-43)/(page 6-42)(page 6-44)
(page 5-2) (page 5-55)
(page 6-10)
(page 6-2)
(page 2-27)
(page 6-45)
*Some models.
J60E_8R65-EA-03C_Edition2.book Page 2 Saturday, April 26, 2003 1:48 PM

5-30
Driving Your Mazda
Instrument Cluster and Indicators
Form No. 8R65-EA-03C

Speedometer
The speedometer indicates the speed of
the vehicle.

Speed Unit Selector
In some countries, you may have to
change the speed units between km/h and
mph.
Press the speed unit selector for 2 second
or more.
The speed units for the speedometer will
change between km/h and mph.

Odometer, Trip Meter and Trip
Meter Selector
The display mode can be changed
between trip meter A and trip meter B by
pressing the selector while they are
displayed. The selected mode will be
displayed.
NOTE
Odometer and trip meter distance units
will change between kilometers and
miles in accordance with the speed
unit.
Speedometer
Speed unit selector
Trip meter
Trip meter selector
Odometer
Odometer
OdometerTrip meter A
Press the selector
Press the selector Trip meter B
J60E_8R65-EA-03C_Edition2.book Page 30 Saturday, April 26, 2003 1:48 PM

5-31
Driving Your Mazda
Instrument Cluster and Indicators
Form No. 8R65-EA-03C
Odometer
The odometer records the total distance
the vehicle has been driven.
Tr i p m e t e r
The trip meter can record the total
distance of two trips. One is recorded in
trip meter A, and the other is recorded in
trip meter B.
For instance, trip meter A can record the
distance from the point of origin, and trip
meter B can record the distance from
where the fuel tank is filled.
When trip meter A is selected, pressing
the selector again within one second will
change to trip meter B mode.
When trip meter A is selected, TRIP A
will be displayed. When trip meter B is
selected, TRIP B will be displayed.The trip meter records the total
distance the vehicle is driven until the
meter is again reset. Return it to "0.0"
by holding the selector depressed for
more than 1 second. Use this meter to
measure trip distances and to compute
fuel consumption.
Tachometer
The tachometer shows engine speed in
thousands of revolutions per minute
(rpm).
NOTE
When the ignition switch is in the ACC
or LOCK position, the odometer or trip
meters cannot be displayed, however,
pressing the selector button can
inadvertently switch the trip meters or
reset them during an approximate ten-
minute period in the following cases:
•After the ignition switch is turned to
the ACC or LOCK position from
the ON position.
•After any door is opened.
NOTE
•Only the trip meters record tenths of
kilometers (miles).
•The trip record will be erased when:
The power supply is interrupted
(blown fuse or the battery is
disconnected).
The vehicle is driven over
999.9 km (mile).
Red zone Striped zone
Automatic
transmission
J60E_8R65-EA-03C_Edition2.book Page 31 Saturday, April 26, 2003 1:48 PM

5-34
Driving Your Mazda
Instrument Cluster and Indicators
Form No. 8R65-EA-03C

Dashboard Illumination
Rotate the thumb wheel to adjust the
brightness of the instrument cluster and
other illuminations in the dashboard.
Canceling the illumination dimmer
When the headlight switch is in the or
position, the illumination of the
instrument cluster and the information
display dims (the instrument cluster
illumination color turns to red).
When driving on snowy or foggy roads, or
in other situations when the instrument
cluster or information display’s visibility
is reduced due to glare from surrounding
brightness, cancel the illumination
dimmer and increase the illumination
intensity.To cancel the illumination dimmer, rotate
the thumb wheel upward fully. You may
hear a click sound and the illumination
dimmer will be canceled (instrument
cluster illumination color turns to white).
NOTE
•The brightness of dashboard
illuminations (except instrument
cluster) can be adjusted when the
headlight switch is in the or
position.
•The brightness of the instrument
cluster illumination can be adjusted
when the headlight switch is in any
position.
Bright
Dim
NOTE
If the dashboard illumination switch is
kept at the illumination dimmer cancel
position, the instrument cluster and the
information display will not dim when
the headlight switch is turned to the
or position again.
J60E_8R65-EA-03C_Edition2.book Page 34 Saturday, April 26, 2003 1:48 PM

6-1
Form No. 8R65-EA-03C
6Interior Comfort
Use of various features for drive comfort, including climate control
and audio system.
Climate Control System
................................................................ 6-2
Operating Tips ........................................................................... 6-2
Vent Operation ........................................................................... 6-3
Control Panel ............................................................................. 6-5
Audio System
............................................................................... 6-10
Antenna ................................................................................... 6-10
Operating Tips for Audio System ............................................ 6-10
Audio Set ................................................................................. 6-17
Audio Control Switch Operation ............................................. 6-34
Safety Certification .................................................................. 6-36
Interior Equipment
..................................................................... 6-37
Sunvisors ................................................................................. 6-37
Interior Lights .......................................................................... 6-37
Information Display ................................................................ 6-40
Lighter ..................................................................................... 6-42
Ashtray .................................................................................... 6-43
Cup Holder .............................................................................. 6-44
Storage Compartments ............................................................ 6-45
Accessory Socket .................................................................... 6-48
J60E_8R65-EA-03C_Edition2.book Page 1 Saturday, April 26, 2003 1:48 PM

6-5
Interior Comfort
Climate Control System
Form No. 8R65-EA-03C
Climate control information is displayed on the information display.

Control Switches
Temperature control dial
This dial controls temperature. Turn it
clockwise for hot and counterclockwise
for cold.Fan control dial
This dial allows variable fan speeds.
0—Fan off
1—Low speed
2—Medium low speed
3—Medium high speed
4—High speed
Control Panel
Temperature control dial Fan control dial
Mode selector switch Air intake selectorA/C SwitchRear window defroster switch
Windshield defroster switch(page 5-53)
Hot Cold
J60E_8R65-EA-03C_Edition2.book Page 5 Saturday, April 26, 2003 1:48 PM

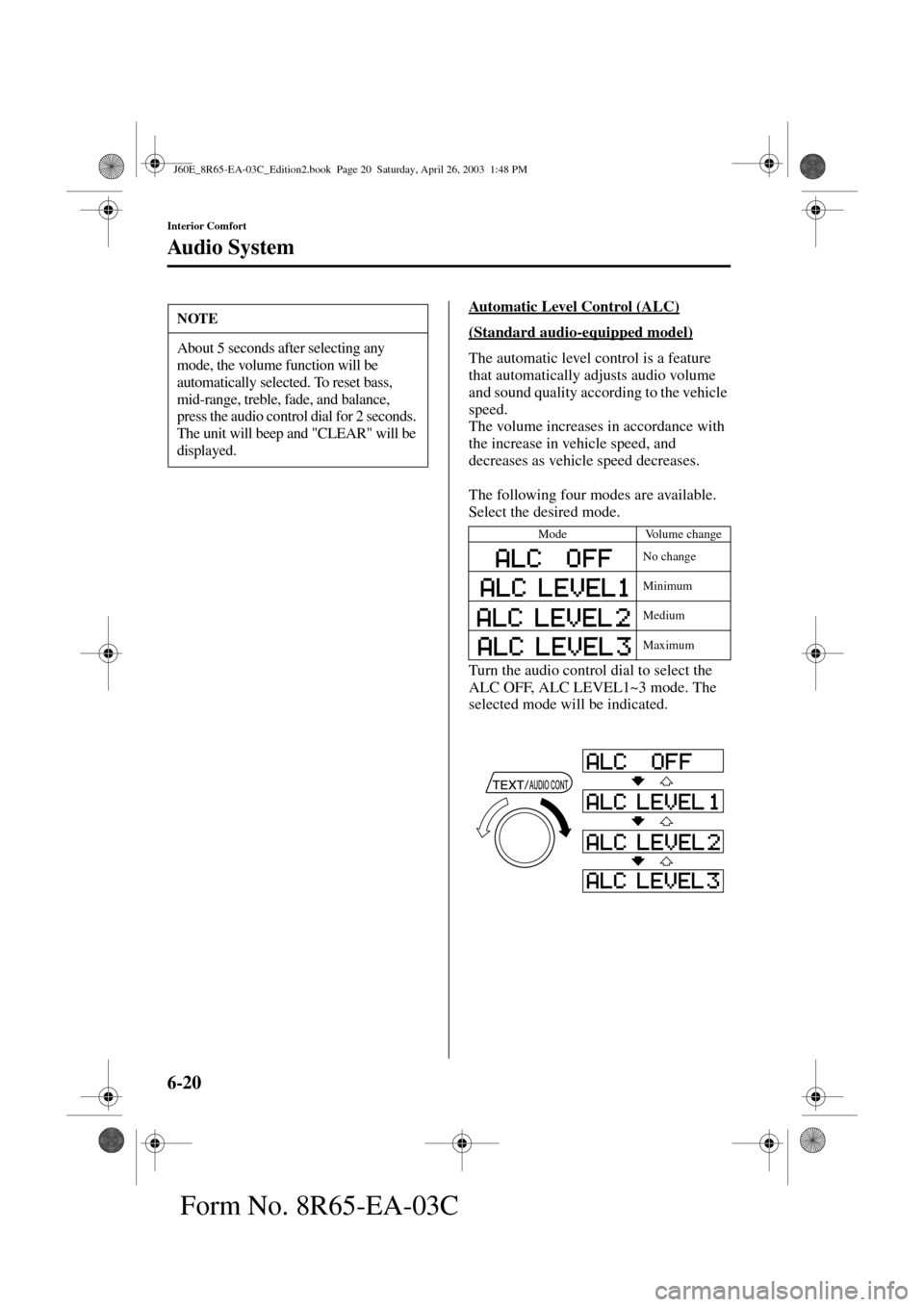

6-20
Interior Comfort
Au di o S ys t em
Form No. 8R65-EA-03C
Automatic Level Control (ALC)
(Standard audio-equipped model)
The automatic level control is a feature
that automatically adjusts audio volume
and sound quality according to the vehicle
speed.
The volume increases in accordance with
the increase in vehicle speed, and
decreases as vehicle speed decreases.
The following four modes are available.
Select the desired mode.
Turn the audio control dial to select the
ALC OFF, ALC LEVEL1~3 mode. The
selected mode will be indicated.
NOTE
About 5 seconds after selecting any
mode, the volume function will be
automatically selected. To reset bass,
mid-range, treble, fade, and balance,
press the audio control dial for 2 seconds.
The unit will beep and "CLEAR" will be
displayed.
Mode Volume change
No change
Minimum
Medium
Maximum
J60E_8R65-EA-03C_Edition2.book Page 20 Saturday, April 26, 2003 1:48 PM

6-22
Interior Comfort
Au di o S ys t em
Form No. 8R65-EA-03C

Operating the Radio
Radio ON
Press a band selector button ( , )
to turn the radio on.
Band selection
Choose AM by pressing the AM button
( ) and FM by pressing the FM1/2
button ( ).
The selected mode will be indicated. If
FM stereo is being received, "ST" will be
displayed.Tu n i n g
The radio has the following tuning
methods: Manual, Seek, Scan, Preset
channel, and Auto memory tuning. The
easiest way to tune stations is to set them
on preset channels.
Manual tuning dial/
Auto memory buttonChannel preset buttons
Scan button Band selector buttons
Seek
tuning
button
NOTE
If the FM broadcast signal becomes
weak, reception automatically changes
from STEREO to MONO for reduced
noise, and the "ST" indicator will go
out.
NOTE
If the power supply is interrupted (fuse
blows or the battery is disconnected),
the preset channels will be canceled.
J60E_8R65-EA-03C_Edition2.book Page 22 Saturday, April 26, 2003 1:48 PM

6-23
Interior Comfort
Au di o S ys t em
Form No. 8R65-EA-03C
Manual tuning
Turning the manual tuning dial will
change the frequency higher or lower.
Seek tuning
Pressing the seek tuning button ( , )
will cause the tuner to seek a higher or
lower frequency automatically.
Scan tuning
Press the scan button ( , ) to
automatically sample strong stations.
Scanning stops at each station for about
5 seconds. To hold a station, press the
scan button ( , ) again during this
interval.
Preset channel tuning
The 6 preset channels can be used to store
6 AM and 12 FM stations.
1. To set a channel first select AM, FM1,
or FM2. Tune to the desired station.
2. Depress a channel preset button for
about 2 seconds until a beep is heard.
The preset channel number and station
frequency will be displayed. The
station is now held in the memory.
3. Repeat this operation for the other
stations and bands you want to store.
To tune one in the memory, select AM,
FM1, or FM2 and then press its
channel preset button. The station
frequency and the channel number will
be displayed.Auto memory tuning
This is especially useful when driving in
an area where the local stations are not
known. Additional AM/FM stations can
be stored without disturbing the
previously set channels.
Press and hold the auto memory button
( ) for about 2 seconds until a beep
is heard; the system will automatically
scan and temporarily store up to 6 stations
with the strongest frequencies in each
selected band in that area.
After scanning is completed, the station
with the strongest frequency will be tuned
and its frequency displayed.
Press and release the auto memory button
( ) to recall stations from the auto-
stored stations. One stored station will be
selected each time; its frequency and
channel number will be displayed.
NOTE
If you continue to press and hold the
button, the frequency will continue
changing without stopping.
NOTE
If the power supply is interrupted (fuse
blows or the battery is disconnected),
the preset channels will be canceled.
NOTE
If no stations can be tuned after
scanning operations, "A" will be
displayed.
J60E_8R65-EA-03C_Edition2.book Page 23 Saturday, April 26, 2003 1:48 PM

6-24
Interior Comfort
Au di o S ys t em
Form No. 8R65-EA-03C

Operating the Cassette Tape Player*
Cassette tape insert
Insert the cassette tape into the slot, open
edge to the right and cassette tape will
begin play, and "TAPE PLAY" will be
displayed. At the end of the cassette tape,
the unit automatically reverses cassette
tape play. When is lit, the cassette
tape’s top side is playing. When is lit,
the bottom side is on.
Playing
Press the cassette tape play button
( ) to start play when a cassette
tape is in the unit. If there isn’t a cassette
tape in the unit when the cassette tape
play button ( ) is pressed, "NO
TAPE" will flash on and off.Dolby noise reduction
When using a tape with Dolby NR*, push
the Dolby NR button ( ). The
symbol will be displayed. To play a tape
without Dolby NR, push the button once
again.
* Noise reduction system manufactured
under license from Dolby Laboratories
Licensing Corporation.
Dolby and the double-D symbol are
trademarks of Dolby Laboratories
Licensing Corporation.
Ejecting the cassette tape
Press the cassette tape eject button ( ) to
eject the cassette tape.
Fast-forward button
Rewind
button APC button:
(next program)
(one being
played)
Cassette tape eject button
Program button Dolby NR buttonRepeat buttonCassette tape play button
*Some models.
J60E_8R65-EA-03C_Edition2.book Page 24 Saturday, April 26, 2003 1:48 PM
