Black plate (178,1)
When flashing
lUnder the following conditions, the
KEY warning light (red) flashes to
inform the driver that the start knob
will not rotate to the ACC position
even if it is pushed in from the LOCK
position.
lThe advanced key battery is dead.lThe advanced key is not within
operational range.
lThe advanced key is placed in areas
where it is difficult for the system to
detect the signal (page 3-7).
lA key from another manufacturer
similar to the advanced key is in the
operational range.
lUnder the following conditions, the
KEY warning light (red) will flash
continuously when the start knob has
not been returned to the LOCK
position to notify the driver that the
advanced key has been removed from
the vehicle. It will stop flashing when
the advanced key is back inside the
vehicle.
lThe start knob has not been returned
to the LOCK position, the driver's
door is open, and the advanced key
is removed from the vehicle.
lThe start knob has not been returned
to the LOCK position and all the
doors are closed after removing the
advanced key from the vehicle.
NOTE
The flashing KEY warning light (red)
and the beep sound operate
simultaneously (page 3-21).
KEY Indicator Light (Green)
When illuminated
When the start knob is pushed in from the
LOCK position, the system confirms that
the correct advanced key is inside the
vehicle, the KEY indicator light (green)
illuminates, and the start knob can be
turned to the ACC position (page 3-10).
When flashing
When the advanced key battery power is
low, the KEY indicator light flashes for 30
seconds after the start knob is turned from
the ON position to the ACC or LOCK
position. Replace with a new battery
before the advanced key becomes
unusable (page 3-6).
NOTE
The advanced key can be set so that the
KEY indicator light (green) does not
flash even if the battery power is low.
Refer to Setting Change (Function
Customization)(page 3-20).
qSecurity Indicator Light
This indicator light starts flashing every 2
seconds when the ignition switch is turned
from the ON to the ACC position and the
immobilizer system is armed.
5-48
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
RX-8_8U58-EA-05J_Edition1 Page178
Thursday, August 25 2005 4:56 PM
Form No.8U58-EA-05J

Black plate (179,1)
The light stops flashing when the ignition
switch is turned to the ON position with
the correct ignition key.
At this time, the immobilizer system is
disarmed and the light illuminates for
about 3 seconds and then goes out.
If the engine doesn't start with the correct
ignition key, and the security indicator
light keeps illuminating or flashing, the
system may have a malfunction. Consult
an Authorized Mazda Dealer.
qHeadlight High-Beam Indicator
Light
This light indicates one of two things:
lThe high-beam headlights are on.
lThe turn signal lever is in the flash-to-
pass position.
qShift Position Indicator Light
(Automatic Transmission)
This indicates the selected shift position
when the ignition switch is in the ON
position.
Gear position indicator
Gear position indicator
When the shift lever is in the D or M
position, the numeral for the selected gear
displays.
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
5-49
RX-8_8U58-EA-05J_Edition1 Page179
Thursday, August 25 2005 4:56 PM
Form No.8U58-EA-05J

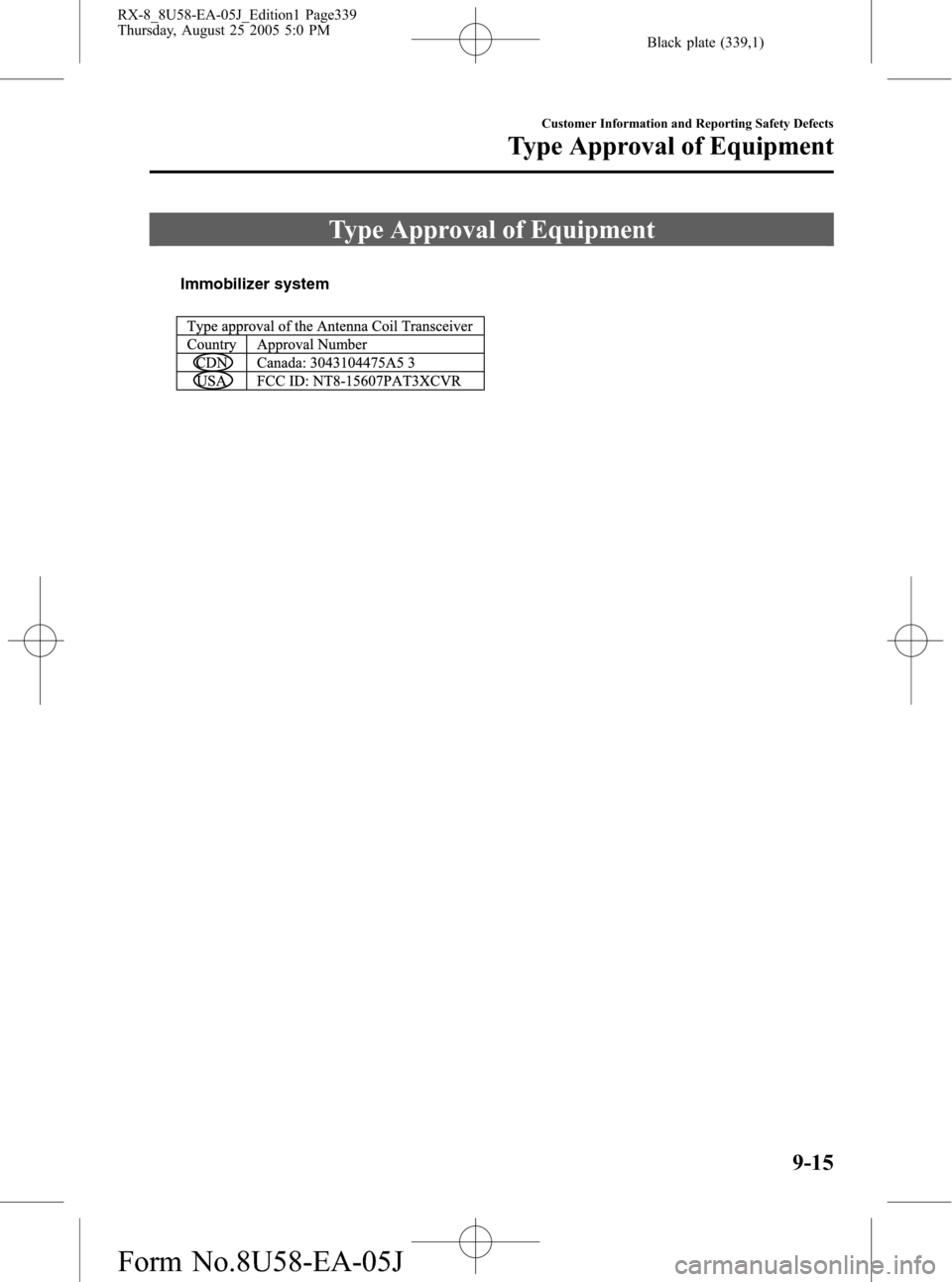

Black plate (339,1)
Type Approval of Equipment
Immobilizer system
Customer Information and Reporting Safety Defects
Type Approval of Equipment
9-15
RX-8_8U58-EA-05J_Edition1 Page339
Thursday, August 25 2005 5:0 PM
Form No.8U58-EA-05J

Black plate (376,1)
F
Front Seats
(Manually Operated Seats) ................. 2-2
Fuel
Filler lid and cap ........................ 3-40
Gauge ......................................... 5-36
Requirements ............................... 4-2
Tank capacity ............................. 10-5
Fuses ................................................. 8-39
Panel description ........................ 8-41
Replacement ............................... 8-39
G
Gauges .............................................. 5-32
Glove Box ......................................... 6-46
H
Hazard Warning Flasher .................... 5-61
Hazardous Driving .............................. 4-8
Headlight Washer .............................. 5-59
Headlights
Control ....................................... 5-54
Flashing ...................................... 5-55
High-low beam .......................... 5-55
Leveling ..................................... 5-55
On reminder ............................... 5-54
HomeLink Wireless Control
System .............................................. 5-61
Hood Release .................................... 3-42
Horn .................................................. 5-60
I
Ignition
Keys ........................................... 3-22
Switch .......................................... 5-2
Illuminated Entry System ................. 6-38
I
Immobilizer System
(with Advanced Key) ........................ 3-45
Immobilizer System
(without Advanced Key) ................... 3-48
Indicator Lights ................................. 5-38
Cruise ......................................... 5-50
DSC OFF .................................... 5-50
Headlight auto-leveling
malfunction ................................ 5-51
Headlight high-beam .................. 5-49
power steering malfunction ........ 5-51
Security ...................................... 5-48
Shift position .............................. 5-49
TCS/DSC ................................... 5-50
Turn-signal/hazard warning ....... 5-51
Information Display .......................... 6-41
Ambient temperature display ..... 6-42
Audio display ............................. 6-43
Climate control display .............. 6-43
Clock .......................................... 6-42
Information display functions .... 6-41
Inside Trunk Release Lever ............... 3-36
Instrument Cluster ............................. 5-32
Interior Care ...................................... 8-49
Interior Lights ................................... 6-38
J
Jump-Starting .................................... 7-21
K
Keyless Entry System ....................... 3-23
Keys .................................................. 3-22
L
Label Information ............................. 10-2
11-4
Index
RX-8_8U58-EA-05J_Edition1 Page376
Thursday, August 25 2005 5:0 PM
Form No.8U58-EA-05J

Black plate (378,1)
S
Seats
Front seat
(Electrically operated seats) ......... 2-5
Front seat
(Manually operated seats) ............ 2-2
Rear seat ....................................... 2-8
Security System
Immobilizer system
(with advanced key) ................... 3-45
Immobilizer system
(without advanced key) .............. 3-48
Theft-deterrent system ............... 3-51
Service Publications .......................... 9-40
Spare Tire and Tool Storage ................ 7-3
Specifications .................................... 10-4
Speed Unit Selector ........................... 5-33
Speedometer ...................................... 5-33
SRS Air Bags
How the Air Bags Work ............. 2-37
Supplemental restraint systems
precautions ................................. 2-30
Starting the Engine .............................. 5-4
Steering Wheel .................................. 3-53
Horn ........................................... 5-60
Storage Box ...................................... 6-47
Storage Compartments ...................... 6-46
Center console ............................ 6-47
Coin box ..................................... 6-46
Glove box ................................... 6-46
Overhead console ....................... 6-46
Storage box ................................ 6-47
Sunshade ........................................... 3-44
Sunvisors .......................................... 6-38
T
Tachometer ........................................ 5-34
Temporary Spare Tire ....................... 8-30
T
Theft-Deterrent System ..................... 3-51
Tiedown
Hook .......................................... 7-26
Tire Information ................................ 9-18
Tire Pressure Monitoring System ...... 5-26
System error activation .............. 5-29
Tire pressure monitoring system
warning light .............................. 5-27
Tires and wheels ......................... 5-30
Tires
Flat tire ......................................... 7-3
Inflation pressure ........................ 8-27
Replacement ............................... 8-29
Rotation ...................................... 8-28
Snow tires .................................. 4-10
Spare tire and tool storage ............ 7-3
Specifications ............................. 10-6
Tire chains .................................. 4-10
Uniform tire quality grading system
(UTQGS) ................................... 9-16
Tool ..................................................... 7-3
Towing
Description ................................. 7-25
Emergency towing ..................... 7-25
Recreational towing ................... 7-27
Trailer towing ............................. 4-13
Traction Control System (TCS) ........ 5-22
TCS/DSC indicator light ............ 5-23
Trailer Towing .................................. 4-13
Trip Meter ......................................... 5-33
Trunk Lid .......................................... 3-33
Inside trunk release lever ............ 3-36
Trunk Light ....................................... 3-35
Turn and Lane-Change Signals ......... 5-56
V
Vanity Mirrors ................................... 6-38
11-6
Index
RX-8_8U58-EA-05J_Edition1 Page378
Thursday, August 25 2005 5:0 PM
Form No.8U58-EA-05J
