MAZDA MODEL RX 8 2007 Owners Manual (in English)

Black plate (100,1)
Inside Trunk Release Lever
Your vehicle is equipped with an inside
trunk release lever that provides a means
of escape for children and adults in the
event they become locked inside the
trunk.
No matter how careful adults might be
with keys and locking their cars, parents
should be aware that children may be
tempted to play around vehicles and use
the trunk as a hiding place.
Adults are advised to familiarize
themselves with the operation and
location of the inside trunk release lever
so that all children can be told about it in
an appropriate way, keeping in mind that
most vehicles don't have such levers.
WARNING
Close the trunk lid and do not allow
children to play inside the vehicle:
Leaving the trunk lid open or leaving
children in the vehicle with the keys is
dangerous. Children could open the
trunk lid and climb inside resulting in
possible injury or death from heat
exposure.
Always keep the car from being a
tempting place to play by locking
doors and the trunk, and keeping the
keys where children can not play with
them:
Leaving children or animals
unattended in a parked vehicle is
dangerous. Babies left sleeping and
children who lock themselves in cars
or trunks can die very quickly from
heat prostration. Do not leave your
children or pets alone in a car at any
time. Do not leave the car or the trunk
unlocked.
3-36
Knowing Your Mazda
Doors and Locks
RX-8_8V89-EA-06F_Edition1 Page100
Friday, May 19 2006 9:50 AM
Form No.8V89-EA-06F

Black plate (101,1)
qOpening the Trunk Lid from the
Inside
Slide the inside trunk release lever in the
direction of the arrow. The lever is made
of material that will glow for hours in the
darkness of the trunk following a brief
exposure to ambient light.
The inside trunk release lever is located
on the inside of the trunk end trim.
Power Windows
The ignition switch must be in the ON
position for the power windows to
operate.
WARNING
Make sure the opening is clear before
closing a window:
Closing power windows are
dangerous. A person's hands, head, or
even neck could be caught by the
window and result in serious injury or
even death.
This warning applies especially to
children.
Always lock all passenger power
windows with the power window lock
switch on the driver's side while
children are in the vehicle, and never
allow children to play with power
window switches:
Leaving the power window switches
unlocked while children are in the
vehicle is dangerous. Power window
switches that are not locked with the
power window lock switch would allow
children to operate power windows
unintentionally which could result in
serious injury if a child's hands, head
or neck becomes caught by the
window.
Knowing Your Mazda
Doors and Locks
3-37
RX-8_8V89-EA-06F_Edition1 Page101
Friday, May 19 2006 9:50 AM
Form No.8V89-EA-06F

Black plate (102,1)
qOperating the Driver's Side
Power Window
Manual opening/closing
To open the window to the desired
position, lightly hold down the switch.
To close the window to the desired
position, lightly pull up the switch.
Driver's windowCloseOpen
Auto-opening
To fully open the window automatically,
press the switch completely down.
To stop the window partway, lightly pull
up the switch and then release it.
qOperating the Passenger Power
Windows
The power window may be operated
when the power window lock switch on
the driver's door is in the unlocked
position.
The passenger window may be opened or
closed by the power window master
control switches on the driver's door.
Power window lock switch
Passenger's window
To open the window to the desired
position, hold down the switch.
To close the window to the desired
position, pull up the switch.
Open
Close
3-38
Knowing Your Mazda
Doors and Locks
RX-8_8V89-EA-06F_Edition1 Page102
Friday, May 19 2006 9:50 AM
Form No.8V89-EA-06F

Black plate (103,1)
qPower Window Lock Switch
With the lock switch in the unlocked
position, all power windows on each door
can be operated.
With the lock switch in the locked
position, only the driver's side power
window can be operated.
Locked position
Unlocked position
WARNING
Unless a passenger needs to operate a
power window, keep the power window
lock switch in the locked position:
Unintentional power window
operation is dangerous. A person's
hands, head, or neck could be caught
by the window and result in serious
injury.
Rear Quarter Windows
Open or close a swing-out rear quarter
window by releasing the latch and moving
the window.
NOTE
When parked in public areas, it is best
to keep the rear quarter windows closed
for security.
qOpening a Window
Pull the latch inward and then push the
window outward.
Knowing Your Mazda
Doors and Locks
3-39
RX-8_8V89-EA-06F_Edition1 Page103
Friday, May 19 2006 9:50 AM
Form No.8V89-EA-06F

Black plate (104,1)
qClosing a Window
Pull the latch inward and then push it
backward until it snaps shut. Make sure
the window is securely closed.
Fuel-Filler Lid and Cap
WARNING
When removing the fuel cap, loosen
the cap slightly and wait for any
hissing to stop. Then remove it:
Fuel spray is dangerous. Fuel can
burn skin and eyes and cause illness if
ingested. Fuel spray is released when
there is pressure in the fuel tank and
the fuel cap is removed too quickly.
Before refueling, stop the engine, and
always keep sparks and flames away
from the filler neck:
Fuel vapor is dangerous. It could be
ignited by sparks or flames causing
serious burns and injuries.
Additionally, use of the incorrect fuel
filler cap or not using a fuel filler cap
may result in fuel leak, which could
result in serious burns or death in an
accident.
CAUTION
Always use only a genuine Mazda fuel
cap or an approved equivalent,
available at an Authorized Mazda
Dealer. The wrong cap can result in a
serious malfunction of the fuel and
emission control systems. It may also
cause the check engine light in the
instrument cluster to illuminate.
3-40
Knowing Your Mazda
Doors and Locks
RX-8_8V89-EA-06F_Edition1 Page104
Friday, May 19 2006 9:50 AM
Form No.8V89-EA-06F

Black plate (105,1)
qFuel-Filler Lid
To open, pull up the remote fuel-filler lid
release.
Remote fuel-filler
lid release
qFuel-Filler Cap
To remove the filler cap, turn it
counterclockwise.
To close the filler cap, turn it clockwise
until it clicks.
Close Open
CAUTION
Make sure the fuel-filler cap is
tightened securely. The check engine
light may illuminate when the cap isn't
tightened securely. If the light remains
on (even after you have tightened the
cap securely, driven, and restarted the
engine several times), it may indicate a
different problem. Contact an
Authorized Mazda Dealer as soon as
possible.
Knowing Your Mazda
Doors and Locks
3-41
RX-8_8V89-EA-06F_Edition1 Page105
Friday, May 19 2006 9:50 AM
Form No.8V89-EA-06F

Black plate (106,1)

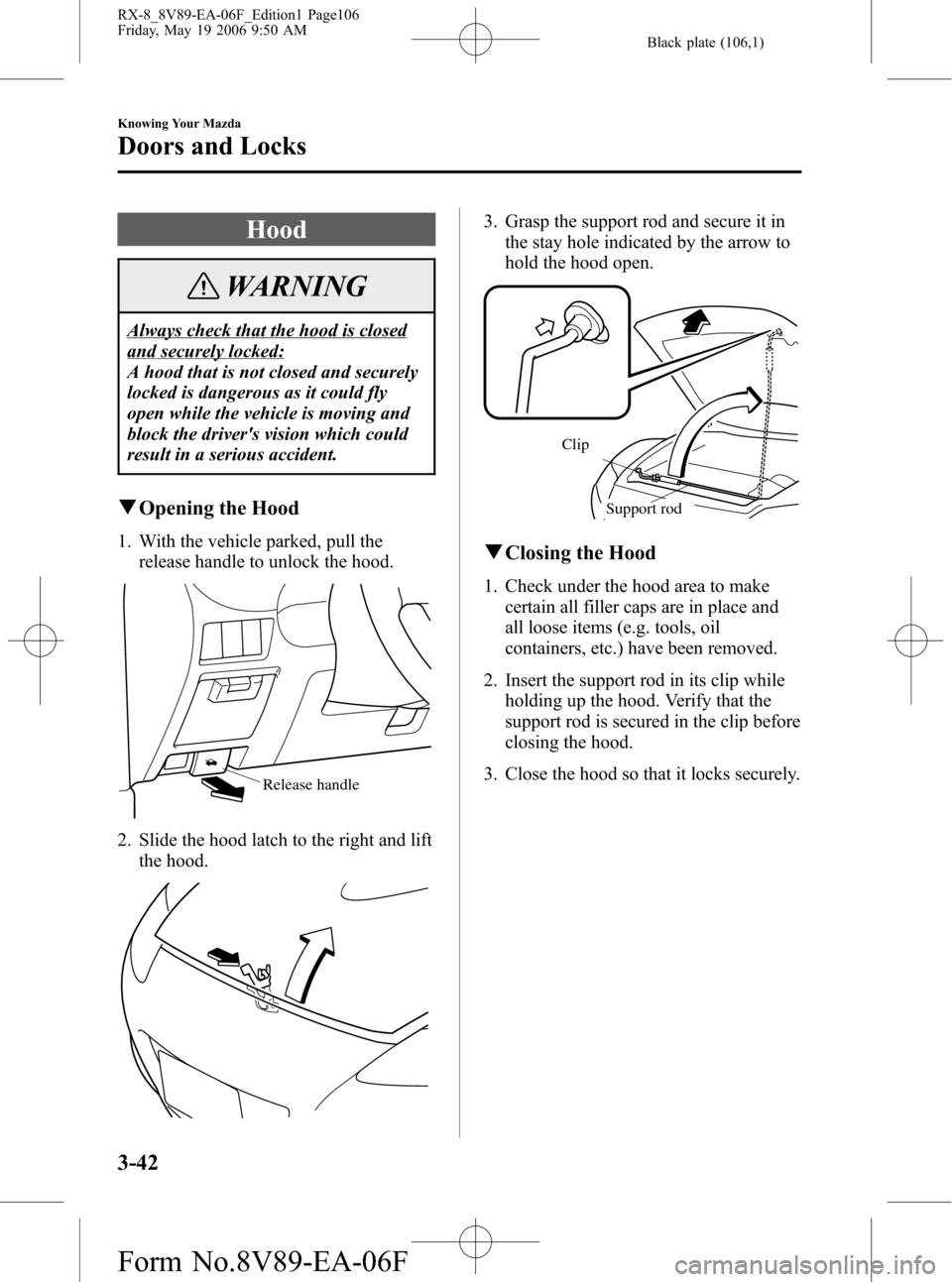

Hood
WARNING
Always check that the hood is closed
and securely locked:
A hood that is not closed and securely
locked is dangerous as it could fly
open while the vehicle is moving and
block the driver's vision which could
result in a serious accident.
qOpening the Hood
1. With the vehicle parked, pull the
release handle to unlock the hood.
Release handle
2. Slide the hood latch to the right and lift
the hood.
3. Grasp the support rod and secure it in
the stay hole indicated by the arrow to
hold the hood open.
Clip
Support rod
qClosing the Hood
1. Check under the hood area to make
certain all filler caps are in place and
all loose items (e.g. tools, oil
containers, etc.) have been removed.
2. Insert the support rod in its clip while
holding up the hood. Verify that the
support rod is secured in the clip before
closing the hood.
3. Close the hood so that it locks securely.
3-42
Knowing Your Mazda
Doors and Locks
RX-8_8V89-EA-06F_Edition1 Page106
Friday, May 19 2006 9:50 AM
Form No.8V89-EA-06F

Black plate (107,1)
Moonroofí
The moonroof can be opened or closed
electrically only when the ignition switch
is in the ON position.
Tilt switch Slide switch
WARNING
Do not let passengers stand up or
extend part of the body through the
open moonroof while the vehicle is
moving:
Extending the head, arms, or other
parts of the body through the
moonroof is dangerous. The head or
arms could hit something while the
vehicle is moving. This could cause
serious injury or death.
Make sure the opening is clear before
closing the moonroof:
A closing moonroof is dangerous. The
hands, head, or even neck of a person
―especially a child―could be caught
in it as it closes, causing serious injury
or even death.
NOTE
After washing your Mazda or after it
rains, wipe the water off the moonroof
before operating it to avoid water
penetration which could cause rust and
water damage to your headliner.
qTilt Operation
The rear of the moonroof can be tilted
open to provide more ventilation.
To fully tilt automatically, momentarily
push the rear of the tilt switch.
To stop tilting partway, push any part of
the tilt or slide switch.
To close to the desired position, push the
front of the tilt or slide switch.
CloseTilt up
Close
qSlide Operation
To fully open automatically, momentarily
push the rear of the slide switch.
To stop sliding partway, push any part of
the tilt or slide switch.
Knowing Your Mazda
Doors and Locks
3-43íSome models. RX-8_8V89-EA-06F_Edition1 Page107
Friday, May 19 2006 9:50 AM
Form No.8V89-EA-06F

Black plate (108,1)
To close to the desired position, push the
front of the tilt or slide switch.
Close CloseOpen
qSunshade
The sunshade can be opened and closed
by hand.
The sunshade opens automatically when
the moonroof is opened, but must be
closed by hand.
Sunshade
CAUTION
The sunshade does not tilt. To avoid
damaging the sunshade, do not push up
on it.
3-44
Knowing Your Mazda
Doors and Locks
RX-8_8V89-EA-06F_Edition1 Page108
Friday, May 19 2006 9:50 AM
Form No.8V89-EA-06F

Black plate (109,1)

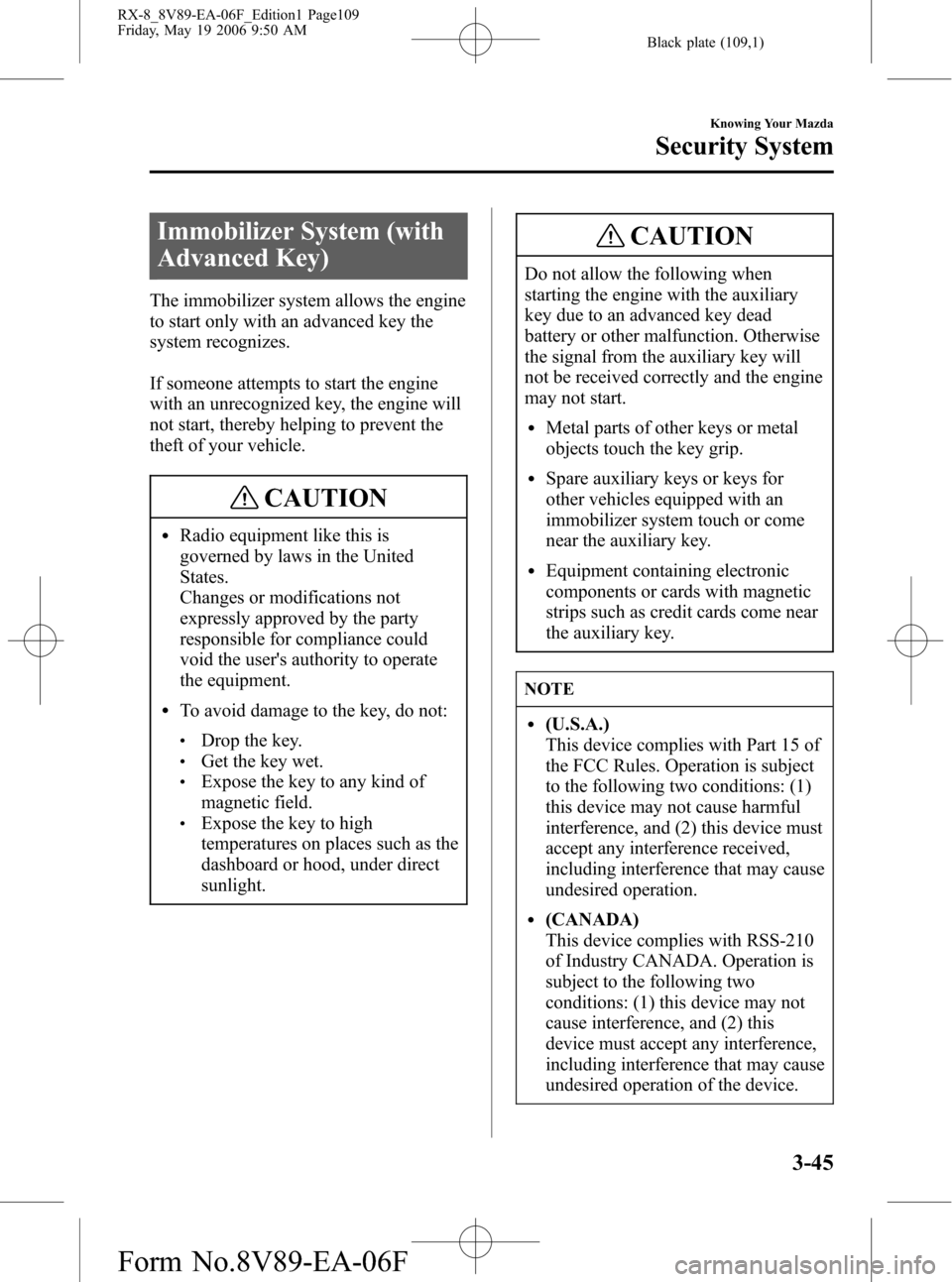

Immobilizer System (with
Advanced Key)
The immobilizer system allows the engine
to start only with an advanced key the
system recognizes.
If someone attempts to start the engine
with an unrecognized key, the engine will
not start, thereby helping to prevent the
theft of your vehicle.
CAUTION
lRadio equipment like this is
governed by laws in the United
States.
Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user's authority to operate
the equipment.
lTo avoid damage to the key, do not:
lDrop the key.lGet the key wet.lExpose the key to any kind of
magnetic field.
lExpose the key to high
temperatures on places such as the
dashboard or hood, under direct
sunlight.
CAUTION
Do not allow the following when
starting the engine with the auxiliary
key due to an advanced key dead
battery or other malfunction. Otherwise
the signal from the auxiliary key will
not be received correctly and the engine
may not start.
lMetal parts of other keys or metal
objects touch the key grip.
lSpare auxiliary keys or keys for
other vehicles equipped with an
immobilizer system touch or come
near the auxiliary key.
lEquipment containing electronic
components or cards with magnetic
strips such as credit cards come near
the auxiliary key.
NOTE
l(U.S.A.)
This device complies with Part 15 of
the FCC Rules. Operation is subject
to the following two conditions: (1)
this device may not cause harmful
interference, and (2) this device must
accept any interference received,
including interference that may cause
undesired operation.
l(CANADA)
This device complies with RSS-210
of Industry CANADA. Operation is
subject to the following two
conditions: (1) this device may not
cause interference, and (2) this
device must accept any interference,
including interference that may cause
undesired operation of the device.
Knowing Your Mazda
Security System
3-45
RX-8_8V89-EA-06F_Edition1 Page109
Friday, May 19 2006 9:50 AM
Form No.8V89-EA-06F
