11. Tread wear, traction and temperature grades
12. Max. permissible inflation pressure
13. SAFETY WARNING
P215/65R15 95H is an example of a tire size and load index rating. Here is an explanation
of the various components of that tire size and load index rating. Note that the tire size and
load index rating may be different from the example.
P
Indicates a tire that may be installed on cars, SUVs, minivans and light trucks as designated
by the Tire and Rim Association (T&RA).
NOTE
If your tire size does not begin with a letter this may mean it is designated by either ETRTO
(European Tire and Rim Technical Organization) or JATMA (Japan Tire Manufacturing Association).
215
“215”is the nominal width of the tire in millimeters. This three-digit number gives the
width in millimeters of the tire from sidewall edge to sidewall edge. In general, the larger
the number, the wider the tire.
65
“65”is the aspect ratio. This two-digit number indicates the tire's ratio of height to width.
R
“R”is the tire construction symbol. R indicates“Radial ply construction”.
15
“15”is the wheel rim diameter in inches.
95
“95”is the Load Index. This two-or three-digit number indicates how much weight each
tire can support.
9-22
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
RX-8_8AT5-EA-09E_Edition1 Page400
Wednesday, April 15 2009 10:34 AM
Form No.8AT5-EA-09E

Black plate (402,1)
Tread Wear, Traction and Temperature Grades
Tread wear:The tread wear grade is a comparative rating based on the wear rate of the tire
when tested under controlled conditions on a specified government test course. For
example, a tire graded 150 would wear one and one-half (1 1/2) times as well on the
government course as a tire graded 100.
Traction:The traction grades, from highest to lowest are AA, A, B, and C. The grades
represent the tire's ability to stop on wet pavement as measured under controlled conditions
on specified government test surfaces of asphalt and concrete. A tire marked C may have
poor traction performance.
Temperature:The temperature grades are A (the highest), B and C, representing the tire's
resistance to the generation of heat and its ability to dissipate heat when tested under
controlled conditions on a specified indoor laboratory test wheel.
Snow Tires
In some heavy snow areas, local governments may require true snow tires, those with very
deeply cut tread. These tires should only be used in pairs or placed on all four wheels.
Make sure you purchase snow tires that are the same size and construction type as the other
tires on your vehicle.
SAFETY WARNING
The following safety warning appears on the tire's sidewall.
SERIOUS INJURY MAY RESULT FROM:
lEXPLOSION OF TIRE/RIM ASSEMBLY DUE TO IMPROPER MOUNTING-
MATCH TIRE DIAMETER TO RIM DIAMETER; NEVER EXCEED 40 psi (275 kPa)
TO SEAT BEADS-ONLY SPECIALLY TRAINED PERSONS SHOULD MOUNT
TIRES.
lTIRE FAILURE DUE TO UNDER-INFLATION/OVERLOADING/DAMAGE-
FOLLOW OWNER'S MANUAL AND PLACARD IN VEHICLE-FREQUENTLY
CHECK INFLATION PRESSURE AND INSPECT FOR DAMAGE.
9-24
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
RX-8_8AT5-EA-09E_Edition1 Page402
Wednesday, April 15 2009 10:34 AM
Form No.8AT5-EA-09E

Black plate (404,1)
70
“70”is the aspect ratio. This two-digit number indicates the tire's ratio of height to width.
D
“D”is the tire construction symbol. D indicates“diagonal ply construction”.
16
“16”is the wheel rim diameter in inches.
90
“90”is the Load Index. This two-or three-digit number indicates how much weight each
tire can support.
M
“M”is the speed rating. The speed rating denotes the maximum speed for which the use of
the tire is rated.
Letter Rating Speed Rating
M 81 mph
9-26
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
RX-8_8AT5-EA-09E_Edition1 Page404
Wednesday, April 15 2009 10:34 AM
Form No.8AT5-EA-09E

Black plate (407,1)

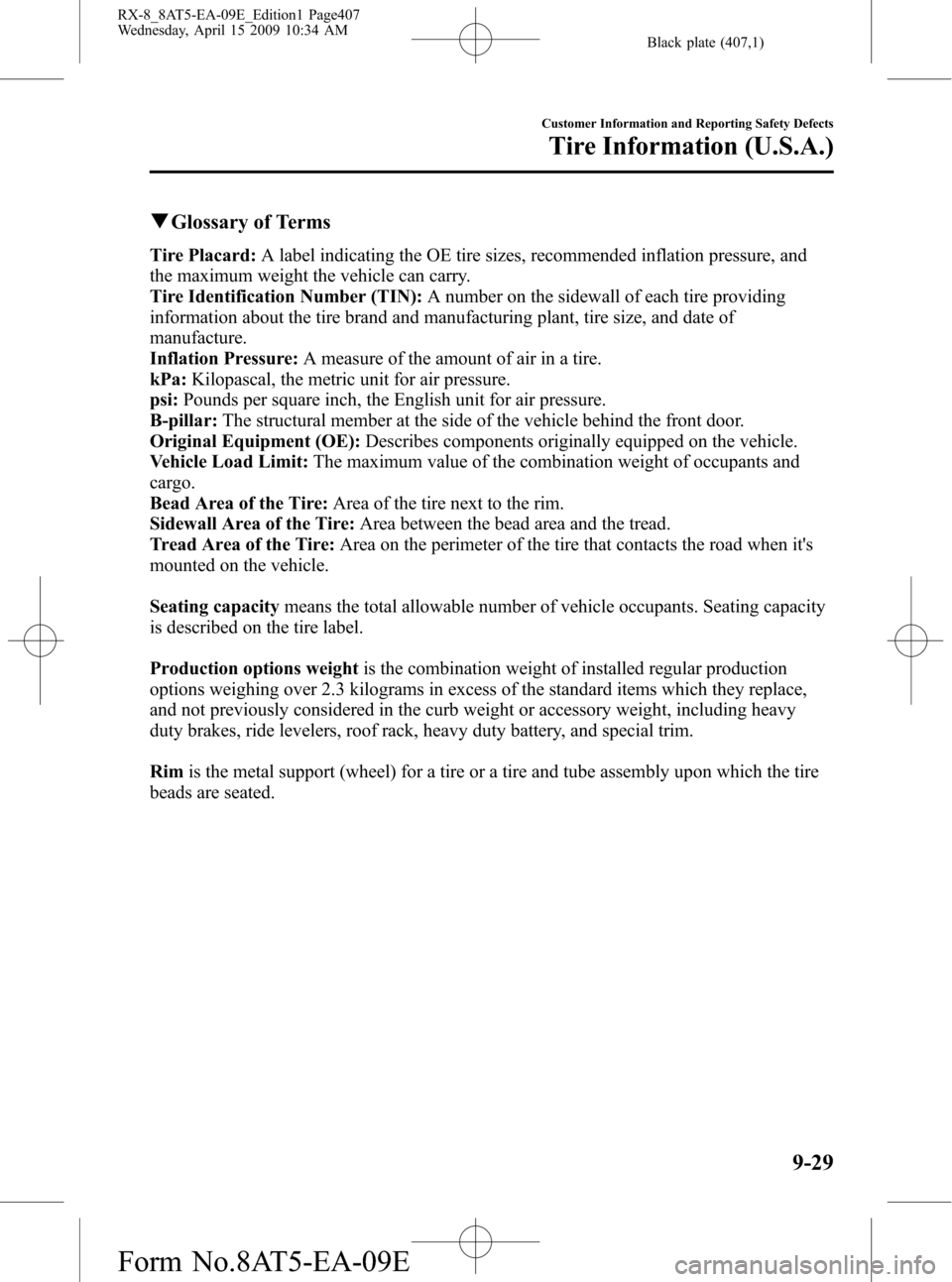

qGlossary of Terms
Tire Placard:A label indicating the OE tire sizes, recommended inflation pressure, and
the maximum weight the vehicle can carry.
Tire Identification Number (TIN):A number on the sidewall of each tire providing
information about the tire brand and manufacturing plant, tire size, and date of
manufacture.
Inflation Pressure:A measure of the amount of air in a tire.
kPa:Kilopascal, the metric unit for air pressure.
psi:Pounds per square inch, the English unit for air pressure.
B-pillar:The structural member at the side of the vehicle behind the front door.
Original Equipment (OE):Describes components originally equipped on the vehicle.
Vehicle Load Limit:The maximum value of the combination weight of occupants and
cargo.
Bead Area of the Tire:Area of the tire next to the rim.
Sidewall Area of the Tire:Area between the bead area and the tread.
Tread Area of the Tire:Area on the perimeter of the tire that contacts the road when it's
mounted on the vehicle.
Seating capacitymeans the total allowable number of vehicle occupants. Seating capacity
is described on the tire label.
Production options weightis the combination weight of installed regular production
options weighing over 2.3 kilograms in excess of the standard items which they replace,
and not previously considered in the curb weight or accessory weight, including heavy
duty brakes, ride levelers, roof rack, heavy duty battery, and special trim.
Rimis the metal support (wheel) for a tire or a tire and tube assembly upon which the tire
beads are seated.
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
9-29
RX-8_8AT5-EA-09E_Edition1 Page407
Wednesday, April 15 2009 10:34 AM
Form No.8AT5-EA-09E

Black plate (408,1)
Tire Maintenance
Improper or inadequate vehicle maintenance can cause tires to wear abnormally. Here are
some important maintenance points:
qTire Inflation Pressure
Inspect all tire pressure monthly (including the spare) when the tires are cold. Maintain
recommended pressures for the best ride, top handling, and minimum tire wear. Use the
pressures specified on the vehicle tire information placard or tire label for optimum service.
qTire Rotation
To equalize tread wear, rotate the tires every 12,000 km (7,500 miles) or sooner if irregular
wear develops. During rotation, inspect them for correct balance.
Do not include (TEMPORARY USE ONLY)
spare tire in rotation.Forward
Inspect the tires for uneven wear and damage. Abnormal wear is usually caused by one or a
combination of the following:
lIncorrect tire pressurelImproper wheel alignmentlOut-of-balance wheellSevere braking
After rotation, inflate all tire pressures to specification (page 10-6) and inspect the lug nuts
for tightness.
9-30
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
RX-8_8AT5-EA-09E_Edition1 Page408
Wednesday, April 15 2009 10:34 AM
Form No.8AT5-EA-09E

Black plate (409,1)
CAUTION
Rotate unidirectional tires and radial tires that have an asymmetrical tread pattern
or studs only from front to rear, not from side to side. Tire performance will be
weakened if rotated from side to side.
(With limited-slip differential)
Don't use the following:
ØTires not of the designated size
ØTires of different sizes or types at the same time
ØTires not sufficiently inflated
If these instructions aren't followed, the rotation of the left and right wheels will be
different and will thus apply a constant load on the limited-slip differential.
This will cause a malfunction.
qReplacing a Tire
WARNING
Always use tires that are in good condition:
Driving with worn tires is dangerous. Reduced braking, steering, and traction could
result in an accident.
If a tire wears evenly, a wear indicator will appear as a solid band across the tread. Replace
the tire when this happens.
New treadTread wear indicator
Worn tread
You should replace it before the band is across the entire tread.
NOTE
Tires degrade over time, even when they are not being used on the road. It is recommended that tires
generally be replaced when they are 6 years or older. Heat caused by hot climates or frequent high
loading conditions can accelerate the aging process. You should replace the spare tire when you
replace the other road tires due to the aging of the spare tire. Regarding the manufacturing week and
year is indicated with 4 digit. Refer to The tire labeling on page 9-21.
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
9-31
RX-8_8AT5-EA-09E_Edition1 Page409
Wednesday, April 15 2009 10:34 AM
Form No.8AT5-EA-09E

Black plate (427,1)
qCapacities
(Approximate Quantities)
Item Capacity
Engine oilWith oil filter replacement 4.4 L (4.6 US qt, 3.9 Imp qt)
Without oil filter
replacement4.2 L (4.4 US qt, 3.7 Imp qt)
CoolantManual transmission 10.0 L (10.6 US qt, 8.80 Imp qt)
Automatic transmission 9.8 L (10 US qt, 8.6 Imp qt)
Manual transmission oil 1.95 L (2.06 US qt, 1.72 Imp qt)
Automatic transmission fluid 8.0 L (8.5 US qt, 7.0 Imp qt)
Rear differential oil 1.3 L (1.4 US qt, 1.1 Imp qt)
Fuel tank 64.0 L (16.9 US gal, 14.1 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
qDimensions
Item Specification
Overall lengthWithout license plate
holder4,460 mm (175.6 in)
With license plate holder 4,470 mm (176.0 in)
Overall width 1,770 mm (69.7 in)
Overall height 1,340 mm (52.8 in)
Front tread18-inch wheel vehicle 1,500 mm (59.1 in)
19-inch wheel vehicle 1,505 mm (59.3 in)
Rear tread18-inch wheel vehicle 1,505 mm (59.3 in)
19-inch wheel vehicle 1,510 mm (59.4 in)
Wheelbase 2,700 mm (106.3 in)
qWeights
ItemWeight
Manual transmission Automatic transmission
GVWR (Gross Vehicle Weight Rating) 1,732 kg (3,818 lbs) 1,752 kg (3,862 lbs)
GAWR (Gross Axle Weight Rating)Front 842 kg (1,856 lbs) 858 kg (1,892 lbs)
Rear 901 kg (1,986 lbs) 907 kg (2,000 lbs)
qAir Conditioner
Item Classification
Refrigerant Type HFC134a (R-134a)
Specifications
10-5
RX-8_8AT5-EA-09E_Edition1 Page427
Wednesday, April 15 2009 10:34 AM
Form No.8AT5-EA-09E

Black plate (436,1)
S
Safety Defects, Reporting ................. 9-40
Seat Belt System
3-point type ................................ 2-18
Automatic locking ...................... 2-16
Belt minder ................................. 2-23
Emergency locking .................... 2-16
Extender ..................................... 2-21
Location of seat belt ................... 2-17
Pregnant women ........................ 2-16
Pretensioner and load limiting .... 2-19
Seat belt precautions .................. 2-14
Warning light/beep ..................... 2-23
Seats
Front seat
(Electrically operated seats) ......... 2-6
Front seat
(Manually operated seats) ............ 2-2
Rear seat ..................................... 2-11
Seat warmer ................................ 2-12
Security System
Immobilizer system
(with advanced key) ................... 3-48
Immobilizer system
(without advanced key) .............. 3-51
Service Publications .......................... 9-42
Spare Tire and Tool Storage ................ 7-3
Specifications .................................... 10-4
Speed Unit Selector ........................... 5-36
Speedometer ...................................... 5-36
SRS Air Bags
How the Air Bags Work ............. 2-44
Supplemental restraint systems
precautions ................................. 2-38
Starting the Engine .............................. 5-4
Steering Wheel .................................. 3-56
Horn ........................................... 5-67
Storage Box ...................................... 6-85
S
Storage Compartments ...................... 6-84
Center console ............................ 6-85
Coin box ..................................... 6-84
Glove box ................................... 6-84
Overhead console ....................... 6-84
Storage box ................................ 6-85
Sunshade ........................................... 3-47
Sunvisors .......................................... 6-77
T
Tachometer ........................................ 5-37
Temporary Spare Tire ....................... 8-26
Theft-Deterrent System ..................... 3-53
Tiedown
Hook .......................................... 7-25
Tire Information ................................ 9-21
Tire Pressure Monitoring System ...... 5-29
System error activation .............. 5-33
Tire pressure monitoring system
warning light .............................. 5-31
Tires and wheels ......................... 5-33
Tires
Flat tire ......................................... 7-3
Inflation pressure ........................ 8-23
Replacement ............................... 8-25
Rotation ...................................... 8-24
Snow tires .................................... 4-9
Spare tire and tool storage ............ 7-3
Specifications ............................. 10-6
Tire chains .................................. 4-10
Uniform tire quality grading system
(UTQGS) ................................... 9-19
Tool ..................................................... 7-3
11-6
Index
RX-8_8AT5-EA-09E_Edition1 Page436
Wednesday, April 15 2009 10:34 AM
Form No.8AT5-EA-09E

Black plate (437,1)
T
Towing
Description ................................. 7-24
Emergency towing ..................... 7-24
Recreational towing ................... 7-27
Trailer towing ............................. 4-13
Traction Control System (TCS) ........ 5-25
TCS/DSC indicator light ............ 5-26
Trailer Towing .................................. 4-13
Trip Meter ......................................... 5-36
Trunk Lid .......................................... 3-33
Inside trunk release lever ............ 3-35
Trunk Light ....................................... 3-34
Turn and Lane-Change Signals ......... 5-60
V
Vanity Mirrors ................................... 6-77
Vehicle Information Labels ............... 10-2
W
Warning Lights ................................. 5-40
ABS ............................................ 5-43
Air bag system ........................... 5-46
Automatic transmission .............. 5-48
Brake system .............................. 5-42
Charging system ......................... 5-44
Check engine .............................. 5-45
Door-ajar .................................... 5-48
Engine coolant level ................... 5-45
Engine oil level .......................... 5-44
Front seat belt pretensioner
system ........................................ 5-46
KEY Warning Light
(Red)/KEY Indicator Light
(Green) ....................................... 5-51
Low fuel ..................................... 5-46
Low washer fluid level ............... 5-48
Seat belt ...................................... 5-46
Tire pressure monitoring
system ........................................ 5-48
Warranty ............................................ 9-11
Washer Fluid ..................................... 8-17
Weights ............................................. 10-5
Wheel Replacement .......................... 8-26
Windows
Power windows .......................... 3-36
Rear quarter windows ................ 3-43
Windshield Washer ........................... 5-65
Windshield Wipers ............................ 5-62
Blades replacement .................... 8-19
Winter Driving .................................... 4-9
Index
11-7
RX-8_8AT5-EA-09E_Edition1 Page437
Wednesday, April 15 2009 10:34 AM
Form No.8AT5-EA-09E
