ECO start/stop function
Automatic engine start .................. 150
Automatic engine switch-off .......... 149
Climat econtrol
(THERMOTRONIC) .......................... 131
Deactivating/activatin g................. 151
Genera linformation ....................... 149
Important safety notes .................. 149
Introduction ................................... 149
Electromagnetic compatibility
Declaratio nofconformity ................ 27
Electroni cStability Program
see ESP ®
(Electroni cStability Program)
Emergency
Automatic measure safter an acci-
dent ................................................. 55
Emergency key
Unlocking the driver's door .............. 88
Emergency key element
Function/notes ................................ 82
General notes .................................. 82
Inserting .......................................... 83
Locking vehicle ................................ 88
Removing ......................................... 83
Emergency release
Driver's door ................................... .88
Emergency spare wheel
General note s............................... .367
Important safety note s................. .367
Technical data .............................. .367
Emergency unlocking
Vehicle ............................................. 88
Engine
Display message ............................ 266
ECO start/stop function ................ 149
Engine numbe r............................... 371
Jump-starting ................................. 345
Running irregularl y......................... 153
Starting (important safety notes )... 147
Starting problems .......................... 153
Starting the engine with the key .... 147
Starting with the Start/Sto pbut-
ton ................................................. 148
Stopping ........................................ 173
Tow-starting (vehicle )..................... 350
Warning lamp (engine diagnos-
tics) ............................................... 290 Engine electronics
Note s............................................. 369
Problem (fault) ............................... 153
Engine oil
Additives ........................................ 376
Checking the oi llev el ..................... 323
Checking the oi llev el using the
dipstick .......................................... 323
Displa ymessage ............................ 268
Filling capacity ............................... 375
Genera lnotes ................................ 375
Note sabout oilg rade s................... 375
Note sono illevel/consumption .... 323
Temperature (on-board computer, Mercedes-AM Gvehicles) ............... 249
Topping up ..................................... 323
Entering an address
See also Digital Owner' sManual... 296
Environmental protection
Returning an end-of-life vehicl e....... 25
ESP ®
(Electroni cStability Pro-
gram)
AMG menu (on-board computer) ... 250
Characteristics ................................. 72
Crosswind Assist ............................. 75
Deactivating/activating (button
in Mercedes-AM Gvehicles) ............. 73
Deactivating/activating (except
Mercedes‑ AMG vehicles) ................. 72
Deactivating/activating (on-
board computer, except
Mercedes-AM Gvehicles) ............... 244
Displa ymessage ............................ 254
Function/note s................................ 71
Genera lnotes .................................. 71
Important safety guideline s............. 72
Trailer stabilisation .......................... 74
Warning lamp ................................. 287
ETS/4ETS (Electroni cTraction Sys-
tem) ...................................................... 72
Exhaust
see Exhaus tpipe
Exhaus tpipe
Cleaning ......................................... 331
Exterior lighting
Cleaning ......................................... 330
see Lights 10
Index

Suspension setting
AIRMATIC ...................................... 196
Suspension settings
AMG RIDE CONTROL sports sus-
pension .......................................... 197
SETUP (on-board computer) ..........2 50
Switchin gonmedia mode
Via the device lis t.......................... 307
Switchin gthe auxiliary heating/
ventilation
On/off ........................................... 139 T
Tail lamps Displa ymessage ............................ 265
see Lights
Technical data
Capacities ...................................... 371
Emergency spare whee l................. 367
Information .................................... 369
Trailer load s................................... 378
Tyres/wheels ................................. 366
Vehicl edata. .................................. 377
Telephone
Accepting acall( multifunction
steering wheel) .............................. 243
Authorising amobilephone (con-
necting) ......................................... 303
Connecting aMobilephone (gen-
era linformation) ............................ 302
Displa ymessage ............................ 283
Introduction ................................... 242
Menu (on-board computer) ............ 242
Numbe rfrom the phone boo k........ 243
Redialling ....................................... 243
Rejecting/ending acall. ................ 243
See also Digital Owner' sManual... 296
Switching between mobile
phones ........................................... 303
Telephone compartment ................ 310
Telephone modul ewithB luetooth ®
(SAP profile) Activating and connecting the
modul e........................................... 304
Charging amobilephone ............... 306
Connecting the mobil ephone ........ 305 Connecting the modul
eusing a
USB cable ...................................... 304
Data modem mod e........................ 306
Installing the modul e..................... 304
Introduction ................................... 304
Saving/deleting the PIN for the
SIM car d........................................ 306
Setting s......................................... 306
SIM car dmode.............................. 305
Text messages ............................... 306
Transferring the phone boo k.......... 306
Temperature
Coolant (display in the instrumentcluster) .......................................... 233
Engine oi l(on -board computer,
Mercedes-AM Gvehicles) ............... 249
Outsid etemperature ...................... 233
Setting (climate control )................ 133
Transmission oi l(on -board com-
puter, Mercedes-AM Gvehicles) ..... 249
TEMPOMAT
Function/note s............................. 180
Tex tmessages
Telephone modul ewithB lue-
tooth ®
(SAP profile) ....................... 306
Through-loadin gfeature ................... 310
Timing (RACETIMER) ......................... 251
TIREFI Tkit
Important safety notes .................. 338
Storage location ............................ 336
Tyre pressure not reached ............. 340
Tyre pressure reached ................... 340
Using ............................................. 339
Top Tether ............................................ 58
Total distanc erecorder .................... 236
Touchpad
Changing the station/music
track .............................................. 299
Character suggestions ................... 298
Deleting characters ....................... 298
Entering aspace ............................ 298
Entering characters ....................... 298
Gesture control .............................. 297
Handwriting recognition ................ 298
Operating the touchpa d................. 297
Overview ........................................ 297
Quick access for audi o.................. 299 20
Index

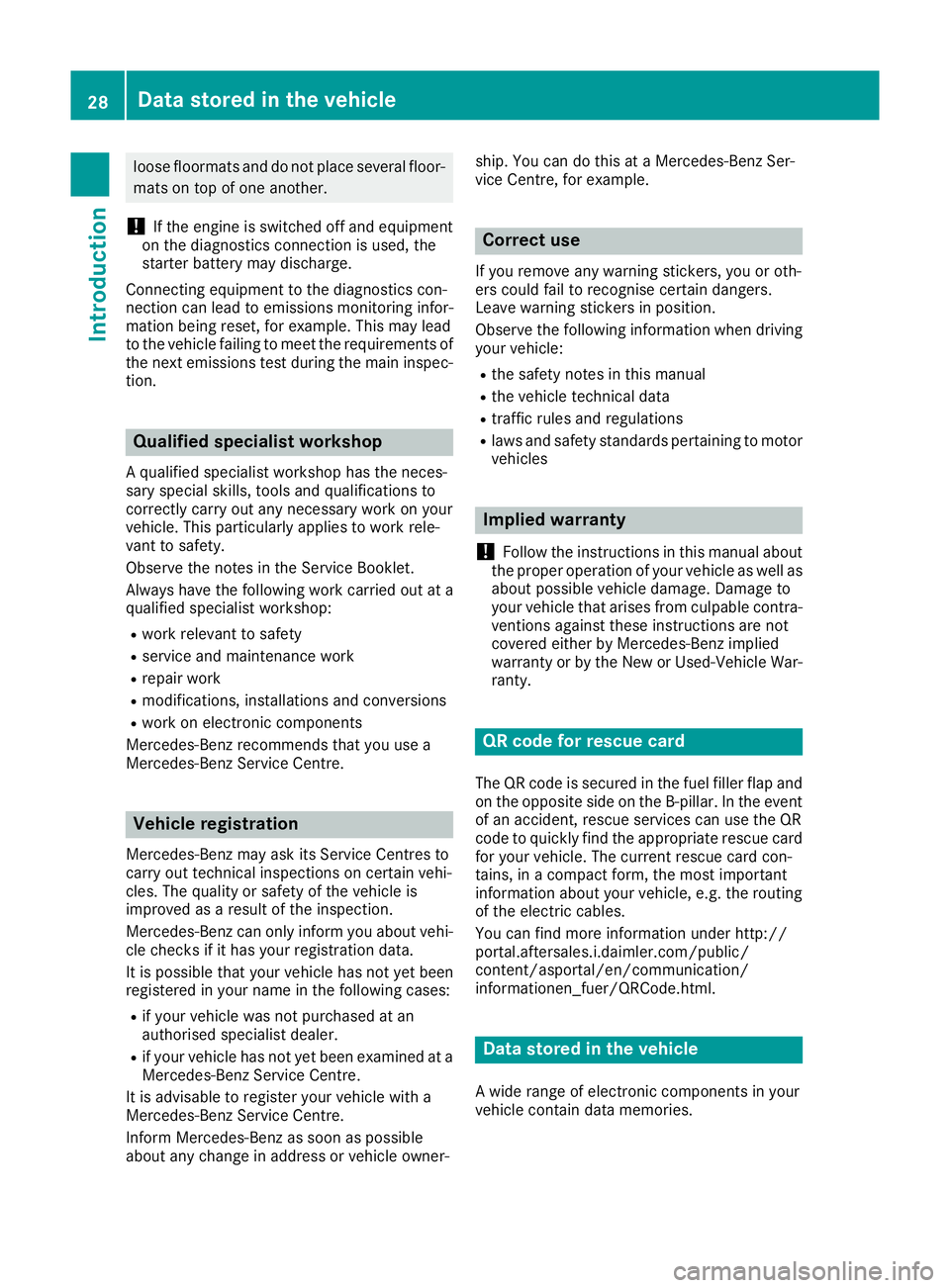

loose floormats and do not place several floor-
mats on top of one another.
! If the engin
eisswitched off and equipment
on the diagnostic sconnection is used, the
starter battery may discharge.
Connecting equipmen ttothe diagnostic scon-
nection can lead to emissions monitoring infor-
matio nbeing reset ,for example. This may lead
to the vehicle failing to meet the requirements of the nex temissions tes tdurin gthe main inspec-
tion. Qualified specialist workshop
Aq ualified specialist workshop has the neces-
sary special skills ,tools and qualifications to
correctly carr yout any necessary work on your
vehicle. This particularly applies to work rele-
vant to safety.
Observe the notes in the Service Booklet.
Always have the followin gwork carried out at a
qualified specialist workshop:
R work relevant to safety
R service and maintenance work
R repair work
R modifications ,installation sand conversions
R work on electronic components
Mercedes-Ben zrecommends that you use a
Mercedes-Ben zService Centre. Vehicle registration
Mercedes-Ben zmay ask its Service Centres to
carr yout technical inspections on certain vehi-
cles. The quality or safet yofthe vehicle is
improved as aresult of the inspection.
Mercedes-Ben zcan only inform you about vehi-
cle checks if it has your registratio ndata.
It is possible that your vehicle has not yet been
registered in your name in the followin gcases:
R if your vehicle was not purchased at an
authorised specialist dealer.
R if your vehicle has not yet been examined at a
Mercedes-Ben zService Centre.
It is advisable to register your vehicle with a
Mercedes-Ben zService Centre.
Inform Mercedes-Ben zassoon as possible
about any change in address or vehicle owner- ship. You can do this at
aMercedes-Ben zSer-
vice Centre, for example. Correct use
If you remove any warnin gstickers, you or oth-
ers could fail to recognise certain dangers.
Leave warnin gsticker sinposition.
Observe the followin ginformation when driving
your vehicle:
R the safet ynotes in this manual
R the vehicle technical data
R traffic rules and regulations
R laws and safet ystandards pertainin gtomotor
vehicles Implied warranty
! Follow the instructions in this manual about
the proper operation of your vehicle as well as
about possible vehicle damage. Damag eto
your vehicle that arises fro mculpable contra-
vention sagainst these instructions are not
covered either by Mercedes-Ben zimplied
warranty or by the New or Used-Vehicle War- ranty. QR code for rescu
ecard
The QR code is secured in the fuel filler flap and
on the opposit eside on the B-pillar. In the event
of an accident ,rescue services can use the QR
code to quickly fin dthe appropriate rescue card
for your vehicle. The current rescue card con-
tains, in acompact form, the most important
information about your vehicle, e.g. the routing
of the electric cables.
You can fin dmore information under http://
portal.aftersales.i.daimler.com/public/
content/asportal/en/communication/
informationen_fuer/QRCode.html. Data stored in th
evehicle
Aw ide rang eofelectronic component sinyour
vehicle contain data memories. 28
Data stored in thev
ehicleIntroduction

These data memories temporarily or perma-
nently store technical information about:
R the vehicle's operating state
R events
R faults
In general, this technical information docu-
mentst he state of acomponent, amodule, a
system or the surroundings.
These include, for example:
R operating conditions of system components,
e.g. fluid levels
R the vehicle's status messages and those of its
individual components,e .g. number of wheel
revolutions/speed, deceleration in move-
ment,l ateral acceleration ,accelerator pedal
position
R malfunctions and defect sinimportant system
components,e .g. lights, brakes
R vehicle reaction sand operating conditions in
special driving situations, e.g. airbag deploy-
ment,i ntervention of stability control sys-
tems
R ambient conditions, e.g. outside temperature
This data is of an exclusively technical nature
and can be used to:
R assist in detecting and rectifying faults and
defects
R analyse vehicle functions, e.g. after an acci-
dent
R optimise vehicle functions
The data cannot be used to trace the vehicle's
movements.
When your vehicle is serviced, technical infor-
mation can be read from the event data memory
and fault data memory.
Services include, for example:
R repair services
R service processes
R warranty events
R quality assurance
The vehicle is read out by employees of the ser- vice network (including the manufacturer) using
special diagnostic testers. You can obtain more information there, if required.
After afault has been rectified, the information
is deleted from the fault memory or is continu-
ally overwritten.
When operating the vehicle, situations are con-
ceivable in which this technical data, in connec- tion with other information (if necessary, after
consultation with an authorised expert), could
be traced to aperson.
Examples include:
R accident reports
R damage to the vehicle
R witness statements
Further additional functions that have been con-
tractually agreed upon with the customer allow
certain vehicle data to be conveyed by the vehi-
cle as well. The additional functions include, for example, vehicle location in case of an emer-
gency. Copyright information
General notes
Information on licences for free and open-
source software used in your vehicle and its
electronic components is availabl eonthe fol-
lowing website:
http://www.mercedes-benz.com/opensource Copyright information
29Introduction Z

Reversin
gcamera
General notes Reversing camera
:is an optical parking and
manoeuvring aid. It shows the are abehind your
vehicl ewithg uide lines in the multimedi asys-
tem.
The are abehind the vehicl eisdisplayed as a
mirror image, as in the rear-vie wmirror.
i The text shown in the multimedi
asystem
depends on the languag esetting. The follow-
ing are examples of reversing camera mes-
sages in the multimedi asystem.
Important safety notes The reversing camera is only an aid. It is not a
substitute for your attention to the immediate
surroundings. The responsibility for safe
manoeuvring and parking remains with you.
Make sure that there are no persons ,animal sor
objects in rang ewhile manoeuvring and parking.
Unde rthe following circumstances, the revers-
ing camera will not function, or will function in a limite dmanner:
R if the boo tlid is open
R in heavy rain, snow or fog
R at nigh torinv ery dark places
R if the camera is exposed to very bright light
R if the are aislitby fluorescent bulb sorLED
lighting (the display may flicker)
R if there is asudde nchange in temperature,
e.g. when driving into aheated garag einwin-
ter R
if the camera lens is dirty or obstructed.
Observe the notes on cleaning
(Y page 330)
R if the rea rofyourv ehicl eisd amaged. In this
case, have the camera position and setting
checke dataq ualified specialist workshop.
The field of visio nand othe rfunctions of the
reversing camera may be restricte ddueto addi-
tiona laccessorie sonthe rea rofthe vehicl e(e.g.
licence plate holder ,bicycl erack).
i The reversing camera is protected from rain-
drops and dust by means of aflap. Whe nthe
reversing camera is activated, this fla popens.
The fla pcloses agai nwhen:
R youh avef inishe dthe manoeuvring process
R yous witch off the engine
R youo pent he boot
See the notes on cleaning (Y page 330).
For technical reasons ,the fla pmay remain
ope nbriefl yafterthe reversing camera has
bee ndeactivated.
Activating/deactivatin gthe reversing
camera X
To activate: make sure that the key is in
position 2in the ignition lock.
X Make sure that the Activation byRgear
Activation by Rgear
function is selected in the multimedi asystem
(se ethe separate operating instructions).
X Engag ereverse gear.
The reversing camera fla popens. The multi-
media system shows the are abehind the vehi-
cle with guid elines.
The image from the reversing camera is avail- able throughout the manoeuvring process.
X To switc
hthe functio nmode for vehicles
with trailer tow hitch: using the controller,
select symbol :for the "Reverse parking" 206
Driving systemsDriving and parking

R
you brak ehard.
R you steer actively, e.g. swerve to avoid an
obstacle or chang elan eq uickly.
R you cut th ecorner onashar pbend.
In order that you are warned only when neces-
sar yand in goo dtimeify ou cross th elan em ark-
ing, th esystem detects certain condition sand
warn syou accordingly.
The warnin gvibration occur searlier if:
R you approac hthe outer lan emarking on a
bend
R ther oadh as ver ywide lanes, e.g. amotorway
R thes ystem detects soli dlanem arkings
The warnin gvibration occur slater if:
R ther oadh as narrow lanes
R you cut th ecorner onabend
Towing atrailer
If you couple up atrailer ,makes uret haty ou
hav ecorrectly established th eelectrica lcon-
nection .This can be accomplished by checking
th et railer lighting. Towing
atrailer Important safety notes
G
WARNING
You could lose control of th evehicle/trailer
combination if it begins to swerve. The vehi-
cle/trailer combination could eve noverturn.
There is ariskofana ccident.
On no accoun tshould you attemp tto
straighten out th evehicle/trailer combina-
tion by increasing speed. Decrease your
speed and do no tcountersteer. Brake if nec-
essary. G
WARNING
If th emaximum permissibl eload for acarrier
system is exceeded ,the carrie rcould come
loos efromt hevehicl eand endanger other
roa dusers. There is ariskofana ccidentand
injury.
Never exceed th emaximum permissibl eload
when usin gacarrier. Exceedin
gthe maximum permissibl enose-
weigh tofthetrailer drawbar on th eball coupling
may caus edamage to th efollowing:
R your vehicle
R trailer
R ball coupling
R trailer to whitch
The vehicle/trailer combination could become
unstable.
If th enoseweight used is lower than th emini-
mum permissibl enoseweight ,the vehicle/
trailer combination could also become unstable.
To avoid hazardous situations:
R mak esuretoc heckthen oseweight before
eac hjourney
R use adrawbar noseweight as close as possi-
ble to th emaximum noseweight
R do no texcee dthe maximum permissible
noseweight
R do no tuse an oseweight lower than th emin-
imum noseweight
Mak esuret hatthe followin gvalue sare not
exceeded:
R thep ermissibl etrailer drawbar noseweight
R thep ermissibl etrailer load
R thep ermissibl erear axl eload of th etow ing
vehicle
R them aximum permissibl egross vehicle
weigh tofbotht he towin gvehicl eand the
trailer
The applicable permissibl evalues, whic hmust
no tbee xceeded,can be found:
R in your vehicl edocuments
R on th eidentification plates of th etrailer tow
hitch and th etrailer
R on th evehicl eidentification plate
If th evalue sdiffer ,the lowes tvalue applies.
You will fin dthe value sapprove dbythemanu-
facturer on th evehicl eidentification plates and
those for th etow ingv ehicl eunder "Technical
data" (Y page 378). G
WARNING
If you release th eball couplin goritdoes not
engage correctl ywhen foldin gin, it will swing
out .Within pivotin grange of th eball coupling,
there is an increase driskofana ccidentand
injury. 226
Towin
gatrailerDriving and pa rking

Only release the ball coupling if the pivoting
range is unobstructed. Alwaysm ake sure that
the ball coupling engages when folding in.
When reversing the vehicle towards the trailer,
make sure there is nobody between the trailer
and the vehicle.
Couple and uncouple the trailer carefully.Ify ou
do not couple the trailer to the towing vehicle
correctly, the trailer could become detached.
When towing atrailer, your vehicle's handling
characteristics will be different in comparison to when driving without atrailer.
The vehicle/trailer combination:
R is heavier
R is restricted in its acceleration and gradient-
climbing capability
R has an increased braking distance
R is affected more by strong crosswinds
R demands more sensitive steering
R has alarger turning circle
This can impair the vehicle's handling charac-
teristics. Adapt your driving style accordingly.
Maintain asafe distance. Drive carefully.
When towing atrailer, always adjust your speed
to the current road and weather conditions. Do
not exceed the maximum permissibles peed for
your vehicle/trailer combination. Notes on towing
atrailer
General notes Trailer towing is not permissibleont
he following
models:
R Mercedes AMG C63
R Mercedes AMG C63S
When towing atrailer, set the tyre pressure on
the rear axle of the towing vehicle for the max-
imum load. Further information on the tyre pres-
sure table in the fuel filler flap (Y page 356).
On vehicles without level control, the height of
the ball coupling will alter according to the load
placed on the vehicle. If necessary, use atrailer
with aheight-adjustable drawbar.
You will find fitting dimensions and loads under "Technical data" (Y page 378). Driving tips Observe the notes on ESP
®
trailer stabilisation
(Y page 74).
The maximum permissibles peed for vehicle/
trailer combinations depends on the type of
trailer. Before beginning the journey, check the
trailer's documents to see what the maximum
permitted speed is. Observe the legally prescri-
bed maximum speed in the relevant country.
For certain Mercedes-Benz vehicles, the maxi-
mum permissibler ear axle load is increased
when towing atrailer. See the "Technical data"
section to find out whether this applies to your
vehicle (Y page 378). If you utilise any of the
added maximum rear axle load when towing a
trailer, the vehicle/trailer combination may not
exceed amaximum speed of 100 km/h for rea-
sons concerning the operating permit. This also applies in countries in which the permissible
maximum speed for vehicle/trailer combina-
tions is above 100 km/h.
When towing atrailer, your vehicle's handling
characteristics will be different in comparison to
when driving without atrailer and it will con-
sume more fuel.
Change into alower gear in good time on long
and steep downhill gradients.
This also applies if cruise control, DISTRONIC
PLUS or SPEEDTRONIC are activated.
This will use the braking effect of the engine, so
less braking will be required to maintain vehicle speed. This relieves the load on the brake sys-
tem and prevents the brakes from overheating
and wearing too quickly. If you need additional
braking, depress the brake pedal repeatedly
rather than continuously.
Driving tips If the trailer swings from side to side:
X Do not accelerate.
X Do not countersteer.
X Brake if necessary.
R Maintain agreater distance to the vehicle in
front than when driving without atrailer.
R Avoid braking abruptly.Ifp ossible,brake gen-
tly at first to allow the trailer to run on. Then,
increase the braking force rapidly.
R The valuesg iven for gradient-climbing capa-
bilities from astandstill refer to sea level.
When driving in mountainous areas, note that Towing
atrailer
227Driving and parking Z

Stowage well under the boot floor
! Remove the handle again before closing the
boot lid and snap it in tightly to prevent the
handle flap from protruding. Otherwise, you
could damage the handle. X
To open: pull handle :up. X
Hook handle :into rain trough ;. Roof carrier
Important safety notes G
WARNING
When aload is transported on the roof, the
vehicle's centre of gravity rises and the han-
dling changes. If you exceed the maximum
roof load, the handling as well as steering and braking characteristics are severely affected.
There is arisk of an accident.
Always observe the maximum roof load and
adapt your driving style.
You will find information on the maximum roof
load in the "Technical data" section
(Y page 377). !
Mercedes-Benz recommends that you only
use roof carriers that have been tested and
approved for Mercedes-Benz vehicles. This
helps to prevent damage to the vehicle.
Position the load on the roof carrier in such a way that the vehicle will not sustain damage
even when it is in motion.
Depending on the vehicle equipment, ensure
that when the roof carrier is fitted you can:
R raise the sliding sunroof/panorama sliding
sunroof fully
R open the boot lid fully
An incorrectly secured roof carrier or roof load
may become detached from the vehicle. You
must therefore ensure that you observe the roof
carrier manufacturer's installation instructions.
Vehicles with panoramas liding sunroof:if a
roof carrier is fitted, the panorama sliding sun-
roof cannot be opened. In order to allow venti-
lation of the vehicle interior, you can raise the
panorama sliding sunroof.
If ar oof carrier approved by Mercedes-Benz
makes contact with the panorama sliding sun-
roof, the sunroof will lower slightly but remain
raised in the rear.
Attaching the roof carrier X
Open covers :carefully in the direction of
the arrow.
X Fold covers :upwards.
X Only secure the roof carrier to the anchorage
points under covers :.
X Observe the manufacturer's installation
instructions. Stowage areas
313Stowing and features Z

Information on technica
ldata
i The technical dat
awas determine din
accordanc ewithEUD irectives .All data
applie stothevehicle's standard equipment.
The dat amay therefor ediffer for vehicles with
optional equipment. You can obtain further
information from aMercedes-Ben zService
Centre. Vehicle electronics
Tampering with th
eengin eelectron-
ics
! Only have wor
kcarried out on th eengine
electronics and it sassociated parts, suc has
control units, sensors, actuating components
and connecto rleads ,ataq ualified specialist
workshop. Vehicl ecom ponent smay other-
wise wear mor equickly and th evehicle's
operating permit may be invalidated. Retrofitting two-way radio
sand
mobile phones (RF transmitters) G
WARNING
If RF transmitters are tampered wit hornot
properly retrofitted, th eelectromagneti cradi-
ation they emit can interfere wit hthe vehicle
electronics .This may jeopardise th eopera-
tional safet yofthevehicle. Ther eisariskofan
accident.
You should hav eall wor kone lectrical and
electronic component scarried out at aquali-
fie ds pecialist workshop. G
WARNING
If you operate RF transmitters incorrectl yin
th ev ehicle, th eelectromagneti cradiation
could interfere wit hthe vehicl eelectronics,
e.g.:
R if th eRFt ransmitte risnotconnecte dtoan
exterio raerial
R thee xter iora erial has been fitte dincor-
rectl yorisn otalow-reflection type This could jeopardise th
eoperating safet yof
th ev ehicle. Ther eisariskofana ccident.
Hav ethe low-reflection exterio raerial fitte dat
aq ualified specialist workshop. When oper-
ating RF transmitters in th evehicle, always
connec tthe mtot helow-reflection exterior
aerial.
! The operating permit may be invalidated if
th ei nstruction sfor installation and use of RF
transmitters are no tobserved.
In particular, th efollowin gconditi onsm ust be
complied with:
R only approve dwavebands may be used.
R observ ethe maximum permissible output
in these wavebands.
R only approve daerial position smay be
used.
Excessiv elevels of electromagneti cradiation
may caus edamag etoy our healt hand to the
healt hofo thers. The use of an exterio raerial
takes int oconsid eration th escientific discus-
sion surroundin gthe possible healt hriskp osed
by electromagneti cfields. Approved aerial positions
:
Fron troo fa rea
; Rear roo farea
= Rear wing
? Tailgate
i On vehicles wit
hpanoram asliding sunroof,
fitting an aerial to th efront or rear roo farea is
no tp ermitted.
On th erear wing, it is recommended that you
position th eaerial on th eside of th evehicle
closes ttothecentre of th eroad.
Use Technical Specification ISO/TS 21609
(Road Vehicles –"EM Cg uidelines for fitting Vehicle electronics
369Technical data Z

aftermarket radio frequency transmittin
gequip-
ment") when retrofitting RF (radio frequency)
transmitters. Compl ywith th elegal require-
ments for add-on parts.
If your vehicle has fittings for two-way radio
equipment ,use th epower supply or aerial con-
nections intended for use with th ebasic wiring.
Be sure to observ ethe manufacturer' saddi-
tional instruction swhen installing.
Deviation swith respec ttowavebands, maxi-
mum transmission outputs or aerial positions
must be approved by Mercedes-Benz.
The maximum transmission output (PEAK )atthe
base of th eaerial must no texceed th efollowing
values: Waveband Maximum
transmission output Short wave
3-54M
Hz 10
0W 4mw
aveband
74 -88M Hz 30 W
2mw
aveband
14 4-1 74MHz 50 W
Trunke
dradio/Tetra
38 0-4 60MHz 10 W
70 cm waveband
40
0-4 60MHz 35 W
Mobil
ecommunications
(2G/3G/4G) 10 W
The followin
gcan be used in th evehicle without
restrictions:
R RF transmitters with amaximum transmis-
sion output of up to 10 0mW
R RF transmitters with transmitte rfrequencies
in th e380 -410 MHz waveban dand am axi-
mum transmission output of up to 2W
(trunked radio/Tetra)
R Mobil etelephones (2G/3G/4G)
Ther eare no restriction swhen positioning the
aerial on th eoutside of th evehicle for th efol-
lowin gwavebands:
R Trunke dradio/Tetra
R 70 cm waveband
R 2G/3G/4G Identification plates
Vehicle identification plate with vehi-
cle identification number (VIN)
X
Open th eright-han ddoor.
You will see vehicle identification plate :. Vehicle identification plat
e(example :vehicle swith
at railer to whitch)
: Vehicle identification plate
; Vehicle manufacturer (Daimler AG)
= EU type approval number (only for certain
countries)
? VIN
A Maximum permissible gross vehicle weight
(kg)
B Maximum permissible gross weigh tofvehi-
cle/trailer combinatio n(kg)(only for spe-
cific countries)
C Maximum permissible fron taxle load (kg)
D Maximum permissible rear axle load (kg)
E Pain tcode
i The dat
ashow nont hevehicle identification
plat eise xample data. This dat aisdifferen tfor
ever yvehicle and can deviate from th edata
show nhere. You can fin dthe dat aapplicable
to your vehicle on th evehicle's identification
plate. 370
Identification platesTechnical data
