MERCEDES-BENZ CL-CLASS 2007 Owners Manual

370 Controls in detail
Lighting
Interior lighting in the front
The controls are located in the overhead
control panel.
1Left reading lamp on/off
2Rear interior lamps on/off
3Front interior lighting on/off
4Interior lighting control
5Right reading lamp on/off
Automatic controlDeactivating: Press button4.
The OFF indicator lamp next to the but-
ton comes on.
The interior lighting remains switched
off in darkness, even when you:

unlock the vehicle

remove the SmartKey from the
starter switch

open a door
Activating: Press button4.
The interior lighting switches on in
darkness, when you:

unlock the vehicle

remove the SmartKey from the
starter switch

open a door
The interior lighting switches off auto-
matically following an adjustable time
delay (
page 241).Manual control
Switching on/off front interior light-
ing: Press button 3.
Switching on/off rear interior light-
ing: Press button 2.
Switching on/off front reading
lamps: Press button 1 or 5.
The front reading lamps reading lamps
are located in the lower edge of the in-
terior rear view mirror.
Ambient lighting: The brightness of
the ambient lighting is adjusted via
COMAND (
page 240).
iThe interior lighting is factory-set to auto-
matic mode.
iIf the door remains open, the interior lighting
switches off automatically after approximately
5minutes.
ProCarManuals.com

371 Controls in detail
Lighting
Courtesy lighting
For better orientation in the dark, courtesy
lamps will illuminate the interior of your ve-
hicle as follows:
With parking lamps switched on:

the door handles

the driver and passenger footwells
With the SmartKey in the starter switch
position1:

the door handles

the center console
Door entry lamps
For better orientation in the dark, the cor-
responding door entry lamps will switch on
in darkness when you open a door and the
automatic control is activated.
The door entry lamps switch off when the
corresponding door is closed.Trunk lamp
The trunk lamp switches on if the trunk is
opened.
If the trunk remains open, the trunk light-
ing switches off automatically after ap-
proximately 10 minutes.
iIf you turn the SmartKey in the starter
switch to position0 and switch off the exterior
headlamps, the door handle lamps will remain lit
for approximately 5 minutes.
iIf you turn the SmartKey in the starter
switch to position0 and switch off the exterior
headlamps, the door entry lamps will remain lit
for approximately 5 minutes.
ProCarManuals.com

372 Controls in detail
Windshield wipers
Combination switch
1Switching on windshield wipers
2Single wipe
Wiping with windshield washer fluid
Switch on the ignition (page 336).
Switching on/off windshield wipers
Turn the combination switch to the de-
sired position depending on the inten-
sity of the rain.
MWindshield wipers off
USlow intermittent wiping
(rain sensor operation low sen-
sitivity)
VFast intermittent wiping
(rain sensor operation high sen-
sitivity)
uSlow continuous wiping
tFast continuous wiping
!If the windshield wipers leave smears on the
windshield after the car has been driven through
an automatic car wash, then wax or other resi-
due is on the windshield. Shortly after washing
the car in an automatic car wash, clean the wind-
shield with windshield washer fluid
(
page 373).
!Do not operate the wipers when the wind-
shield is dry. Dust that accumulates on a wind-
shield might scratch the glass and/or damage
the wiper blades when wiping occurs on a dry
windshield. If it is necessary to operate the wip-
ers in dry weather conditions, always operate
the wipers with windshield washer fluid
(
page 373).
!If anything blocks the windshield wipers
(leaves, snow, etc.), switch them off immediate-
ly.

For safety reasons, stop the vehicle in a safe
location,

turn off the engine by turning the
SmartKey to position0 and withdraw
SmartKey from starter switch
or

turn off the engine by pressing the
KEYLESS-GO* start/stop button
(
page 337) and open the driver’s door
(with the driver’s door open, starter
switch is in position0, same as with
SmartKey removed from starter switch)
before attempting to remove any blockage.

Remove blockage.

Turn the windshield wipers on again.If the windshield wipers fail to function at all in
the combination switch position u,

set the combination switch to the next high-
er wiper speed

have the windshield wipers checked at the
nearest authorized Mercedes-Benz Center
ProCarManuals.com

373 Controls in detail
Windshield wipers
Intermittent wiping
Only switch on intermittent wiping under
wet weather conditions or in the presence
of precipitation.
Turn the combination switch to posi-
tion U or V.
The wipers move across the wind-
shield. Afterward, the wiping intervals
are determined by the wetness of the
windshield.
After the initial wipe, pauses between
wipes are automatically controlled by the
rain sensor.Single wipe
Press the combination switch briefly in
the direction of arrow2 (
page 372)
to the resistance point.
The windshield wipers wipe one time
without washer fluid.
Wiping with windshield washer fluid
Press the combination switch in the di-
rection of arrow2 (
page 372) past
the resistance point.
The windshield wiper operates with
washer fluid.
For information on filling up the washer
reservoir, see “Windshield washer system
and headlamp cleaning system”
(
page 519).
iWhen the windshield wipers are switched on
and you brake the vehicle to a stop, the wipers
operate more slowly.
!Do not leave windshield wipers on an inter-
mittent setting when the vehicle is taken to an
automatic car wash or during windshield clean-
ing. Wipers will operate in the presence of water
sprayed on the windshield, and windshield wip-
ers may be damaged as a result.
!If you have set intermittent wiping, dirt on
the surface of the rain sensor or optical effects
may cause the windshield wipers to wipe in an
undesired fashion. This could then damage the
windshield wiper blades or scratch the windows.
You should therefore switch off the windshield
wipers when weather conditions are dry.
iIntermittent wiping is interrupted when the
vehicle is at a standstill and a front door is
opened. This protects persons getting into or out
of the vehicle from being sprayed.
Intermittent wiping will be continued when

both doors are closed and the automatic
transmission is set to positionD orR
or

the wiper setting is changed using the com-
bination switch
iTo prevent smears on the windshield or
noisy/chattering wiper blades, wipe with wind-
shield washer fluid every now and then even
when it is raining.
ProCarManuals.com

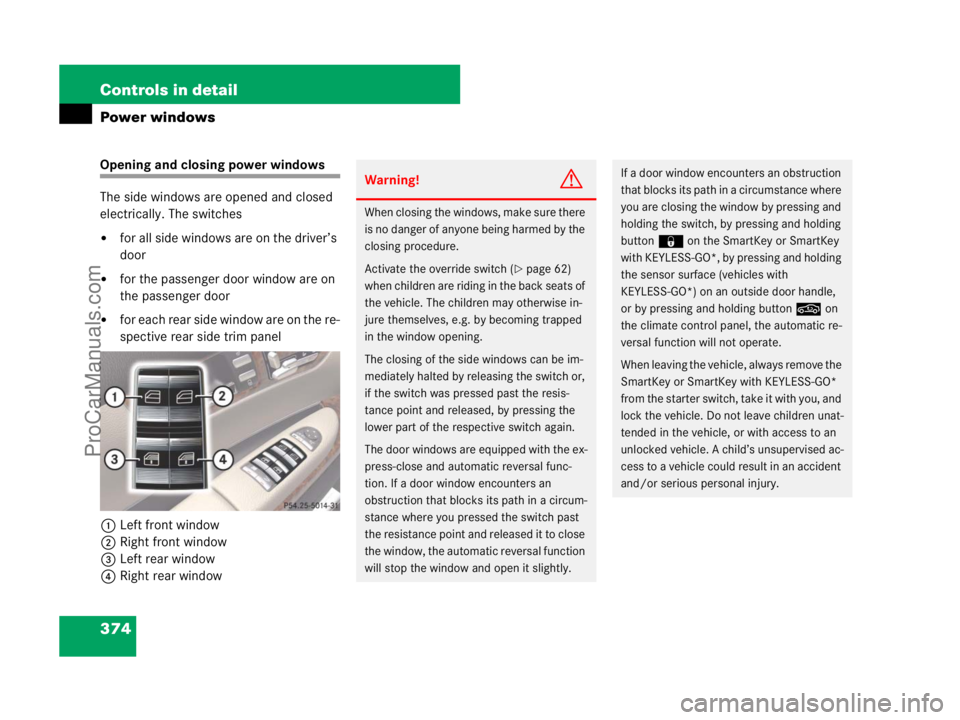

374 Controls in detail
Power windows
Opening and closing power windows
The side windows are opened and closed
electrically. The switches

for all side windows are on the driver’s
door

for the passenger door window are on
the passenger door

for each rear side window are on the re-
spective rear side trim panel
1Left front window
2Right front window
3Left rear window
4Right rear window
Warning!G
When closing the windows, make sure there
is no danger of anyone being harmed by the
closing procedure.
Activate the override switch (
page 62)
when children are riding in the back seats of
the vehicle. The children may otherwise in-
jure themselves, e.g. by becoming trapped
in the window opening.
The closing of the side windows can be im-
mediately halted by releasing the switch or,
if the switch was pressed past the resis-
tance point and released, by pressing the
lower part of the respective switch again.
The door windows are equipped with the ex-
press-close and automatic reversal func-
tion. If a door window encounters an
obstruction that blocks its path in a circum-
stance where you pressed the switch past
the resistance point and released it to close
the window, the automatic reversal function
will stop the window and open it slightly.
If a door window encounters an obstruction
that blocks its path in a circumstance where
you are closing the window by pressing and
holding the switch, by pressing and holding
button ‹ on the SmartKey or SmartKey
with KEYLESS-GO*, by pressing and holding
the sensor surface (vehicles with
KEYLESS-GO*) on an outside door handle,
or by pressing and holding button, on
the climate control panel, the automatic re-
versal function will not operate.
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. A child’s unsupervised ac-
cess to a vehicle could result in an accident
and/or serious personal injury.
ProCarManuals.com

375 Controls in detail
Power windows
Switch on the ignition (page 336).
Opening: Press the lower part of
switch1 to 4 (
page 374) to the re-
sistance point.
The corresponding window will move
downwards until you release the
switch.
Closing: Press the upper part of
switch1 to 4 (
page 374) to the re-
sistance point.
The corresponding window will move
upwards until you release the switch.
Express-opening: Press the lower part
of switch1 to4 (
page 374) past
the resistance point and release.
The corresponding window opens com-
pletely.
Express-closing (door windows
only): Press the upper part of
switch1 to4 (
page 374) past the
resistance point and release.
The corresponding window closes com-
pletely.
iYou can also open or close the windows us-
ing the SmartKey, see “Summer opening fea-
ture” (
page 376) and “Convenience closing
feature” (
page 376).
Depending on current position, the windows may
also open or close when the air recirculation
button, (
page 453) is pressed and held
for 2 seconds
iOperating the windows from the rear is not
possible if you activate the override switch
(
page 62).
iIf PRE-SAFE® has been activated, the front
side windows close automatically until only a
small gap remains.
iWith the SmartKey in starter switch
position0 or removed from the starter switch,
the power windows can be operated:

until you open the driver’s or passenger’s
door

for at least 5 minutes if no door was opened
Warning!G
If you press and hold the switch up when
closing the window, and upward movement
of the window is blocked by some obstruc-
tion including but not limited to arms, hands,
fingers, etc., the automatic reversal will not
operate.
Warning!G
Driver’s door only:
If within 5 seconds you again press the
switch past the resistance point and re-
lease, the automatic reversal will not
operate.

ProCarManuals.com

376 Controls in detail
Power windows
Stopping during Express-operation:
Briefly press the respective power win-
dow switch again.
Summer opening feature
If the weather is warm, you can ventilate
the vehicle before driving off by simulta-
neously:

opening the side windows

opening the tilt/sliding sunroof

turning on the seat ventilation* for the
driver’s seat
Aim transmitter eye of the SmartKey or
SmartKey with KEYLESS-GO* at the
driver’s outside door handle. The
SmartKey or SmartKey with
KEYLESS-GO* must be in close proxim-
ity to the driver’s door handle.
Press and hold button Πuntil the
side windows and tilt/sliding sunroof
have reached the desired position.The vehicle unlocks.
Release button Πto interrupt pro-
cedure.
Convenience closing feature
When you lock the vehicle, you can close
the side windows and tilt/sliding sunroof
simultaneously.
!If the upward movement of a door window is
blocked during the closing procedure, the door
window will stop and open slightly.
Remove the obstruction, press the respective
power window switch at the upper part again
past the resistance point and release.
If the door window still does not close when
there is no obstruction, press and hold the re-
spective power window switch at the upper part.
The door window will then close without the ob-
struction sensor function.iThe “Summer opening” function can only be
activated via the remote control of the SmartKey
or SmartKey with KEYLESS-GO*.
iThe seat ventilation* for the driver’s seat is
automatically set to the highest level if activated
via summer opening feature.
iThe function of the SmartKey overrules the
KEYLESS-GO* function.
Warning!G
When closing the side windows and the
tilt/sliding sunroof, make sure that there is
no danger of anyone being harmed by the
closing procedure.
If potential danger exists, proceed as fol-
lows:

Release button ‹ to stop the closing
procedure. To open, press and hold but-
ton Œ. To continue the closing after
making sure that there is no danger of

ProCarManuals.com

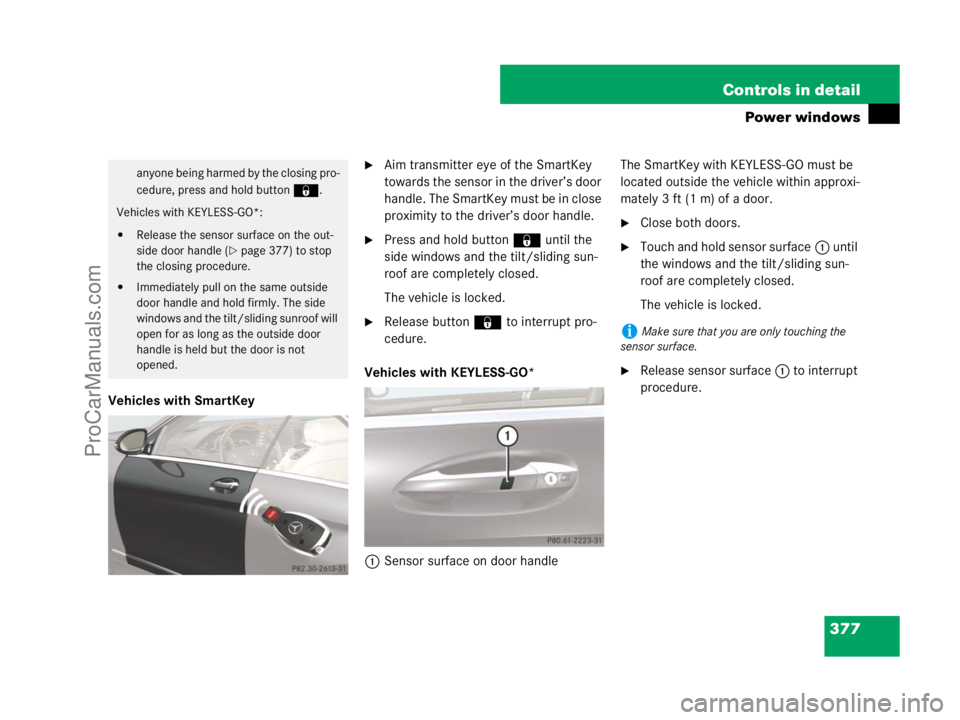

377 Controls in detail
Power windows
Vehicles with SmartKey
Aim transmitter eye of the SmartKey
towards the sensor in the driver’s door
handle. The SmartKey must be in close
proximity to the driver’s door handle.
Press and hold button ‹ until the
side windows and the tilt/sliding sun-
roof are completely closed.
The vehicle is locked.
Release button ‹ to interrupt pro-
cedure.
Vehicles with KEYLESS-GO*
1Sensor surface on door handleThe SmartKey with KEYLESS-GO must be
located outside the vehicle within approxi-
mately 3 ft (1 m) of a door.
Close both doors.
Touch and hold sensor surface1 until
the windows and the tilt/sliding sun-
roof are completely closed.
The vehicle is locked.
Release sensor surface1 to interrupt
procedure.
anyone being harmed by the closing pro-
cedure, press and hold button‹.
Vehicles with KEYLESS-GO*:

Release the sensor surface on the out-
side door handle (
page 377) to stop
the closing procedure.

Immediately pull on the same outside
door handle and hold firmly. The side
windows and the tilt/sliding sunroof will
open for as long as the outside door
handle is held but the door is not
opened.
iMake sure that you are only touching the
sensor surface.
ProCarManuals.com

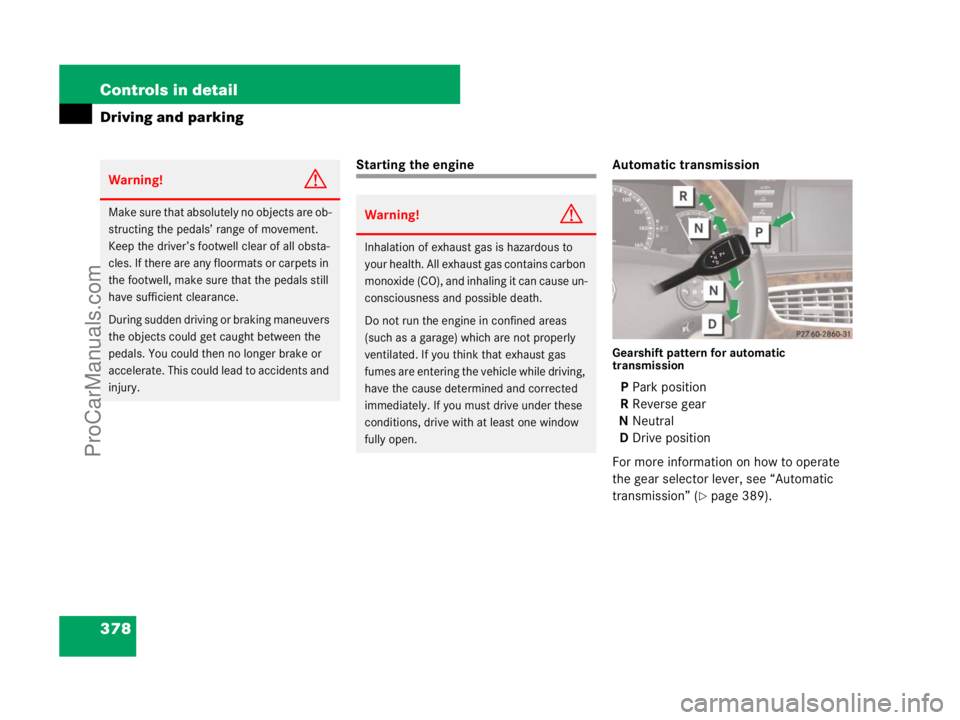

378 Controls in detail
Driving and parking
Starting the engine Automatic transmission
Gearshift pattern for automatic
transmission
PPark position
RReverse gear
NNeutral
DDrive position
For more information on how to operate
the gear selector lever, see “Automatic
transmission” (
page 389).
Warning!G
Make sure that absolutely no objects are ob-
structing the pedals’ range of movement.
Keep the driver’s footwell clear of all obsta-
cles. If there are any floormats or carpets in
the footwell, make sure that the pedals still
have sufficient clearance.
During sudden driving or braking maneuvers
the objects could get caught between the
pedals. You could then no longer brake or
accelerate. This could lead to accidents and
injury.Warning!G
Inhalation of exhaust gas is hazardous to
your health. All exhaust gas contains carbon
monoxide (CO), and inhaling it can cause un-
consciousness and possible death.
Do not run the engine in confined areas
(such as a garage) which are not properly
ventilated. If you think that exhaust gas
fumes are entering the vehicle while driving,
have the cause determined and corrected
immediately. If you must drive under these
conditions, drive with at least one window
fully open.
ProCarManuals.com

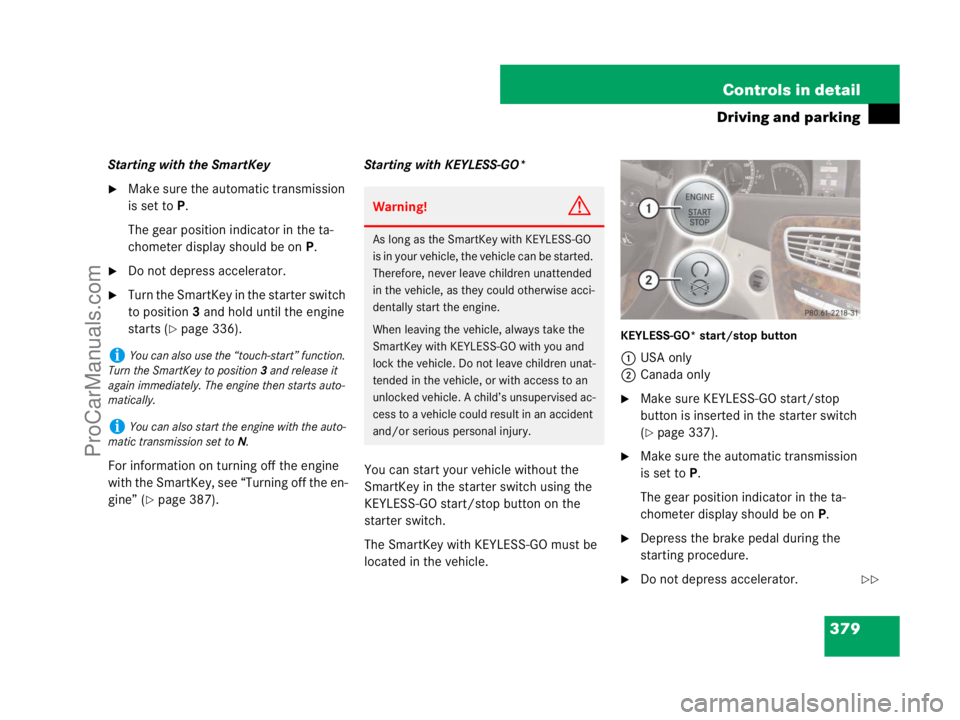

379 Controls in detail
Driving and parking
Starting with the SmartKey
Make sure the automatic transmission
is set toP.
The gear position indicator in the ta-
chometer display should be on P.
Do not depress accelerator.
Turn the SmartKey in the starter switch
to position3 and hold until the engine
starts (
page 336).
For information on turning off the engine
with the SmartKey, see “Turning off the en-
gine” (
page 387).Starting with KEYLESS-GO*
You can start your vehicle without the
SmartKey in the starter switch using the
KEYLESS-GO start/stop button on the
starter switch.
The SmartKey with KEYLESS-GO must be
located in the vehicle.
KEYLESS-GO* start/stop button
1USA only
2Canada only
Make sure KEYLESS-GO start/stop
button is inserted in the starter switch
(
page 337).
Make sure the automatic transmission
is set toP.
The gear position indicator in the ta-
chometer display should be on P.
Depress the brake pedal during the
starting procedure.
Do not depress accelerator.
iYou can also use the “touch-start” function.
Turn the SmartKey to position 3 and release it
again immediately. The engine then starts auto-
matically.
iYou can also start the engine with the auto-
matic transmission set to N.
Warning!G
As long as the SmartKey with KEYLESS-GO
is in your vehicle, the vehicle can be started.
Therefore, never leave children unattended
in the vehicle, as they could otherwise acci-
dentally start the engine.
When leaving the vehicle, always take the
SmartKey with KEYLESS-GO with you and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. A child’s unsupervised ac-
cess to a vehicle could result in an accident
and/or serious personal injury.

ProCarManuals.com
