MERCEDES-BENZ CLK-CLASS 2003 Owners Manual

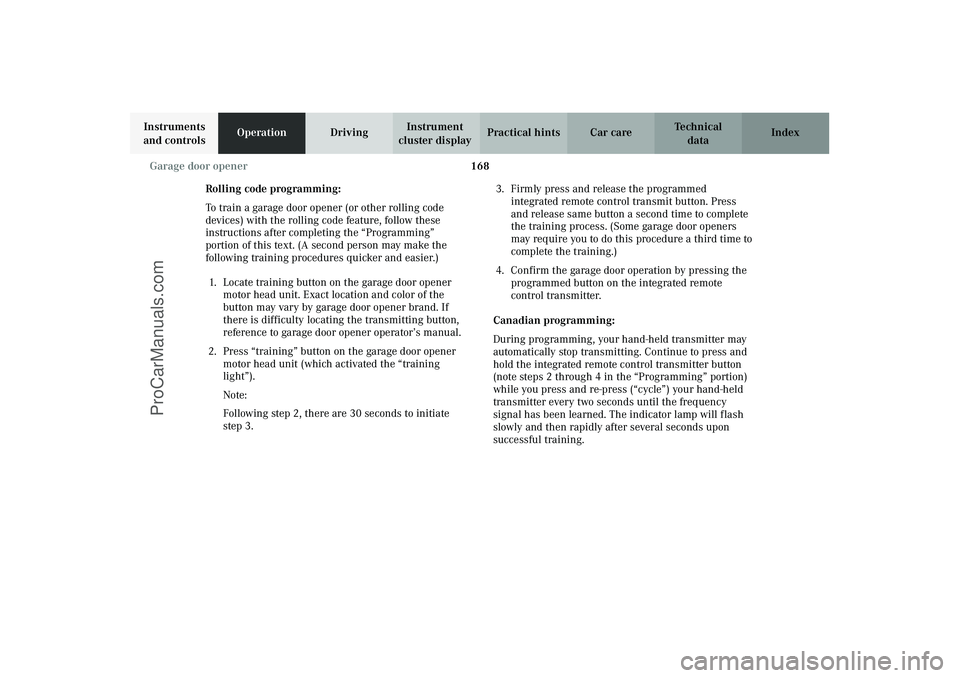

168 Garage door opener
Technical
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index
Rolling code programming:
To train a garage door opener (or other rolling code
devices) with the rolling code feature, follow these
instructions after completing the “Programming”
portion of this text. (A second person may make the
following training procedures quicker and easier.)
1. Locate training button on the garage door opener
motor head unit. Exact location and color of the
button may vary by garage door opener brand. If
there is difficulty locating the transmitting button,
reference to garage door opener operator’s manual.
2. Press “training” button on the garage door opener
motor head unit (which activated the “training
light”).
Note:
Following step 2, there are 30 seconds to initiate
step 3.3. Firmly press and release the programmed
integrated remote control transmit button. Press
and release same button a second time to complete
the training process. (Some garage door openers
may require you to do this procedure a third time to
complete the training.)
4. Confirm the garage door operation by pressing the
programmed button on the integrated remote
control transmitter.
Canadian programming:
During programming, your hand-held transmitter may
automatically stop transmitting. Continue to press and
hold the integrated remote control transmitter button
(note steps 2 through 4 in the “Programming” portion)
while you press and re-press (“cycle”) your hand-held
transmitter every two seconds until the frequency
signal has been learned. The indicator lamp will flash
slowly and then rapidly after several seconds upon
successful training.
J_C208_II.book Seite 168 Donnerstag, 31. Mai 2001 10:13 10
ProCarManuals.com

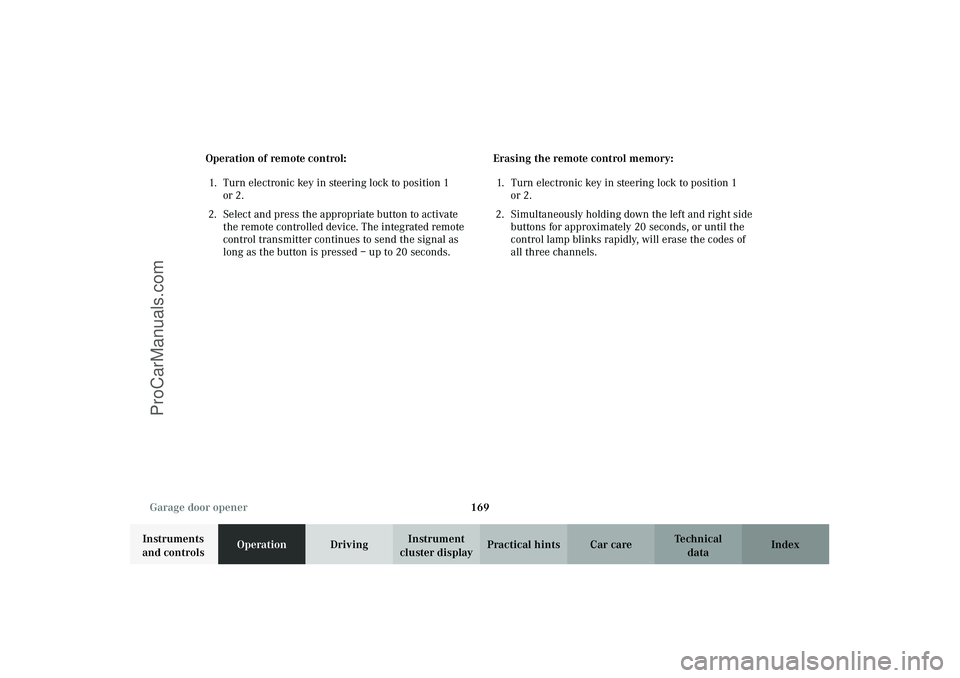

169 Garage door opener
Technical
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index Operation of remote control:
1. Turn electronic key in steering lock to position 1
or 2.
2. Select and press the appropriate button to activate
the remote controlled device. The integrated remote
control transmitter continues to send the signal as
long as the button is pressed – up to 20 seconds.Erasing the remote control memory:
1. Turn electronic key in steering lock to position 1
or 2.
2. Simultaneously holding down the left and right side
buttons for approximately 20 seconds, or until the
control lamp blinks rapidly, will erase the codes of
all three channels.
J_C208_II.book Seite 169 Donnerstag, 31. Mai 2001 10:13 10
ProCarManuals.com

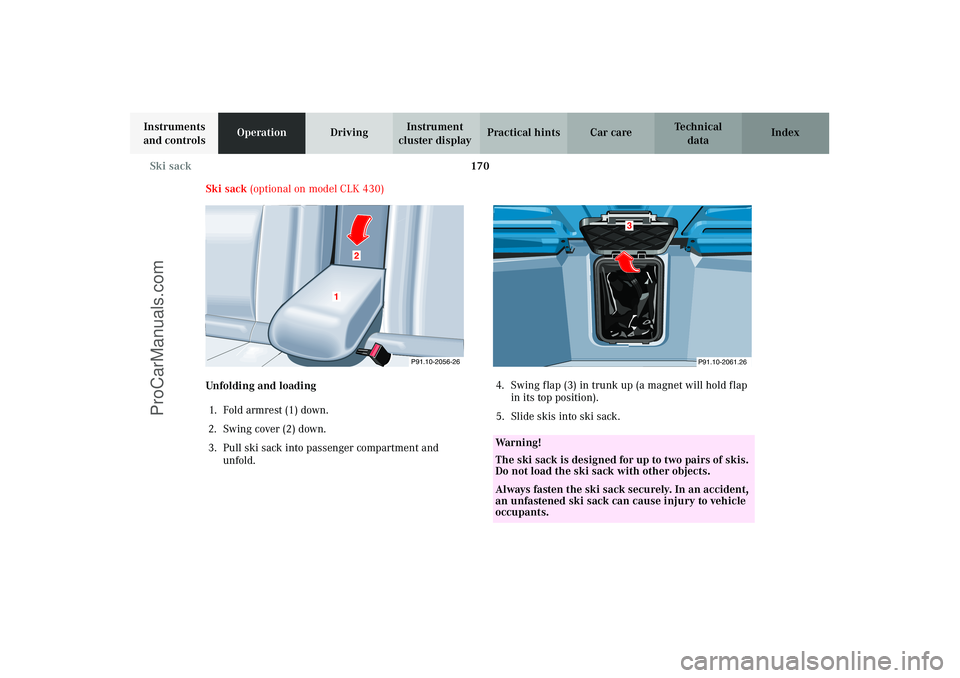

170 Ski sack
Technical
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index
Ski sack (optional on model CLK 430)
Unfolding and loading
1. Fold armrest (1) down.
2. Swing cover (2) down.
3. Pull ski sack into passenger compartment and
unfold.4. Swing flap (3) in trunk up (a magnet will hold flap
in its top position).
5. Slide skis into ski sack.
2
1
P91.10-2056-26
Wa r n i n g !
The ski sack is designed for up to two pairs of skis.
Do not load the ski sack with other objects.Always fasten the ski sack securely. In an accident,
an unfastened ski sack can cause injury to vehicle
occupants.
P91.10-2061.26
3
J_C208_II.book Seite 170 Donnerstag, 31. Mai 2001 10:13 10
ProCarManuals.com

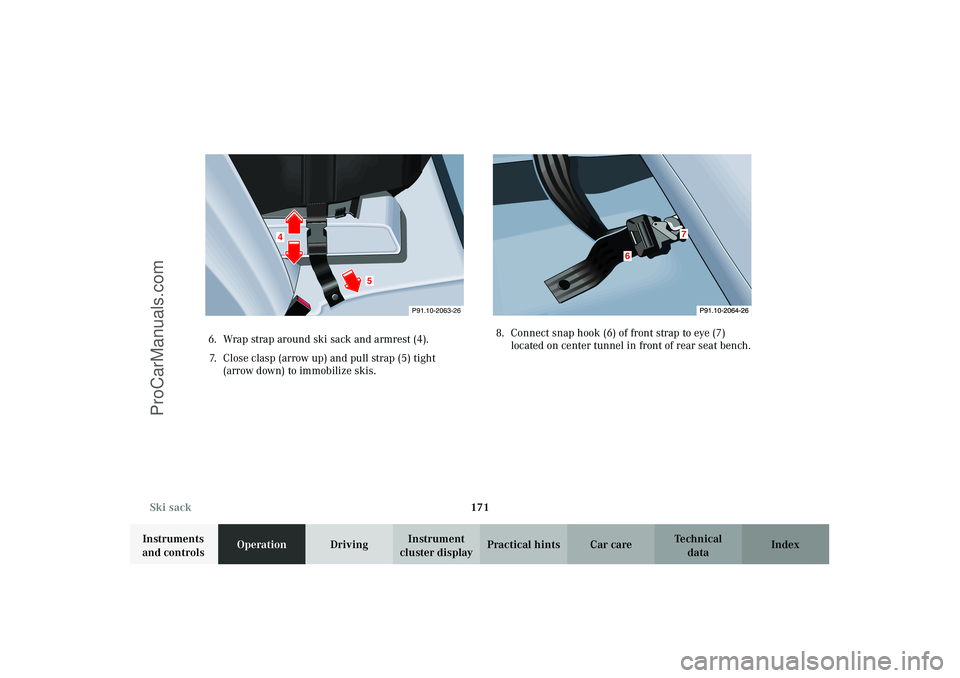

171 Ski sack
Technical
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index 6. Wrap strap around ski sack and armrest (4).
7. Close clasp (arrow up) and pull strap (5) tight
(arrow down) to immobilize skis.8. Connect snap hook (6) of front strap to eye (7)
located on center tunnel in front of rear seat bench.
P91.10-2063-26
4
5
6
7
J_C208_II.book Seite 171 Donnerstag, 31. Mai 2001 10:13 10
ProCarManuals.com

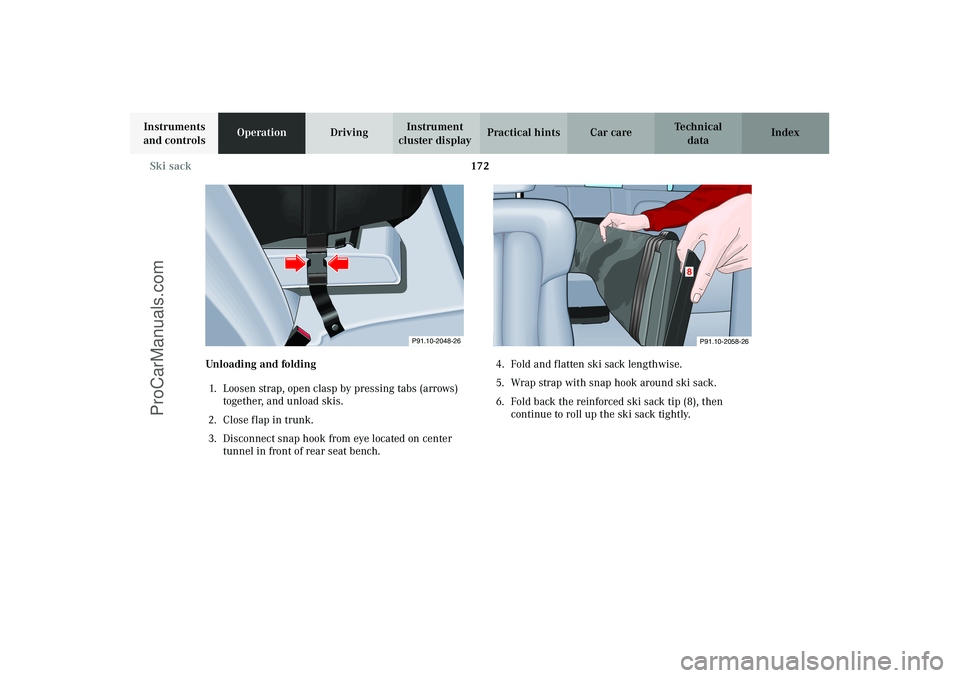

172 Ski sack
Technical
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index
Unloading and folding
1. Loosen strap, open clasp by pressing tabs (arrows)
together, and unload skis.
2. Close flap in trunk.
3. Disconnect snap hook from eye located on center
tunnel in front of rear seat bench.4. Fold and flatten ski sack lengthwise.
5. Wrap strap with snap hook around ski sack.
6. Fold back the reinforced ski sack tip (8), then
continue to roll up the ski sack tightly.
P91.10-2048-26
8
P91.10-2058-26
J_C208_II.book Seite 172 Donnerstag, 31. Mai 2001 10:13 10
ProCarManuals.com

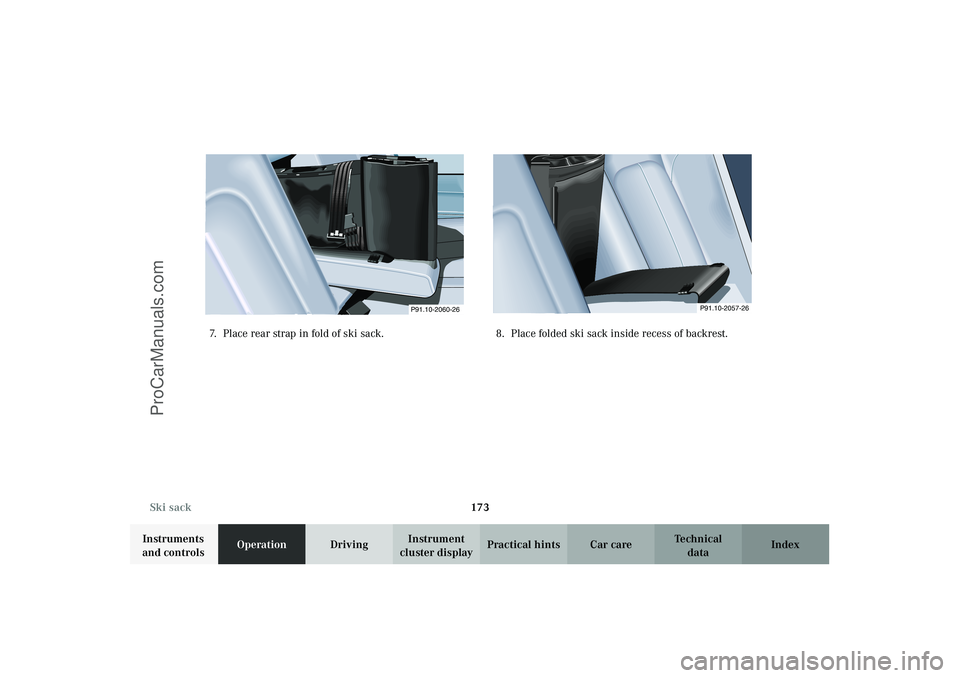

173 Ski sack
Technical
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index 7. Place rear strap in fold of ski sack. 8. Place folded ski sack inside recess of backrest.
P91.10-2060-26
P91.10-2057-26
J_C208_II.book Seite 173 Donnerstag, 31. Mai 2001 10:13 10
ProCarManuals.com

174 Ski sack
Technical
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index
9. Close ski sack compartment cover.Removal of ski sack
For removal of ski sack we recommend that you contact
an authorized Mercedes-Benz Center.
Note:
To prevent unauthorized persons from obtaining access
to the trunk, always close the pass-through.
P91.10-2059-26
Wa r n i n g !
Never drive vehicle with trunk lid open while the
ski sack is removed. Deadly carbon monoxide (CO)
gases may enter vehicle interior resulting in
unconsciousness and death.
J_C208_II.book Seite 174 Donnerstag, 31. Mai 2001 10:13 10
ProCarManuals.com

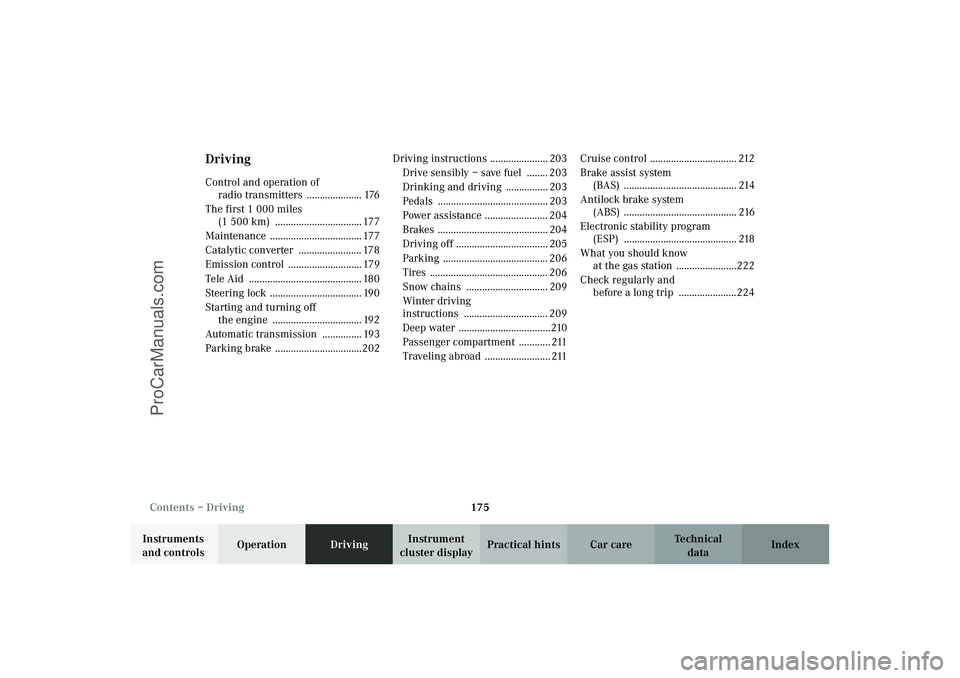

175 Contents – Driving
Technical
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index
DrivingControl and operation of
radio transmitters ..................... 176
The first 1 000 miles
(1 500 km) ................................. 177
Maintenance ................................... 177
Catalytic converter ........................ 178
Emission control ............................ 179
Tele Aid ........................................... 180
Steering lock ................................... 190
Starting and turning off
the engine .................................. 192
Automatic transmission ............... 193
Parking brake .................................202Driving instructions ...................... 203
Drive sensibly – save fuel ........ 203
Drinking and driving ................ 203
Pedals .......................................... 203
Power assistance ........................ 204
Brakes .......................................... 204
Driving off ................................... 205
Parking ........................................ 206
Tires ............................................. 206
Snow chains ............................... 209
Winter driving
instructions ................................ 209
Deep water ...................................210
Passenger compartment ............ 211
Traveling abroad ......................... 211Cruise control ................................. 212
Brake assist system
(BAS) ........................................... 214
Antilock brake system
(ABS) ........................................... 216
Electronic stability program
(ESP) ........................................... 218
What you should know
at the gas station .......................222
Check regularly and
before a long trip ......................224
J_C208_II.book Seite 175 Donnerstag, 31. Mai 2001 10:13 10
ProCarManuals.com

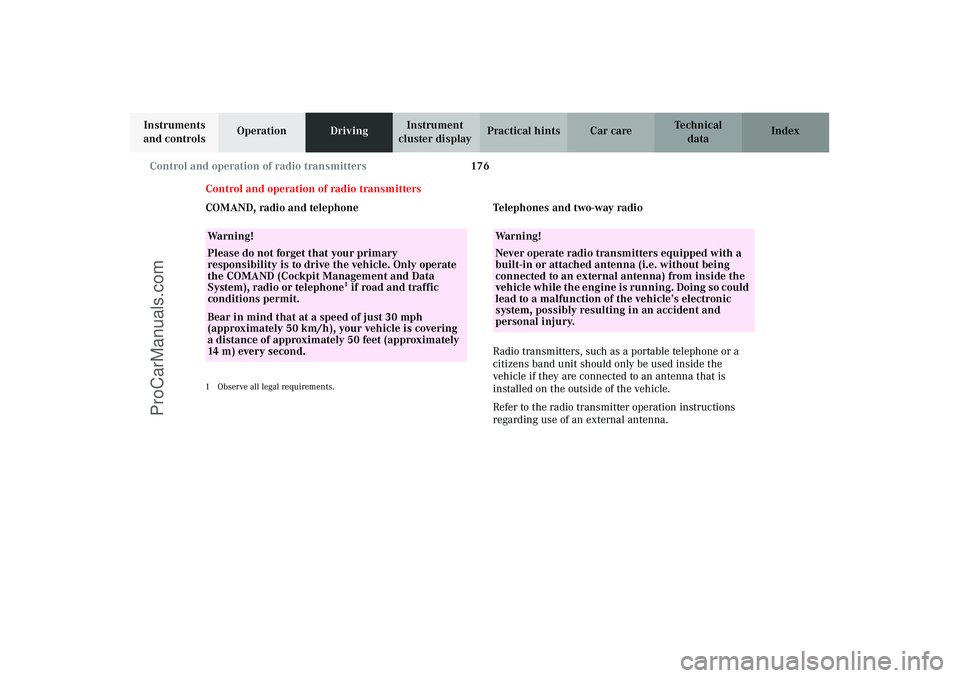

176 Control and operation of radio transmitters
Technical
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index
Control and operation of radio transmitters
COMAND, radio and telephone
1 Observe all legal requirements.
Telephones and two-way radio
Radio transmitters, such as a portable telephone or a
citizens band unit should only be used inside the
vehicle if they are connected to an antenna that is
installed on the outside of the vehicle.
Refer to the radio transmitter operation instructions
regarding use of an external antenna.
Wa r n i n g !
Please do not forget that your primary
responsibility is to drive the vehicle. Only operate
the COMAND (Cockpit Management and Data
System), radio or telephone
1 if road and traffic
conditions permit.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your vehicle is covering
a distance of approximately 50 feet (approximately
14 m) every second.
Wa r n i n g !
Never operate radio transmitters equipped with a
built-in or attached antenna (i.e. without being
connected to an external antenna) from inside the
vehicle while the engine is running. Doing so could
lead to a malfunction of the vehicle’s electronic
system, possibly resulting in an accident and
personal injury.
J_C208_II.book Seite 176 Donnerstag, 31. Mai 2001 10:13 10
ProCarManuals.com

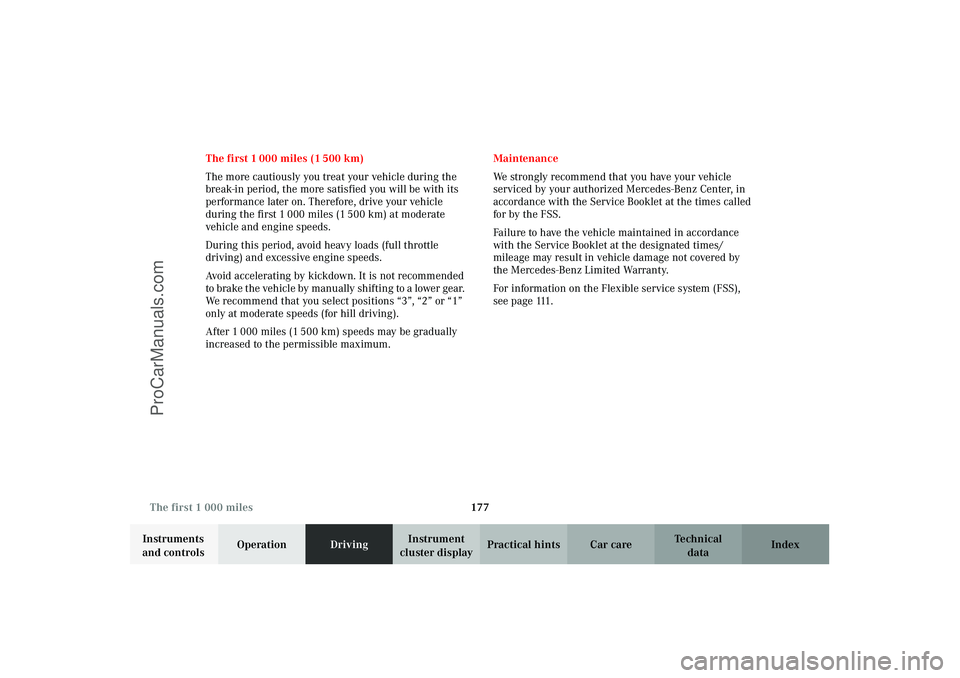

177 The first 1 000 miles
Technical
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index The first 1 000 miles (1 500 km)
The more cautiously you treat your vehicle during the
break-in period, the more satisfied you will be with its
performance later on. Therefore, drive your vehicle
during the first 1 000 miles (1 500 km) at moderate
vehicle and engine speeds.
During this period, avoid heavy loads (full throttle
driving) and excessive engine speeds.
Avoid accelerating by kickdown. It is not recommended
to brake t he vehicle by man ually shif tin g to a lower gear.
We recommend that you select positions “3”, “2” or “1”
only at moderate speeds (for hill driving).
After 1 000 miles (1 500 km) speeds may be gradually
increased to the permissible maximum.Maintenance
We strongly recommend that you have your vehicle
serviced by your authorized Mercedes-Benz Center, in
accordance with the Service Booklet at the times called
for by the FSS.
Failure to have the vehicle maintained in accordance
with the Service Booklet at the designated times/
mileage may result in vehicle damage not covered by
the Mercedes-Benz Limited Warranty.
For information on the Flexible service system (FSS),
see page 111.
J_C208_II.book Seite 177 Donnerstag, 31. Mai 2001 10:13 10
