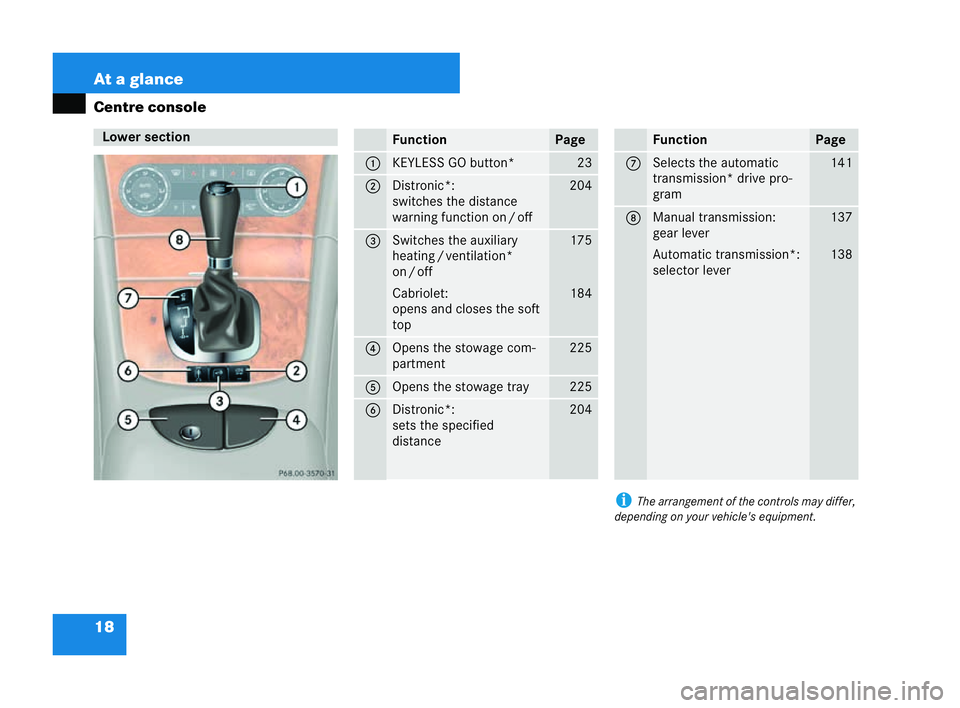

18 At a glance
Centre console
iThe arrangement of the controls may differ,
depending on your vehicle's equipme nt.Lower section
P6
8.00-3570-31 Fun
ction Pa
ge 1 KEYLESS GO button* 23
2 Distronic*:
swi
tches the distance
warning function on /off 204
3 Switches the auxiliary
heating
/ventilation*
on /o ff
Cabriolet:
opens and closes the soft
top 175
184
4 Opens the stowage com-
partment 225
5 Opens the stowage tray 225
6 Distronic*:
sets the specified
dista
nce 204 Fu
nction Page
7 Sele
cts the automatic
transmission* drive pro-
gram 141
8 Manual transmission:
gear lever
Automatic transmission*:
selector lever 137
138209en_d2.boo Seite
18Diens tag, 25 .Mai 2004 7:26 19
Page 22 of 453

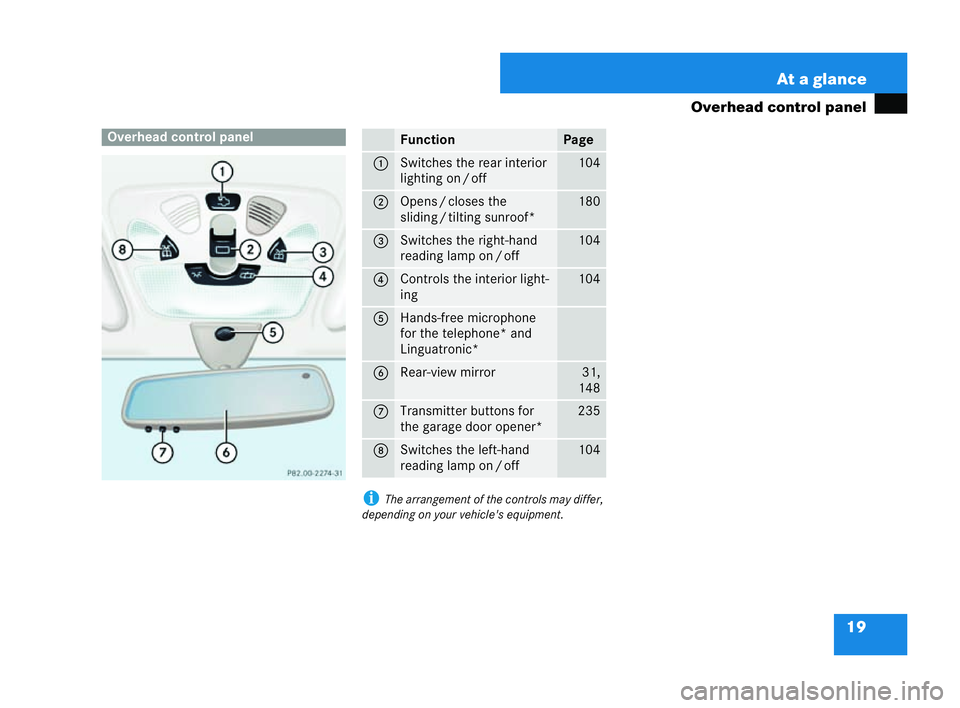

19
At a glance
Overh ead control panel
i The arrangement of the control sma y differ,
depending on your vehicle's equipment. Overhead control panel
P82.00-2274-31 Function Page
1 Switches the rear interior
lighting on
/off 104
2 Opens
/closes the
slidin g/tilting sunroof* 180
3 Switches the right-hand
reading lamp on
/off 104
4 Controls the interior light-
ing 104
5 Hands-free microphone
for the telephone* and
Linguatronic*
6 Rear-view mirror 31,
148 7 Tra
nsmitte r buttons for
the garage door opener* 235
8 Switches the
left-hand
reading lamp on /off 104209en_d2.boo Seite
19Diens tag, 25 .Mai 2004 7:26 19
Page 23 of 453

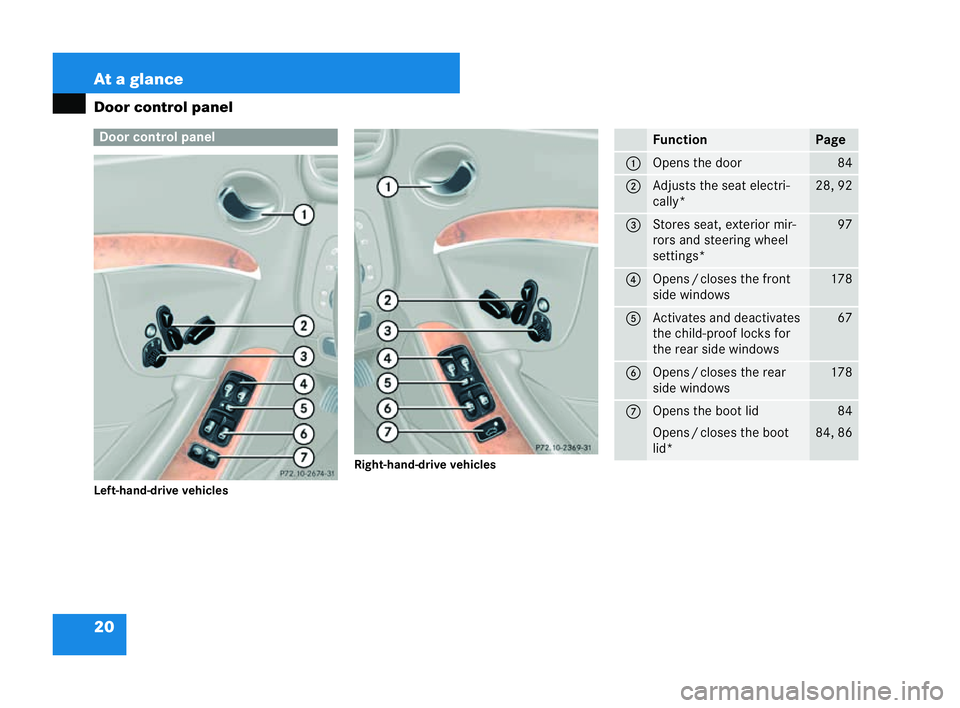

20 At a glance
Door control panel
Le
ft-hand-drive vehicles Right-hand-drive vehiclesDoor control panel
P72.10-2674-31 P72.10-2674-31 Fu
nction Page
1 Opens the door 84
2 Adjusts the seat electri-
cally* 28, 92
3 Stores seat, exterior mir-
ro
rs and steering wheel
settings* 97
4 Open
s/closes the front
side windows 178
5 Ac
tivates and deactivates
the child-proof locks for
the rear side windows 67
6 Ope
ns/c loses the rear
side windows 178
7 Opens the boot lid
Open
s/closes the boot
lid* 84
84, 86 209en_d2.boo Seite
20Diens tag, 25 .Mai 2004 7:26 19
Page 24 of 453
21
Getting started
Opening
Adjusting Driving
Parking and locking 209en_d2.boo Seite
21Diens tag, 25 .Mai 2004 7:26 19
Page 25 of 453
22 Getting started
Opening
The "Getting started" section contains
brief details of the basic functions of the
veh
icle. You should read this section par-
ticul arly tho roughly if this is your first
Mercedes-Benz.
If you are already familiar with the basic
functions described here, the "Controls in
detail" section will help you with more
detailed information. You will find the ref-
erence to the appropriate part of that sec-
tion at the end of each segment. I

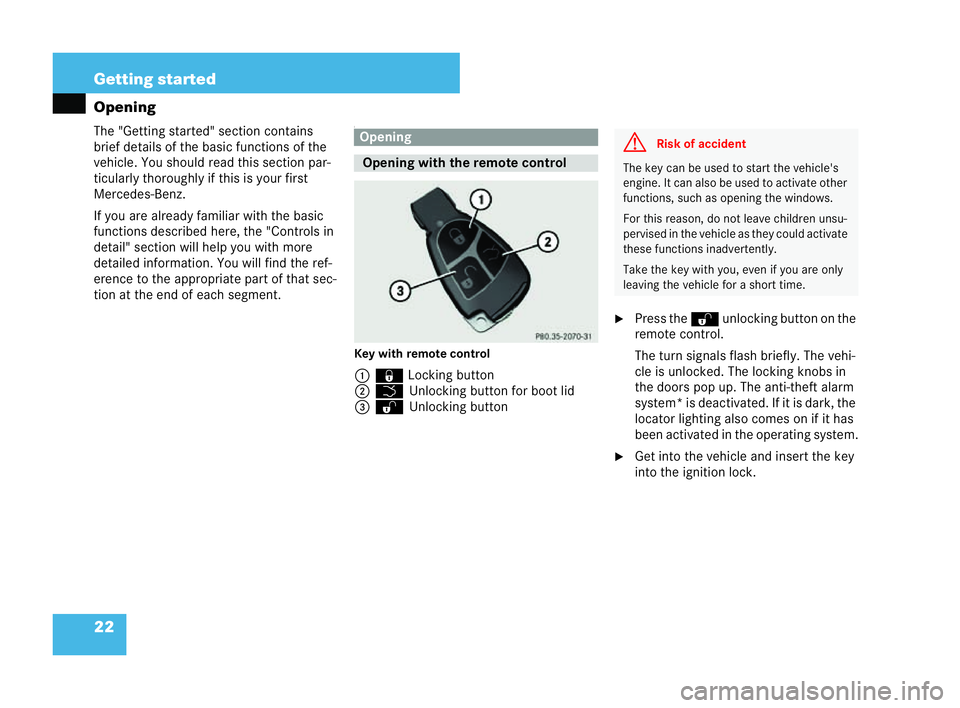

Key with remote control
1 ‹ Locking button
2 Š
Unlocking button for boot lid
3 Œ
Unlocking button 6
Press the Œunlocking button on the
remote control.
The turn signals flash briefly. The vehi-
cle is unlocked. The locking knobs in
the doo rspop up. The anti-theft alarm
system* is deactivated. If it isdark, the
locator lighting also comes on if it has
been activ ated in the operating system.
6 Get int othe vehicle and insert the key
into the ignition lock. Opening
Opening with the remote control
P 80.35-2070-31
R230 G
Risk of accident The
key can beused to start the ve hicle' s
en gine. It can also be used to activate other
function s,su ch as openi ngthe windows.
For this reason, do not leave childre nunsu-
pervised in the ve hicleas th eycould activate
these functions inadvertently.
Take the key with you, even if you are only
leavi ngthe vehicle for a short time. 209en_d2.boo Seite
22Diens tag, 25 .Mai 2004 7:26 19
Page 26 of 453
23
Getting started

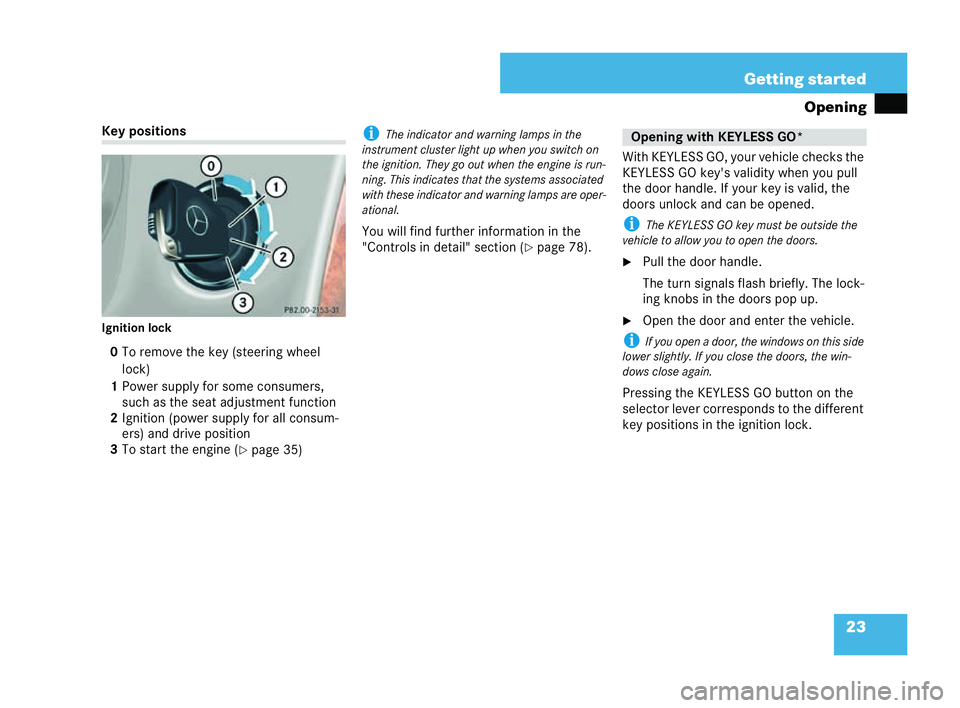

Opening Key positions
Ignition lock
0 To remove the key (steering wheel
lock)
1 Power supply for some consumers,
such as the seat adjustment function
2 Ignition (power supply for all consum-
ers) and drive position
3 To start the engine (
=pag e35) i
Theindicator and warning lamps in the
in st rument clu sterlight up when yousw itch on
th e ignition. They go out whe nthe engine is run-
ning. Th is indicat es that the systemsass ociate d
with these indicator and warning lamps are oper-
at ional.
You will find further information in the
"Controls in detail" section ( =page 78). With KEYLESS GO, your
vehicle checks the
KEYLESS GO key's validity when you pull
the door handle. If your key is valid, the
doors unlock and can be opened.
i TheKEYLESS GO key must be outsi dethe
ve hicle toallow you to open the doors.
6 Pull the door handle.
The turn signals flash briefly. The lock-
ing kn obs in the doors pop up.
6 Open the door and enter the vehicle.
i If you open a door, the windows on this side
lower slight ly. If you close the doors, the win-
dows close again.
Pressing the KEYLESS GO button onthe
selector lever corresponds to the different
key positions in the ignition lock. P82.00-2153-31
neu Opening
with KEYLE SSGO* 209en_d2.boo Seite
23Diens tag, 25 .Mai 2004 7:26 19
Page 27 of 453
24 Getting started
Opening

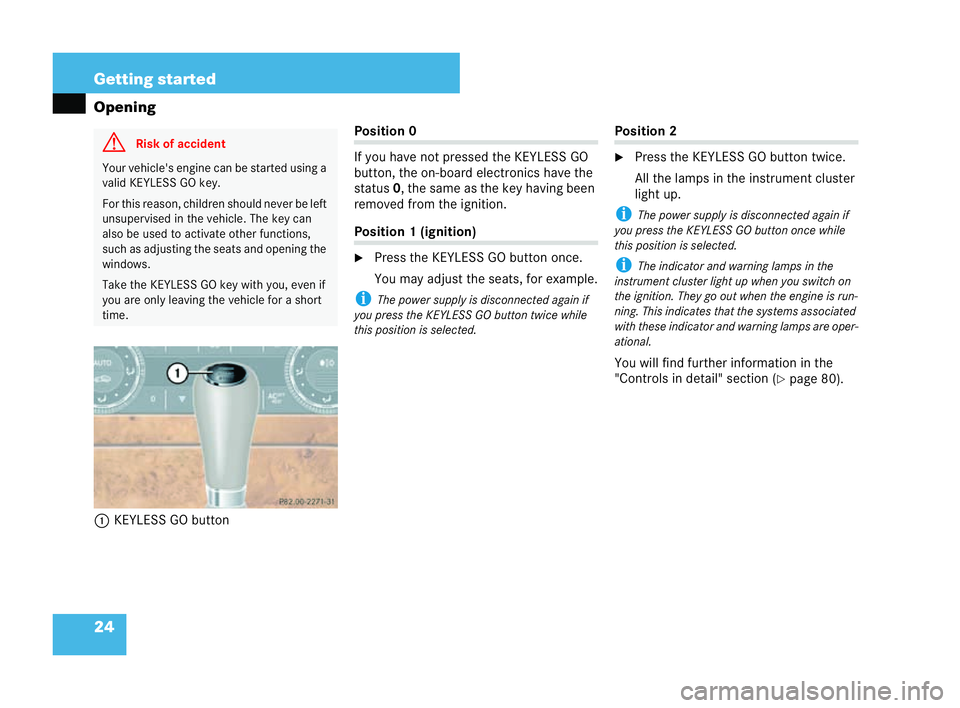

1 KEYLESS GO button Position 0
If you have not pr
essed the KEYLESS GO
button, the on-board electronics have the
status 0, the same as the key having been
removed from the ignition. Position 1 (ignition)
6
Press the KEYLESS GO button once.
You may adjust the seats, for example.
i The power supply is disco nnected again if
you press the KEYLESS GO button twice while
thi sposition isselected. Position 2
6
Press the KEYLESS GO button twice.
All the lamp sin the instrument cluster
light up.
i The pow ersupply is disconnected again if
you pr essth e KEYLESS GO button once while
this position is select ed.
i The indicator and warning lamps in the
instrument cluster light up when you switch on
the ig nition . They goout when theengine isrun-
ning .This indicates that the systems associated
wi th the seindicat orand warning lamps are oper-
ational.
You will find further information in the
"Controls indetail" section (
=page 80). G
Risk of accident Your
vehicle's engine can be started using a
valid KEYLESS GO key.
For this reason, children should never be left
unsupervised in the vehicle. The key can
also be us edto acti vate other functions,
such as adjusting the seat sand opening the
windows.
Ta ke the KEYLESS GO keywith you,even if
you are only leaving the vehicle for a short
time. P 82.00-2271-31 neu209en_d2.boo Seite
24Diens tag, 25 .Mai 2004 7:26 19
Page 28 of 453
25
Getting started

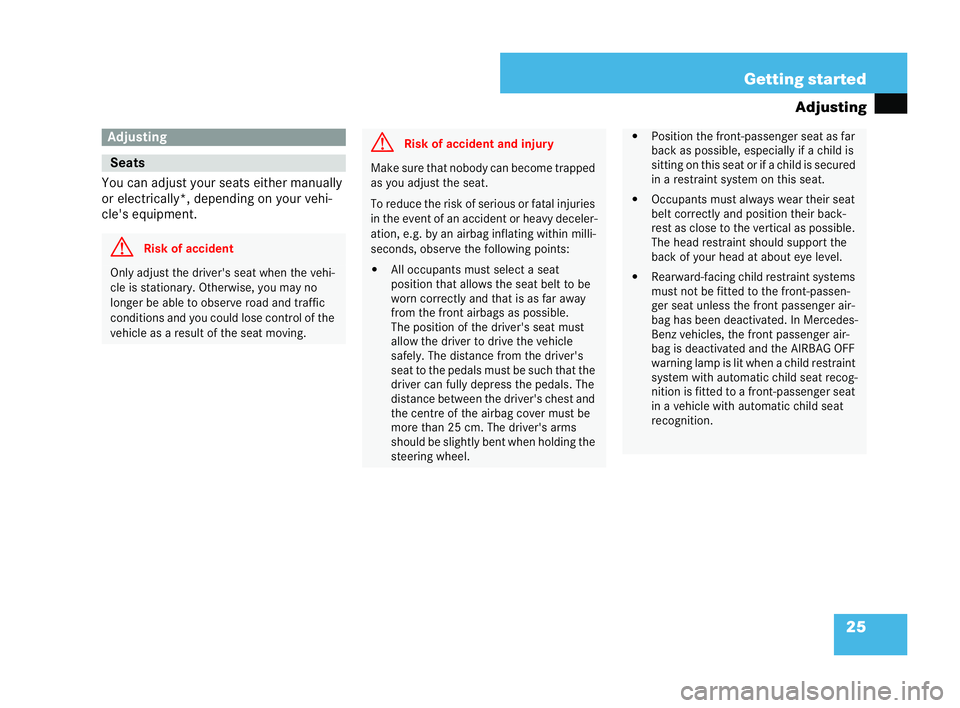

Adjusting
You can adjust your seats either manually
or electrically*, depending on your vehi-
cle's equipment. Ad
just ing Seats
G
Risk of accident Only adjust the driver's
seat when the vehi-
cle is stationary. Oth erwise, you may no
lon ger be able toobserve road and traffic
cond itions and you could lose control of the
ve hicle as a result ofthe seat movin g. G
Risk of accident and injury Make sure that nobody can become trapped
as
you adjus tthe seat.
To reduce the risk of seri ousor fatal inju ries
in the event of an acci dent or heavydeceler-
ation, e.g .by an airbag inflating within milli-
seconds, observe the following points:
! All occupants must selec ta se at
position that allows the seat belt to be
worn correctly and th at is asfaraw ay
fr om the fro ntairbags as possible.
The position of the driver's seat must
allow the driver to drive the vehicle
sa fely. The distanc efrom the driver's
seat to th epedals mu st be such tha tthe
driver can fully depress the pedals. The
distance between the driver's chest and
the centre of the airbag cover must be
more than 25cm. The dri ver's ar ms
should beslightly bent when holding the
steering wheel. !
Position the front-pa ssen gerse at as far
ba ck as possible, especially if a child is
sitting on this seat or if a child is secured
in a restraint system onthis seat.
! Occ upants must always wea rthe irseat
be ltco rrec tly and po sitio ntheir back-
rest as clo seto the vertical as possible.
The head restraint should support the
ba ck ofyour head at about eye level.
! Rearward-faci ngchild restraint systems
must not be fitted to th efront-passen-
ger seat unless the front passenger air-
bag has been deactivated. In Merc edes-
Benz vehi cles, the front passenger air-
ba g is deactivated and the AIRBAG OFF
warning lamp is lit when a child restraint
system with automatic child seat recog-
nition is fitted to a front-passenger seat
in a vehicl ewith automatic child seat
recognition. 209en_d2.boo Seite
25Diens tag, 25 .Mai 2004 7:26 19
Page 29 of 453
26 Getting started
Adj
usting Adjusting th

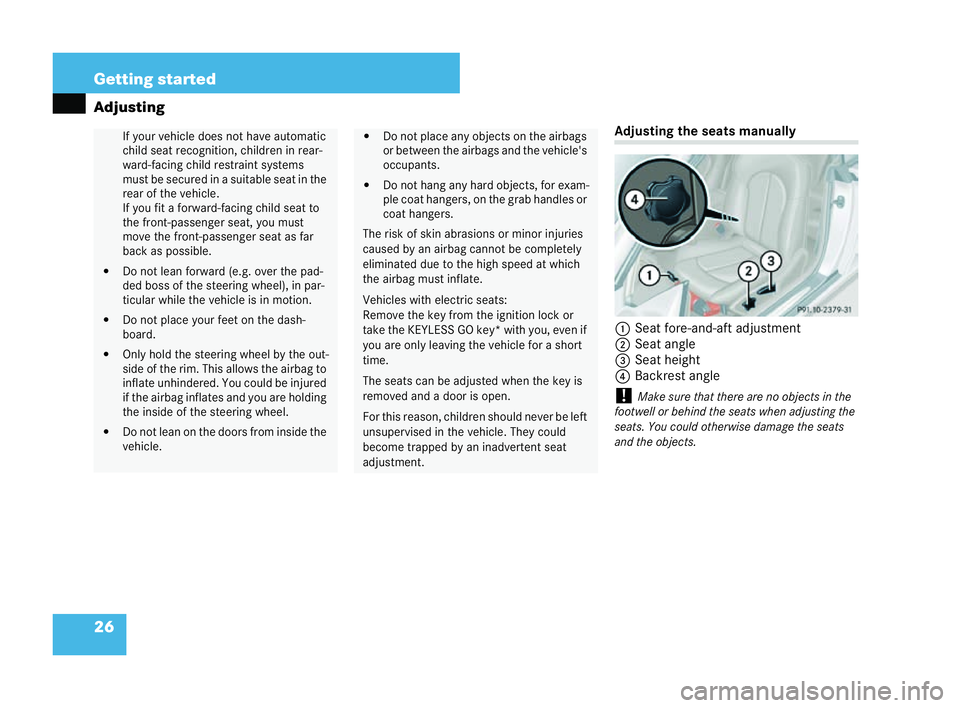

eseats manually
1 Seat fore-and-aft adj ustment
2 Seat angle
3 Seat height
4 Backrest angle
! Make sure th at there are no objects in the
footwell or be hind the seats when adj usting the
seats. You could oth erwise damage the seats
and the objects. If your ve
hicle doe snot have automatic
child seat recognition, children inrear-
ward-facing child restraint systems
must be se cured in a suitable seat in the
rear of th evehicle.
If you fit a forward-f acing child sea tto
the front-passenger seat, you must
mov e the front-pass engerse at as far
ba ck as possible.
! Do not lean forward (e.g. over the pad-
ded boss of the steeri ng wheel), in par-
ticular while the vehicle is in motion.
! Do not place your fee tonthe dash-
bo ard.
! Only hold the steering wheel by the out-
side of the rim. This allows the airbag to
inflate unhindered. You could be injured
ifthe airbag inflates and you are holding
the inside of the steering wheel.
! Do not lean on the doo rsfrom inside the
vehicle. !
Do not pla ceany objects on the airbags
or betw een the airbags and th evehicle's
occupa nts.
! Do not hang any hard objects ,for exam-
ple coat hangers, on the grab handles or
coat ha ngers.
The risk ofski na bras ions or minor injuries
ca used byan airbag cannot becomp letely
eliminated due to the high speed at which
the airb agmust inf late.
Vehicles with electric seats:
Remove the key from th eignition lock or
take the KEYLESS GO key* with you, even if
yo uare onlyleavi ngthe vehicle for a short
time.
Th ese ats ca n be adjusted when the key is
removed and a door is open.
For this reason, children should never beleft
un superv ised in the vehi cle. They could
become trapped by an inadvertent seat
adjustment. P 91.10-2379-31
Bildgröße
6x 5,8 209en_d2.boo Seite
26Diens tag, 25 .Mai 2004 7:26 19
