technical data MERCEDES-BENZ CLK320 CABRIOLET 2002 A208 Owner's Manual

165 Soft top
Technical
data Instruments
and controlsOperationDrivingInstrument

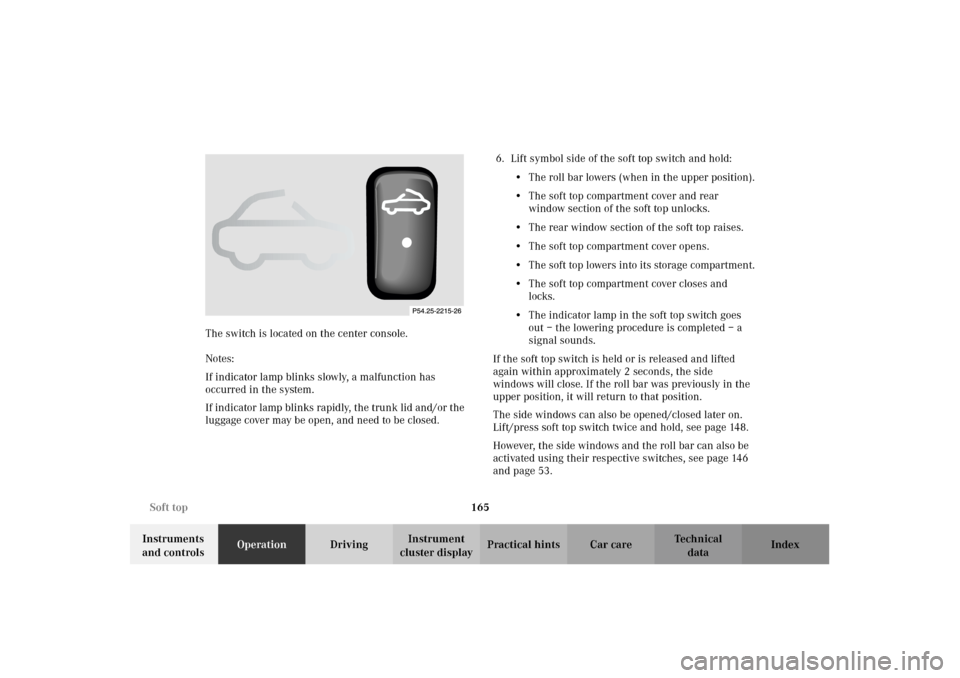

cluster displayPractical hints Car care Index The switch is located on the center console.
Notes:
If indicator lamp blinks slowly, a malfunction has
occurred in the system.
If indicator lamp blinks rapidly, the trunk lid and/or the
luggage cover may be open, and need to be closed.6. Lift symbol side of the soft top switch and hold:
•The roll bar lowers (when in the upper position).
•The soft top compartment cover and rear
window section of the soft top unlocks.
•The rear window section of the soft top raises.
•The soft top compartment cover opens.
•The soft top lowers into its storage compartment.
•The soft top compartment cover closes and
locks.
•The indicator lamp in the soft top switch goes
out – the lowering procedure is completed – a
signal sounds.
If the soft top switch is held or is released and lifted
again within approximately 2 seconds, the side
windows will close. If the roll bar was previously in the
upper position, it will return to that position.
The side windows can also be opened/closed later on.
Lift/press soft top switch twice and hold, see page 148.
However, the side windows and the roll bar can also be
activated using their respective switches, see page 146
and page 53.
J_A208.book Seite 165 Donnerstag, 31. Mai 2001 9:35 09

166 Soft top
Technical
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index
Note:
For safety reasons, the soft top cannot be lowered while
driving.
Raising Soft Top
1. Engage parking brake.
2. Close luggage cover and trunk lid.
For notes on the luggage cover, see page 250.
3. Turn electronic key in steering lock to position 2. 4. Press symbol side of soft top switch and hold:
•The indicator lamp in the soft top switch lights
up.
Notes:
If indicator lamp blinks slowly, a malfunction
has occurred in the system.
If indicator lamp blinks rapidly, the trunk lid
and/or the luggage cover may be open, and need
to be closed.
•The side windows lower.
•The roll bar lowers (when in the upper position).
•The soft top compartment cover unlocks and
opens.
•The soft top is raised from its storage
compartment to the closing position.
•The soft top storage compartment closes and the
rear window section of the soft top lowers – a
signal sounds.

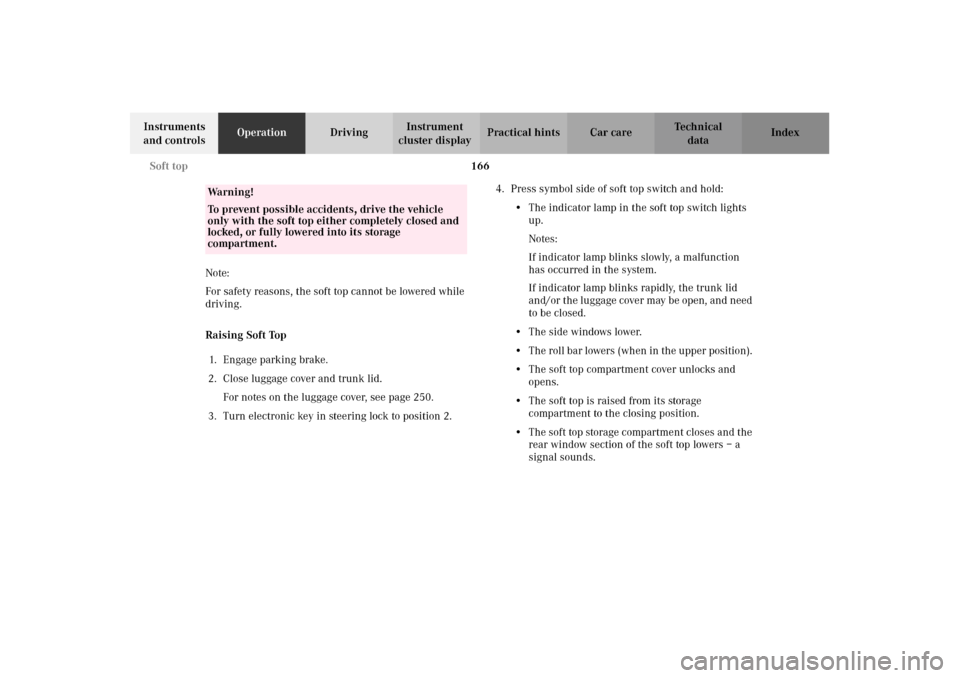

Wa r n i n g !
To prevent possible accidents, drive the vehicle
only with the soft top either completely closed and
locked, or fully lowered into its storage
compartment.
J_A208.book Seite 166 Donnerstag, 31. Mai 2001 9:35 09

167 Soft top
Technical
data Instruments
and controlsOperationDrivingInstrument

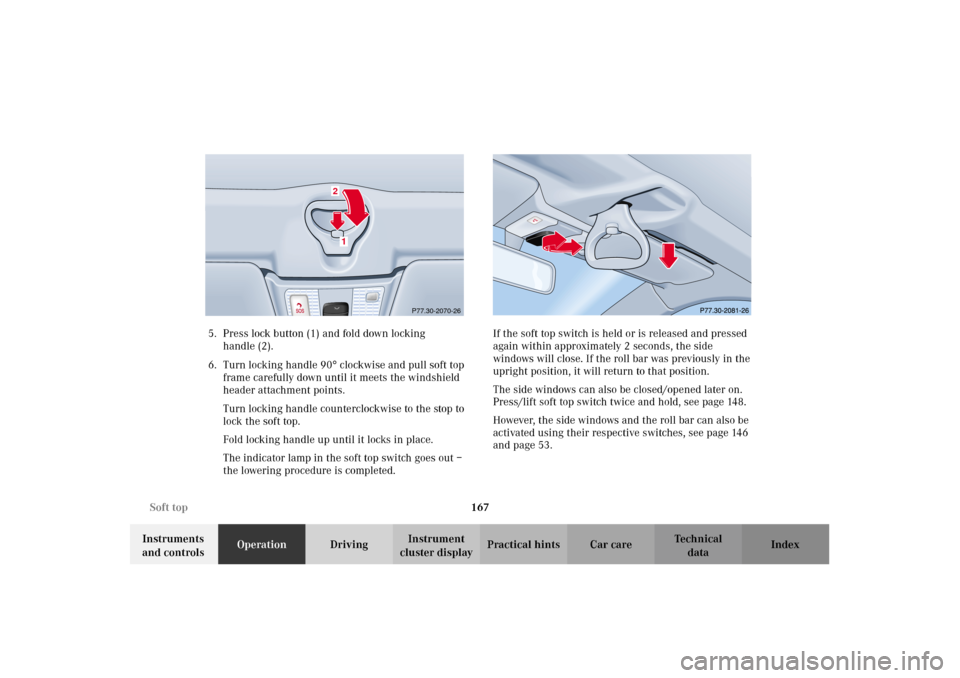

cluster displayPractical hints Car care Index 5. Press lock button (1) and fold down locking
handle (2).
6. Turn locking handle 90
° clockwise and pull soft top
frame carefully down until it meets the windshield
header attachment points.
Turn locking handle counterclockwise to the stop to
lock the soft top.
Fold locking handle up until it locks in place.
The indicator lamp in the soft top switch goes out –
the lowering procedure is completed. If the soft top switch is held or is released and pressed
again within approximately 2 seconds, the side
windows will close. If the roll bar was previously in the
upright position, it will return to that position.
The side windows can also be closed/opened later on.
Press/lift soft top switch twice and hold, see page 148.
However, the side windows and the roll bar can also be
activated using their respective switches, see page 146
and page 53.
P77.30-2070-26
12
J_A208.book Seite 167 Donnerstag, 31. Mai 2001 9:35 09

168 Soft top
Technical
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index
Note:
For safety reasons, the soft top cannot be raised while
driving.

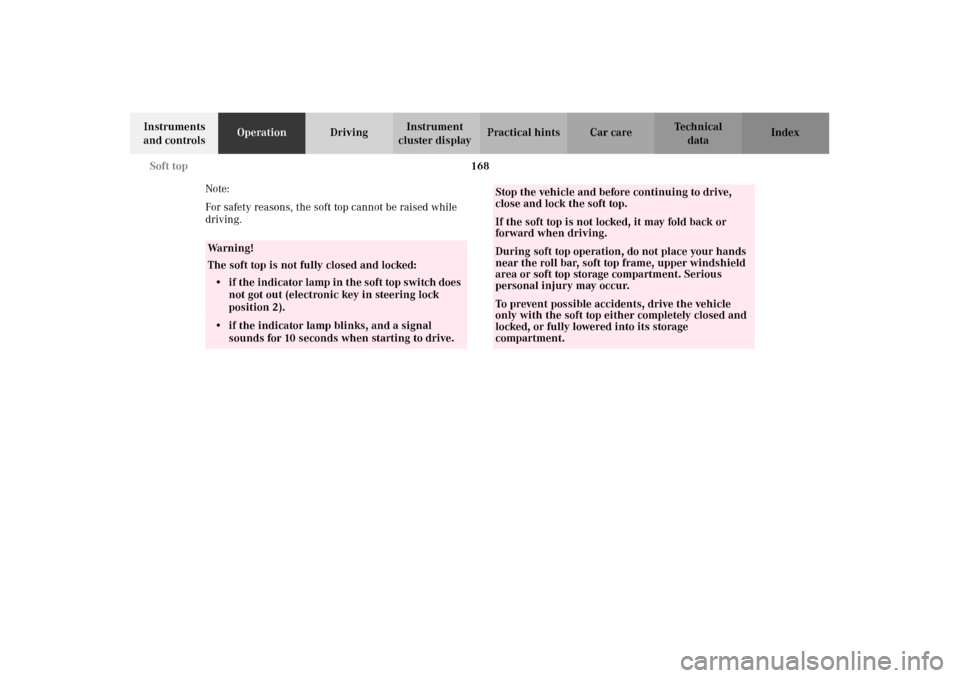

Wa r n i n g !
The soft top is not fully closed and locked:
• if the indicator lamp in the soft top switch does
not got out (electronic key in steering lock
position 2). • if the indicator lamp blinks, and a signal
sounds for 10 seconds when starting to drive.
Stop the vehicle and before continuing to drive,
close and lock the soft top. If the soft top is not locked, it may fold back or
forward when driving. During soft top operation, do not place your hands
near the roll bar, soft top frame, upper windshield
area or soft top storage compartment. Serious
personal injury may occur. To prevent possible accidents, drive the vehicle
only with the soft top either completely closed and
locked, or fully lowered into its storage
compartment.
J_A208.book Seite 168 Donnerstag, 31. Mai 2001 9:35 09

169 Soft top
Technical
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index If the indicator lamp in the soft top switch blinks slowly
while activating the switch,
•the battery voltage may be insufficient – start
engine and let it run while activating switch,
•the system may be overheated (for example after
lowering or raising the soft top approx. 5
consecutive times) – after approx. 10 minutes the
soft top switch may be activated again.
If indicator lamp in the soft top switch blinks rapidly
while activating the switch,
•the trunk lid and/or the luggage cover may be open,
and need to be closed,
•the soft top is still locked during the opening
procedure and needs to be unlocked,
•the opening/closing procedure is interrupted.
In this case the soft top needs to be synchronized.
Turn electronic key in steering lock back to
position 0, and then to position 2. Activate soft top
switch again. The soft top should now be operational
again.
If the indicator lamp continues to blink, raise the soft
top manually, see page 291. Have the system checked at your authorized
Mercedes-Benz Center as soon as possible.
Notes:
If the roll bar was raised automatically, the process of
raising or lowering the soft top will take somewhat
longer, as the roll bar must first be lowered.
Whenever possible, park vehicle in the shade as
continuous exposure to sun rays can prematurely
deteriorate the soft top material.
The soft top may become moldy and receive permanent
creases if it is kept in the storage compartment for an
extended period.
Therefore, we recommend raising and airing it
thoroughly with the side windows open (do not expose
it to the sun) at regular intervals during the wet and
cold seasons.
To prevent damage, the soft top must be dry and clean
before lowering it into the storage compartment. There
is the possibility of sharp-edged dirt particles damaging
the soft top or scratching the rear window.
J_A208.book Seite 169 Donnerstag, 31. Mai 2001 9:35 09

170 Wind screen
Technical
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index

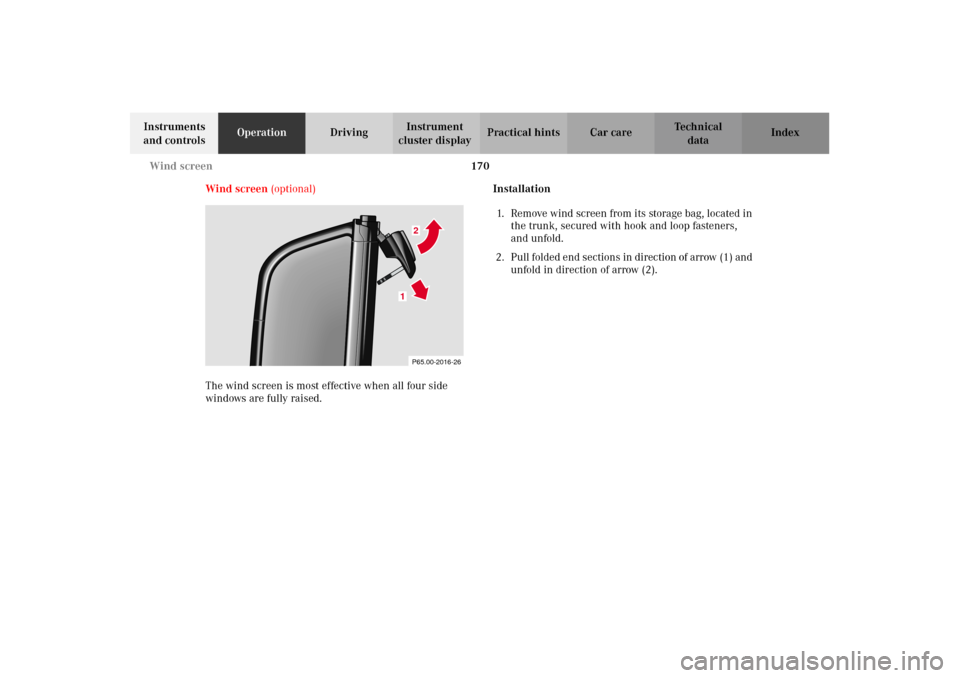

Wind screen (optional)
The wind screen is most effective when all four side
windows are fully raised.Installation
1. Remove wind screen from its storage bag, located in
the trunk, secured with hook and loop fasteners,
and unfold.
2. Pull folded end sections in direction of arrow (1) and
unfold in direction of arrow (2).
P65.00-2016-26
1
2
J_A208.book Seite 170 Donnerstag, 31. Mai 2001 9:35 09

171 Wind screen
Technical
data Instruments
and controlsOperationDrivingInstrument

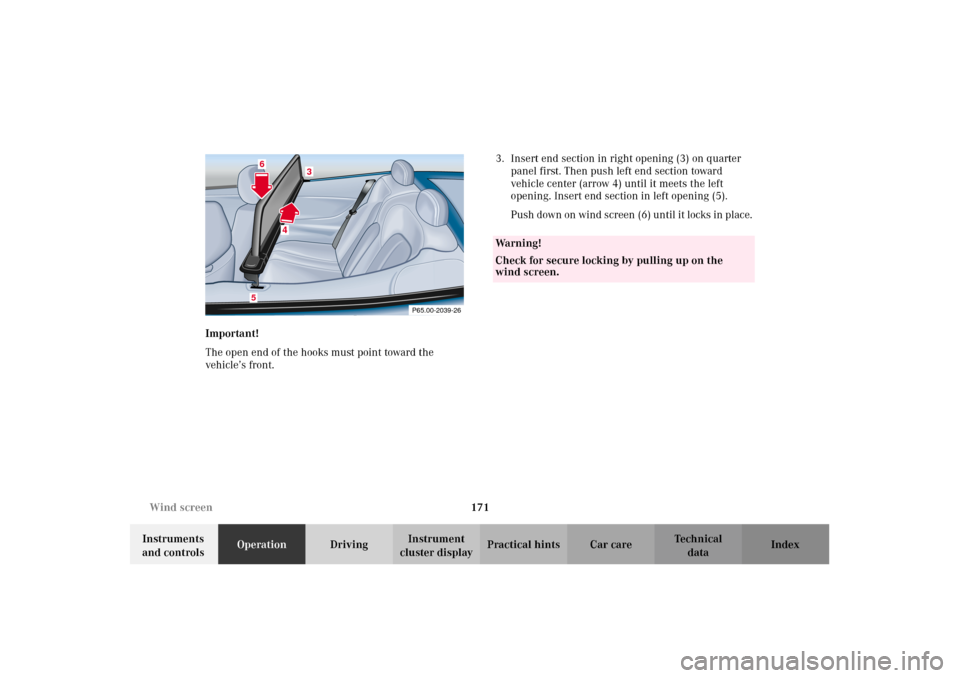

cluster displayPractical hints Car care Index Important!
The open end of the hooks must point toward the
vehicle’s front. 3. Insert end section in right opening (3) on quarter
panel first. Then push left end section toward
vehicle center (arrow 4) until it meets the left
opening. Insert end section in left opening (5).
Push down on wind screen (6) until it locks in place.
P65.00-2039-26
3
4
56
Wa r n i n g !
Check for secure locking by pulling up on the
wind screen.
J_A208.book Seite 171 Donnerstag, 31. Mai 2001 9:35 09

172 Wind screen
Technical
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index

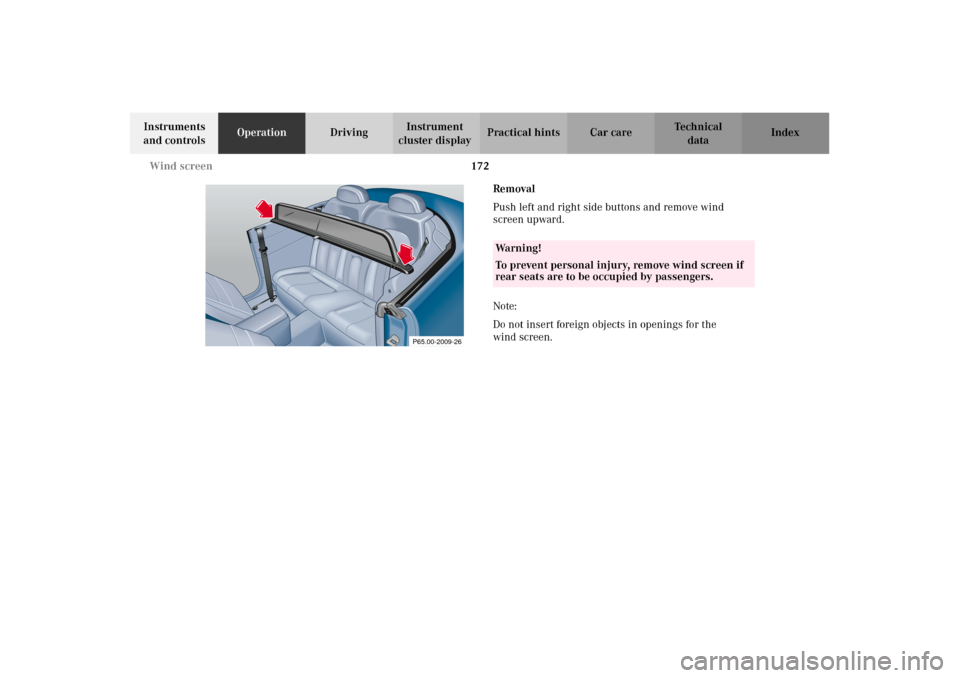

Removal
Push left and right side buttons and remove wind
screen upward.
Note:
Do not insert foreign objects in openings for the
wind screen.
P65.00-2009-26
Wa r n i n g !
To prevent personal injury, remove wind screen if
rear seats are to be occupied by passengers.
J_A208.book Seite 172 Donnerstag, 31. Mai 2001 9:35 09

173 Wind screen
Technical
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index Storing
Pull end sections in direction of arrow (1) and fold in
direction of arrow (2).Place wind screen in its storage bag, and close the bag.
Place bag in trunk, and secure it with the provided hook
and loop fasteners.
When the wind screen is not in use, it should be stored
in the closed storage bag, to prevent possible damage to
the wind screen or luggage/cargo.
P65.00-2011-26
1
2
J_A208.book Seite 173 Donnerstag, 31. Mai 2001 9:35 09

174 Wind screen
Technical
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index

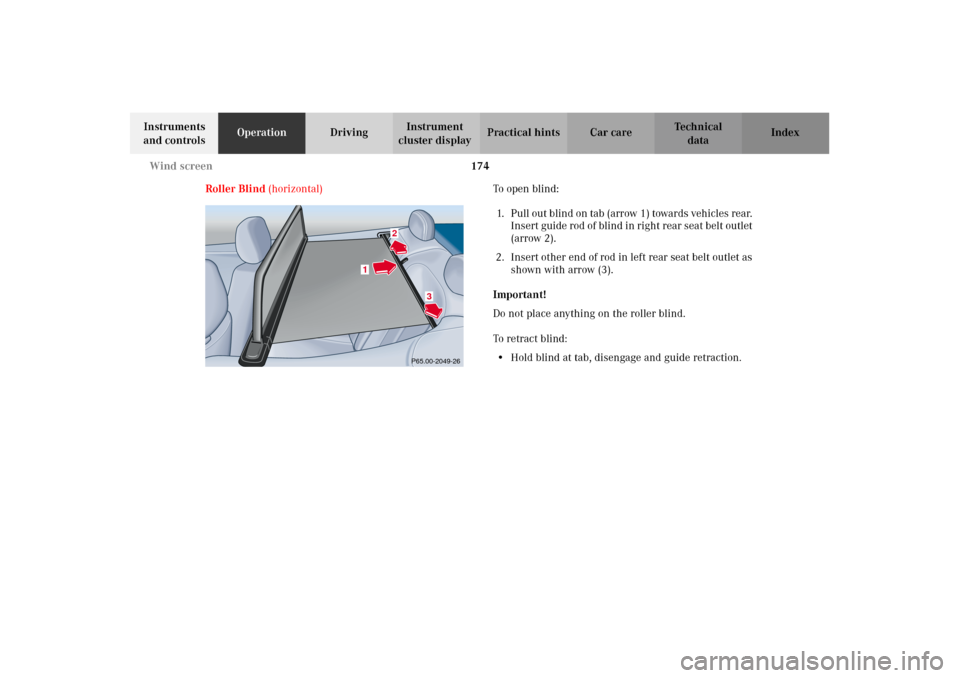

Roller Blind (horizontal) To open blind:
1. P ull out b lin d o n tab (arr ow 1 ) towar ds vehicles rear.
Insert guide rod of blind in right rear seat belt outlet
(arrow 2).
2. Insert other end of rod in left rear seat belt outlet as
shown with arrow (3).
Important!
Do not place anything on the roller blind.
To retract blind:
•Hold blind at tab, disengage and guide retraction.
3
1
2
P65.00-2049-26
