MERCEDES-BENZ CLK55AMG COUPE 2003 C209 Owner's Manual

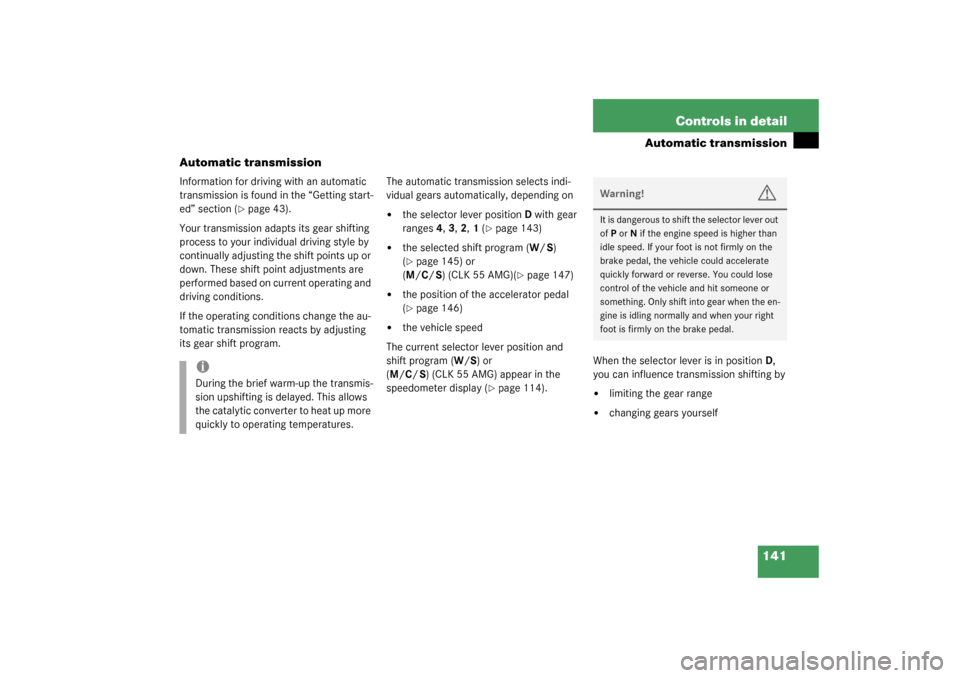

141 Controls in detail
Automatic transmission
Automatic transmission
Information for driving with an automatic
transmission is found in the “Getting start-
ed” section (
page 43).
Your transmission adapts its gear shifting
process to your individual driving style by
continually adjusting the shift points up or
down. These shift point adjustments are
performed based on current operating and
driving conditions.
If the operating conditions change the au-
tomatic transmission reacts by adjusting
its gear shift program.The automatic transmission selects indi-
vidual gears automatically, depending on


the selector lever positionD with gear
ranges4, 3, 2, 1 (
page 143)


the selected shift program (W/S)
(page 145) or
(M/C/S)(CLK55AMG)(
page 147)


the position of the accelerator pedal
(page 146)


the vehicle speed
The current selector lever position and
shift program (W/S) or
(M/C/S) (CLK 55 AMG) appear in the
speedometer display (
page 114).When the selector lever is in positionD,
you can influence transmission shifting by


limiting the gear range


changing gears yourself
iDuring the brief warm-up the transmis-
sion upshifting is delayed. This allows
the catalytic converter to heat up more
quickly to operating temperatures.
Warning!
G
It is dangerous to shift the selector lever out
of P or N if the engine speed is higher than
idle speed. If your foot is not firmly on the
brake pedal, the vehicle could accelerate
quickly forward or reverse. You could lose
control of the vehicle and hit someone or
something. Only shift into gear when the en-
gine is idling normally and when your right
foot is firmly on the brake pedal.

142 Controls in detailAutomatic transmissionOne-touch gearshifting
Even with an automatic transmission you
can change the gears yourself when the
selector lever is in positionD.
Downshifting
Briefly press the selector lever to the
left in the D–direction.
The transmission will shift from the current
gear to the next lower gear. This action si-
multaneously limits the gear range of the
transmission (
page 143).Upshifting

Briefly press the selector lever to the
right in the D+direction.
The transmission will shift from the current
gear to the next higher gear as permitted
by the shift program. This action simulta-
neously extends the gear range of the
transmission.Canceling gear range limit

Press and hold the selector lever in the
D+direction until D reappears in the
tachometer display field.
The transmission will shift from the current
gear range directly to gear rangeD.
Shifting into optimal gear range

Press and hold the gear selector lever
in the D–direction.
The transmission will automatically select
the gear range suited for optimal accelera-
tion and deceleration. This will involve
shifting down one or more gears.
Warning!
G
On slippery road surfaces, never downshift
in order to obtain braking action. This could
result in drive wheel slip and reduced vehi-
cle control. Your vehicle’s ABS will not pre-
vent this type of loss of control.
iTo avoid overrevving the engine when
the selector lever is moved in the
D–direction, the transmission will not
shift to a lower gear if the engine's
max. speed would be exceeded.

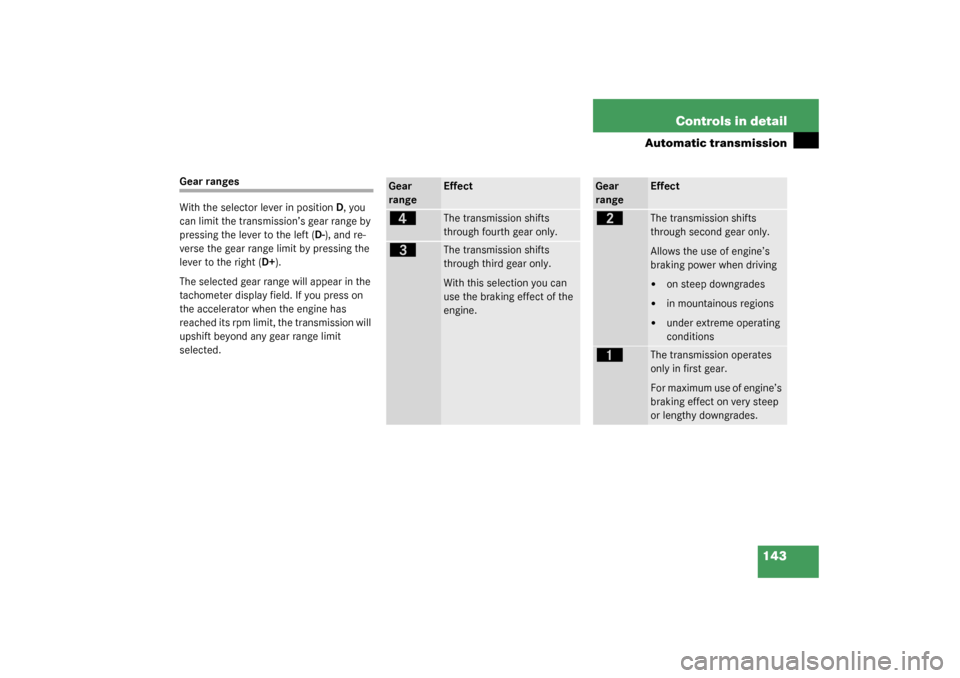

143 Controls in detail
Automatic transmission
Gear ranges
With the selector lever in positionD, you
can limit the transmission’s gear range by
pressing the lever to the left (D-), and re-
verse the gear range limit by pressing the
lever to the right (D+).
The selected gear range will appear in the
tachometer display field. If you press on
the accelerator when the engine has
reached its rpm limit, the transmission will
upshift beyond any gear range limit
selected.
Gear
range
Effect
é
The transmission shifts
through fourth gear only.
è
The transmission shifts
through third gear only.
With this selection you can
use the braking effect of the
engine.
Gear
range
Effect
ç
The transmission shifts
through second gear only.
Allows the use of engine’s
braking power when driving

on steep downgrades


in mountainous regions


under extreme operating
conditions
æ
The transmission operates
only in first gear.
For maximum use of engine’s
braking effect on very steep
or lengthy downgrades.

144 Controls in detailAutomatic transmissionGear selector lever position
Effect
P
Park position
Selector position when the vehicle
is parked. Only place selector lever
in positionP when vehicle is
stopped. The park position is not in-
tended to serve as a brake when
the vehicle is parked. Rather, the
driver should always set the park-
ing brake in addition to placing the
selector lever in positionP to se-
cure the vehicle.
The key can only be removed from
the starter switch with the selector
lever in positionP. With the key re-
moved the selector lever is locked
in positionP.
Effect
R
Reverse gear
Place selector lever in positionR only
when vehicle is stopped.
N
Neutral
No power is transmitted from the en-
gine to the drive axle. When the
brakes are released, the vehicle can
be moved freely (pushed or towed).
To avoid damage to the transmission,
never engageN while driving.
If the ESP is deactivated or malfunc-
tioning:
Only move selector lever toN if the
vehicle is in danger of skidding (e.g.
on icy roads).
D
Drive
The transmission shifts automatical-
ly. All five forward gears are avail-
able.
!Coasting the vehicle, or driving for any
other reason with selector lever inN
can result in transmission damage that
is not covered by the Mercedes-Benz
Limited Warranty.Warning!
G
Getting out of your vehicle with the selector
lever not fully engaged in positionP is dan-
gerous. Also, positionP alone is not intend-
ed to or capable of preventing your vehicle
from moving, possibly hitting people or ob-
jects.
Always set the parking brake in addition to
shifting to positionP (
page 45).
When parked on an incline, turn the front
wheels towards the road curb.

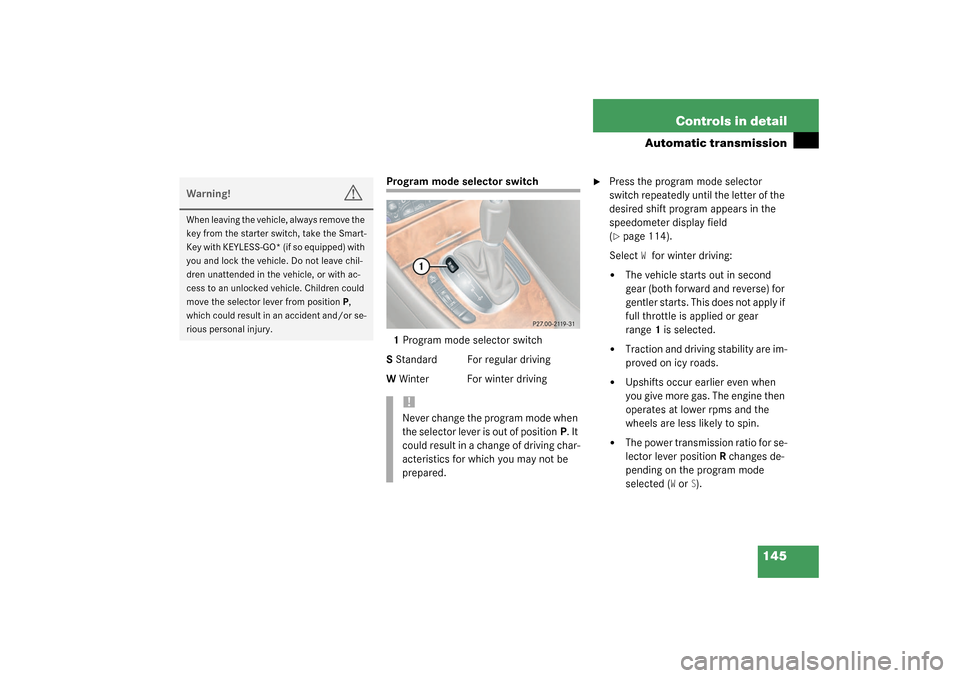

145 Controls in detail
Automatic transmission
Program mode selector switch
1Program mode selector switch
S Standard For regular driving
W Winter For winter driving

Press the program mode selector
switch repeatedly until the letter of the
desired shift program appears in the
speedometer display field
(page 114).
Select
Wfor winter driving:


The vehicle starts out in second
gear (both forward and reverse) for
gentler starts. This does not apply if
full throttle is applied or gear
range1 is selected.


Traction and driving stability are im-
proved on icy roads.


Upshifts occur earlier even when
you give more gas. The engine then
operates at lower rpms and the
wheels are less likely to spin.


The power transmission ratio for se-
lector lever positionR changes de-
pending on the program mode
selected (
W or
S).
Warning!
G
When leaving the vehicle, always remove the
key from the starter switch, take the Smart-
Key with KEYLESS-GO* (if so equipped) with
you and lock the vehicle. Do not leave chil-
dren unattended in the vehicle, or with ac-
cess to an unlocked vehicle. Children could
move the selector lever from positionP,
which could result in an accident and/or se-
rious personal injury.
!Never change the program mode when
the selector lever is out of positionP. It
could result in a change of driving char-
acteristics for which you may not be
prepared.

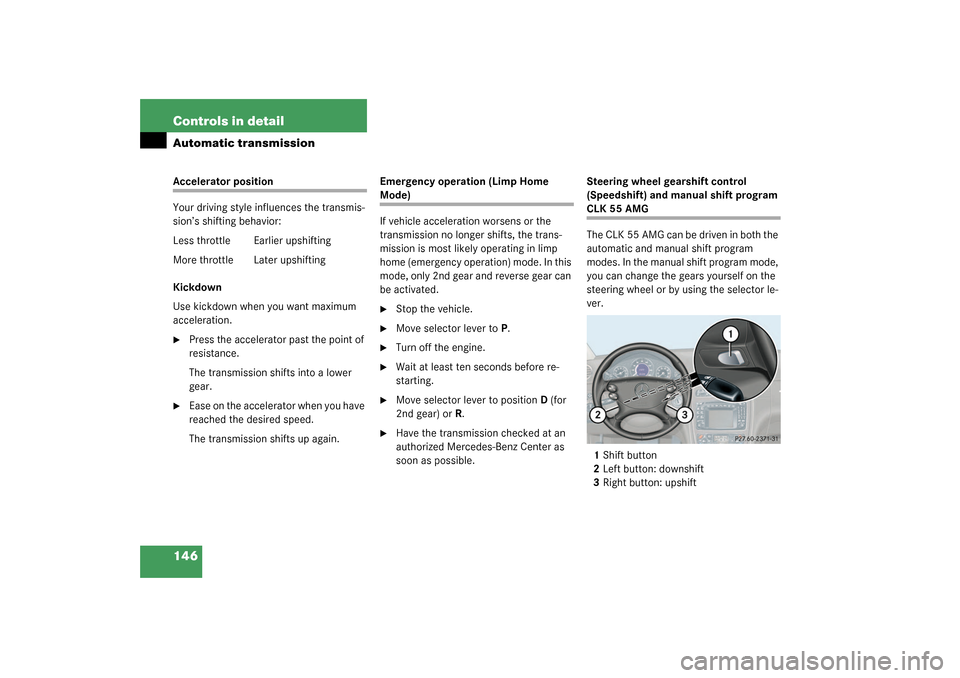

146 Controls in detailAutomatic transmissionAccelerator position
Your driving style influences the transmis-
sion’s shifting behavior:
Less throttle Earlier upshifting
More throttle Later upshifting
Kickdown
Use kickdown when you want maximum
acceleration.
Press the accelerator past the point of
resistance.
The transmission shifts into a lower
gear.

Ease on the accelerator when you have
reached the desired speed.
The transmission shifts up again.Emergency operation (Limp Home
Mode)
If vehicle acceleration worsens or the
transmission no longer shifts, the trans-
mission is most likely operating in limp
home (emergency operation) mode. In this
mode, only 2nd gear and reverse gear can
be activated.
Stop the vehicle.

Move selector lever toP.

Turn off the engine.

Wait at least ten seconds before re-
starting.

Move selector lever to positionD (for
2nd gear) orR.

Have the transmission checked at an
authorized Mercedes-Benz Center as
soon as possible.Steering wheel gearshift control
(Speedshift) and manual shift program
CLK 55 AMG
The CLK 55 AMG can be driven in both the
automatic and manual shift program
modes. In the manual shift program mode,
you can change the gears yourself on the
steering wheel or by using the selector le-
ver.
1Shift button
2Left button: downshift
3Right button: upshift

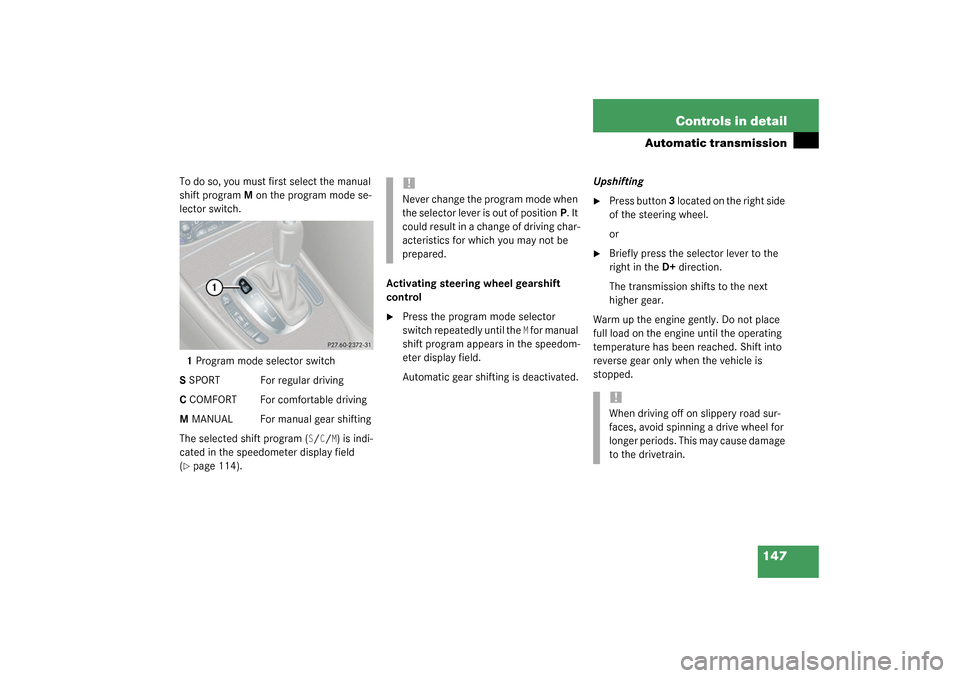

147 Controls in detail
Automatic transmission
To do so, you must first select the manual
shift program M on the program mode se-
lector switch.
1Program mode selector switch
S SPORT For regular driving
C COMFORT For comfortable driving
M MANUAL For manual gear shifting
The selected shift program (
S/C/M) is indi-
cated in the speedometer display field
(
page 114).Activating steering wheel gearshift
control

Press the program mode selector
switch repeatedly until the
M for manual
shift program appears in the speedom-
eter display field.
Automatic gear shifting is deactivated.Upshifting

Press button 3 located on the right side
of the steering wheel.
or

Briefly press the selector lever to the
right in the D+direction.
The transmission shifts to the next
higher gear.
Warm up the engine gently. Do not place
full load on the engine until the operating
temperature has been reached. Shift into
reverse gear only when the vehicle is
stopped.
!Never change the program mode when
the selector lever is out of positionP. It
could result in a change of driving char-
acteristics for which you may not be
prepared.
!When driving off on slippery road sur-
faces, avoid spinning a drive wheel for
longer periods. This may cause damage
to the drivetrain.

148 Controls in detailAutomatic transmissionDownshifting
Press button 2 located on the left side
of the steering wheel.
or

Briefly press the selector lever to the
left in the D-direction.
The transmission shifts to the next low-
er gear.
Warm up the engine gently. Do not place
full load on the engine until the operating
temperature has been reached. Shift into
reverse gear only when the vehicle is
stopped.Deactivating steering wheel gearshift
control

Press the program mode selector
switch repeatedly until the
S or
C for au-
tomatic shift program appears in the
speedometer display field.
Automatic gear shifting is activated.
Warning!
G
On slippery road surfaces, never downshift
in order to obtain braking action. This could
result in drive wheel slip and reduced vehi-
cle control. Your vehicle’s ABS will not pre-
vent this type of loss of control.
iAt each engine start, the transmission
will go into the last automatic shift pro-
gram mode selected (
S or
C). Program
mode
M is not stored and will not be re-
called when the engine is restarted.

149 Controls in detail
Good visibility
Good visibility
Information on the windshield wipers
(page 47) and for setting the rear view
mirrors (
page 38) is found in the “Get-
ting started” section.
Rear view mirror
Automatic antiglare rear view mirror
The reflection brightness of the exterior
rear view mirror on the driver’s side and
the inside rear view mirror will respond au-
tomatically to glare when

the ignition is switched on, and


incoming light from headlamps falls on
the sensor in the inside rear view mir-
ror.
The rear view mirror will not react if


reverse gear is engaged


the interior lighting is turned on
Warning!
G
The automatic antiglare function does not
react if incoming light is not aimed directly
at sensors in the inside rear view mirror.
The inside rear view mirror and the exterior
rear view mirror on the driver’s side do not
react, for example, if the rear window sun
shade* is in raised position.
Glare can endanger you and others.Warning!
G
In the case of an accident liquid electrolyte
may escape from the mirror housing if the
mirror glass breaks.
Electrolyte has an irritating effect. Do not al-
low the liquid to come into contact with
eyes, skin, clothing, or respiratory system.
In case it does, immediately flush affected
area with water, and seek medical help if
necessary.
Warning!
G
Exercise care when using the passenger
side exterior rear view mirror. The mirror
surface is convex (outwardly curved surface
for a wider field of view). Objects in mirror
are closer than they appear. Check your in-
side rear view mirror or glance over your
shoulder before changing lanes.!Electrolyte drops coming into contact
with the vehicle paint finish can be
completely removed only while in the
liquid state by applying plenty of water.

150 Controls in detailGood visibilityParking position
The button is located on the left side of the
dashboard.
1Passenger-side exterior mirror
2Driver’s side exterior mirror
You can store a parking position for an ex-
terior rear view mirror in the memory
(page 103).

Make sure that the
Mirror adjustment
parking aid function
, found under
the
Convenience
submenu in the con-
troll system, is switched on
(
page 135).

Switch on ignition.

Press button1 for the passenger-side
exterior rear view mirror.

Place the gear selector lever in R Re-
verse.
The passenger-side mirror will be
turned downward in the stored posi-
tion.The exterior rear view mirror returns to its
previously stored driving position:


10 seconds after you put the gear se-
lector lever out of positionR


immediately once you exceed a speed
of approx. 6 mph (10 km/h)


immediately when you press the button
for driver’s side mirror
