MERCEDES-BENZ CLK55AMG COUPE 2003 C209 Owner's Manual

211 Controls in detail
Driving systems

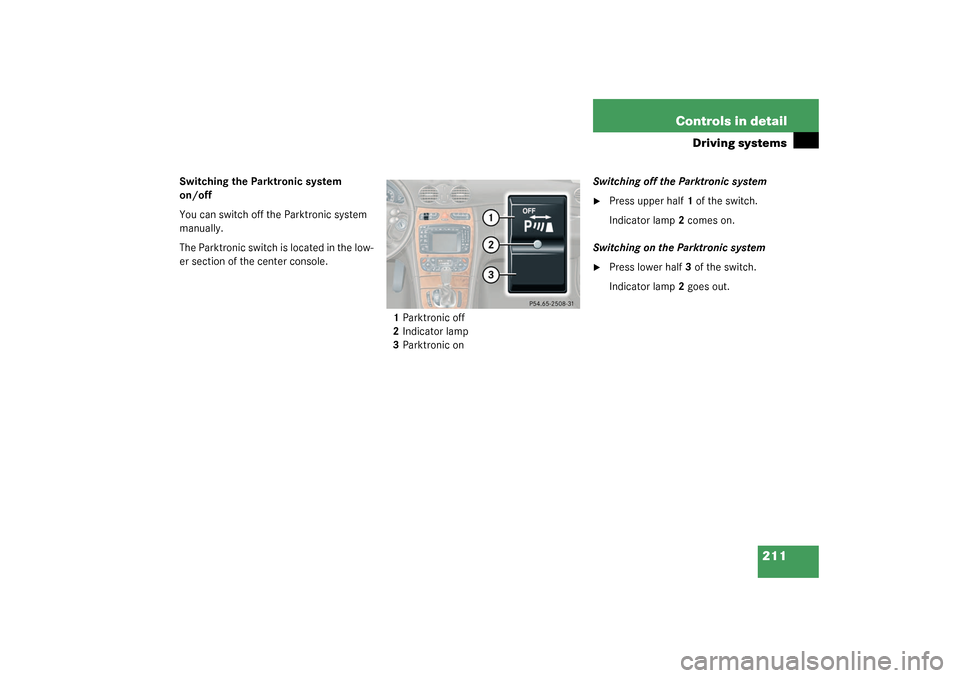

Switching the Parktronic system
on/off
You can switch off the Parktronic system
manually.
The Parktronic switch is located in the low-
er section of the center console.
1Parktronic off
2Indicator lamp
3Parktronic onSwitching off the Parktronic system

Press upper half 1 of the switch.
Indicator lamp 2 comes on.
Switching on the Parktronic system

Press lower half 3 of the switch.
Indicator lamp 2 goes out.

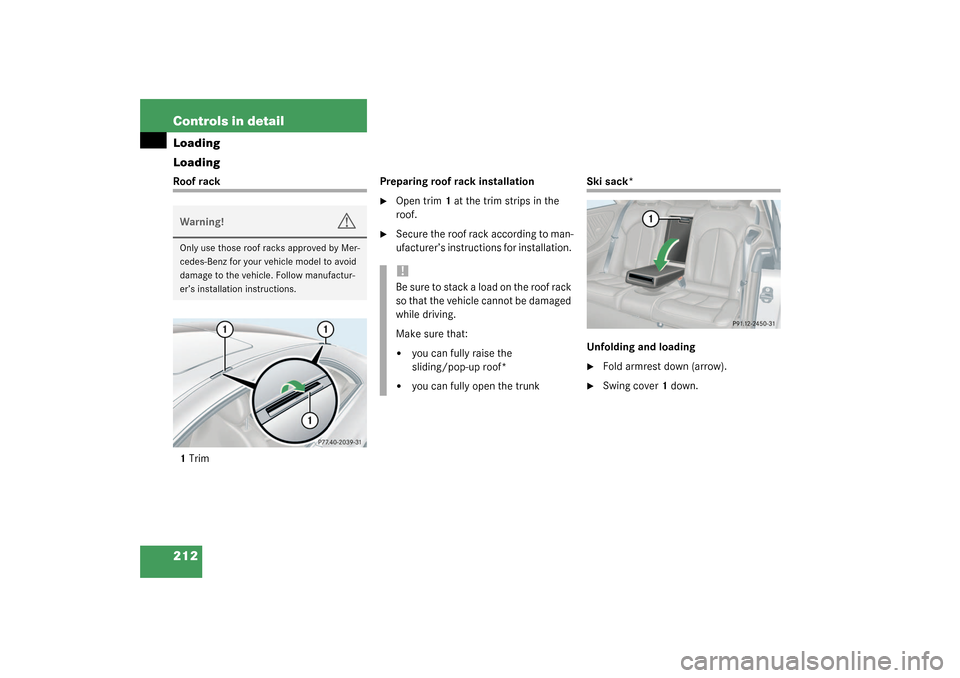

212 Controls in detailLoading
LoadingRoof rack
1TrimPreparing roof rack installation

Open trim1 at the trim strips in the
roof.

Secure the roof rack according to man-
ufacturer’s instructions for installation.
Ski sack*
Unfolding and loading
Fold armrest down (arrow).

Swing cover1 down.
Warning!
G
Only use those roof racks approved by Mer-
cedes-Benz for your vehicle model to avoid
damage to the vehicle. Follow manufactur-
er’s installation instructions.
!Be sure to stack a load on the roof rack
so that the vehicle cannot be damaged
while driving.
Make sure that:

you can fully raise the
sliding/pop-up roof*


you can fully open the trunk

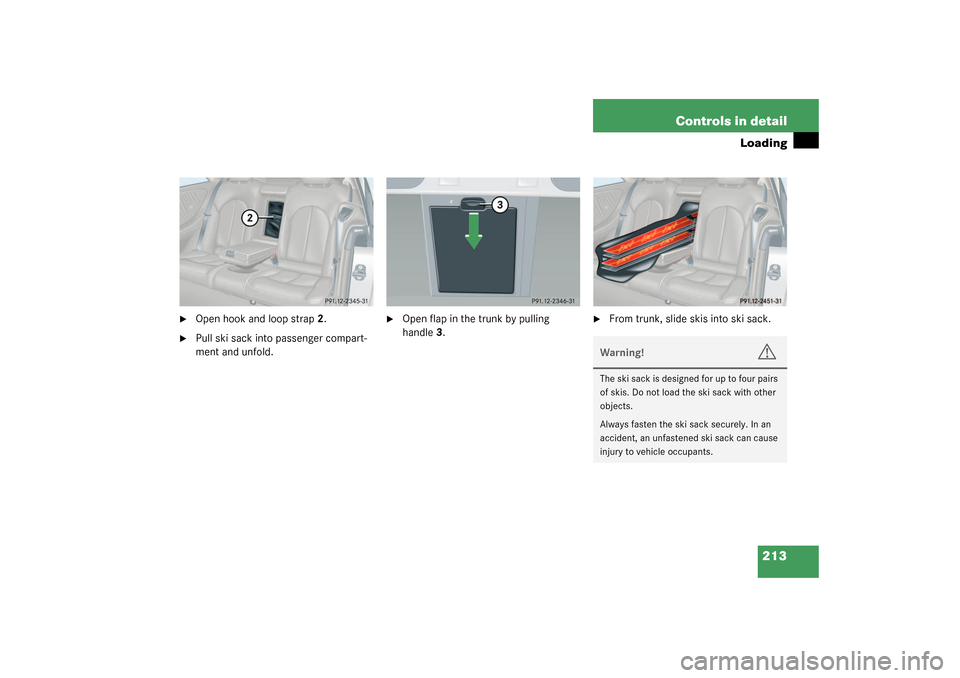

213 Controls in detail
Loading

Open hook and loop strap2.

Pull ski sack into passenger compart-
ment and unfold.

Open flap in the trunk by pulling
handle3.

From trunk, slide skis into ski sack.Warning!
G
The ski sack is designed for up to four pairs
of skis. Do not load the ski sack with other
objects.
Always fasten the ski sack securely. In an
accident, an unfastened ski sack can cause
injury to vehicle occupants.

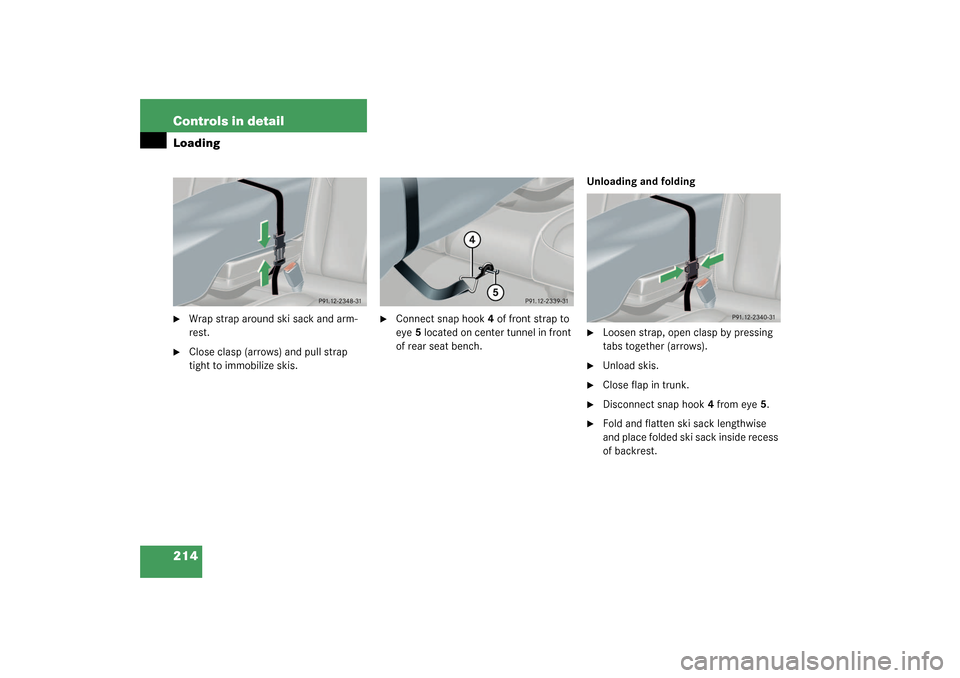

214 Controls in detailLoading
Wrap strap around ski sack and arm-
rest.

Close clasp (arrows) and pull strap
tight to immobilize skis.

Connect snap hook4 of front strap to
eye5 located on center tunnel in front
of rear seat bench.Unloading and folding

Loosen strap, open clasp by pressing
tabs together (arrows).

Unload skis.

Close flap in trunk.

Disconnect snap hook4 from eye5.

Fold and flatten ski sack lengthwise
and place folded ski sack inside recess
of backrest.

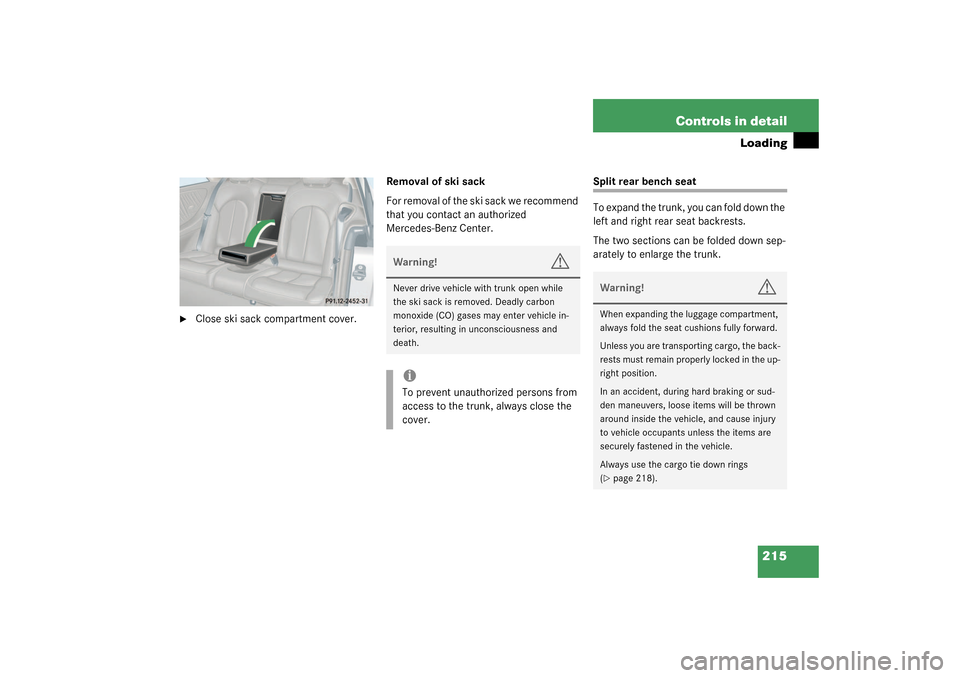

215 Controls in detail
Loading

Close ski sack compartment cover.Removal of ski sack
For removal of the ski sack we recommend
that you contact an authorized
Mercedes-Benz Center.
Split rear bench seat
To expand the trunk, you can fold down the
left and right rear seat backrests.
The two sections can be folded down sep-
arately to enlarge the trunk.
Warning!
G
Never drive vehicle with trunk open while
the ski sack is removed. Deadly carbon
monoxide (CO) gases may enter vehicle in-
terior, resulting in unconsciousness and
death.iTo prevent unauthorized persons from
access to the trunk, always close the
cover.
Warning!
G
When expanding the luggage compartment,
always fold the seat cushions fully forward.
Unless you are transporting cargo, the back-
rests must remain properly locked in the up-
right position.
In an accident, during hard braking or sud-
den maneuvers, loose items will be thrown
around inside the vehicle, and cause injury
to vehicle occupants unless the items are
securely fastened in the vehicle.
Always use the cargo tie down rings
(page 218).

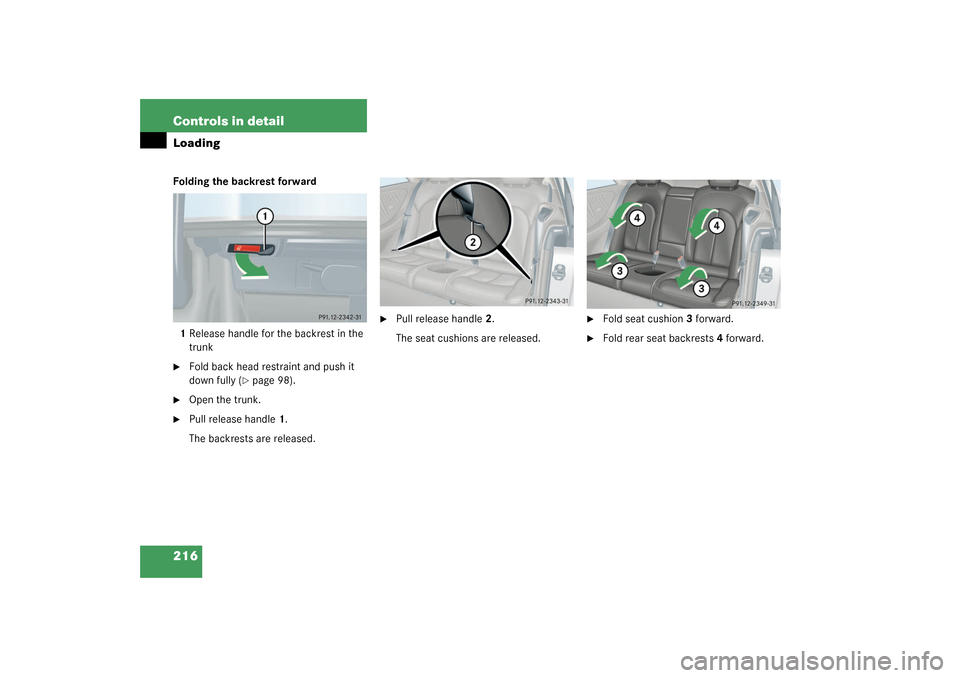

216 Controls in detailLoadingFolding the backrest forward
1Release handle for the backrest in the
trunk
Fold back head restraint and push it
down fully (
page 98).

Open the trunk.

Pull release handle1.
The backrests are released.

Pull release handle2.
The seat cushions are released.

Fold seat cushion3 forward.

Fold rear seat backrests 4 forward.

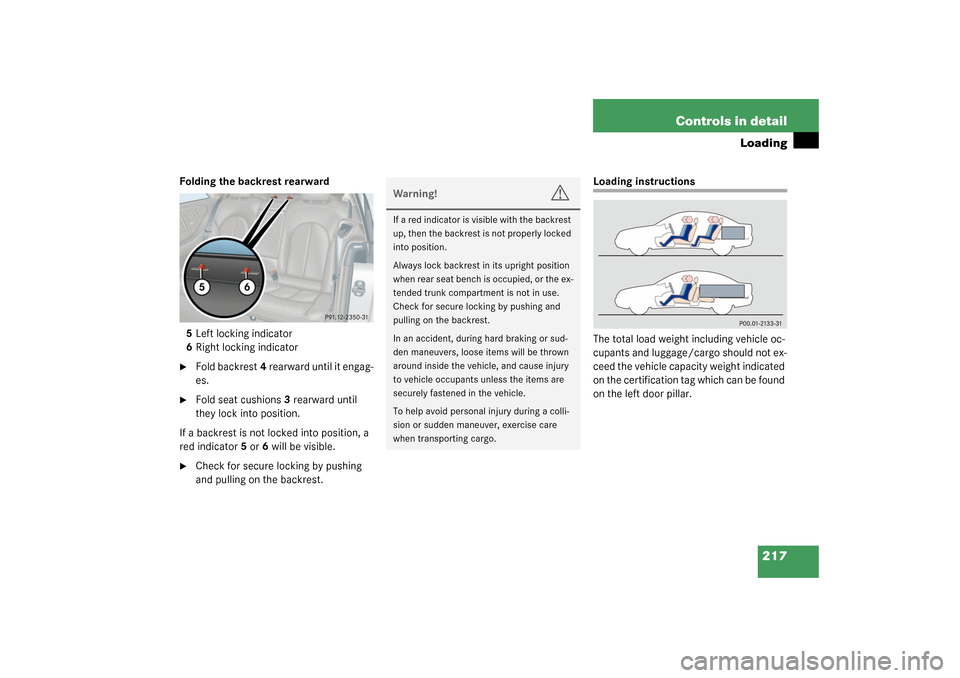

217 Controls in detail
Loading
Folding the backrest rearward
5Left locking indicator
6Right locking indicator
Fold backrest4 rearward until it engag-
es.

Fold seat cushions3 rearward until
they lock into position.
If a backrest is not locked into position, a
red indicator5 or 6 will be visible.

Check for secure locking by pushing
and pulling on the backrest.
Loading instructions
The total load weight including vehicle oc-
cupants and luggage/cargo should not ex-
ceed the vehicle capacity weight indicated
on the certification tag which can be found
on the left door pillar.
Warning!
G
If a red indicator is visible with the backrest
up, then the backrest is not properly locked
into position.
Always lock backrest in its upright position
when rear seat bench is occupied, or the ex-
tended trunk compartment is not in use.
Check for secure locking by pushing and
pulling on the backrest.
In an accident, during hard braking or sud-
den maneuvers, loose items will be thrown
around inside the vehicle, and cause injury
to vehicle occupants unless the items are
securely fastened in the vehicle.
To help avoid personal injury during a colli-
sion or sudden maneuver, exercise care
when transporting cargo.

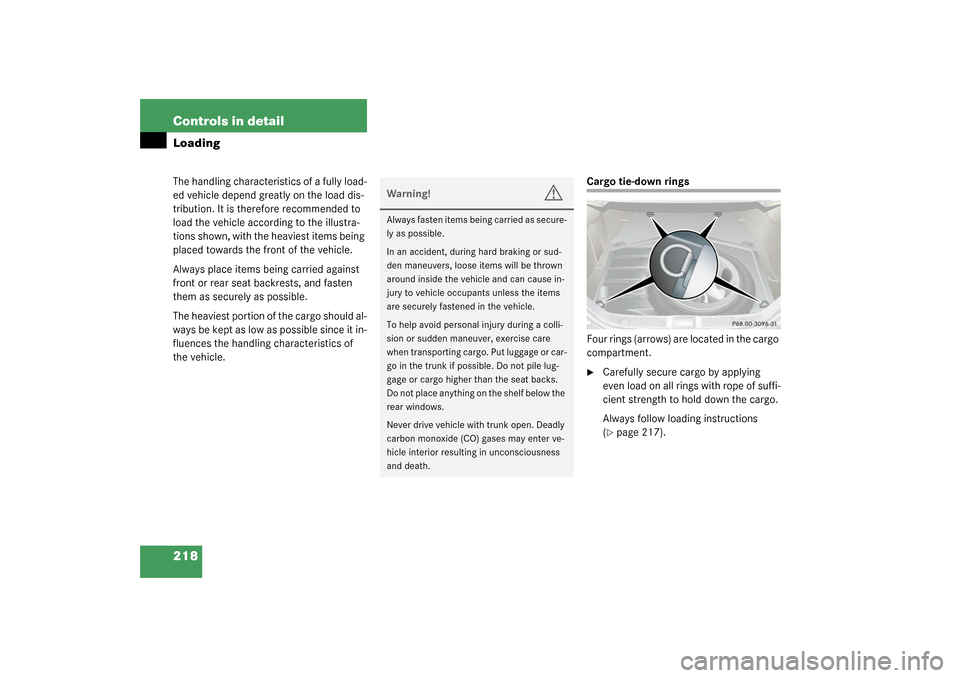

218 Controls in detailLoadingThe handling characteristics of a fully load-
ed vehicle depend greatly on the load dis-
tribution. It is therefore recommended to
load the vehicle according to the illustra-
tions shown, with the heaviest items being
placed towards the front of the vehicle.
Always place items being carried against
front or rear seat backrests, and fasten
them as securely as possible.
The heaviest portion of the cargo should al-
ways be kept as low as possible since it in-
fluences the handling characteristics of
the vehicle.
Cargo tie-down rings
Four rings (arrows) are located in the cargo
compartment.
Carefully secure cargo by applying
even load on all rings with rope of suffi-
cient strength to hold down the cargo.
Always follow loading instructions
(page 217).
Warning!
G
Always fasten items being carried as secure-
ly as possible.
In an accident, during hard braking or sud-
den maneuvers, loose items will be thrown
around inside the vehicle and can cause in-
jury to vehicle occupants unless the items
are securely fastened in the vehicle.
To help avoid personal injury during a colli-
sion or sudden maneuver, exercise care
when transporting cargo. Put luggage or car-
go in the trunk if possible. Do not pile lug-
gage or cargo higher than the seat backs.
Do not place anything on the shelf below the
rear windows.
Never drive vehicle with trunk open. Deadly
carbon monoxide (CO) gases may enter ve-
hicle interior resulting in unconsciousness
and death.

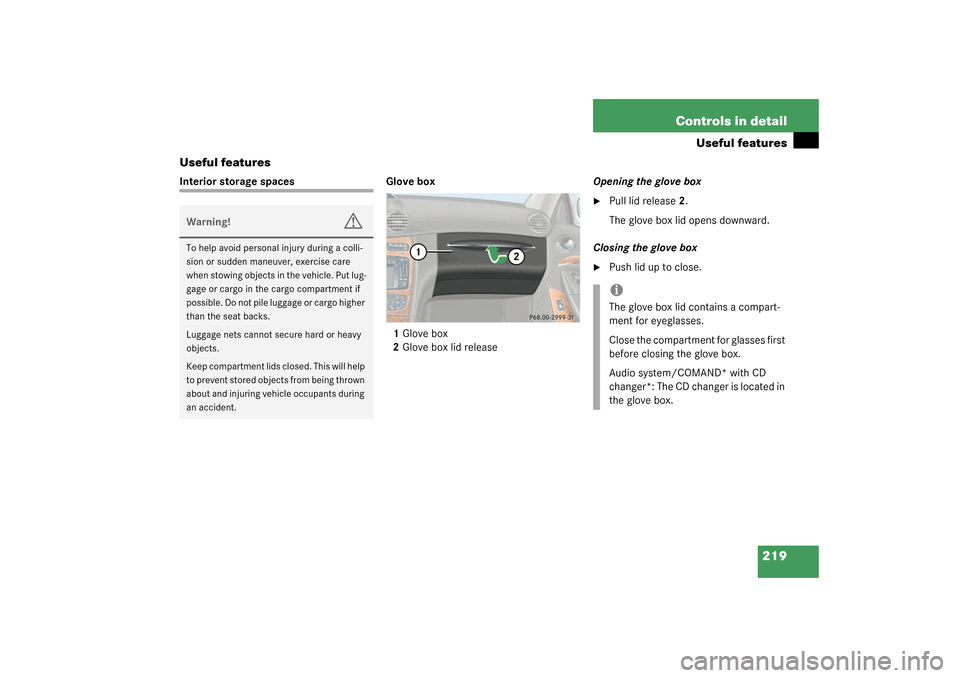

219 Controls in detail
Useful features
Useful features
Interior storage spaces Glove box
1Glove box
2Glove box lid releaseOpening the glove box

Pull lid release2.
The glove box lid opens downward.
Closing the glove box

Push lid up to close.
Warning!
G
To help avoid personal injury during a colli-
sion or sudden maneuver, exercise care
when stowing objects in the vehicle. Put lug-
gage or cargo in the cargo compartment if
possible. Do not pile luggage or cargo higher
than the seat backs.
Luggage nets cannot secure hard or heavy
objects.
Keep compartment lids closed. This will help
to prevent stored objects from being thrown
about and injuring vehicle occupants during
an accident.
iThe glove box lid contains a compart-
ment for eyeglasses.
Close the compartment for glasses first
before closing the glove box.
Audio system/COMAND* with CD
changer*: The CD changer is located in
the glove box.

220 Controls in detailUseful featuresCup holder in the dashboardOpening cup holder

Push cover1.
The cup holder opens automatically.
Closing cup holder

Push the cup holder back until it engag-
es.Cup holder in rear seat armrest
Warning!
G
When not in use, keep the cup holder
closed. Place only containers that fit into the
cup holder to prevent spills. Use lids on
open containers and do not fill containers to
a height where the contents, especially hot
liquids, could spill during vehicle
maneuvers.
Warning!
G
When not in use, keep the cup holder
closed. Place only containers that fit into the
cup holder to prevent spills. Use lids on
open containers and do not fill containers to
a height where the contents, especially hot
liquids, could spill during vehicle
maneuvers.
