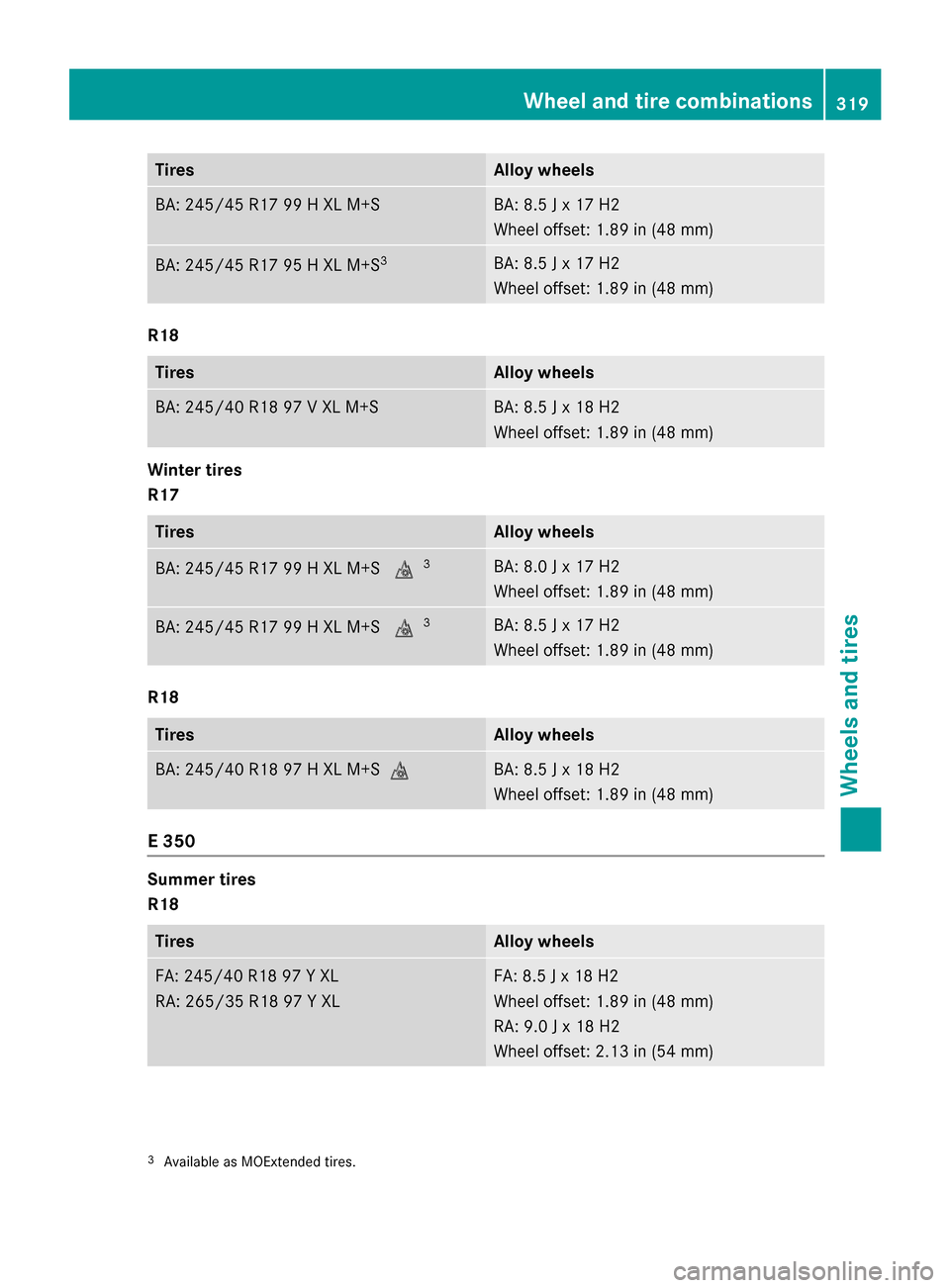

Page 321 of 350
TiresAlloy wheels
BA: 245/45 R17 99 H XL M+SBA: 8.5 J x 17 H2
Wheel offset: 1.89 in (48 mm)
BA: 245/45 R17 95 H XL M+S3BA: 8.5 J x 17 H2
Wheel offset: 1.89 in (48 mm)
R18
TiresAlloy wheels
BA: 245/40 R18 97 V XL M+SBA: 8.5 J x 18 H2
Wheel offset: 1.89 in (48 mm)
Winter tires
R17
TiresAlloy wheels
BA: 245/45 R17 99 H XL M+Si3BA: 8.0 J x 17 H2
Wheel offset: 1.89 in (48 mm)
BA: 245/45 R17 99 H XL M+Si3BA: 8.5 J x 17 H2
Wheel offset: 1.89 in (48 mm)
R18
TiresAlloy wheels
BA: 245/40 R18 97 H XL M+SiBA: 8.5 J x 18 H2
Wheel offset: 1.89 in (48 mm)
E 350
Summer tires
R18
TiresAlloy wheels
FA: 245/40 R18 97 Y XL
RA: 265/35 R18 97 Y XLFA: 8.5 J x 18 H2
Wheel offset: 1.89 in (48 mm)
RA: 9.0 J x 18 H2
Wheel offset: 2.13 in (54 mm)
3Available as MOExtended tires.
Wheel and tire combinations319
Wheels and tires
Z

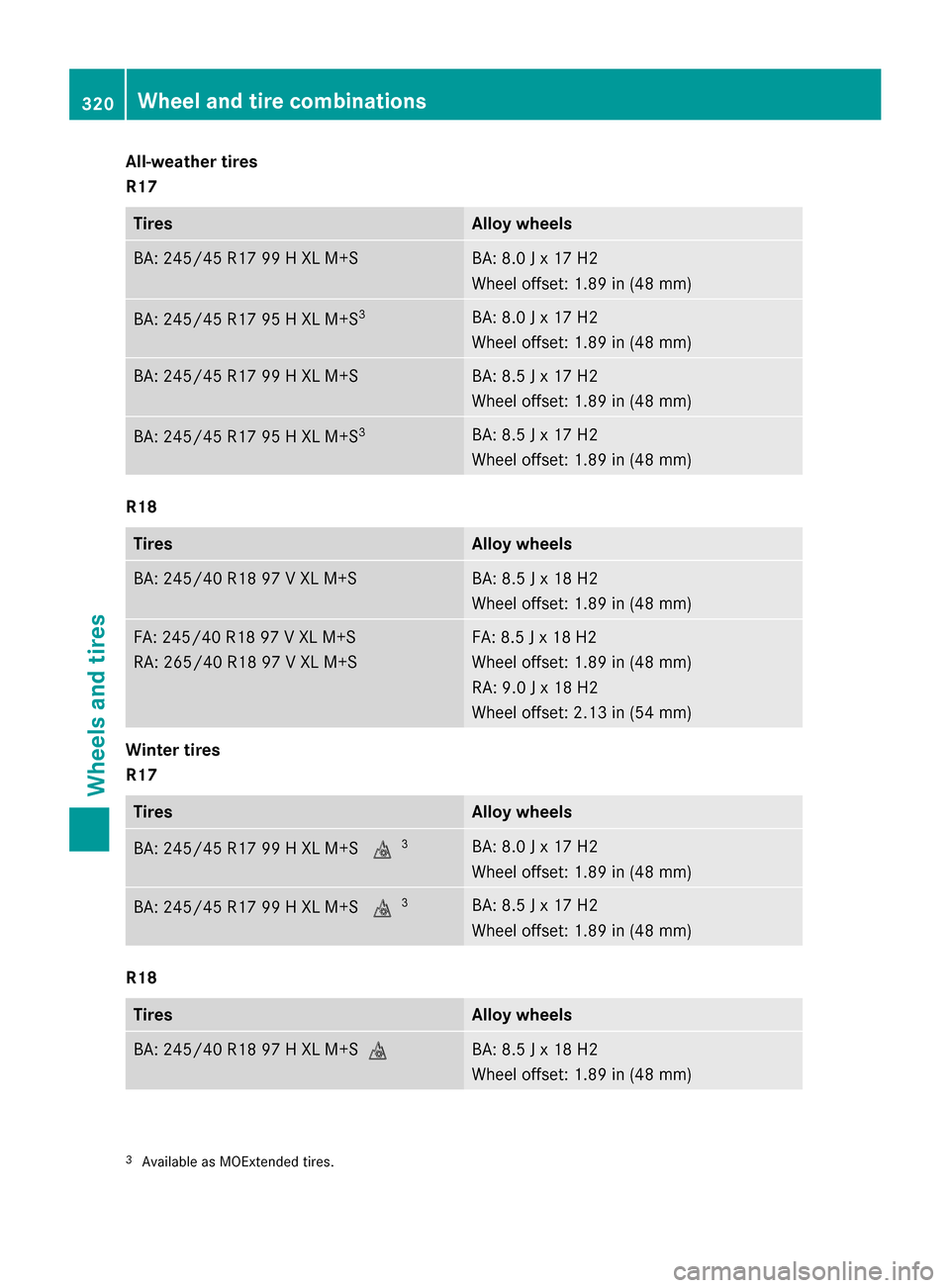

Page 322 of 350
All-weather tires
R17
TiresAlloy wheels
BA: 245/45 R17 99 H XL M+SBA: 8.0 J x 17 H2
Wheel offset: 1.89in(48 mm)
BA: 245/45 R17 95 H XL M+S3BA: 8.0 J x 17 H2
Wheel offset: 1.89 in(48 mm)
BA: 245/45 R17 99 H XL M+SBA: 8.5 J x 17 H2
Wheel offset: 1.89 in(48 mm)
BA: 245/45 R17 95 H XL M+S3BA: 8.5 J x 17 H2
Wheel offset: 1.89 in(48 mm)
R18
TiresAlloy wheels
BA: 245/40 R18 97 V XL M+SBA: 8.5 J x 18 H2
Wheel offset: 1.89 in(48 mm)
FA: 245/40 R18 97 V XL M+S
RA: 265/40 R18 97 V XL M+SFA: 8.5 J x 18 H2
Wheel offset: 1.89 in(48 mm)
RA: 9.0 J x 18 H2
Wheel offset: 2.13 in(54 mm)
Winter tires
R17
TiresAlloy wheels
BA: 245/45 R17 99 H XL M+S i3BA: 8.0 J x 17 H2
Wheel offset: 1.89in(48 mm)
BA: 245/45 R17 99 H XL M+S i3BA: 8.5 J x 17 H2
Wheel offset: 1.89in(48 mm)
R18
TiresAlloy wheels
BA: 245/40 R18 97 H XL M+S iBA: 8.5 J x 18 H2
Wheel offset: 1.89in(48 mm)
3Available as MOExtended tires.
320Wheel and tire combinations
Wheels and tires

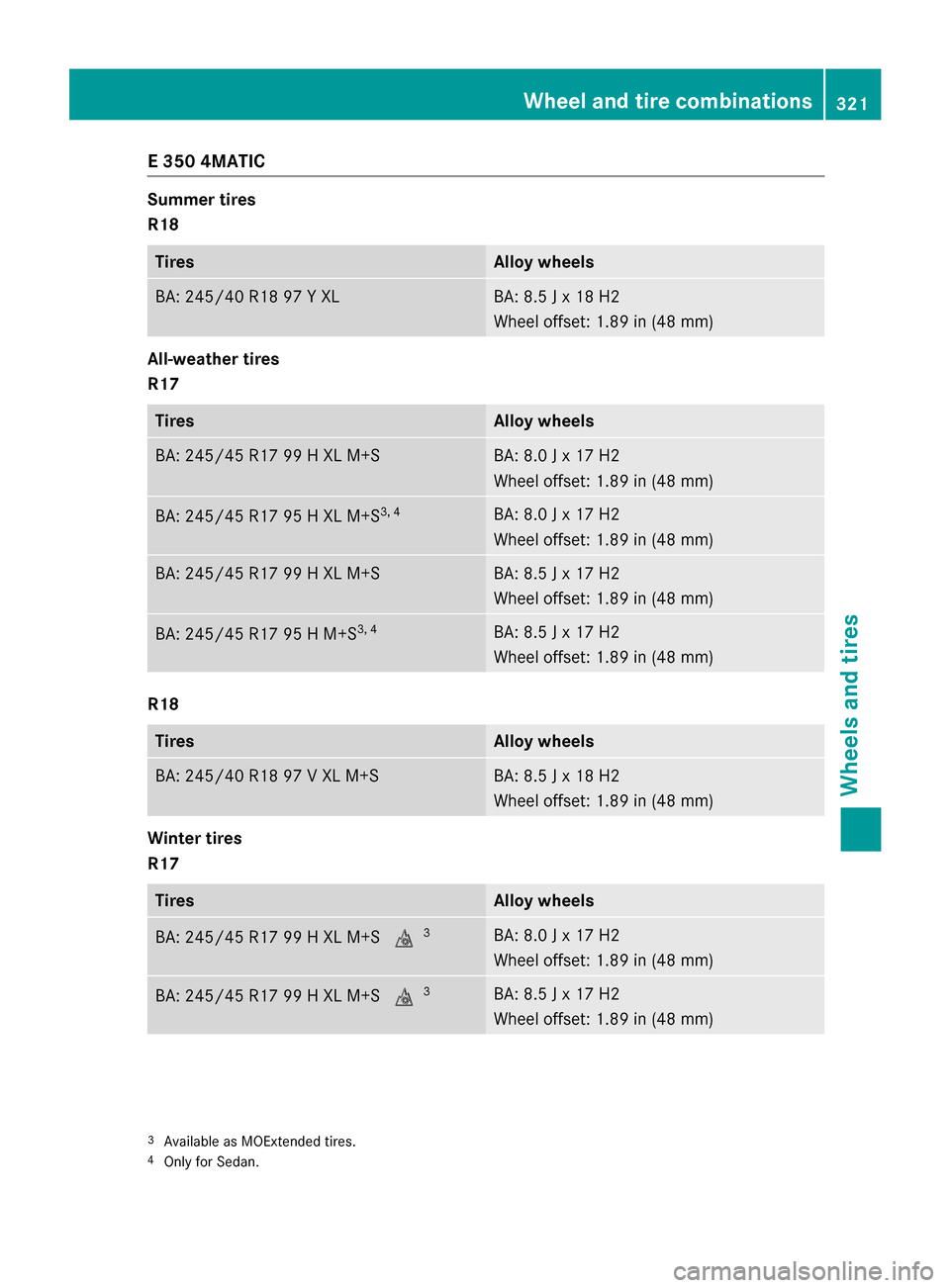

Page 323 of 350
E 350 4MATIC
Summer tires
R18
TiresAlloy wheels
BA: 245/40 R18 97 Y XLBA: 8.5 J x 18 H2
Wheel offset: 1.89 in (48 mm)
All-weather tires
R17
TiresAlloy wheels
BA: 245/45 R17 99 H XL M+SBA: 8.0 J x 17 H2
Wheel offset: 1.89 in (48 mm)
BA: 245/45 R17 95 H XL M+S3,4BA: 8.0 J x 17 H2
Wheel offset: 1.89 in (48 mm)
BA: 245/45 R17 99 H XL M+SBA: 8.5 J x 17 H2
Wheel offset: 1.89 in (48 mm)
BA: 245/45 R17 95 H M+S3,4BA: 8.5 J x 17 H2
Wheel offset: 1.89 in (48 mm)
R18
TiresAlloy wheels
BA: 245/40 R18 97 V XL M+SBA: 8.5 J x 18 H2
Wheel offset: 1.89 in (48 mm)
Winter tires
R17
TiresAlloy wheels
BA: 245/45 R17 99 H XL M+S i3BA: 8.0 J x 17 H2
Wheel offset: 1.89 in (48 mm)
BA: 245/45 R17 99 H XL M+Si3BA: 8.5 J x 17 H2
Wheel offset: 1.89 in (48 mm)
3Available as MOExtended tires.4Only for Sedan.
Wheel and tire combinations321
Wheels and tires
Z

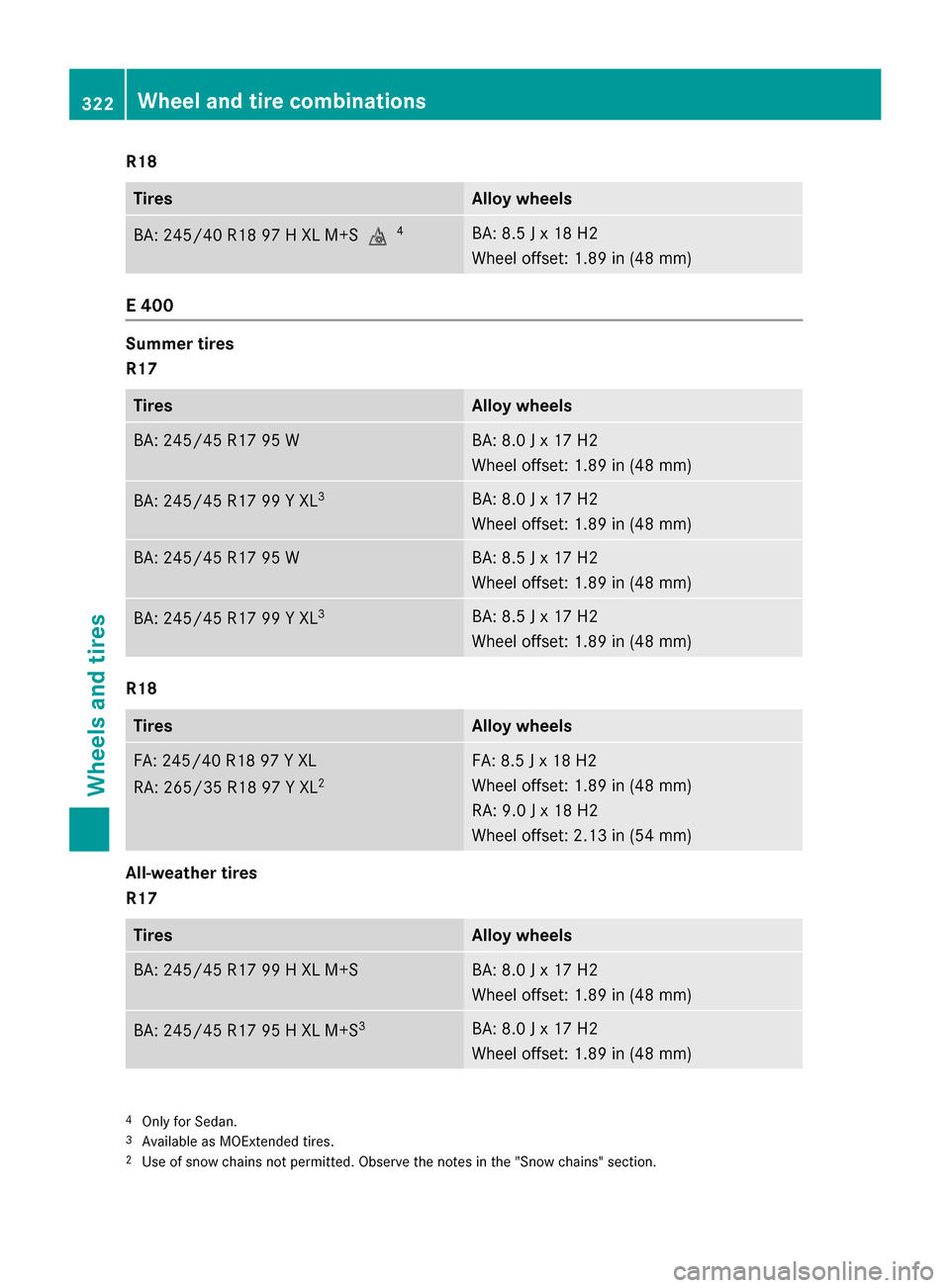

Page 324 of 350
R18
TiresAlloy wheels
BA: 245/40 R18 97 H XL M+Si4BA: 8.5 J x 18 H2
Wheel offset: 1.89 in (48 mm)
E 400
Summer tires
R17
TiresAlloy wheels
BA: 245/45 R17 95 WBA: 8.0 J x 17 H2
Wheel offset: 1.89 in (48 mm)
BA: 245/45 R17 99 Y XL3BA: 8.0 J x 17 H2
Wheel offset: 1.89 in (48 mm)
BA: 245/45 R17 95 WBA: 8.5 J x 17 H2
Wheel offset: 1.89 in (48 mm)
BA: 245/45 R17 99 Y XL3BA: 8.5 J x 17 H2
Wheel offset: 1.89 in (48 mm)
R18
TiresAlloy wheels
FA: 245/40 R18 97 Y XL
RA: 265/35 R18 97 Y XL
2
FA: 8.5 J x 18 H2
Wheel offset: 1.89 in (48 mm)
RA: 9.0 J x 18 H2
Wheel offset: 2.13 in (54 mm)
All-weather tires
R17
TiresAlloy wheels
BA: 245/45 R17 99 H XL M+SBA: 8.0 J x 17 H2
Wheel offset: 1.89 in (48 mm)
BA: 245/45 R17 95 H XL M+S3BA: 8.0 J x 17 H2
Wheel offset: 1.89 in (48 mm)
4Only for Sedan.3Available as MOExtended tires.2Use of snow chains not permitted. Observe the notes in the "Snow chains" section.
322Wheel and tire combinations
Wheels and tires

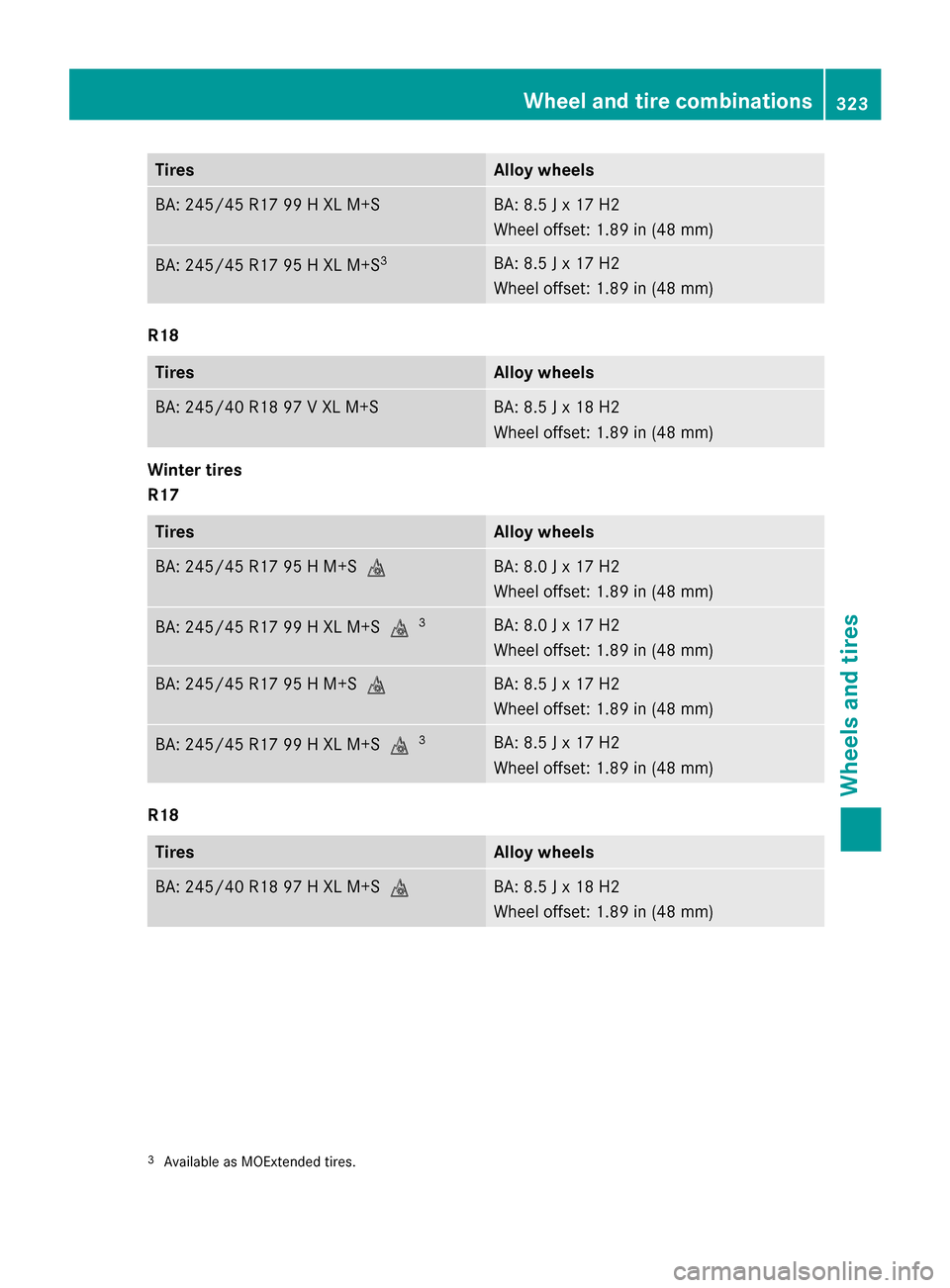

Page 325 of 350
TiresAlloy wheels
BA: 245/45 R17 99 H XL M+SBA: 8.5 J x 17 H2
Wheel offset: 1.89 in (48 mm)
BA: 245/45 R17 95 H XL M+S3BA: 8.5 J x 17 H2
Wheel offset: 1.89 in (48 mm)
R18
TiresAlloy wheels
BA: 245/40 R18 97 V XL M+SBA: 8.5 J x 18 H2
Wheel offset: 1.89 in (48 mm)
Winter tires
R17
TiresAlloy wheels
BA: 245/45 R17 95 H M+SiBA: 8.0 J x 17 H2
Wheel offset: 1.89 in (48 mm)
BA: 245/45 R17 99 H XL M+S i3BA: 8.0 J x 17 H2
Wheel offset: 1.89 in (48 mm)
BA: 245/45 R17 95 H M+SiBA: 8.5 J x 17 H2
Wheel offset: 1.89 in (48 mm)
BA: 245/45 R17 99 H XL M+S i3BA: 8.5 J x 17 H2
Wheel offset: 1.89 in (48 mm)
R18
TiresAlloy wheels
BA: 245/40 R18 97 H XL M+SiBA: 8.5 J x 18 H2
Wheel offset: 1.89 in (48 mm)
3Available as MOExtended tires.
Wheel and tire combinations323
Wheels and tires
Z

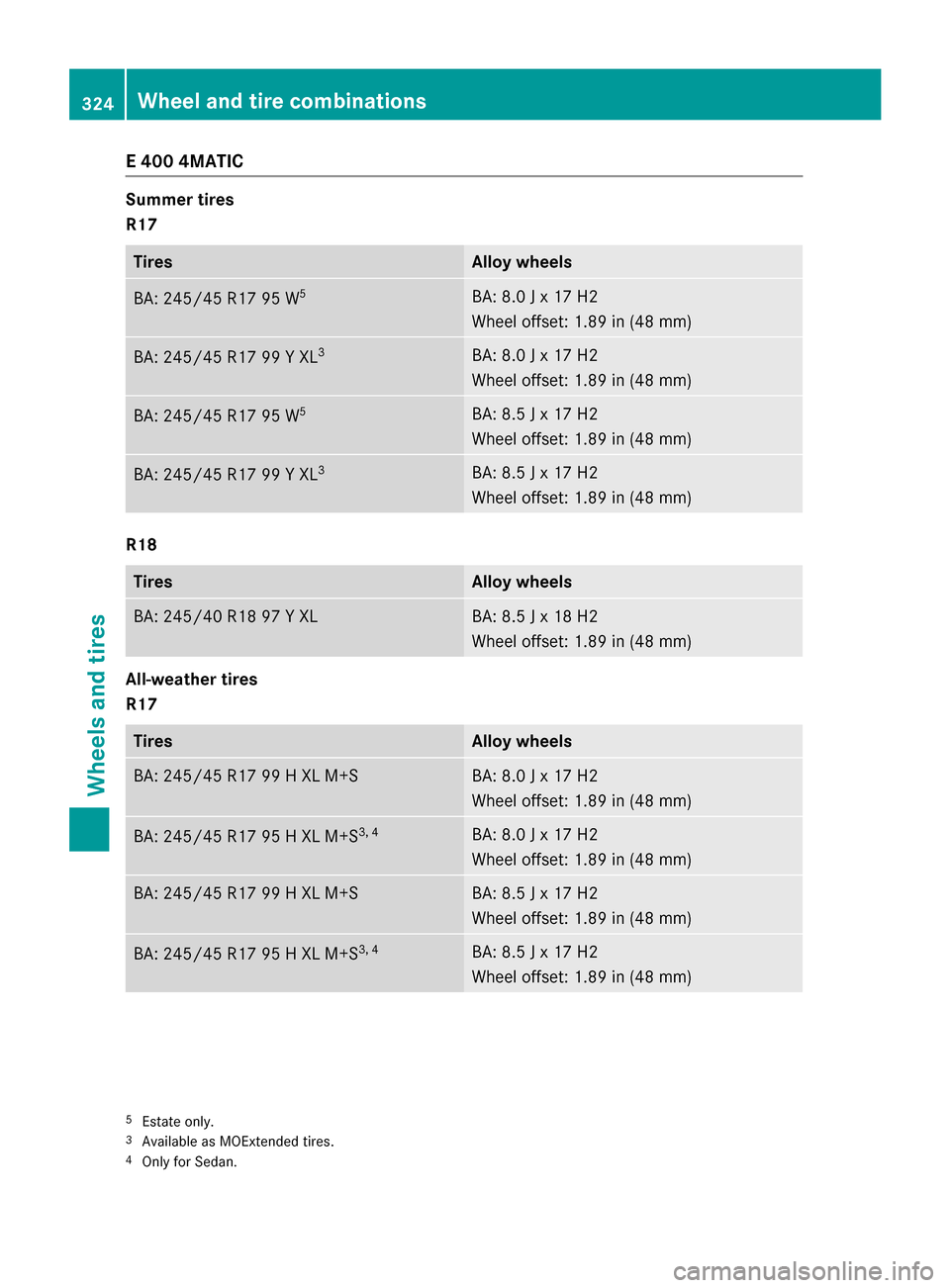

Page 326 of 350
E 400 4MATIC
Summer tires
R17
TiresAlloy wheels
BA: 245/45 R17 95 W5BA: 8.0 J x 17 H2
Wheel offset: 1.89 in (48 mm)
BA: 245/45 R17 99 Y XL3BA: 8.0 J x 17 H2
Wheel offset: 1.89 in (48 mm)
BA: 245/45 R17 95 W5BA: 8.5 J x 17 H2
Wheel offset: 1.89 in (48 mm)
BA: 245/45 R17 99 Y XL3BA: 8.5 J x 17 H2
Wheel offset: 1.89 in (48 mm)
R18
TiresAlloy wheels
BA: 245/40 R18 97 Y XLBA: 8.5 J x 18 H2
Wheel offset: 1.89 in (48 mm)
All-weather tires
R17
TiresAlloy wheels
BA: 245/45 R17 99 H XL M+SBA: 8.0 J x 17 H2
Wheel offset: 1.89 in (48 mm)
BA: 245/45 R17 95 H XL M+S3,4BA: 8.0 J x 17 H2
Wheel offset: 1.89 in (48 mm)
BA: 245/45 R17 99 H XL M+SBA: 8.5 J x 17 H2
Wheel offset: 1.89 in (48 mm)
BA: 245/45 R17 95 H XL M+S3,4BA: 8.5 J x 17 H2
Wheel offset: 1.89 in (48 mm)
5Estat eonly.3Available as MOExtended tires.4Only for Sedan.
324Wheel and tire combinations
Wheels and tires

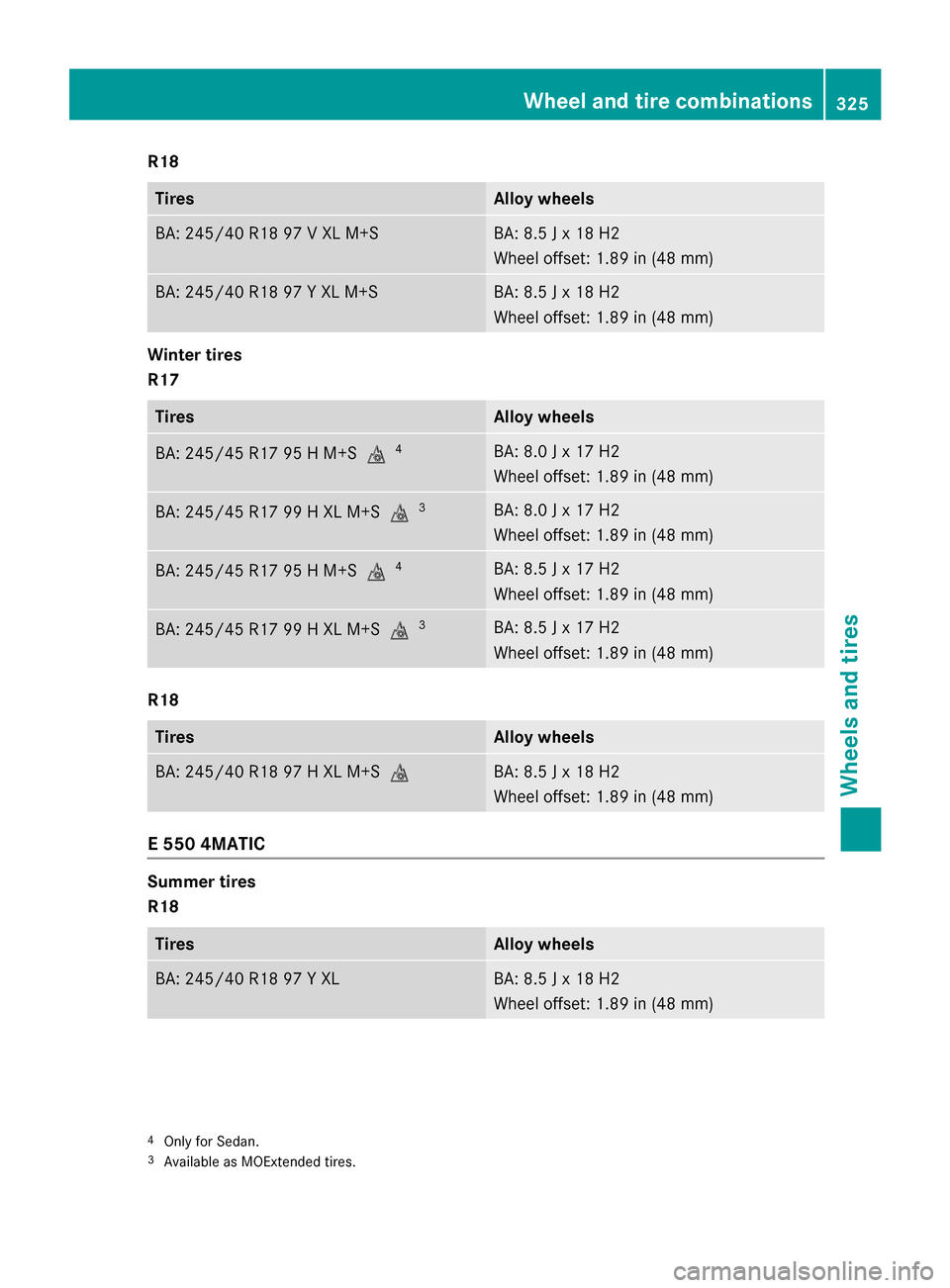

Page 327 of 350
R18
TiresAlloy wheels
BA: 245/40 R18 97 V XL M+SBA: 8.5 J x 18 H2
Wheel offset: 1.89 in (48 mm)
BA: 245/40 R18 97 Y XL M+SBA: 8.5 J x 18 H2
Wheel offset: 1.89 in (48 mm)
Winter tires
R17
TiresAlloy wheels
BA: 245/45 R17 95 H M+Si4BA: 8.0 J x 17 H2
Wheel offset: 1.89 in (48 mm)
BA: 245/45 R17 99 H XL M+S i3BA: 8.0 J x 17 H2
Wheel offset: 1.89 in (48 mm)
BA: 245/45 R17 95 H M+Si4BA: 8.5 J x 17 H2
Wheel offset: 1.89 in (48 mm)
BA: 245/45 R17 99 H XL M+S i3BA: 8.5 J x 17 H2
Wheel offset: 1.89 in (48 mm)
R18
TiresAlloy wheels
BA: 245/40 R18 97 H XL M+SiBA: 8.5 J x 18 H2
Wheel offset: 1.89 in (48 mm)
E 550 4MATIC
Summer tires
R18
TiresAlloy wheels
BA: 245/40 R18 97 Y XLBA: 8.5 J x 18 H2
Wheel offset: 1.89 in (48 mm)
4Only for Sedan.3Available as MOExtended tires.
Wheel and tire combinations325
Wheels and tires
Z

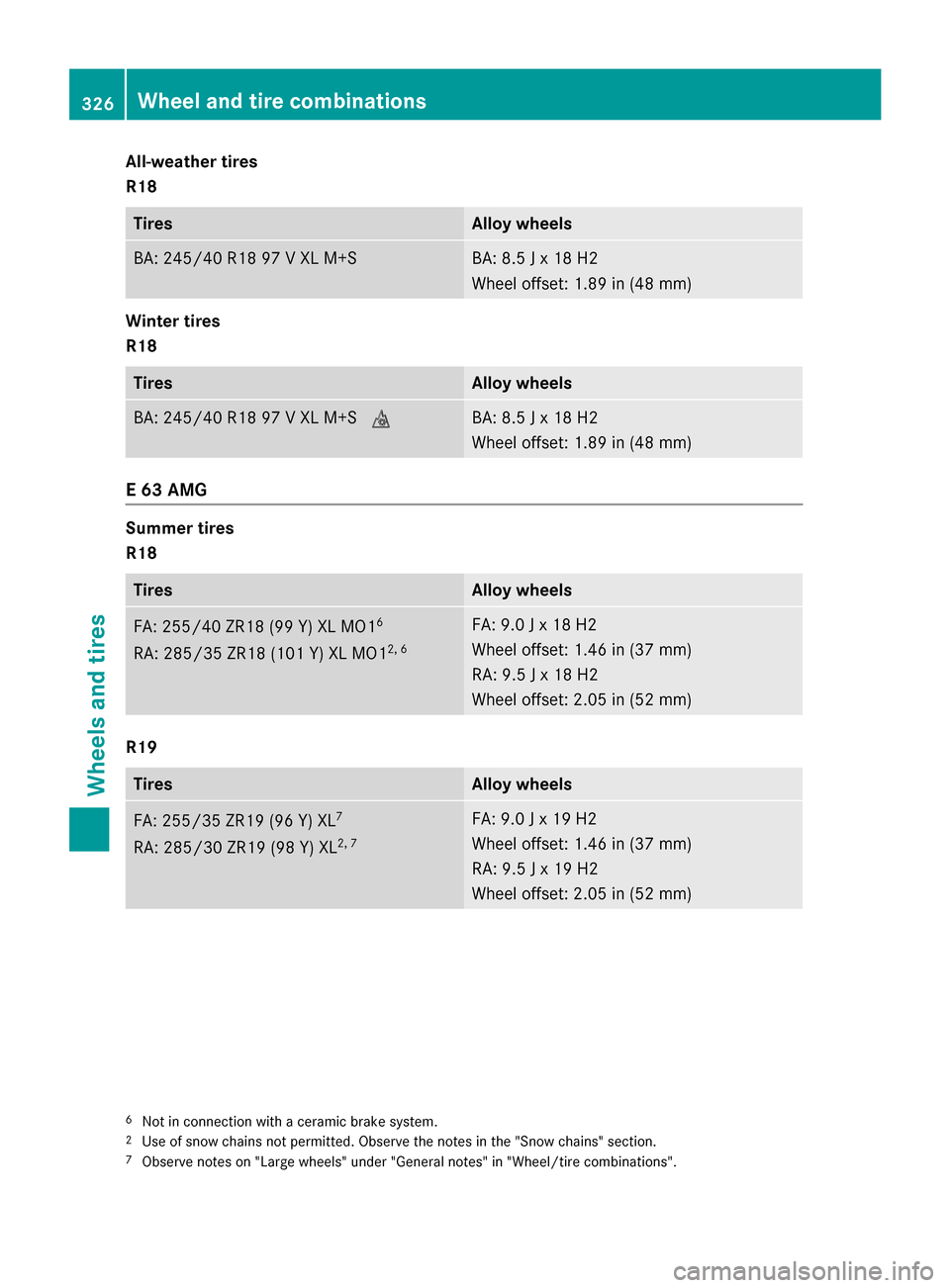

Page 328 of 350
All-weather tires
R18
TiresAlloy wheels
BA: 245/40 R18 97 V XL M+SBA: 8.5 J x 18 H2
Wheel offset: 1.89in(48 mm)
Winter tires
R18
TiresAlloy wheels
BA: 245/40 R18 97 V XL M+S iBA: 8.5 J x 18 H2
Wheel offset: 1.89in(48 mm)
E 63 AMG
Summer tires
R18
TiresAlloy wheels
FA: 255/40 ZR18 (99 Y) XL MO16
RA: 285/35 ZR18 (101 Y) XL MO12, 6
FA: 9.0 J x 18 H2
Wheel offset: 1.46 in(37 mm)
RA: 9.5 J x 18 H2
Wheel offset: 2.05 in(52 mm)
R19
TiresAlloy wheels
FA: 255/35 ZR19 (96 Y) XL7
RA: 285/30 ZR19 (98 Y) XL2, 7
FA: 9.0 J x 19 H2
Wheel offset: 1.46 in(37 mm)
RA: 9.5 J x 19 H2
Wheel offset: 2.05 in(52 mm)
6Not in connection wit h aceramic brak esystem.2Use of snow chain sno tpermitted. Observ eth enote sin th e"Snow chains" section.7Observ enote son "Large wheels" under "General notes" in "Wheel/tir ecombinations".
326Wheel and tire combinations
Wheels and tires

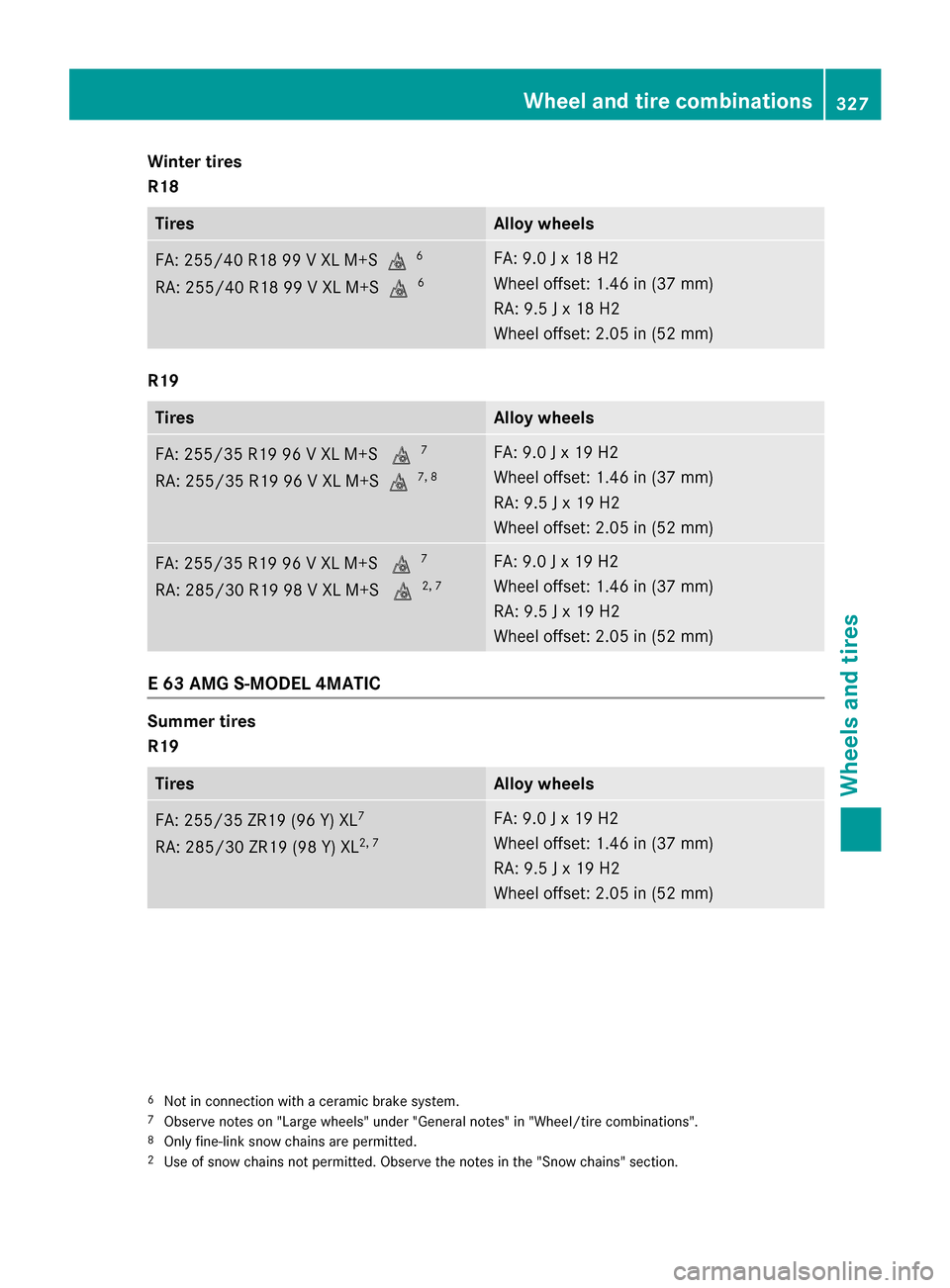

Page 329 of 350
Winter tires
R18
TiresAlloy wheels
FA: 255/40 R18 99 V XL M+Si6
RA: 255/40 R18 99 V XL M+Si6
FA: 9.0 J x 18 H2
Wheel offset: 1.46 in (37 mm)
RA: 9.5 J x 18 H2
Wheel offset: 2.05 in (52 mm)
R19
TiresAlloy wheels
FA: 255/35 R19 96 V XL M+Si7
RA: 255/35 R19 96 V XL M+Si7, 8
FA: 9.0 J x 19 H2
Wheel offset: 1.46 in (37 mm)
RA: 9.5 J x 19 H2
Wheel offset: 2.05 in (52 mm)
FA: 255/35 R19 96 V XL M+Si7
RA: 285/30 R19 98 V XL M+S i2, 7
FA: 9.0 J x 19 H2
Wheel offset: 1.46 in (37 mm)
RA: 9.5 J x 19 H2
Wheel offset: 2.05 in (52 mm)
E 63 AMG S-MODEL 4MATIC
Summer tires
R19
TiresAlloy wheels
FA: 255/35 ZR19 (96 Y) XL7
RA: 285/30 ZR19 (98 Y) XL2, 7
FA: 9.0 J x 19 H2
Wheel offset: 1.46 in (37 mm)
RA: 9.5 J x 19 H2
Wheel offset: 2.05 in (52 mm)
6Not in connection with a ceramic brake system.7Observe notes on "Large wheels" under "General notes" in "Wheel/tire combinations".8Only fine-link snow chains are permitted.2Use of snow chains not permitted. Observe the notes in the "Snow chains" section.
Wheel and tire combinations327
Wheels and tires
Z

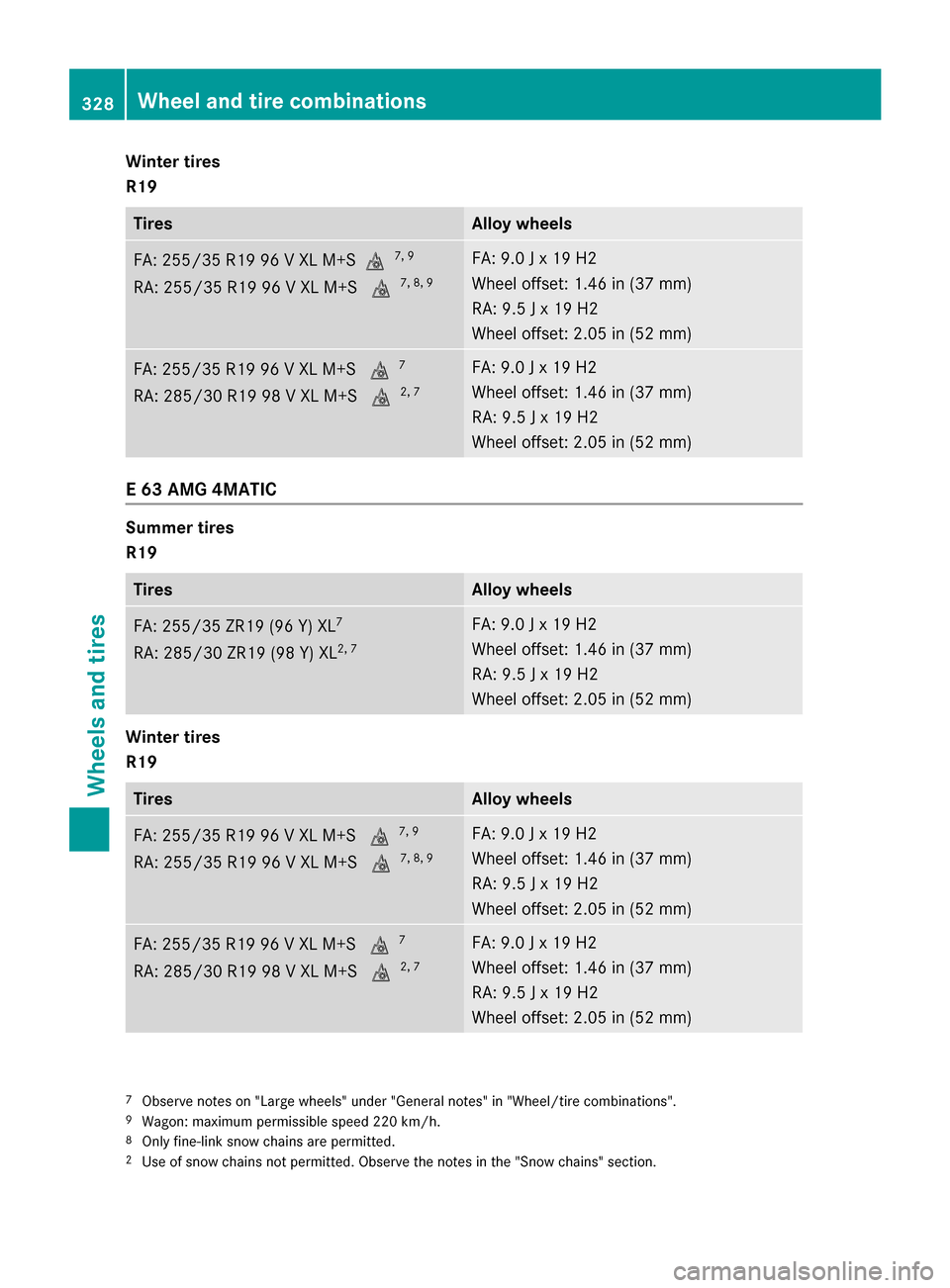

Page 330 of 350
Winter tires
R19
TiresAlloy wheels
FA: 255/35 R19 96 V XL M+Si7, 9
RA: 255/35 R19 96 V XL M+Si7, 8, 9
FA: 9.0 J x 19 H2
Wheel offset: 1.46 in (37 mm)
RA: 9.5 J x 19 H2
Wheel offset: 2.05 in (52 mm)
FA: 255/35 R19 96 V XL M+Si7
RA: 285/30 R19 98 V XL M+S i2, 7
FA: 9.0 J x 19 H2
Wheel offset: 1.46 in (37 mm)
RA: 9.5 J x 19 H2
Wheel offset: 2.05 in (52 mm)
E 63 AMG 4MATIC
Summer tires
R19
TiresAlloy wheels
FA: 255/35 ZR19 (96 Y) XL7
RA: 285/30 ZR19 (98 Y) XL2, 7
FA: 9.0 J x 19 H2
Wheel offset: 1.46 in (37 mm)
RA: 9.5 J x 19 H2
Wheel offset: 2.05 in (52 mm)
Winter tires
R19
TiresAlloy wheels
FA: 255/35 R19 96 V XL M+Si7, 9
RA: 255/35 R19 96 V XL M+S i7, 8, 9
FA: 9.0 J x 19 H2
Wheel offset: 1.46 in (37 mm)
RA: 9.5 J x 19 H2
Wheel offset: 2.05 in (52 mm)
FA: 255/35 R19 96 V XL M+Si7
RA: 285/30 R19 98 V XL M+S i2, 7
FA: 9.0 J x 19 H2
Wheel offset: 1.46 in (37 mm)
RA: 9.5 J x 19 H2
Wheel offset: 2.05 in (52 mm)
7Observe notes on "Large wheels" under "General notes" in "Wheel/tire combinations".9Wagon: maximum permissible speed 220 km/h.8Only fine-link snow chains are permitted.2Use of snow chains not permitted. Observe the notes in the "Snow chains" section.
328Wheel and tire combinations
Wheels and tires
