Page 31 of 521

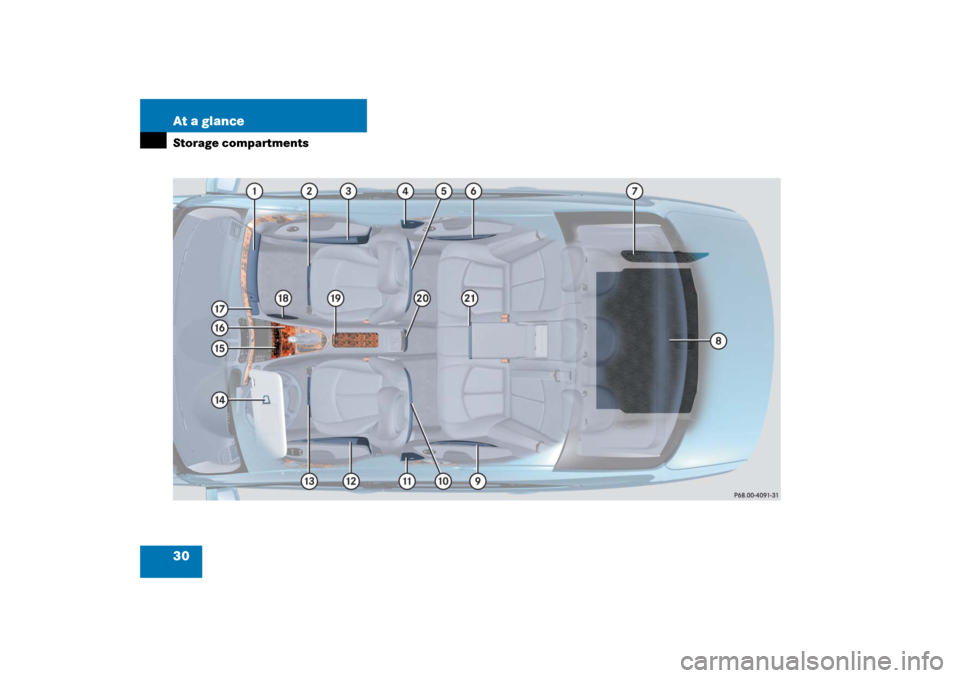

30 At a glanceStorage compartments
Page 32 of 521
31 At a glance

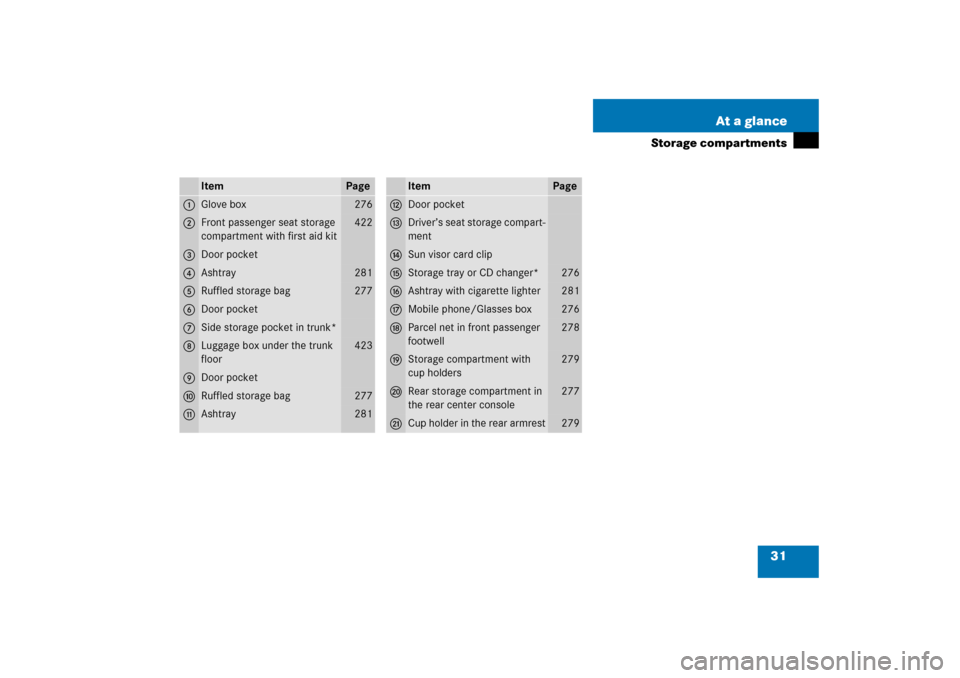

Storage compartments
Item
Page
1
Glove box
276
2
Front passenger seat storage
compartment with first aid kit
422
3
Door pocket
4
Ashtray
281
5
Ruffled storage bag
277
6
Door pocket
7
Side storage pocket in trunk*
8
Luggage box under the trunk
floor
423
9
Door pocket
a
Ruffled storage bag
277
b
Ashtray
281
Item
Page
c
Door pocket
d
Driver’s seat storage compart-
ment
e
Sun visor card clip
f
Storage tray or CD changer*
276
g
Ashtray with cigarette lighter
281
h
Mobile phone/Glasses box
276
j
Parcel net in front passenger
footwell
278
k
Storage compartment with
cup holders
279
l
Rear storage compartment in
the rear center console
277
m
Cup holder in the rear armrest
279
Page 33 of 521
32 At a glanceDoor control panel
Item
Page
1
Door handle
119
2
Seat adjustment
41
3
Memory function (for stor-
ing seat, exterior mirror and
steering wheel settings)
138
4
Exterior rear view mirror ad-
justment
45
5
Switches for opening/clos-
ing front and rear side win-
dows, rear window override
switch
231
6
Remote trunk release
switch, Trunk opening/clos-
ing system*
121
Page 34 of 521

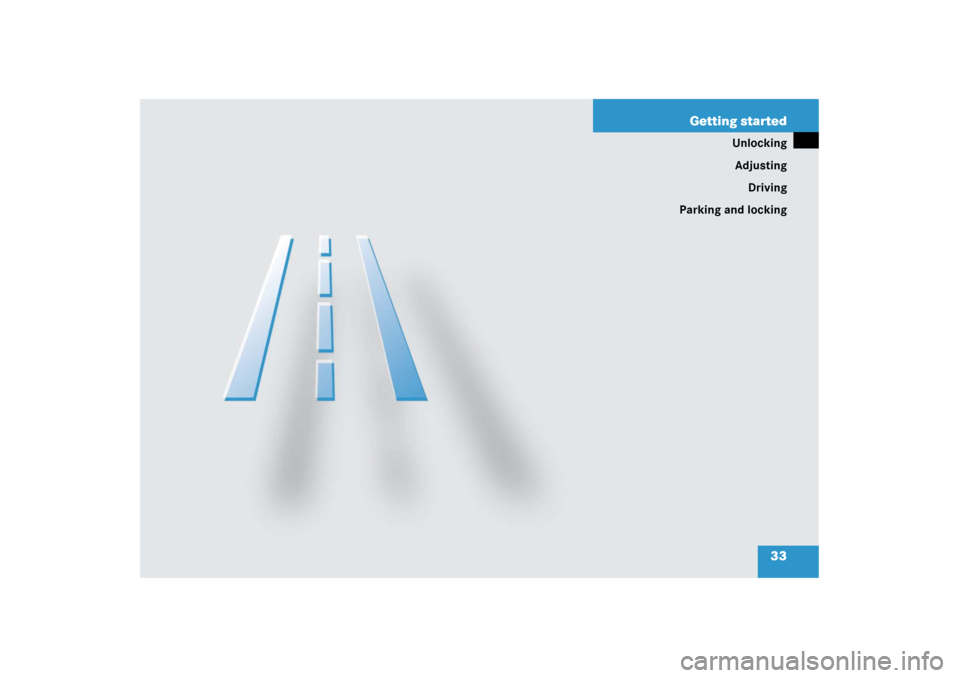

33 Getting started
Unlocking
Adjusting
Driving
Parking and locking
Page 35 of 521
34 Getting startedThe “Getting started” section provides an
overview of the vehicle’s most basic
functions.
If you are already familiar with the basic
functions described here, the “Controls in
detail” section will provide you with further
information. The corresponding page refer-
ences are located at the end of each seg-
ment.Unlocking
Unlocking with the SmartKeySmartKey with remote control 1‹Lock button
2ŠUnlock button for trunk
3ŒUnlock button
4ÂPanic button (
page 91)
Press unlock button Œ on the
SmartKey.
All turn signal lamps flash once.
An acoustic signal sounds once
(if equipped and feature activated).
For more information, see “Factory
setting” (
page 108).
The locking knobs in the doors
move up.
The anti-theft alarm system is dis-
armed.
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. Unsuper-
vised use of vehicle equipment may cause
an accident and/or serious personal injury.
Page 36 of 521
35 Getting started
Unlocking
Get in the vehicle and insert the
SmartKey in the starter switch.
For more information, see “Locking and
unlocking” (
page 106).
Unlocking with KEYLESS-GO*
With the KEYLESS-GO function, you can
lock and unlock the vehicle without using
the remote control buttons on the
SmartKey and start the engine without in-
serting the SmartKey in the starter switch.
Pull an outside door handle.
All turn signal lamps flash once.
An acoustic signal sounds once
(if equipped and feature activated).
For more information, see “Factory
setting” (
page 114).
The locking knobs in the doors
move up.
The anti-theft alarm system is dis-
armed.
Get in the vehicle.
For more information, see “SmartKey with
KEYLESS-GO*” (
page 111).
iThe electrohydraulic brake system is
activated (
page 97).
iTo unlock the vehicle, the SmartKey
with KEYLESS-GO must be outside the
vehicle, no further than approximately
3 feet (1 meter) away from the door. Warning!
G
When leaving the vehicle, always take the
SmartKey with KEYLESS-GO with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle equipment may cause an accident
and/or serious personal injury.
iThe electrohydraulic brake system is
activated (
page 97).
Page 37 of 521
36 Getting startedUnlockingStarter switch positions SmartKey
Starter switch0For removing SmartKey
1Power supply for some electrical con-
sumers, such as seat adjustment2Ignition (power supply for all electrical
consumers) and driving position.
All lamps (except low beam headlamp
indicator lamp, high beam headlamp in-
dicator lamp, and turn signal indicator
lamps unless activated) in the instru-
ment cluster come on. If a lamp in the
instrument cluster fails to come on
when the ignition is switched on, have
it checked and replaced if necessary. If
a lamp in the instrument cluster re-
mains on after starting the engine or
comes on while driving, refer to “Lamps
in instrument cluster” (
page 374).
3Starting position
Warning!
G
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle equipment may cause an accident
and/or serious personal injury.
Page 38 of 521
37 Getting started
Unlocking
For information on starting the engine us-
ing the SmartKey, see “Starting with the
SmartKey” (
page 50).SmartKey with KEYLESS-GO*
Pressing the KEYLESS-GO start/stop but-
ton on the gear selector lever corresponds
to turning the SmartKey to the various
starter switch positions.
If you firmly depress the brake pedal dur-
ing pressing the KEYLESS-GO start/stop
button, the engine starts automatically.
iWhen you switch on the ignition, the in-
dicator and warning lamps (except low
beam headlamp indicator lamp, high
beam headlamp indicator lamp, and
turn signal indicator lamps unless acti-
vated) in the instrument cluster come
on. The indicator and warning lamps
(except low beam headlamp indicator
lamp, high beam headlamp indicator
lamp, and turn signal indicator lamps if
activated) should go out when the en-
gine is running. This indicates that the
respective systems are operational.iThe SmartKey can only be removed
from the starter switch with the gear
selector lever in position P.
!If the SmartKey cannot be turned in the
starter switch, the starter battery may
not be sufficiently charged.
Check the battery and charge it if
necessary (
page 452).
Get a jump start (
page 454).
To prevent accelerated battery dis-
charge or a completely discharged bat-
tery, always remove the SmartKey from
the starter switch when the engine is
not in operation.
iThe function of the SmartKey overrules
the KEYLESS-GO function.
Page 39 of 521
38 Getting startedUnlockingKEYLESS-GO start/stop button1USA only
2Canada only
The SmartKey with KEYLESS-GO must be
located in the vehicle.
Make sure the gear selector lever is set
toP.
Do not depress the brake pedal.Position 0
Before you press the KEYLESS-GO start/
stop button, the vehicle’s on-board elec-
tronics have status 0 (a s wit h S ma rtK ey re-
moved).
Position 1
Press KEYLESS-GO start/stop button
once.
This supplies power for some electrical
consumers, such as seat adjustment.Ignition (or position 2)
Press KEYLESS-GO start/stop button
twice.
This supplies power for all electrical
consumers. All lamps in the instrument
cluster (except low beam headlamp in-
dicator lamp, high beam headlamp indi-
cator lamp, and turn signal indicator
lamps unless activated) come on. If a
lamp in the instrument cluster fails to
come on when the ignition is switched
on, have it checked and replaced if nec-
essary. If a lamp in the instrument clus-
ter remains on after starting the engine
or comes on while driving, see “Lamps
in instrument cluster” (
page 374).
iIf you now press the KEYLESS-GO
start/stop button
once again, the ignition (position2)
is switched on.
twice, the power supply is again
switched off.
iIf you now press the KEYLESS-GO
start/stop button once, the power sup-
ply is again switched off.
Page 40 of 521
39 Getting started
Unlocking
For information on starting the engine us-
ing the KEYLESS-GO start/stop button,
see “Starting with KEYLESS-GO*”
(page 51).iWhen you switch on the ignition, the in-
dicator and warning lamps (except low
beam headlamp indicator lamp, high
beam headlamp indicator lamp, and
turn signal indicator lamps unless acti-
vated) in the instrument cluster come
on. The indicator and warning lamps
(except low beam headlamp indicator
lamp, high beam headlamp indicator
lamp, and turn signal indicator lamps if
activated) should go out when the en-
gine is running. This indicates that the
respective systems are operational.
