Page 47 of 601
46 Getting started
Adjusting
Seat adjustment
The seat adjustment switch is located on
the entry side of each front seat base.
1 Head restraint height (vehicles with
memory function)*
2Seat cushion tilt
3Seat height
4Backrest tilt
5Seat fore and aft adjustment
Warning!G
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing position. Thus, we strongly recommend
that children be placed in the rear seats
whenever possible. Regardless of seating
position, children 12 years old and under
must be seated and properly secured in an
appropriately sized infant restraint, toddler
restraint, or booster seat recommended for
the size and weight of the child. For addi-
tional information, see “Children in the vehi-
cle” (
page 91).
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle
and/or the child is not properly secured in
the child restraint.
!When moving the seats, make sure there are
no items in the footwell or behind the seats;
otherwise you could damage the seats.
!When the second-row seats are folded
forward, e.g. for cargo compartment expansion
(
page 304), the front seats may not be moved
to the rearmost position. Otherwise you could
damage the front and second-row seats.
!When adjusting the seat backrest tilt and
head restraint height, make sure the sun visor is
folded up (
page 210). If the head restraint is in
the uppermost position, it could hit and damage
the sun visor.
iVehicles without memory function*:
The seats can be adjusted within 5 minutes after
either front door has been opened. The counter
resets each time
you open or close a front door
you insert the SmartKey into the starter
switch
you remove the SmartKey from the starter
switch
you switch the ignition on or off
164.boo Seite 46 Freitag, 30. März 2007 12:54 12
Page 48 of 601
47 Getting started
Adjusting
Seat fore and aft adjustment
Press the switch forward or backward
in direction of arrow5.
Seat height
Press the switch up or down in
direction of arrow3.
Seat cushion tilt
Press the switch up or down in
direction of arrow2 until your upper
legs are lightly supported.
Seat backrest tilt
Press the switch forward or backward
in direction of arrow4.Head restraint height
Vehicles with memory function*:
Press switch1 (page 46) up or
down in direction of arrow.
Vehicles without memory function*:
1Head restraint
2Release button
iThe memory function* (page 141) lets
you store the settings for the seat positions
together with the settings for the steering wheel
and the exterior rear view mirrors.
Warning!G
Do not drive the vehicle without the seat
head restraints. Head restraints are intend-
ed to help reduce injuries during an
accident.
With a rear seat occupied, make sure to
move the respective head restraint up from
the lowest non-use position and have the
occupant adjust the head restraint properly.
For your protection, drive only with properly
positioned and engaged head restraints.
Adjust the head restraint so that it is as
close to the head as possible and the center
of the head restraint supports the back of
the head at eye level. This will reduce the po-
tential for injury to the head and neck in the
event of an accident or similar situation.
!Do not attempt to remove front seat head
restraints. They can only be removed by qualified
technicians. We recommend that you have this
work carried out by an authorized
Mercedes-Benz Light Truck Center.
164.boo Seite 47 Freitag, 30. März 2007 12:54 12
Page 49 of 601
48 Getting started
Adjusting
Raising:
Manually adjust the height of head
restraint1 by pulling it upward.
If head restraint1 is fully retracted,
push release button2 in direction of
arrow and pull head restraint1 up-
ward.
Lowering:
To lower head restraint1, push
release button2 in direction of arrow
and press down on head restraint1.Head restraint fore and aft adjustment
Manually adjust the angle of the head
restraint.
While seated, reach behind you with
both hands and find lower edge of the
head restraint.
Adjust the head restraint to the desired
position by pushing or pulling on the
lower edge of the head restraint cush-
ion.
For more information, see “Seats”
(
page 130).
Steering wheel
Easy-entry/exit feature*
This feature allows for easier entry into and
exit from the vehicle. When entering and
exiting the vehicle, the steering wheel is in
its uppermost position.
The easy-entry/exit feature can be
activated or deactivated in the
Comfort
submenu of the control system
(
page 181).
Warning!G
You must make sure no one can become
trapped or injured by the moving steering
wheel when the easy-entry/exit feature is
activated.
To stop steering wheel movement, do one of
the following:
Move steering wheel adjustment stalk*
(
page 51).
164.boo Seite 48 Freitag, 30. März 2007 12:54 12
Page 56 of 601
55 Getting started
Driving
With a smooth motion, pull the belt out
of seat belt outlet1.
Place the shoulder portion of the belt
across the top of your shoulder and the
lap portion across your hips.
Push latch plate2 into buckle3
(
page 54) until it clicks.
If necessary, tighten the lap portion to
a snug fit by pulling shoulder portion
up.
Seat belt height adjustment
1Release button
Press release button1 and move the
seat belt height adjuster upward or
downward.
Proper use of seat belts
Do not twist the belt when fastening.
Adjust seat belt so that the shoulder
portion is located as close as possible
to the middle of the shoulder (it should
not touch the neck). Never pass the
shoulder portion of the belt under your
arm. For this purpose, you can adjust
the height of the belt outlet
(
page 55).
Position the lap belt as low as possible
on your hips (over hip joint) and not
across the abdomen.
Place the seat backrest in a position
that is as upright as possible.
Never use a seat belt for more than one
person at a time.
Do not fasten a seat belt around a
person and another object at the same
time. When using a seat belt to secure
infant or toddler restraints or children
in booster seats, always follow the
child seat manufacturer’s instructions.
Check your seat belt periodically
during travel to make sure that it is
properly positioned.
Make sure the seat belt is always fitted
snugly. Take special care of this when
wearing loose clothing.
164.boo Seite 55 Freitag, 30. März 2007 12:54 12
Page 96 of 601
95 Safety and Security
Occupant safety
Child seat anchors – LATCH type
This vehicle is equipped with two LATCH
(L
ower Anchors and Tethers for CHildren)
type anchors (at each of the outer rear
seats) for the installation of a LATCH child
seat with matching mounting fittings.
Children too big for a toddler restraint must
ride in seats using regular seat belts. Posi-
tion shoulder belt across chest and shoul-
der, not face or neck. A booster seat may be
necessary to achieve proper belt positioning
for children from 41 lb until they reach a
height where a lap/shoulder belt fits
properly without a booster.
When the child restraint is not in use,
remove it from the vehicle or secure it with
the seat belt to prevent the child restraint
from becoming a projectile in the event of an
accident.
Do not leave children unattended in the
vehicle, even if the children are secured in a
child restraint system.
A child’s unsupervised access to a vehicle
could result in an accident and/or serious
personal injury.

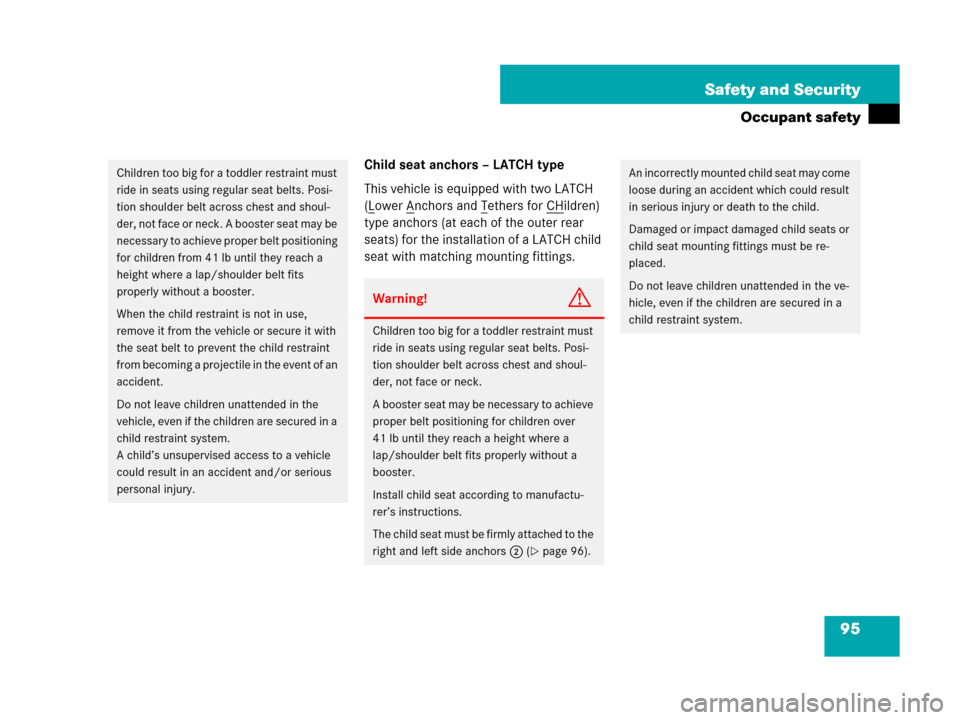

Warning!G
Children too big for a toddler restraint must
ride in seats using regular seat belts. Posi-
tion shoulder belt across chest and shoul-
der, not face or neck.
A booster seat may be necessary to achieve
proper belt positioning for children over
41 lb until they reach a height where a
lap/shoulder belt fits properly without a
booster.
Install child seat according to manufactu-
rer’s instructions.
The child seat must be firmly attached to the
right and left side anchors2 (
page 96).
An incorrectly mounted child seat may come
loose during an accident which could result
in serious injury or death to the child.
Damaged or impact damaged child seats or
child seat mounting fittings must be re-
placed.
Do not leave children unattended in the ve-
hicle, even if the children are secured in a
child restraint system.
164.boo Seite 95 Freitag, 30. März 2007 12:54 12
Page 122 of 601
121 Controls in detail
Locking and unlocking
Front doors
Pull on inside door handle2 on the
respective front door to open door.
If the door was locked, locking knob1
will move up.
Rear doors
Pull up locking knob1 on the respec-
tive rear door to unlock door.
Pull on inside door handle2 on the re-
spective rear door to open door.
Tailgate/Power tailgate*
A minimum height clearance of
7.4 ft (2.25 m) is required to open the
tailgate.iIf the vehicle has previously been locked
from the outside with the SmartKey or with
KEYLESS-GO*, opening a door from the inside
will trigger the anti-theft alarm system.
To cancel the alarm, do one of the following:
With the SmartKey
Insert the SmartKey in the starter switch.
Press theŒ or ‹button on the
SmartKey.
With KEYLESS-GO*
Grasp an outside door handle.
Press the KEYLESS-GO* start/stop button
(
page 43).
The SmartKey with KEYLESS-GO* must be
inside the vehicle.
Warning!G
Make sure the tailgate is closed when the
engine is running and while driving. Among
other dangers deadly carbon monoxide (CO)
gases may enter vehicle interior resulting in
unconsciousness and death.
!The tailgate swings open upwards automat-
ically. Always make sure there is sufficient over-
head clearance.
164.boo Seite 121 Freitag, 30. März 2007 12:54 12
Page 124 of 601
123 Controls in detail
Locking and unlocking
Closing the tailgate from the outside
1Handle
Lower tailgate by pulling firmly on
handle1.
Close tailgate with hands placed flat on
it.
Once the tailgate touches the latch, the
tailgate will pull itself shut automatical-
ly.Power tailgate*
In vehicles with power tailgate, you can
open and close the tailgate from the
inside and the outside electrically
limit the opening height of the tailgate
interrupt the opening/closing proce-
dure at any time by
pressing or pulling the
door-mounted remote tailgate
switch (
page 124)
pressing the Šbutton on the
SmartKey (
page 112) or
SmartKey with KEYLESS-GO*
(
page 115)
pressing the tailgate closing switch
(
page 126)
pressing the tailgate
closing/locking switch (vehicles
with KEYLESS-GO*) (
page 126)
Warning!G
To prevent possible personal injury, always
keep hands and fingers away from the cargo
compartment opening when closing the
tailgate. Be especially careful when small
children are around.
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle. Do not leave children
unattended in the vehicle, or with access to
an unlocked vehicle. A child’s unsupervised
access to a vehicle could result in an
accident and/or serious personal injury.
iTo prevent an inadvertent lockout, do not
place the SmartKey in the cargo compartment.
Vehicles with KEYLESS-GO*: To prevent a
possible inadvertent lockout, the tailgate will
open automatically if a SmartKey with
KEYLESS-GO is recognized inside the vehicle.
iIf the vehicle was previously centrally locked
with the SmartKey or KEYLESS-GO*, the tailgate
will lock automatically after closing it. The turn
signals flash three times to confirm locking.
!The tailgate swings open upwards automat-
ically. Always make sure there is sufficient over-
head clearance.
164.boo Seite 123 Freitag, 30. März 2007 12:54 12
Page 126 of 601
125 Controls in detail
Locking and unlocking
Limiting opening height of tailgate*
In vehicles with power tailgate*, the tail-
gate opening height can be limited when
transporting goods on a roof rack* (e.g.
presence of an MB roof cargo container*).
When activated, the tailgate opens to
approximately 6.6 ft (2.00 m).
Activate the limiting opening height of
tailgate using the control system
(
page 181).
Closing the tailgate from the inside
You can close the tailgate from the inside
using the remote tailgate switch.
If the tailgate comes into contact with an
object while closing (e.g. luggage that has
been piled too high) the closing procedure
is stopped and the tailgate reopens.
Press remote tailgate switch1
(
page 124) until tailgate begins to
close.
The tailgate closes. While the tailgate is
closing an acoustic signal sounds.
To interrupt the closing procedure:
Press or pull remote tailgate switch1
(
page 124).
Warning!G
Maintain sight of the area around the rear of
the vehicle while operating the tailgate with
the door-mounted switch. Monitor the
closing procedure carefully to make sure no
one is in danger of being injured.
To interrupt the closing procedure, press or
pull the door-mounted remote tailgate
switch or press the Šbutton on the
SmartKey or SmartKey with KEYLESS-GO*.
Even with the SmartKey or the SmartKey
with KEYLESS-GO* removed from the
starter switch or the SmartKey with
KEYLESS-GO* removed from the vehicle,
the remote tailgate switch can be operated.
Therefore, do not leave children unattended
i n t h e v e h i c l e , o r w i t h a c c e s s t o a n u n l o c k e d
vehicle. A child’s unsupervised access to a
vehicle could result in an accident and/or
serious personal injury.
164.boo Seite 125 Freitag, 30. März 2007 12:54 12
Page 136 of 601
135 Controls in detail
Seats
To move seat backrest forward, lean
forward with handle1 pulled and held
at resistance point.
The seat backrest will move forward
against your back.
Release handle1 when the seat back-
rest has reached the desired position.
To make sure the seat backrest has en-
gaged, lean firmly against the backrest.
Head restraint height
Second-row seat head restraint
1Head restraint
2Release buttonRaising:
Manually adjust the height of head
restraint1 by pulling it upward to the
desired position.
Lowering:
To lower head restraint1, push
release button2 and press down on
head restraint1.
Warning!G
With a rear seat occupied, make sure to
move the respective head restraint up from
the lowest non-use position and have the oc-
cupant adjust the head restraint properly.
For your protection, drive only with properly
positioned head restraints.
Adjust the head restraint in such a way that
it is as close to the head as possible and the
center of the head restraint supports the
back of the head at eye level. This will re-
duce the potential for injury to the head and
neck in the event of an accident or similar
situation.
iThe third-row seat head restraints are ad-
justed in the same manner.
164.boo Seite 135 Freitag, 30. März 2007 12:54 12
Page 139 of 601
138 Controls in detail
Seats
Multicontour seat*
The multicontour seat has an extendable
seat cushion and inflatable air chambers
built into the backrest to provide additional
lumbar and side support.
The seat cushion depth, seat backrest
cushion-height and curvature can be con-
tinuously varied with switches on the in-
side of each front seat base after the
ignition is switched on (
page 41).
1Seat cushion depth
2Backrest side bolsters
3Backrest center
4Backrest bottom
Switch on the ignition (page 42).
Seat cushion depth
Adjust the seat cushion depth to the
length of your upper leg with
switch1.
Backrest contour
Adjust the contour of the seat backrest
to the desired position with
switchæ orç.
Move the backrest support to the bot-
tom with button4 or to the center
with button3.
Backrest side bolsters
Adjust the side bolsters so that they
provide good lateral support using
switch2.
Seat heating*
The switches for front-seat heating are lo-
cated in the center console.
1Seat heating switch, front seats
2Indicator lamps
164.boo Seite 138 Freitag, 30. März 2007 12:54 12
