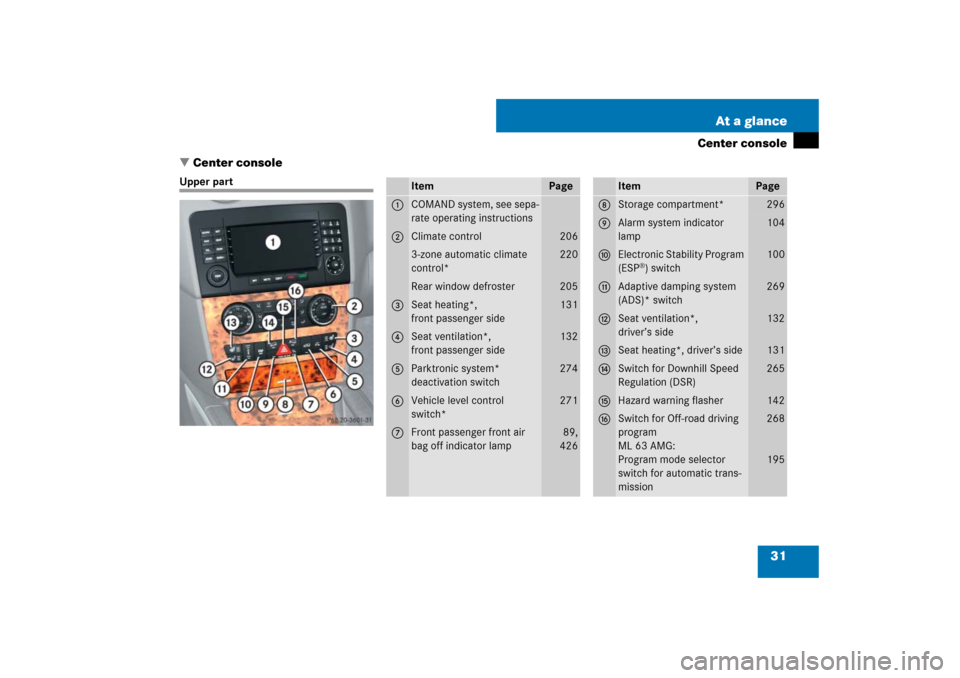

31 At a glance
Center console
Center console
Upper part
Item
Page
1
COMAND system, see sepa-
rate operating instructions
2
Climate control
206
3-zone automatic climate
control*
220
Rear window defroster
205
3
Seat heating*,
front passenger side
131
4
Seat ventilation*,
front passenger side
132
5
Parktronic system*
deactivation switch
274
6
Vehicle level control
switch*
271
7
Front passenger front air
bag off indicator lamp
89,
426
Item
Page
8
Storage compartment*
296
9
Alarm system indicator
lamp
104
a
Electronic Stability Program
(ESP
®) switch
100
b
Adaptive damping system
(ADS)* switch
269
c
Seat ventilation*,
driver’s side
132
d
Seat heating*, driver’s side
131
e
Switch for Downhill Speed
Regulation (DSR)
265
f
Hazard warning flasher
142
g
Switch for Off-road driving
program
ML 63 AMG:
Program mode selector
switch for automatic trans-
mission
268
195

107 Controls in detail
Locking and unlocking
Seats
Memory function*
Lighting
Instrument cluster
Control system
Automatic transmission
Transfer case
Good visibility
Climate control
3-zone automatic climate control*
Power windows
Power tilt/sliding sunroof*
Driving systems
Loading
Useful features

175 Controls in detail

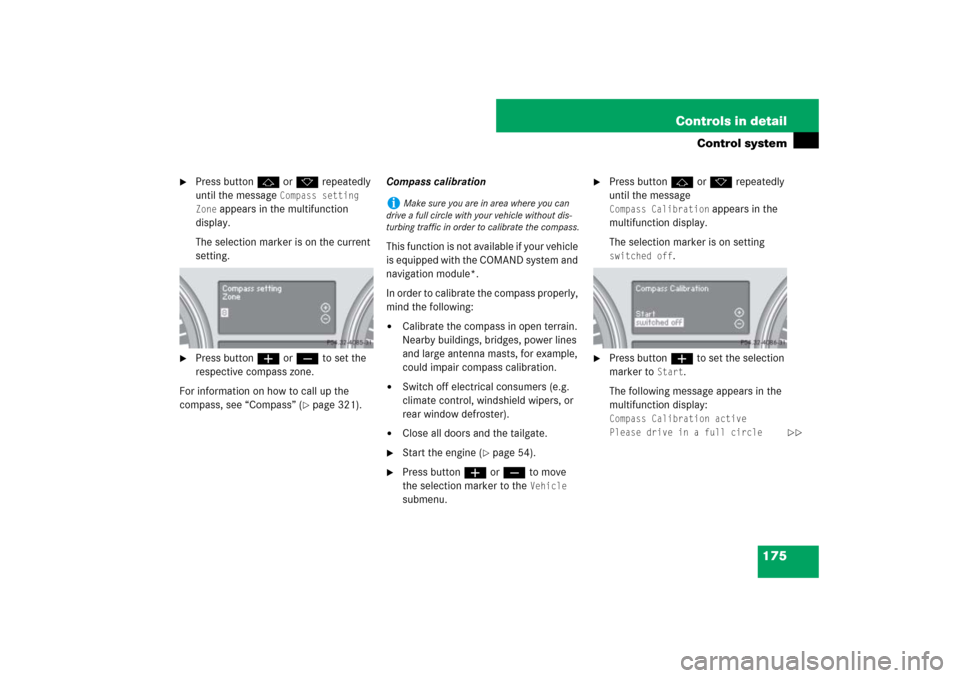

Control system

Press buttonj ork repeatedly
until the message
Compass setting
Zone
appears in the multifunction
display.
The selection marker is on the current
setting.

Press buttonæ orç to set the
respective compass zone.
For information on how to call up the
compass, see “Compass” (
page 321).Compass calibration
This function is not available if your vehicle
is equipped with the COMAND system and
navigation module*.
In order to calibrate the compass properly,
mind the following:


Calibrate the compass in open terrain.
Nearby buildings, bridges, power lines
and large antenna masts, for example,
could impair compass calibration.


Switch off electrical consumers (e.g.
climate control, windshield wipers, or
rear window defroster).


Close all doors and the tailgate.

Start the engine (
page 54).

Press buttonæ orç to move
the selection marker to the
Vehicle
submenu.

Press buttonj ork repeatedly
until the message Compass Calibration
appears in the
multifunction display.
The selection marker is on setting
switched off
.

Press buttonæ to set the selection
marker to
Start
.
The following message appears in the
multifunction display:
Compass Calibration active
Please drive in a full circle
i
Make sure you are in area where you can
drive a full circle with your vehicle without dis-
turbing traffic in order to calibrate the compass.


205 Controls in detail
Good visibility

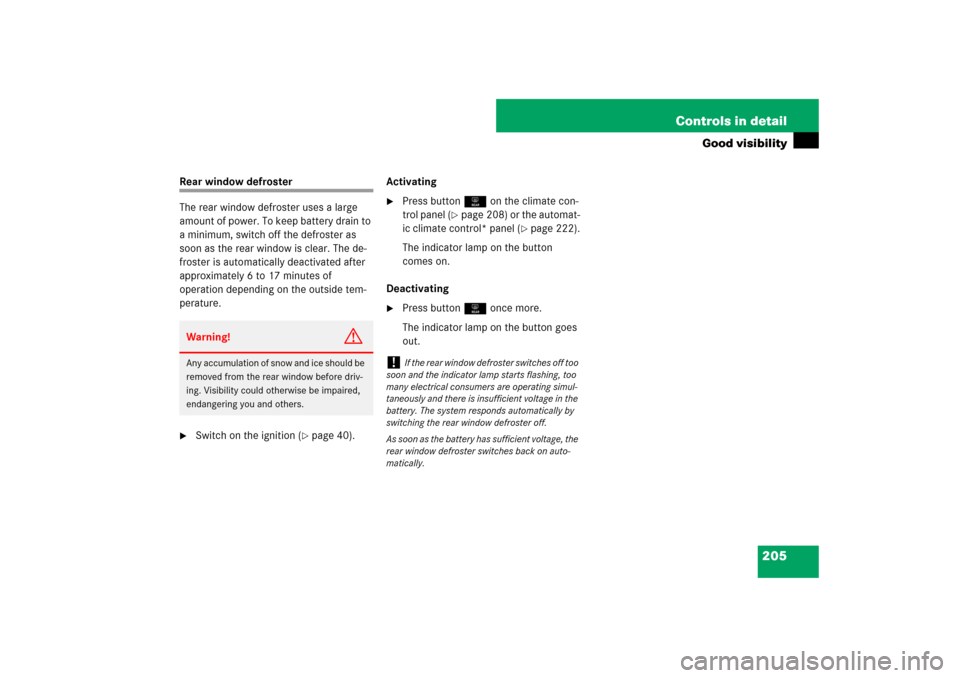

Rear window defroster
The rear window defroster uses a large
amount of power. To keep battery drain to
a minimum, switch off the defroster as
soon as the rear window is clear. The de-
froster is automatically deactivated after
approximately 6 to 17 minutes of
operation depending on the outside tem-
perature.
Switch on the ignition (
page 40).Activating

Press button1 on the climate con-
trol panel (
page 208) or the automat-
ic climate control* panel (
page 222).
The indicator lamp on the button
comes on.
Deactivating

Press button1 once more.
The indicator lamp on the button goes
out.
Warning!
G
Any accumulation of snow and ice should be
removed from the rear window before driv-
ing. Visibility could otherwise be impaired,
endangering you and others.
!
If the rear window defroster switches off too
soon and the indicator lamp starts flashing, too
many electrical consumers are operating simul-
taneously and there is insufficient voltage in the
battery. The system responds automatically by
switching the rear window defroster off.
As soon as the battery has sufficient voltage, the
rear window defroster switches back on auto-
matically.

206 Controls in detailClimate control

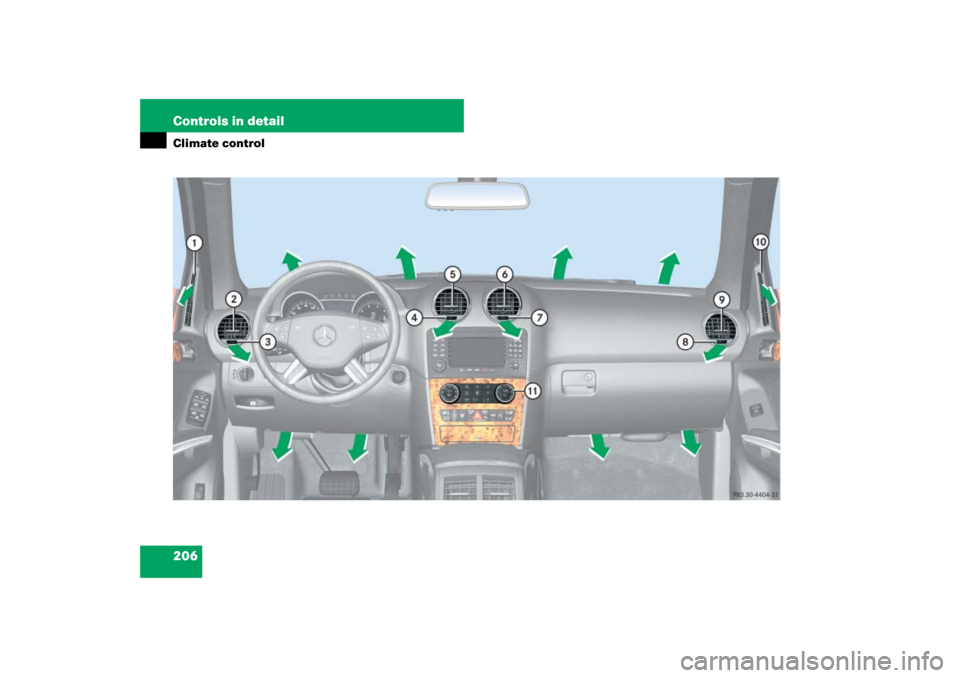

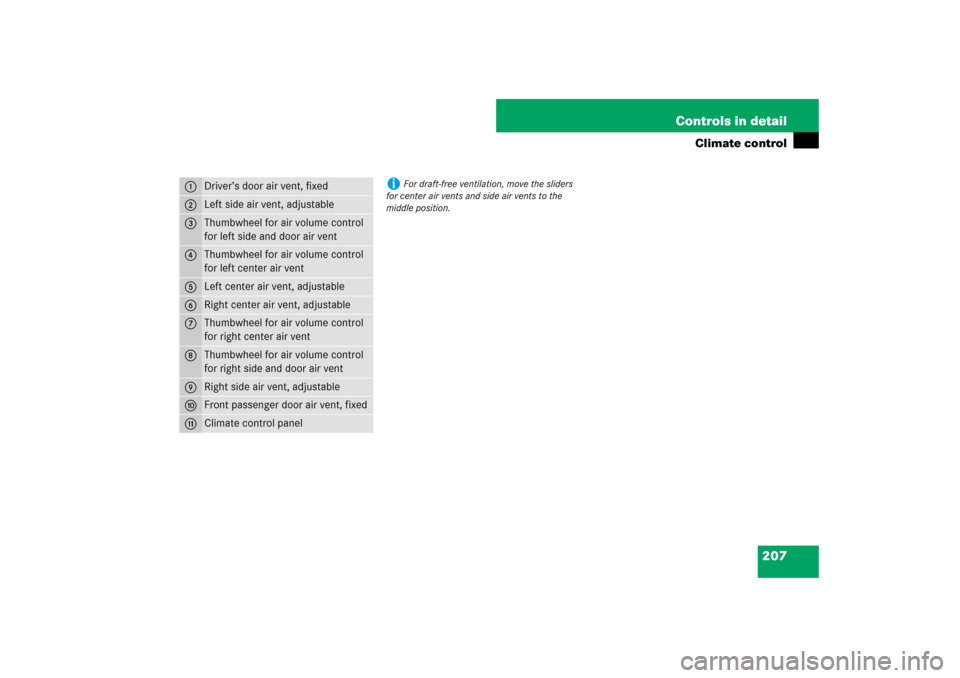

207 Controls in detail
Climate control
1
Driver’s door air vent, fixed
2
Left side air vent, adjustable
3
Thumbwheel for air volume control
for left side and door air vent
4
Thumbwheel for air volume control
for left center air vent
5
Left center air vent, adjustable
6
Right center air vent, adjustable
7
Thumbwheel for air volume control
for right center air vent
8
Thumbwheel for air volume control
for right side and door air vent
9
Right side air vent, adjustable
a
Front passenger door air vent, fixed
b
Climate control panel
i
For draft-free ventilation, move the sliders
for center air vents and side air vents to the
middle position.

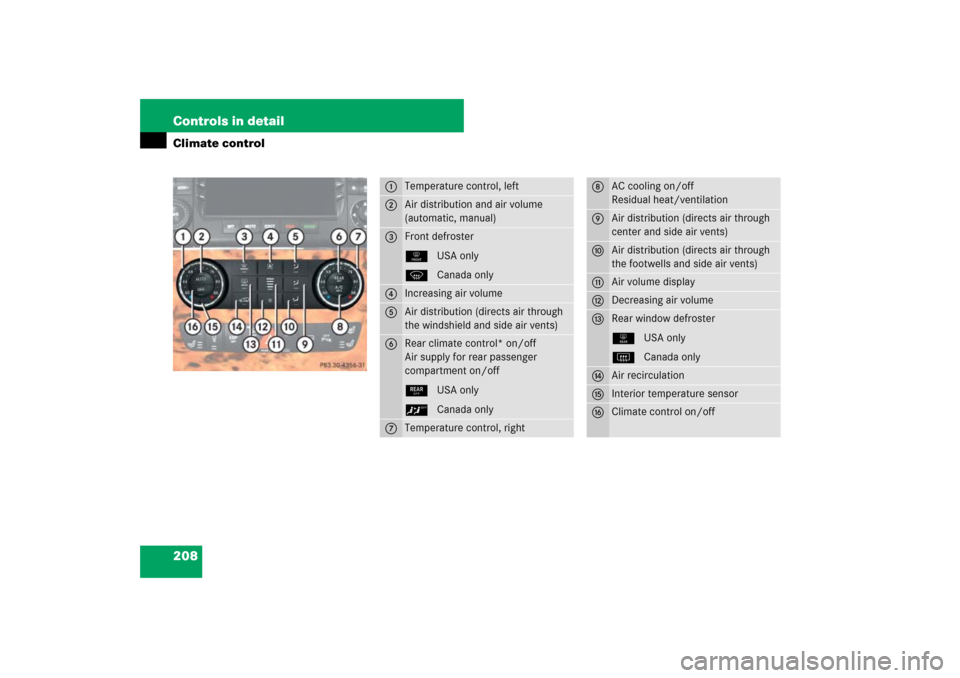

208 Controls in detailClimate control
1
Temperature control, left
2
Air distribution and air volume
(automatic, manual)
3
Front defroster
0USA only
PCanada only
4
Increasing air volume
5
Air distribution (directs air through
the windshield and side air vents)
6
Rear climate control* on/off
Air supply for rear passenger
compartment on/off
:USA only
7
Temperature control, right
8
AC cooling on/off
Residual heat/ventilation
9
Air distribution (directs air through
center and side air vents)
a
Air distribution (directs air through
the footwells and side air vents)
b
Air volume display
c
Decreasing air volume
d
Rear window defroster
1USA only
FCanada only
e
Air recirculation
f
Interior temperature sensor
g
Climate control on/off

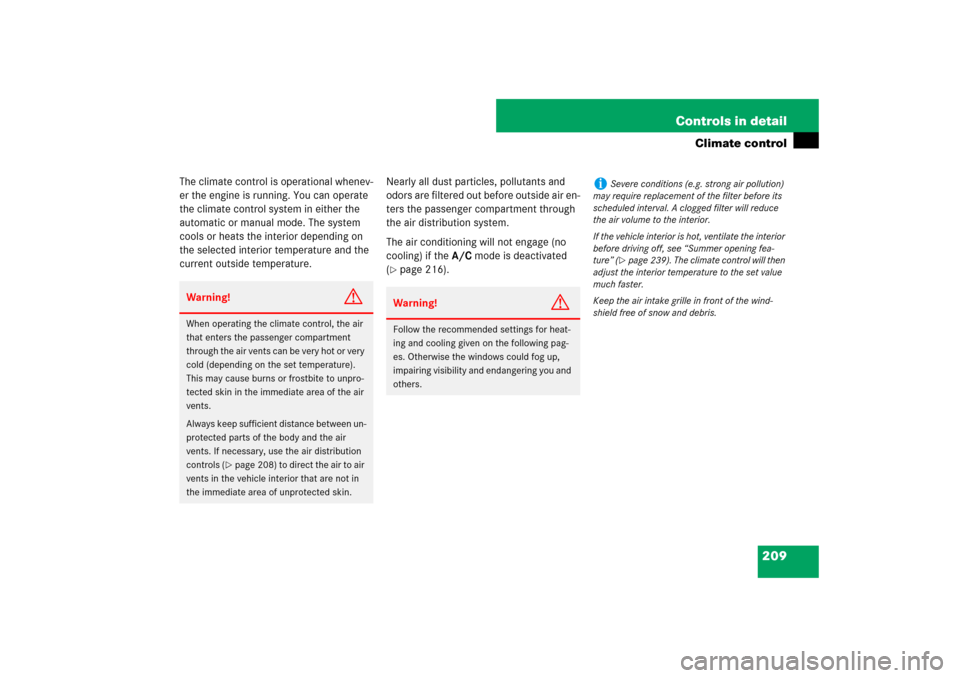

209 Controls in detail
Climate control
The climate control is operational whenev-
er the engine is running. You can operate
the climate control system in either the
automatic or manual mode. The system
cools or heats the interior depending on
the selected interior temperature and the
current outside temperature.Nearly all dust particles, pollutants and
odors are filtered out before outside air en-
ters the passenger compartment through
the air distribution system.
The air conditioning will not engage (no
cooling) if the A/C mode is deactivated
(
page 216).
Warning!
G
When operating the climate control, the air
that enters the passenger compartment
through the air vents can be very hot or very
cold (depending on the set temperature).
This may cause burns or frostbite to unpro-
tected skin in the immediate area of the air
vents.
Always keep sufficient distance between un-
protected parts of the body and the air
vents. If necessary, use the air distribution
controls (
page 208) to direct the air to air
vents in the vehicle interior that are not in
the immediate area of unprotected skin.
Warning!
G
Follow the recommended settings for heat-
ing and cooling given on the following pag-
es. Otherwise the windows could fog up,
impairing visibility and endangering you and
others.
i
Severe conditions (e.g. strong air pollution)
may require replacement of the filter before its
scheduled interval. A clogged filter will reduce
the air volume to the interior.
If the vehicle interior is hot, ventilate the interior
before driving off, see “Summer opening fea-
ture” (page 239). The climate control will then
adjust the interior temperature to the set value
much faster.
Keep the air intake grille in front of the wind-
shield free of snow and debris.

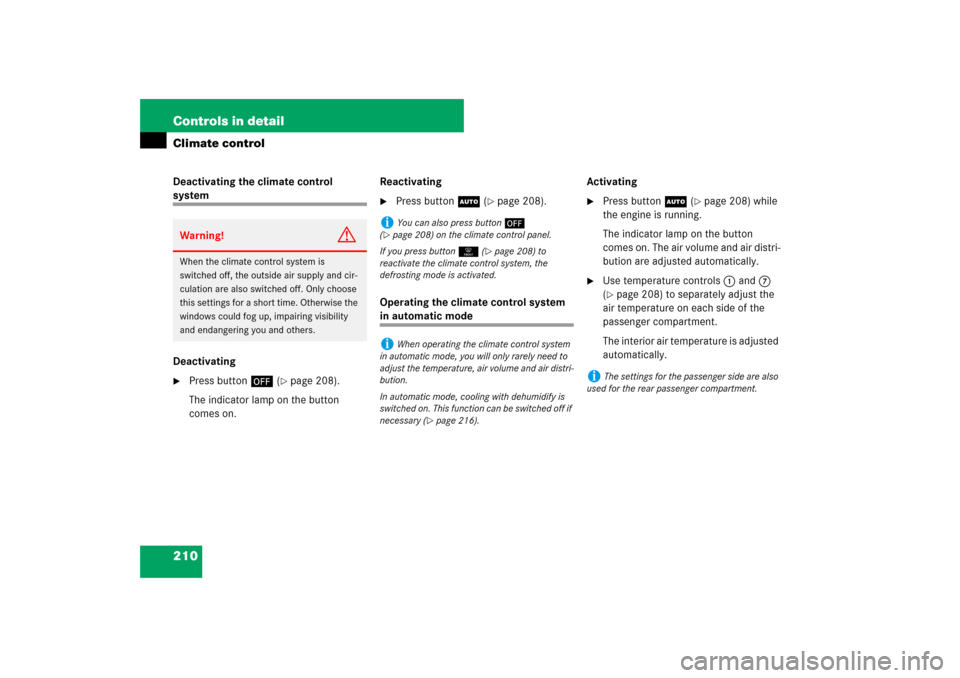

210 Controls in detailClimate controlDeactivating the climate control system
Deactivating
Press button´ (
page 208).
The indicator lamp on the button
comes on.Reactivating

Press buttonU (
page 208).
Operating the climate control system
in automatic modeActivating

Press buttonU (
page 208) while
the engine is running.
The indicator lamp on the button
comes on. The air volume and air distri-
bution are adjusted automatically.

Use temperature controls1 and7
(page 208) to separately adjust the
air temperature on each side of the
passenger compartment.
The interior air temperature is adjusted
automatically.
Warning!
G
When the climate control system is
switched off, the outside air supply and cir-
culation are also switched off. Only choose
this settings for a short time. Otherwise the
windows could fog up, impairing visibility
and endangering you and others.
i
You can also press button´
(
page 208) on the climate control panel.
If you press button0 (
page 208) to
reactivate the climate control system, the
defrosting mode is activated.
i
When operating the climate control system
in automatic mode, you will only rarely need to
adjust the temperature, air volume and air distri-
bution.
In automatic mode, cooling with dehumidify is
switched on. This function can be switched off if
necessary (
page 216).
i
The settings for the passenger side are also
used for the rear passenger compartment.
