Some approximate dimensions for airbags, at full inflation, are provided
in Figures 1 through 5. These dimensions are somewhat flexible and
represent “free form” deployments without the loading of occupants. The
shaded areas in Figures 6 through 8 represent available police equipment
mounting zones. These zones are shown for police vehicles equipped
with standard bucket seats. While bench seats are optional and still
appropriate for vehicles with certain limited police equipment
requirements, the standard bucket seats are recommended for vehicles
that require maximum available space for police equipment mounting.
The zone dimensions provided in Figures 6 through 8 are approximate
and will vary with the loading of occupants in the seats.
All airbag and equipment mounting zone dimensions are approximate
due to different airbag deployment characteristics.
No equipment will mount between the side of the front seat and the
door trim to block deployment of the side airbag.

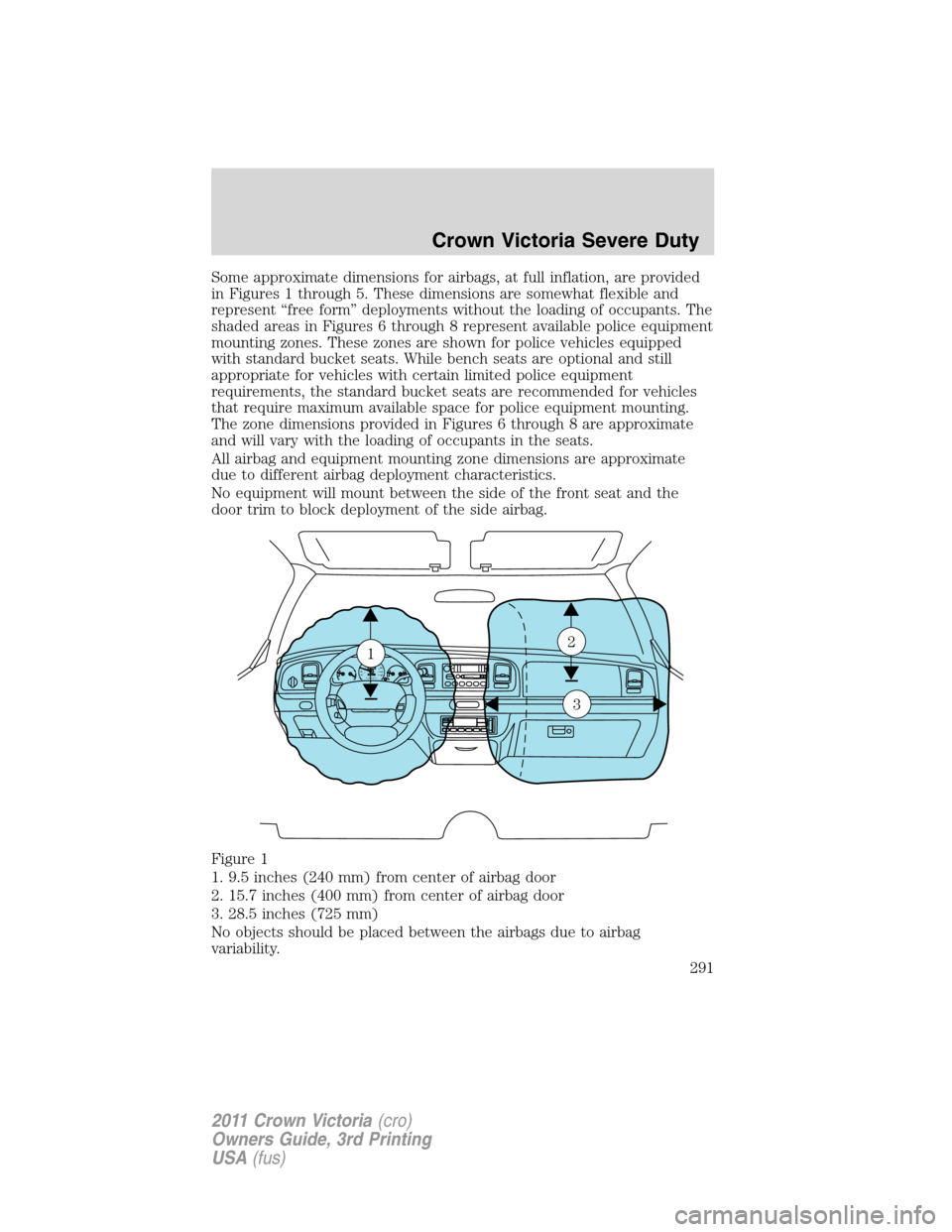

Figure 1
1. 9.5 inches (240 mm) from center of airbag door
2. 15.7 inches (400 mm) from center of airbag door
3. 28.5 inches (725 mm)
No objects should be placed between the airbags due to airbag
variability.
10 203040506070
80
90
10 0
11 0
12 020 406080100
120
140
160
180
200LP R N D 2 1
12
3
Crown Victoria Severe Duty
291
2011 Crown Victoria(cro)
Owners Guide, 3rd Printing
USA(fus)
Page 292 of 333

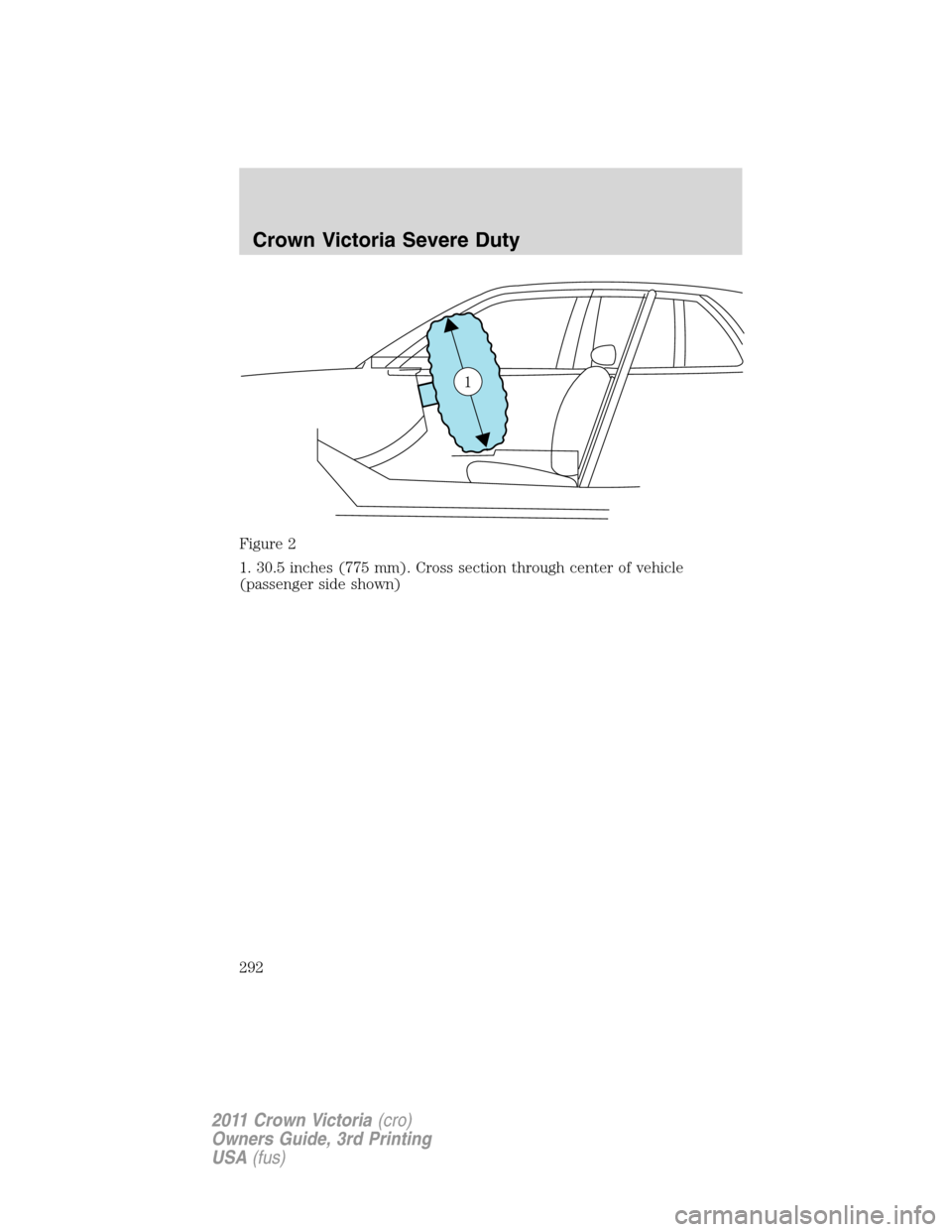

Figure 2
1. 30.5 inches (775 mm). Cross section through center of vehicle
(passenger side shown)
1
Crown Victoria Severe Duty
292
2011 Crown Victoria(cro)
Owners Guide, 3rd Printing
USA(fus)
Page 293 of 333
Figure 3
1. 23.6 inches (600 mm). Front passenger compartment
2. 17 inches (430 mm). Front driver
Crown Victoria Severe Duty
293
2011 Crown Victoria(cro)
Owners Guide, 3rd Printing
USA(fus)
Page 294 of 333

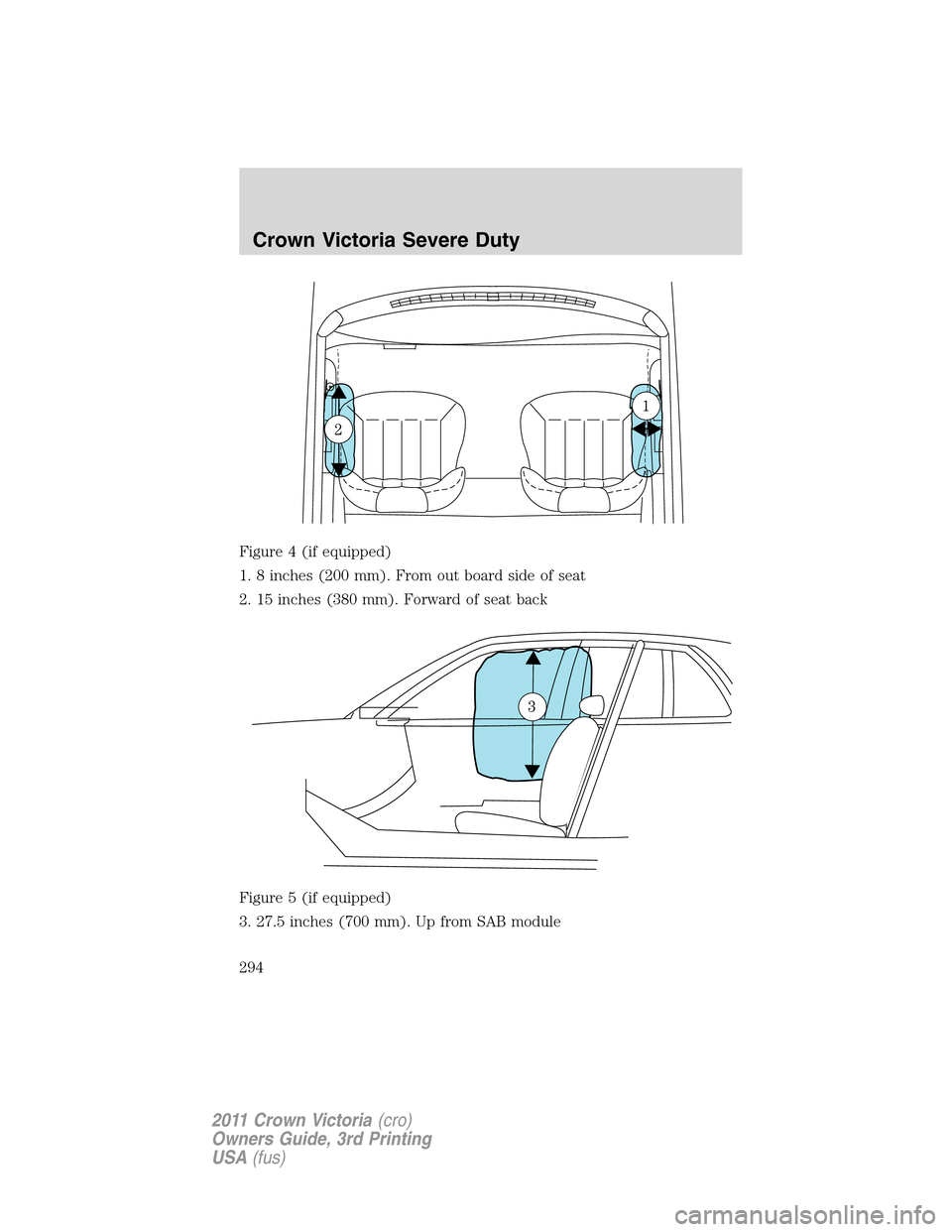

Figure 4 (if equipped)
1. 8 inches (200 mm). From out board side of seat
2. 15 inches (380 mm). Forward of seat back
Figure 5 (if equipped)
3. 27.5 inches (700 mm). Up from SAB module
Crown Victoria Severe Duty
294
2011 Crown Victoria(cro)
Owners Guide, 3rd Printing
USA(fus)
Page 295 of 333
Figure 6
1. Area on top of instrument panel.Equipment must not interfere
with driver visibility.
2. The airbag door must be kept clear for deployment of airbag
3. Area in front of center console from bottom of ashtray to top of
instrument panel (see Figure 2 for dimensions)
4. 11 inches (279 mm) width horizontally centered on ashtray door.
10 203040506070
80
90
10 0
11 0
12 020 406080100
120
140
160
180
200LP R N D 2 1
2
1
43
Crown Victoria Severe Duty
295
2011 Crown Victoria(cro)
Owners Guide, 3rd Printing
USA(fus)
Page 296 of 333

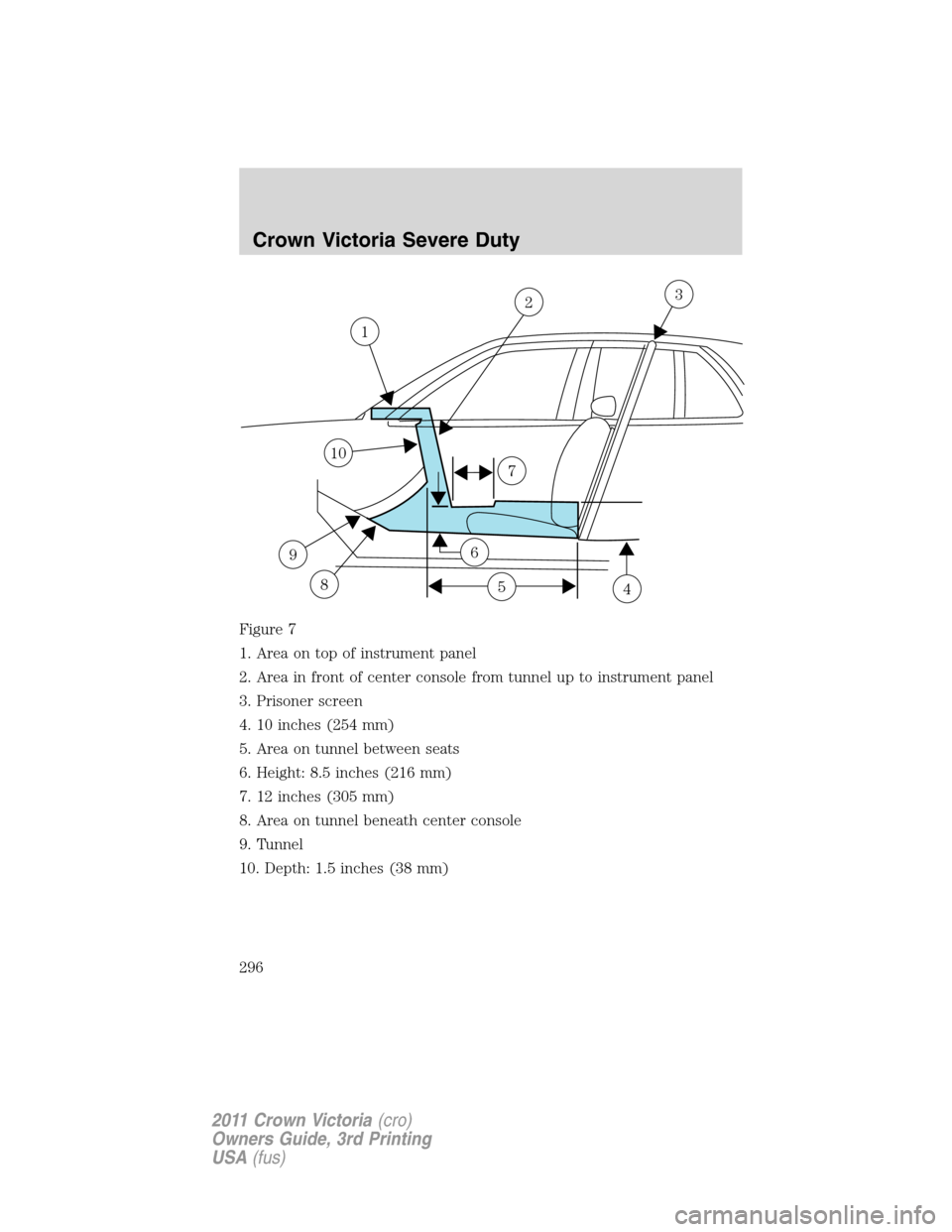

Figure 7
1. Area on top of instrument panel
2. Area in front of center console from tunnel up to instrument panel
3. Prisoner screen
4. 10 inches (254 mm)
5. Area on tunnel between seats
6. Height: 8.5 inches (216 mm)
7. 12 inches (305 mm)
8. Area on tunnel beneath center console
9. Tunnel
10. Depth: 1.5 inches (38 mm)
7
5
6
4
3
8
2
9
10
1
Crown Victoria Severe Duty
296
2011 Crown Victoria(cro)
Owners Guide, 3rd Printing
USA(fus)
Page 297 of 333

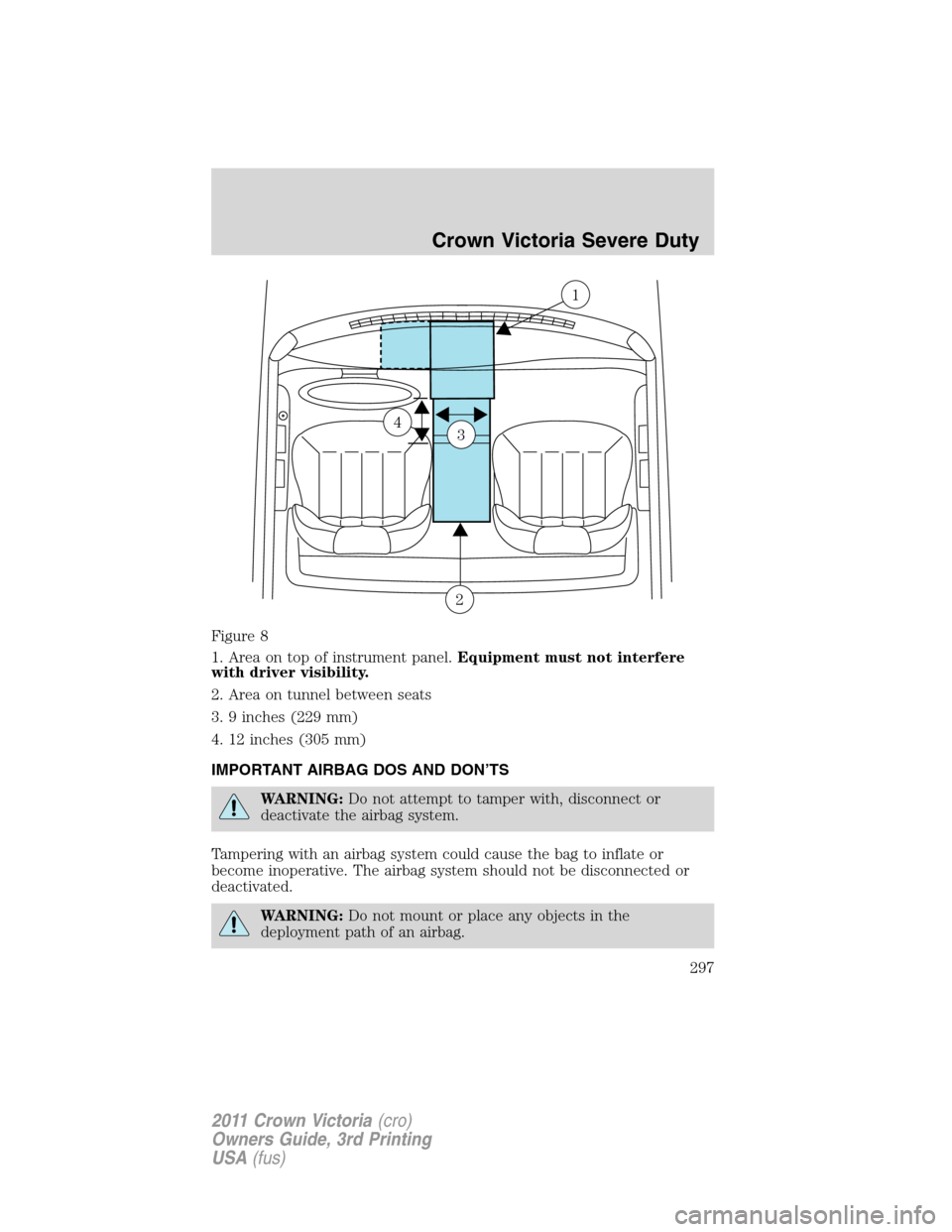

Figure 8
1. Area on top of instrument panel.Equipment must not interfere
with driver visibility.
2. Area on tunnel between seats
3. 9 inches (229 mm)
4. 12 inches (305 mm)
IMPORTANT AIRBAG DOS AND DON’TS
WARNING:Do not attempt to tamper with, disconnect or
deactivate the airbag system.
Tampering with an airbag system could cause the bag to inflate or
become inoperative. The airbag system should not be disconnected or
deactivated.
WARNING:Do not mount or place any objects in the
deployment path of an airbag.
1
2
34
Crown Victoria Severe Duty
297
2011 Crown Victoria(cro)
Owners Guide, 3rd Printing
USA(fus)
Page 298 of 333

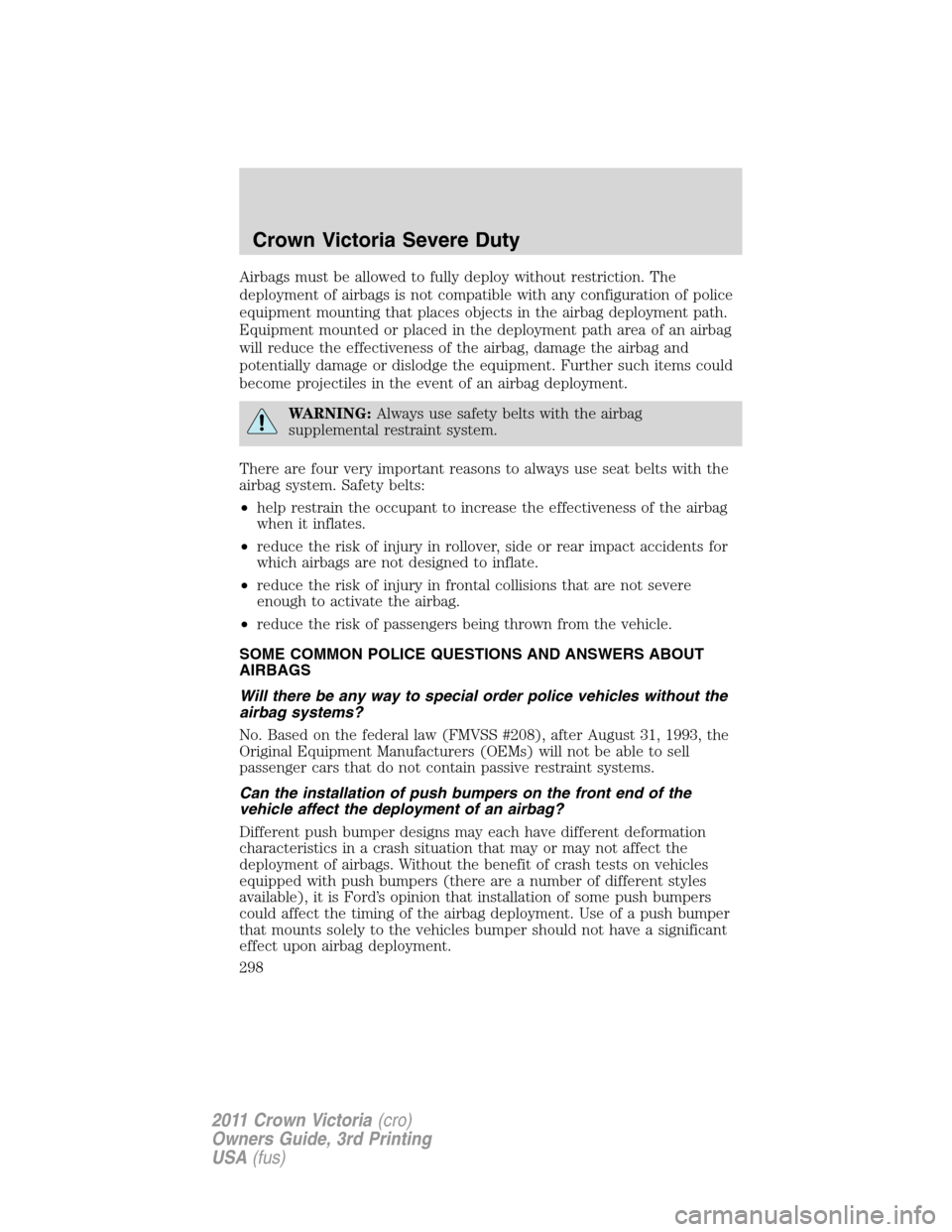

Airbags must be allowed to fully deploy without restriction. The
deployment of airbags is not compatible with any configuration of police
equipment mounting that places objects in the airbag deployment path.
Equipment mounted or placed in the deployment path area of an airbag
will reduce the effectiveness of the airbag, damage the airbag and
potentially damage or dislodge the equipment. Further such items could
become projectiles in the event of an airbag deployment.
WARNING:Always use safety belts with the airbag
supplemental restraint system.
There are four very important reasons to always use seat belts with the
airbag system. Safety belts:
•help restrain the occupant to increase the effectiveness of the airbag
when it inflates.
•reduce the risk of injury in rollover, side or rear impact accidents for
which airbags are not designed to inflate.
•reduce the risk of injury in frontal collisions that are not severe
enough to activate the airbag.
•reduce the risk of passengers being thrown from the vehicle.
SOME COMMON POLICE QUESTIONS AND ANSWERS ABOUT
AIRBAGS
Will there be any way to special order police vehicles without the
airbag systems?
No. Based on the federal law (FMVSS #208), after August 31, 1993, the
Original Equipment Manufacturers (OEMs) will not be able to sell
passenger cars that do not contain passive restraint systems.
Can the installation of push bumpers on the front end of the
vehicle affect the deployment of an airbag?
Different push bumper designs may each have different deformation
characteristics in a crash situation that may or may not affect the
deployment of airbags. Without the benefit of crash tests on vehicles
equipped with push bumpers (there are a number of different styles
available), it is Ford’s opinion that installation of some push bumpers
could affect the timing of the airbag deployment. Use of a push bumper
that mounts solely to the vehicles bumper should not have a significant
effect upon airbag deployment.
Crown Victoria Severe Duty
298
2011 Crown Victoria(cro)
Owners Guide, 3rd Printing
USA(fus)
Page 299 of 333
Is there a problem with transporting a front seat passenger who
has their hands restrained behind their body?
This is not a normal riding position for an occupant. The effectiveness of
the passenger airbag will depend, in part, upon the occupant’s seated
position. It is recommended that the seat should be adjusted as far
rearward as possible for this situation, and that the occupant sit as
upright as possible and be properly safety belted. It is recommended that
such passengers be properly restrained in the rear seat if at all possible.
Can conditions encountered in aggressive pursuit driving
situations (e.g., high speed braking, uneven road surfaces) cause
inadvertent inflation of an airbag that might result in loss of
vehicle control?
No. Aggressive pursuit driving conditions do not fit this criteria. Airbags
are designed to deploy in moderate to major frontal crashes based on the
detection of sudden deceleration by sensors in the vehicle.
Crown Victoria Severe Duty
299
2011 Crown Victoria(cro)
Owners Guide, 3rd Printing
USA(fus)
Page 300 of 333
FORD CUSTOM ACCESSORIES FOR YOUR VEHICLE
A wide selection of Ford Custom Accessories are available for your
vehicle through your local Ford or Ford of Canada dealer. These quality
accessories have been specifically engineered to fulfill your automotive
needs; they are custom designed to complement the style and
aerodynamic appearance of your vehicle. In addition, each accessory is
made from high quality materials and meets or exceeds Ford’s rigorous
engineering and safety specifications. Ford Motor Company will repair or
replace any properly dealer-installed Ford Custom Accessories found to
be defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessories. The accessories will be warranted for whichever provides
you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
Contact your dealer for details and a copy of the warranty.
The following is a list of several Ford Custom Accessories. Not all
accessories are available for all models. For a complete listing of the
accessories that are available for your vehicle, please contact your dealer
or visit our online store at:www.fordaccessories.com(U.S. only).
Lifestyle
•Garmin navigation*
Peace of mind
•Vehicle tracking and recovery*•Back up camera*
•Back up alarm*
•Bumper mounted parking sensors*
•Hitch mounted parking sensor*
