engine Mercury Mariner 2011 Owner's Manuals

Oil Change Service Interval* 123456789101112131415
Change engine oil and filter• ••••••••••••••
Rotate tires, inspect tire wear and measure
tread depth• ••••••••••••••
Inspect wheels and related components for
abnormal noise, wear, looseness or drag• ••••••••••••••
Inspect front axle and U-joints; lubricate if
equipped with grease fittings (4WD vehicles)• ••••••••••••••
Perform multi-point inspection (recommended)• ••••••••••••••
Inspect automatic transmission fluid level (if
equipped with dipstick); consult dealer for
requirements• ••••••••••••••
Inspect brake pads, shoes, rotors, drums, brake
linings, hoses and parking brake• ••••••••••••••
Inspect engine cooling system for strength, and
hoses• ••••••••••••••
Inspect exhaust system and heat shields• ••••••••••••••
Inspect half-shaft boots (if equipped)• ••••••••••••••
Inspect steering linkage, ball joints, suspension,
tie-rod ends, driveshaft and U-joints; lubricate
if equipped with grease fittings• ••••••••••••••
Inspect cabin air filter (if equipped)• •••••••
*Oil change service intervals should be completed as indicated by the instrument cluster message center
Reset your Intelligent Oil Life Monitor™ after each engine oil and filter change; refer to theInstrument Clusterchapter
Scheduled Maintenance Guide
341
2011 Mariner(mrn)
Owners Guide, 1st Printing
USA(fus)

Perform the services noted in the following table at the specified
time/mileage (km) period either within 3,000 miles (5,000 km) of the
OIL CHANGE REQUIRED message appearing in the message center or
when the time/mileage (km) reading indicates service is due.
Example #1:The OIL CHANGE REQUIRED message comes on at
28,751 miles (46,270 km); perform the 30,000 mile (48,000 km)
automatic transmission fluid replacement.
Example #2:The OIL CHANGE REQUIRED message hasnotcome on
but the odometer reads 30,000 miles (48,000 km); perform the engine air
filter replacement. (i.e., Intelligent Oil Life Monitor™ was reset at
25,000 miles [40,000 km].)
Every 20,000 miles
(32,000 km)Replace cabin air filter (if equipped)
Every 30,000 miles
(48,000 km)Replace climate-controlled seat filter (if
equipped)
Replace engine air filter
Every 60,000 miles
(96,000 km)Change automatic transmission fluid and filter on
5–speed TorqShifttransmission; consult dealer
for requirements
Replace front wheel bearing grease/grease seal if
non-sealed bearings are used (2WD vehicles)
Every 100,000 miles
(160,000 km)Change engine coolant
1
Change manual transmission fluid (except
Escape)
Change rear axle fluid (Dana axles only)
Replace spark plugs
Inspect accessory drive belt(s)
2
Scheduled Maintenance Guide
342
2011 Mariner(mrn)
Owners Guide, 1st Printing
USA(fus)

SPECIAL OPERATING CONDITIONS
If you operate your Ford/Lincoln/Mercury vehicleprimarilyin one of the
more demandingSpecial Operating Conditionslisted below, you will
need to have some items maintained more frequently. If you only
occasionallyoperate your vehicle under these conditions, it is not
necessary to perform the additional maintenance. For specific
recommendations, see your Ford or Lincoln Mercury dealership service
advisor or technician.
Towing a trailer or using a camper or car-top carrier
As required– Change engine oil and replace oil filter as indicated by
message center and perform services as listed in the
Normal Scheduled Maintenance chart.
Inspect frequently, service as
required.– Inspect and lubricate U-joints.
– See axle maintenance items under
Exceptions.
Every 30,000 miles (48,000 km)– Change automatic transmission fluid (except 6R80 and
TorqShifttransmissions).
– Replace front wheel bearing grease/grease seals if
non-sealed bearings are used (2WD vehicles).
Every 60,000 miles (96,000 km)– Change manual transmission fluid.
– Change transfer case fluid (4WD vehicles).
Perform the services noted in the preceding table at the specified
time/mileage (km) period either within 3,000 miles (5,000 km) of the
OIL CHANGE REQUIRED message appearing in the message center or
when the time/mileage (km) reading indicates service is due.
Example #1:The OIL CHANGE REQUIRED message comes on at
28,751 miles (46,270 km); perform the 30,000 mile (48,000 km)
automatic transmission fluid replacement.
Example #2:The OIL CHANGE REQUIRED message hasnotcome on
but the odometer reads 30,000 miles (48,000 km); perform the engine air
filter replacement. (i.e., Intelligent Oil Life Monitor™ was reset at
25,000 miles [40,000 km].)
Scheduled Maintenance Guide
347
2011 Mariner(mrn)
Owners Guide, 1st Printing
USA(fus)

Extensive idling and/or low-speed driving for long distances as in heavy
commercial use such as delivery, taxi, patrol car or livery
As required– Change engine oil and replace oil filter as indicated by
message center and perform services as listed in the
Normal Scheduled Maintenance chart.
Inspect frequently, service as
required– Replace cabin air filter (if equipped).
– Replace engine air filter.
Every 30,000 miles (48,000 km)– Change automatic transmission fluid (except 6R80 and
TorqShifttransmissions).
– Replace front wheel bearing grease/grease seals if
non-sealed bearings are used (2WD vehicles).
Every 60,000 miles (96,000 km)– Change transfer case fluid (4WD vehicles).
– Replace spark plugs.
Perform the services noted in the preceding table at the specified
time/mileage (km) period either within 3,000 miles (5,000 km) of the
OIL CHANGE REQUIRED message appearing in the message center or
when the time/mileage (km) reading indicates service is due.
Example #1:The OIL CHANGE REQUIRED message comes on at
28,751 miles (46,270 km); perform the 30,000 mile (48,000 km)
automatic transmission fluid replacement.
Example #2:The OIL CHANGE REQUIRED message hasnotcome on
but the odometer reads 30,000 miles (48,000 km); perform the engine air
filter replacement. (i.e., Intelligent Oil Life Monitor™ was reset at
25,000 miles [40,000 km].)
Scheduled Maintenance Guide
348
2011 Mariner(mrn)
Owners Guide, 1st Printing
USA(fus)

Operating in dusty conditions such as unpaved or dusty roads
Inspect frequently, service as
required– Replace cabin air filter (if equipped).
– Replace engine air filter.
Every 5,000 miles (8,000 km) or
6 months– Change engine oil and replace oil filter.
– Inspect wheels and related components for abnormal
noise, wear, looseness or drag.
– Rotate tires, inspect tires for wear and measure tread
depth.
Every 15,000 miles (24,000 km)– Replace fuel filter (Ranger).
Every 30,000 miles (48,000 km)– Change automatic transmission fluid (except 6R80 and
TorqShifttransmissions).
– Replace front wheel bearing grease/grease seals if
non-sealed bearings are used (2WD vehicles).
Every 50,000 miles (80,000 km)– Change manual transmission fluid.
– Change rear axle lubricant (E-450 and F-450/550
only).
Every 60,000 miles (96,000 km)– Change transfer case fluid (4WD vehicles).
Reset your Intelligent Oil Life Monitor™ after each engine oil and filter
change; refer to theInstrument Clusterchapter.
Scheduled Maintenance Guide
349
2011 Mariner(mrn)
Owners Guide, 1st Printing
USA(fus)

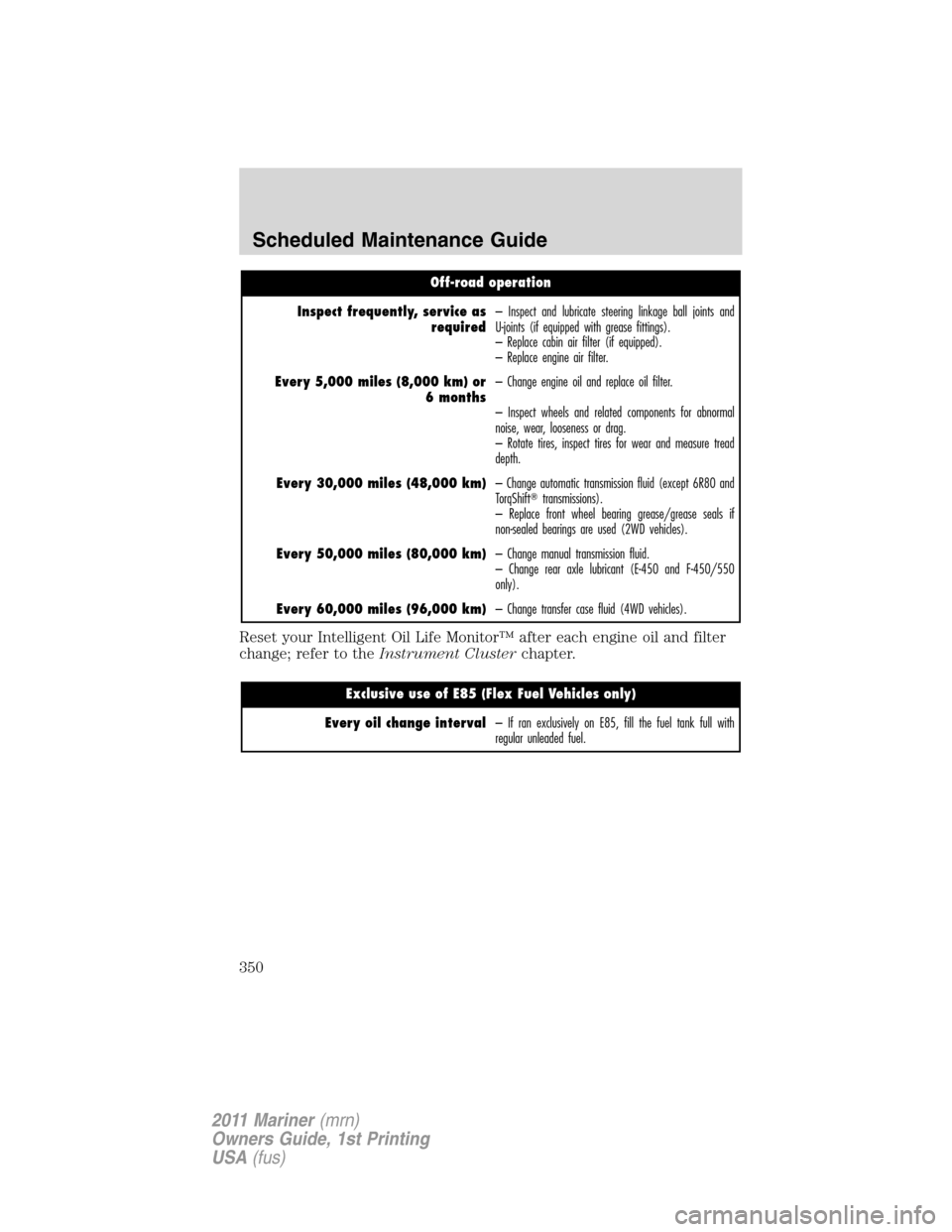

Off-road operation
Inspect frequently, service as
required– Inspect and lubricate steering linkage ball joints and
U-joints (if equipped with grease fittings).
– Replace cabin air filter (if equipped).
– Replace engine air filter.
Every 5,000 miles (8,000 km) or
6 months– Change engine oil and replace oil filter.
– Inspect wheels and related components for abnormal
noise, wear, looseness or drag.
– Rotate tires, inspect tires for wear and measure tread
depth.
Every 30,000 miles (48,000 km)– Change automatic transmission fluid (except 6R80 and
TorqShifttransmissions).
– Replace front wheel bearing grease/grease seals if
non-sealed bearings are used (2WD vehicles).
Every 50,000 miles (80,000 km)– Change manual transmission fluid.
– Change rear axle lubricant (E-450 and F-450/550
only).
Every 60,000 miles (96,000 km)– Change transfer case fluid (4WD vehicles).
Reset your Intelligent Oil Life Monitor™ after each engine oil and filter
change; refer to theInstrument Clusterchapter.
Exclusive use of E85 (Flex Fuel Vehicles only)
Every oil change interval– If ran exclusively on E85, fill the fuel tank full with
regular unleaded fuel.
Scheduled Maintenance Guide
350
2011 Mariner(mrn)
Owners Guide, 1st Printing
USA(fus)

EXCEPTIONS
In addition, there are several exceptions to the Normal Schedule. They
are listed below:
Normal vehicle axle maintenance
❑Rear axles and power take-off (PTO) units containing synthetic lubricant and light duty trucks equipped with Ford-design
axles are lubricated for life. These lubricants are not to be checked or changed unless a leak is suspected, service is re-
quired or the axle assembly has been submerged in water. The axle and PTO lubricant should be changed anytime the axle
and PTO have been submerged in water. During extended trailer tow operation above 70°F (21°C) ambient and wide open
throttle for extended periods above 45 mph (72 km/h), non-synthetic rear axle lubricants should be replaced every
3,000 miles (4,800 km) or three months, whichever occurs first. The 3,000 mile (4,800 km) lubricant change interval
may be waived if the axle was filled with 75W140 synthetic gear lubricant meeting Ford specification WSL-M2C192-A, part
number F1TZ-19580-B or equivalent. Add friction modifier XL-3 (EST-M2C118-A) or equivalent for complete refill of Traction-
Lok rear axles (refer to
Maintenance product and specificationsin theMaintenance and Specificationschapter for details).
The axle lubricant should be changed anytime an axle has been submerged in water.
Police/Taxi/Livery vehicle axle maintenance
❑Replace rear axle lubricant every 100,000 miles (160,000 km). Rear axle lubricant change may be waived if the axle
was filled with 75W140 synthetic gear lubricant meeting Ford specification WSL-M2C192-A, part number FITZ-19580-B or
equivalent. Add four ounces (118 mL) of friction modifier XL-3 (EST-M2C118-A) or equivalent for complete refill of Traction-
Lok rear axles. The axle lubricant should be changed anytime the axle has been submerged in water.
California fuel filter replacement
❑If vehicle is registered in California, the California Air Resources Board has determined that the failure to perform this main-
tenance item will not nullify the emission warranty or limit recall liability prior to the completion of the vehicle’s useful life.
Ford Motor Company, however, urges you to have all recommended maintenance services performed at the specified inter-
vals and to record all vehicle service.
Hot climate oil change intervals
❑If operating conditions are normal and you drive your Ford, Lincoln or Mercury vehicle under typical, everyday conditions
andyou are using an API performance category oil of SL or later (for example SM, etc.) then you can follow the
7,500 mile (12,000 km) normal service oil change intervals schedule. Vehicles operating in the Middle East, North Africa,
Sub-Saharan Africa or locations with similar climates must follow the oil change interval of 3,000 mile (5,000 km) if the
owner is using oils defined by the American Petroleum Institute (API) performance category of API SK or earlier (for ex-
ample SJ, etc.).
Engine air filter & cabin air filter replacement
❑Engine air filter and cabin air filter life is dependent on exposure to dusty and dirty conditions. Vehicles operated in these
conditions will require frequent inspection and replacement of the engine air filter and cabin air filter.
Scheduled Maintenance Guide
353
2011 Mariner(mrn)
Owners Guide, 1st Printing
USA(fus)

COOLANT CHANGE RECORD
Engine coolant
❑6 years or 100,000 miles (160,000 km) - change coolant (whichever comes first).❑After initial change - change coolant every 3 years or 50,000 miles (80,000 km).
Scheduled Maintenance Guide
354
2011 Mariner(mrn)
Owners Guide, 1st Printing
USA(fus)

Engine coolant change log
DEALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:
Scheduled Maintenance Guide
355
2011 Mariner(mrn)
Owners Guide, 1st Printing
USA(fus)

A
Accessory delay ..........................70
Active Park Assist .....................229
AdvanceTrac ..............................214
Air cleaner filter .......316, 318, 320
Air conditioning
automatic temperature
control system ..........................47
manual heating and air
conditioning system .................44
Airbag supplemental restraint
system ........................136, 145, 148
and child safety seats ............138
description ..............136, 145, 148
disposal ....................................151
driver airbag ............138, 146, 149
indicator light .........144, 147, 150
operation .................138, 146, 149
passenger airbag .....138, 146, 149
side airbag ...............................145
All Wheel Drive (AWD),
driving off road .........................234
Ambient mood/lighting ...............57
Ambulance packages ....................6
AM/FM .........................................26
Antifreeze (see Engine
coolant) .....................................295
Anti-lock brake system
(see Brakes) ......................212–213
Anti-theft system ......................105
Audio system (see Radio) .........26
Automatic transmission
driving an automatic
overdrive .................................222
fluid, refill capacities ..............321
fluid, specification ..................321Auxiliary input jack (Line in) ....34
Auxiliary power point .................69
Axle
lubricant specifications ..........321
refill capacities ........................321
B
Battery .......................................293
acid, treating emergencies .....293
jumping a disabled battery ....263
maintenance-free ....................293
replacement, specifications ...320
servicing ..................................293
Belt-Minder.............................131
Blind spot mirror ......................233
Booster seats .............................165
Brakes ........................................212
anti-lock ...........................212–213
anti-lock brake system (ABS)
warning light ...........................213
fluid, checking and adding ....314
fluid, refill capacities ..............321
fluid, specifications .................321
lubricant specifications ..........321
parking ....................................213
shift interlock ..........................221
Bulbs ............................................57
C
Capacities for refilling fluids ....321
Car2UHome Automation
System .........................................78
Cargo area shade ........................85
Cargo management system ........85
CD ................................................26
Cell phone use ..............................9
Index
356
2011 Mariner(mrn)
Owners Guide, 1st Printing
USA(fus)
