octane Mercury Mariner Hybrid 2008 Owner's Manuals

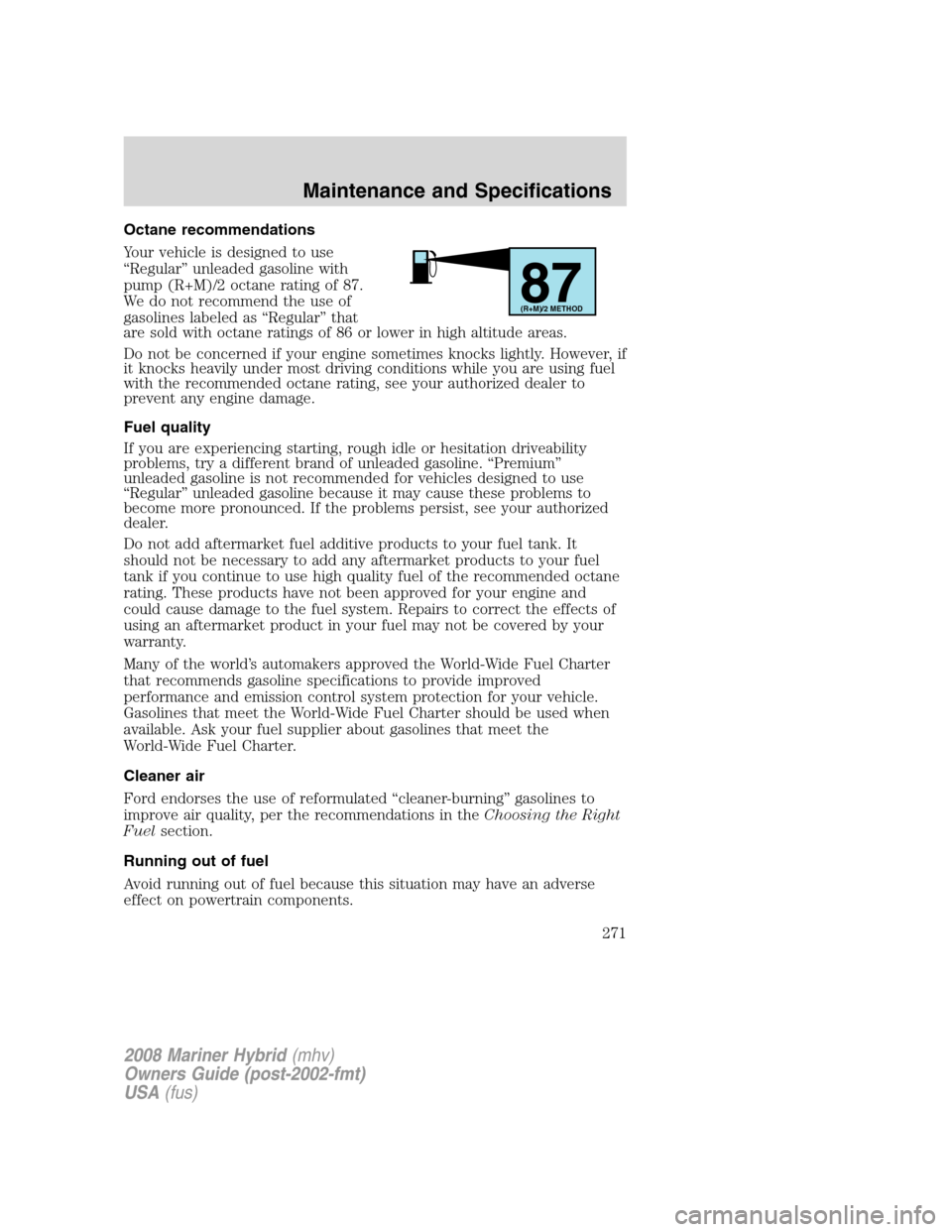

Octane recommendations
Your vehicle is designed to use
“Regular” unleaded gasoline with
pump (R+M)/2 octane rating of 87.
We do not recommend the use of
gasolines labeled as “Regular” that
are sold with octane ratings of 86 or lower in high altitude areas.
Do not be concerned if your engine sometimes knocks lightly. However, if
it knocks heavily under most driving conditions while you are using fuel
with the recommended octane rating, see your authorized dealer to
prevent any engine damage.
Fuel quality
If you are experiencing starting, rough idle or hesitation driveability
problems, try a different brand of unleaded gasoline. “Premium”
unleaded gasoline is not recommended for vehicles designed to use
“Regular” unleaded gasoline because it may cause these problems to
become more pronounced. If the problems persist, see your authorized
dealer.
Do not add aftermarket fuel additive products to your fuel tank. It
should not be necessary to add any aftermarket products to your fuel
tank if you continue to use high quality fuel of the recommended octane
rating. These products have not been approved for your engine and
could cause damage to the fuel system. Repairs to correct the effects of
using an aftermarket product in your fuel may not be covered by your
warranty.
Many of the world’s automakers approved the World-Wide Fuel Charter
that recommends gasoline specifications to provide improved
performance and emission control system protection for your vehicle.
Gasolines that meet the World-Wide Fuel Charter should be used when
available. Ask your fuel supplier about gasolines that meet the
World-Wide Fuel Charter.
Cleaner air
Ford endorses the use of reformulated “cleaner-burning” gasolines to
improve air quality, per the recommendations in theChoosing the Right
Fuelsection.
Running out of fuel
Avoid running out of fuel because this situation may have an adverse
effect on powertrain components.
87(R+M)/2 METHOD
2008 Mariner Hybrid(mhv)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
271

If you have run out of fuel:
•You may need to cycle the ignition from OFF to ON several times after
refueling to allow the fuel system to pump the fuel from the tank to
the engine. On restarting, cranking time will take a few seconds longer
than normal.
•Normally, adding 1 gallon (3.8L) of fuel is enough to restart the
engine. If the vehicle is out of fuel and on a steep grade, more than 1
gallon (3.8L) may be required.
•The
indicator may come on. For more information on the “check
engine” or the “service engine soon” indicator, refer toWarning lights
and chimesin theInstrument Clusterchapter.
ESSENTIALS OF GOOD FUEL ECONOMY
Measuring techniques
Your best source of information about actual fuel economy is you, the
driver. You must gather information as accurately and consistently as
possible. Fuel expense, frequency of fill-ups or fuel gauge readings are
NOT accurate as a measure of fuel economy. We do not recommend taking
fuel economy measurements during the first 1,000 miles (1,600 km) of
driving (engine break-in period). You will get a more accurate
measurement after 2,000 miles–3,000 miles (3,000 km–5,000 km).
Filling the tank
When the fuel gauge indicates empty, there is still a small reserve of fuel
in the fuel system. When refueling your vehicle after the fuel gauge
indicates empty, you might not be able to refuel the full amount of the
advertised capacity of the fuel tank due to the empty reserve still
present in the tank. The amount of usable fuel in the empty reserve
varies and should not be relied upon to increase driving range.
For consistent results when filling the fuel tank:
•Turn the engine/ignition switch to the off position prior to refueling;
an error in the reading will result if the engine is left running.
•Allow no more than two automatic click-offs when filling.
•Always use fuel with the recommended octane rating.
•Use a known quality gasoline, preferably a national brand.
Your results will be most accurate if your filling method is consistent.
Calculating fuel economy
1. Fill the fuel tank completely and record the initial odometer reading
(in miles or kilometers).
2008 Mariner Hybrid(mhv)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
272

ENGINE DATA
Engine 2.3L I4 engine
Cubic inches 140
Required fuel 87 octane
Firing order 1-3-4-2
Ignition system Coil on plug
Spark plug gap 0.049–0.053 inch (1.25–1.35mm)
Compression ratio 12.3:1
Engine drivebelt routing
•2.3L I4 Engine
HIGH VOLTAGE BATTERY DATA
High Voltage Battery
Battery chemistry Nickel Metal Hydride
Nominal Voltage 330 Volts
Capacity 6 Amp-hours
2008 Mariner Hybrid(mhv)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
287

preparing to drive your
vehicle .....................................192
Fuel ............................................267
calculating fuel
economy ............................71, 272
cap ...........................................270
capacity ...................................285
choosing the right fuel ...........270
comparisons with EPA fuel
economy estimates .................274
detergent in fuel .....................271
filling your vehicle with
fuel ...........................267, 270, 272
filter, specifications ........267, 284
fuel pump/high voltage
shut-off switches ....................207
improving fuel economy ........272
octane rating ...................271, 287
quality ......................................271
running out of fuel .................271
safety information relating to
automotive fuels .....................267
Fuses ..................................209–210
G
Gas cap (see Fuel cap) ............270
Gas mileage
(see Fuel economy) .................272
Gauges .........................................23
H
Hazard flashers .........................207
Head restraints .................100, 104
Headlamps ...................................44
aiming ........................................47
bulb specifications ....................50
daytime running lights .............46
flash to pass ..............................46high beam .................................46
replacing bulbs .........................51
turning on and off
....................44
Heating
heating and air conditioning
system
.......................................39
Hood
..........................................252
I
Ignition
...............................184, 287
Illuminated visor mirror
.............57
Infant seats
(see Safety seats)
.....................142
Inspection/maintenance (I/M)
testing
........................................277
Instrument panel
cleaning
...................................247
cluster
........................................18
lighting up panel and
interior
.......................................47
J
Jump-starting your
vehicle
................................227, 232
K
Keyless entry system
.................94
autolock
...............................85, 87
keypad
.......................................95
locking and unlocking doors
....96
programming entry code
.........95
Keys
.......................................83, 97
positions of the ignition
.........184
2008 Mariner Hybrid(mhv)
Owners Guide (post-2002-fmt)
USA(fus)
Index
311

L
Lamps
bulb replacement
specifications chart ..................50
daytime running light ...............46
fog lamps ...................................45
headlamps .................................44
headlamps, flash to pass ..........46
instrument panel, dimming .....47
interior lamps ...............48–49, 51
replacing bulbs .........................51
Lane change indicator
(see Turn signal) ........................48
Liftgate ..................................78, 91
Lights, warning and indicator ....18
anti-lock brakes (ABS) ..........189
Load limits .................................172
Loading instructions .................178
Locks
autolock ...............................85, 87
childproof ..................................89
doors ..........................................85
Lubricant specifications ...........285
Lug nuts ....................................226
Luggage rack ...............................80
M
Manual transmission
fluid capacities ........................285
lubricant specifications ..........285
Message center ...........................70
english/metric button ...............74
system check button ................73
warning messages .....................75Mirrors ...................................62, 65
automatic dimming rearview
mirror ........................................62
fold away ...................................65
heated ........................................65
side view mirrors (power) .......65
Moon roof ....................................69
Motorcraft parts ........249, 267, 284
N
Navigation system .......................38
O
Octane rating ............................271
Oil (see Engine oil) ..................256
P
Parking brake ............................190
Parts (see Motorcraft parts) ....284
Passenger Occupant
Classification Sensor .................110
Power distribution box
(see Fuses) ...............................212
Power door locks ........................85
Power mirrors .............................65
Power point .................................58
Power steering ..........................191
Power Windows ...........................61
Preparing to drive your
vehicle ........................................192
R
Radio ............................................25
Relays ........................................209
2008 Mariner Hybrid(mhv)
Owners Guide (post-2002-fmt)
USA(fus)
Index
312
