Mercury Mystique 1996 Owner's Manuals
Manufacturer: MERCURY, Model Year: 1996, Model line: Mystique, Model: Mercury Mystique 1996Pages: 284, PDF Size: 2.74 MB
Page 131 of 284
![Mercury Mystique 1996 Owners Manuals Electronic Sound Systems
131
*
[AS24000(ALL)02/95]
Adjusting the tone balance and speaker output of your
radio
*
[AS24100(ALL)04/95]
n
Increasing or decreasing bass response
*
[AS24225(ALL)05/95]
Push Mercury Mystique 1996 Owners Manuals Electronic Sound Systems
131
*
[AS24000(ALL)02/95]
Adjusting the tone balance and speaker output of your
radio
*
[AS24100(ALL)04/95]
n
Increasing or decreasing bass response
*
[AS24225(ALL)05/95]
Push](/img/33/11007/w960_11007-130.png)
Electronic Sound Systems
131
*
[AS24000(ALL)02/95]
Adjusting the tone balance and speaker output of your
radio
*
[AS24100(ALL)04/95]
n
Increasing or decreasing bass response
*
[AS24225(ALL)05/95]
Push the ªAUDIOº button repeatedly until the display reads
ªBASS.º Push the right (+) side of the ªVOLUMEº button to
increase bass (more ªlowsº), and push the left (s) side to
decrease bass (less ªlowsº).
*
[AS24300(ALL)04/95]
n
Increasing or decreasing treble response
*
[AS24425(ALL)05/95]
Push the ªAUDIOº button repeatedly until the display reads
ªTREB.º Push the right (+) side of the ªVOLUMEº button to
increase the treble (more ªhighsº), and push the left (s) side
to decrease treble (less ªhighsº).
*
[AS24600(ALL)04/95]
n
Adjusting speaker balance
*
[AS24725(ALL)05/95]
Balance control allows you to adjust the sound distribution
between the right and left speakers. Push the ªAUDIOº
button repeatedly until the display reads ªBAL.º Push the
right (+) side of the ªVOLUMEº button to shift the sound to
the right speakers, and push the left (s) side to shift the
sound to the left speakers.
*
[AS24800(ALL)04/95]
n
Adjusting speaker fader
*
[AS24925(ALL)05/95]
Fade control allows you to adjust the sound distribution
between the front and rear speakers. Push the ªAUDIOº
button repeatedly until the display reads ªFADE.º Push the
right (+) side of the ªVOLUMEº button to shift the sound to
the front speakers, and push the left (s) side to shift the
sound to the rear speakers.
*
[AS24950(ALL)04/95]
NOTE: Illuminated bars in the display show relative levels of
bass and treble, and positions of speaker balance and
fader functions (left to right, front to rear).
File:cdasz.ex
Update:Fri Feb 23 11:04:59 1996
Page 132 of 284
![Mercury Mystique 1996 Owners Manuals 132
%*
[AS25000(ALL)02/95]
Using the Controls of Your Cassette Tape Player
*
[AS25400(ALL)02/95]
NOTE: Radio power must be on to use the cassette tape
player.
*
[AS25500(ALL)02/95]
How to insert a tap Mercury Mystique 1996 Owners Manuals 132
%*
[AS25000(ALL)02/95]
Using the Controls of Your Cassette Tape Player
*
[AS25400(ALL)02/95]
NOTE: Radio power must be on to use the cassette tape
player.
*
[AS25500(ALL)02/95]
How to insert a tap](/img/33/11007/w960_11007-131.png)
132
%*
[AS25000(ALL)02/95]
Using the Controls of Your Cassette Tape Player
*
[AS25400(ALL)02/95]
NOTE: Radio power must be on to use the cassette tape
player.
*
[AS25500(ALL)02/95]
How to insert a tape
*
[AS25600(ALL)05/95]
Insert a cassette (with the open edge to the right) firmly into the
tape door opening, making sure the cassette is completely in
and ªseated.º
*
[AS25700(ALL)02/95]
How to locate a desired track on the tape
*
[AS25800(ALL)02/95]
NOTE: The tape track number indicated in the display does
not necessarily correspond to the tape track or side
number on the cassette label. It is used only to
indicate when the tape mechanism reverses tracks.
*
[AS25920(ALL)02/95]
n
Using the Automatic Music Search (ªAMSº)
*
[AS25930(ALL)03/95]
Press and hold the ªAMSº button (ªAMSº will appear in the
display). Then, push the left
hbutton to rewind to the
beginning of the current selection or press the right
g
button to fast forward to the beginning of the next selection.
*
[AS25950(ALL)02/95]
n
Fast forwarding the tape
*
[AS26000(ALL)03/95]
Push the right
gbutton to fast forward the tape.
*
[AS26100(ALL)02/95]
n
Rewinding the tape
*
[AS26200(ALL)03/95]
Push the left
hbutton to rewind the tape.
*
[AS26900(ALL)02/95]
n
How to change the side of the tape being played
*
[AS27000(ALL)03/95]
The alternate track (other side) of the tape can be selected at
any time by pushing both fast-wind buttons
hand
g
at the same time.
File:cdasz.ex
Update:Fri Feb 23 11:04:59 1996
Page 133 of 284
![Mercury Mystique 1996 Owners Manuals Electronic Sound Systems
133
*
[AS27100(ALL)02/95]
How to eject the tape
*
[AS27250(ALL)02/95]
To stop the tape and eject the cassette, press the ªEJECTº
button. The radio will resume playing.
*
[AS Mercury Mystique 1996 Owners Manuals Electronic Sound Systems
133
*
[AS27100(ALL)02/95]
How to eject the tape
*
[AS27250(ALL)02/95]
To stop the tape and eject the cassette, press the ªEJECTº
button. The radio will resume playing.
*
[AS](/img/33/11007/w960_11007-132.png)
Electronic Sound Systems
133
*
[AS27100(ALL)02/95]
How to eject the tape
*
[AS27250(ALL)02/95]
To stop the tape and eject the cassette, press the ªEJECTº
button. The radio will resume playing.
*
[AS27300(ALL)02/95]
Using the DolbyHB noise reduction feature
*
[AS27400(ALL)02/95]
NOTE: Noise reduction system manufactured under license
from Dolby Labs Licensing Corporation. ªDolbyº and
double-D symbol are trademarks of Dolby
Laboratories Licensing Corporation.
*
[AS27550(ALL)05/95]
Push station memory button 3 to activate DolbyHB Noise
Reduction.
*
[AS27600(ALL)02/95]
Tips on Caring for the Cassette Player and Tapes
*
[AS27700(ALL)02/95]
In order to keep your cassette tape player performing the way it
was meant to, read and follow these simple precautions:
*
[AS27750(ALL)02/95]
n
Using a Ford Cassette Cleaning Cartridge to clean the tape
player head after 10-12 hours of play will help maintain the
best playback sound and proper tape operation.
*
[AS27800(ALL)02/95]
n
Only cassettes that are 90 minutes long or less should be
used. Tapes longer than 90 minutes are thinner and subject
to breakage or may jam the tape player mechanism.
*
[AS27900(ALL)02/95]
n
Protect cassettes from exposure to direct sunlight, high
humidity and extreme heat or cold. If they are exposed to
extreme conditions, allow them to reach a moderate
temperature before playing.
*
[AS28001(ALL)02/95]
n
If a tape is loose inside the cassette, tighten it before playing
by putting your finger or a pencil into one of the holes and
turning the hub until the tape is tight.
*
[AS28101(ALL)02/95]
n
Loose labels on cassette tapes can become lodged in the
mechanism. Remove any loose label material before inserting
a cassette.
File:cdasz.ex
Update:Fri Feb 23 11:04:59 1996
Page 134 of 284
![Mercury Mystique 1996 Owners Manuals 134
*
[AS28200(ALL)03/95]
n
Do not leave a tape in the cassette tape player when not in
use. High heat in the vehicle can cause the cassette to warp.
*
[AS35200(ALL)06/95]
Common Radio Reception Condi Mercury Mystique 1996 Owners Manuals 134
*
[AS28200(ALL)03/95]
n
Do not leave a tape in the cassette tape player when not in
use. High heat in the vehicle can cause the cassette to warp.
*
[AS35200(ALL)06/95]
Common Radio Reception Condi](/img/33/11007/w960_11007-133.png)
134
*
[AS28200(ALL)03/95]
n
Do not leave a tape in the cassette tape player when not in
use. High heat in the vehicle can cause the cassette to warp.
*
[AS35200(ALL)06/95]
Common Radio Reception Conditions
*
[AS35300(ALL)02/95]
Several conditions prevent FM reception from being completely
clear and noise-free, such as the following:
*
[AS35400(ALL)04/95]1.
Distance/Strength
*
[AS35500(ALL)02/95]
The strength of the FM signal is directly related to the distance
the signal must travel. The listenable range of an average FM
signal is approximately 25 miles (40 kilometers). Beyond this
distance, the radio is operating in a fringe area and the signal
becomes weaker.
*
[AS35600(ALL)04/95]2.
Terrain
*
[AS35700(ALL)02/95]
The terrain (hilly, mountainous, tall buildings) of the area over
which the signal travels may prevent the FM signal from being
noise-free.
*
[AS36850(ALL)04/95]3.
Rounded off frequencies
*
[AS36900(ALL)02/95]
Some FM radio stations advertise a ªrounded-offº frequency
which is not the frequency they actually broadcast on. For
example, a radio station that is assigned a frequency of 98.7
MHz may call itself ªRadio 99º even though 99.0 MHz is not an
allowable FM broadcast frequency.
File:cdasz.ex
Update:Fri Feb 23 11:04:59 1996
Page 135 of 284
![Mercury Mystique 1996 Owners Manuals Electronic Sound Systems
135
*
[AS37000(ALL)01/95]
Important Warranty and Service Information
*
[AS37050(ALL)07/90]
n
Warranty
*
[AS37100(ALL)03/95]
Your sound system is warranted for three years or 3 Mercury Mystique 1996 Owners Manuals Electronic Sound Systems
135
*
[AS37000(ALL)01/95]
Important Warranty and Service Information
*
[AS37050(ALL)07/90]
n
Warranty
*
[AS37100(ALL)03/95]
Your sound system is warranted for three years or 3](/img/33/11007/w960_11007-134.png)
Electronic Sound Systems
135
*
[AS37000(ALL)01/95]
Important Warranty and Service Information
*
[AS37050(ALL)07/90]
n
Warranty
*
[AS37100(ALL)03/95]
Your sound system is warranted for three years or 36,000 miles
(60,000 kilometers), whichever comes first. Consult your vehicle
warranty booklet for further information. Ask your dealer for a
copy of this limited warranty.
*
[AS37150(ALL)07/90]
n
Service
*
[AS37200(ALL)01/95]
At Ford Electronics, we stand behind our audio systems with a
comprehensive service and repair program. If anything should
go wrong with your Ford audio system, return to your dealer
for service. There is a nationwide network of qualified Ford
authorized repair centers to assist you.
File:cdasz.ex
Update:Fri Feb 23 11:04:59 1996
Page 136 of 284
![Mercury Mystique 1996 Owners Manuals 137
Driving Your Mystique
*
[DR00200(ALL)09/93]
Procedures for driving your vehicle will vary depending on
which type oftransaxleyour vehicle has. You may be familiar
with the term ªtransmission.º W Mercury Mystique 1996 Owners Manuals 137
Driving Your Mystique
*
[DR00200(ALL)09/93]
Procedures for driving your vehicle will vary depending on
which type oftransaxleyour vehicle has. You may be familiar
with the term ªtransmission.º W](/img/33/11007/w960_11007-135.png)
137
Driving Your Mystique
*
[DR00200(ALL)09/93]
Procedures for driving your vehicle will vary depending on
which type oftransaxleyour vehicle has. You may be familiar
with the term ªtransmission.º We usetransaxlebecause it is a
more accurate term for vehicles that have front-wheel drive.
*
[DR00300(ALL)11/94]
Your vehicle will have one of the following types of transaxles:
[DR00410(ALL)02/94]
n

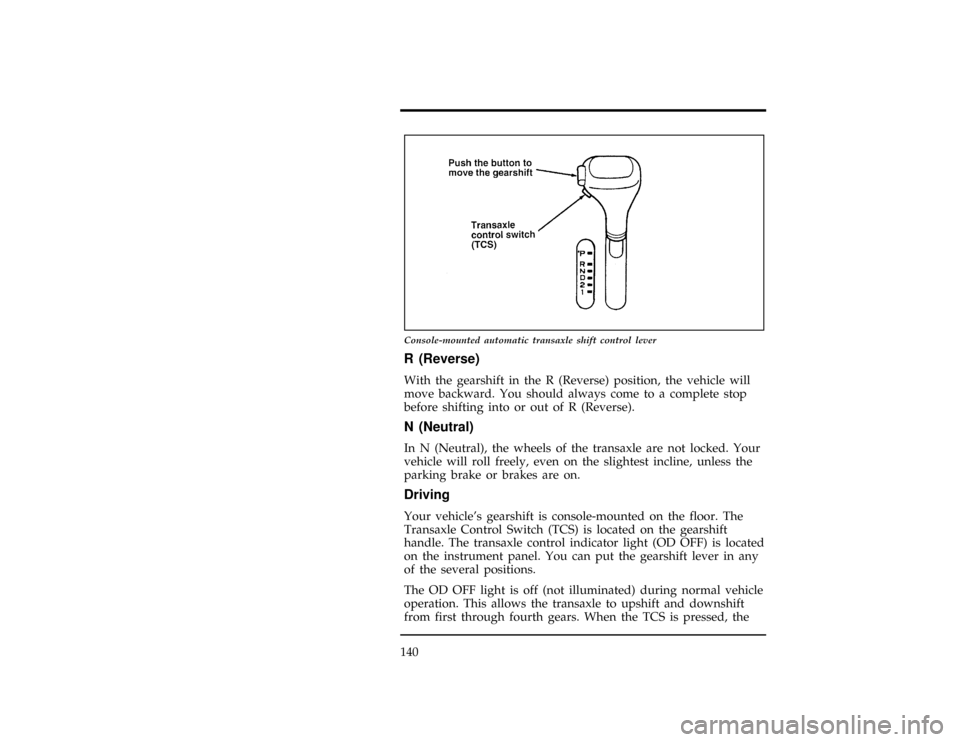

an automatic overdrive transaxle with transaxle control
switch, or
*
[DR00600(ALL)11/94]
n
a manual transaxle.
*
[DR00700(ALL)11/94]
If you are not sure which transaxle your vehicle has, talk to
your dealer.
*
[DR00750(ALL)04/95]
Your vehicle is equipped with an Electronic Powertrain Control
Module that limits engine and/or vehicle speeds with a cut-out
mode to promote durability.
*
[DR00800(ALL)01/95]
Driving with an Automatic Overdrive
Transaxle
[DR00850(ALL)05/95]
Your automatic overdrive transaxle provides fully automatic
operation in either D (Overdrive) or with the transaxle control
switch depressed. Driving with the shift selector in D
(Overdrive) gives the best fuel economy for normal driving
conditions. For manual control, start in 1 (First) and then shift
manually.
File:cddrz.ex
Update:Fri Feb 23 11:04:09 1996
Page 137 of 284
![Mercury Mystique 1996 Owners Manuals 138
*
[DR00900(ALL)01/95]
Putting Your Vehicle in Gear
[DR00915(ALL)05/95]
You must push in the thumb button to move the gearshift to
the position you choose.
*
[DR00917(ALL)05/95]
RWARNING
Hold the b Mercury Mystique 1996 Owners Manuals 138
*
[DR00900(ALL)01/95]
Putting Your Vehicle in Gear
[DR00915(ALL)05/95]
You must push in the thumb button to move the gearshift to
the position you choose.
*
[DR00917(ALL)05/95]
RWARNING
Hold the b](/img/33/11007/w960_11007-136.png)
138
*
[DR00900(ALL)01/95]
Putting Your Vehicle in Gear
[DR00915(ALL)05/95]
You must push in the thumb button to move the gearshift to
the position you choose.
*
[DR00917(ALL)05/95]
RWARNING
Hold the brake pedal down while you move the gearshift
lever from position to position. If you do not hold the
brake pedal down, your vehicle may move unexpectedly
and injure someone.
*
[DR00918(ALL)03/95]
To operate:
*
[DR00919(ALL)01/95]1.
Start the engine.
*
[DR00920(ALL)01/95]2.
Depress and hold the brake pedal.
*
[DR00921(ALL)01/95]3.
Move the gearshift lever out of P (Park).
%*
[DR00923(ALL)04/95]
Your vehicle is equipped with a Brake Shift Interlock safety
feature. This feature prevents the gearshift from being moved
from the P (Park) position until the brake pedal is depressed.
This feature is active when the ignition is in the ON position. If
the gearshift lever CANNOT be moved from P (Park) with the
brake pedal depressed:
*
[DR00924(ALL)01/95]1.
Turn the engine off and remove the ignition key.
[DR00925(ALL)05/94]2.
With the parking brake applied and the brake pedal
depressed, insert a screwdriver about 2" (5 cm) into the
square opening to the right of the gearshift at the base of the
console.
[DR00926(ALL)05/94]3.
Rotate the screwdriver point rearward.
[DR00927(ALL)02/94]4.
Push and hold the thumb button and move the gearshift.
[DR00928(ALL)02/94]5.
Remove the screwdriver when the gearshift moves from the
P (Park) position.
File:cddrz.ex
Update:Fri Feb 23 11:04:09 1996
Page 138 of 284
![Mercury Mystique 1996 Owners Manuals Driving Your Mystique
139
[DR00929(ALL)01/95]
13-1/2 pica
art:0001264-C
Overriding the brake shift interlock
*
[DR00931(ALL)04/95]
The console-mounted gearshift will lock when you turn the key
to the Mercury Mystique 1996 Owners Manuals Driving Your Mystique
139
[DR00929(ALL)01/95]
13-1/2 pica
art:0001264-C
Overriding the brake shift interlock
*
[DR00931(ALL)04/95]
The console-mounted gearshift will lock when you turn the key
to the](/img/33/11007/w960_11007-137.png)
Driving Your Mystique
139
[DR00929(ALL)01/95]
13-1/2 pica
art:0001264-C
Overriding the brake shift interlock
*
[DR00931(ALL)04/95]
The console-mounted gearshift will lock when you turn the key
to the LOCK position. When the gearshift is in any position
except P (Park), the ignition key cannot be turned to LOCK or
removed from the steering column. TO REMOVE THE KEY, the
gearshift levermustbe in P (Park).
*
[DR00935(ALL)11/94]
Once the gearshift is secure in the desired position, release the
brake pedal and use the accelerator as necessary.
File:cddrz.ex
Update:Fri Feb 23 11:04:09 1996
Page 139 of 284
![Mercury Mystique 1996 Owners Manuals 140
[DR01100(ALL)05/94]
13-1/2 pica
art:0000492-D
Console-mounted automatic transaxle shift control lever
%*
[DR01600(ALL)01/95]
R (Reverse)
*
[DR01700(ALL)02/95]
With the gearshift in the R (Reverse) Mercury Mystique 1996 Owners Manuals 140
[DR01100(ALL)05/94]
13-1/2 pica
art:0000492-D
Console-mounted automatic transaxle shift control lever
%*
[DR01600(ALL)01/95]
R (Reverse)
*
[DR01700(ALL)02/95]
With the gearshift in the R (Reverse)](/img/33/11007/w960_11007-138.png)
140
[DR01100(ALL)05/94]
13-1/2 pica
art:0000492-D
Console-mounted automatic transaxle shift control lever
%*
[DR01600(ALL)01/95]
R (Reverse)
*
[DR01700(ALL)02/95]
With the gearshift in the R (Reverse) position, the vehicle will
move backward. You should always come to a complete stop
before shifting into or out of R (Reverse).
*
[DR01725(ALL)01/95]
N (Neutral)
[DR01750(ALL)11/94]
In N (Neutral), the wheels of the transaxle are not locked. Your
vehicle will roll freely, even on the slightest incline, unless the
parking brake or brakes are on.
*
[DR01800(ALL)01/95]
Driving
[DR01825(ALL)02/94]
Your vehicle's gearshift is console-mounted on the floor. The
Transaxle Control Switch (TCS) is located on the gearshift
handle. The transaxle control indicator light (OD OFF) is located
on the instrument panel. You can put the gearshift lever in any
of the several positions.
[DR01850(ALL)05/94]
The OD OFF light is off (not illuminated) during normal vehicle
operation. This allows the transaxle to upshift and downshift
from first through fourth gears. When the TCS is pressed, the
File:cddrz.ex
Update:Fri Feb 23 11:04:09 1996
Page 140 of 284

Driving Your Mystique
141 transaxle control indicator light will illuminate (OD OFF) on the
instrument panel. When this OD OFF is illuminated the
transaxle will upshift and downshift from first through third
gears and provide coast braking in second and third gears.
[DR01875(ALL)02/94]
To return the transaxle to normal operation (first through fourth
gears) depress the TCS again. This switch may be used to cancel
overdrive any time the vehicle is being driven. Each time your
vehicle is started, the overdrive system will automatically be in
the normal overdrive mode and the light will not be
illuminated.
[DR01900(ALL)05/95]
When to use D (Overdrive Ð without Transaxle Control
Switch Activated
[DR01925(ALL)05/94]
D (Overdrive) is the usual driving position for an automatic
overdrive transaxle. It automatically upshifts or downshifts as
the vehicle speeds or slows.
[DR01950(ALL)05/94]
However, D (Overdrive) also shifts into a fourth gear Ð an
overdrive gear Ð when your vehicle cruises at a consistent
speed for any length of time. This fourth gear will increase your
fuel economy when you travel at cruising speeds.
[DR02000(ALL)05/94]
When to use D (Drive Ð with Transaxle Control Switch
activated)
[DR02025(ALL)05/94]
D (Overdrive) may not be appropriate for certain terrain. If the
transaxle shifts back and forth between third and fourth gears
while you are driving on hilly roads or if your vehicle requires
additional power for climbing hills, depress the TCS. D (Drive)
also gives more engine braking to slow your vehicle on
downgrades than D (Overdrive).
*
[DR02100(ALL)01/95]
When to use 2 (Second)
[DR02200(ALL)05/94]
When your vehicle is in 2 (Second), it automatically starts off in
second gear. Use 2 (Second) to help drive up moderately steep
hills or restart from a standstill on slippery roads. It prevents
the transaxle from frequently shifting up and down. It also
File:cddrz.ex
Update:Fri Feb 23 11:04:09 1996
