Mercury Villager 1996 Owner's Manuals

132
*
[SC07500(ALL)06/95]
Resetting the Speed Control
[SC07600(ALL)02/95]
To reset at a higher speed, use one of the following methods:
[SC07700(ALL)09/93]
n
Press the accelerator pedal. When the speedometer indicates
the desired speed, push and release the COAST/SET button.
[SC07800(ALL)01/93]
n
Push and hold the RESUME/ACCEL button. When the
vehicle attains the speed you desire, release the switch.
[SC07900(ALL)01/93]
n
Push, then quickly release the RESUME/ACCEL button. Each
time you do this, the set speed will increase by about 1 mph
(1.6 km/h).
[SC08100(ALL)02/95]
To reset at a lower speed, use one of the following methods:
[SC08200(ALL)07/93]
n
Lightly tap the brake pedal. When the speedometer indicates
the desired speed, push the COAST/SET button and release
it.
[SC08300(ALL)07/93]
n
Push and hold the COAST/SET button. Release the button
when the vehicle slows down to the desired speed.
[SC08400(ALL)07/93]
n
Push, then quickly release, the COAST/SET button. Each
time you do this, the set speed will decrease by about
1 mph (1.6 km/h).
%*
[SC08500(ALL)06/95]
Resuming a Set Speed
[SC08600(ALL)05/93]
To resume the preset speed, push and release the
RESUME/ACCEL button. The vehicle will resume the last set
speed as long as the vehicle is traveling at a speed over 30 mph
(48 km/h).
File:07vxscn.ex
Update:Mon Jun 3 14:47:35 1996

Steering Column Controls
133
[SC08700(ALL)09/93]
Information About the Speed Control System
[SC08800(ALL)01/93]
If the speed control system malfunctions, it will cancel
automatically. The CRUISE indicator in the instrument cluster
will then blink to warn the driver.
[SC08900(ALL)01/93]
When the CRUISE indicator blinks, press the speed control OFF
switch and have the system checked by your Ford or
Lincoln-Mercury dealer.
[SC09000(ALL)09/93]
The CRUISE indicator light may blink if the CRUISE CONT.
ON switch is pressed while pushing the RESUME/ACCEL,
COAST/SET, or CANCEL buttons located on the right side of
the steering wheel.
File:07vxscn.ex
Update:Mon Jun 3 14:47:35 1996

135
Features
[FV01300(ALL)02/95]
Your vehicle has a variety of features designed for your
comfort, convenience and safety. Read this chapter to find out
about standard and optional features.
*
[FV01400(ALL)01/95]
Doors
*
[FV01500(ALL)01/93]
For information on the liftgate refer to theLiftgatesection later
in this chapter.
[FV01600(ALL)04/95]
Exterior Locks
[FV01700(ALL)04/95]
To unlock the door with the key, place the key in the door lock
cylinder and turn it toward the rear of the vehicle. To unlock all
the doors, turn the key toward the rear of the vehicle a second
time within 2-3 seconds (if equipped). To lock the door with the
key, turn it toward the front of the vehicle. Return the key to
the neutral position (straight up in the lock cylinder) to remove
it.
[FV01800(ALL)04/95]
13-1/2 pica
art:0040118-C

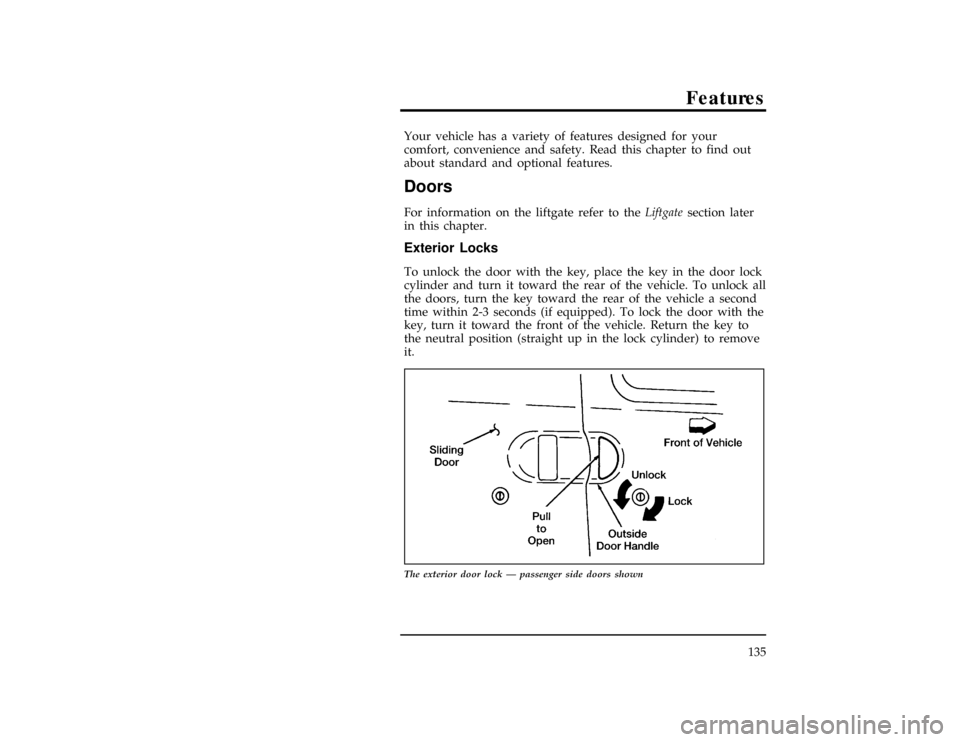

The exterior door lock Ð passenger side doors shown
File:08vxfvn.ex
Update:Mon Jun 3 14:49:33 1996

136
[FV02200(ALL)01/93]
Automatic Door Lock
[FV02300(ALL)01/93]
If your vehicle is equipped with the optional power door locks,
locking the driver's door with the key or with the manual
rocker switch will also lock all other doors. However, when the
driver's door is unlocked, with the key or with the manual
rocker switch, other doors remain locked.
[FV02325(ALL)06/95]
Anti-Lockout
[FV02350(ALL)06/95]
Your vehicle is equipped with an anti-lockout feature which
prevents the driver's side door from being locked while the key
is in the ignition. To lock the driver's side door, remove the key
from the ignition and then use either the manual rocker switch
or the door lock cylinder.
[FV02360(ALL)06/95]
Accessory Delay (If equipped)
[FV02370(ALL)06/95]
Accessory Delay is a feature that allows vehicles equipped with
power windows and the power sunroof to operate all power
windows and the power sunroof for 15 minutes after the
ignition is turned to OFF or until the driver's door is opened
(after ignition is turned to OFF).
File:08vxfvn.ex
Update:Mon Jun 3 14:49:33 1996

Features
137
*
[FV02400(ALL)01/93]
Sliding Door
*
[FV02500(ALL)01/93]
The sliding door allows rear seat passengers to enter and exit
easily.
[FV02600(ALL)09/93]
13-1/2 pica
art:0040122-B

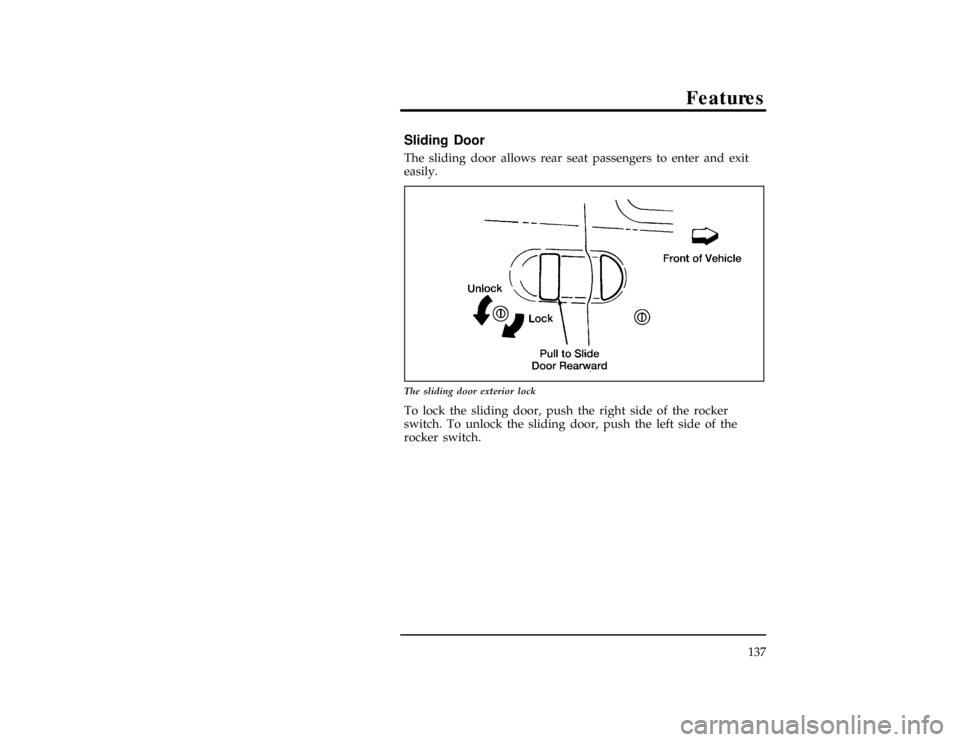

The sliding door exterior lock
[FV02700(ALL)01/93]
To lock the sliding door, push the right side of the rocker
switch. To unlock the sliding door, push the left side of the
rocker switch.
File:08vxfvn.ex
Update:Mon Jun 3 14:49:33 1996

138
[FV02800(ALL)09/93]
13-1/2 pica
art:0040094-B

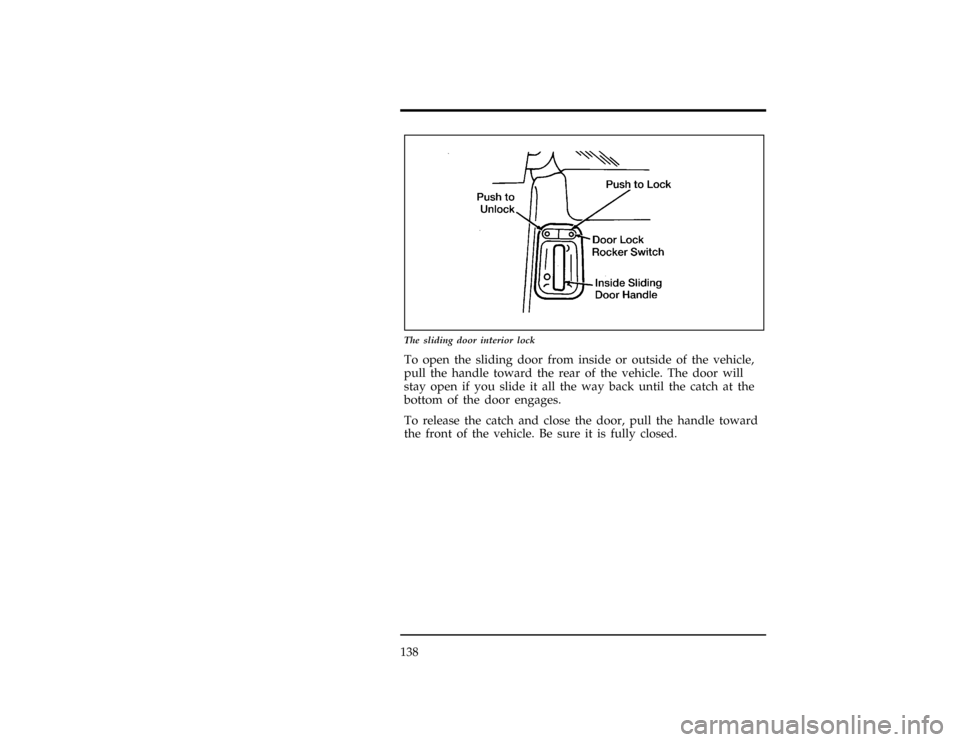

The sliding door interior lock
[FV02900(ALL)01/93]
To open the sliding door from inside or outside of the vehicle,
pull the handle toward the rear of the vehicle. The door will
stay open if you slide it all the way back until the catch at the
bottom of the door engages.
[FV03000(ALL)01/93]
To release the catch and close the door, pull the handle toward
the front of the vehicle. Be sure it is fully closed.
File:08vxfvn.ex
Update:Mon Jun 3 14:49:33 1996

Features
139
%*
[FV03100(ALL)01/93]
Childproof Lock for the Sliding Door
%*
[FV03200(ALL)01/93]
Your vehicle has a childproof lock for the sliding door. If you
set the childproof lock, the sliding door cannot be opened from
inside the vehicle.
*
[FV03300(ALL)01/93]
This lock will keep children from opening the door from the
inside; the door can still be opened from the outside if the door
is unlocked.
[FV03400(ALL)09/93]
24 pica art:0040120-C
Childproof lock location
File:08vxfvn.ex
Update:Mon Jun 3 14:49:33 1996

140
*
[FV03500(ALL)01/93]
To set the childproof lock:
*
[FV03600(ALL)01/93]1.
Open the sliding door.
[FV03700(ALL)01/93]2.
Find the childproof lock knob above the label.
[FV03800(ALL)01/93]3.
Pull the knob out.
*
[FV03900(ALL)03/95]
To release the childproof lock:
*
[FV04000(ALL)01/93]1.
Open the sliding door from the outside.
[FV04100(ALL)05/95]2.
Push the childproof lock knob in.
*
[FV04200(ALL)04/95]
Power Door Locks (If equipped)
[FV04300(ALL)05/95]
The power door lock control switches are located in the panels
of the front doors. They control the locks on both front doors,
the sliding door and the liftgate.
[FV04400(ALL)06/95]
13-1/2 pica
art:0040095-H
The power door lock switch
*
[FV04500(ALL)05/95]
NOTE: If the sliding door is open when all doors are locked
with the power door lock switch, the sliding door
automatically locks when it is closed.
File:08vxfvn.ex
Update:Mon Jun 3 14:49:33 1996

Features
141
*
[FV04600(ALL)01/93]
You can manually lock and unlock the doors using the manual
door locks to override the power locks.
[FV04700(ALL)09/93]
Keyless Entry System (If equipped)
[FV04800(ALL)06/95]
If you have chosen the keyless entry system option for your
vehicle, you can lock or unlock the doors and liftgate without
using a key. The keypad is above the outside door handle on
the driver's side. You can also use it to arm or disarm the
anti-theft system (if equipped). For more information on the
anti-theft system, refer to the Index.
[FV04900(ALL)09/93]
13-1/2 pica
art:0040096-C
The keyless entry system keypad
[FV05000(ALL)04/95]
The keypad will light when you push any of its buttons. In
addition, pushing any of the buttons will also activate the
illuminated entry system. For more information on the
illuminated entry system, refer to the Index.
*
[FV05100(ALL)01/93]
Do not push the keypad buttons with a key, ball-point pen,
pencil, or any other hard object since they could damage the
buttons.
File:08vxfvn.ex
Update:Mon Jun 3 14:49:33 1996

142
%*
[FV05200(ALL)02/95]
Using the Keyless Entry System
*
[FV05300(ALL)02/95]
To operate the Keyless Entry System, you must be familiar with
the ªpersonal codeº and the ªpermanent code.º The personal
code is a code number that you select that is easy for you to
remember. This is the number that you enter on the keypad to
unlock the door. The personal code can be changed as often as
you like.
[FV05400(ALL)01/93]
The permanent code is a number that is assigned to your
vehicle. It does not unlock the door but is used to program
your personal code into the system. Once you have
programmed your personal code you will not need the
permanent code again until you wish to change your personal
code.
[FV05500(ALL)01/93]
The permanent code is taped to the computer module behind
the center console of your vehicle. It is also taped to your
Keyless Entry System Owner's Card. For your convenience,
three additional pieces of tape with the permanent code have
been included in the glove box. Place these additional pieces of
tape in safe locations where you can refer to them when
necessary. Do not put them in any location that is accessible to
unauthorized persons, since this would allow them entrance to
your vehicle.
[FV05600(ALL)01/93]
Valid and Invalid Codes
[FV05700(ALL)01/93]
To help protect your vehicle from theft, certain codes that are
easily figured out cannot be registered for your personal code.
Some of the codes that cannot be registered for your personal
code include: the permanent code, five numbers consisting of
the same button, five consecutive numbers and a sequential
combination of numbers. The keyless entry system reads 1/2
and 9/0 as sequential numbers.
File:08vxfvn.ex
Update:Mon Jun 3 14:49:33 1996
