Page 60 of 396
58
[ST03200(ALL)01/93]
ACCESSORY allows you to operate some of your vehicle's
electrical accessories while the engine is not running. For
example, you can use ACCESSORY to turn on the radio,
windshield wipers, or operate the cigarette lighter without
starting the engine.
%*
[ST03300(ALL)03/95]
Ignition Key Chime
[ST03400(ALL)02/95]
The chime will sound if you open the driver's door while the
key is in the ignition. Never leave your vehicle unattended with
the key in the ignition.
%*
[ST03500(ALL)02/95]
Removing the Key From the Ignition
[ST03600(ALL)06/95]
OFF/LOCK is the only position that allows you to remove the
key from the ignition. The LOCK feature helps to protect your
vehicle from theft, because it also locks the steering wheel and
the gearshift lever when the key is removed.
%*
[ST03700(ALL)01/93]
If your key is stuck in the LOCK position, and you are unable
to turn it, move your steering wheel left or right until the key
turns freely.
*
[ST03800(ALL)01/93]
To remove your key from the ignition:
*
[ST03900(ALL)05/95]1.
Put the gearshift lever in P (Park).
*
[ST04000(ALL)02/95]2.
Set the parking brake fully.
*
[ST04100(ALL)03/95]3.
Turn the ignition key to LOCK.
*
[ST04200(ALL)03/95]4.
Remove the key.
*
[ST04300(ALL)06/95]
RWARNING
When you leave your vehicle, place the gearshift lever in
P (Park). Set the parking brake fully, and shut off the
engine. Never park your vehicle in N (Neutral). If you do
not take these precautions, your vehicle may move
suddenly and injure someone.
File:04vxstn.ex
Update:Mon Jun 3 08:20:06 1996
Page 91 of 396
Instrument Panel Controls
91
[IP01400(ALL)01/93]
The controls for the climate control systems, headlamps, clock,
radio, rear window washer and wiper, hazard flasher, power
switch, and speed control are all on the instrument panel.
*
[IP01500(ALL)01/93]
Climate Control Systems
[IP01600(ALL)04/95]
13-1/2 pica
art:0040301-A
Climate control system panel
[IP01700(ALL)01/93]
Function Selector Buttons
[IP01800(ALL)01/93]
There are six function selector buttons: OFF, Mix, Defrost, Panel,
Panel/Floor, and Floor. When you press a function selector
button, the indicator light on the button will illuminate. If your
vehicle is equipped with a rear passenger compartment climate
control system, the instrument panel will also include a rear seat
function selector lever.
[IP01900(ALL)04/94]
n
The OFF button shuts off the air supply to all outlets and
stops all fan operations. Use this setting when driving
through an area where outside air is unpleasant or dusty.
File:06vxipn.ex
Update:Mon Jun 3 14:33:05 1996
Page 103 of 396
Instrument Panel Controls
103
[IP10305(ALL)06/95]
Automatic Temperature Control System
[IP10310(ALL)06/95]
The control for your Automatic Temperature Control (ATC) is
located at the center of the instrument panel above the radio.
The ATC operates only when the ignition key is turned to the
ON position and the vehicle is running.
[IP10315(ALL)06/95]
17-1/2 pica art:0040072-E[IP10320(ALL)06/95]
To turn the ATC on, push the AUTOMATIC button or any of
the five airflow function selector buttons:P,V,Q,S,
orR.
[IP10323(ALL)06/95]
To turn the ATC off, press the OFF button.
[IP10325(ALL)06/95]
To change the temperature in the display window, select any
temperature between65ÊF (18ÊC) and 85ÊF (29ÊC)using the
NTEMPMbutton.
File:06vxipn.ex
Update:Mon Jun 3 14:33:05 1996
Page 121 of 396
Instrument Panel Controls
121
[IP16600(ALL)01/93]
You can turn the map lamps on and off by pressing the
switches next to the lamps.
*
[IP16700(ALL)05/95]
Radio
[IP16800(ALL)04/94]
For information about the radio in your vehicle, refer to the
Electronic Sound Systemschapter in this owner guide.
[IP16901(ALL)09/93]
Clock Controls on Electronic Radios
[IP17000(ALL)04/94]
The electronic radios have a built-in clock. For complete
operating instructions, refer to theElectronic Sound Systems
chapter in this owner guide.
*
[IP17300(ALL)05/92]
Radio Antenna
*
[IP17400(ALL)07/93]
The fixed radio antenna is mounted on the front fender on the
passenger's side of the vehicle.
*
[IP17500(ALL)04/95]
Power Antenna (If equipped)
[IP17600(ALL)09/93]
The power antenna is located on the front fender on the
passenger's side of the vehicle. It will automatically raise when
the radio is turned on and lower when the radio is turned off.
*
[IP17700(ALL)04/95]
NOTE: The radio must be turned off so that the antenna will
retract prior to entering a car wash. Failure to retract
the antenna could result in damage to the antenna,
antenna base, or vehicle.
[IP17750(ALL)04/95]
Cleaning the Instrument Panel Lens
*
[IP17760(ALL)04/95]
Clean the instrument panel lens with a soft cloth and a glass
cleaner, such as Ford Ultra-Clear Spray Glass Cleaner, or
equivalent. Do not use paper towel or any abrasive cleaner to
clean the lens as these may cause scratches.
File:06vxipn.ex
Update:Mon Jun 3 14:33:05 1996
Page 144 of 396
146
[FV08090(ALL)06/95]
Replacing the batteries
[FV08100(ALL)06/95]
The remote entry transmitter is powered by two coin type
Sanyo CR2016 3 volt batteries (included). If you notice a
significant decrease in operating range, the batteries should be
replaced. Replacement batteries can be purchased at most
pharmacies, watch stores or at your Ford or Lincoln-Mercury
dealer.
[FV08110(ALL)06/95]
NOTE: The operating range of the remote entry system can
also be affected by weather conditions (such as very
cold temperatures) or structures around the vehicle
(buildings, other vehicles, radio and TV towers, etc.).
Typical operating range will allow you to be up to 49
feet (15 meters) away from your vehicle.
[FV08120(ALL)06/95]
13-1/2 pica
art:0040305-A
Replacing the batteries
[FV08130(ALL)06/95]
Remove the two batteries by snapping open the lid of the
remote transmitter. Replace the batteries with new ones as
shown in the above illustration. Close the lid securely. Press
both the LOCK and the UNLOCK button two or three times to
test the remote transmitter operation.
File:08vxfvn.ex
Update:Mon Jun 3 14:49:33 1996
Page 165 of 396
Features
167
[FV16100(ALL)02/95]
Coin Tray
[FV16200(ALL)02/95]
The slide-out coin tray is located in the instrument panel for
your convenience. It is located below the radio controls.
[FV16300(ALL)02/95]
13-1/2 pica
art:0040115-D
Coin tray
File:08vxfvn.ex
Update:Mon Jun 3 14:49:33 1996
Page 202 of 396
206
[AS00857(ALL)06/95]
33-1/2 pica
art:0040310-C

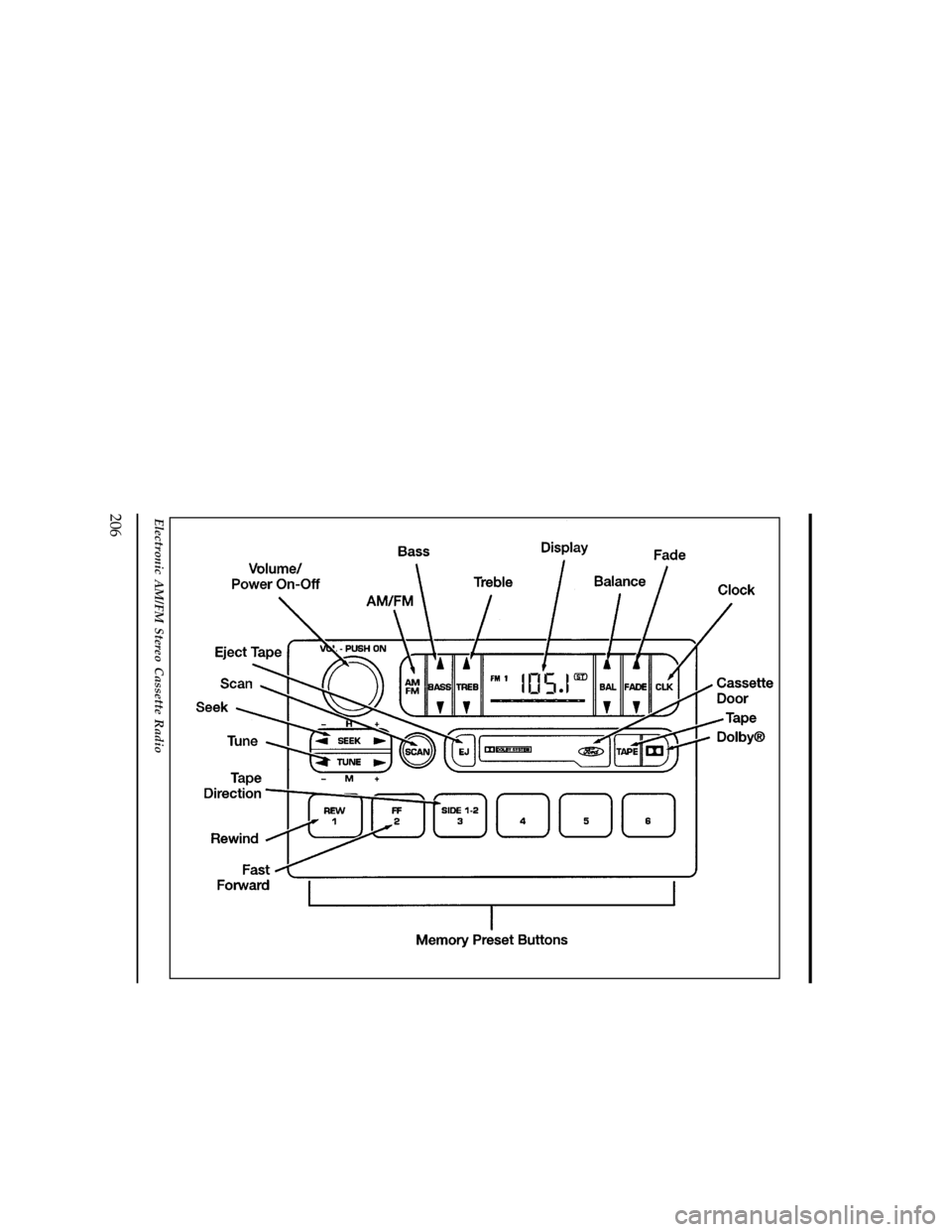

Electronic AM/FM Stereo Cassette Radio
File:10vxasn.ex
Update:Mon Jun 3 14:57:29 1996
Page 203 of 396
Electronic Sound Systems
207
[AS00860(ALL)06/95]
33-1/2 pica
art:0040309-A
Premium Sound Radio
File:10vxasn.ex
Update:Mon Jun 3 14:57:29 1996
Page 204 of 396
208
[AS00862(ALL)06/95]
33-1/2 pica
art:0040308-C

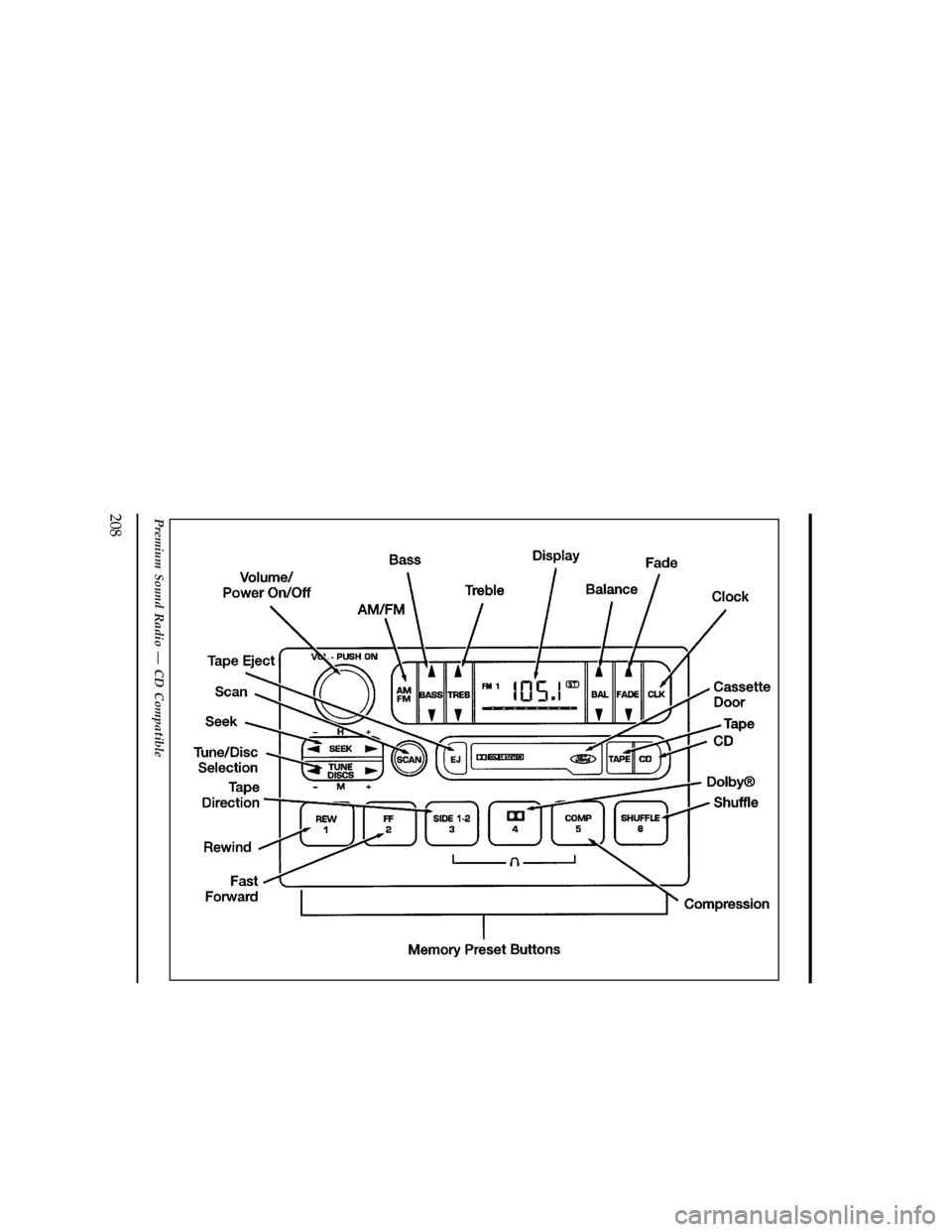

Premium Sound Radio Ð CD Compatible
File:10vxasn.ex
Update:Mon Jun 3 14:57:29 1996
Page 206 of 396
210
[AS00875(ALL)03/93]
Radio Controls
[AS00900(ALL)06/95]
NOTE: The antenna will be in the up position when the
radio is playing and in the down position when the
radio is off or if a cassette or CD (if equipped with
CD changer) is playing.
*
[AS01500(ALL)06/95]
How to turn the radio on and off
[AS01600(ALL)06/95]
Press the VOL-PUSH ON knob or the ªAM/FMº button to turn
on the radio. Press the ªVOL-PUSH ONº knob again to turn it
off.
*
[AS01625(ALL)06/95]
How to adjust the volume
[AS01650(ALL)06/95]
Turn the ªVOL-PUSH ONº knob to increase/decrease volume.
Bars illuminate in the display to show the relative volume level.
*
[AS01675(ALL)06/95]
NOTE: If the volume level is set above a certain listening
level when the ignition switch is turned off, when the
ignition switch is turned back on, the volume will
come back to a ªnominalº listening level. However, if
the radio power is turned off, the volume will remain
in the position it was set at when radio power is
switched back on.
*
[AS01700(ALL)06/95]
Selecting the AM or FM frequency band
[AS01800(ALL)06/95]
Push the ªAM/FMº button to select the desired frequency band.
When in the radio mode, pushing the button more than once
will alternate between AM, FM1 and FM2. These functions are
used with the station memory buttons described underHow to
tune radio stations.
%*
[AS01900(ALL)05/95]
How to tune radio stations
[AS02000(ALL)06/95]
There are four ways for you to tune in to a particular station on
the radio. You can manually locate the station by using the
ªTUNEº function, ªSEEKº to the station, ªSCANº to the station
or select the station by using the memory buttons, which you
can set to any desired frequency.
