tire size Mercury Villager 1996 Owner's Manuals

Driving Your Villager
243
*
[DR13100(ALL)05/94]
Do not tow a trailer until your vehicle has been driven at least
500 miles (800 km).
*
[DR13700(ALL)01/93]
Vehicle Loading Information
*
[DR13800(ALL)04/95]
Your vehicle's load capacity is designated by weight, not
volume, so you cannot necessarily use all the available space.
Maximum safe vehicle weights as well as tire sizes, rim sizes
and inflation pressures are specified for your vehicle at the
assembly plant on the Safety Compliance Certification Label.
The certification label is located on the pillar in the driver's
door opening.
*
[DR13900(ALL)01/93]
Each additional item of equipment affects how much cargo a
vehicle can carry. If a vehicle is overloaded, performance will
suffer and service concerns may arise.
*
[DR14000(ALL)04/95]

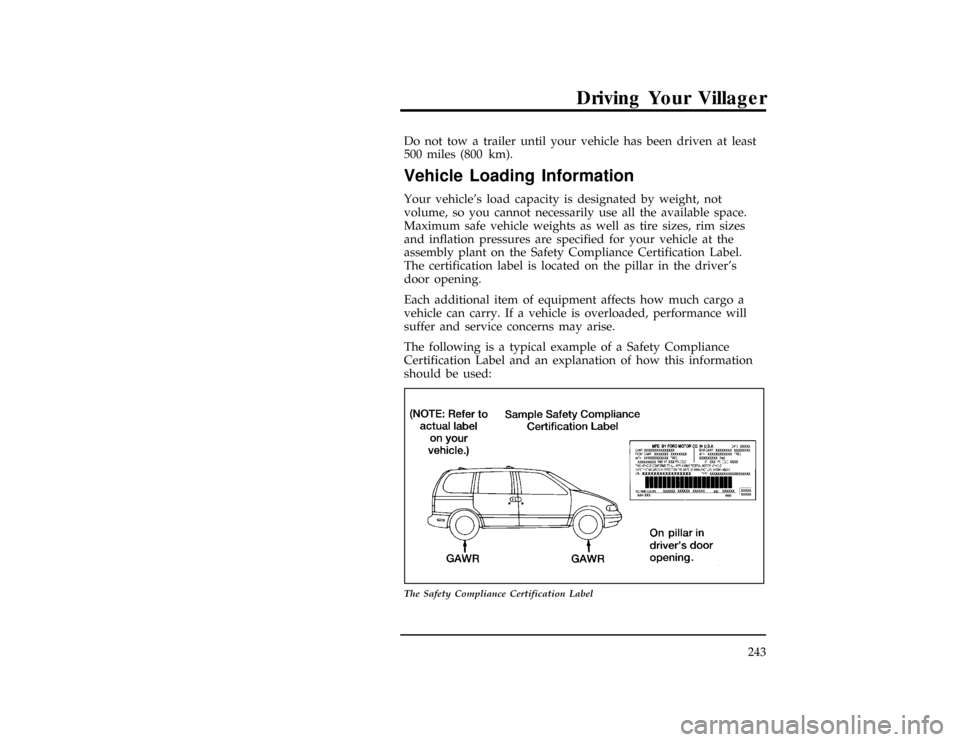

The following is a typical example of a Safety Compliance
Certification Label and an explanation of how this information
should be used:
[DR14100(ALL)09/93]
13-1/2 pica
art:0040166-D
The Safety Compliance Certification Label
File:11vxdrn.ex
Update:Tue Jun 4 11:42:50 1996

260
*
[RE04000(ALL)03/95]
The Temporary Spare Tire
*
[RE04100(ALL)03/94]
Your vehicle has a temporary spare tire (unless you ordered the
optional full-size spare tire). This spare tire is smaller than a
regular tire and is designed for emergency use only. Use it only
when you get a flat tire and replace it as soon as you can. This
spare tire is marked with the words TEMPORARY USE ONLY
so that you can easily identify it.
*
[RE04200(ALL)01/93]
RWARNING
If you use the temporary spare tire continuously or do
not follow these precautions, the tire could fail, causing
you to lose control of the vehicle, possibly injuring
yourself or others.
*
[RE04300(ALL)02/95]
When you drive with the temporary spare tire, DO NOT:
*
[RE04500(ALL)02/95]
n
exceed 50 mph (80 km/h) under any circumstances
*
[RE04600(ALL)01/93]
n
load your vehicle so that it is heavier than the maximum
vehicle load rating listed on the tire decal
*
[RE04700(ALL)01/93]
n
tow a trailer
*
[RE04800(ALL)01/93]
n
use tire chains
*
[RE04900(ALL)01/93]
n
try to repair the temporary spare tire or remove it from its
wheel
*
[RE05000(ALL)01/93]
n
use the wheel for any other type of vehicle
*
[RE05100(ALL)01/93]
n
drive through an automatic car wash. Because the temporary
spare tire is smaller than a conventional tire, it reduces the
ground clearance. Your vehicle may get caught in the rails
and it could be damaged.
File:12vxren.ex
Update:Tue Jun 4 11:42:14 1996

ServicingYou rVillager
325
WARNING
Whe nreplacin gful lsiz etires ,neve rmi xradial,
WARNING
Mak esur etha tal lreplacemen ttire sar e of th esam esize,
WARNING
Failur eto follo wthes eprecaution sma yadversel yaffect

328
WARNING
Whenusin gsno wtires ,mak esur ethe yare th esam esize
