MITSUBISHI ASX 2018 Owner's Manual (in English)

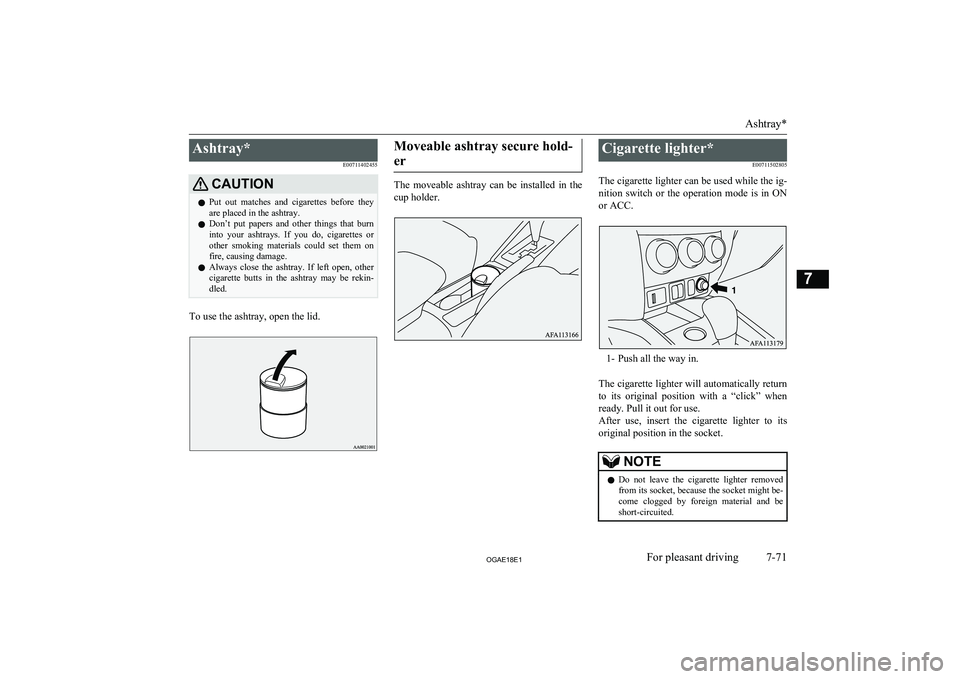

Ashtray*E00711402455CAUTIONlPut out matches and cigarettes before they
are placed in the ashtray.
l Don’t put papers and other things that burn
into your ashtrays. If you do, cigarettes or
other smoking materials could set them on fire, causing damage.
l Always close the ashtray. If left open, other
cigarette butts in the ashtray may be rekin-
dled.
To use the ashtray, open the lid.
Moveable ashtray secure hold-
er
The moveable ashtray can be installed in the
cup holder.
Cigarette lighter*
E00711502805
The cigarette lighter can be used while the ig- nition switch or the operation mode is in ON or ACC.
1- Push all the way in.
The cigarette lighter will automatically return to its original position with a “click” when ready. Pull it out for use.
After use, insert the cigarette lighter to its
original position in the socket.
NOTEl Do not leave the cigarette lighter removed
from its socket, because the socket might be- come clogged by foreign material and be
short-circuited.
Ashtray*
7-71OGAE18E1For pleasant driving7

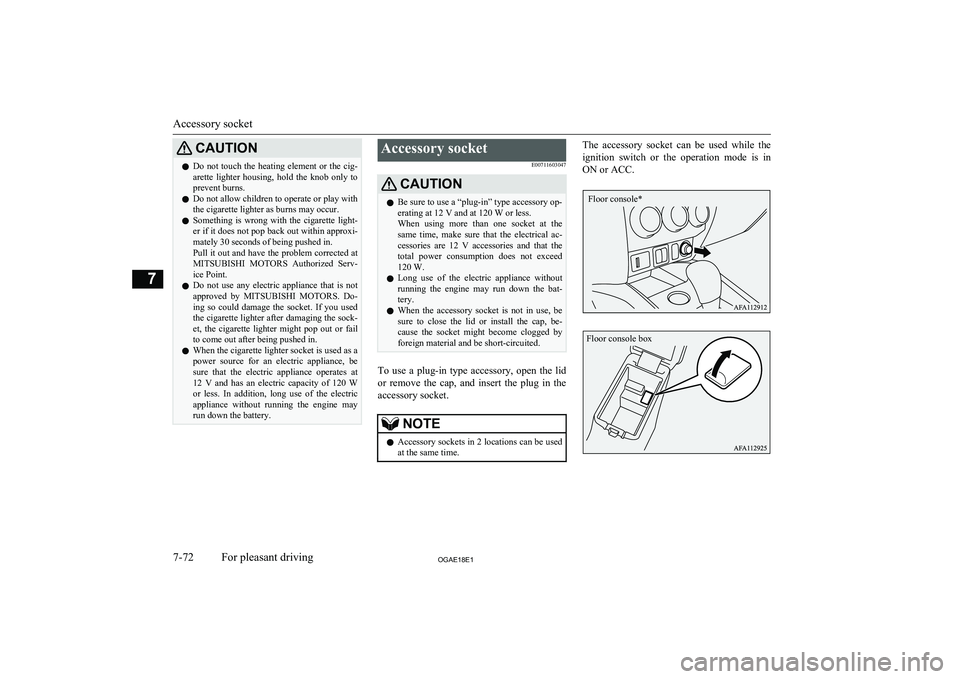

CAUTIONlDo not touch the heating element or the cig-
arette lighter housing, hold the knob only to prevent burns.
l Do not allow children to operate or play with
the cigarette lighter as burns may occur.
l Something is wrong with the cigarette light-
er if it does not pop back out within approxi-
mately 30 seconds of being pushed in.
Pull it out and have the problem corrected at MITSUBISHI MOTORS Authorized Serv-
ice Point.
l Do not use any electric appliance that is not
approved by MITSUBISHI MOTORS . Do-
ing so could damage the socket. If you used
the cigarette lighter after damaging the sock- et, the cigarette lighter might pop out or fail
to come out after being pushed in.
l When the cigarette lighter socket is used as a
power source for an electric appliance, be sure that the electric appliance operates at
12 V and has an electric capacity of 120 W or less. In addition, long use of the electricappliance without running the engine may
run down the battery.Accessory socket
E00711603047CAUTIONlBe sure to use a “plug-in” type accessory op-
erating at 12 V and at 120 W or less.
When using more than one socket at the same time, make sure that the electrical ac-
cessories are 12 V accessories and that the total power consumption does not exceed
120 W.
l Long use of the electric appliance without
running the engine may run down the bat-
tery.
l When the accessory socket is not in use, be
sure to close the lid or install the cap, be-
cause the socket might become clogged by foreign material and be short-circuited.
To use a plug-in type accessory, open the lid
or remove the cap, and insert the plug in the accessory socket.
NOTEl Accessory sockets in 2 locations can be used
at the same time.The accessory socket can be used while the
ignition switch or the operation mode is in
ON or ACC.
Accessory socket
7-72OGAE18E1For pleasant driving7 Floor console* Floor console box

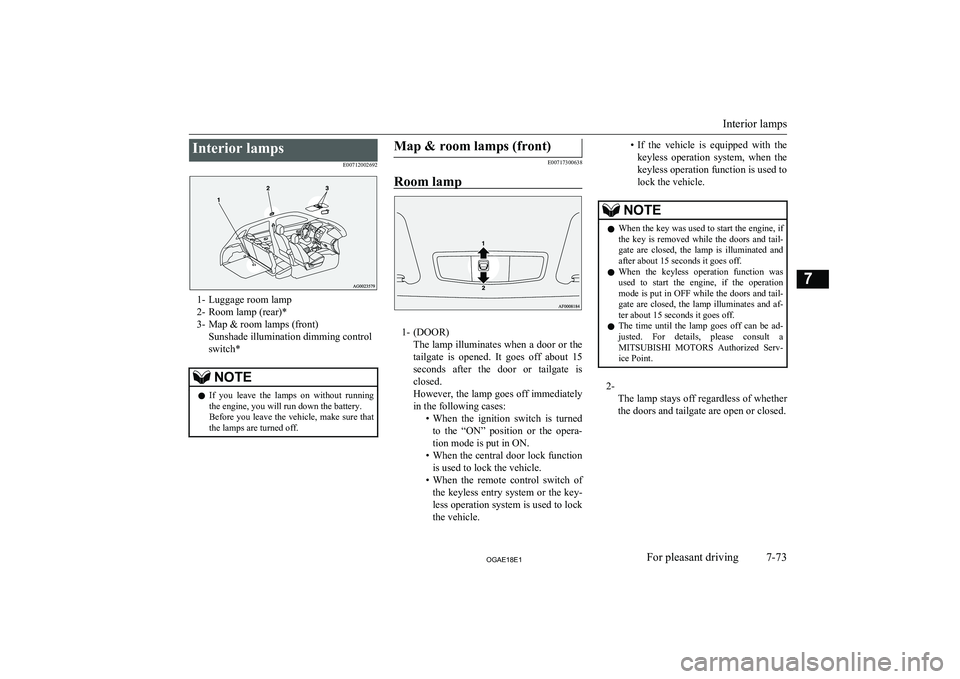

Interior lampsE00712002692
1- Luggage room lamp
2- Room lamp (rear)*
3- Map & room lamps (front) Sunshade illumination dimming control
switch*
NOTEl If you leave the lamps on without running
the engine, you will run down the battery.
Before you leave the vehicle, make sure that
the lamps are turned off.Map & room lamps (front)
E00717300638
Room lamp
1- (DOOR) The lamp illuminates when a door or the
tailgate is opened. It goes off about 15
seconds after the door or tailgate is
closed.
However, the lamp goes off immediately in the following cases: •When the ignition switch is turned
to the “ON” position or the opera-
tion mode is put in ON.
• When the central door lock function
is used to lock the vehicle.
• When the remote control switch of
the keyless entry system or the key-
less operation system is used to lock the vehicle.
• If the vehicle is equipped with the
keyless operation system, when the keyless operation function is used to
lock the vehicle.NOTEl When the key was used to start the engine, if
the key is removed while the doors and tail- gate are closed, the lamp is illuminated and after about 15 seconds it goes off.
l When the keyless operation function was
used to start the engine, if the operation mode is put in OFF while the doors and tail-
gate are closed, the lamp illuminates and af- ter about 15 seconds it goes off.
l The time until the lamp goes off can be ad-
justed. For details, please consult a
MITSUBISHI MOTORS Authorized Serv-
ice Point.
2-
The lamp stays off regardless of whether
the doors and tailgate are open or closed.
Interior lamps
7-73OGAE18E1For pleasant driving7

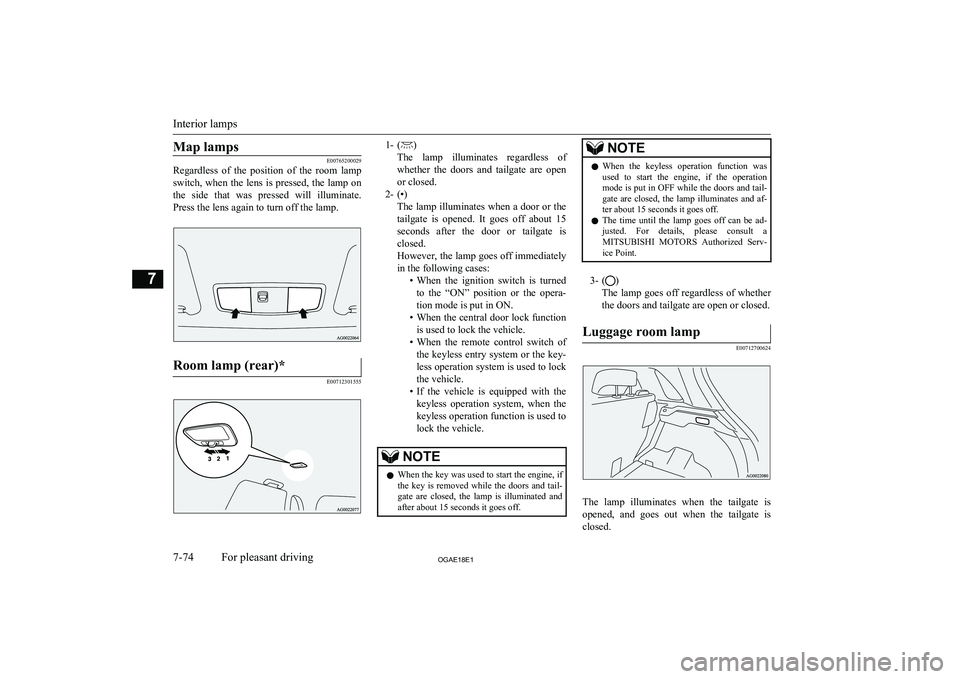

Map lamps
E00765200029
Regardless of the position of the room lamp
switch, when the lens is pressed, the lamp on the side that was pressed will illuminate.Press the lens again to turn off the lamp.
Room lamp (rear)*
E00712301555
1- ()
The lamp illuminates regardless of whether the doors and tailgate are open
or closed.
2- (•) The lamp illuminates when a door or thetailgate is opened. It goes off about 15
seconds after the door or tailgate is
closed.
However, the lamp goes off immediately in the following cases: •When the ignition switch is turned
to the “ON” position or the opera-
tion mode is put in ON.
• When the central door lock function
is used to lock the vehicle.
• When the remote control switch of
the keyless entry system or the key- less operation system is used to lock
the vehicle.
• If the vehicle is equipped with the
keyless operation system, when the
keyless operation function is used to
lock the vehicle.NOTEl When the key was used to start the engine, if
the key is removed while the doors and tail- gate are closed, the lamp is illuminated and after about 15 seconds it goes off.NOTEl When the keyless operation function was
used to start the engine, if the operation
mode is put in OFF while the doors and tail- gate are closed, the lamp illuminates and af-ter about 15 seconds it goes off.
l The time until the lamp goes off can be ad-
justed. For details, please consult a MITSUBISHI MOTORS Authorized Serv-
ice Point.
3- ()
The lamp goes off regardless of whether
the doors and tailgate are open or closed.
Luggage room lamp
E00712700624
The lamp illuminates when the tailgate is opened, and goes out when the tailgate is
closed.
Interior lamps
7-74OGAE18E1For pleasant driving7

Sunshade illumination dim-ming control switch*
E00765000030
The brightness of the sunshade illumination
can be adjusted to 3 different levels when the ignition switch or the operation mode is in
ON or ACC.
Each time you press the switch, the bright-
ness switches in sequence from high → mid-
dle → low → off → high.
NOTEl The brightness can be adjusted even when
the ignition switch is in the “LOCK” posi-
tion or the operation mode is in OFF, provi- ded that the sunshade illumination is turned
on.Sunshade illumination*
E00765100060
The sunshade illumination turns on when the
ignition switch or the operation mode is in
ON or ACC.
NOTEl The sunshade illumination does not turn on
if the sunshade illumination dimming con-
trol switch is off.
Refer to “Sunshade illumination dimming
control switch” on page 7-75.
When the sunshade illumination is turned on,
it will go off about 15 seconds after the fol-
lowing operation is performed.
l When the key was used to start the en-
gine, the key is removed while the doors
and tailgate are closed.
l For vehicles equipped with the keyless
operation system, the operation mode is
put in OFF while the engine is running and the doors and the tailgate are closed.NOTEl The time until the sunshade illumination
goes off can be adjusted. If it is adjusted, thetime until the room & map lamps go off is also adjusted automatically at the same time.
For details, consult a MITSUBISHI
MOTORS Authorized Service Point.
The sunshade illumination also turns on
when a door or the tailgate is opened, and
goes off 15 seconds after the door or the tail-
gate is closed, even when the engine switch is
in the “LOCK” position or the operation mode is in OFF.
However, the sunshade illumination immedi- ately goes off in the following cases:
l When the central door lock function is
used to lock the vehicle.
l When the remote control switch of the
keyless entry system or the keyless oper- ation system is used to lock the vehicle.
l If the vehicle is equipped with the key-
less operation system, when the keyless operation function is used to lock the ve-hicle.
Interior lamps
7-75OGAE18E1For pleasant driving7

NOTElThe sunshade illumination does not turn on
if the sunshade illumination dimming con-
trol switch is off.
l The time until the sunshade illumination
goes off can be adjusted. If it is adjusted, thetime until the room & map lamps go off is also adjusted automatically at the same time.
For details, consult a MITSUBISHI
MOTORS Authorized Service Point.Interior lamp *1
auto-cutout
function
E00712901359
*1 Interior lamps, including the room and
map lamps
l If any of the interior lamps are left
switched on with the ignition switch is in
the “LOCK” position or the operation
mode is in OFF, it goes off automatical- ly after approximately 30 minutes.
l The lamps will illuminate again after
they automatically go off if the ignition switch or the engine switch is operated, or if the keyless entry system or keylessoperation system is operated.
NOTEl The interior lamp auto cut-out function can
be deactivated. The time until the lamps au- tomatically go off can be adjusted. For de-
tails and support, consult your nearest MITSUBISHI MOTORS Authorized Serv-
ice Point.Storage spaces
E00713101664CAUTIONlNever leave lighters, cans of carbonated
drink, and spectacles in the cabin when park-ing the vehicle in hot sunshine. The cabin will become extremely hot, so lighters and
other flammable items may catch fire and unopened drink cans (including soft drink or
beer cans) may rupture. Also, spectacles with plastic lenses or materials could deform
or crack.
l Keep the lids of storage spaces closed while
driving the vehicle. A lid or the contents of a
storage space could otherwise cause injuries.NOTEl When leaving your vehicle, do not leave val-
uables in the storage spaces.
1- Luggage floor boxes
2- Floor console box
3- Glove box
Glove box
E00726200200
To open, pull the lever (A).
Storage spaces
7-76OGAE18E1For pleasant driving7

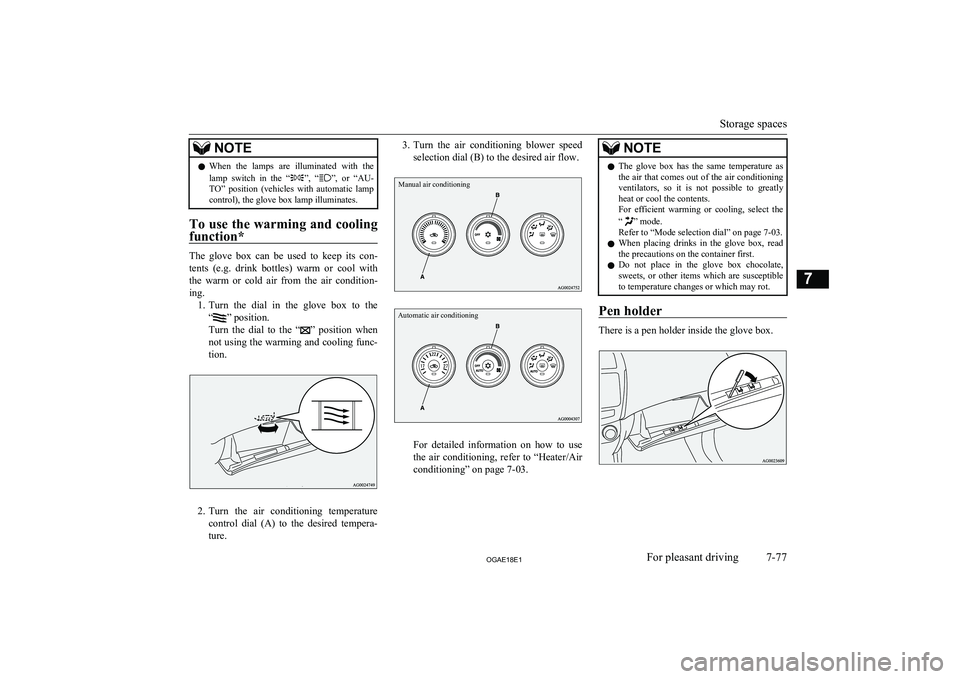

NOTElWhen the lamps are illuminated with the
lamp switch in the “”, “”, or “AU-
TO” position (vehicles with automatic lamp control), the glove box lamp illuminates.
To use the warming and cooling
function*
The glove box can be used to keep its con- tents (e.g. drink bottles) warm or cool with
the warm or cold air from the air condition- ing. 1. Turn the dial in the glove box to the
“
” position.
Turn the dial to the “
” position when
not using the warming and cooling func- tion.
2. Turn the air conditioning temperature
control dial (A) to the desired tempera- ture.
3. Turn the air conditioning blower speed
selection dial (B) to the desired air flow.Manual air conditioningAutomatic air conditioning
For detailed information on how to use
the air conditioning, refer to “Heater/Air
conditioning” on page 7-03.
NOTEl The glove box has the same temperature as
the air that comes out of the air conditioningventilators, so it is not possible to greatly heat or cool the contents.
For efficient warming or cooling, select the
“
” mode.
Refer to “Mode selection dial” on page 7-03.
l When placing drinks in the glove box, read
the precautions on the container first.
l Do not place in the glove box chocolate,
sweets, or other items which are susceptible
to temperature changes or which may rot.
Pen holder
There is a pen holder inside the glove box.
Storage spaces
7-77OGAE18E1For pleasant driving7

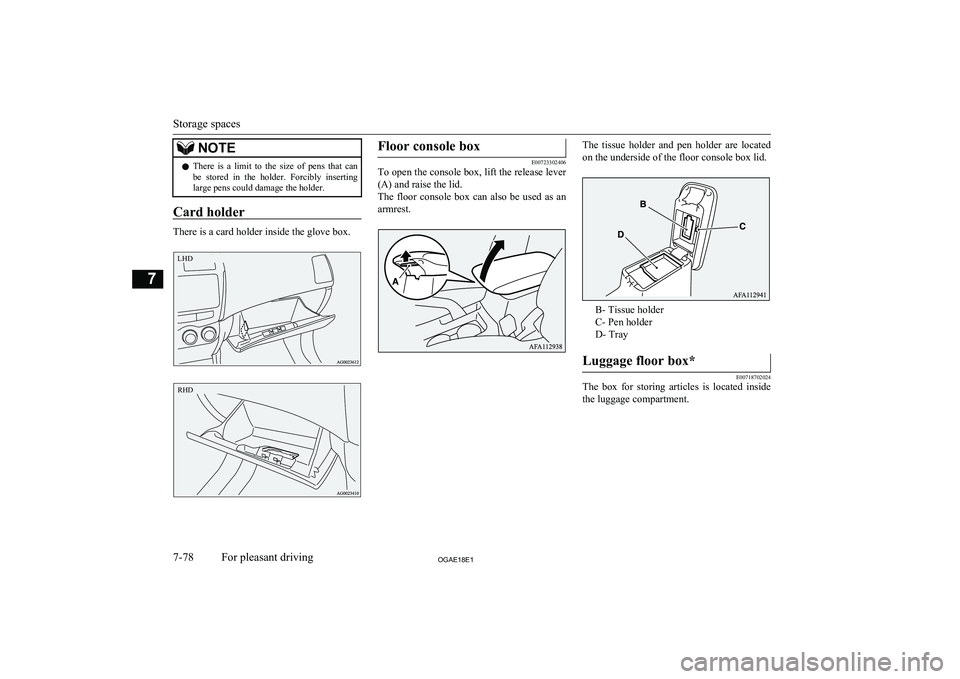

NOTElThere is a limit to the size of pens that can
be stored in the holder. Forcibly inserting large pens could damage the holder.
Card holder
There is a card holder inside the glove box.
Floor console box
E00723302406
To open the console box, lift the release lever
(A) and raise the lid.
The floor console box can also be used as an
armrest.
The tissue holder and pen holder are located on the underside of the floor console box lid.
B- Tissue holder
C- Pen holder
D- Tray
Luggage floor box*
E00718702024
The box for storing articles is located inside the luggage compartment.
Storage spaces
7-78OGAE18E1For pleasant driving7 LHD RHD

To use the box, raise the luggage floor board.Cup holderE00714502561WARNINGlDo not spray water or spill beverages in-
side the vehicle. If the switches, wires or electrical components become wet, they
could malfunction or cause a vehicle fire.
If you accidentally spill a beverage, wipe up as much liquid as possible and imme-
diately consult a MITSUBISHI MOTORS
Authorized Service Point.CAUTIONl Do not drink beverages while driving. This
is distracting and could cause an accident.For the front seat
The cup holders are located in front of the
floor console box.
For the rear seat*
E00716901575
In order to use the cup holder, allow the arm-
rest (A) to drop down.
Refer to “Armrest” on page 4-06.
Bottle holder
E00718201501WARNINGlDo not spray water or spill beverages in-
side the vehicle. If the switches, wires or
electrical components become wet, they could malfunction or cause a vehicle fire.If you accidentally spill a beverage, wipe
up as much liquid as possible and imme- diately consult a MITSUBISHI MOTORS
Authorized Service Point.CAUTIONl Do not drink beverages while driving. This
is distracting and could cause an accident.
l Drinks could be spilled by the vibration and
jolts while driving. If the spilt drink is very
hot, you could be burnt.
There are bottle holders located on the front
doors.
Cup holder
7-79OGAE18E1For pleasant driving7

NOTElTightly close the cap on drink bottles before
storing them.
l Some bottles may be too big or the wrong
shape to fit in the holder.Rear shelf panel*
E00715401212CAUTIONlDo not place luggage or other items on the
rear shelf panel. Any items on the rear shelf
panel would obstruct your rearward view, and they could fly forward and cause inju-
ries or other mishap in the event of hard
braking.
To install
1. Insert the concave portion (A) on the un-
derside of the rear shelf panel into the inside protruding portion (B) of the tail-
gate.
CAUTIONl Lightly push the rear shelf panel to make
sure that the concave portion (A) is set firm-ly in the protruding portion (B) of the tail- gate. If the rear shelf panel is not securely
locked in place, it could unhook while driv- ing and cause injuries.
2. Hang the strap (C) of the rear shelf panel
on the hook (D).
To remove
Follow this procedure in reverse to remove.
Assist grips
E00732800256
The assist grips (located above the doors onthe headliner) are not designed to support
body weight. They are intended for use only while seated in the vehicle.
CAUTIONl Do not use the assist grips when getting into
or out of the vehicle. The assist grips could
detach causing you to fall.
Rear shelf panel*
7-80OGAE18E1For pleasant driving7
