Overview
Instruments and controls (Driver’s area)
N00100201114
Combination headlights and
dimmer switch P.3-127
Turn signal lever P.3-131
Supplemental restraint system
- air bag (for driver’s seat)
P. 2 - 3 6
Horn switch P.3-138
Electric remote-controlled
outside mirror switch
P.3-59
Front fog light switch
(if so equipped)
P. 3 - 1 3 3Steering wheel audio
remote control switch
(if so equipped) P.5-65 Instrument cluster P.3-106
Cruise control lever
P. 3 - 9 1 Ignition switch P.3-61 Wiper and washer
switch P.3-134
Fuses P.7-38
ASC off switch (if so equipped) P.3-87 Engine hood release lever
P. 7 - 4Steering wheel tilt lock
lever P.3-55
Front fog light switch
(if so equipped)
P. 3 - 1 3 3 Headlights leveling switch
(if so equipped) P.3-130
ASC off switch
(if so equipped) P.3-87
BK0098300US.book 1 ページ ２００８年１２月８日　月曜日　午前１１時３７分

1-8 General information
1
Important point!Due to the large number of accessory and replacement parts
provided by different manufacturers in the market, it is not
always possible for an authorized Mitsubishi Motors dealer to
check whether the attachment or installation of non-Mitsubishi
Motors genuine parts will affect the driving safety of your Mit-
subishi-vehicle.
Modification/alterations to the electrical or fuel
systems
N00301800040
Mitsubishi Motors manufactures high quality vehicles with an
emphasis on safety. It is important that any accessory that is to
be fitted, or any modifications carried out which involve the
electrical or fuel systems, should be carried out in accordance
with Mitsubishi Motors guidelines.
WA R N I N G
!
If you choose to use a cellular phone while driving,
you must not allow that usage to distract you in the
safe operation of your vehicle. Anything, including
cellular phone usage, that distracts you from the
safe operation of your vehicle increases your risk of
an accident.
Refer to and follow all state and local laws in your
area regarding cellular phone usage while driving.
CAUTION
!
Please consult an authorized Mitsubishi Motors
dealer concerning any such accessory fitment or
modification.
If the wires interfere with the vehicle body or
improper installation methods are used (protective
fuses not included, etc.), electronic devices may be
adversely affected, resulting in a fire or other acci-
dent.
BK0098300US.book 8 ページ ２００８年１２月８日　月曜日　午前１１時３７分

3-132 Features and controls
3
NOTE
A light in the instrument panel flashes to show when the
front and rear turn signal lights are working properly.
If this light flashes faster than usual, check for a burned
out lamp bulb or malfunctioning connection.
If the panel light does not come on when the lever is
moved, check for a blown fuse or a burned out bulb in the
panel.
Have the vehicle inspected by an authorized Mitsubishi
Motors dealer or a repair facility of your choice.
Hazard warning flasher switch
N00522700246
If you press the flasher switch, the front and rear turn signals
will flash intermittently, and so will the hazard warning lights.
This is an emergency warning system and should not be used
when the vehicle is in motion, except for emergencies.
If you need to leave your vehicle, the flashers will keep work-
ing after the ignition key is removed. NOTE
If you keep the flashers on for several hours with the
engine turned off, the battery will run down.
BK0098300US.book 132 ページ ２００８年１２月８日　月曜日　午前１１時３７分

3-140 Features and controls
3
Instrument panel control switch
N00547000019
PHONE button
Press the PHONE button (1) to answer an incoming call.

When another call is received during a call, press the
PHONE button to put the first caller on hold and talk to
the new caller.
• Lightly press the PHONE button to switch between call-
ers.
• To establish a three-way call in such situations, press the
SPEECH button to enter voice recognition mode and
then say “Join Calls.”

Press and hold the PHONE button when an incoming call
is received to refuse the call.

Press and hold the PHONE button during a call to end the
current call.
When another call is on hold or there is an incoming call,
you will switch to that call.SPEECH button
Press the SPEECH button (2) to change to voice recogni-
tion mode.

Lightly press the SPEECH button during a call or while in
voice recognition mode to interrupt system prompting.
Then you can give a voice command.
Press and hold the SPEECH button to exit the voice rec-
ognition mode.
1- PHONE button
2- SPEECH button
BK0098300US.book 140 ページ ２００８年１２月８日　月曜日　午前１１時３７分

7
Vehicle care and maintenance
Service precautions . . . . . . . . . . . . . . . . . . . . . . . .7- 2
Catalytic converter . . . . . . . . . . . . . . . . . . . . . . . . .7- 3
Engine hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 4
View of the engine compartment . . . . . . . . . . . . . .7- 6
Engine oil and oil filter . . . . . . . . . . . . . . . . . . . . .7- 7
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 10
Air cleaner filter . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 11
Automatic transaxle fluid (if so equipped) . . . . . .7- 12
Manual transaxle oil (if so equipped) . . . . . . . . . .7- 14
Washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 14
Brake fluid/Clutch fluid (if so equipped) . . . . . . . .7- 15
Power steering fluid . . . . . . . . . . . . . . . . . . . . . . . .7- 16
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 16
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 20
Clutch pedal free play (if so equipped) . . . . . . . . .7- 29
Brake pedal free play . . . . . . . . . . . . . . . . . . . . . . .7- 30
Parking brake lever stroke . . . . . . . . . . . . . . . . . . .7- 30
Wiper blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 31
Emission-control system maintenance. . . . . . . . . .7- 31
General maintenance . . . . . . . . . . . . . . . . . . . . . . .7- 33
For cold and snowy weather . . . . . . . . . . . . . . . . .7- 37Fuse links. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7- 37
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7- 38
Replacement of light bulbs . . . . . . . . . . . . . . . . . . 7- 47
Vehicle care precautions . . . . . . . . . . . . . . . . . . . . 7- 71
Cleaning the inside of your vehicle . . . . . . . . . . . . 7- 72
Cleaning the outside of your vehicle . . . . . . . . . . . 7- 73
BK0098300US.book 1 ページ ２００８年１２月８日　月曜日　午前１１時３７分

Vehicle care and maintenance
7-37
7 For cold and snowy weather
N00942600115
Ventilation slotsThe ventilation slots in front of the windshield should be kept
clear of leaves or brushed clear after a heavy snowfall, so that
the operation of the heating and ventilation systems will not be
impaired.WeatherstrippingTo prevent freezing of the weatherstripping on the doors,
engine hood, etc., they should be treated with silicone grease.Additional equipment (For regions where snow is
encountered)It is a good idea to carry a shovel or a short-handled spade in
the vehicle during the winter so that you can clear away snow
if you get stranded. A small hand-brush for sweeping snow off
the vehicle and a plastic scraper for the windshield, side and
rear window are also useful.
Fuse links
N00942700099
The fuse links will melt to prevent a fire if a large current
attempts to flow through certain electrical systems.
In case of a melted fuse link, see your authorized Mitsubishi
Motors dealer or a repair facility of your choice for inspection
and replacement.
BK0098300US.book 37 ページ ２００８年１２月８日　月曜日　午前１１時３７分

7-38 Vehicle care and maintenance
7Fuses
N00942800263
Fuse block location
N00901000064
To prevent damage to the electrical system from short-circuit-
ing or overloading, each individual circuit is equipped with a
fuse. The fuse blocks are located in the passenger compartment
and in the engine compartment. Passenger compartmentThe fuse block in the passenger compartment is located in front
of the driver’s seat at the position shown in the illustration.
Engine compartmentIn the engine compartment, the fuse block is located as shown
in the illustration. A- Type A
B- Type B (ECLIPSE SPYDER only)
C- Type C (2.4 liter models only)
BK0098300US.book 38 ページ ２００８年１２月８日　月曜日　午前１１時３７分

Vehicle care and maintenance
7-39
7

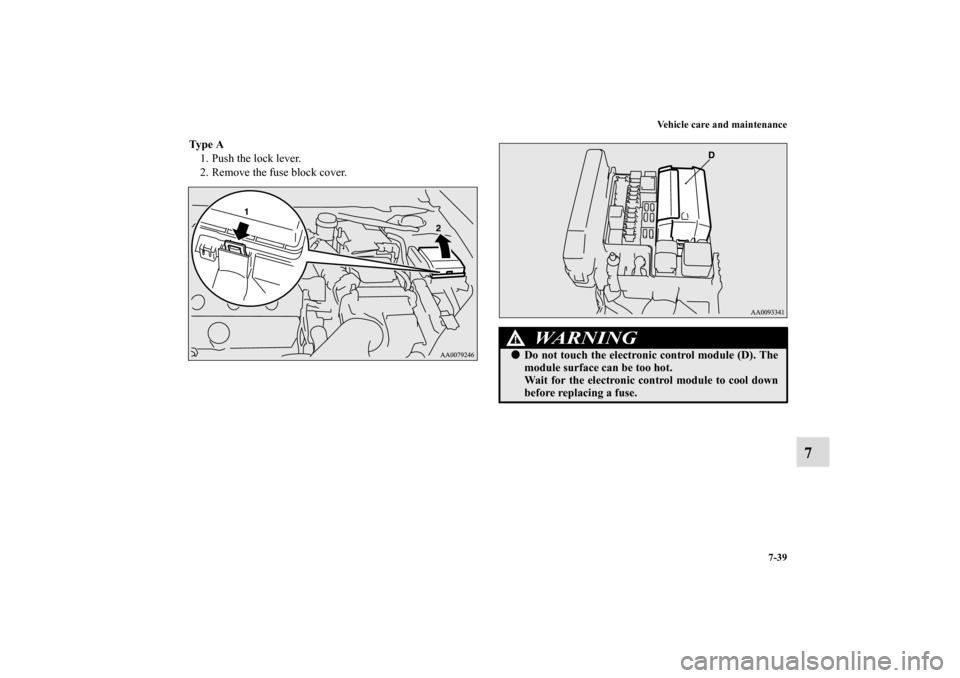

Ty p e A
1. Push the lock lever.
2. Remove the fuse block cover.
WA R N I N G
!
Do not touch the electronic control module (D). The
module surface can be too hot.
Wait for the electronic control module to cool down
before replacing a fuse.
BK0098300US.book 39 ページ ２００８年１２月８日　月曜日　午前１１時３７分

7-40 Vehicle care and maintenance
7
Type B (ECLIPSE SPYDER only)
1. Pull the lock lever.
2. Open the cover.Type C (2.4 liter models only)
1. Push the lock lever.
2. Remove the relay box cover.
Fuse load capacities
N00954800084
This fuse list shows the names of the electrical systems and
their fuse capacities.
There are spare fuses in the cover of the instrument panel
(driver’s side). Always replace a blown fuse with one of the
same capacity as the original. *- Front of the vehicle
BK0098300US.book 40 ページ ２００８年１２月８日　月曜日　午前１１時３７分

Vehicle care and maintenance
7-41
7
Passenger compartment fuse location tablePassenger compartment fuse location
No.
Symbol
Electrical system
Capacity
1 Ignition coil 10 A
2 Gauge 7.5 A
3 Back-up lights 7.5 A
4 Electric convertible top 7.5 A
5 Relay 7.5 A
6 Door mirror heater 7.5 A
7— — —
8 Engine control 7.5 A
9— — —
10 — — —
11 Outside rearview mirrors 7.5 A
12 Engine control 7.5 A
13 — — —
14 Rear window wiper 15 A
15 Power door locks 15 A
16 Power outlet 15 A
17 — — —
18 — — —
19 Heater 30 A
20 Rear window defogger 30 A
BK0098300US.book 41 ページ ２００８年１２月８日　月曜日　午前１１時３７分
