stop start MITSUBISHI ECLIPSE 2011 4.G Owner's Manual

5-38 Comfort controls
5
To find the start of each track on a disc for playbackPress the SCAN button (9). “SCAN” will appear on the display
and the player will play back the first 10 seconds of each track
on the selected disc.
The track number will blink while the scan mode is selected.
To exit the scan mode, press the SCAN button again.NOTE
Once all tracks on the disc have been scanned, playback
of the disc will restart from the beginning of the track that
was playing when scanning started.

The scan mode will be canceled when radio or CD opera-
tion is selected.

With a disc that contains both CD-DA and MP3 files, the
scan mode causes only files of the same format (CD-DA
only or MP3 files only) to be played.To eject a discWhen the CD eject button (2) is pressed, the disc automatically
stops and is ejected. The system automatically switches to
radio mode.BK0115900US.book 38 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Comfort controls
5-57
5
To listen to a CD
N00735500905
1. Press the CD button (6) and the CD mode will be selected,
starting a playback.NOTE
As many as 6 CDs can be inserted into the CD
autochanger.
2. To adjust the volume and tone, refer to “To adjust the vol-
ume” on page 5-40 and “To adjust the tone” on page 5-41.
3. To stop the CD, turn off the power by pressing the PWR
switch (1) or switch to the other mode by pressing the
RADIO button (5).NOTE
For information concerning the handling of the compact
discs, refer to “Handling of compact discs” on page 5-71.
To s e t a d i s cThe indicator light (A) shows the condition of each CD slot.
To set a disc:
1. Press the LOAD/EJECT button (2).
2. Press one of the Disc select buttons (4) to select the CD
which you wish to insert.
3. If there is already a CD loaded in the slot, the CD is auto-
matically ejected. If there is no CD, insert the CD in the
slot (3) after the READY light (B) illuminates.Light off: No disc
Amber: CD is set
Green: CD is played (or selected)
BK0115900US.book 57 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Comfort controls
5-73
5

Do not put additional labels (A) or stickers (B) on com-
pact discs. Also, do not use any compact disc on which a
label or sticker has started to peel off or any compact disc
that has stickiness or other contamination left by a peeled-
off label or sticker. If you use such a compact disc, the CD
player may stop working properly and you may not be
able to eject the compact disc.
Notes on CD-Rs/RWs
N00751900024

You may have trouble playing back some CD-R/RW discs
recorded on CD recorders (CD-R/RW drives), either due
to their recording characteristics or dirt, fingerprints,
scratches, etc. on the disc surface.

CD-R/RW discs are less resistant to high temperatures and
high humidity than ordinary music CDs. Leaving them
inside a vehicle for extended periods may damage them
and make playback impossible.

The unit may not successfully play back a CD-R/RW that
was made by the combination of writing software, a CD
recorder (CD-R/RW drive) and a disc if they are incom-
patible with one another.

This player cannot play the CD-R/RW discs if the session
is not closed.

This player cannot play CD-R/RW discs which contain
other than CD-DA or MP3 data (Video CD, etc.).

Be sure to observe the handling instructions for the CD-
R/RW disc.
WA R N I N G
!
Operating the CD player in a manner other than
specifically instructed herein may result in hazard-
ous radiation exposure.
Do not remove the cover and attempt to repair the
CD player by yourself. There are no user serviceable
parts inside. In case of malfunction, contact an
authorized Mitsubishi Motors dealer.
BK0115900US.book 73 ページ ２００９年１０月２７日　火曜日　午後１２時１分

6-2 For emergencies
6If the vehicle breaks down
N00836300073
If your vehicle breaks down on the road, move to the shoulder
and turn on the hazard warning flashers. If there is no shoulder,
or the shoulder is not safe, drive in the right lane slowly, with
the hazard lights flashing, until you come to a safe stopping
place. Keep the flashers flashing. If the engine stops/fails If the engine stops, there will be no power assist to the steering
and brakes, making these difficult to use.

The brake booster will not work, so the brakes will not
grip well. The brake pedal will be harder to press than
usual.

Since there is no power steering assist, the steering wheel
will be hard to turn. Turning the steering wheel requires
more effort than usual. When the engine fails at the intersection Get help from your passengers, bystanders, etc. to push the
vehicle and move it to a safe zone.
Jump-starting the engine
N00836400638
If the engine cannot be started because the battery is weak or
dead, you can start it with the battery from another vehicle
using jumper cables.
1. Take off any metal jewelry such as watch bands or brace-
lets that might make an accidental electrical contact.
2. Position the vehicles close enough together so that the
jumper cables can reach, but be sure the vehicles aren’t
touching each other.
WA R N I N G
!
When using jumper cables to start a vehicle, follow
the procedures and be very cautious.
CAUTION
!
Do not try to start your vehicle by pushing or tow-
ing. Vehicles with automatic transaxles cannot be
started this way. Pushing or towing a vehicle that
has a manual transaxle may overheat and damage
the catalytic converter. Also, there is more risk of an
accident when a vehicle is being pushed or towed.
CAUTION
!
Check the other vehicle. It must have a 12-volt bat-
tery. If the other system isn’t 12-volt, both systems
can be damaged.
BK0115900US.book 2 ページ ２００９年１０月２７日　火曜日　午後１２時１分

6-6 For emergencies
6Engine overheating
N00836500222
If the engine coolant temperature gauge indicator moves to the
“H” (hot) position (red zone), the engine may be overheated. If
this happens:
1. Stop the vehicle in a safe place. Turn on the hazard warn-
ing flashers.
2. With the engine still running, carefully raise the engine
hood to vent the engine compartment.
3. Check that the cooling fan is running. If the fan is not
turning, stop the engine immediately and contact an
authorized Mitsubishi Motors dealer or a repair facility of
your choice for assistance.
4. If you see steam or spray coming from under the hood,
turn off the engine.5. If you do not see steam or spray coming from under the
hood, leave the engine on until the temperature indicator
on the instrument panel moves below the red zone. When
it is in the middle of the normal zone, you can start driving
again. If the indicator stays in the red zone, turn off the
engine.
WA R N I N G
!
To avoid personal injury, keep hands, hair, jewelry
and clothes away from the cooling fan. The cooling
fan can start at any time.
WA R N I N G
!
Before raising the engine hood, check to see if there
is steam or spray coming from under the hood.
Steam or spray coming from an overheated engine
could seriously scald you.
Do not open the hood until there is no steam or
spray.
BK0115900US.book 6 ページ ２００９年１０月２７日　火曜日　午後１２時１分

For emergencies
6-15
6
4. Insert the bar (D) into the wheel nut wrench (E). Then put
the end of the bar into the shaft’s jack end, as shown in the
illustration.
Slowly rotate the wheel nut wrench until the tire is raised
slightly off the ground surface.
5. Remove the wheel nuts with the wheel nut wrench, then
take the wheel off.
WA R N I N G
!
Stop jacking up the vehicle as soon as the tire is
raised off the ground. It is dangerous to raise the
vehicle any higher.
Do not get under your vehicle while using the jack.
Do not bump the raised vehicle or leave it sitting on
the jack for a long time. Both are very dangerous.
Do not use a jack except the one that came with your
vehicle.
The jack should not be used for any purpose other
than to change a tire.

No one should be in your vehicle when using the
jack.
Do not start or run the engine while your vehicle is
on the jack.
Do not turn the raised wheel. The tires that are still
on the ground could turn and make your vehicle fall
off the jack.
CAUTION
!
Handle the wheel carefully when changing the tire,
to avoid scratching the wheel surface.
WA R N I N G
!
BK0115900US.book 15 ページ ２００９年１０月２７日　火曜日　午後１２時１分

For emergencies
6-23
6
On wet roads On snowy or icy roads

When driving on a road covered with snow or ice, use
snow tires. Tire chains cannot be used on your vehicle.
There may be state or local regulations about using snow
tires. Always check the regulations in your local area
before using them. Refer to the section entitled “Snow
tires” on page 7-28 and “Tire chains” on page 7-29.

Drive slowly. Do not make sudden starts or stops, sharp
turns, or slam on the brakes.

Pressing the brake pedal when driving on snowy or icy
roads can make your tires slip and skid. When a skid
occurs, take your foot off the accelerator. Steer gently into
the skid. As your vehicle is equipped with an anti-lock
braking system (ABS), brake by pressing the brake pedal
firmly and keep it depressed.

Allow extra distance between your vehicle and the vehicle
in front of you, and avoid sudden braking.

After parking on snowy or icy road, it may be difficult to
move your vehicle due to freeze-up of the brake. Depress
the accelerator pedal little by little to move the vehicle
after confirming safety of the vehicle.
CAUTION
!
Avoid flooded roads. Water is often deeper than it
looks, and you could be seriously hurt by driving
into flood water.
When driving in rain, on water-covered roads, or
through a car wash, water could get into the brake
discs and make them fail temporarily. In such cases,
lightly press the brake pedal to see if they are work-
ing properly. If they are not, press the pedal lightly
several times while driving to dry the brake pads,
then check them again.
When driving in rain, a layer of water may form
between the tires and the road surface (aquaplan-
ing). This loosens your tires’ grip on the road, mak-
ing it difficult to steer or brake properly. When
driving on a wet road:
• Drive your vehicle at a safe speed.
• Do not drive on worn tires.
• Always keep the tires at the correct inflation pres-
sures.
CAUTION
!
Do not depress the accelerator pedal rapidly. The
vehicle could start moving when it breaks free from
the ice, possibly resulting in an accident.
BK0115900US.book 23 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Vehicle care and maintenance
7-3

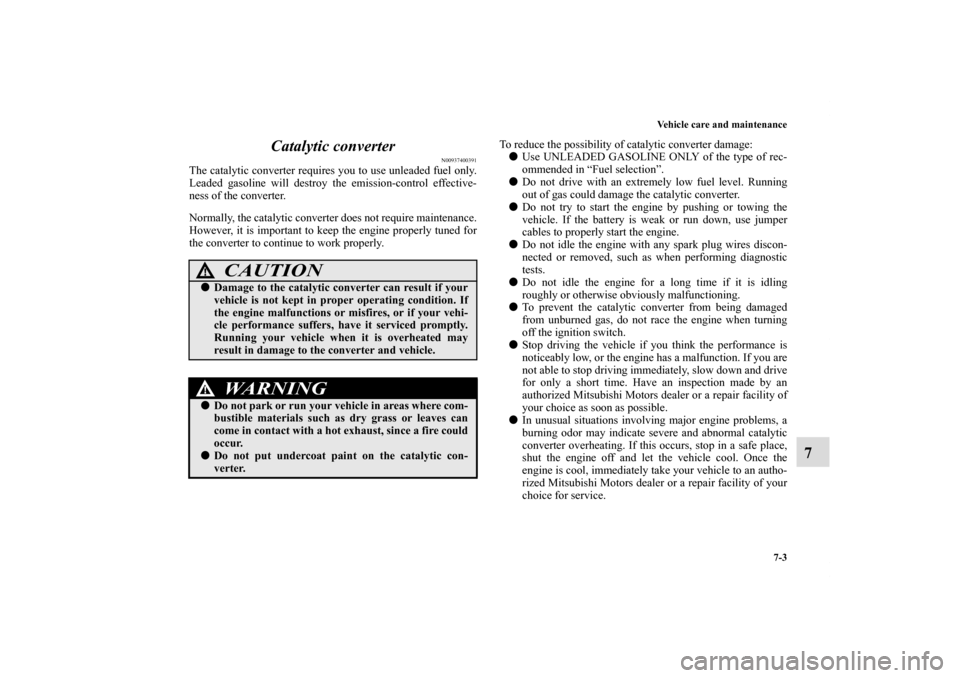

7 Catalytic converter
N00937400391
The catalytic converter requires you to use unleaded fuel only.
Leaded gasoline will destroy the emission-control effective-
ness of the converter.
Normally, the catalytic converter does not require maintenance.
However, it is important to keep the engine properly tuned for
the converter to continue to work properly. To reduce the possibility of catalytic converter damage:

Use UNLEADED GASOLINE ONLY of the type of rec-
ommended in “Fuel selection”.

Do not drive with an extremely low fuel level. Running
out of gas could damage the catalytic converter.

Do not try to start the engine by pushing or towing the
vehicle. If the battery is weak or run down, use jumper
cables to properly start the engine.

Do not idle the engine with any spark plug wires discon-
nected or removed, such as when performing diagnostic
tests.

Do not idle the engine for a long time if it is idling
roughly or otherwise obviously malfunctioning.

To prevent the catalytic converter from being damaged
from unburned gas, do not race the engine when turning
off the ignition switch.

Stop driving the vehicle if you think the performance is
noticeably low, or the engine has a malfunction. If you are
not able to stop driving immediately, slow down and drive
for only a short time. Have an inspection made by an
authorized Mitsubishi Motors dealer or a repair facility of
your choice as soon as possible.

In unusual situations involving major engine problems, a
burning odor may indicate severe and abnormal catalytic
converter overheating. If this occurs, stop in a safe place,
shut the engine off and let the vehicle cool. Once the
engine is cool, immediately take your vehicle to an autho-
rized Mitsubishi Motors dealer or a repair facility of your
choice for service.
CAUTION
!
Damage to the catalytic converter can result if your
vehicle is not kept in proper operating condition. If
the engine malfunctions or misfires, or if your vehi-
cle performance suffers, have it serviced promptly.
Running your vehicle when it is overheated may
result in damage to the converter and vehicle.
WA R N I N G
!
Do not park or run your vehicle in areas where com-
bustible materials such as dry grass or leaves can
come in contact with a hot exhaust, since a fire could
occur.
Do not put undercoat paint on the catalytic con-
verter.
BK0115900US.book 3 ページ ２００９年１０月２７日　火曜日　午後１２時１分

7-18 Vehicle care and maintenance
7
During cold weatherThe battery is weaker in cold temperatures. This has to do with
its chemical and physical properties and is why a very cold bat-
tery, especially one with a low charge, will have a hard time
starting your vehicle.
It is recommended that you have your battery and charging sys-
tem checked by an authorized Mitsubishi Motors dealer or a
repair facility of your choice before the start of cold weather. If
necessary, have it charged. This will guarantee more reliable
starting, and longer battery life.Disconnection and connectionTo disconnect the battery cable, stop the engine. Disconnect the
negative (-) terminal first, then the positive (+) terminal. To
reconnect the battery, first connect the positive (+) terminal and
then the negative (-) terminal, before starting the vehicle.
NOTE
Open the terminal cover (A) before disconnecting or con-
necting the positive (+) terminal of the battery.
BK0115900US.book 18 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Vehicle care and maintenance
7-31
7 Wiper blades
N00940700011
Check the wiper blades occasionally. Clean them regularly to
remove deposits of salt and road film. Use a sponge or cloth
and a mild detergent or non-abrasive cleaner to clean the blades
and glass areas.
Replace the blades if they continue to streak or smear.NOTE
Do not run the wipers on dry glass for a long time. This
wears out the rubber and can scratch the glass.During cold weatherIf the blades are frozen to the windshield or rear window, do
not operate the wipers until the ice has melted and the blades
are freed, otherwise the wiper motor may be damaged.
Emission-control system maintenance
N00940800201
Your vehicle is equipped with an emission-control system that
meets all the requirements of the U.S. Environmental Protec-
tion Agency and Environment Canada. The emission-control
system is made of:

a positive crankcase ventilation system

an evaporative emission-control system

an exhaust emission-control system
The maintenance services listed in the “WARRANTY AND
MAINTENANCE MANUAL” must be performed at the times
or mileages listed to keep the emission-control system working
properly. These, and all the other “general” maintenance ser-
vices listed in this manual, need to be performed to keep your
vehicle running properly and reliably.
You may need more frequent maintenance if you drive your
vehicle in harsh conditions such as dusty areas or do a lot of
start-and-stop driving.
To be sure the emission-control system works properly, have
your vehicle inspected and maintained by an authorized
Mitsubishi Motors dealer or a repair facility of your choice fol-
lowing the schedule in the “WARRANTY AND MAINTE-
NANCE MANUAL”.
You should also have an inspection and service any time you
suspect a malfunction.
BK0115900US.book 31 ページ ２００９年１０月２７日　火曜日　午後１２時１分
